Eneo HDC-2100M1080 User manual

INSTRUCTION MANUAL
Full HD
SDI CAMERA
HDC-2100M1080

2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR
OTHER OPENINGS ON THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
PRECAUTIONS
Safety ---------------------------- Installation -------------------------
CAUTION
RISK OF ELECTRNIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by the qualified
personnel before operating it any further.
Unplug the unit from the wall outlet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.
Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials(curtains, draperies)
that may block the ventilation holes.
Height and vertical linearity controls located at the rear
panel are for special adjustments by qualified
personnel only.
Do not install the unit in an extremely hot or humid place
or in a place subject to excessive dust, mechanical
vibration.
The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.
Cleaning -----------------------------
Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong
solvents such as thinner or benzene as they might
damage the finish of the unit.
Retain the original carton and packing materials for safe
transport of this unit in the future.

3
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
FCC INFORMATION:THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL,
MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS
EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH
CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
CAUTION:CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU
CANADA.
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.

4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been moisture, does not operate
normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK
OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER
THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class
2 power source only.

5
TABLE OF CONTENTS
CONTENTS OF PACKAGE --------------------------------------------------------------- 6
INTRODUCTION ---------------------------------------------------------------------------- 7
CAMERA OVERVIEW --------------------------------------------------------------------- 8
CAMERA INSTALLATION ---------------------------------------------------------------- 9
DC Auto Iris Lens Installation & Adjustment ------------------------------------------ 10
OSD Menu Setup ---------------------------------------------------------------------------- 11
CAMERA OPERATION --------------------------------------------------------------------- 13
CONNECTIONS / DAY&NIGHT IN & ALARM OUT TERMINALS --------------- 18
SPECIFICATIONS --------------------------------------------------------------------------- 19

6
CONTENTS OF PACKAGE
Installation of the camera must be performed by qualified service personnel in accordance with all local and
national electrical and mechanical codes.
Carefully remove the color camera and its accessories from the carton and verify that they were not
damaged in shipment.
The content of the package includes:
1. Color CMOS HD-SDI Camera
2. Mini-DIN connector (DC-type auto-iris lens)
3. CS adapter ring for C mounting "C" lenses
4. This manual

7
INTRODUCTION
Full HD 2Mega pixel Camera HD-SDI
1080@30fps HD-SDI & Composite Video OUT.
Features:
zFull HD (1920x1080p) Real Time
zHigh definition, 1080p video over 100m of RG59 or equivalent cable
zAdvanced Technology for Surveillance
-WDR( Wide Dynamic Range ) / BLC
- 3D-Digital Noise Reduction
- Digital Image Stabilization
- Digital Slow Shutter
- Digital Zoom x10 Max
- Removable IR Cut Filter for Day & Night
- Privacy Zone Masking
- Video Motion Detection
-Day & Night function
zSingle 75Ωcoaxial bi-directional RS 485 interface
zRS 485 interface
zHD-SDI Out/ CVBS Out / Alarm OUT / D&N IN
zQuick connect for DC lens with 4-pin connector
zUser Certified / Listed Class 2 power source only
zOperates in 12VDC or 24VAC

8

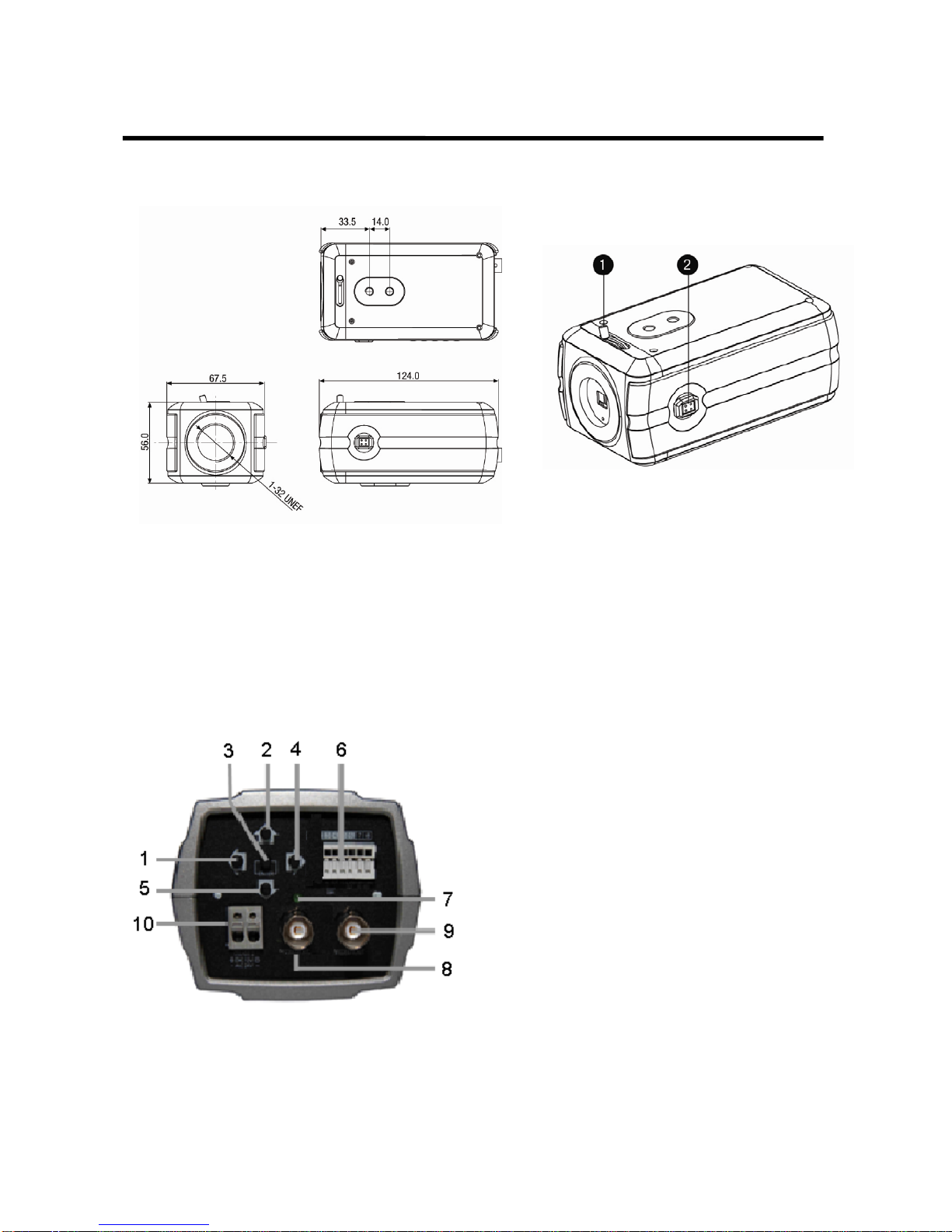

CAMERA OVERVIEW
①FOCUS ADJUSTING / FIXING screw : Tighten this screw after focus the lens of a camera.
②AUTO IRIS LENS connector : Connect the DC auto iris lens 4-pin connector into this connector to
control the amount of light allowed through the lens.
SIDE VIEW
TOP VIEW
REAR VIEW
①Left Button
②Up Button
③Enter Button
④Right Button
⑤Down Button
⑥Day/Night External IN
Motion ALARM OUT RS - 485
⑦Power Indicator
⑧Video Output Connector (BNC)
⑨HD-SDI OUT
⑩DC12V IN/ AC24V IN

9
CAMERA INSTALLATION

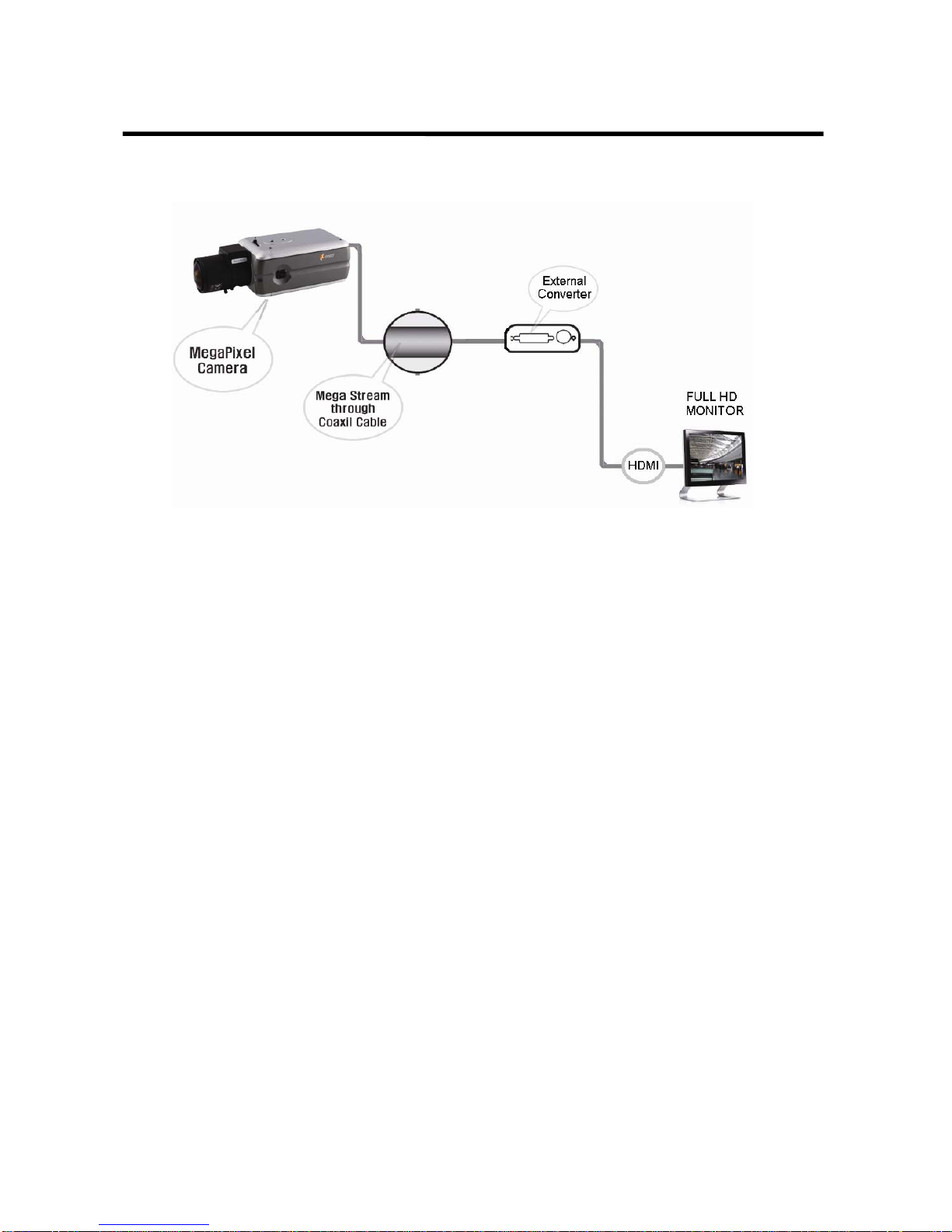

Connection Overview
Starting Installation
1. Install the Lens
- Be careful the lens does not touch camera sensor when installer try to enter the lens into camera.
- Install manual lens or DC auto iris lens.
- If DC auto iris lens needs to install, connect DC auto iris 4-pin connector into iris drive connector
located on the side of the camera.
2. Mount the camera
The camera can be mounted from both top side and bottom side.
3. Connect other peripheral devices
3-1. Connect the other peripheral devices such as Alarm, D&N IN and BNC connector.
3-2. Coaxial Cable is connected to the HD-SDI camera and the Converter
3-3. The HDMI Cable is connected to the Converter and the FULL HD Monitor .
4. Supply the camera with power.
- Connect DC12V or AC24V wires to the camera power connector. Be careful when DC12V wiring
especially the direction of positive and negative. Use power supply compatible with FCC Class2.
- The camera will complete a configuration processing within approximately 4~5 seconds.
5. View the camera image
< NOTES >
●Use megapixel lens for higher image quality.
●Megapixel lenses are designed and tested to deliver optimal image quality to the HD-SDI megapixel
cameras.
●If the standard definition lens was installed on megapixel camera, the image quality will be poor than
expected.
●Recommend to install the megapixel lens from the following lens manufactures.
- TAMRON
- COMPUTAR
- FUJINON

10
DC AUTO IRIS LENS INSTALLATION & ADJUSTMENT
The camera supports DC-type auto iris lenses. Perform the following steps to install and adjust a DC-type
auto iris lens.
- Solder the lens control wires to the connector supplied with the camera.

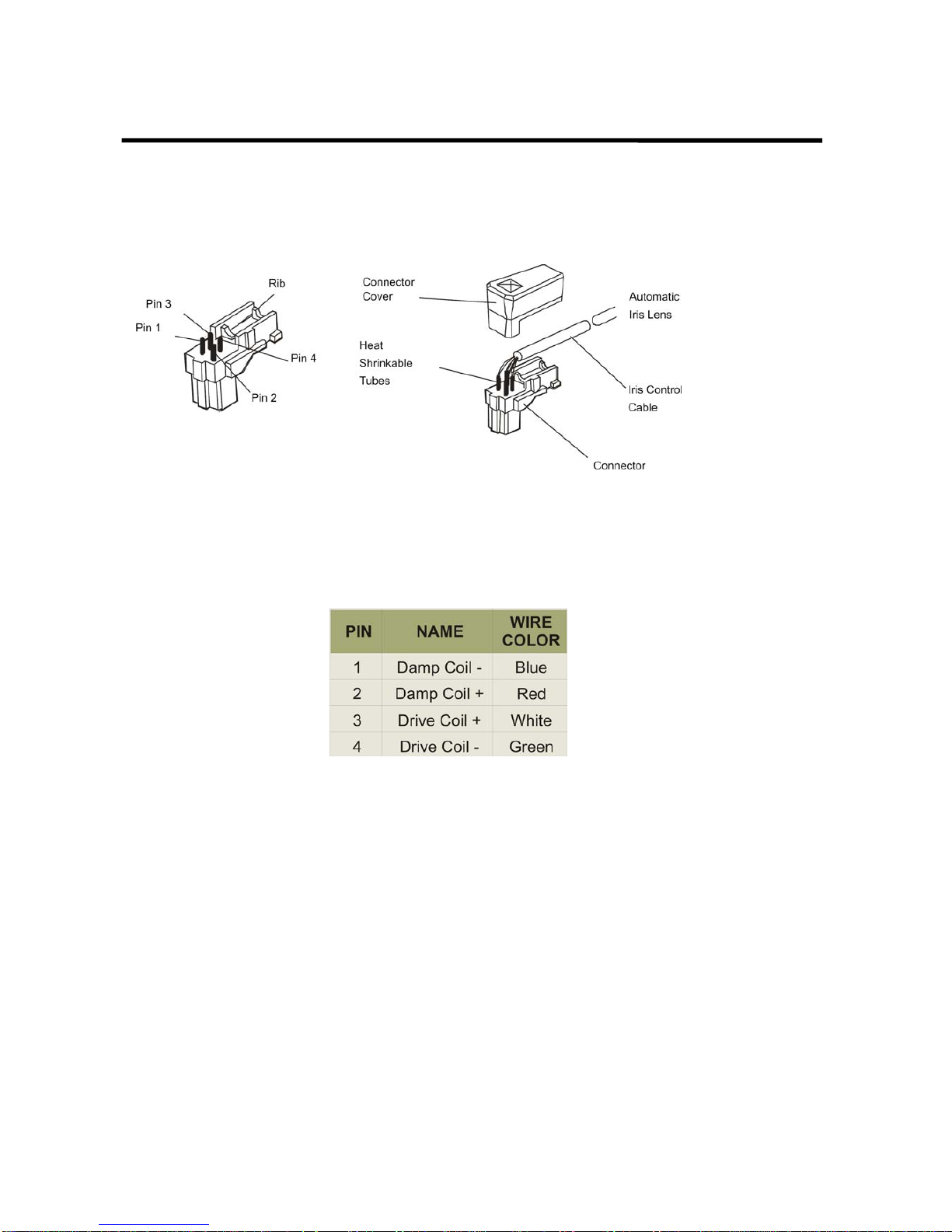

Figure 1. 4-Pin iris driver connector
- Attach the DC-type auto iris lens to the lens mount on the front of the camera.
- Plug the connector into the auto iris jack on the side of the camera. The connector is polarized and can
be inserting into the iris jack one way.
Figure 2. DC auto iris Lens connection

11
OSD MENU SETUP
The following table shows the list of menu items and options.
You can adapt the camera to your requirements by setting up the respective items in these menus
Main Menu Sub Menu Contents
EXPOSURE ELC/ALC
WDR/BLC OFF/WDR/BLC/ HSBLC
BRIGHTNESS 0 to 100
AGC OFF/LOW/MIDDLE/ HIGH
SHUTTER X64, ..., x2, AUTO, OFF,
A.FLK, 1/160, ..., 1/10 000
SENS-UP OFF
AUTO
EXIT RET/TOP/END
WHITE BAL
ATW -
AUTO -
AWC b PUSH -
MANUAL
COLOR TEMP INDOOR, OUTDOOR
RED -100 to 100
BLUE -100 to 100
EXIT RET/TOP
DAY/NIGHT AUTO
LEVEL LOW/ MIDDLE/ HIGH
DWELL TIME 5, 10, 15s
EXIT RET/TOP/END
DAY -
NIGHT -
MOTION DET
OFF -
ON
ZONE NUMBER AREA1 to AREA4
ZONE STATE ON/OFF
HEIGHT 2 to 6
WIDTH 2 to 8
MOVE Y 1 to 5
MOVE X 1 to 7
SENSITIVITY 0 to 100
EXIT RET/TOP/END

12
3D-DNR
OFF -
LOW -
MIDDLE -
HIGH -
PRIVACY
OFF -
ON
COLOR RED, GREEN,
BLUE 0 to 255
TRANSPARENCY 0 to 16 -
RECTANGLE
MASK NUMBER AREA1 to AREA8
RECT. DISPLAY ON/OFF
HEIGHT 4 to 100
WIDTH 4 to 100
MOVE Y 2 to 98
MOVE X 2 to 98
CIRCLE
MASK NUMBER AREA1 to AREA2
CIR. DISPLAY ON/OFF
HEIGHT 1 to 15
WIDTH 1 to 15
MOVE Y 0 to 100
MOVE X 0 to 100
RADIUS SIZE 0 to 100
POLYGON
MASK NUMBER AREA1 to AREA2
POLY. DISPLAY ON/OFF
POLYGON DRAW -
POLYGON MOVE -
EXIT RET/TOP/END
SPECIAL
D-ZOOM
OFF
ON
ZOOM
PAN
TILT
EXIT
D-EFFECT OFF/ MIRROR/ ROTATE/ V-FLIP
SHARPNESS 0 to 68
COLOR OFF/ ON
STABILIZER OFF/ ON
USER TITLE OFF/ ON
LANGUAGE English / German / French / Spanish / Italian / Russian
FRAME RATE 30fps/25fps
EXIT RET/TOP/END

13
RESET
CAMERA
REBOOT -
FACTORY
RESET -
EXIT -
EXIT
CAMERA OPERATION
Main Menu
Click Button on the OSD control Window.
The camera setting menu appears on the view picture
Select a menu option by using up or down button, and push the enter button for submenus.
Select a submenu option by using up or down button.
Use right or left button to select a value.
Select <exit> option then push enter button to exit the setup menu, In the Submenu, use right or left button to
select a mode and push enter button To exit the setup menu
RET : return to the previous.
TOP : return to camera setting menu screen
END : exit the setup menu
<Exposure setting>
Exposure is the amount of light detected by the camera sensor. A scene with correct exposure settings has
adequate detail and contrast between white and dark values. An image with too little or too much exposure
determines detail in the scene. The camera features auto and manual exposure settings.
CAMERA SETTING
▶CAMERAID OFF
EXPOSURE ALC
WHITE BAL ATW
DAY/NIGHT AUTO
MOTION DET OFF
3D-DNR HIGH
PRIVACY OFF
SPECIAL ◄
RESET ◄
EXIT ◄

14
■Exposure mode: Supports exposure modes to control the amount of light detected by the camera sensor
base on settings for light conditions. The default setting is ALC.
●ALC: Automatic Light Control for indoor scenes.
●ELC: Electronic Light Control for outdoor scenes.
●WDR/BLC : Use WDR/BLC option to view the object clearly in backlight condition.
WDR: Wide Dynamic Range feature can be very helpful to cope with very challenging lighting
conditions. It is capable of capturing both of the dark part and bright part and combining the
differences into a scene to generate a highly realistic image as original scene.
BLC: Back Light Compensation feature helps to alleviate the issues of visibility in high contrast area.
●HSBLC: Highlight Suppression Back Light Compensation.
■Brightness: The image brightness can be adjusted in the range 0-20, where a higher value produces
a brighter image.
■AGC: Select an AGC level according to Mode selection.
NOTE
If you set [AGC] to OFF, then the [Day and Night Auto], [SENS-UP] and [3D-DNR] are not available.
■Shutter speed: Select a Shutter speed option.
●X64 to X2: Set to the slow shutter.
●Auto: Adjust the shutter speed automatically.
●Off: Fix to the shutter speed.
●AntiFlk: Set the shutter to anti-flick mode.
●1/160 to 1/10000: Set to the fast shutter.
NOTES
- If you set [Shutter speed] to Auto, then the [WDR] and [SENS-UP] are available.
- If you set [Shutter speed] to AntiFlk, then the [WDR] is available.
- In Shutter speed mode, the [WDR] and [SENS-UP] are not available, except that the mode is Auto or
AntiFlk.
■Sens-Up: If pictures are not clear due to darkness, this SENS-UP operation would increase the
sensitivity of picture.
●
Off: Not in use.
●Auto: Adjust the sensitivity of the picture automatically.
■Sens-Up level: Select the Sense-Up level (x2 to x64).
<White Balance setting >
White Balance Control defines how the camera processes video images to render true colors in a scene.
White balance is especially effective in scenes with changing lighting conditions or in scene with more than
one type of light source.
■White balance mode: Provides the options for White Balance. The default setting is ATW.
●ATW: Auto-Tracking White Balance. In this mode, white balance has better coverage than AUTO.
Proper white balance may not be obtained under the following condition.
>When the scene contains mostly high color temperature objects, such as a blue sky or sunset.
●Auto: Set the white balance mode automatically.

15
●AWC_PUSH: Auto White Balance Control. If you select this mode, you will be able to set up the White
Balance by push triggered white balance in fixed mode.
●Manual : You can set the white balance options manually.
>Color TEMP: use right or left button to select a function.
Indoor: Set the white balance options manually. The color temperature range for the white balance
is approximately 3200K.
Outdoor: Set the white balance options manually. The color temperature range for the white
balance is approximately 5100K.
>RED : set desired red value.
>BLUE : set desired blue value.
<Day & Night setting>
The D&N controls the position of the IR (Infra Red) cut filter, which determines the color or black-white
setting of the camera.
■Day & Night mode: Select a mode for DAY/NIGHT function.
●Auto: Day & Night mode changes automatically.
●Day: Color mode enabled.
●Night: Black-and-white mode enabled.
●EXT: This menu automatically converts the COLOR Mode into the B/W Mode or vice versa depending
on illumination with an external sensor.
< Motion DET setting>
When motion is detected in the area of setting an alarm signal is output
■MOTION DET OFF/ON : Select a mode for M. ON / M. OFF function.
●ZONE NUMBER : Select a motion for area.
●
ZONE STATE : Select a range of motion display box
●
HEIGHT/ WIDTH: motion display box scaling
●
MOVE Y/ MOVE X : motion display box Move.
●
SENSITIVITY : Action sets the sensitivity.
< 3D-DNR setting>
3Dimensional-Digital Noise Reduction function dramatically cleans up the noise in video frames and solves
the problem of low- light sensitivity where it can display high image resolution even in extremely low light
conditions.
■Level: Select one of the 3D-DNR levels.
●Off: Not in use.
●High: Select a High level.
●Middle: Select a Middle level.
●Low: Select a Low level.

16
< PRIVACY setting>
Use the Privacy Mask tab for aiming at the protection of personal privacy.
■Mode: Select an ON mode for Privacy Mask function.
●Off: Not in use.
●On: Set and Use the P-Mask function.
1. Select an ON mode and click the Save button. Then P-Mask OSD windows will be appears.
2. Click the Enter button for PRIVACY SETUP OSD menu.
●Color R/G/B: You can make any color by adjusting R.G.B level.
●TRANSPARENCY: You can adjust the transparency of MASK.
●REC/CIR/POL
●RECTANGLE
1. Use [Left Direction] or [Right Direction] button to select a mask on the [MASK NUMBER].
2. Use [Left Direction] or [Right Direction] button to set up the [ON] or [OFF] on the RECT.DISPLAY
option.
3. Use [Upper Direction] or [Lower Direction] button to select an option then use [Left Direction] or [Right
Direction] button to adjust the option.
- HEIGHT: Increase or decrease the vertical size of the mask.
- WIDTH: Increase or decrease the horizontal size of the mask.
- MOVE X: Moves horizontal position of the mask.
- MOVE Y: Moves vertical position of the mask.
●CIRCLE
1. Use [Left Direction] or [Right Direction] button to select a mask on the [MASK NUMBER].
2. Use [Left Direction] or [Right Direction] button to set up the [ON] or [OFF] on the CIR.DISPLAY option.
3. Use [Upper Direction] or [Lower Direction] button to select an option then use [Left Direction] or [Right
Direction] button to adjust the option.
- HEIGHT: Increase or decrease the vertical size of the mask.
- WIDTH: Increase or decrease the horizontal size of the mask.
- MOVE X: Moves horizontal position of the mask.
- MOVE Y: Moves vertical position of the mask.
- RADIUS SIZE: You can adjust the RADIUS SIZE.
●POLYGON
1. Use [Left Direction] or [Right Direction] button to select a mask on the [MASK NUMBER].
2. Use [Left Direction] or [Right Direction] button to set up the [ON] or [OFF] on the POLY.DISPLAY
option.
3. Use [Upper Direction], [Lower Direction], [Left Direction], [Right Direction] and [Enter] buttons to draw
the polygon by moving each vertex on the [POLYGON DRAW]. Each movable spot each time you can
click the [Enter] button.
4. Use [Upper Direction], [Lower Direction], [Left Direction], [Right Direction] and [Enter] buttons to move
the polygon on the [POLYGON MOVE].

17
< SPECIAL setting>
Implement various functions.
●D-ZOOM : You can select the digital zoom level.
●D-EFFECT : You can select the digital effect.
●SHARPNESS : The degree to which boundary of the two portions is clearly distinguished.
●COLOR : You can switch the displayed picture to gray scale or color.
●STABILIZER : The image stabilizer function minimizes the appearance of shaky images
caused by low-frequency vibration.
This function is useful for outdoor surveillance.
Select the [STABILIZER] option and set to ON or OFF.
Note: If you set the [STABILIZER] to ON, the Digital zoom is set to [x1.1] automatically.
●USER TITLE : You can use the camera identification to assign a number and character
to the camera(0 to 9, A to Z, a to z). To disappear the user title, select [OFF].
1. Select the [USER TITLE] option on the [SPECIAL] screen.
2. Use < or >button to select [ON] then click button. The USER TITLE menu appears.
3. Use ▲, ▼,◀or ▶button to select a character or number then click button.
- CLR: Clear all entered characters and numbers.
- POS: Move the USER TITLE position on the screen using the arrow buttons.
- END: Confirm your selection or exit the setting.
- _ (Blank): Insert a space at the cursor position.
- Å/ Æ: Moves cursor to left or right
●LANGUAGE : Select the viewer language for the camera setup menu and OSD information display.
●FRAME RATE : You can select the HD 30fps or 25fps.(IN 50Hz lighting Condition, 25fps
recommended)
< RESET setting>
■CAMERA REBOOT : Reboot the camera system.
■FACTORY RESET: Clear certain setting and information and return to factory default settings.
The camera is restarted without changing any of the setting.
USER TITLE
USER TITLE
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-._0123456789
ÅÆCLR POS END

18
CONNECTIONS/DAY&NIGHT IN & ALARM OUT TERMINALS
1) DAY&NIGHT IN Terminals
To select Day/Night mode using external equipment, by connecting control lines to the appropriate
terminals.
●DAY/NIGHT EXTERNAL INPUT
Switches the cameras D/N mode to either Day or Night based on the input status.
Refer to the diagram below. The cameras D/N mode must be set to EXT for this to function
2) ALARM OUT - TTL level
Motion detection signals are output through this port. Active state is configurable.
3) CAMERA CONTROL
●1 PIN: RS 485+
●2 PIN: RS 485-
4) POWER INPUT TERMINAL
●This terminal accepts a DC12V or AC24V power
source from a DC12V or AC24V ac +/-10%
60/50Hz +/- 1Hz.
●Use Certified/Listed Class 2 power supply only.
●It is recommended to use the DC power supply that can support inrush current
over 0.75A min
4 G
5 DAY&NIGHTINPUT
CLASS 2
+ DC 12V -
~ AC 24V ~
Open contact : DAY
Close contact : NIGHT
3 ALARMOUT
4 G
ALARM OUT Normal : 0V
ALARM OUT Active : 5V
Period : Alarm out period (5sec)

19
SPECIFICATIONS
Item HD-SDI Camera
Type HDC-2100M1080
Art. No. 200838
Power Power source DC 12V / AC 24V ± 10%
Power consumption 0.3A
Lens Optional
Image sensor 1/2.8” 2Mega Pixel CMOS Sensor
Effective pixels 1920(H) x 1080(V)
Scanning Mode Progressive Scan
Supported Lens Type Auto DC Iris, Manual Iris
Low Light Sensitivity 0.3Lux
HD-SDI Output 1920x1080p@30fps
Resolution 1000 TVL
Output Format
/ Interface
HD-SDI SMPTE-292M / 75 Ohm BNC
Composite 1Vp-p / 75 Ohm BNC
S/N ratio 50dB (AGC OFF)
Camera control RS485 (Faxtrax, Pelco D, Pelco P)
White Balance AUTO / ATW / MANUAL / AWCÆPush / AUTO
White Balance Range 2500°K - 9600°K
Exposure ALC/ELC , HSBLC /BLC/WDR
AGC Off / Low / Middle / High
Shutter Speed Auto, Off, X64 to X2, AntiFlk, 1/160 to 1/10000
Wide Dynamic Range 68 dB
User Title Character (0 to 9, A to Z, a to z)
Display Off /On ( User Title)
3D-DNR Off / Low / Middle / High
Day & Night Auto / Day / Night / Ext
True Day/Night IR Cut / Pass Filter
Privacy zone Color, Transparency, Rectangle, Circle, Polygon
D-Effect Off / MIRROR / ROTATE / V-FLIP
Sense-up x64
Sharpness 0~68 steps
Cam ID 001~255
WDR Limit Low / Middle / High
D-Zoom ZOOM(x10), PAN, TILT
Stabilizer Off / On
Language English / German / French/ Spanish / Italian / Russian
Power input Terminal block
Auto iris output 4-Pin mini din jack (standard connection)
Lens mount C/CS mount
Mounting hole 1/4''-20 UNC (top or bottom)
Control and Connection D/N In, Alarm Out, RS485
Operating Temp. -10ºC to +50ºC
Operating humidity Less than 90%
External dimension 66 (W) x 56 (H) x 120 (D)mm
Weight 280g (only camera)
General
Connec-
tor
& etc
Function

20
eneo®is a registered trademark of Videor E. Hartig GmbH
Exclusive distribution through specialised trade channels only
Videor E. Hartig GmbH
Carl-Zeiss-Straße 8 · 63322 Rödermark, Germany
Tel. [phone] / 888-0 · Fax [phone] / 888-100 Technical changes reserved
www.videor.com © Copyright by Videor E. Hartig GmbH 01/2012
www.eneo-security.com
