Eneo MAM-5MM2001M0A User manual

EN
User Manual
Converter, 4K HD-TVI, HD-CVI,
AHD, to HDMI, indoor
MAM-5MM2001M0A

2
Contents
Panel View......................................................................................................................5
Description..........................................................................................................................................................................6
Features ................................................................................................................................................................................6
Installation View ................................................................................................................................................................6
Notes .....................................................................................................................................................................................7
Package Includes...............................................................................................................................................................7
Specications......................................................................................................................................................................8
Further information .........................................................................................................................................................8

3
EN
Safety instructions
General safety instructions
• Before switching on and operating the system, rst read this safety advice and the operating instructions.
• Keep the operating instructions in a safe place for later use.
• Installation, commissioning and maintenance of the system may only be carried out by authorised
individuals and in accordance with the installation instructions - ensuring that all applicable standards and
guidelines are followed.
• Protect the devices from water penetration and humidity, since these can cause lasting damage.
• Should moisture nevertheless enter the system, under no circumstance switch on the devices under these
conditions, instead send them for examination to an authorised specialist workshop.
• The system must never be used outside of the technical specications, since this can destroy it.
• The device must be protected from excesses of heat, dust, humidity and vibration.
• When separating the system from the voltage supply, only ever use the plug to pull out the cable. Never
pull directly on the cable itself.
• Lay the connecting cables carefully and check that they are not mechanically stressed, kinked or damaged
and that no humidity can penetrate into them.
• In the event of a malfunction, please inform your supplier.
• Maintenance and repairs may only be carried out by authorised specialist personnel.
• The system must be isolated from the power supply before opening the housing.
• The device may only be opened by qualied service personnel. Unauthorised access invalidates any
warranty claim.
• Connection cables should always be exchanged through Videor E. Hartig GmbH.
• Use only original spare parts and accessories from Videor E. Hartig GmbH.
• The housing should only be cleaned using a mild domestic cleaning agent. Never use solvents or petrol as
these can permanently damage the surface.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• The installer is responsible for the maintenance of the enclosure as per the technical data, e.g. by sealing
the cable outlets with silicone.
• Wire end ferrules should be used when shortening the exible connection cables.
• The devices may only be operated in the temperature range indicated in the data sheet and within the
dened air humidity range.

4
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
Graphical symbols
Please pay attention to the safety instructions, and carefully read through this instruction guide before initial
operation.
Important points of warning are marked with a caution symbol.
iImportant points of advice are marked with a notice symbol.

5
EN
Panel View
No. Interface Description
1Power Input Connects to DC12V 0.5A adapter (please refer to Note 1)
2Power LED(Green)
Link LED (Blue)
Green light indicates“ON”status.
Blue light indicates the camera input and HDMI output are linked.
(please refer to Note 2)
375Ω Terminator To be set to ON or OFF is based on whether the Loop Out port is connected to the device or not. (please refer to Note 3)
Default setting: ON
4Loop Out Connects to RG59/RG6U cable to DVR or another MAM-5MM2001M0A.
(please refer to Note 4)
5BNC Input Connects to RG59/RG6U cable from the camera.
6HDMI Output Connects to the HDMI monitor with HDMI cable.
7◄ Button Shows rmware version. (please refer to Note 5)
8► Button Switches HDMI output resolution between 1080p@60Hz and 4K@30

6
Description
MAM-5MM2001M0A allows real-time video from security camera to display on a 4K or
1080p high resolution HDMI monitor for public view. Additionally, this converter also
oers HD Loop Out with UTC function for connecting to DVR or another MAM-5MM-
2001M0A to build the conguration of one to multiple outputs. It’s perfect for business,
home, school application or any place where high-denition monitoring is needed.
Features
• Converts HD-TVI/HD-CVI/AHD signal to HDMI signal.
• BNC input supports: 1080p/4MP/5MP up to 4K (8 MP)
• HDMI output up to 4K @ 30Hz
• Supports both up and down scaling function.
• HD Loop Out support video & data control (Up The Coax).
• Built-in OSD for easy operation.

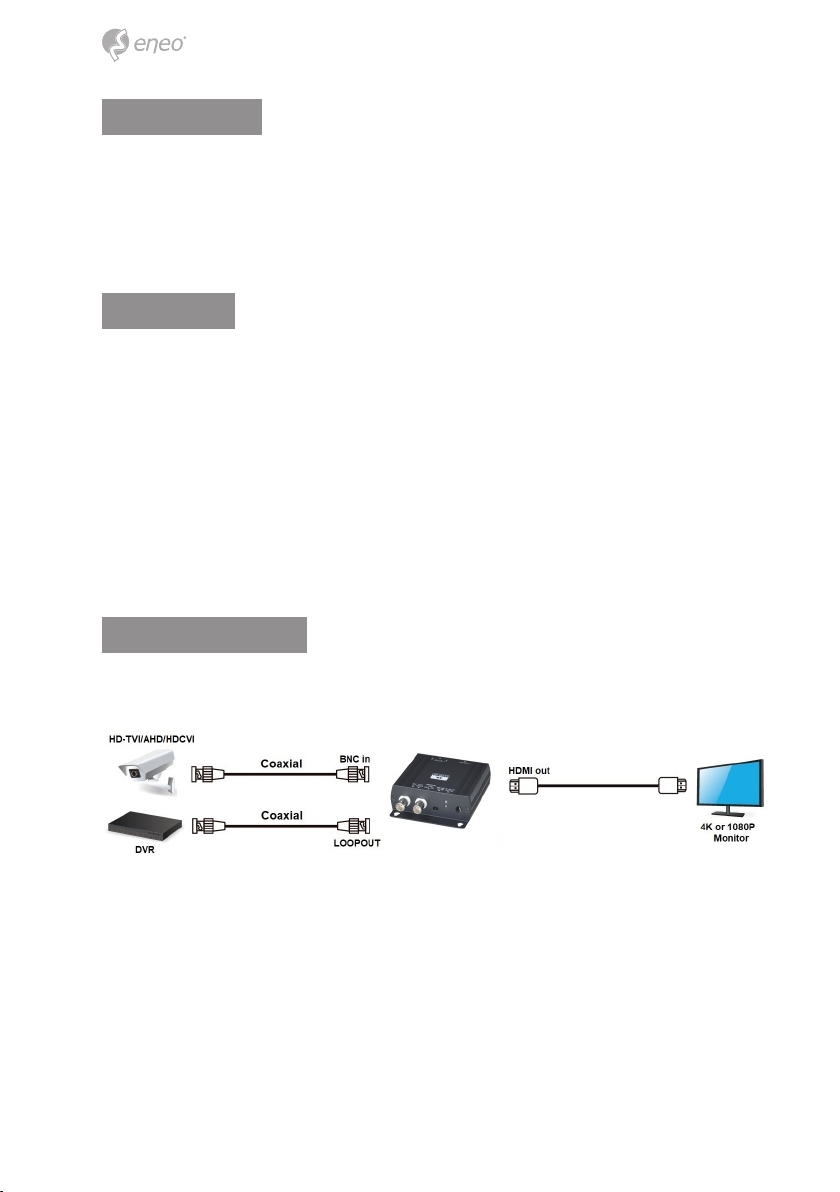

Installation View
Camera to one monitor and DVR for recording

7
EN
Camera to multiple monitors:
Notes
1. It is recommended to plug the power adapter after all input and output ports are
connected. If the input camera or input video format is changed, please replug
the adapter.
2. It takes approximately 20 seconds for building the connection after the power is
turned on or the video format is changed.
3. When the Loop Out port isn’t connected to any devices, the 75Ω Terminator
should be set to “ON”. When the Loop Out port is connected to the device, the
75Ω Terminator should be set to “OFF”.
4. The max. transmission distance from camera to MAM-5MM2001M0A is approxi-
mately 100-200M.
The max. transmission distance from Loop Out port to DVR is approximately
100-300M.
5. Step1: Connects camera and HMDI monitor to MAM-5MM2001M0A, and wait for
the LED to turn blue.
Step2: Remove the camera input
Step3: Click ◄ button, the rmware version will show on the HDMI monitor.
6. The MAM-5MM2001M0A and cables must be away from any equipment with
electromagnetic wave, i.e.: microwave, radio equipment, high voltage.
Package Includes
• MAM-5MM2001M0A x 1pcs
• DC12V 500mA power adapter x 1pcs

8
Specications
Art.-No. MAM-5MM2001M0A
Video Input
Resolution HD-TVI AHD HDCVI
4K (8 MP) 3840 x
2160p 12.5/15 FPS 15 FPS X
5 MP 2592 x 1944p 12.5/20 FPS 20 FPS X
4 MP 2560 x 1440p 25/30 FPS 15/25/30 FPS 25/30 FPS
2 MP 1920 x 1080p 25/30 FPS 25/30 FPS 25/30 FPS
1.3MP 1280 x 720p 30 FPS 25/30 FPS 25/30/50/60 FPS
HDMI Video Output 4K@30Hz
1080p@60Hz
Input Connector BNC
Output Connector HDMI Type-A,BNC
75Ω Terminator 75Ω Terminator x 1
Power Supply 12V 500mA
Power Consumption 300mA
Temperature Operation: 0 to 70 °C; Storage: -40 to 125 °C; Humidity: up to 90%
Dimension (mm) 88mm x 110.5mm x 30mm (W x D x H)
Weight (g) 236g
Further information
The manual is also available from the eneo web site at www.eneo-security.com.

9
EN

10

11
EN

Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
Version 10/2019
