Eneo MAM-5ME1001MTA User manual

EN
Quick Installation Guide
Multisignal Converter, HD-
TVI, AHD, 960H to IP, H.264,
1920x1080, 12VDC
MAM-5ME1001MTA

2
Table of Contents
Components...................................................................................................................5
Installation.....................................................................................................................6
Installation...........................................................................................................................................................................6
Installing Encoder........................................................................................................................................................6
Connectors .........................................................................................................................................................................7
Connections .......................................................................................................................................................................7
Connecting the Network...........................................................................................................................................7
Connecting the Power ..............................................................................................................................................7
Connecting RS485 ......................................................................................................................................................8
Network Connection & IP Assignment.................................................................................................................8
Resetting to the factory default settings.............................................................................................................9
Further information ...................................................................................................................................................... 10

3
EN
Safety instructions
General safety instructions
• Before switching on and operating the system, rst read this safety advice and the operating instructions.
• Keep the operating instructions in a safe place for later use.
• Installation, commissioning and maintenance of the system may only be carried out by authorised
individuals and in accordance with the installation instructions - ensuring that all applicable standards and
guidelines are followed.
• Protect the devices from water penetration and humidity, since these can cause lasting damage.
• Should moisture nevertheless enter the system, under no circumstance switch on the devices under these
conditions, instead send them for examination to an authorised specialist workshop.
• The system must never be used outside of the technical specications, since this can destroy it.
• The device must be protected from excesses of heat, dust, humidity and vibration.
• When separating the system from the voltage supply, only ever use the plug to pull out the cable. Never
pull directly on the cable itself.
• Lay the connecting cables carefully and check that they are not mechanically stressed, kinked or damaged
and that no humidity can penetrate into them.
• In the event of a malfunction, please inform your supplier.
• Maintenance and repairs may only be carried out by authorised specialist personnel.
• The system must be isolated from the power supply before opening the housing.
• The device may only be opened by qualied service personnel. Unauthorised access invalidates any
warranty claim.
• Connection cables should always be exchanged through Videor E. Hartig GmbH.
• Use only original spare parts and accessories from Videor E. Hartig GmbH.
• The housing should only be cleaned using a mild domestic cleaning agent. Never use solvents or petrol as
these can permanently damage the surface.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• The installer is responsible for the maintenance of the enclosure as per the technical data, e.g. by sealing
the cable outlets with silicone.
• Wire end ferrules should be used when shortening the exible connection cables.
• The devices may only be operated in the temperature range indicated in the data sheet and within the
dened air humidity range.
Product - Specic Safety Instructions
• The camera may never be pointed directly at the Sun with the aperture open (this will destroy the sensor).
• It is unavoidable that during manufacture and to a certain extent during later use, humidity will be present
in the ambient air within the device’s housing. In the event of large temperature uctuations, this humidity
may condense inside the housing.
• To avoid this condensation inside the very tightly sealed housing, the manufacturer has inserted silica gel
sachets in the housing of the various camera types.
• It is however a physical given, that these silica gel bags will reach saturation after a certain amount of time.
They should therefore be replaced with new silica gel sachets.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• A multipolar, easily accessible isolation device should be installed in the proximity of the IR Spotlight, in
order to disconnect the device from the power supply for service work.
• The earth connection must be made according to the low impedance requirement of DIN VDE 0100.
• Subsequent painting of the equipment surface can impair the function.
• Any warranty claim is invalidated by subsequent painting.
• A safety margin of > 1m from the spotlight must be maintained when viewing directly into the IR Spotlight
in a darkened environment.
• Do not look directly at invisible LED radiation using optical instruments (e.g. a reading glass, magnifying
glass or microscope), since this can endanger the eyes, LED Class 1M.
• Operation of the IR spotlight with a defective cover or during repair is prohibited.

4
Class A device note
This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may
need to take appropriate measures to compensate for these.
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.
Graphical symbols
Please pay attention to the safety instructions, and carefully read through this instruction guide before initial
operation.
Important points of warning are marked with a caution symbol.
iImportant points of advice are marked with a notice symbol.

5
EN
Components
This system comes with the following components;
• HD encoder
• Installation Guide/CD
• Mounting bracket
• Accessory Kit
NOTE: Adapter for 12 VDC is not supplied.

6
Installation
Installation
For the operation of the HD encoder, it is necessary to connect a network cable for data
transmission, power connection from supplied power adapter. For its xation on dierent
locations, please consult with an installer.

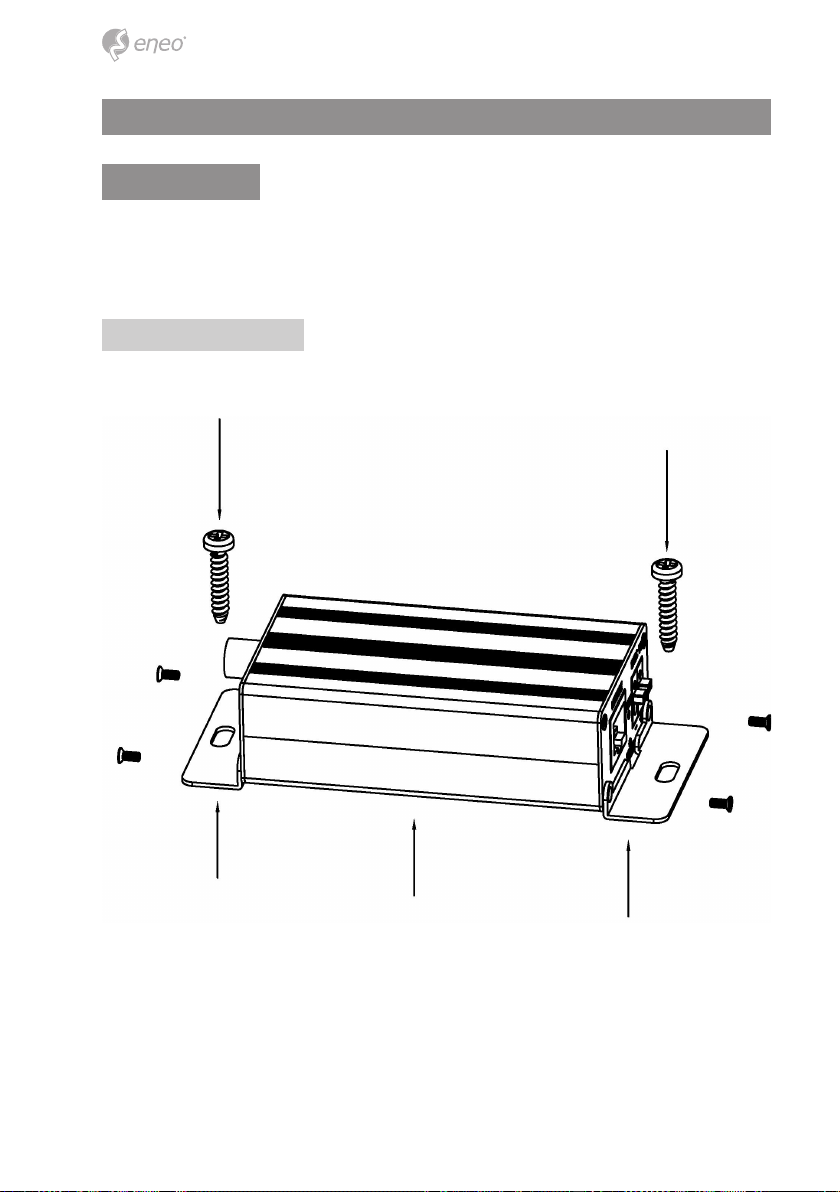

Installing Encoder
Encoder
Mount screw
Mount bracket
Mount bracket
Mount screw

7
EN

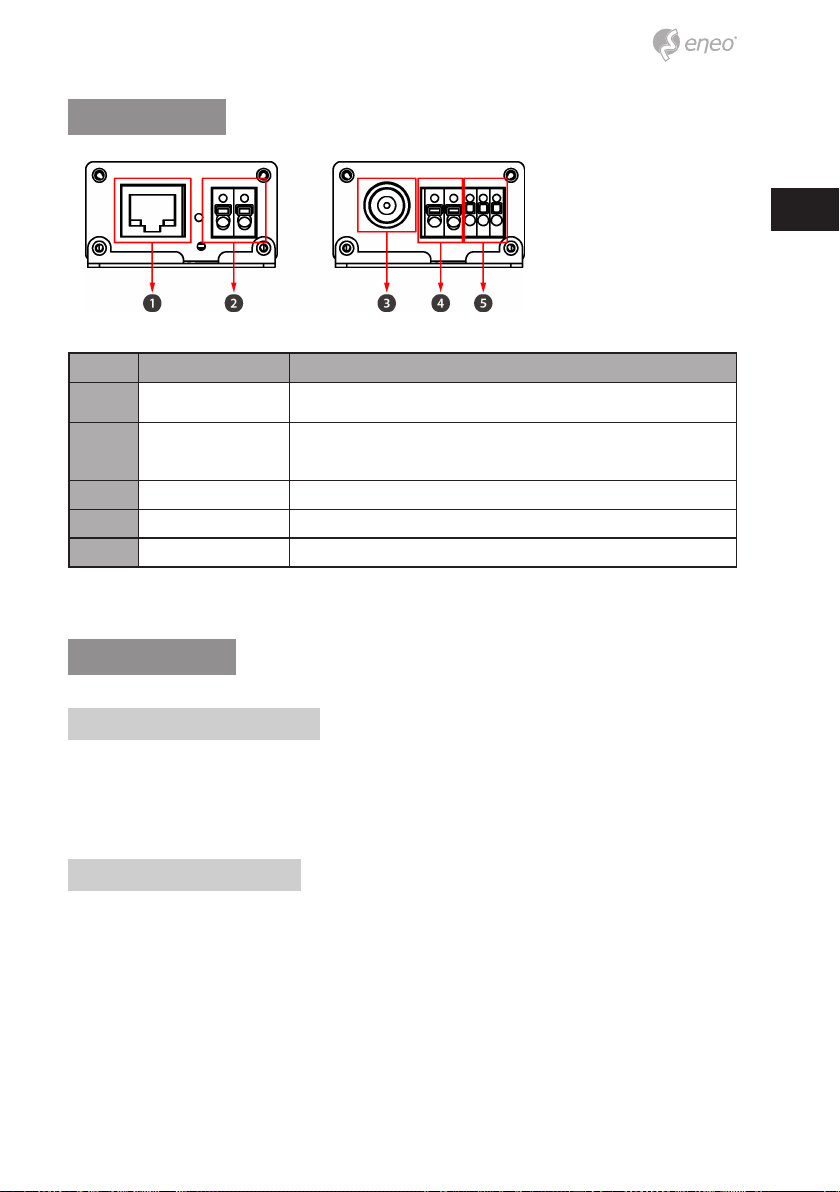

Connectors
No. Connector Description
1RJ-45 Ethernet, RJ-45 port compatible with 10/100Mbps modular jack
22-pin terminal 12 VDC input
3BNC BNC camera video input
42-pin terminal 12 VDC output for BNC camera
53-pin terminal RS485
Connections
Connecting the Network
Connect a standard RJ-45 cable to the network port of the encoder. Generally a crossover
cable is used for directly connection to PC, while a direct cable is used for connection to
a hub.
Connecting the Power
Connect power of 12VDC for the encoder.
Connect the positive (+) pole to the‘+’position and the negative (-) pole to the ‘-’ position.

8
CAUTION:
• Be careful not to reverse the polarity when you connect
the power cable.
• For the power specications, refer to the Users Manual
Appendix, Product Specication.
Connecting RS485
Connect PTZ camera to RS485 terminal to control PTZ camera.
Network Connection & IP Assignment
The eneo Site Manager (downloadable from www.eneo-security.com) is used to locate all
eneo network cameras in a local network. The tool does not need to be installed with a
setup program. The program exe-le can be started with a simple double click to use the
program.

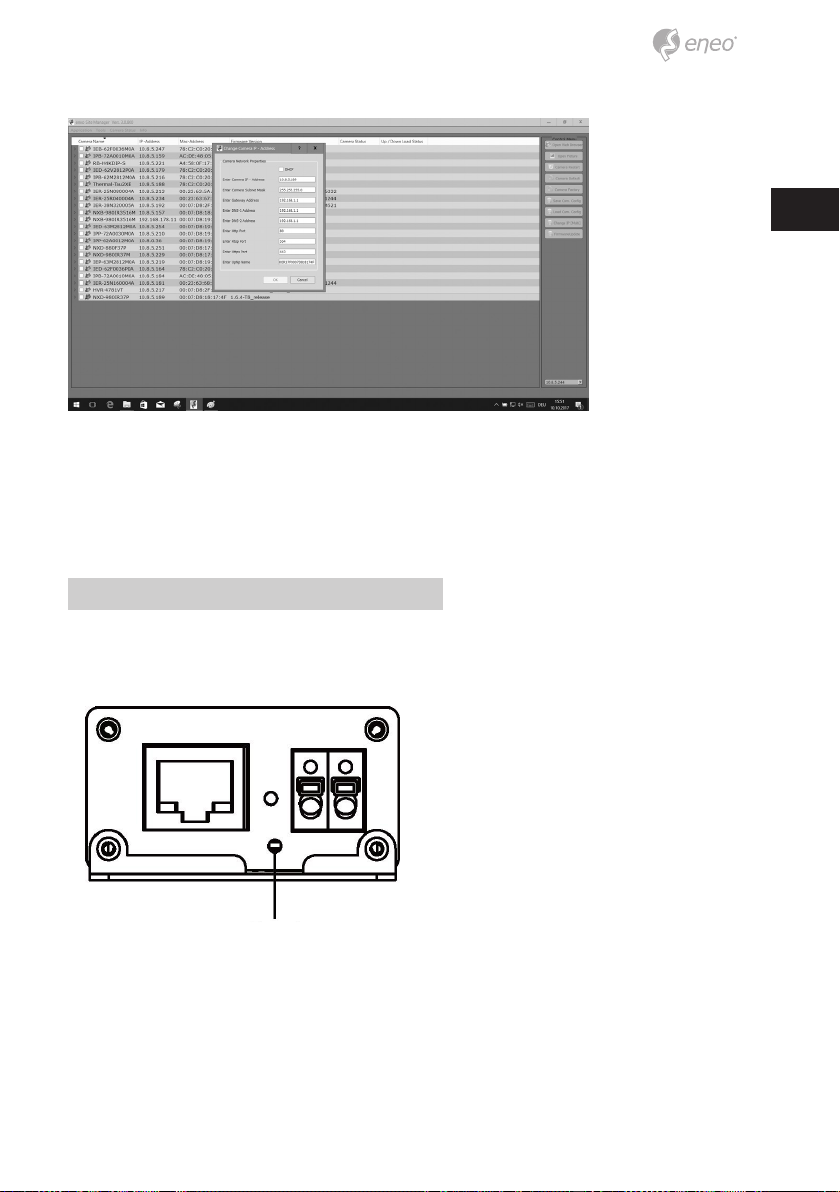

You will get a list of cameras connected to the local network. Highlight your camera in
the list and open a context menu with a click of the right mouse button.

9
EN
Select the „Set IP Address [dhcp / static]“ option to open a window for setting the camer-
as IP properties. When you are done click the„OK“ button to update the camera settings.
For further information, please refer to the eneo Site Manager Quick Start Guide.
Resetting to the factory default settings
To reset the encoder to the original factory settings, go to the Setup > System > Mainte-
nance web page (described in ”System > Maintenance” of Users Manual) or use the Reset
button on the encoder.
Using the Reset button:
Follow the instructions below to reset the encoder to the factory default settings using
the Reset button.
1. Switch o the encoder by disconnecting the power adapter.
Reset Button

10
2. Press and hold the Reset button with a straightened paperclip while reconnecting
the power.
3. Keep the Reset button pressed until the Status indicator blinks.
4. Release the Reset button.
5. When the Power Indicator changes to Green (may take up to 40 seconds), the
process is complete and the encoder has been reset.
6. The encoder resets to factory default and restarts after completing the factory
reset.
CAUTION: When performing a Factory Reset, you will lose any settings that have been
saved. (Default IP 192.168.1.10)
Further information
Make sure to always upgrade to the latest rmware version available from the eneo web-
site at www.eneo-security.com to receive the latest functionality for your product.
The manual, and other software tools are available on the eneo website at www.eneo-se-
curity.com or on the included CD.
Information on compatible video management software solutions can be found in the
category Videomanagement at www.eneo-security.com.
Open Source Software
The software included in this product contains copyrighted software that is licensed
under open source licenses.
You may obtain the complete corresponding source code from eneo for a period of three
years after the last shipment of this product by sending email to: opensource@eneo-se-
curity.com.
If you want to obtain the complete corresponding source code with a physical medium
such as CD-ROM, the cost of physically performing source distribution might be charged.
For more details about Open Source Software, refer to the eneo website at www.eneo-se-
curity.com or an included product CD.

11
EN

Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
Version 10/2017
eneo® is a registered trademark of
VIDEOR E. Hartig GmbH
Exclusive distribution through specialised
trade channels only.
VIDEOR E. Hartig GmbH
Carl-Zeiss-Straße 8
63322 Rödermark/Germany
Tel. +49 (0) 6074 / 888-0
Fax +49 (0) 6074 / 888-100
www.videor.com
www.eneo-security.com
