Eneo TAM-4MM1001M0A User manual

EN
User Manual
HD-TVI Converter to HDMI/VGA/
CVBS, Indoor
TAM-4MM1001M0A

2
Table of content
Parts supplied ...............................................................................................................4
Panel View .....................................................................................................................5
LED Indication ...................................................................................................................................................................5
Switch and Button Functions .......................................................................................7
DIP Switch 1: LOOPOUT / CVBS OUT Function Selection ..............................................................................7
DIP Switch 2 : INPUT/OUTPUT Mode Selection ................................................................................................8
DIP Switch 3: PIP Mode ............................................................................................................................................8
DIP Switch 4: PIP Dimension Setting ....................................................................................................................9
Restore Factory Default...................................................................................................................................................9
Installation ..................................................................................................................10
HD-TVI Loopout Mode ................................................................................................................................................ 10
CVBS Output Mode ....................................................................................................................................................... 10
HD-TVI Input Mode ....................................................................................................................................................... 11

3
EN
Safety instructions
General safety instructions
• Before switching on and operating the system, rst read this safety advice and the operating instructions.
• Keep the operating instructions in a safe place for later use.
• Installation, commissioning and maintenance of the system may only be carried out by authorised
individuals and in accordance with the installation instructions - ensuring that all applicable standards and
guidelines are followed.
• Protect the devices from water penetration and humidity, since these can cause lasting damage.
• Should moisture nevertheless enter the system, under no circumstance switch on the devices under these
conditions, instead send them for examination to an authorised specialist workshop.
• The system must never be used outside of the technical specications, since this can destroy it.
• The device must be protected from excesses of heat, dust, humidity and vibration.
• When separating the system from the voltage supply, only ever use the plug to pull out the cable. Never
pull directly on the cable itself.
• Lay the connecting cables carefully and check that they are not mechanically stressed, kinked or damaged
and that no humidity can penetrate into them.
• In the event of a malfunction, please inform your supplier.
• Maintenance and repairs may only be carried out by authorised specialist personnel.
• The system must be isolated from the power supply before opening the housing.
• The device may only be opened by qualied service personnel. Unauthorised access invalidates any
warranty claim.
• Connection cables should always be exchanged through Videor E. Hartig GmbH.
• Use only original spare parts and accessories from Videor E. Hartig GmbH.
• The housing should only be cleaned using a mild domestic cleaning agent. Never use solvents or petrol as
these can permanently damage the surface.
• During installation, it is essential to ensure that the seals provided are correctly installed and that they are
not displaced during installation. Damaged seals must not be installed and will invalidate any warranty.
• The installer is responsible for the maintenance of the enclosure as per the technical data, e.g. by sealing
the cable outlets with silicone.
• Wire end ferrules should be used when shortening the exible connection cables.
• The devices may only be operated in the temperature range indicated in the data sheet and within the
dened air humidity range.
Class A device note
This is a Class A device. This device can cause malfunctions in the living area; in such an event, the operator may
need to take appropriate measures to compensate for these.
WEEE (Waste Electronical & Electronic Equipment)
Correct Disposal of This Product (Applicable in the European Union and other European countries with separate
collection systems).
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government
oce, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product should not be mixed with other commercial wastes for disposal.

4
Graphical symbols
Please pay attention to the safety instructions, and carefully read through this instruction guide before initial
operation.
Important points of warning are marked with a caution symbol.
iImportant points of advice are marked with a notice symbol.
Parts supplied
• HD-TVI Converter
• Power supply
• Instruction manual

5
EN

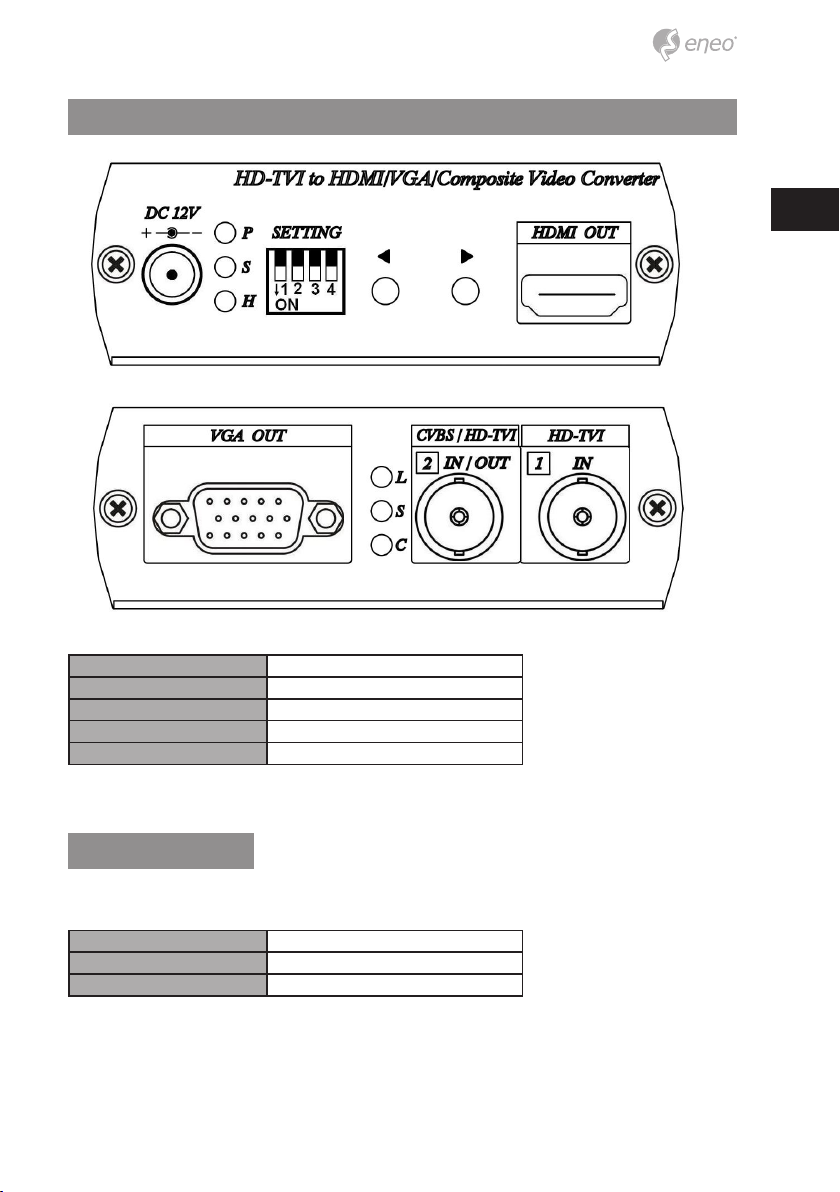

Panel View
DC 12 V DC 12V power terminal
HDMI OUT HDMI output interface
VGA OUT VGA output interface
➀IN First source input interface
②IN/OUT Multiple function source input/output interface
LED Indication
DC Jack LED:
Green P Power ON
Blue S Input 1 signal received
Red H HDMI output linking

6
②IN/OUT Connector LED (BNC):
Green L Under LOOPOUT mode
Blue S Input 2 signal received
Red C CVBS OUT mode

7
EN
Switch and Button Functions
DIP Switch 1: LOOPOUT / CVBS OUT Function Selection
DIP Switch 1 ⇑(LOOPOUT)
②IN/OUT connector setting as LOOPOUT mode
Button for resolution switching, press ◄button to decrease the resolution, press ►button
to increase output resolution.
Resolution for switch sequence will be follow as below:
480p ➔576p ➔720p@60 ➔720p@50 ➔1080i@60 ➔1080i@50 ➔1080p@60
➔1080p@50
PAL (CVBS) output resolution setting on 576p, 720p@50,1080i@50, 1080p@50
NTSC (CVBS) output resolution setting on 480p, 720p@60, 1080i@60, 1080p@60
DIP Switch 1 ⇓(CVBS OUT)
②IN/OUT connector setting as CVBS mode
Button for underscan adjustment, press ◄decrease CVBS OUT underscan, press ►enlarge
CVBS OUT underscan
CVBS underscan adjustment is to avoid overscan situation on CRT screen (Overscan is the
situation in which not all of a televised image is present on a viewing screen) which cause
picture enlarge and could not see the edge of screen. The reduce screen adjustment
range could be from minimum 0% up to 20% based on each time 2% reduced.

8
DIP Switch 2 : INPUT/OUTPUT Mode Selection
DIP Switch 2 ⇑(Output Mode)
②IN/OUT connector setting as output mode, ②IN/OUT connector function
followed by DIP Switch 1 selection.
DIP Switch 2 ⇓(Input Mode)
②IN/OUT connector setting as input mode, ②IN/OUT connector function as
input 2, DIP Switch 1 setting will be ignored.
Button as input selection, press ◄to display Input 1 picture, press ►to display input 2
picture, the current input display will be add * symbol marked.
To press the ◄► two buttons together could switch the SD aspect ratio; the switching
aspect ratio is 16:9 or 4:3. When the source is NTSC or PAL will affects HDMI and VGA
output, please follow the source to make adjustment. If the input is 960H video format,
then make the aspect ratio setting at 16:9. For HD-TVI input aspect ratio is xed at 16:9,
this setting is not affected.
DIP Switch 3: PIP Mode
DIP Switch 3 ⇓(PIP Mode)
This function can only be activated on DIP Switch 2 ⇓

9
EN
Button as PIP sub-screen display position, press ◄Counter-Clockwise to switch, press ►
Clockwise switch
When press two buttons together, two inputs can be switched between the main picture
and sub picture.
DIP Switch 4: PIP Dimension Setting
DIP Switch 4 ⇓(Adjust PIP Dimension)
This function can only be activated on DIP Switch 2 and DIP Switch 3 both at ⇓
position.
Button as PIP sub-screen dimension setting, press ◄to decrease PIP sub-screen dimen-
sion, press ►button to enlarge PIP sub-screen dimension.
Restore Factory Default
Unplug power and hold to press ◄button for 5 seconds, then release ◄button.
CAUTION:
• Before switching HDMI/VGA monitor, please make sure
your monitor supported resolution. If the monitor not sup-
ports the resolution, then there will be no output.
• If the PIP sub-screen from SD source, then the sub-screen
picture will comes black edge.
• This product TVI input and TVI loop out do not support
audio and data transmission.

10

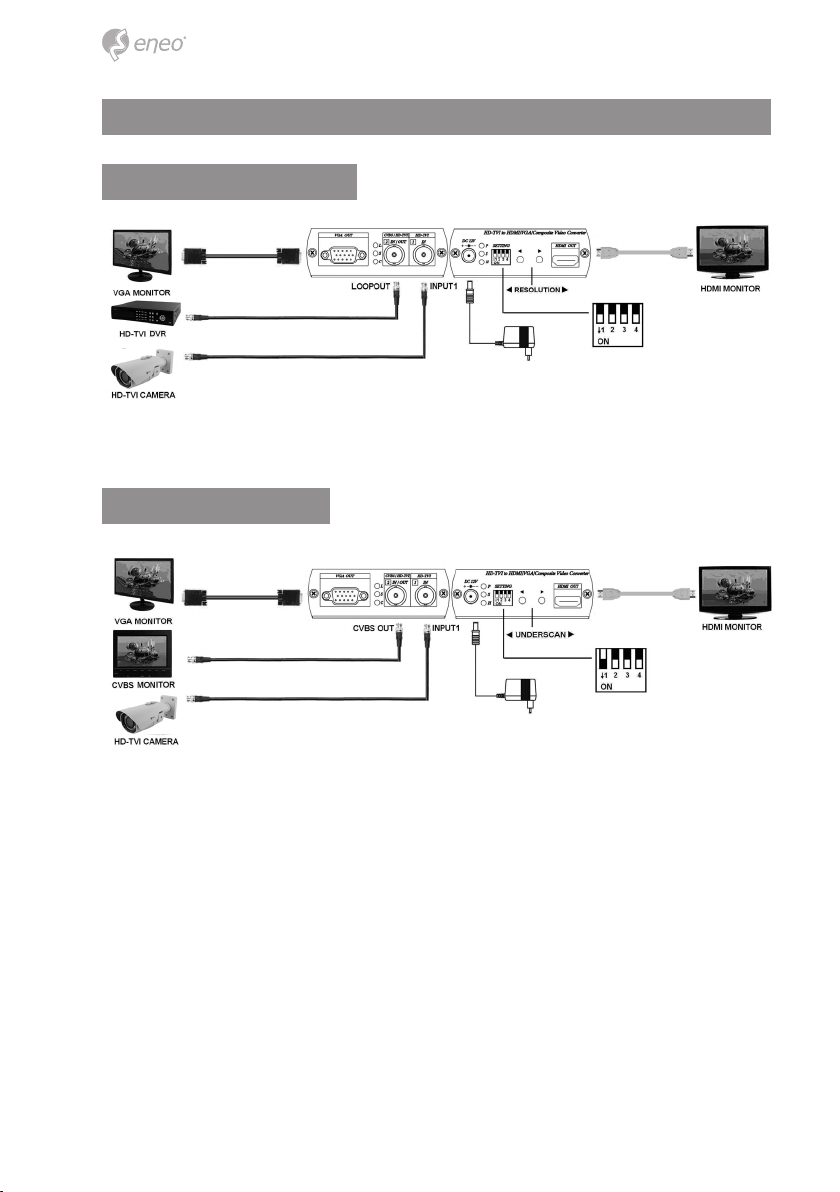

Installation
HD-TVI Loopout Mode
3 outputs: HDMI, VGA, HD-TVI loop output as a distributor.
CVBS Output Mode
3 outputs: HDMI, VGA, CVBS could be display simultaneously.

11
EN
HD-TVI Input Mode
Allow HD-TVI camera 2 inputs with 2 outputs: HDMI, VGA as a switcher.

eneo® is a registered trademark of
VIDEOR E. Hartig GmbH
Exclusive distribution through specialised
trade channels only.
VIDEOR E. Hartig GmbH
Carl-Zeiss-Straße 8
63322 Rödermark/Germany
Tel. [phone] / 888-0
Fax [phone] / 888-100
www.videor.com
www.eneo-security.com
Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
Version 04/2016
