Eneo ICB-62M2713MAA User manual

EN
User Manual
1/2.8” Network Camera,
1920x1080, Day&Night, DOL-WDR,
2.7-13.5mm, Infrared, IP67
ICB-62M2713MAA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Safety Precaution
03
MEGA-PIXEL NETWORK CAMERA

Safety Precaution
04
NOTICE
• The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
• Avoid installing areas where has shock or vibration which results in the problems.
• Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
• Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
• Use only a mild detergent to clean the housing body.
• The camera should never be operated beyond the technical specifications.
This can lead to destruction.
• The camera should never be operated in water.
MEGA-PIXEL NETWORK CAMERA

Contents
05
MEGA-PIXEL NETWORK CAMERA
Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p
Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p
Installation Instructions . . . . . . . . . . . . . . . . 09~16p
Operating Instructions . . . . . . . . . . . . . . . . . 19~22p
. . . . . . . . . . . . . . . . . . . . . . . . . 17~18p
Specifications
Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 23~70p
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 71~72p
3-1. Information
3-2. Video & Image
3-3. Record
3-4. Event
3-5. System
1. LIVE VIEW
2. PLAYBACK
3. SETUP
........................................................ 23p
............................................... 26p
......................................... 26p
....................................................... 25p
............................................................... 26p
........................................................ 42p
...................................................... 45p
...................................................... 57p
4. 4 EYES PRINCIPLE ................................. 68~70p

Features
06
MEGA-PIXEL NETWORK CAMERA
• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)
• The best low light performance with SONY’s STARVIS sensor
• ONVIF Conformance
• ONVIF Event Mapping
• Zero configuration
• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)
• Adaptive web resizing depending on layout & resolution of
display device by RESPONSIVE WEB
• Increased usability for all PC, tablet and mobile
• HTML5 playback for recorded video on Micro SD card
• Simultaneously H.264, H.264+ (Smart Stream),
H.265, H.265+ (Smart Stream), MJPEG (Multi streaming)
• f=2.7~13.5mm, Motorized vari-focal lens
• Motorized Zoom & Focus Adjustment
• True Day&Night by ICR
• DOL HDR (Digital Overlap High Dynamic Range)
• D-WDR (Digital Wide Dynamic Range)
• Improved noise figure with the enhanced 3DNR
• LDC(Lens Distortion Compensation)
• Smart Video Stream, ROI(Region of Interest)
- Enables to process video data smartly according
to users demand.
- Lowering overall bandwidth and reduce the storage burden
• Privacy Mask, Motion Detection, HLC/ BLC,
Digital Zoom(~x8), Mirror/Flip, Contrast, Brightness, Hue,
Saturation, Sharpness
• PoE(IEEE Std. 802.3af)
• 4pcs High power SMD LED
• Dual window for protecting IR reflection
• One-touch 3-Axis locking bracket with Junction Box
• Integral Junction Box (Option)
- Both RJ-45 and Network wiring connector(LSA) for flexible
Network/PoE connection.
- Junction Box cover opening (Sabotage) alarm integrating
with various event actions.
- Simple wiring and tidy cable arrangement.
• Cooling Fan & Optimized Heat sink System
• IP67 Protection

Composition
07

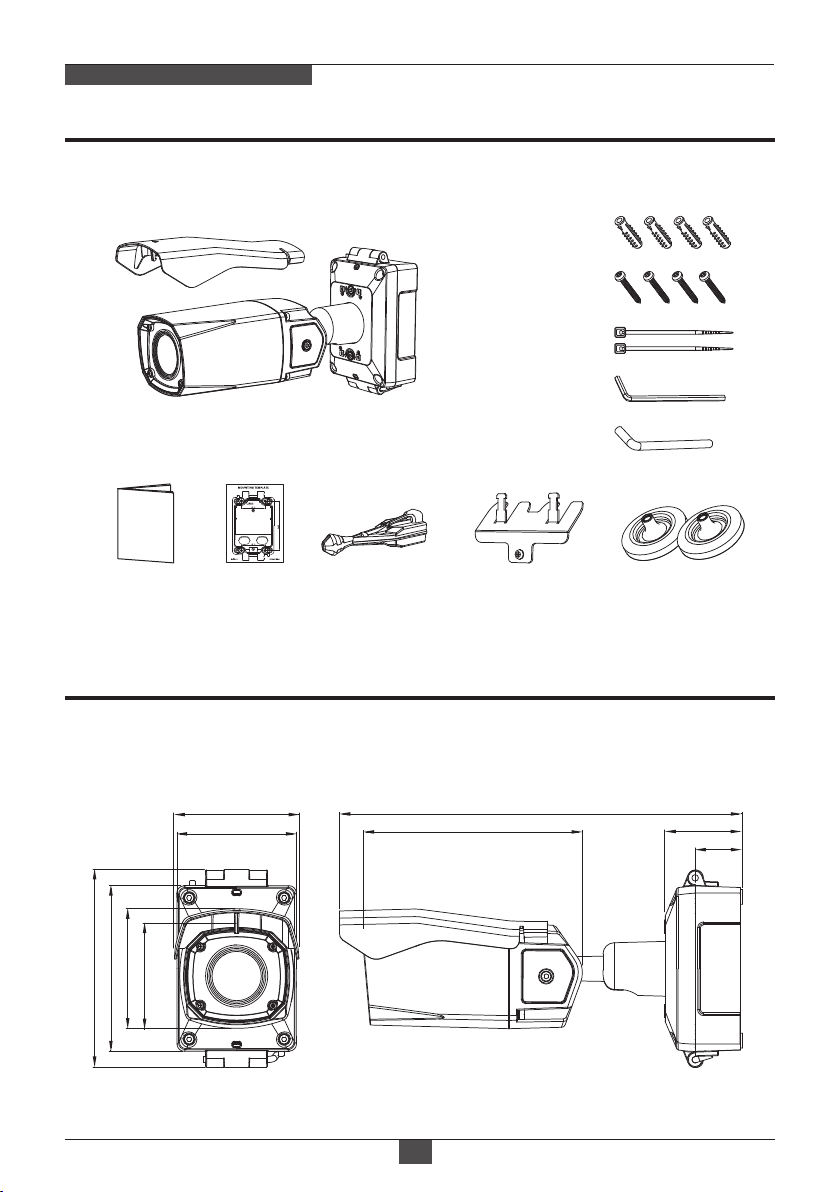

Dimension (unit : mm)
MEGA-PIXEL NETWORK CAMERA
Camera unit
Sunshield
79.18
82.15 265.80
145.90 51.40
31.00
130.50
109.20 79.00
69.10
Torque Wrench:
3mm (1pc)
Cable tie (2pcs)
Hinge pin (1pc)
Mounting Screw:
4 x 30mm (4pcs)
Plastic Anchor:
6 x 30mm (4pcs)
Mounting
Template
Operating
Instruction
Grommet (2pcs) Cable fixation plate
with Fixing screw
RJ45 Easy Cap
for Grommets

MEGA-PIXEL NETWORK CAMERA
Part Names
08
DUAL
WINDOW
BODY CASE
SUNSHIELD
BRACKET
JUNCTION BOX TOP
JUNCTION BOX
BASE
2x Lock/Unlock Screw
2x Water drain
Hinge Pin
[ JUNCTION BOX BOTTOM ]
Ethernet from Cam.
User Network
Network wiring
Connector
Junction Box
Open Alarm
Power & I/O
to Cam.
Alarm
[ Inside of Opening Cover ]
IP
RESET
SD MEMORY
Micro
SD Card Slot
IP Reset (Default) : pressing for 5~8 secondsresets
all parameters to original factory settings.

Installation Instructions
09
Cover Opening(Sabotage) Alarm and External Alarm Input are electrically tied
together internally.
Alarm contact types, N.O or N.C are selectable by the Alarm Input Selection
Jumper and the selection types should be matched with Alarm Type in setup
menu.
When both of Cover Opening Alarm and External Alarm Input are used at the
same time, the alarm contact types must match. Otherwise, alarm malfunctions.
When External Alarm Input only is used with disabling Cover Opening Alarm,
remove the jumper cap of Alarm Input Selection Jumper.
Default setting for Alarm Input selection jumper is N.C. It prevents from Alarm is
generating when Junction box is OPEN during installation. Alarm Input selection
jumper should be set to N.O and Event Trigger/Action should be dened to enable
Cover opening alarm.
For Cover Opening Alarm, please go to SETUP> Event Rules> Event Processing>
Add Event Trigger should be set to “Alarm In” and then Event Action should be
set as available options.
• Cover Opening Alarm and External Alarm Input :
CAUTION
N.O : Alarm is generated when Junction box is OPEN.
N.C : Alarm is generated when Junction box is CLOSED.
[N.O] [N.C]
Cover opening alarm switch
(Sabotage alarm)
Alarm Input selection jumper
MEGA-PIXEL NETWORK CAMERA

Installation Instructions
10

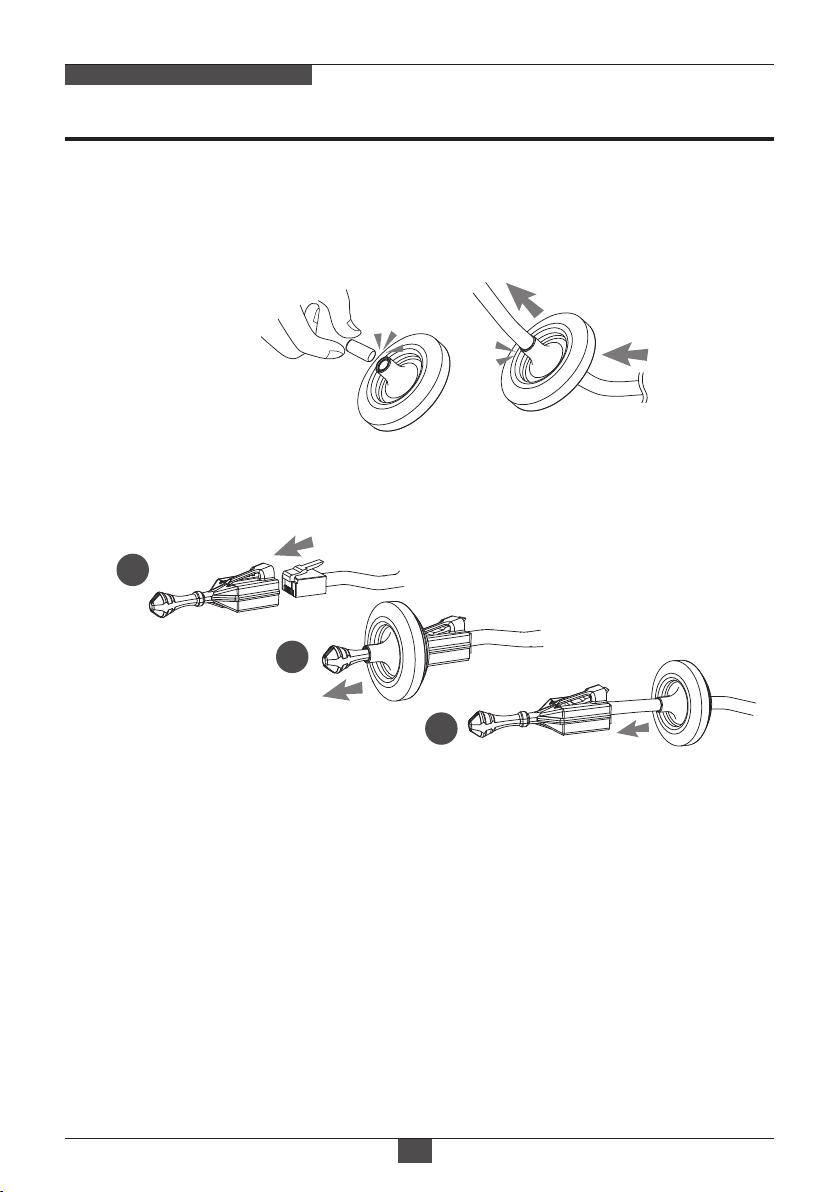

• Using Grommet :
Tear off the cocks of grommets properly and pull up the grommet so that sealing
can
wrap the cable properly as illustrated. If it doesn’t wrap the cable properly,
it could cause the water leakage problem.
3
2
1
• Using RJ45 Easy Cap for Network cable :
• Recommended cable length into the Junction box base :
- CABLE with RJ-45 Connector: 70mm~80mm
- CABLE for Network Wiring Connector: 20mm~30mm (excluding cable tripping section)
8P cable stripping distance: 20mm~30mm
- Alarm/Audio CABLE: 20mm~30mm (excluding cable tripping section)
6P cable stripping distance: 20mm~30mm
MEGA-PIXEL NETWORK CAMERA
