Eneo MPD-78M2713M0A User manual

EN
User Manual
1/2.8" HD Dome Fix, Day&Night,
3840x2160, Infrared, WDR,
2.7-13.5mm, 12VDC, IP67
MPD-78M2713M0A

Safety Precaution
03
ULTRA CLEAR RESOLUTION CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~12
Operating Instructions
p.13~32
Specifications
p.33

ULTRA CLEAR RESOLUTION CAMERA
Features
Key Features
06
• 8Mega Pixel CAMERA, 3840x2160(15/12.5fps)
• The best low light performance with SONY’s STARVIS sensor
• Video output EX-SDI / HD-SDI / THD / CHD / AHD /
CVBS(960H) Selectable
• THD mode / AHD mode / CHD mode,
Video Transmission Distance over Coax.; 500M
• f= 2.7~13.5mm, 8 MP Motorized Zoom lens
• Motorized Zoom & Focus adjustment
• DIS (Digital Image Stabilization) function
• DOL(Digital OverLap) WDR
• ROI (Region of Interest) WDR mode:
- Proper compensation of exposure for each inside and outside
of interested area.
- Better contrast and No motion ghost effect
• Improved Noise figure with the enhanced 3D-NR
• Motion Detection, Privacy Mask, Defog, Sens-up,
D-Zoom, Sharpness, Mirror/Flip, BLC/HLC,
LSC (Lens Shading Compensation)
• OSD Menu for easy installation & maintenance
• Menu control by UTC(THD/AHD) through compatible DVR
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• Built-in 2pcs High power LED
• Flush mount (Option: Surface mount and Various adaptors)
• Double side Anti-Scratch Hard coated clear bubble dome
• IP67/IK10 Protection
• Power: AC24V/DC12V

07
Composition
ULTRA CLEAR RESOLUTION CAMERA
Dimensions
(unit : mm)
Mounting Template
Operating
InstructionDome Camera
Torque Wrench:
3mm (1pc)
Video Sub-out
Cable (1pc)
Mounting Screw:
4 x 30mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Ø140 119
PCD Ø120
Ø102
3-Ø4.2
82
Ø100

ULTRA CLEAR RESOLUTION CAMERA
Part Names
08
BUBBLE DOME
3-AXIS GIMBAL
DOME COVER
SAFTY WIRE
FLUSH MOUNT
LENS
POWER CABLE
VIDEO OUTPUT
[ BOTTOM VIEW ]
POWER SUPPLY
CONNECTOR
POWER
CABLE
OSD Menu Control board
HD-SDIEX-SDI

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
09
• Surface mount
• Pole mount adaptor
• Tilted mount
• Wall mount
(Requires additional
Surface mount)
• Tilted junction mount
■ Optional Mounting Accessories
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench
supplied.
3. Set the camera’s viewing angle.
4. Put the dome cover to the dome base unit and tighten the assembly screws.
- Place the dome base unit on pre-drilled position and fix it through using mounting
screws (4x30mm).
- Route the power source cable and connect cables.
- In the case of installation with optional mounting accessories(Surface mount
or Tilted mount), the power cable should be fixed to the flush mount by using
the fixing screw and cable holder as illustrated.
Mounting Screw
(4x30mm)
Plastic Anchor
(6x30mm)
Torque
Wrench

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
10
■Option 2.
Installation with Surface mount / Tilted mount
■Option 1.
Installation with Flush mount / Tilted Junction mount
3
1
Cable Holder
Video Output
Cables
2
①Cable is unfixed on the Dome base.
② Connect the power cable to their repective connections.
① Cable is unfixed on the Dome base.
②Tie up the VIDEO OUTPUT cables with cable holder.
③ Tie up the POWER SUPPLY cable with cable holder as illustrated.
④Connect the wiring connector to their repective connections.
Cable Holder
Power Supply
• In the case of installation with Flush/ Surface/ Tilted mount, IP protection
rating is not guaranteed.
• If power/video connectors are exposed to water or rain, separate protection
shield is essential.
CAUTION

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
11
• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Tighten enough the dome cover fixing screws so that there should be NO gap
between Lens hood and clear bubble to avoid the light inflow from IR LEDs.
CAUTION
Limit of pan & tilt
1) Pan limit:
Pan is limited to +/- 173°.
Do NOT force to turn the gimbal over the limit to prevent from the internal
damage.
2) Tilt limit:
Tilt is limited to 25° min ~ 90° max. with reference to the ceiling when the
rotation of camera module is 0°, that is, the image is aligned horizontally.
3) Rotation limit (Horizontal image alignment):
Rotation is limited to +/-95° max.
25º
90º
ROTATION +/- 95°
PAN +/- 173°
TILT
25°~90°

ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
12
Installation and commissioning Instructions
• Make sure the power is removed before the installation.
• Follow the order for applying power.
First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to
AC outlets to avoid an improper reset from power jitter and a damage from the
surge voltage when no load.

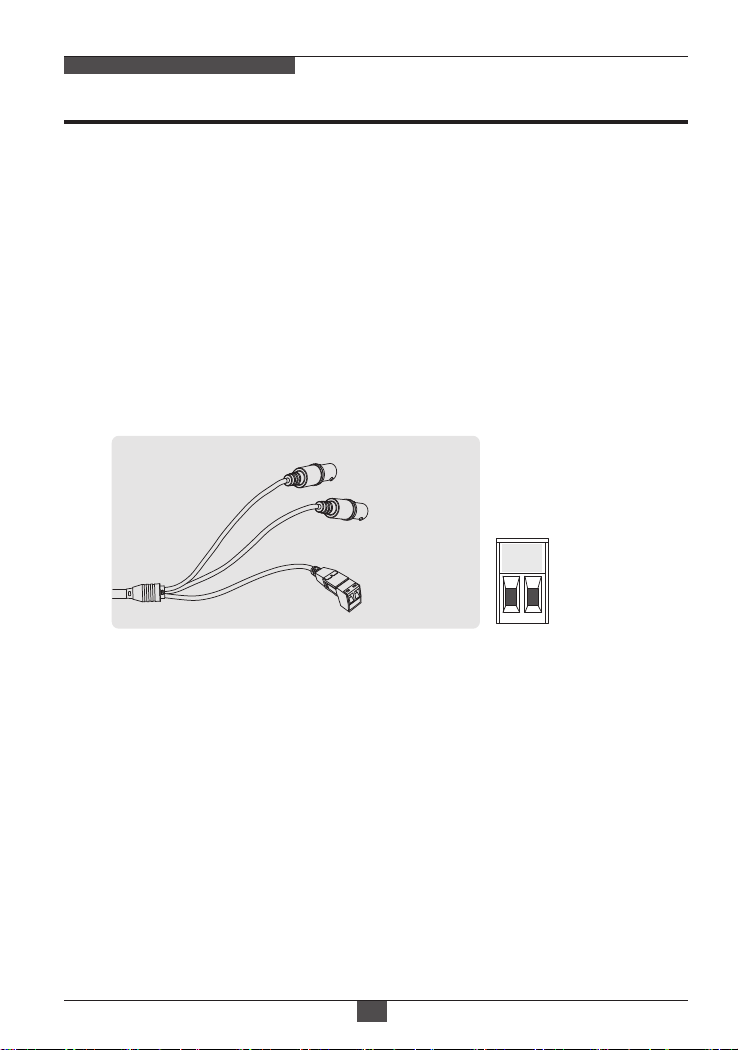

Power Supply Connections
Camera can work with either 24VAC or 12VDC, dual voltage power.
Primary and secondary grounds are completely isolated to avoid the possible
ground-loop problems
※SDI OUTPUT
(Yellow)
ANALOG OUTPUT
(Black)
POWER
(AC24V/DC12V)
AC
(+)
AC
(-)
▪ AC(-) :
AC24V/GND
▪AC(+) :
AC24V/DC12V
※Please use the cable as provided with camera. If camera cable is cut
and re-wired, the transmission distance of video can be reduced.
Especially SDI cable should not be cut because it requires detailed
wiring job and affects the transmission distance.

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
13
OSD Control
Joystick
Video format
DIP Switch
EX-SDI↔HD-SDI
Using OSD Controller
Setup menu can be accessed and controlled by OSD control joy stick on
the side of the gimbal. Five commands are available with the joy stick.
The design of OSD could be different according to the Model.
1) SET Key (●) : Access to the menu or enter the setting.
To enter the main menu, press the Set Key down.
2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the
cursor up or down.
3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used
to adjust the desired menu selection and to move the cursor left or right.
Description of the OSD control operation
4) ‘ ’denotes the long press down straightly for about 2 seconds
Description of the Motorized ZOOM&FOCUS* adjustment
1) ▲: Zoom In
2) ▼ : Zoom Out
3) ◄: Focus Near
4) ► : Focus Far
(*) Works only when OSD Menu is inactive.
Video sub-out Connector
EX-SDI↔HD-SDI: The default setting is EX-SDI mode.
Using Video format DIP switch
HD-SDI or EX-SDI is selectable by Video format switch only.
AHD, THD, CHD mode is selectable in the menu only.
(SYSTEM> OUTPUT> ANALOG OUTPUT)

MENU SUB MENU CONFIGURATION
LENS DC
MANUAL
MODE (INDOOOR, OUTDOOR, DEBLUR)
EXPOSURE
BACKLIGHT
BRIGHTNESS NIT
SHUTTER
SENS-UP
AGC
0~20
BRIGHTNESS DAY
0~20
AUTO
MANUAL
(SPEED)
FLICKERLESS
0~10
OFF, x2, x4, x8, x16, x32
1/30(1/25), 1/60(1/50), 1/120(100), 1/250(200),
1/500(400), 1/1000(800), 1/2000(1600),
1/4000(3200), 1/8000(6400), 1/15000
(12800), 1/30000(25600)
ZOOM / FOCUS AF MODE
D&N FILTER
MODE CHANGE
SYNC ON, OFF
ENABLE, DISABLE
ZOOMPUSH, MANUAL
INITIAL ON, OFF
3D-NR OFF, LOW, MIDDLE, HIGH
OFF
HLC LEVEL, COLOR
H/V-POS, H/V-SIZE
BLC
WDR WDR MODE
ROI MODE
WEIGHT
FRAME
OFF, BOX, POLYGON
LOW, MIDDLE, HIGH
DAY & NIGHT EXTERN
AUTO
COLOR
COLOR DN
B&W
SMART IR, ANTI-SAT., DELAY, IR LED CTL.
SMART IR, ANTI-SAT., D>N THRES, N>D THRES, DELAY
SMART IR, ANTI-SAT.
D>N THRES, N>D THRES, DELAY
ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
14
OSD menu Table
*IR LED CTL is supported in IR LED BULLET camera only.

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
15
DIS
SPECIAL
RANGE
FILTER
AUTO-C
OFF, ON 10% ~ 30%
LOW, MIDDLE, HIGH
OFF, HALF, FULL
MIRROR OFF, ON
OFF, ON
FLIP
PRIVACY ZONE NUM, ZONE DISP, H/V-POS,
H/V-SIZE, Y LEVEL, CB/CR LEVEL, TRANS
ZONE NUM, ZONE DISP, POS 0-X/Y,
POS 1-X/Y, POS 2-X/Y, POS 3-X/Y,
Y LEVEL, CB/CR LEVEL, TRANS
BOX
POLYGON
1. 0XD-ZOOM
MOTION OSD
TEXT ALARM
DET WINDOW
SENSITIVITY
ESTIMATE
QUICK ZOOM
OFF, ON
ZOOM SPEED, TRACKING, REPEAT
OFF, ON
OFF, ON
0~10
WINDOW USE, WINDOW ZONE, DET
H/V-POS, DET H/V-SIZE
MOTION
SYSTEM OUTPUT
2160P 15/12.5, 1440P 30/25(CROP),
1440P 15(only AHD mode),
1080P 30/25, 1080P 60/50(only CVBS, 3G-SDI)
EU(PAL), US(NTSC)
FRAME RATE
TV SYSTEM
SDI
OUTPUT
EX-SDI, HD-SDI
EXIT
LANGUAGE
CAM TITLE
SAVE, CANCEL
FACTORY RESET
ENG, GER, KOR, CHN, CHN(S), JPN
OFF, RIGHT UP, LEFT DOWN
OFF, ON
CONFIRM
OFF, DONE
ANALOG OUTPUT
THD / CVBS-SUB, CVBS,
AHD / CVBS-SUB, CHD / CVBS-SUB
PICT. ADJUST
0~20
0~20
0~10
AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN)
0.45, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75
OFF, LOW, MIDDLE, HIGH
OFF, ON
OFF, ON MODE, LEVEL
WEIGHT
AWB
GAMMA
D-WDR
DEFOG
COLOR GAIN DAY
SHADING
COLOR GAIN NIT
SHARPNESS

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
16
iSupported resolution according to Video format.
DIP Switch (EX-SDI set)
2160P 15 /12.5
THD / CVBS-SUB
[ THD MODE ]
ANALOG OUT
FRAME RATE(NT/PAL)
O
N/A
O
O
1440P 30/25(CROP)
1440P 15/12.5
1080P 30/25
N/A
15P(O) / 12.5P(N/A)
15P(O) / 12.5P(N/A)
15P(O) / 12.5P(N/A)
15P(O) / 12.5P(N/A)
O
O
N/A
O
N/A
O
O
N/A
O
O
O
O
O
O
N/A
O
O
N/A1080P 60/50
AHD / CVBS-SUB
[ AHD MODE ]
CHD / CVBS-SUB
[ CHD MODE ]
CVBS EX-SDI
DIP Switch (HD-SDI set)
2160P 15 /12.5
THD / CVBS-SUB
[ THD MODE ]
ANALOG OUT
FRAME RATE(NT/PAL)
O
N/A
O
O
1440P 30/25(CROP)
1440P 15/12.5
1080P 30/25
N/A
O
O
N/A
O
N/A
O
O
N/A
O
O
O
O
O
N/A
O
O
N/A
N/A
1080P 60/50
AHD / CVBS-SUB
[ AHD MODE ]
CHD / CVBS-SUB
[ CHD MODE ]
CVBS HD-SDI

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
17
OSD menu Startup
• EXIT : Enters ‘EXIT’ menu with save current setting or without save.
• RETURN : Returns to the previous menu.
Press the ‘OSD menu SET key’ down to access the setup menu mode.
1. LENS
: DC is for the best image when DC Auto iris Vari-focal lens is installed.
1-1. DC
1-2. MANUAL : MANUAL is for the best image when Fixed lens is installed.
Lens can be selected either DC or MANUAL lens.
It should be selected according to lens type.
- INDOOR: Optimized of indoor environment.
- OUTDOOR: Optimized of outdoor environment.
- DEBLUR: It enables to reduce the blur in a certain indoor environment.
Noise or color rolling can be increased.
• MODE : Selects MODE according to lighting condition.
MENU V0. XX
1. LENS
2. ZOOM/FOCUS
3. EXPOSURE
4. BACKLIGHT
5. DAY&NIGHT
6. PICT. ADJUST
7. DIS
8. SPECIAL
9. SYSTEM
A. EXIT
DC
COLOR DN
ON
OFF
SAVE

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
18
2-1. AF MODE
2. ZOOM/FOCUS
• ZOOMPUSH: Focusing works steadily for sharp focusing on the object.
In the case of a Motor driven lens, focusing resumes in about 7~8 seconds
to save the lens lifetime when the focus gets lost.
• MANUAL: Focusing can only be adjusted by ▲,▼ of OSD control joystick.
2-2. MODE CHANGE
2-3. D&N FILTER
MODE CHANGE is activated to set ZOOMPUSH in AF MODE.
It is for locking of the lens control to prevent undesirable operation.
2-4. INITIAL
2. ZOOM/FOCUS
AF MODE Changes to MANUAL automatically
after 3 hrs when MODE CHANGE is ENABLED.
AF MODE
MODE CHANGE
D&N FILTER
INITIAL
RETURN
ZOOMPUSH
ENABLED
SYNC OFF
OFF
• ENABLED : Locks and disables the lens operation after 3 hours.
It is recommended to maintain the working-life of the motorized zoom lens.
• DISABLED : Disables the locking feature allowing lens operation at any time.
• SYNC ON : Focusing is activated whenever ICR filter is changed when
camera switches from Day to Night or Night to Day.
• SYNC OFF : Focusing is not activated even if ICR filter is changed.
Lens initialization is necessary during the installation or the regular operation
to align the position data with the mechanical positions whose lens elements
may move and deviate from its calibrated position by the shock or vibration,
for example, during the transportation. Lens initialization is automatically
executed at power up.
INITIAL starts the lens initialization when pressing the joystick straight down
for about 2 sec. It is strongly necessary to execute LENS INIT in cases below;
- At the final step for the installation.
- When focus becomes out of control by the shock or vibration.
(Available only with AF MODE is ZOOMPUSH)
2. ZOOM/FOCUS
AF MODE
MODE CHANGE
D&N FILTER
INITIAL
RETURN
ZOOMPUSH
NOT USED
SYNC OFF
OFF

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
19
The brighter video can be obtained by increasing the exposure time in the
night with SENS-UP. It can be set to Off, x2, x4, x8, x16 or x32.
Higher setting can get the brighter video but the slower frame rates with
more white pixels.
(4MP, 2MP only)
3-4. SENS-UP
AGC(0~10) amplifies the video gain for brighter video but noise and
white pixel accordingly.
3-5. AGC
3. EXPOSURE
BRIGHTNESS DAY
BRIGHTNESS NIT
SHUTTER
SENS-UP
AGC
3D-NR
RETURN
AUTO
X2
MIDDLE
llllllllllllllllllllll
9
llllllllllllllllllllll
7
llllllllllllllllllllll
10
3-3-1. AUTO: Selects NORMAL or set DEBLUR.
Optimizes the video level by controlling the iris and the shutter
speed automatically.
3-3-3. FLICKERLESS : Flicker is used to remove the flickering on screen due to
differences in light and electric frequencies.
3. EXPOSURE
Selects AUTO or set manually.
If SHUTTER set to MANUAL modes, SENS-UP mode is inactivated.
3-3. SHUTTER
3-3-2. MANUAL : 1/30(1/25), 1/60(1/50), 1/120(100), 1/250(200), 1/500(400),
1/1000(800), 1/2000(1600), 1/4000(3200), 1/8000(6400), 1/15000(12800),
1/30000(25600) Shutter can be set to fix.
3-1. BRIGHTNESS DAY
3-2. BRIGHTNESS NIGHT
Adjusts the brightness of video in DAY mode (0~20).
Adjusts the brightness of video in NIGHT mode (0~20).

ULTRA CLEAR RESOLUTION CAMERA
Operating Instructions
20
3-6. 3D-NR
DNR function improves picture quality by filtering out signal noise which is
generated under the low light conditions. Sets off, low, middle or high level.
3DNR(3-dimensional noise reduction) which reduces the noise by the
multi frames.
It is effective at low light. Setting high is strength of noise reduction but the
result may occur in loss of sharpness and the tail effect of a comet.
Cuts out the highlight area with mask and excludes it from compensation.
4-1. HLC (High Light Compensation)
4-1-1. LEVEL (0~20): Sets the HLC level. It determines the video level that starts
cutting out. Lower setting starts the cut out at lower level.
The cut out area is masked with selected color.
4-1-2. COLOR : Select mask color from 9 colors.
Black, White, Yellow, Cyan, Green, Magenta, Red, Blue and Customize.
llllllllllllllllllllll
10
HLC
LEVEL
COLOR
RETURN
BLK
BLC
H-POS
V-POS
H-SIZE
V-SIZE
RETURN
8
7
3
3
Compensates the video image to cut out the highlight area with mask or control
the contrast of video. It can be set the compendation level or areas.
4. BACKLIGHT
