Eneo VKC-1327C User manual

INSTALLATION AND OPERATION MANUAL
for
ULTRACLEAR Resolution with SONY Effio-S DSP
INFRARED WEATHERPROOF CAMERA
VKC-1327C/W3
VKC-1327C-IR/W3

1
Table of contents
1. Safety Instructions and Notes….......................................................................................................
2. General Descriptions............................................................................……………………………...
3. Supplied Items......................................................................................……………………………...
4. Part names…………………………….…...................................................…………………………...
5. Installation Instructions......................................................................................……………………...
6. Setup Menu ……………............................................................................…………………………...
7. Specifications ………………………………………………..................................................................
8. Drilling Plan ………………………………………………….…............................................................
9. Dimensional Drawings ……………………………………………......................................................
3
3
4
4
5
8
22
23
24

2
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock
to persons.
Warning(NTSC version) -- This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Caution -- Any changes or modifications in construction of this device which are not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user of the model requires
continued operation during power mains interruptions, it is recommended that the model be powered from
an uninterruptible power supply (UPS) or a battery.”
Notice -- The images used in manual are processed to help comprehension and may
differ from actual video of the camera.
WARNING
NEVER USE THIS CAMERA IN WATER.
WARNING
Caution
To prevent electric shocks
and risk of fire hazards, do
NOT use other than specific
power source.

3
1. Safety Instructions and Notes
•Please read this safety and operating instructions before putting the camera into operation.
•Keep the manual in a safe place for later reference.
• Pay attention to safety when laying the connection cable and observe that the cable is not subjected to
heavy loads, kinks or damage and no moisture can get in.
• Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
•Use only a mild detergent to clean the housing.
•Keep clean the window surface from the dirt or dust, which may reflect the infrared light to the lens at night..
•The camera should never be operated beyond the technical specifications. This can lead to destruction.
•The camera should never be operated in the water.
2. General Descriptions
VKC-1327C/W3, VKC-1327C-IR/W3 which realizes 700TVL resolution and a crisp color reproduction with
High Density 1/3" Sony Super HAD CCD II (960H) and Effio-S image signal processor.
With Effio-S digital imaging system,
- Delivers the crystal clear images with 700TVL resolution that accurately capture every aspect of any
scene.
- Color signal processing provides the optimum balance between the luminance and chroma signals for
high color reproducibility even for the detail scene which contains very high spatial frequency.
- Provides D-WDR by Adaptive Tone Reproduction
- Incorporates 2D, 3D noise reduction signal processing
With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light
Main features are;
· High Density 1/3" Sony Super HAD CCD II(960H)
· 700TV Line
· 0.0005Lux (F1.2@40IRE, DSSx4)
· D-WDR, ATR-EX(Adaptive Tone Reproduction)
· Sense-up ~ x64
· Noise reduction 2D NR & 3D NR
· DIS(Digital Image Stabilizer)
· E Zoom & Slow Shutter(Sens-up)
· Motion Detection & Privacy Mask
· HLC/BLC
· OSD menu, Multi-lingual Menu support
· UTC(Coaxitron Control Pelco D)
· 10x sensitivity enhancement by removing the optical filter
· Switches to B/W and able to accept IR light at night mode
· Enhanced sharpness compensation.
· Very low noise and superior picture quality
· Video sub-out port for easy installation & maintenance

4
3. Supplied Items

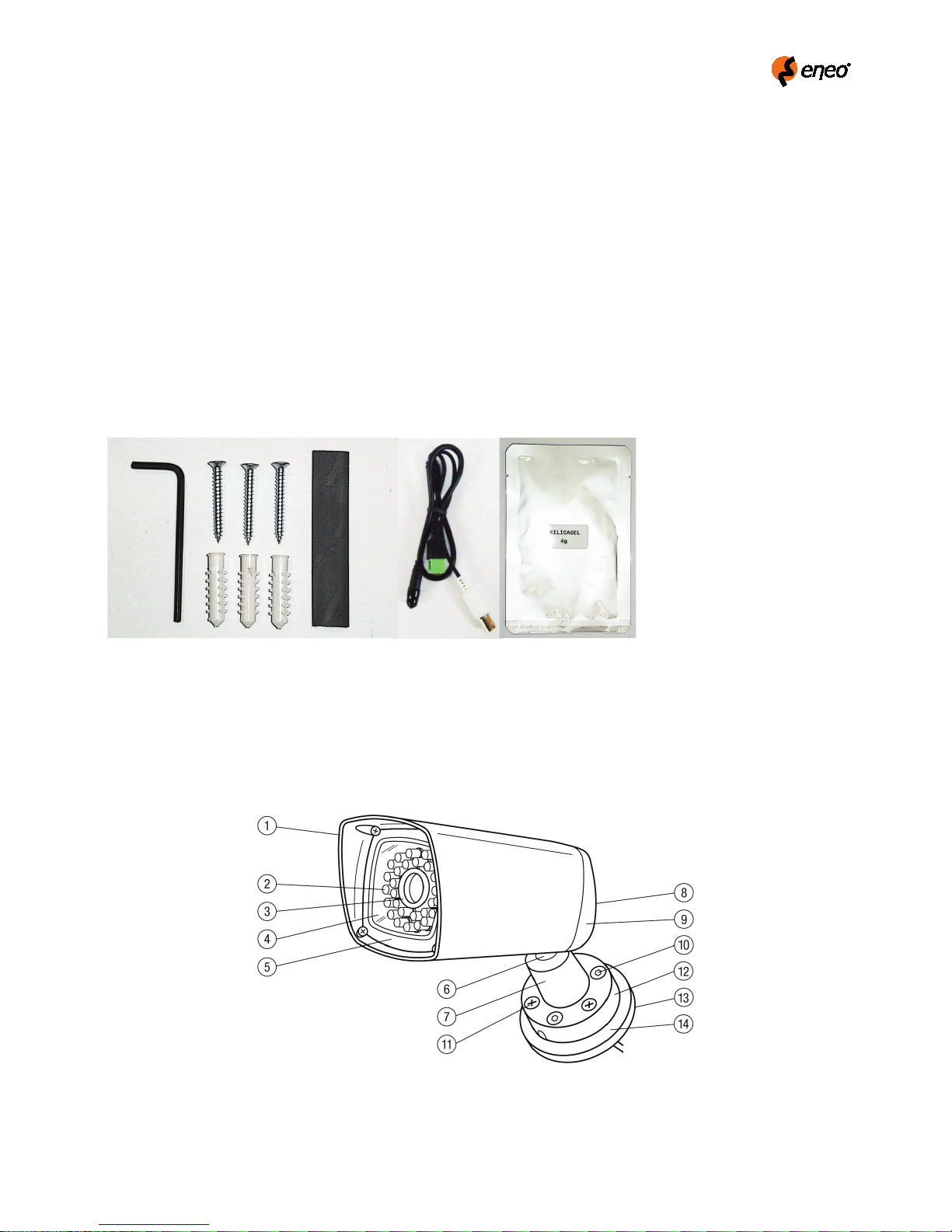

• 1x Weather Proof Color Camera
• 1x Installation and Operating Instructions
• 1x ⒜3mm L-Hex wrench
• 3x ⒝Mounting screws
• 3x ⒞Anchors
• 1x ⒟Shrink tube
• 1x ⒠Easy Installation cable
• 1x ⒡Silica gel bag (4g) for the replacement when installing.
4. Part Names
4.1 External
⒜
⒝
⒞
⒟
⒠
⒡

5
①
Housing body
②
17 IR LEDs (VKC-1327C-IR/W3 only).
③
Lens hood
④
Window
⑤
Front cover
⑥
Neck
⑦
Ball housing
⑧
Rear cover screws, 2x (not visible)
⑨
Rear cover
⑩
Neck fastening screws, 3x
⑪
Screws for installation kit, or (b) mounting screws, 3x
⑫
Mount base
⑬
Base plate assembly kit – (not visible) (optional)
⑭
Panel assembly kit (optional)
4.2 Internal
5. Installation Instructions
•Make sure the power is removed before installation.
5.1 Power Supply Connections
Camera can be operated with either 12Vdc or 24Vac.
Polarity free connection is acceptable but follow the indication if possible.
ⓐLens hood
ⓑ
Focus adjustment knob
ⓒ
Zoom adjustment knob
ⓓ
Sensor board
ⓔ
Infrared LED
ⓕ
IR LED board ASS’Y
ⓖ
Power board
ⓗ
Video subout
ⓘ
OSD menu navigation (Joystick)

6
Easy Installation cable at the cable end
5.2 Installation Procedure
Connection (Easy installation) at the cable end
1. The cover cap serves to protect against dirt during the installation (e.g. when the cable is led through a wall).
2. The attached shrink tube serves to protect the connection.
To use this, cut off a suitable amount, push it over the connection and shrink it.
5.2.1 Installation on Wall
1) Loosen three
⑩
neck fastening screws a little (but not completely) so that camera body can move.
2) Secure the
⑫
mount base with screws supplied to the wall or ceiling.
Make sure that the cable is routed safely not to be damaged by the
⑫
mount base (see gap).
3) Separate the
①
housing body by loosening two
⑧
rear cover screws and place it at a safe area.
Make sure that inside of the
①
housing body should not be contaminated by dust or liquid
4) Set the camera direction roughly and fasten three
⑩
neck fastening screws.
5) Apply the power to the camera.
6) Set the
ⓒ
zoom and
ⓑ
focus
After setting zoom and focus, secure the knobs
ⓑ
and
ⓒ
.
7) Adjust the setting parameters by using
ⓘ
OSD Joystick.
8) Remove the power again.
9) Repeat step 1).
This step is a preparation for an easy assembling for step 10).
10) Replace the existing silica-gel bag with new one after setting camera control parameters.
11) Assemble the
①
housing body to the rear cover by tighten two rear
⑧
cover screws.
When securing two
⑧
rear cover screws, do not complete one at a time and another next.
Both screws are recommended to be tightened evenly a little at a time in turn.
12) Trim the camera before the final secure and completely tighten three
⑩
neck fastening screws.

7
5.2.2 Installation on Ceiling
It is available for the upside down installation on the ceiling by re-arranging the camera module inside the
housing to be turned 180°.
The modification for upside down mounting must be carried out by authorized personnel.
5.2.3 NOTE – Silica gel bag
As it is not always possible to avoid a situation where a certain amount of moisture remains in the opened casing, we
recommend using the enclosed bag of silica gel in such cases. It must be ensured that the gel is used appropriately, i.e.
opening the protective film too soon can lead to the silica gel becoming saturated in a very short period of time, thereby
making it ineffective.
1. Before inserting the silica gel pack, please remove the aluminum protective sleeve around the pack, as the silica gel is
only effective without the aluminum protective sleeve.
2. Insert the pack between the back of the casing and the camera holder.
3. The silica gel retains the residual moisture that accumulated in the casing during assembly in a moist climate.
5.3 Setup of the Image Sector
• Pull off the camera housing.
• Power up the camera and connect a monitor.
•Loosen
ⓒ
Zoom adjustment knob and adjust the zoom setting.
•Loosen
ⓑ
Focus is adjustment knob and adjust the focus.
•Tighten both locking screws
ⓑ+ ⓒ
when adjustment is done. Close the housing.
NOTE: For a precise adjustment of cameras installed outside it is recommended to place a ND (Neutral Density) filter in
front of the lens while settings are done. This opens up the iris and allows a setting which is constant at changing
light conditions due to the narrower depth of field.
6. SETUP Menu
6.1 In the menu
Setup menu can be accessed and controlled by OSD control joy stick on the side of camera.
Five commands are available with the joy stick.
In the menu,
use ▲,▼to move menu, ◀,▶to change the settings and press ●to select or enter.
Joy stick
VIDEO
SUB-OUT
connector
SYMBOL descriptions for joystick operation;
-▲,▼,◀,▶
denotes the directions of
Joystick lever operation.
-●denotes Pressing straight down of
Joystick lever

8
FACTORY DEFAULT in this manual may NOT be the same as the default values by FACTORY SET
due to the changes for the improvements or the customers requirements
.
To enter menu,
press ●when MENU is not active..
6.2 MAIN menu
MAIN Default Descriptions
EXPOSURE - Can set SHUTTER/AGC, D-WDR, FLICKERLESS and HLC/BLC.
LENS DC
Selects the lens type, DC or MANUAL.
Set to DC when DC auto-iris lens is equipped. Cameras with built-in DC
V/F lens must be set to DC.
Set to MANUAL when a fixed iris or a manual iris lens is equipped.
See '6.4 LENS menu' for details.

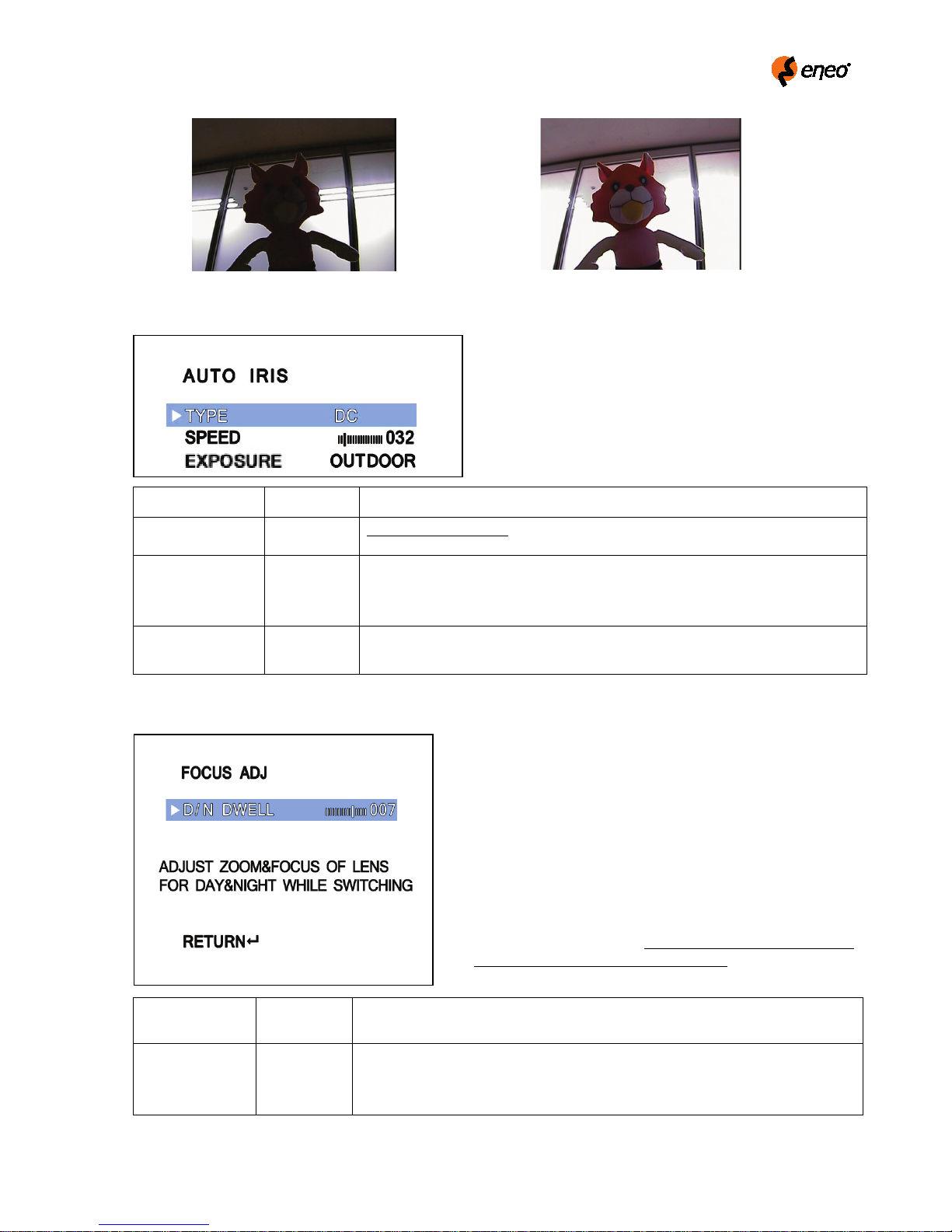

FOCUS ADJ -
Helps adjust the exact needle focus by simulating DAY & NIGHT and
avoids from misalignment of focus at night.
See '6.5 FOCUS ADJ. menu' for details.
DAY/NIGHT AUTO
DAY/NIGHT mode is available for EXT, AUTO, COLOR and B/W.
EXT must be selected only for a camera with IR LEDs.
EXT -
DAY/NIGHT is switched by a built-in light sensor on LED board.
AUTO
– DAY/NIGHT is decided and switched by the image processor
along with the amount of light through the lens independent from the light
sensor. BURST, DELAY CNT, D→N THRES and N→D THRES can be
set in AUTO mode. BURST mode setting here applies to EXT and B/W
mode too.
COLOR
– DAY/NIGHT function is disabled.
B/W
– DAY/NIGHT is fixed to NIGHT mode and the IR cut filter is switched
out forcibly. See '6.6 DAY/NIGHT menu' for details.
3D-NR - Sets LEVEL of 3D-NR to reduce the noise.
See '6.7 3D-NR menu' for details.
PICT ADJUST -

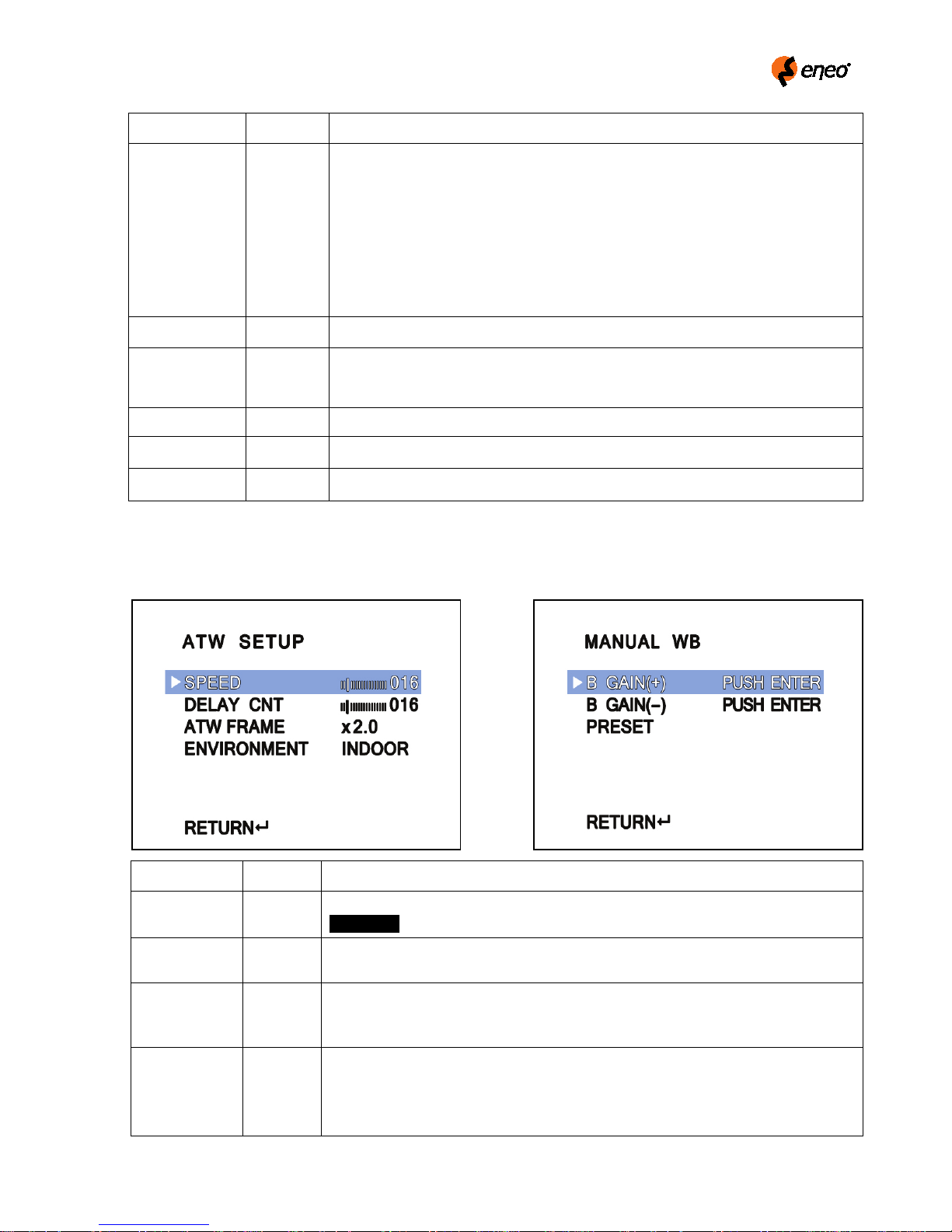

Sets WHITE BAL, CONTRAST, SHARPNESS, HUE, R-GAIN, B-GAIN and

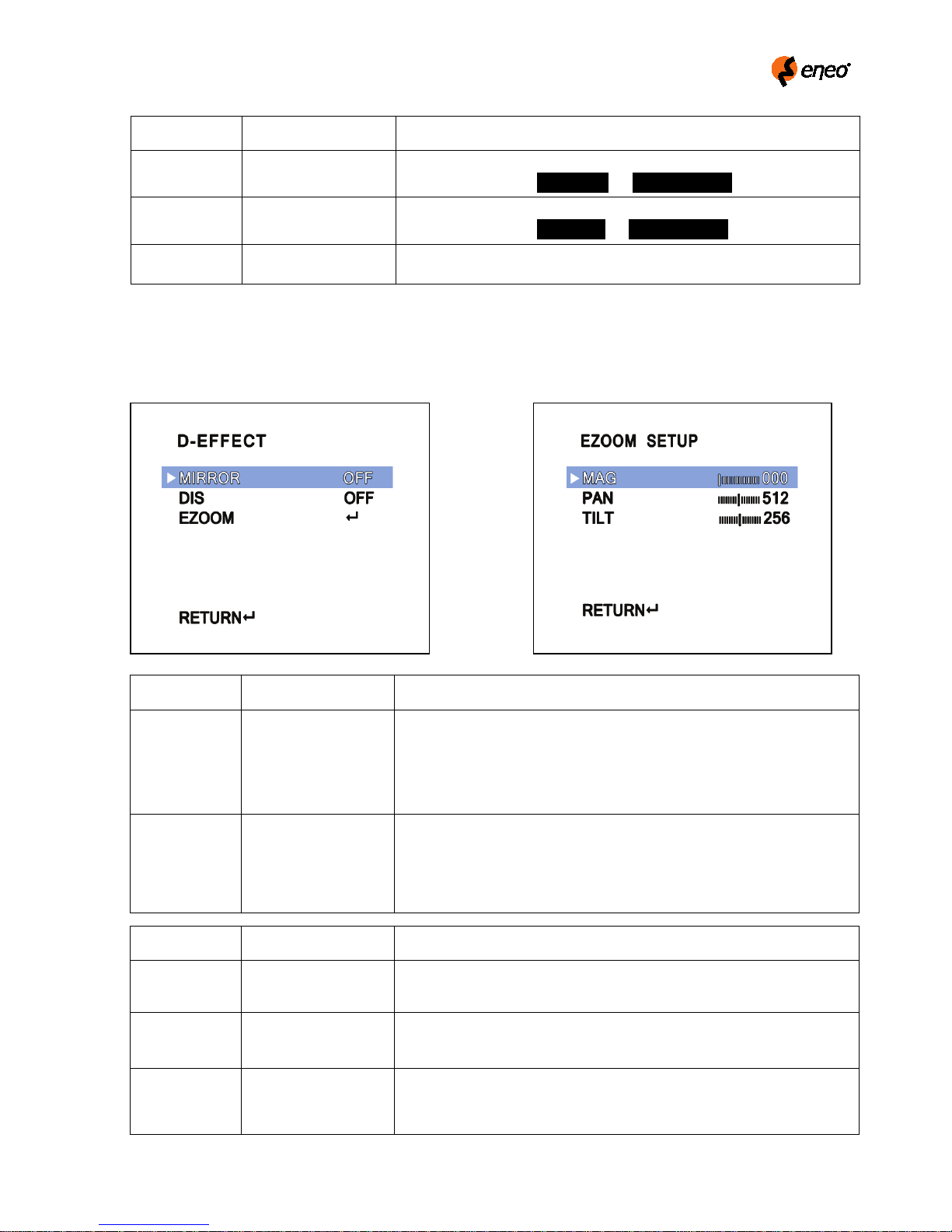

D-EFFECT(MIRROR, DIS, EZOOM).
See '6.8 PICT ADJUST menu' for details.
SPECIAL -

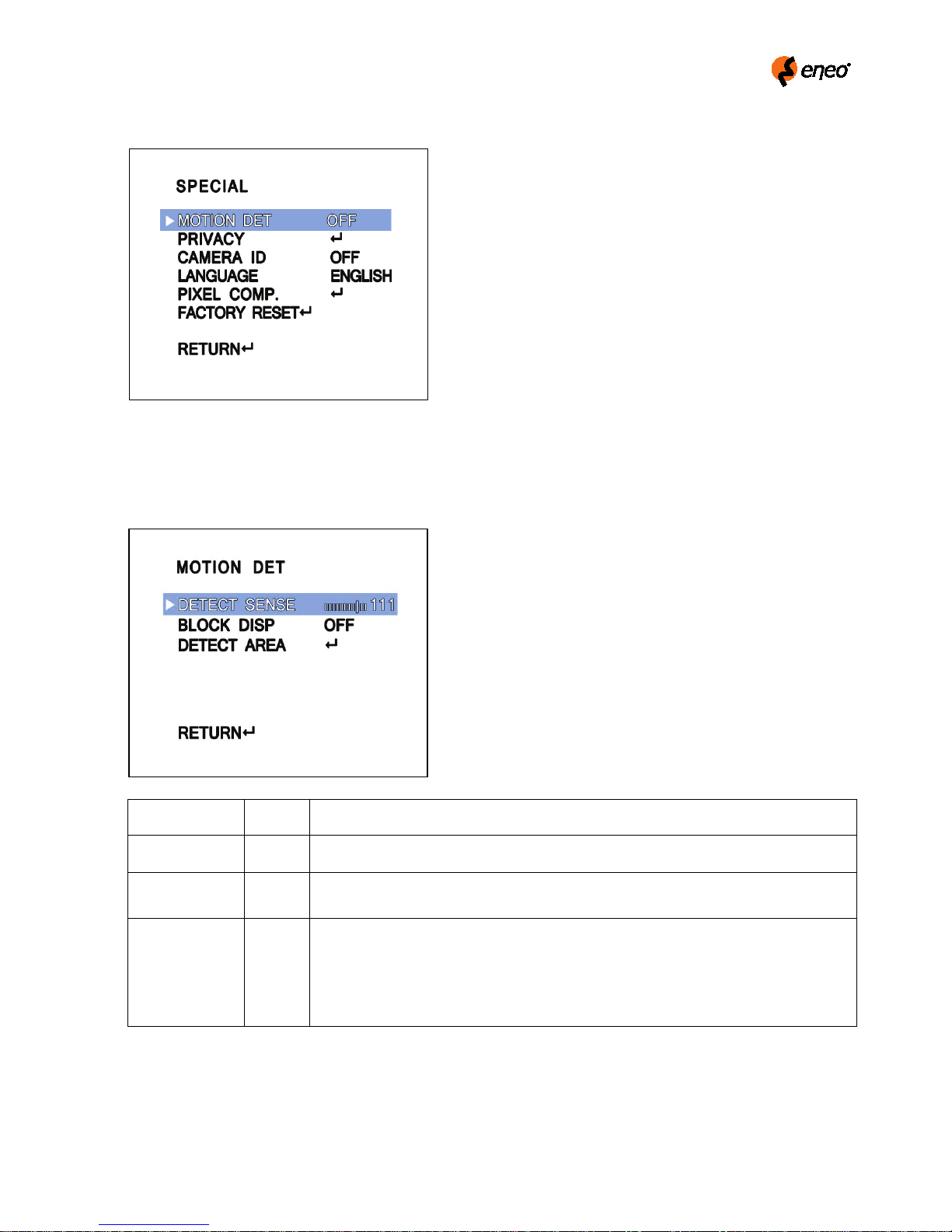

Sets MOTION DET, PRIVACY, CAMERA ID, LANGUAGE, PIXEL COMP
and FACTORY RESET.
See '6.9 SPECIAL menu' for details.
SAVE& EXIT Saves all parameters by pressing ●and exits the setup menu
EXIT
Exits the setup menu without saving.
To save the changes, move cursor to 'SAVE & EXIT'
and press ●before exiting the setup menu

9
6.3 EXPOSURE menu
EXPOSURE Default Descriptions
SHUTTER/AGC AUTO
Can set to AUTO or MANUAL.
AUTO

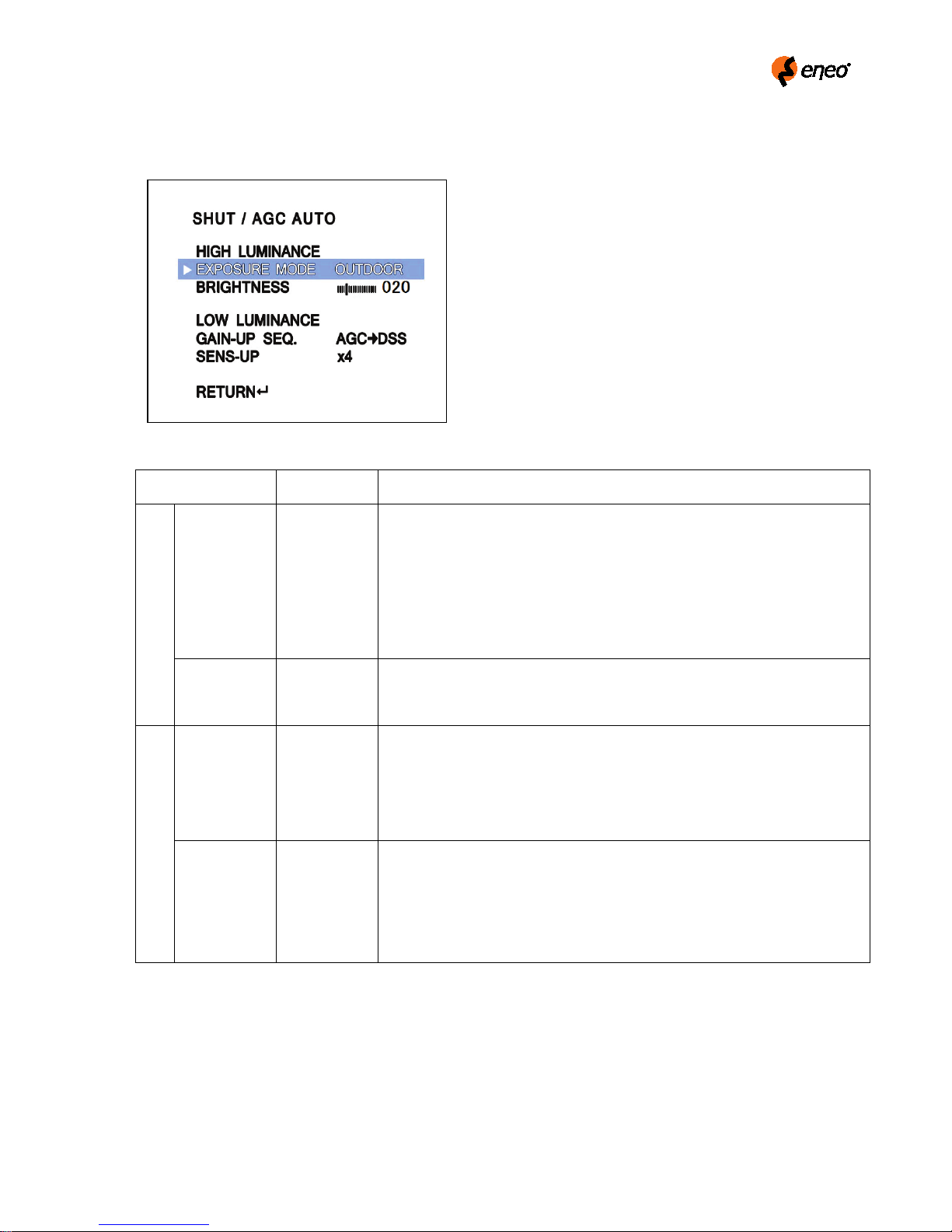

- Video level is automatically controlled to follow the settings of
EXPOSURE MODE, BRIGHTNESS, GAIN-UP SEQ and SENS-UP.
See 6.3.1 SHUT/AGC AUTO setup for detail.
MANUAL
- Video level is defined by the settings of SHUT MODE, SHUT
and AGC. Video level at MANUAL mode can’t be maintained and may
be white out by high luminance because shutter is not variable in this
mode.
See 6.3.2 SHUT/AGC MANUAL setup for detail.
D-WDR - Can set D-WDR mode. See 6.3.3 D-WDR(ATR-EX) SETUP for detail.
FLICKERLESS OFF
When a NTSC(PAL) camera is operating at 50Hz(60Hz) florescent light,
video flickers too much.
FLICKERLESS ON can reduce the flicker significantly.
However the sensitivity decreases about 30% too and D-WDR function
will be decreased significantly.
HLC/BLC - Can set HLC on/off, CLIP LEVEL, SCALE and BLC.
See 6.3.4 HLC/BLC setup for detail.
EXPOSURE menu provides the parameters which
control the light level and enhance the dynamic range
of video.

10
6.3.1 SHUT/AGC AUTO menu
To enter SHUT/AGC AUTO menu, press ●at MAIN>EXPOSURE>SHUTTER/AGC>AUTO.
AUTO SETUP Default Descriptions
EXPOSURE
MODE
OUTDOOR
(IR LED
version)
or
INDOOR
Selects OUTDOOR or INDOOR.
OUTDOOR
– Optimized for the outdoor application with the dynamic
range and the sharpness. Smear may occur at bright spot light.
INDOOR
– Shows the lowest smear at highlight but D-WDR is less
and Sens-up function is unable.
BRIGHT-
NESS 20
Controls the brightness of video. The higher value, the brighter video.
Brightness is adjusted by controlling the iris for the auto iris lens and
/or the shutter speed.
GAIN-UP
SEQ.
AGC
DSS
Selects from AGCDSS, DSSAGC, AGCDSSAGC, OFF and
AGC.
This mode describes the order of gain-up at low light.
For example, while the scene becomes dim, AGC increa
ses firstly
and DSS (SENS-UP) b
egins to work at dimmer for setting
AGCDSS.
SENS-UP x4
Sets SENS-UP level from x2 ~ x64.
Value for SENS-UP is the maximum integrated duration of frame at
low light and the actual sens-up level varies within this setting in
accordance to the light level.
Higher value can get the brighter video level but the slower frame
rate at night. Pixel defects can be seen more at higher SENS-UP.
HIGH LUMINANCE
LOW LUMINANCE

11
6.3.2 SHUT/AGC>MANUAL menu
6.3.3 D-WDR(ATR-EX) SETUP menu
MANUAL
SETUP
Default Descriptions
MODE SHUT Selects from SHUT and DSS.
SHUT 1/60
SHUT
sets the manual shutter to 1/60,1/100,1/250,1/500,1/1000,
1/2000,1/4000 or 1/10000 sec.
DSS
sets the fixed sens-up rate to 2x ~ 256x fields.
AGC 6 Sets AGC gain in dB. Higher gain compensates brighter but noise
increases. Manual AGC can be set to 6, 12,18,24,30,36,42 or 44.8dB.
D-WDR(ATR-EX)
Default Descriptions
VISIBILITY MID
Selects from MID, HIGH, LOW.
MID
– Enhances the dark area and the bright area for better visibility with
the minimal hurt of the realism for picture.
HIGH
– Provides maximum visibility for the dark area and the bright area.
Realism of the picture could be degraded.
LOW
– Emphasizes the picture realism than the visibility.

12
6.3.4 HLC/BLC
The highlight Compensation – HLC – function is used to black out highlighted areas that may blind the camera,
in order to enable a clear visual image of objects, such as the license plates of an oncoming vehicle or other
objects that may be obstructed by headlamps.
The Backlight Compensation – BLC – function is used to brighten an image in the foreground with a highly
lit area behind it such as sunlight, limiting the affect of silhouetting.
Please use D-WDR function instead of BLC because BLC function compensates the image very limitedly.
HLC/BLC Default Descriptions
HLC OFF
HLC clips out the highlight area and masks it as a single color.
OFF
– Disables HLC function.
AUTO
– HLC switches ON/OFF according to the brightness of the overall
image.
ON
– Video will be clipped out and masked for the area which exceeds
CLIP LEVEL.
CLIP LEVEL 005 Defines the threshold level for HLC.
Lower value masks more.
SCALE 010
SCALE is the HLC exposure correction.
Higher value increases the brightness but some lens flare may be
increased. If the flare effect is too big, set this parameter lower.
BLC - BLC(Back Light Compensation) is disabled when D-WDR is enabled.
When D-WDR is OFF, BLC can be set ON or OFF.
HLC OFF
HLC ON

13
6.4 LENS menu
To enter LENS menu, press ●button at MAIN menu>LENS.
6.5 FOCUS ADJ
AUTO IRIS Default Descriptions
TYPE DC
Fixed to DC ONLY.
This camera does NOT support video type auto iris lens.
SPEED 032
Adjusts the iris control speed.
The lower value is the slower speed.
If the speed is too fast or slow, the iris may fluctuate or be out of
control.
EXPOSURE
MODE OUTDOOR Selects OUTDOOR or INDOOR.
Depending on the Environment.
BLC OFF
BLC ON
Usually cameras are installed in day time and
they often become OUT OF FOCUS at night time
and look IN FOCUS again at next day time.
This problem can occur at any cameras regardless
of types or manufacturers.
FOCUS ADJ. menu is the unique and patented
feature that prevents from the wrong focus and
helps the EXACT NEEDLE focus by simulating
DAY & NIGHT conditions.
Set zoom first and adjust focus to get NEEDLE FOCUS
while switching AT DAY AND NIGHT
FOCUS ADJ. Default Descriptions
D/N DWELL 007
Filter switcher switches DAY & NIGHT at the interval of D/N DWELL
to help the EXACT NIDDLE focus at DAY and NIGHT mode.
Further simulations are performed internally during switching.
BLC OFF
BLC ON

14
6.6 DAY/NIGHT menu
To enter DAY/NIGHT menu, press ●button at MAIN
menu
>DAY/NIGHT.
DAY/NIGHT Default Descriptions
BURST OFF
BURST determines whether a color burst signal keeps output or eliminated
when camera switches to B/W. BURST mode setting here applies to EXT and
B/W mode too.
ON
enables the color burst on B/W video signal.
OFF removes the color burst signal on B/W video.
DELAY
CNT 005
DELAY CNT
is time in second while camera maintains its status before
DayNight switches. DELAY can avoid the unwanted/frivolous switching by
a short term lights such as light by the passing car.
DN
THRES 008
DN
is a threshold level which determines to switch from DAY to NIGHT.
Lower(Higher) value makes the camera switched from Day to Night at lower
(higher) illumination. If it stays in Day(Color) mode during night time, increase
DN
threshold value until it just switches to Night.
Examine and verify Day/Night operation according to IMPORTANT ACTIVITY.
CAUTION If the gap between DN and ND is not big enough, camera may
repeat DayNight switches
.
ND
THRES 090
ND
is a threshold level which determines to switch from NIGHT to DAY.
Lower(Higher) value makes the camera switched from Night to Day at lower
(higher) illumination.
If it stays in Night(B/W) mode during day time, decrease
ND
threshold value
until it just switches to Day.
Examine and verify Day/Night operation according to IMPORTANT ACTIVITY.
CAUTION If the gap between DN and ND is not big enough, camera may
repeat DayNight switches
.
If ND is decreased from the Factory default, the same decrement is
recommended for DN to avoid repeating DAYNIGHT unintentionally.
CAUTION
1) DAY/NIGHT AUTO menu is strongly recommended to be adjusted for the actual object after
completing all settings of lens for zoom and focus.
2) If the gap between DN(THRES) and ND(THRES) becomes too small, it is easy to repeat
switching DAY from/to NIGHT. Gap is recommended bigger than 35.
If the switching between DAY and NIGHT repeats, decrease DN(THRES) and increase
ND(THRES) a little in turn until the repeating stops.
AUTO mode in DAY/NIGHT is used only for a
camera which does not have a light sensor.
DAY or NIGHT is decided by the amount of the
light through the lens only.
IMPORTANT ACTIVITY required !!!
DAY->NIGHT and NIGHT->DAY operations must
be examined and verified at the final installation.
Block the lens for a few seconds for NIGHT mode
and release and let it return to DAY mode.
If camera stays at NIGHT mode more than 10sec,
decrease N→D THRES a little and repeat the fore-
mentioned steps.
If the scene is too dim or lens iris was adjusted too
low(near close), it may not return to DAY

15
6.7 3D-NR SETUP menu
6.8 PICT ADJUST menu
3D-NR is Three Dimensional Noise Reduction
which reduces the noise by the multi frames.
Noise Reduction is effective at low light.
LEVEL sets the strength of noise reduction for
3D Noise Reduction.
Higher setting stands for stronger reduction.
Too high setting will result in loss of sharpness
and the tail effect of a comet in 3D-NR.
In PICT ADJUST menu, WHITE BAL, CONTRAST,
SHARPNESS, HUE, R-GAIN, B-GAIN and
D-EFFECT can be set.
To enter PICTURE menu, press ●at MAIN >PIC
ADJUST.
PICT ADJUST Default Descriptions
WHITE BAL ANTI CR
Selects the white balance mode.
ANTI CR
– Anti-Color-Rolling can reduce the possible color rolling under
the fluorescent light when D-WDR is OFF or LIGHT.
MANUAL
- A kind of fixed white balance which is user-programmable
by B-GAIN(R-GAIN will be automatically adjusted in accordance with
B-GAIN) and useful only for the steady light.
See 6.8.1 ATW SETUP and MANUAL WB menu for setting variables.
PUSH LOCK
- White balance is compensated only while ●button is
pressed at MAIN>WHITE BAL>PUSH LOCK and fixed when ●button
is released

16
6.8.1 ATW SETUP and MANUAL WB menu
To enter ATW(MANUAL) menu, press ●button at MAIN
menu>WHITE BAL>ATW(MANUAL).
ATW Default Descriptions
SPEED 016 Sets the AWB compensating speed. Lower value makes AWB faster.
CAUTION
Too fast AWB may make the color oscillation.
DELAY CNT 016 Adjusts the AWB compensation period to next update of AWB.
The smaller value will update AWB more frequently (faster).
ATW FRAME X2.0
Determines the ATW range with respect to the standard range.
ATW range is redefined by the factor of x0.5,1.0, 1.5 or 2.0.
High magnification will extend ATW range in low and high color temperature.
ENVIRON-
MENT INDOOR
Selects INDOOR or OUTDOOR.
Their ATW is optimized for the limited application and can not cover
INDOOR
- Optimized ATW for low color temp. such as incandescent lights.
OUTDOOR
- Optimized ATW for high color temp. such as daylight.
PICT ADJUST Default Descriptions
WHITE BAL ANTI CR
ATW
(Auto Trace White Balance) – Automatically tracks the changes of
color temperature and continuously adjusts the white balance.
The white balance range is 1,800K~10,500K.
See 6.8.1 ATW SETUP and MANUAL WB menu for setting variables.
PUSH
– An extended ATW whose range covers the wider color temperature
than ATW. This mode is more sensitive and so some color of a big object
may be decolorized by the over compensation.
USER1
/
USER2
– Manual white balance is compensated by B-GAIN and
R-GAIN.
CONTRAST 035 Increases or decreases the contrast of the picture.
SHARPNESS 008
Increases or decreases the sharpness of the picture.
Too much sharpness can make image harsh and show more noise
as well as line flicker at the edge of object in the picture.
HUE 050 Adjusts hue for NTSC version only
R-GAIN 160 Increases or decreases the color saturation for red.
B-GAIN 216 Increases or decreases the color saturation for blue.

17
6.8.2 D-EFFECT and EZOOM menu
MANUAL WB Default Descriptions
B GAIN(+) - To increase the blue component from MANUAL WB,
press ●button at B GAIN(+) PUSH ENTER.
B GAIN(-) - To decrease the blue component from MANUAL WB,
press ●button at B GAIN(-) PUSH ENTER.
PRESET - Sets MANUAL WB to the preset gain which was set by factory.
D-EFFECT Default Descriptions
MIRROR OFF
MIRROR defines the way which the image displays.
OFF
– Displays the regular image.
H-FLIP
– Flips the image over left and right.
V-FLIP
– Flips the image over upside down
HV-FLIP
– Flips the image over left/right as well as upside down.
DIS OFF
DIS(Digital Image Stabilization) reduces and stabilizes the shaky
image from a camera installed in the vibrated area.
FOV(Field of view) will be reduced if set to ON.
ON – Enables DIS.
OFF – Disables DIS.
To enter D-EFFECT menu, press
●
button
at MAIN menu>PICT ADJUST> D-EFFECT.
To enter D-EFFECT menu, press
●
button
at MAIN menu>PICT ADJUST>D-EFFECT>
EZOOM.
EZOOM Default Descriptions
MAG 000 MAG is the magnification ratio of the electronic zoom.
x1=000, x2=128, x4=192, x6=213, x8=224, x10=230…
PAN 512 When MAG is greater than 0, the electronic pan is available.
000 is the left most pan and 1023 is the right most pan.
TILT 256 When MAG is greater than 0, the electronic tilt is available.
000 is the upper most tilt and 511 is the lower most tilt.

18
6.9 SPECIAL menu
6.9.1 MOTION DET menu
MOTION DET Default Descriptions
DETECT
SENSE
111 Adjusts the sensitivity for detecting motion. Higher value is more sensitive.
BLOCK DISP OFF Enables or disables displaying blocks for the area which the motion is
detected.
DETECT
AREA OFF
Displays the selected windows at AREA SEL for programmed in sizes and
positions.
To enter DETECT AREA menu, press ●at MOTION DET>DETECT AREA.
To set the detection area, move the cursor block and press ●.
To exit DETECT AREA menu, press ●for about two second and release.
Up to 4 motion detection areas are available and each area is programmable in size and location.
The motion is displayed by means of blocks when MAIN menu>SPECIAL>MOTION DET and
BLOCK DISP are ON.
In SPECIAL menu, MOTION DET, PRIVACY,
CAMERA ID, LANGUAGE, PIXEL COMP. and
FACTORY RESET can be set.
To enter SPECIAL menu, press ●at MAIN
>SPECIAL.

19
6.9.2 PRIVACY menu
Up to 15 privacy areas are available and each area is programmable in size and location.
The privacy areas are masked with the selected color and/or mosaic.
To enter PRIVACY menu, press ●button at MAIN
menu
>SPECIAL>PRIVACY.

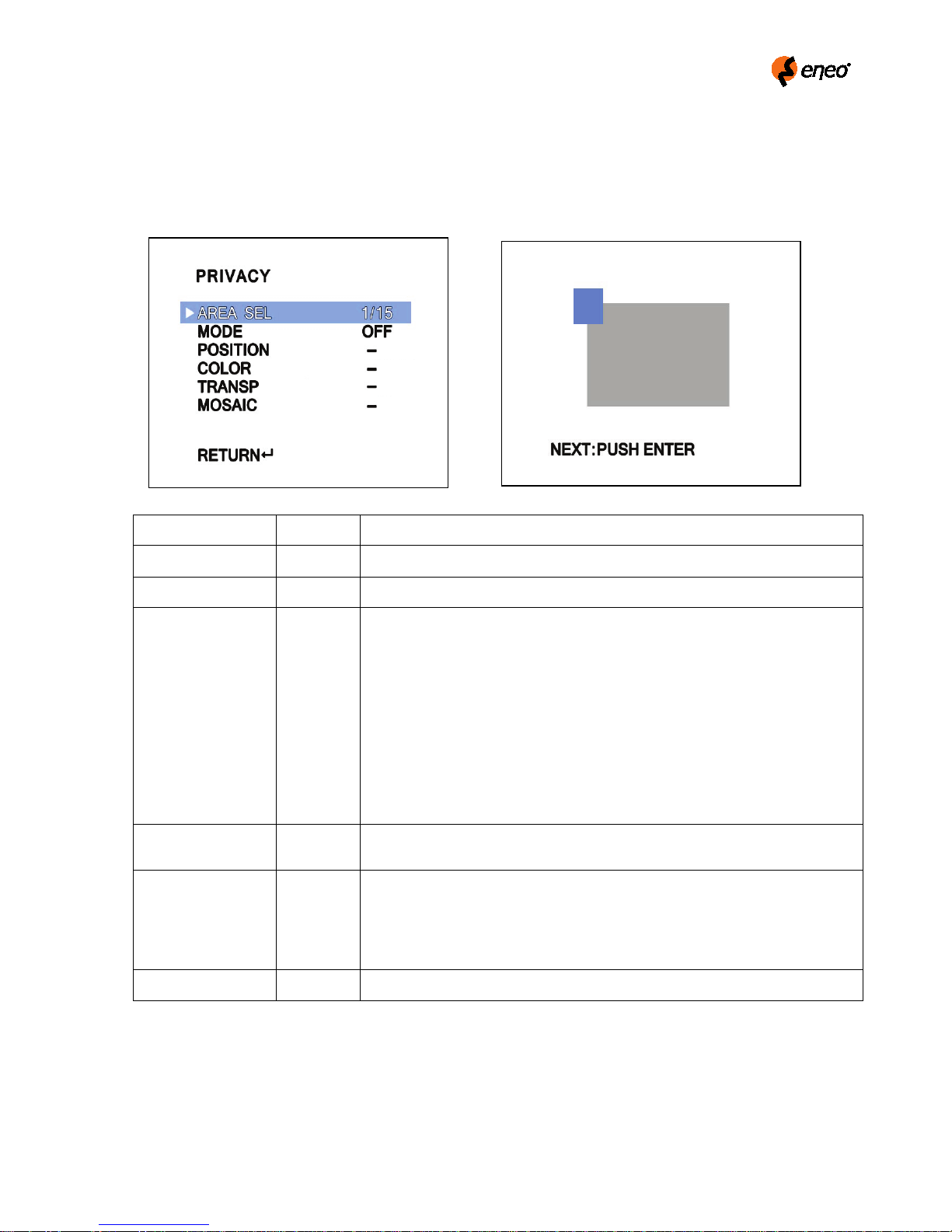

PRIVACY Default Descriptions
AREA SEL 1/15 Selects one of AREA1~AREA15 to be adjusted.
MODE OFF ON enables the privacy area masked with the selected color.
POSITION -
POSITION sets the area in size and location after entering the area
mode by pressing ●button at MAIN
menu>SPECIAL>PRIVACY>POSITION.
In the area mode, position of each corner can be moved by ▲,▼,◀,▶
of
joystick lever operation. The next corner can be selected by pressing
●
button. Pressing ●button after four coner settings will exit the area
mode and return to PRIVACY menu.
COLOR - Sets the mask color one out of 5 colors, W
HITE, BLACK, RED,
GREEN, and BLUE, for the selected AREA.
TRANSPARENCY -
Transparency rate for the mask can be adjusted.
0.00 - Mask is fully transparent.
0.50 - Mask is 50% transparent.
0.75 - Mask is 25% transparent.
1.00 - Mask is completely not transparent.
MOSAIC - Enables or disables the mosaic effect for the selected area.
