Energenie POM PDU User manual

POM PDU
per outlet monitoring & control
User Manual

Table of Contents
1. Introduction ............................................................................................................1
2. PDU Package ...........................................................................................................2
3. Function..................................................................................................................3
4. Installation..............................................................................................................5
5. Web Interface..........................................................................................................7

POM PDU User Manual Ver. 1.0 1
1. Introduction
The PDU is an Internet ready device designed and is equipped with an intelligent current-
meter (True RMS) that will indicate the total power consumption of a power strip.
The PDU offers an easy set up and user-friendly communication software. This software
provides the function that assistant manager to remotely monitor the multiple PDU power
consumption to realize the total current power consumption and utilization for the
enterprises.
Features:
zBuilt-in web server, manager can real time to monitoring the current consumption of
the power strip.
zBuild-in true RMS current meter.
zSetup easily, meter can read the IP address directly.
zHomepage support SSL.
zProvide per outlet power consumption.
zProvide audible alarm when the power consumption over the threshold of warning and
overload.
zSend the email and traps when the power consumption exceed the trigger value of
warning or overload to the PDU.
zProvide utility, it can monitor a large mount of PDU at the same time.
zSupport the SNMP and provide MIB for the PDU to be monitored by NMS.
zReal time to control outlets of PDU.
zIndicate outlets and circuits status with LED.
zSupport power on sequence.
zSchedule control
zUser-defined group outlet control
zAuto reboot the locked device by pinging its IP
zSupport network time protocols
zOption accessory can support temperature and humidity detection.

POM PDU User Manual Ver. 1.0 2
2. PDU Package
The standard PDU package contains a Power Distribution Unit with supporting hardware
and software. The components of the package are:
zPower Distribution Unit.
zRack mount Brackets.
zCD-ROM, it contains:
zUser Manual.
zPDU Software.
zMIB: Management Information Base for Network. (PDUMIB.mib)
zAdobe Acrobat Reader.

POM PDU User Manual Ver. 1.0 3
3. Function
Interface
Functions Description
Ethernet RJ45 port for network communication port.
Audible Alarm Warning- 1 beep in 1 second.
Overload- 3 beeps in 1 second.
Note: The audible alarm will keep beeping until the current
gets back to normal and the current is lower than the
threshold to 0.5 amps.
Function Button zPress and release to turn off the warning beeping. The
overload beeping can not be cancelled.
zPress and hold the key after 1 beeping; it can let the meter
to show up the current information and
temperature/humidity in sequence.
zPress and hold the key after 2 beeping; it can let the meter
to show up the IP address
zPress and hold the key after 4 beeping; it can change the
way to get IP by DHCP or Fixed IP.
zPress and hold the key after 6 beeping; it can reset PDU
back to default setting.
Meter 3 digits to display current and IP Address.
ID The identification of power bank or PDU.
LED Indicator SSL (yellow): Light on means that web access is protected by
SSL.
DHCP (green): Light on means that PDU gets IP address
through DHCP.
PDU (green): Indicate each output power status.
Status (red): Indicate each circuit status.

POM PDU User Manual Ver. 1.0 4
ENV RJ11 for option ENV probe attached to detect temperature and
humidity.
Circuit Breaker Overload power protection.

POM PDU User Manual Ver. 1.0 5
4. Installation
This section will provide a quick instruction to install the PDU.
Rack Mount Instructions
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature specified by the
manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on over
current protection and supply wiring. Appropriate consideration of equipment nameplate
ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connections to
the branch circuit (e.g. use of power strips)."
Diagram

POM PDU User Manual Ver. 1.0 6
Hardware
1. Install mounting brackets.
2. The PDU comes with brackets for mounting in a rack. To mount the PDU into a rack
performs the following procedure:
3. Attach the mounting brackets to the unit, using the four retaining screws provided for
each of the brackets.
4. Choose a location for the brackets.
5. Align the mounting holes of brackets with the notched hole on the vertical rail and
attach with the retaining screws.
6. Connect input and output power.
7. Connect Ethernet cable to the PDU.
8. Switch on the PDU.
Note 1:
The default setting for the way to get IP address is DHCP. If PDU can not get the IP from
DHCP server, the IP address will stay at 192.168.0.216
Note 2:
TO SETUP THE NETWORK SYSTEM FOR PDU, STRONGLY RECOMMAND TO BUILD UP THE
POWER MONITORING NETWORK SYSTEM ISOLATED WITH THE OTHERS, IN ORDER TO
KEEP THE STABILITY OF GETTING POWER INFORMATION AND SYSTEM OPERATION.

POM PDU User Manual Ver. 1.0 7
5. Web Interface
Login:
Input the PDU IP address in web browser.
Default ID is snmp.
Password is 1234.

POM PDU User Manual Ver. 1.0 8
Information: PDU
Display total PDU and each outlet power consumption.
When plug the option device - ENV probe, it will display temperature and humidity
information.

POM PDU User Manual Ver. 1.0 9
Information: System
Indicate PDU system information, including:
Model No.
Firmware Version
MAC Address
System Name
System Contact
Location

POM PDU User Manual Ver. 1.0 10

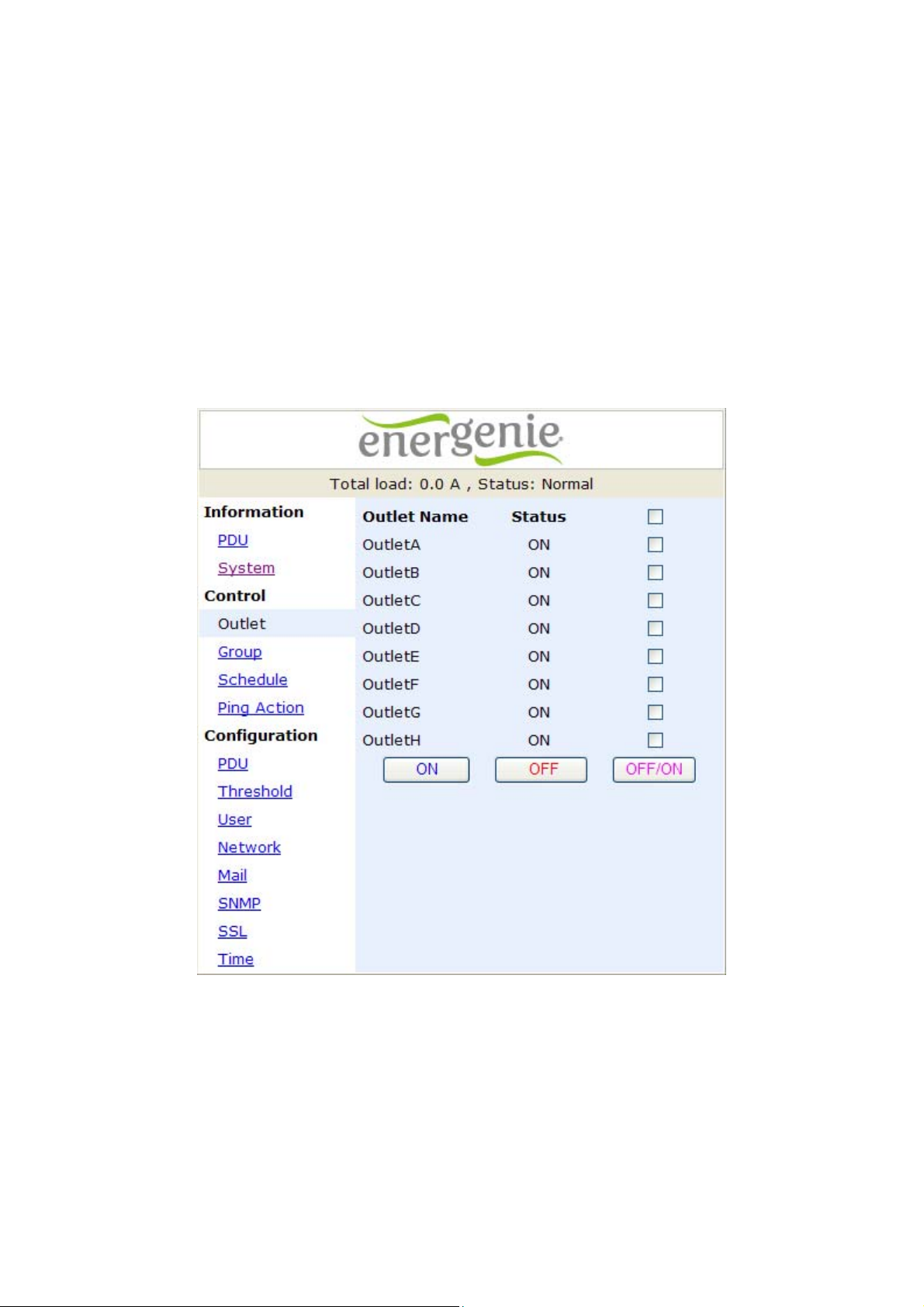

Control: Outlet
Indicate PDU outlet on/off status and control outlet.
Select the outlet by checking the box and then click ON or OFF button to control output
power for PDU
ON: Press the icon to turn on the assigned outlets.
OFF: Press the icon to turn off the assigned outlets.
OFF/ON: Press the icon to reboot the assigned outlets.

POM PDU User Manual Ver. 1.0 11

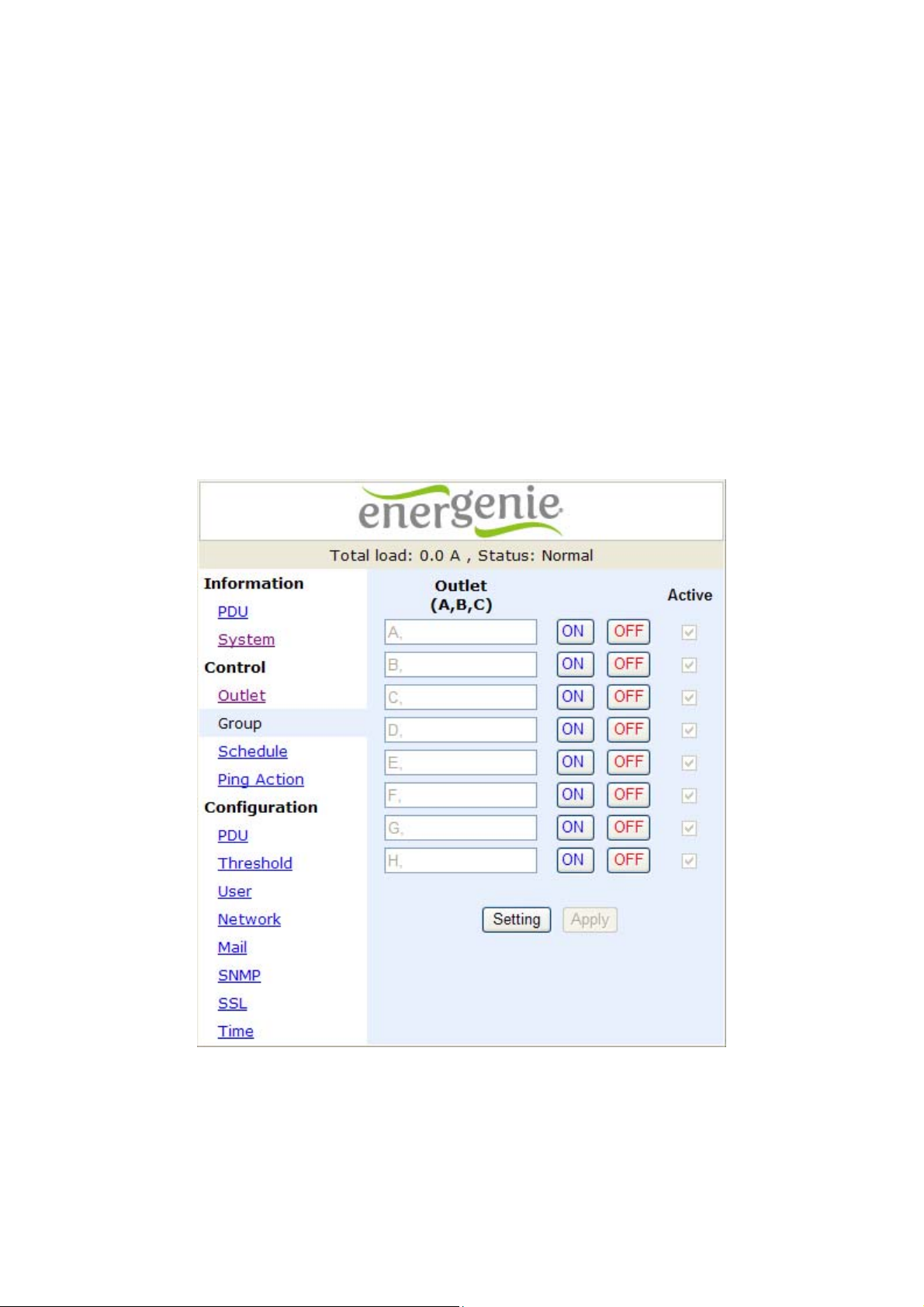

Control: Group
Control outlet power for multiple outlets.
Setting: Enter to the setting mode.
Outlet: Assign the outlet in a group.
Note: The outlet number needs to be input by the alphabetical order.
ON: Press icon to turn on the assigned group.
OFF: press icon to turn off the assigned group.
Active: Enable it to be a controllable group.

POM PDU User Manual Ver. 1.0 12
Control: Schedule
Control the assigned outlet by pre-set schedule.
Outlet: Assign the outlet that want to be controlled in this schedule.
Every: Set week’s day, assigned day or every day.
Date: When select “sgl” at column of “Every”, need to input the truly date here.
Action: Begin: End:
ON Turn on outlet at this time None
OFF Turn off outlet at this time None
OFF/ON Turn off outlet at this time Turn on outlet at this time
ON/OFF Turn on outlet at this time Turn off outlet at this time
Active: Enable the assigned schedule control.

POM PDU User Manual Ver. 1.0 13
Control: Ping Action
Automatically reboot the locked device by ping its IP
Ping IP Address: Set the device IP that want to be monitored by ping from PDU.
Response 10 minutes: PDU will ping the assigned IP address each minute one time, if
the equipment has not responded, then number will be increased one time, when the
continual 10 minutes have not obtained the response, the number will display 10 and
PDU will carry out the assigned action automatically.
Action: Select outlet action to “OFF” or “OFF/ON”
Active: Enable this function.

POM PDU User Manual Ver. 1.0 14
Configuration: PDU
Set the outlet name and delay time.
Name: Rename the outlet.
ON: Set delay time for power on sequential.
OFF: Set delay time for power off sequential.
Note: The maximum delay time is 255 seconds.

POM PDU User Manual Ver. 1.0 15
Configuration: Threshold
Set the warning and overload threshold for each circuit.
Set lower and upper threshold for temperature and humidity.

POM PDU User Manual Ver. 1.0 16
Configuration: User
Change ID and password.
Default ID is snmp and password is 1234.

POM PDU User Manual Ver. 1.0 17
Configuration: Network
PDU network information
Enable DHCP: Change the way to get IP address for PDU.

POM PDU User Manual Ver. 1.0 18
Configuration: Mail
When event occurs, PDU can send out email message to pre-defined account.
Email Server: The Email Server only support to be input domain name, not IP address.
Sender’s Email: Input the sender email address.
Email Address: Input the recipient email address.
The message in the email:
Indicate OutletA~H-XXXXXXXX status in order
X=0 : means the power off.
X=1 : means the power on.
Note: Make sure DNS server can resolve the Email Server’s domain name.
