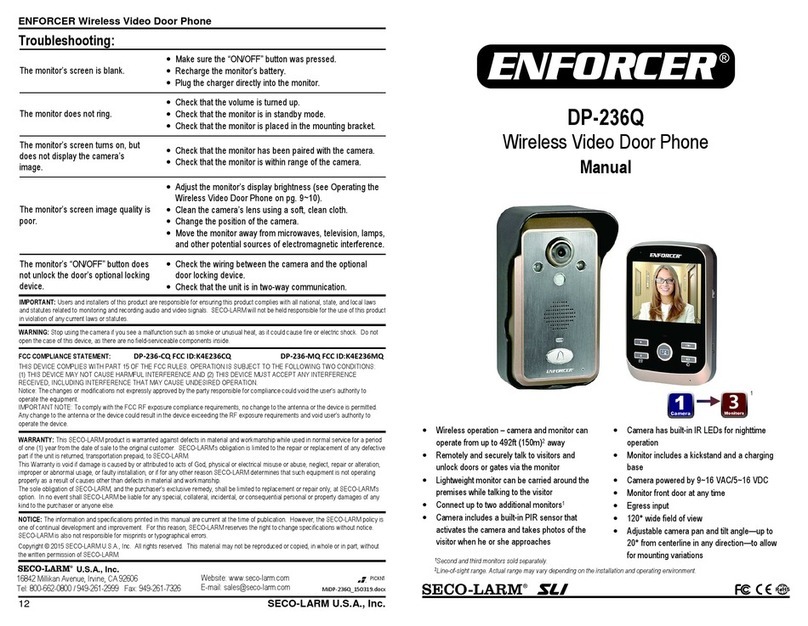

ENFORCER DP-236Q User manual

DP-236Q
•
Wireless operation – camera and monitor can
operate from up to 492ft (150m) away
•Camera has built-in IR LEDs for nighttime
operation
•Remotely and securely talk to visitors and
unlock doors or gates via the monitor
•Lightweight monitor can be carried around the
premises while talking to the visitor
•Connect up to two additional monitors*
•
Camera includes a built-in PIR sensor that
activates the camera and takes photos of the
visitor when he or she approaches
•Monitor includes a kickstand and a charging
base
•Camera powered by 9~16VAC/VDC
•Monitor front door at any time
•Egress input
•120° wide viewing angle
*Second and third monitors sold separately.
*
Manual
Wireless Video Door Phone
3
Note: Model numbers that end with “Q” or that have a round green “Q” sticker signify RoHS-compliant products.

ENFORCER Wireless Video Door Phone
2SECO-LARM U.S.A., Inc.
Table of Contents:
Introduction.......................................................2
Parts List...........................................................2
Specifications....................................................3
Overview...........................................................3
Installation Notes..............................................4
Camera Wiring Diagram...................................4
Sample Application...........................................5
Installation – Camera........................................5
Installation – Monitor......................................6-7
Programming.................................................7-8
Operating the Wireless
Video Door Phone......................................8-9
Pairing Additional Monitors.............................10
Resetting the Camera
and Pairing a First Monitor..........................10
Tamper Alarm.................................................11
Troubleshooting..............................................12
Warranty.........................................................12
Introduction:
The ENFORCER Wireless Video Door Phone is the convenient and secure way to monitor and
control an entryway such as a door or gate from nearly 492 feet (150 meters) away.
When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use
one
of up to three lightweight wireless LCD monitors to see who is requesting entry, speak with the
caller, take a photo, and decide whether or not to grant entry.
Parts List:
1x Monitor
1
1x Camera1
1x Monitor charger stand
1x Monitor kick stand
1x AC Power adapter with USB port
(for monitor)
1x USB Cable (for monitor)
1x Rechargeable lithium ion battery
(for monitor)
1x AC Power adapter with DC plug
(for camera)
1x DC Jack with pigtail (for camera)
1x Battery for camera station
5x Mounting screws
5x Screw anchors
2x Camera screw
1x Screw cover
1x Monitor
2
1x Monitor charger stand
1x Monitor kick stand
1x AC Power adapter with USB port
(for monitor)
1x USB Cable
1x Rechargeable lithium ion battery
DP-236Q
DP-236-MQ
Complete Kit
Additional Monitor Unit
Also Available:
DP-236-SQ
Replacement Monitor Charger Stand
DP-236-BQ
Replacement Battery
1
By default, the monitor in the
DP-236Q Complete Kit is paired
with the camera.
2
Additional monitors are not
automatically paired with the
camera. See pg. 10, Pairing
Additional Monitors.

ENFORCER Wireless Video Door Phone
SECO-LARM U.S.A., Inc. 3
◄rReset
Specifications:
Camera
PIR Sensor
Speaker
Microphone
Doorbell
Status LED
IR LEDs
Camera
Wiring connections
(see pg. 4)
Reset
button
Battery cover
Camera
Type
Color Camera
Chip
CMOS
Resolution
480 TV Lines
Lens
2mm
Viewing angle
120°
Relayoutput
3A@250VAC/30VDC
Current
draw
Active
200mA@4.2VDC
Standby
3mA@4.2VDC
Battery
life
Active
3 Hours
Standby
300 Hours(12.5 days)
PIR Detection range
9’ (3m)
PIR Detection angle
138°
Dimensions
511/
16
”x31/
8
”x23/
8
”
(144x80x60mm)
with bracket
Weight
4.3-oz (122g)
Monitor
Display
3
3
/
8
” (86mm) TFT
Operating voltage
9~16 VAC/VDC
Relockdelay
1~6 s
Current
draw
Active
220mA@4.2VDC
Standby
3mA@4.2VDC
Battery
life
Active
3 Hours
Standby
500 Hours(20 days)
Operating frequency
2.4GHz
Wirelessrange
492’ (150m)
Dimensions
5”x3
3
/
8
”x
7
/
8
”
(127x85x22mm)
Weight
3.9-oz (110g)
Overview:
Monitor
ON/OFF Button:
•Turn monitor
ON/OFF
•Standby mode
•Unlock door
USB
Connector
(Mini-B)
Volume buttons
Status LED
Up
Down/Gallery
Charging
indicator light
View
Photo/
Settings
Microphone
3
3
/
8
” (86mm)
Talk

ENFORCER Wireless Video Door Phone
4SECO-LARM U.S.A., Inc.
Installation Notes:
1. Unpack the video door phone and note the included parts.
2. Read this manual thoroughly. A clear understanding of the manual will make installation and
operation much easier.
3. Find a good location to mount the monitor and camera.
4. Avoid mounting the camera or monitor near sources of strong electromagnetic signalsor other
electronic devices that may cause interference.
5. Avoid mounting the camera in direct sunlight or exposing the camera to strong vibrations,
direct
rain, or moisture, which could result in damage to the camera.
6. The monitor and camera contain no user-serviceable parts. Opening them may damage
sensitive components and will void the warranty.
1) Positive (+) power input.Connect to the red wire of the included AC adapter or to the
positive wire of the doorbell’s power supply.
2) Negative (-) power input. Connect to the black wire of the included AC adapter or to the
negative wire of the doorbell’s power supply.
3) Egress (N.O.) negative input. Connect to an optional N.O. egress device. The egress
device willactivate the relay forthe same length as the lock delay. (See pg. 8,
Programming the lock delay).
4) N.O. (Normally opened) output. Wire to the lock device for fail-secure operation.
5) N.C. (Normally closed) output. Wire to the lock device for fail-safe operation.
6) Common output. Wire to the power supply of the lock device.
NOTE: For more information on how to wire the camera, see Sample Application on page 5.
NOTE: For 16VAC doorbell installation, wire directly from the doorbell’s transformer.
Camera Wiring Diagram:
1 2 3 4 5 6
(+)
(-)
Egress input (N.O., -)
N.O. Output
N.C. Output
COM
9~16
VAC/VDC

ENFORCER Wireless Video Door Phone
SECO-LARM U.S.A., Inc. 5
Positive (+) (red wire)
Negative (-) (black wire)
Installation – Camera:
1. Position the camera so the area to be monitored is easilyvisible,
optimally 5ft (1.5m) above the ground. Do not position the
camera in direct sunlight, or where it willbe exposed directly to
rain or snow.
NOTE: For best results, visitor should stand 2.5~5 ft (0.8~1.5m)
away from camera.
2. Cut a hole large enough to run the min. 21AWG 2-conductor
wire to the door unlock device through the wall, as well as to the
included power supply.
3. Install the camera bracket to the wall with three screws. Use
screw anchors if the bracket ismounted on drywall or brick.
4. Run the 2-conductor wire from the camera through the wire hole
in the bracket to the optional door unlock device.
5. Install the rechargeable lithium ion battery into the camera. The
battery will act asa backup power source in case of a power
outage.
6. Connect the AC adapter (see Camera Wiring Diagram on pg. 4).
7. Mount the camera into the bracket:
oPush the top of the camera into the top of the bracket.
oPush the bottom of the camera into the bottom of the
bracket.
oScrew in the bottom of the camera to fix the camera
into the bracket and push the plastic screw cover into
the bottom of the bracket, over the screw.
NOTE 1: Do not block the PIR sensor on the camera.
5ft
(1.5m)
3
3
/
4
”
(96mm)
2
2
/
16
” (54mm)
COM
PUSH
TO
EXIT
1 2 3 4 5 6
N.C.
N.O.
Request-to-exit plate
Fail-secure
electric strike
Electric strike
power supply
Sample Application:
•The camera is connected to its included AC adapter.
•The egress input is connected to a Request-to-Exit Plate. The homeowner can exit the
premises by pressing this button.
•The N.O. (normally open) output is wired to an electric lock. The camera and the Request-to-
Exit Plate both activate the strike, allowing entry or egress.
•
The electric lock’s power supply is wired to the COM (common) output.
Egress input (N.O., -)
To the included AC adapter or
the doorbell’s transformer
(-)
(
+
)
Camera

ENFORCER Wireless Video Door Phone
6SECO-LARM U.S.A., Inc.
Turn monitor ON:
Hold the ON/OFF button for 3 seconds. The monitor will
turn ON with the ENFORCER screen.
Standby mode:
If the monitor is on, press the ON/OFF button momentarily
to go to standby mode (if the display is ON) or to leave
standby mode (if the display is OFF).
ON/OFF
Install the monitor battery:
Remove the battery cover on the back of the monitor and insert the included
BP-6M lithium ion battery.
BP-6M
Installation – Monitor:
Recharge the monitor battery:
There are two ways to recharge the monitor battery.
1. Place the
monitor into
the recharge
cradle and
plug in the
recharge
cradle.
2. Plug the charger directly into the monitor.

ENFORCER Wireless Video Door Phone
SECO-LARM U.S.A., Inc. 7
Turn monitor OFF:
While the monitor’s display isON, hold the ON/OFF button for 3
seconds and the monitor willturn OFF.
1. While the monitor display is on, hold the “Photo/Settings” button for 3 seconds to enter
programming mode.
2. Press the “Photo/Settings” button to cycle through the programming options, including:
a. Time setup
b. Ringtone choice
c. Lock delay
d. PIR setup
3. To exit programming mode, press the “Photo/Settings” button to cycle through the remaining
programming modes, or press the “Talk” button to return to the home screen.
NOTE: If there is no activity, the monitor will exit programming mode and the display will turn
off in 35 seconds.
Programming the display time:
1. Hold the “Photo/Settings” button for 3
seconds to enter programming mode.
2. Use the up and down arrow buttons on the
front of the monitor to highlight the area to
be changed.
3. Use the volume buttons (+/-) to adjust the
time or date.
4. Press the “Talk” button to set the display
time and exit programming mode.
Programming the ringtones:
1. Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then
momentarily press the “Photo/Settings” button one time to select the ringtone display.
2. Use the up and down arrow buttons on the front of the monitor to choose one of 4 ringtones:
Telephone, Doorbell, “Für Elise”, or “Jingle Bells”. This is the tone the user will hear when a
visitor requests entry.
3. Use the volume buttons (+/-) to adjust the volume of the ringtone.
4. Press the “Talk” button to set the ringtone and exit programming mode.
Photo/
Settings
Volume buttons
Arrow buttons
Talk
Installation – Monitor
(continued)
:
Programming:
Battery saver:
If the display is ON and there is no user action for
35 seconds, the display will turn OFF and the monitor will
go into the standby mode.
Low battery:
When the battery is low(indicated by 1 or 0 bars on the
display’s battery icon), the red indicator LED will start to
flash once per second.
Low
battery
indicator
Batter
level
indicator

ENFORCER Wireless Video Door Phone
8SECO-LARM U.S.A., Inc.
Request entry:
1. Press the doorbell button on the camera.
2. Wait for someone to press the ON/OFF button on the monitor to unlock the door.
Receive a visitor:
1. If a visitor presses the doorbellbutton on the camera, the monitor’s display turns ON and the
monitor sounds the chosen ring tone.
2. To talk with the visitor, press the “Talk” button.
3. To unlock the optional electronic door lock, press the ON/OFF button briefly while the monitor
is displaying the camera’s view.
4. Press the “Talk” button again to turn off the monitor.
Doorbell
Talk
View
Photo/
Settings
Programming the lock delay:
This determines how long the relay output is active after the door has been unlocked.
1. Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then momentarily
press the “Photo/Settings” button two times to select the lock delay.
2.
Use the up and down arrow buttons on the front of the monitor to set the lock delay from 1 to 6
seconds. The default setting is 1 second.
3. Press the “Talk” button to set the lock delay and exit programming mode.
Programming the PIR sensor ON/OFF:
The camera has a built-in PIR(passive infrared) sensor to detect an approaching visitor and
automatically turn the camera on. It can be programmed ON or OFF.
1. Hold the “Photo/Settings” button for 3 seconds to enter programming mode, then briefly press
the “Photo/Settings” button three times to select the PIR mode.
2. Use the up and down arrow buttons on the front of the monitor to turn the PIR sensor ON or
OFF.
3. Press the “Talk” button to set the PIR sensor and exit programming mode.
Programming
(continued):
Operating the Wireless Video Door Phone:
ON/OFF Button:
•Turn monitor
ON/OFF
•Standby
mode
•Unlock door

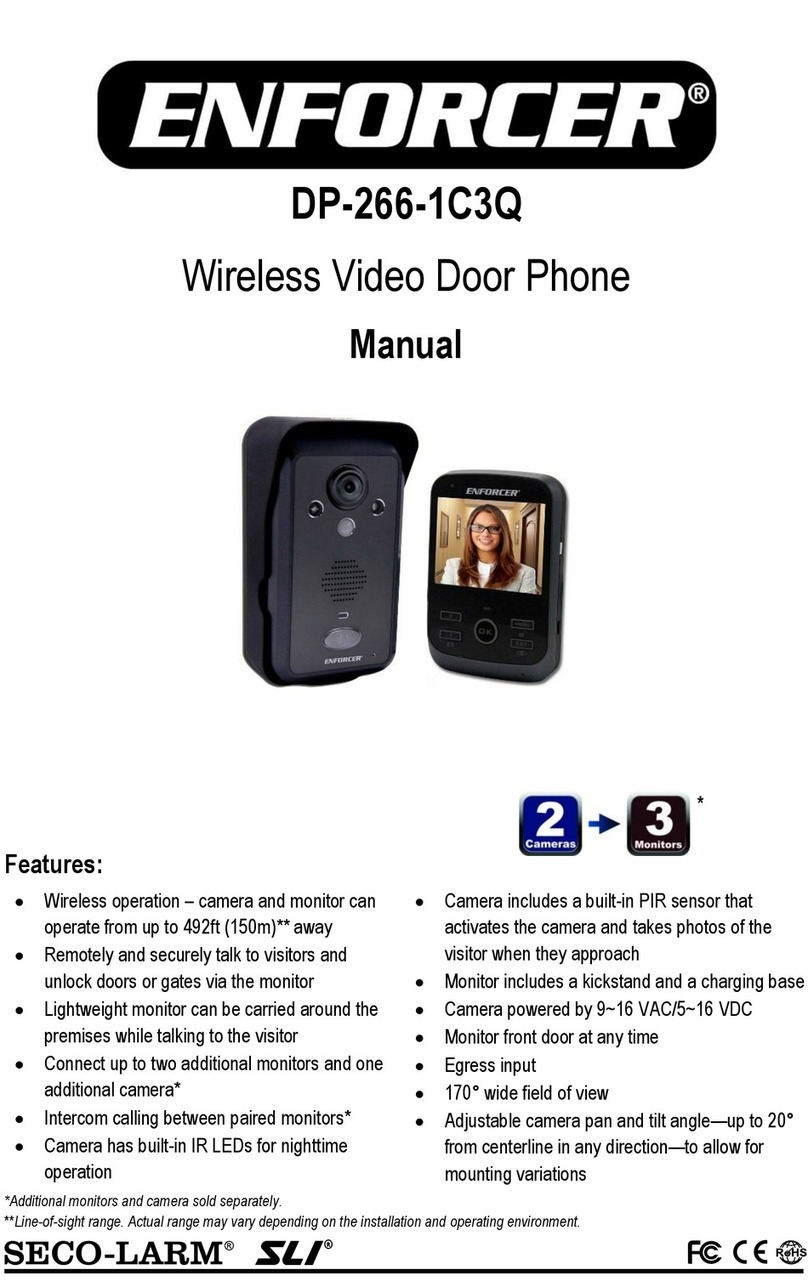

ENFORCER Wireless Video Door Phone
SECO-LARM U.S.A., Inc. 9
View and/or talk to a visitor who has not pressed the doorbell button on the camera:
1. Press the ON/OFF button to turn the monitor’s display ON.
2. Press the monitor’s “View” button to turn the camera on. At this time, the monitor can hear
sound and view video from the camera.
3. Press the monitor’s “Talk” button to enable communication between the monitor and
camera.
4. To unlock the optional electronic door lock, press the ON/OFF button momentarily while
the monitor is displaying the camera’s view.
5. Press the monitor’s “View” button to mute the monitor or “Talk” button to end monitoring of
the camera.
Talk
View
Photo/Settings
Arrow
Buttons
Adjust the monitor’s color tint:
1. Press the ON/OFF button to turn the
monitor’s display ON.
2. Press the monitor’s “View” button to turn
the camera on.
3. While the camera’s image is displayed,
press the up and down arrows on the
front of the monitor to turn the
brightness up and down.
4. Press the monitor’s “View” button to
save the brightness setting and turn the
camera off.
Access the photo gallery:
1. The monitor can be used to view up to 100 photos that have been captured by the camera,
and to delete photos no longer needed.
2. Press the ON/OFF button to turn the monitor’s display ON.
3. Press and hold the down arrow on the front of the monitor 3 seconds untilthe letter “P” and
the number of stored photos show on the top of the screen.
4. Press the up and down arrows on the front of the monitor to view the captured photos.
5. To delete a photo:
a. Press the “Photo/Settings” button.
b. Press the up and down arrows on the front of the monitor to select “Y” (yes, delete),
“N” (no, do not delete), or “ALL”(delete all photos).
c. Press the “Talk” button to select. If “Y” is selected, the photo will be deleted.
NOTE: Monitor willautomatically delete the oldest photo when full.
NOTE: It is not possible to export internal photos
Operating the Wireless Video Door Phone
(continued):
Manually take a photo:
1. While the monitor is displaying the camera’s view,press the “Photo/Settings” button to
manually take a photo.
2. If the user does not answer a call within 5 seconds, the camera will take a photo
automatically.
NOTE: If the monitor’s battery is low, the photo-taking function will not work.

ENFORCER Wireless Video Door Phone
10 SECO-LARM U.S.A., Inc.
To reset the camera and pair a first monitor:
1. Clear the camera’s existing pairings:
a. Remove the camera from the bracket.
b. The alarm will begin to sound.
c.
Remove the battery from the camera then replace the battery to deactivate the tamper
alarm.
d. Use a paper clip or other small object to press and hold the camera’s reset button for
three seconds. A beep confirms the pairings have been cleared.
2. Pair the monitor to the camera:
a. Turn on the monitor by holding the ON/OFF button for three seconds.
b.
Quickly press the ON/OFF button five times. The screen will display “Pairing” for about
15 seconds. The monitor will allow pairing only once per bootup, so you may need to
power it OFF and ON again if the attempt fails.
3. Pair the camera to the monitor:
a. While the monitor displays “Pairing”, press the camera’s reset button twice.
4. One beep confirms the pairing of the first monitor. Return the camera to the bracket:
a. Mount the camera in the bracket.
b. Press the doorbell button on the camera to test the connection.
To pair a monitor with the camera:
1. Disable the tamper alarm:
a. Remove the camera from the bracket.
b. The tamper alarm will now sound. Press the “Talk” button on the already-paired
monitor repeatedly to disable the tamper alarm.
2. Pair the new monitor to the camera:
a. Turn on the monitor to be paired by holding the ON/OFF button for three seconds.
b.
Quickly press the ON/OFF button five times. The screen will display “Pairing” for about
15 seconds. The monitor will allow pairing only once per bootup, so you may need to
power it OFF and ON again if the attempt fails.
3. Pair the camera to the new monitor:
a. While the monitor displays “Pairing”, use a paperclip or other small object to press the
camera’s reset button twice.
b. Two or three beeps confirm the pairing of the second or third monitor respectively.
4. Return the camera to the bracket:
a. Mount the camera in the bracket.
b. Press the doorbell button on the camera to test the connection.
Pairing Additional Monitors:
NOTE: By default, the monitor in the DP-236Q Complete Kit is paired with the camera. These
instructions apply to pairing a second or third monitor.
Resetting the Camera and Pairing a First Monitor:
