VidyoRoom™ HD-3C

Getting Started Guide

What’s Included

Your HD-3C codec is shipped with the following items:

VidyoRoom HD-3C

◼Power Cables for the United States –Total length 6 ft (1.828 m)

(Input 100-240V and AC Input 50-60 Hz) –Qty. 1

◼HDMI to HDMI Cable –6 ft (1.828m) –Qty. 2

◼CAT5E RJ45 Ethernet Patch Cable Bootless –Qty. 1

◼Accessories –(1) Cable Adapter DisplayPort 1.2 and (1)

DisplayPort 1.2a to 4K HDMI active adapter –Qty. 2 total

◼USB Infrared Receiver –External infrared –Qty. 1

◼Display Port (1.2 Display Port to HDMI 2.0 dongles included) –

Qty. 4

◼Infrared remote control with (2) AAA batteries- –Qty. 1

◼NOTE: You can choose from multiple user-friendly remote

control options, including, the free VidyoRemote app for tablets,

or handheld remote control with a simple-to-navigate on-screen

UI or room automation systems like AMX and Crestron.

Please refer to the diagram on the next page to better understand how to connect peripherals to the VidyoRoom HD-3C. For more information, refer to the

following articles on the Vidyo Help Center:

•For a list of peripherals compatible with VidyoRoom, see the Recommended and Supported Peripherals for VidyoRoom Systems article.

•For information about how to configure your VidyoRoom system as an administrator, see the VidyoRoom and VidyoPanorama 600 Administrator Guides

and VidyoRoom SE Deployment Guides article.

•For details about each release, such as the new features and resolved issues, see the VidyoRoom Releases article and the VidyoRoom Product Bulletins

article.

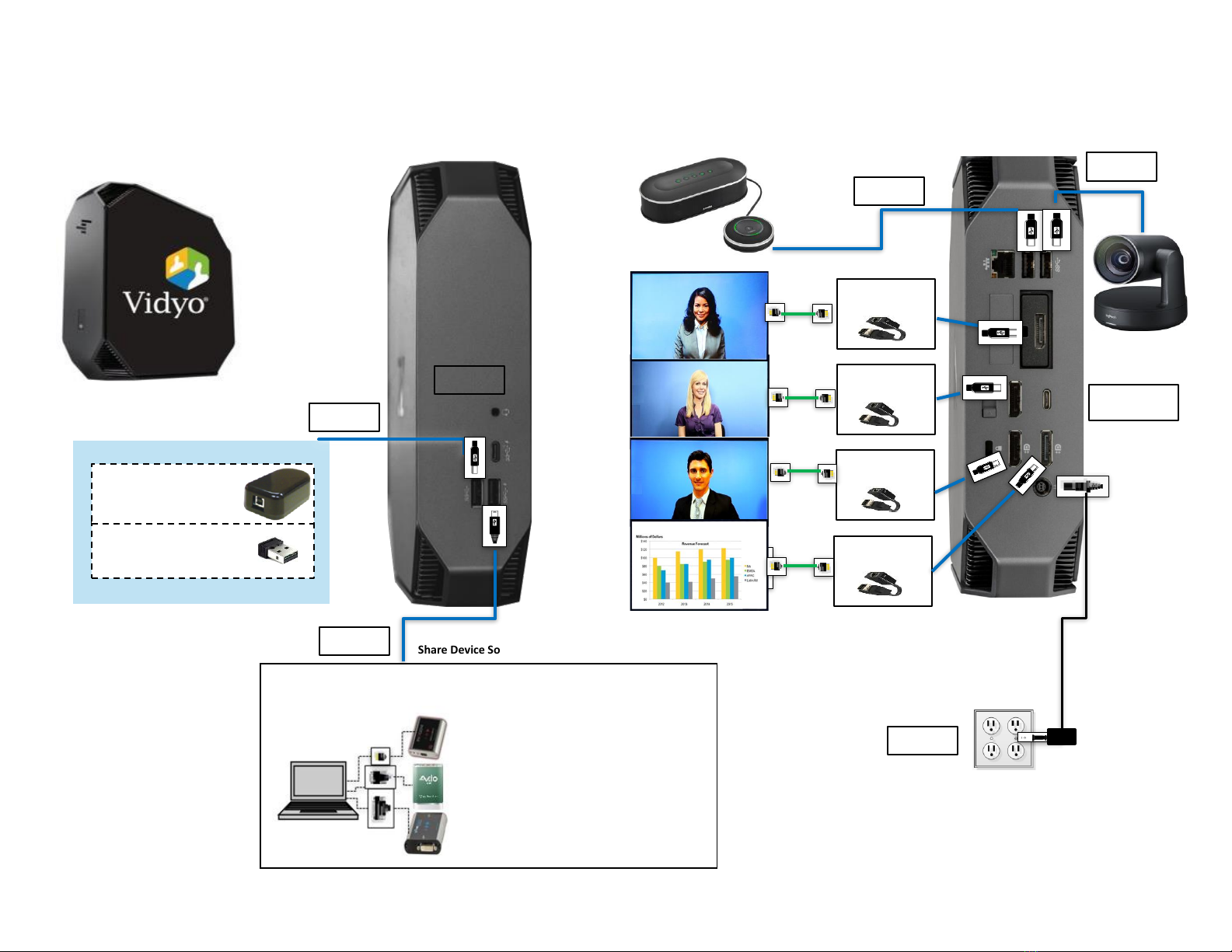

Diagram for Installing Your HD-3C

USB Audio

Device

Control Solutions

Radiofrequency Transceiver

DEV-ACC-RM-RF-REMOTE

(for use when RF remote is purchased)

Infrared Receiver

(for use with IR/RF remote)

USB cable

Power

cable

VidyoRoom HD-3C (Back)

USB camera

Display 1

Display 2

Display 3

Display 4

DisplayPort to

HDMI Adapter

DisplayPort to

HDMI Adapter

4 Display Ports

VidyoRoom HD-3C (Side)

- HDMI to USB3

- VGA to USB

- DVI to USB3

Note: Connect either Inogeni devices

(Models: 4K2USB3 or DVIUSB) or an Av.io

device to the USB ports.

Share Device Solutions

2 USB Ports

USB cable

VidyoRoom HD-3C (Front) - No

connections needed on the front

DisplayPort to

HDMI Adapter

DisplayPort to

HDMI Adapter

USB cable

Note: For Camera PTZ to work, plug the USB

into Serial Adapter in the rear bottom USB port

only.

Configuring Supported Television Picture Settings

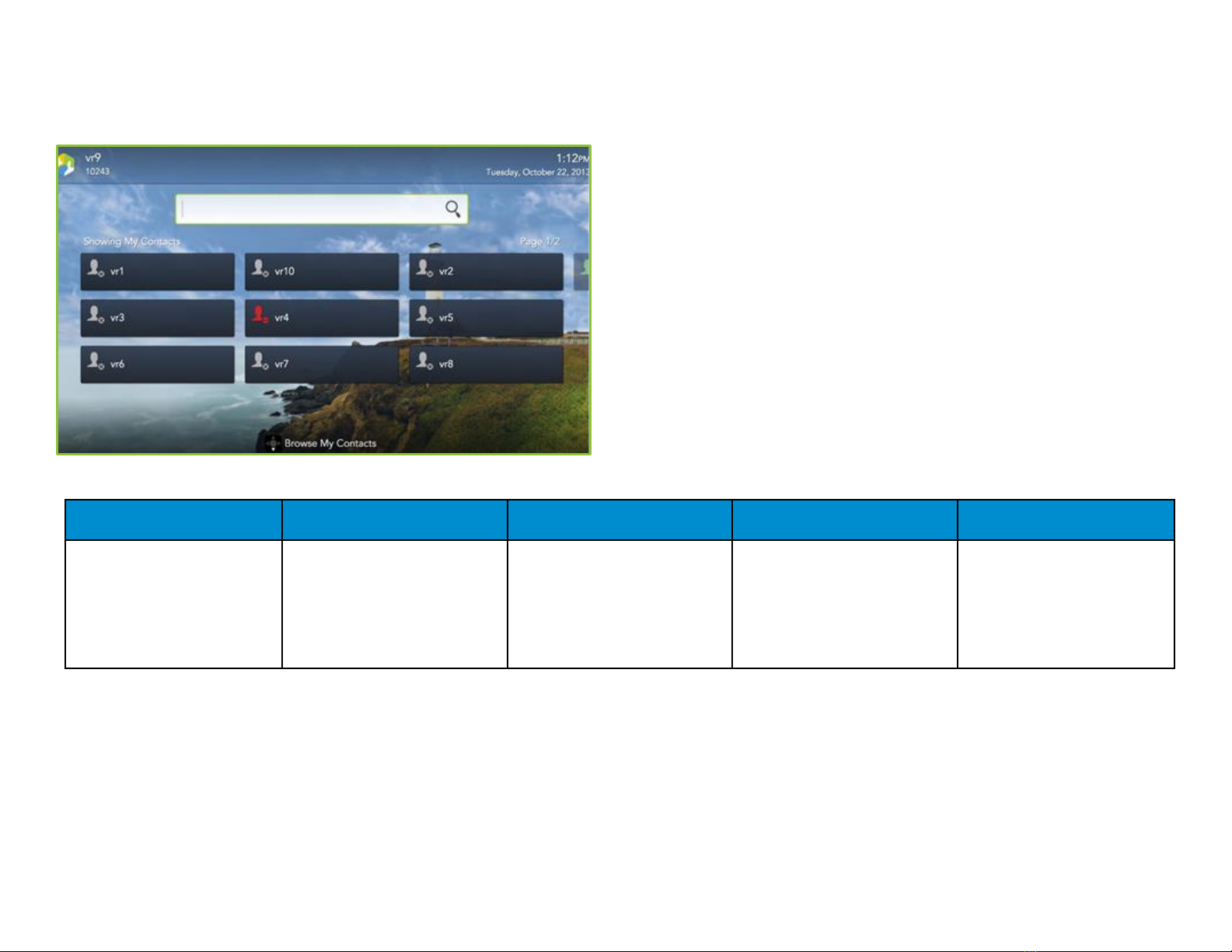

If the edges of the VidyoRoom UI are cut off, like in the screenshot below, please see the table at the bottom of this page to reconfigure the alignment.
