England's Stove Works 15-W01 User manual

15‐W01
(ESW0037 MODEL)
INSTALLATION & OPERATION MANUAL
Safety tested according to
ULC S627 standard by an
accredited laboratory
CAUTION
Please read this entire manual before installation and use of this wood
fuel‐
burning appliance. Keep children, furniture, fixtures and all combustibles away
from any heating appliance.
SAVE THESE INSTRUCTIONS
SAFETY NOTICE
Failure to follow these instructions can result in property damage, bodily
injury
or even death. For your safety and protection, follow the
installation
instructions outlined in this manual. Contact your local building or fire officials
about restrictions and installation inspection requirements (including permits)
in your area.
46326A
2023‐01‐23
Manufactured By:
Stove Builder International i nc.
250, rue de Copenhague, St‐Augustin‐
de‐Desmaures (Québec) Canada, G3A
2H3
www.englander‐stoves.com
Email: tech@sbi‐international.com
Tel : [phone]‐6663

IMPORTANT: IF YOU HAVE A PROBLEM WITH THIS UNIT, DO
NOT RETURN IT TO THE DEALER. CONTACT TECHNICAL
SUPPORT @ 1‐877‐356‐6663
Retain for your files
Model Number
Date of Purchase
Date of Manufacture
Serial Number
* This information can be found on the safety tag attached to the rear of the unit.
Have this information on hand if you phone the factory or your dealer regarding this
product.
• Keep children away.
CAUTION
• Supervise children in the same room as this appliance.
• Alert children and adults to the hazards of high temperatures.
• Do NOT operate with protective barriers open or removed.
• Hot while in operation! Keep clothing, furniture, draperies and other
combustibles away. Contact may cause skin burns!
• Installation MUST comply with local, regional, state and national codes and
regulations.
• Consult local building, fire officials or authorities having jurisdiction about
restrictions, installation inspection, and permits.

IMPORTANT NOTE: The ash pan on this wood stove must be installed
correctly before operation.
The locking lip on the bottom of the ash pan must be slid INSIDE the stove
pedestal so that it can lock the ash pan in place, flush against the pedestal.
Tilt the ash pan up toward you as you slide it into the opening to do this.
If the locking lip is on the outside of the stove pedestal, it is incorrectly
installed.
CORRECT INSTALLATION
LOCKING LIP
INCORRECT INSTALLATION
*DAILY ‐‐Inspect the firebox for ash accumulation; remove excess ash and follow instructions in your
owner’s manual regarding disposal. Ash should not be allowed to accumulate in the stove to the
point that it covers the dog box hole. The ash dump plug in the firebox may be removed and ashes
raked into the ash pan below for temporary storage. Remember to replace the ash dump plug.
Ash Dump
Dog Box
See Below*

WELCOME!
Introduction
• Thank You! …............................... 5
Specifications
• Heating Specifications.................. 6
• Dimensions................................... 6
• Emission and Safety Compliance
Specification ........................... 6
Installation
• Installation Overview ................... 7
• Clearances to Combustibles......... 8
• Venting Introduction.................... 9
• Venting Guidelines....................... 9
• Additional Venting Information .. 10
• Wall Pass ‐Throughs..................... 11
• Approved Venting Methods
o Through the Wall ........... 12
o Through the Ceiling ........ 13
o Masonry Chimney ........... 14
o Masonry Fireplace .......... 15
• Outside Air Hook‐Up ................... 16
• Floor Protection ......................... 17
Operation
• Break‐In Fires ............................. 18
• Continuous Operation........... 18‐19
• Safety Notes ............................... 20
Maintenance
• Stove Maintenance .................... 22
• Inspecting Gaskets ...................... 23
• Finish .......................................... 23
Replacing Components
• Glass ........................................... 24
• Burner Tubes .............................. 25
• Ceramic Fiberboards................... 25
• Door Hinges ................................ 25
• Heat Shield & Back Panel ........... 25
• Other Components..................... 26
Optional Accessories
• AC‐16/AC‐30 Blower .................. 26
• Side Heat Shield ……................... 26
TroubleshootingGuide
• Troubleshooting......................... 27
Illustrated Parts Detail
• Parts List..................................... 28
• Exploded Parts Diagram............. 29
• Brick Layout ................................ 30
Warranty
• Sample Tag.................................. 31
• Warranty Details ........................ 32
• Important No tice ........................ 33
• Warranty registration Form ....... 34
NOTE: CLEARANCES MAY ONLY BE REDUCED BY MEANS APPROVED BY THE REGULATORY AUTHORITY
HAVING JURISDICTION
DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
DO NOT BURN GARBAGE OR FLAMMABLE FLUIDS SUCH AS GASOLINE, NAPHTHA OR
ENGINE OIL.
DO NOT USE CHEMICALS OR FLUIDS TO START THE FIRE.

Thank you for purchasing this fine product from Englander!
Englander was started, and is still owned by, a family that believes
strongly in a "Do It Yourself" spirit – that’s one reason you found this
product at your favorite “Do It Yourself” store.
We intentionally design and build our stoves so that any homeowner
can maintain his or her unit with basic tools, and we're always more
than happy to show you how to do the job as easily and as
inexpensively as possible.
From our free, downloadable service sheets to our "wizard-style," click-
through Troubleshooting guide on our web site, we have always tried to
help our customers stay "heat-ready," especially when oil and
electricity prices continue to skyrocket.
Please look at our vast Help section on our web site and call our
Technical Support department at 1 [phone] if you need any help
with your unit. We are nearly always able to help “walk you through”
any repairs, problems or questions you may have.
PLEASE NOTE: While information obtained on our web site and
through our 877 number is always free of charge, there will be a service
charge incurred with any “on-site” repairs or maintenance that we may
arrange.
Wishing you years of efficient, quality and “comfy” heating,
Englander
Technical Support Department
www.englander-stoves.com
1 [phone]
This manual is available for free download on the manufacturer’s web site. It is a copyrighted document and resale
is strictly prohibited. The manufacturer may update this manual occasionally and cannot be responsible for
problems including injuries or damages resulting from the use of information found in any manual from
unauthorized sources.
PLEASE NOTE: If you purchased this model from certain stores, their model number may end in “L” “LC” “H”
“CT”, etc. This manual does apply to those models as well.
CAUTION: Stove is heavy.
In addition, when handling any sheet metal products, be aware that there may be sharp edges or burrs.
Although we make every effort to eliminate any sharp edges, please use caution when handling any metal parts.
Remember to disconnect (unplug) the stove from the power source and allow it to completely cool down
before performing any maintenance.

SPECIFICATIONS
Heating Specifications
• Maximum Burn Time** ................................................................................. 6‐8 hours
• Approximate Square Footage Heated*** .................................................... 2000 sq. ft.
• Firebox Capacity............................................................................................ 35 pounds
• Flue Collar .................................................................................................. 6.0 in. round
Dimensions (Inches)
Emission and Safety Compliance Specifications
•Particulate Emissions …………………………… 1.956 grams/hr
•CO Emissions ………………………………………. 1.659 grams/min
•Heat Output Range …………………………….. 11,129 – 24,369 Btu/hr
•Efficiency…… ……………………………………… 73.77% (HHV)
•Tested To CSA B415.1 and ULC‐S627.
•Notes for this unit:Product may vary slightly from diagram. Clearances are the minimum
for this unit and may need to be increased in the rear to have proper vent clearances. Follow all
venting manufacturer clearances and local codes.
*** ‐ The maximum heating capacity of this unit can vary greatly based on climate, construction style, insulation and a myriad of other factors.
Use this information in conjunction with a BTU loss calculation for your home to determine if this unit will be sufficient for your needs.

INSTALLATION
InstallationOverview
When choosing a location for your new stove, there are a multitude of factors that
should be taken into account before beginning the installation.
1. Traffic Patterns – To help prevent accidents, the stove should be placed in a location
where it is out of the way of normal travel through the home.
2. Heat Flow – When deciding on a location for the stove, consider the way heat moves
throughout your home. Install the stove where you need the heat; basement
installations often do not allow sufficient heat to flow to the upper floors and a top
floor installation will not allow any heat to reach the floors below. Always consider
that heat rises and will take the path of least resistance while it is still hot.
3. Exhaust Location – The engine which drives a wood stove is the chimney system, so
it is important to consider precisely how the chimney system will be integrated into
the stove installation. Ideally, a wood stove chimney will run completely vertical
from the flue collar of the unit all the way to the termination point above the roof
line. Keeping the entire chimney system inside the heated envelope of the home
will ensure a strong, easy to initiate draft in the chimney. Although exterior chimney
systems often function properly, they are more likely to suffer from cold down drafts
at start up or provide weak draft to the unit. Also, consider the cross‐sectional area
of the chimney; although existing masonry chimneys can often be used, a large
external masonry chimney will result in a unit that is difficult or impossible to
operate properly. In that case, an insulated chimney liner will often be required to
supply the necessary draft.
4. Wall Construction – Locating the stove so that the exhaust system can pass between
studs will simplify the installation and eliminate the need to reframe any sections of
the wall or ceiling to accommodate the wall thimble or ceiling box.
WARNING
• Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
• Do Not Over‐fire – If any external part starts to glow, you are over‐firing.
Reduce intake air supply. Over‐firing will void your warranty.
• Comply with all minimum clearances to combustibles as specified.
Failure to comply may result in a house fire.
• Tested and approved for cordwood only. Burning any other fuel will
void your warranty.

INSTALLATION

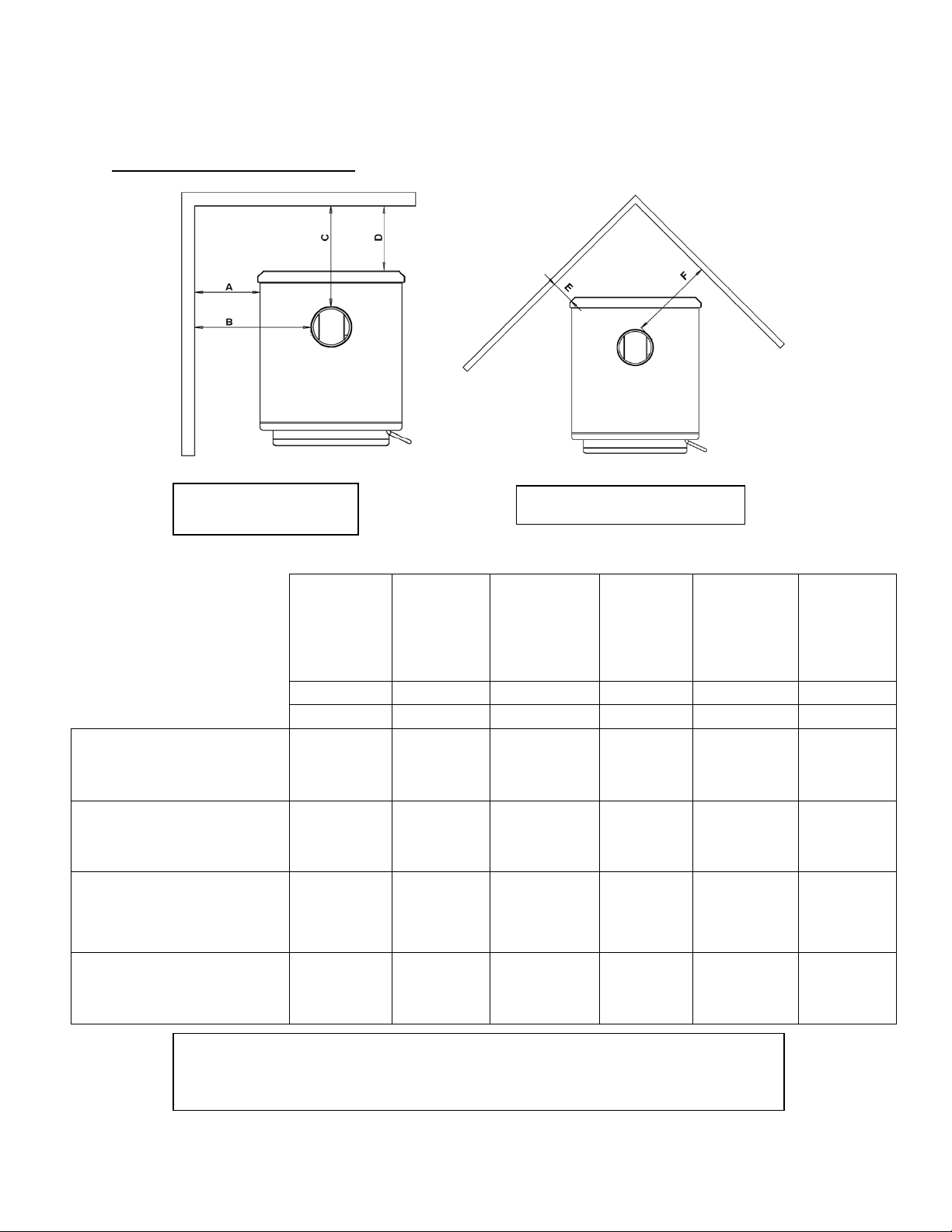

Clearances to Combustibles
Parallel
Wall Installation
Corner Installation
WARNING ‐ INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER
Unit to Side
Wall
*
Chimney
Connector
to Side
Wall
Chimney
Connector to
Rear Wall
Unit to
Rear
Wall
Unit to
Corner
Chimney
Connector
to Corner
A
B
C
D
E
F
in. (mm.)
in. (mm.)
in. (mm.)
in. (mm.)
in. (mm.)
in. (mm.)
Single Wall Chimney
Connector Unprotected
Surface
21.5
(546.1)
29
(736.6)
12
(304.8)
7.5
(190.5)
9.5
(241.3)
19
(482.6)
Double Wall Chimney
Connector Unprotected
Surface
N/A N/A N/A N/A N/A N/A
Single Wall Chimney
Connector Unprotected
Surface with side shields.
17.5
(445.5)
25
(635)
12
(304.8)
7.5
(190.5)
5.5
(139.7)
15
(381)
Double Wall Chimney
Connector Unprotected
Surface with side shields.
N/A N/A N/A N/A N/A N/A
Notes for this unit: The product may differ slightly from the diagrams. The clearances are the
minimum for this unit and may need to be increased to have proper ventilation clearances.
Observe all ventilation manufacturer clearances and local codes.

Venting Introduction
INSTALLATION
Venting Guidelines
This wood stove operates on a
natural draft system, in which the chimney
system pulls air through the stove. This unit
must be installed in accordance with the
following detailed descriptions of venting
techniques; not installing the stove in
accordance with the details listed here can
result in poor stove performance, property
damage, bodily injury or death. Avoid
make‐shift compromises when installing the
venting system. Englander is not
responsible for any damage incurred
due to a poor or unsafe installation.
Be certain that all aspects of the
venting system are installed to the venting
manufacturer’s instructions, particularly the
required clearances to combustibles. Also,
be certain to use an attic radiation shield to
prevent insulation from contacting a
chimney which passes through an attic.
The chimney system is the “engine”
which drives a wood stove, so it is
imperative for proper unit function that the
venting system be installed exactly as
described in the following section.
If questions arise pertaining to the
safe installation of the stove, our Technical
Support line (877‐356‐6663) is available.
Contact your local code official to be certain
your installation meets local and national
fire codes, and if you’re uncertain about
how to safely install the stove, we strongly
recommend contacting a local NFI certified
installer to perform the installation.
• ALWAYS install vent pipe in strict
adherence to the instructions and
clearances included with your
venting system.
• DO NOT CONNECT THIS WOOD
STOVE TO A CHIMNEY FLUE WHICH
ALSO SERVES ANOTHER APPLIANCE.
• DO NOT install a flue pipe damper
or any other restrictive device in the
exhaust venting system of this unit.
• USE an approved wall thimble when
passing through a wall and a ceiling
support/fire stop when passing
through a ceiling.
• INSTALL three sheet metal screws at
every chimney connector joint.
• AVOID excessive horizontal runs and
elbows, as both will reduce the draft
of the venting system and will result
in poor stove performance.
• INSPECT your venting system often,
to be certain it is clear of creosote,
fly‐ash and other restrictions.
• CLEAN the venting system as
detailed in the maintenance section
of this manual.
• ADHERE to the 10‐3‐2 rule regarding
chimney terminations.
• INSTALL single wall chimney
connector with the male end down
to prevent creosote leakage. Follow
double wall chimney connector
manufacturer’s instructions
regarding proper pipe installation.
WARNING: Venting system surfaces get HOT, and can cause burns if
touched. Noncombustible shielding or guards may be required.

Flue Gas Direction
AdditionalVenting Information
INSTALLATION
• Do not mix and match components from different pipe manufacturers when assembling
your venting system (i.e. Do NOT use venting pipe from one manufacturer and a thimble
from another).
• We require a minimum chimney height of 15.0 ft. Chimney systems shorter than this
may not create the amount of draft which is required to operate this wood burning unit.
• Do not use makeshift compromises when installing the venting system; have existing
chimney systems inspected before use and be certain all new chimney systems are
installed to the manufacturer’s specifications and with only ULC listed components.
• Prefabricated venting systems used for this stove must be listed to ULC S629 (Canada).
• Never install a draft inducer or any other system which increases the natural draft of the
chimney; similarly, do not install a barometric or stovepipe damper with this unit.
• Never use single wall or double chimney connector as a chimney system; never pass
either type of chimney connector through a combustible wall without carefully following
the manufacturer’s instructions and those listed in the following page on Wall Pass‐
Throughs. NEVER pass chimney connector through an attic, floor, closet or roof.
• Only use 24 gauge MSG black single wall chimney connector or ULC Listed double wall
chimney connector.
Single Wall Chimney Connector Installation
The male end of single wall
chimney connector is
installed facing down so that
any liquid creosote in the
flue will run into the unit
instead of onto the outside
of the pipe (the natural draft
in the chimney system will
prevent smoke leakage at
the joints).
Crimped or male end of
single wall chimney
connector must face down.
Fasten each single wall
chimney connector joint
with three sheet metal
screws.
WARNING
• INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER.
• HOT! Do not touch! Severe burns or clothing ignition may result.
• Glass and other surfaces are hot during operation.
INSTALLATION

Wall Pass-Throughs
In Canada, the installation must conform to CAN/CSA-8365 when passing through combustible construction.

18.0 in.
2.0 ft.
3.0 ft.
INSTALLATION
Approved Venting Method 1: Through the Wall Factory Built Chimney
10 ft.
Termination Cap
Storm Collar
Roof Flashing
The 10‐3‐2 Rule: The chimney system
must terminate 3.0 ft. above the point
where its centerline passes through the
roof AND the chimney must terminate
2.0 ft. above any part of the dwelling
within a 10 ft. radius of the chimney.
Wall Thimble
Class A Chimney System
Chimney Connector
(Single or Double Wall)
Tee and Tee Support
• Prefabricated chimney systems must conform to ULC‐S629 (650°C) for
Canada.
• This wood burning unit is only listed for installation with 6.0” diameter chimney connector and chimney systems.
Installing this unit on prefabricated chimneys larger than 6.0” diameter will result in decreased draft and the
potential for poor unit performance.
• Follow all venting system manufacturer’s installation requirements and required clearances.
• Use three sheet metal screws at each single wall chimney connector joint (check manufacturer’s
recommendations when double wall chimney connector is used).
• Drill three holes in the flue collar of the unit and attach the chimney connector to the unit using sheet metal
screws (holes should be pre‐drilled in flue collar from factory).
• Properly attach the prefabricated chimney system to the home in strict accordance with the prefabricated
chimney system manufacturer’s instructions.
• Avoid numerous elbows and excessive horizontal runs as both will lead to poor draft and increased creosote
accumulation. Horizontal runs of chimney connector must never exceed 4.0 ft. and the overall length of the
chimney connector must not exceed 8.0 ft. with single wall black connector pipe. If necessary to run longer
than 8.0 ft. of chimney connector pipe, double wall black chimney connector pipe must be used.
• Special adapters and slip connectors are available to eliminate the need to cut single wall chimney connector.
Double wall chimney connector must be used with these slip connectors, as it cannot be trimmed to length.
Please Note: Installation diagrams are for reference purposes only and are not drawn to scale, nor meant to be used as plans
for each individual installation. Please follow all venting system requirements, maintain the required clearances to
combustibles, and follow all local codes.

2.0 ft.
3.0 ft.
3 ft.
2 ft.
INSTALLATION
Approved Venting Method 2: Through the Ceiling
10 ft.
Termination Cap
Storm Collar
The 10‐3‐2 Rule: The chimney system
must terminate 3.0 ft. above the point
where its centerline passes through the
roof AND the chimney must terminate
2.0 ft. above any part of the dwelling
within a 10 ft. radius of the chimney.
Roof Flashing Class A Chimney System
Ceiling Support Box
Chimney Connector
(Single or Double Wall)
• Prefabricated chimney systems must conform to ULC‐S629 (650°C) for
Canada.
• This wood burning unit is only listed for installation with 6.0” diameter chimney connector and chimney systems.
Installing this unit on prefabricated chimneys larger than 6.0” diameter will result in decreased draft and the
potential for poor unit performance.
• Follow all venting system manufacturer’s installation requirements and required clearances.
• Use three sheet metal screws at each single wall chimney connector joint (check manufacturer’s
recommendations when double wall chimney connector is used).
• Drill three holes in the flue collar of the unit and attach the chimney connector to the unit using sheet metal
screws (holes should be pre‐drilled in flue collar from factory).
• Properly attach the prefabricated chimney system to the home in strict accordance with the prefabricated
chimney system manufacturer’s instructions.
• The overall length of the chimney connector must not exceed 8.0 ft. In the case of cathedral ceilings, the
prefabricated chimney system should extend to 8.0 ft. from the top of the unit if using single wall
chimney connector pipe. If necessary to run longer than 8.0 ft. of chimney connector pipe, double wall
black chimney connector pipe must be used.
• Special adapters and slip connectors are available to eliminate the need to cut single wall chimney connector.
Double wall chimney connector must be used with these slip connectors, as it cannot be trimmed to length.
Please Note: Installation diagrams are for reference purposes only and are not drawn to scale, nor meant to be used as plans
for each individual installation. Please follow all venting system requirements, maintain the required clearances to
combustibles, and follow all local codes.

2.0 ft.
18.0 in.
3.0 ft.
INSTALLATION
Approved Venting Method 3: Internal or External Masonry Chimney System
10 ft.
Chimney liner cross‐sectional
area (Length x Width) must be
no larger than twice the cross‐
sectional area of the flue collar
(2 x 28.27 in2 = 56.55 in2). If
chimney liner is larger than
56.55 in2, relining with a 5.5”
or 6.0” liner is required
The 10‐3‐2 Rule: The chimney system
must terminate 3.0 ft. above the point
where its centerline passes through the
roof AND the chimney must terminate
2.0 ft. above any part of the dwelling
within a 10 ft. radius of the chimney.
Chimney Connector
(Single or Double Wall)
Masonry Thimble with
proper clearance to
combustibles
Ash Cleanouts must
have an airtight seal to
prevent weak draft.
• Follow the rules listed above concerning maximum permissible flue liner size; installing this unit on masonry
chimneys exceeding 56.55 in2 in cross‐sectional area will result in decreased draft and the potential for poor unit
performance.
• Use three sheet metal screws at each single wall chimney connector joint (check manufacturer’s
recommendations when double wall chimney connector is used).
• Drill three holes in the flue collar of the unit and attach the chimney connector to the unit using sheet metal
screws (holes should be pre‐drilled in flue collar from factory).
• Avoid numerous elbows and excessive horizontal runs as both will lead to poor draft and increased creosote
accumulation. Horizontal runs of chimney connector must never exceed 4.0 ft. and the overall length of the
chimney connector must not exceed 8.0 ft. with single wall black connector pipe. If necessary to run longer
than 8.0 ft. of chimney connector pipe, double wall black chimney connector pipe must be used.
• A tight seal at the thimble is crucial for proper unit performance and to create a safe installation. Use the proper
adapter designed for connecting single or double wall chimney connector to a masonry thimble.
• Have existing masonry chimneys inspected for safety and proper clearances to combustibles before putting them
into service; a qualified chimney sweep can perform this inspection.
• External masonry chimneys often suffer cold downdrafts and poor draft performance even when they meet the
cross‐sectional area rules. In this case, a 6.0” insulated liner may be necessary.
Please Note: Installation diagrams are for reference purposes only and are not drawn to scale, nor meant to be used as plans
for each individual installation. Please follow all venting system requirements, maintain the required clearances to
combustibles, and follow all local codes.

The 10‐3‐2 Rule: The chimney system must terminate 3.0 ft. above the
point where its centerline passes through the roof AND the chimney
must terminate 2.0 ft. above any part of the dwelling within a 10 ft.
radius of the chimney.
INSTALLATION
INSTALLATION INTO A MASONRY FIREPLACE
Preparation
Measure your hearth to ensure it is large
enough to accept the unit.
Unit must have a 36” clearance from the top of
the stove to a mantel in accordance with NFPA
211.
For Canada: Hearth must extend at least 18 in
(450.0 mm) from the front of the fuel opening.
Keep in mind that this type of installation
will make it difficult to change speeds on
the blower frequently. We recommend
picking a blower speed and sticking with it,
since adjusting the blower will be difficult
because of the tight installation.
WARNING: DO NOT ATTEMPT TO ADJUST
BLOWER DURING OPERATION. SKIN
BURNS MAY OCCUR WHEN MAKING
CONTACT WITH THE UNIT. WAIT FOR UNIT
TO COMPLETELY COOL BEFORE
ATTEMPTING TO ADJUST BLOWER.
Inspect your hearth to be sure it is constructed
of a noncombustible material such as brick or
stone. Do not install this stove on a hearth that
is constructed of wood framework that is
covered by brick or stone and do not install
this unit in a zero (0) clearance fireplace.
The manufacturer will not be held responsible
for an accident resulting from this stove being
installed on a hearth constructed of a
combustible material.
Inspect your fireplace to ensure it is in proper
working order and free of any obstructions.
Prior to installation, remove the existing
damper or wire it to fasten it open.
Venting Your Stove - Direct Connect
When this unit is direct connected it will require six inch (6”) diameter 24 gauge pipe from the stove through the
damper opening. (NOTE: The chimney connector must be attached to the appliance
with a minimum of three (3) screws, and 3 screws should be used to attach each adjoining section.)
We highly recommend having the chimney fully lined with a 6 inch liner to ensure proper draft. This will make it
necessary to block off the open area on both sides of the pipe that passes through the damper opening, which
can be done with sheet metal or by packing flame retardant fiberglass insulation in the open areas (no paper or
combustibles). You must be sure the draft from the chimney is being pulled through the stove, and not around
the connector pipe.
We highly recommend you have this done by a professional. You should also contact your local authorities to
be sure you are following all codes.
36 in. (91.4 cm) minimum
Stovetop to mantel
See hearth requirements
Remove or wire
damper open
6 in. (15.24 cm) liner
highly recommended
Connector
Pipe

FLOOR PROTECTION
• The spark and ember floor protector should be ULC and must be noncombustible. Since the
majority of the heat from this unit is radiant, the floor protector only serves to keep ashes and
sparks from landing on combustible flooring near the unit. A hearth rug is NOT an approved
substitute for a proper hearth pad. No R Value is necessary.
• For Canada: The floor protector must extend at least 450.0 mm from the front of the fuel opening,
200.0 mm from the sides of the door opening and 200.0 mm from the rear of the unit.
• The spark and ember floor protector must extend 2 in. (50.8 mm.) on either side of any horizontal
venting runs and extend directly underneath any vertical venting pipe.
CAUTION
NEVER USE GASOLINE, GASOLINE‐TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID,
OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS HEATER. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE HEATER WHILE IN USE. ADDITIONALLY, NEVER APPLY FIRE‐
STARTER TO ANY HOT SURFACE OR EMBERS IN THE STOVE.
38 ½ in
47 in

First Fire‐ Remember to open a door
and/or window to ventilate the area.
You may find it necessary to open
several doors or windows for plenty of
ventilation.
OPERATION
Break‐In Fires
• This wood burning unit is constructed of heavy gauge steel and cast iron and is built to last a long
time. However, in order to ensure no excessive thermal stresses are induced on the
metal
during
the first fire, three break‐in fires should be burned, each one slightly hotter than the last.
These break‐in fires will not only help the stove body acclimate to the high temperatures of the
fire, but will also slowly cure the high temperature stove paint, which will ensure the high
quality finish lasts for years. Remember to open a door and/or window to ventilate the area.
• This stove has a single air control rod which regulates the wood burn rate; when the primary air
control slide is pulled all the way out of the unit, the stove will burn more slowly and put out
heat over a longer time period. Conversely, when the air control slide is pushed all the way in,
the unit will burn more quickly and put out a larger amount of heat over a relatively shorter
time
period. Do not attempt to modify the range of air control adjustment for any reason.
• The first break‐in fire should be just a large kindling fire, getting the stove to about 300°F . Once
this temperature has been reached, allow the fire to die out with the air control open. The
second and third break‐in fires should be a bit larger, with some small dry splits added to the
kindling load. The temperature goal during these fires is about 350°F – 450°F; don’t let the fire
get hotter than that.
ContinuousOperation
• After the break‐in fires are complete, this unit is ready for continuous operation. When burning
the stove continuously, do not allow ash and coals to accumulate higher than the air hole in the
dog box. Excessive coaling is often a result of burning wood at too high a burn rate, and the coal
bed should be allowed to burn down before reloading the stove with fresh wood.
• Combustion air is delivered to the stove at two locations: The majority of the primary combustion
air enters the firebox via the air‐wash system which keeps the glass clean and feeds the primary
combustion flames on the top surfaces of the wood; some primary combustion air is feed into the
coal bed via the dog box hole in the bottom, front box of the stove. (This air is supplied from
under the unit.) Every effort must be taken to maintain the area in front of this hole free of ash.
• When loading the stove for a long term burn, it is most useful to rake a “v” in the center of the
coal bed, to allow the primary air bleed hole to push air all the way to the rear of the unit.
• After loading the stove with a full firebox of fresh wood, it is important to operate the unit with
the air control in the full open position to properly char the wood load and drive off the initial
moisture in the fresh wood. Once the wood has been properly charred and is completely
ignited, the air control can then be set to the desired heat output level.
• This unit also offers a new feature. When loading the stove for a long low burn, you can set the
air control damper to allow the unit to heat up and get a good burn going before the air is
closed
off to the low position. Simply pull the rod out to low and turn it counter‐clockwise until
you hear a slight “click” (about a quarter of a turn). When it is ready the damper will shut itself.
This will work for low and medium low settings.

age | 18
OPERATION
• The optional room air convection blower was designed to extract the maximum amount of heat
from the stove, for the highest possible heat transfer into the room. Since the blower is so
efficient at removing heat from the unit, it is very important to only operate the room air blower
after a fresh wood load has been allowed to burn for at least thirty (30) minutes. Allowing a fresh
load of wood to burn without the blower on ensures that the entire unit reaches proper
operation temperatures and that the secondary combustion system is functioning properly.
Additionally, follow the guidelines below for acceptable blower speeds.
• When using the optional room air convection blower (Part No. AC‐16, or you can upgrade to the
AC‐30), the blower should be operated as follows depending on heat output level:
Burn Rate
High
Medium High
Medium
Medium Low
Low
Blower Speed AC‐16
High
High
Low
Low
Low
Blower Speed AC‐30
High
Medium High
Medium
Medium Low
Low
Creosote –Formation and Need for Removal
When wood is burned slowly, it produces tar and other organic vapors, which
combine with expelled moisture to form creosote. The creosote
vapors
condense in the relatively cool chimney flue of a slow‐burning fire. As a result,
creosote residue accumulates on the flue lining. When ignited, this creosote
makes an extremely hot fire. The chimney and chimney connector should be
inspected at least once every two months during the heating season to
determine if a creosote buildup has occurred. If creosote has accumulated, it
should be removed to reduce the risk of chimney fire.
DO NOT USE GRATE OR ELEVATE FIRE – BUILD WOOD FIRE DIRECTLY ON HEARTH
DO NOT OPERATE WITH THE MAIN DOOR OPEN – OPERATING THE STOVE WITH THE MAIN
DOOR OPEN WILL CREATE AN OVER‐ FIRE
In the event of a creosote or soot fire (chimney fire), close the air control on the stove,
contact the local fire department and get out! Do not throw water on the fire! Contact
your local fire authority for more information on how to handle a chimney fire and
P
develop a safe evacuation plan for you and your family in the event of a chimney fire.

OPERATION
AdditionalSafety Guidelines
CAUTION: When adding fuel to the stove, the blower must be turned OFF.
• The installation of smoke detectors is highly recommended when installing this or any other solid
fuel burning appliance. Smoke detectors should be located near or in every room of the home,
particularly sleeping rooms.
• A smoke detector can be installed in the same room as this cordwood burning unit; installing the
smoke detector too close to the unit can lead to nuisance alarms due to slight wisps of smoke emitted
during the fire starting or reloading process. Due to this, the smoke detector in the
same room as the unit will be most useful if it is located as far from the unit as the room will
permit.
• This stove is designed to burn natural wood only. Higher efficiencies and lower emissions generally
result when burning air dried, seasoned hardwoods, as compared to soft woods or to green or
freshly‐cut hardwoods. DO NOT BURN garbage, lawn clippings or yard waste, materials containing
rubber, including tires; Materials containing plastic: Waster petroleum products, paints or paint
thinners, or asphalt products; Materials containing asbestos; Construction or demolition debris;
Railroad ties or pressure‐treated wood; Manure or animal remains; Salt water driftwood or
previously salt water saturated materials; Paper products, cardboard, plywood, or particleboard.
The prohibition against burning these materials does not prohibit the use of fire starters made
from paper, cardboard, saw dust, wax and similar substances for the purpose of starting a fire in
an affected wood heater. Burning these materials may result in release of toxic fumes or render
the heater ineffective and cause smoke.
• Burning fuels other than cordwood, particularly coal and charcoal, can result in hazardous
concentrations of carbon monoxide being emitted into the dwelling. For these reasons, NEVER
burn coal or charcoal in this cordwood stove. Installing a carbon monoxide detector and being
aware of the symptoms of carbon monoxide poisoning can help reduce the risk of carbon monoxide
related issues.
• This unit was designed for operation only with the loading door closed and tightly latched.
Operating this unit with the loading door latched loosely or open will allow excessive combustion air
to reach the fire and will result in dangerously high unit temperatures. High unit temperatures can
damage the unit, void the warranty or ignite creosote deposited in the chimney system by previous,
slow burning fires.
• The natural draft that pulls air through this unit and allows the fire to burn uses the indoor air of the
dwelling for combustion, unless the unit is connected to an outside combustion air source. Kitchen
range vent hoods, furnaces and other air movement appliances in the home are often also removing
air from the dwelling; if the amount of air filtration or leakage back into the home is exceeded by the
air being removed, negative pressure may be created in the home.
• Since this is a natural draft appliance, it will often be the first appliance to have problems related to
negative pressure. If smoke is forced out the chimney connector joints or out of the air induction
system of the unit, the unit is likely fighting negative pressure in the dwelling.
Cracking a window or door near the appliance can help equalize the negative pressure;
ultimately, an unrestricted source of outside combustion may be necessary for proper unit
DO NOT STORE FUEL CLOSER THAN SPECIFIED CLEARANCES TO COMBUSTIBLES OR
WITHIN THE SPACE NEEDED FOR LOADING THE STOVE AND FOR ASH REMOVAL.

function.
• If the unit is connected to outside air, be certain to monitor the exterior inlet to the combustion
system for icing or snow accumulation. Allowing the outside air connection to
become restricted will
result in air starvation to the unit.
Safe Wood‐Burning Practices
Once your wood‐burning appliance is properly installed, follow these guidelines for safe
operation:
•Keep all flammable househould items‐drapes, furniture, newspapers, and books‐far
away from the appliance.
Start fires only with newspaper, dry kindling and all natural or organic fire starters.
Never start a fire with gasoline, kerosene, or charcoal starter.
Do not burn wet or green (unseasoned) logs.
Do not use logs made from wax and sawdust in your wood stove‐they are made for open
hearth fireplaces. If you use manufactured logs, choose from those made from 100 percent
compressed saw dust.
Build hot fires. For most appliances, a smoldering fire is not a safe or efficient fire.
Keep the doors to your wood‐burning appliance closed unless loading or stoking the live fire.
Harmful chemicals, like carbon monoxide, can be released into your home.
Regularly remove ashes from your wood‐burning appliance into a metal container with a
cover. Store the container of ashes outdoors on a cement or brick slab (not on a wood deck
or near wood). See ash removal instructions in your owner’s manual.
Keep a fire extinguisher handy.
Remember to check your local air quality forecast before you burn.
