Englefield Flat Shower Wall User manual

Englefield has a history of
making superb showers
and their popularity is
testament to their quality
and affordability.
It’s the details that
Englefield cares about
- from pioneering the
latest technology, to
innovative design, it’s all
to make your showering
experience the very best
it can be.
INSTALLATION
INSTRUCTIONS
DURACYL WALL •Flat Shower Wall
•Flat Bath Wall
•Side Contour Wall
•Corner Contour Wall
•Corner Contour
PLUS Wall
1123738-D Aug 2018
Note: Bath and bath screen not included.
CORNER CONTOUR PLUS CORNER CONTOUR
SIDE CONTOURFLAT WALL
BATH WALL

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
Page 2

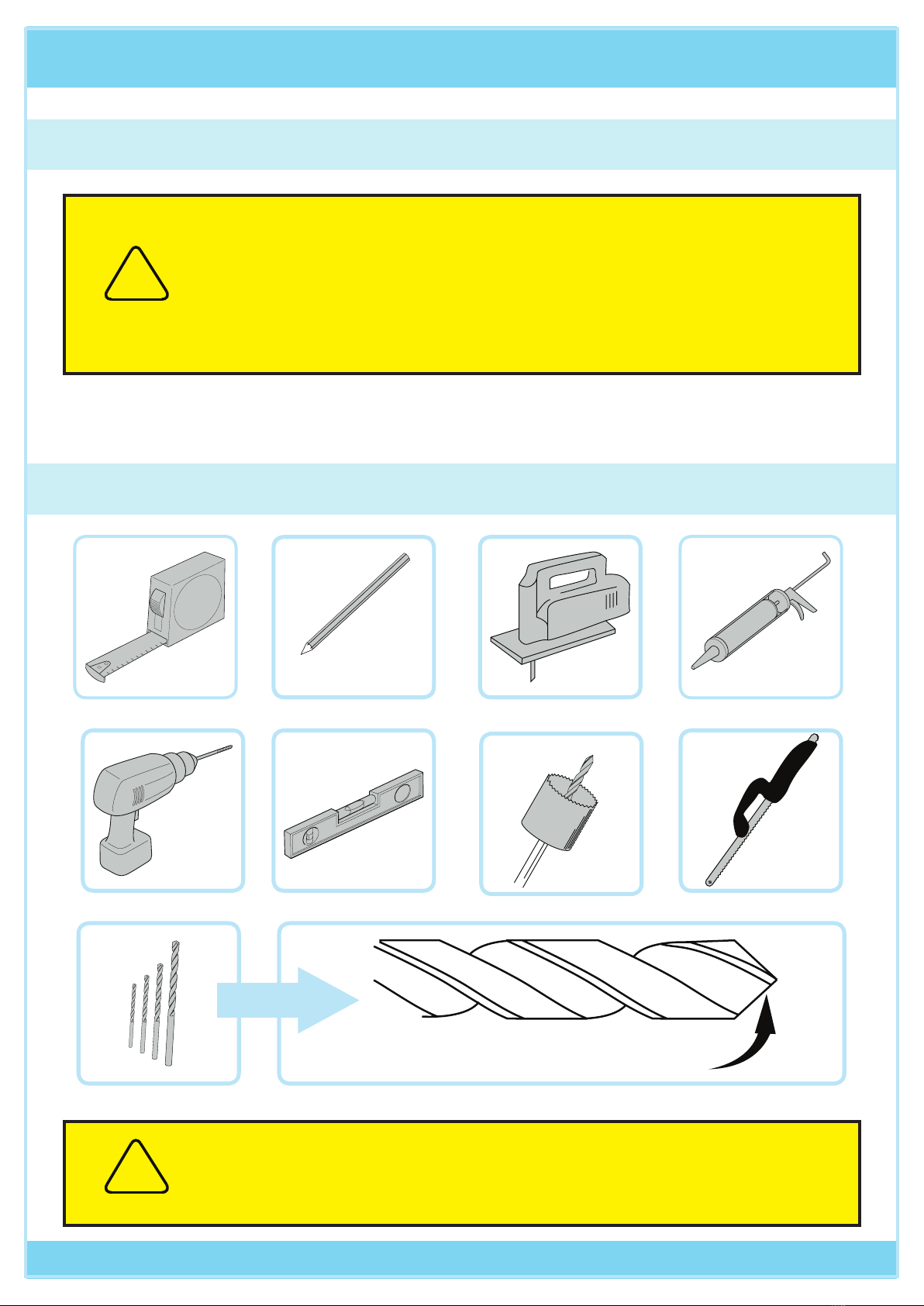

BEFORE YOU BEGIN
TOOLS AND MATERIALS REQUIRED
!
IMPORTANT
Read all instructions carefully before starting the installation to ensure the
Before installing the liner, ensure the moulded feature is not obstructed.
For Corner Contour walls there should be no plumbing fittings within
300mm of the corner(s).
best possible results. It is the responsibility of the installer to ensure that
the installation complies with council and local authority bylaws.
Instructions, drawings, and diagrams contained in this manual present information available at the time of printing.
Although every attempt has been made to keep them up-to-date, Kohler Company reserves the right to implement
product changes without further notice.
Use only recommended sealants and adhesives, suitable on acrylic and
acrylic capped ABS; unsuitable products may damage the Duracryl wall.
Tape measure Soft pencil
Drill
Drill bits
Caulking gun
Spirit level
Jigsaw (fine blade)
Fine toothed saw
Hole saw
BACKED-OFF CUTTING EDGE
!
IMPORTANT

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
Page 3
SEALANT & ADHESIVE
Small holes can be drilled with a twist drill, but the cutting edge MUST be backed off with an oil
stone (the sharp edge dulled). Large holes must be drilled with a hole saw.
Maximum drill size : 12 mm. Drill speeds: 6 mm x 1800 RPM ; 12 mm x 900 RPM.
If for any reason the Duracryl requires cutting, use a fine tooth hacksaw and proceed with caution.
Edges can be smoothed with a second-cut file and medium-fine sandpaper. If the surface of the
Duracryl happens to be damaged, it can be restored by polishing with an appropriate compound.
DRILLING AND CUTTING DURACRYL
16520A-0
16521A-SHP
16522A-0
16523A-SHP
Adhesive & sealant pack - 3 sided wall
liner for metallic/black framed showers.
Adhesive & sealant pack - 3 sided wall
liner for white framed showers.
The recommended adhesive and sealants are:
to adhere the
acrylic liner to the wallboard.
to seal the
acrylic liner to shower tray or bath.
• Sika Shower Bond
• Sika Sikasil NG (White)
Usage: • 3 cartridges for 2 sided wall liners
• 4 cartridges for 3 sided wall liners
These are available in separate Adhesive &
Sealants Packs. Each Pack contains enough
adhesive and sealant for a complete shower
enclosure or shower over bath installation.
For stockists phone [phone] (NZ) or
1800 ENGLEFIELD (Australia).
Adhesive & sealant pack - 2 sided wall
liner for metallic/black framed showers.
Adhesive & sealant pack - 2 sided wall
liner for white framed showers.

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
Page 4

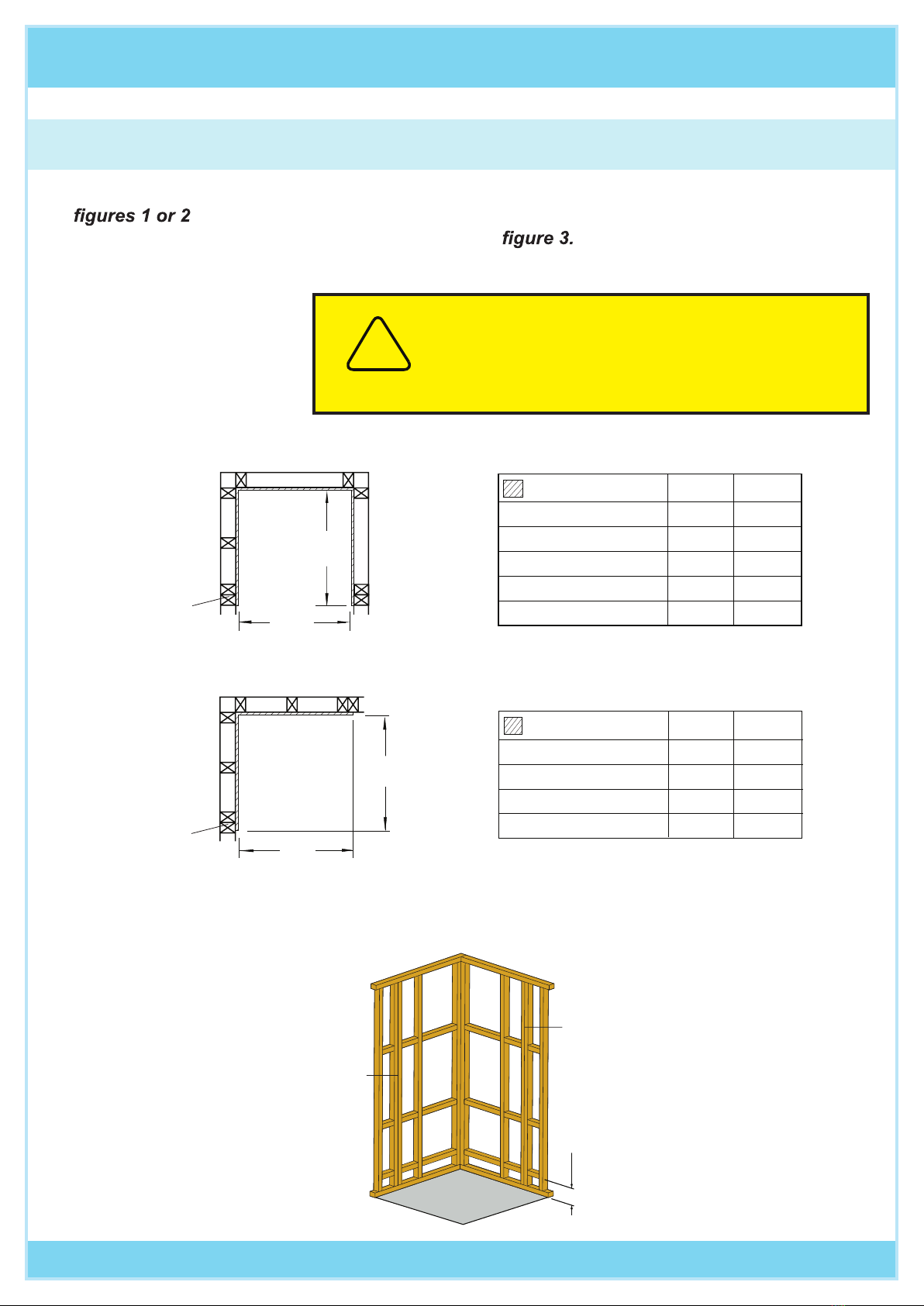

CONSTRUCTION REQUIREMENTS - TIMBER FRAME
1) For showers, identify the type of installation required and construct timber frame in accordance with
below. Englefield recommends installing double studs to fix the wall retainers to.
A typical shower enclosure timber frame is shown in For the framing of bath tubs and
screens, please refer to the installation guide supplied with the product.
2) Fix wall board to the studs.
Fig. 3: Recommend Timber Frame
for Shower Enclosure Installation
C DWALL BOARD
884 1164900 X 1200 X 900
750 X 900 X 750 739 864
984 9641000 X 1000 X 1000
884 864 900 X 900 X 900
900 X 750 X 900 885 747
D+2
-0
C+2
-0
B+2
-0
A+2
-0
A BWALL BOARD
984 9841000 X 1000
884 884
900 X 900
900 X 750 739 879
884 11841200 X 900
Fig.2: Corner (2 sided) Wall
Fig.1: Alcove (3 sided) Wall
Double studs
for shower
wall retainers
Double studs
for shower
wall retainers
Double studs
*Note: Dimensions are to the
finished surface of wall board.
for shower
wall retainers
Double studs
for shower
wall retainers
150mm
The wall board surface must be flat and plumb.
The corner must be square.
Do not plaster, paint or seal the wall board.
!
IMPORTANT

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
Page 5
Adhesive line
DURACRYL WALL INSTALLATION
Tiling bead (upstand)
Bath wall liner
Fig.4: Cutting base protector
Fig.5: Mark and drill holes for plumbing
Fig.6: Positioning wall
Fig.7: Bath tub notching
Fig.8: Marking liner edge onto wall board
Ensure the shower tray or bath tub is installed
correctly, as detailed in the installation guide
supplied with the product. Peel back protective
film of the tiling bead of shower tray or bath
in order to make a water tight seal possible.
Ensure the surface of tray or bath tub is
protected during installation, and no debris
can get into the waste hole. For bath tubs use
a drop cloth.
For shower trays, select appropriate size, then
cut base protector from back of shower tray
carton. Place it in shower tray as per
Mark and drill holes required for outlet fittings
as per .
NOTE: Follow the drilling and cutting
instructions from page 3.
Position wall in place. Check fit to ensure wall
fits squarely into corner as per Tape
edges to hold into position.
Where necessary (bath) notch the edge of wall
.
Before marking, make sure the wall is pressed
firmly into the corner of wall.
With a soft pencil, mark around the perimeter of
the wall liner. This will be the basis for marking the
glue pattern as per
1. PREPARING WALL AND SPACE
to fit over the tiling bead as shown in

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
Page 6
Carefully measure and mark pattern on wall
board surface as shown in figure 9.
This pattern applies to:
NOTE: Measurements from edges, top and
base. All dimensions below are in millimeters.
• Flat shower wall
• Side contour shower wall
• Flat bath wall
DURACRYL WALL INSTALLATION CONT...
30
50 30
250
300 80
Adhesive Pattern
Pattern on wall board
Adhesive Pattern
Pattern on wall liner Pattern on wall board Pattern on wall liner
Wall Liner position
already marked
Tray recess Tray recess
CORNER CORNER
Fig.9: Adhesive pattern for Flat & Side Contour
MARKING ADHESIVE PATTERN
For corner contour shower walls, the pattern must be marked on both wall board and Duracryl liner.
Refer to figures below for both patterns: • Corner Contour PLUS Wall -
• Corner Contour Wall -
At this stage it is essential that the back side of the Duracryl wall and the surface of the wall board
are wiped clean with a damp cloth. This will ensure that all dust is removed from both surfaces and
provide a clean surface for the adhesive. Allow both surfaces to dry before adhesive application.
Fig.10: Adhesive pattern for Corner
Contour PLUS Walls
30
50 30
250
300 80
Adhesive Pattern
Adhesive Pattern
Wall Liner position
already marked
CORNER CORNER
Fig.11: Adhesive pattern for Corner
Contour Walls
Mark the pattern but
do not apply adhesive
at this stage.
!
IMPORTANT
30 30
80~100
Pattern on wall board
Adhesive
Pattern
Wall Liner position
already marked
Tray recess
CORNER

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS

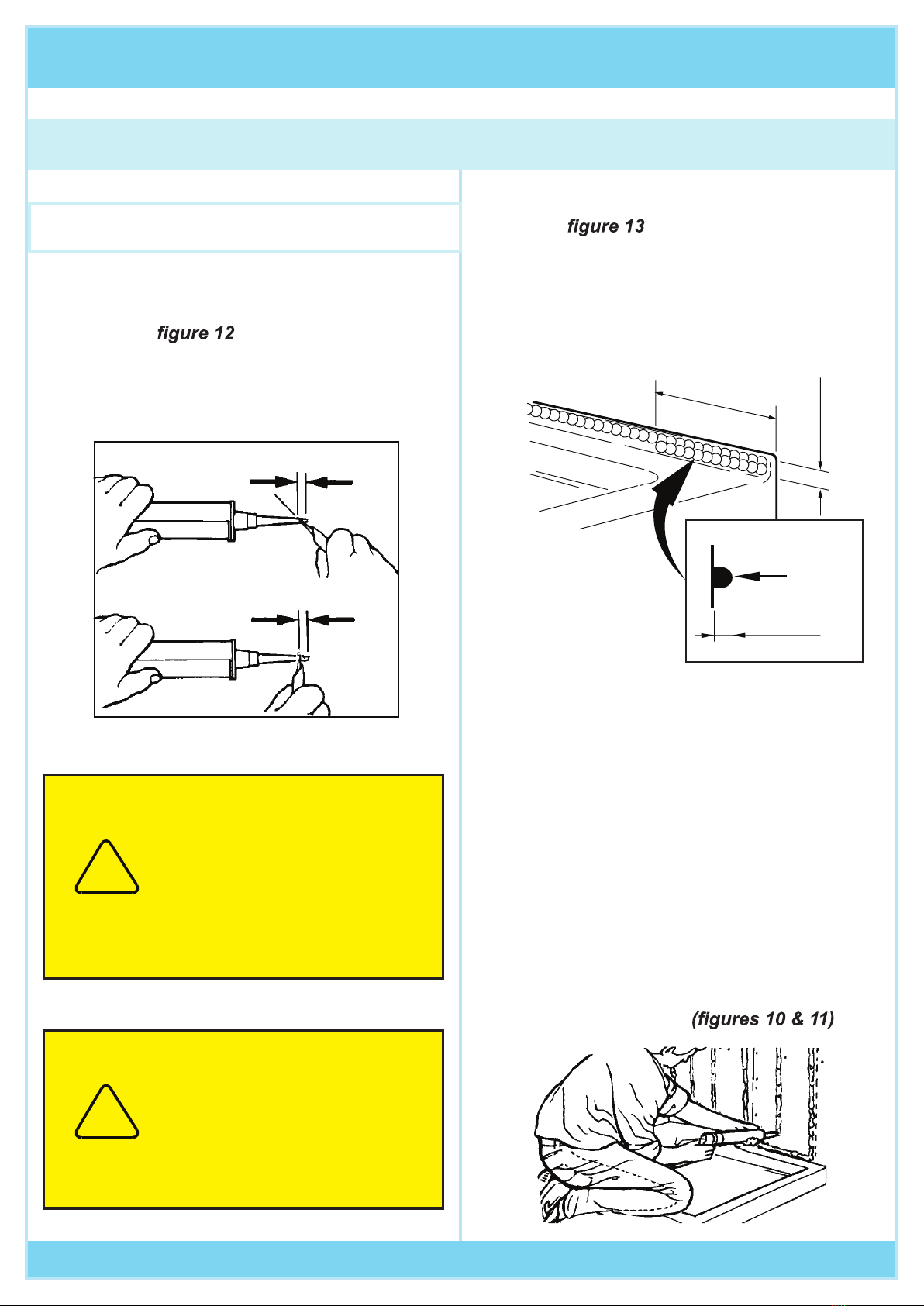

Prepare sealant and adhesive cartridges.
Cut nozzle on sealant and adhesive cartridges
as shown in below.
Pierce protective foil inside adhesive cartridge.
DURACRYL WALL INSTALLATION CONT...
Apply adhesive to wall board.
Do not use on previously painted, sealed,
ceramic or plastered walls.
Use only on the following substrates:
• Villaboard
• Fibre cement
• Plaster Board
Follow the pattern marked. Start at top working
your way down. Apply vertical pattern first then
fill in horizontal lines.
For shower walls with corner features remember
to apply the adhesive on the acrylic wall as
shown on previous page .
50 mm
mm01
SILICONE
ADHESIVE
5 mm
ADHESIVE
BEAD
APPLYING THE ADHESIVE
Fig.12: Cutting cartridges
Apply sealant to shower tray or bath first as
shown in below.
Apply a bead of sealant for 50 mm from both
front corners at base of upstand as shown.
Apply a second full length bead at top of upstand.
Fig.13: Apply beading to upstand
Page 7
Ensure the protective film
has been peeled back from
tiling bead of tray or bath
before applying sealant.
Leave the rest of the tray or
bath covered by the film to
protect it during installation.
!
IMPORTANT
Do not apply adhesive below
5°C. Temperatures below
this point will require the
adhesive to be warmed up
to assist with adhesive flow
and application.
Use only in ventilated areas.
!
CAUTION
5 mm
45°
5 mm

ENGLEFIELD
DURACYL WALL INSTALLATION INSTRUCTIONS
KOHLER NZ LTD
NEW ZEALAND
Free Fax: [phone]
Free Ph: 0800 100 382
www.englefield.co.nz
KOHLER CO.
AUSTRALIA
Free Ph: 1 800 ENGLEFIELD
(1 800 364 533)
www.englefield.com
For warranty information, please visit our website.
CONTACT & WARRANTY INFORMATION

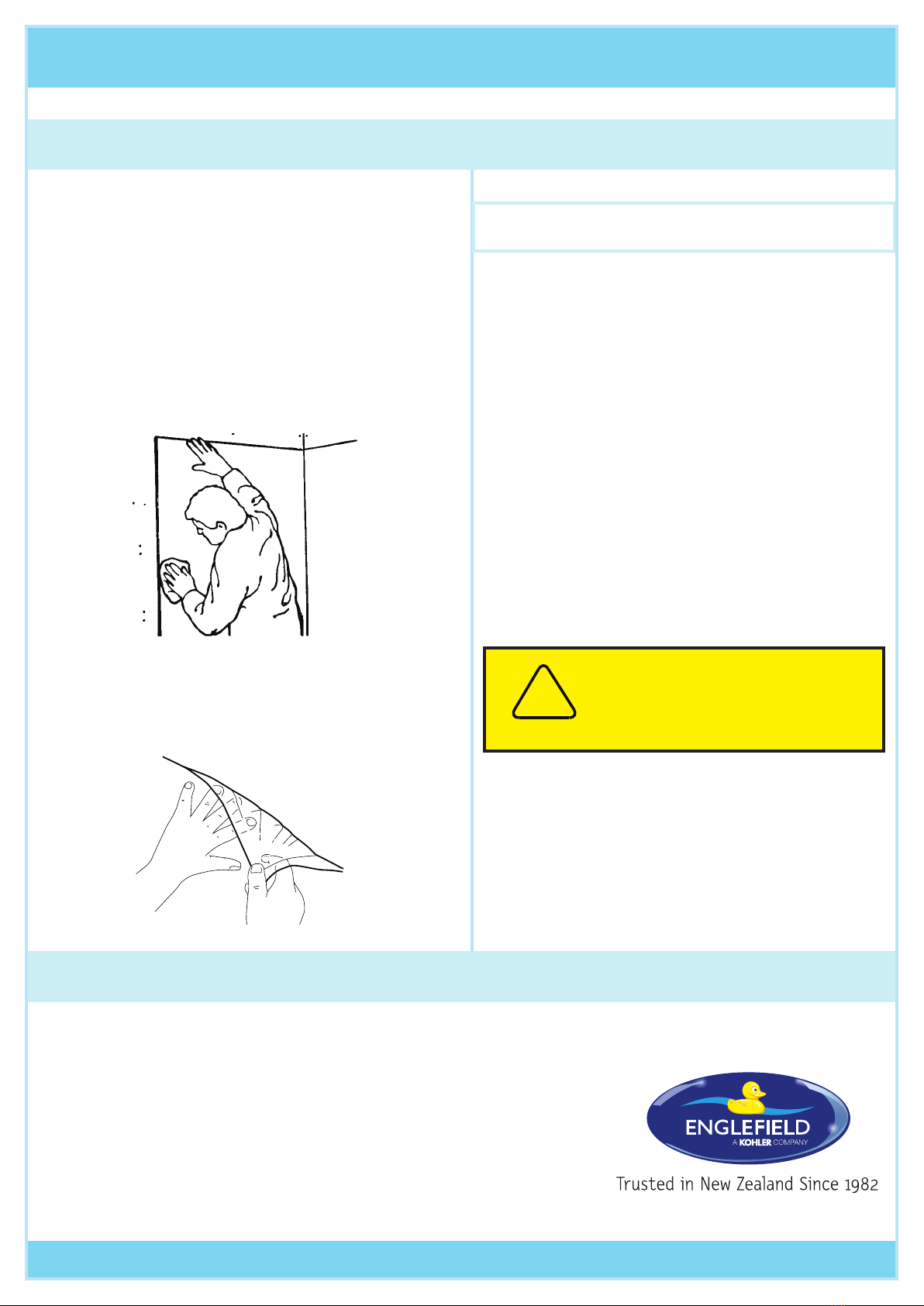

To install the wall follow the approved
adhesive manufacturer instructions.
As a general rule, place wall into position. Press
firmly back into corner to ensure that wall makes
full contact with the corner along its entire length.
Press into corners first, then press toward
edges. Use a soft clean cloth to press firmly
and remove any rippling along glue lines.
Check and repress if necessary.
Allow the adhesive to cure before installing the
shower or bath and/or using the enclosure.
CLEANING INSTRUCTIONS
Use non-abrasive soap and warm water.
Avoid:
• harsh chemicals and disinfectants.
• abrasive cleaners
• solvent based cleaners
• acid or alkaline cleaners
• products containing ammonia or peroxides.
Wipe out the unit after each use to prevent
build-up of soap and scum.
Always read the label instructions on any
cleaner carefully before applying it to the
surface.
Page 8
DURACRYL WALL INSTALLATION CONT...
Remove the plastic film from liner before use.
Read the Care & Maintenance
label on the wall and leave it
in place for the end user.
!
IMPORTANT
