3.5" SBC with Intel® Atom™ Processor Z510P/Z530P
WAFER-US15WP
Quick Installation Guide
Version 1.0
June. 9, 2009
Package Contents
WAFER-US15WP package includes the following items:
z1x WAFER-US15WP Single board computer
z1x KB/MS Cable
z1x IDE Flat Cable 44p/44p
z1x Audio Cable
z1x Mini Jumper Pack
z1x Utility CD
z1 x QIG (Quick Installation Guide)
©2006 Copyright by IEI Technology corp.
All rights reserved.
1
2
Specifications
zCPU: Intel®Atom™ Processor Z530P 1.6GHz with a 533MHz FSB
Intel®Atom™ Processor Z510P 1.1GHz with a 400MHz FSB
zSystem Chipset: Intel®US15WP
zBIOS: AMI BIOS
zSystem memory: One 200 pin 400/533MHz DDR2 SDRAM SO-DIMM
Supported (system max.2GB)
zEthernet: One PCIe Intel® 82547L GbE Chipset
zI/O Interface:
6 x USB 2.0 (4x External, 2 x on board)
1 x IDE
1 x RS-232
1 x RS-232/422/485
1 x PS/2 for KB/MS
1x CF Type II
zSuper I/O: ITE IT8718F
zExpansions : 1x PCIe mini card slot
zDigital I/O: 8-bit digital I/O,4-bit input/ 4-bit output
zAudio: Realtek ALC888 HD audio codec
zDisplay: Intel® Graphics Media Accelerator 500 (GMA500)
VGA support by Chrontel CH7317A
18/24 bit Single-channel LVDS integrated in Intel® US15WP
zWatchdog timer: Software programmable supports 1~255 sec. system reset
zPower Supply: 5V only, AT/ATX support
zPower consumption :
(3DMark05 v1.30 + Passmark Burn-In (Max).)
(3DMark05 v1.30 + Passmark Burn-In (Max).)
zTemperature: 0 ~ 60°C( 32 ~ 140°F)
zHumidity: Operation: 5% ~ 95%
zDimension: 146mm x 102mm
zWeight: GW: 650g / NW: 230g
Ordering Information
WAFER-US15WP-Z530P-R10:
3.5" SBC with Intel ATOM Z530P 1.6GHz, VGA/24 bit LVDS, GbE,CFII,
USB, Audio
WAFER-US15WP-Z510P-R10:
3.5" SBC with Intel ATOM Z510P 1.1GHz, VGA/24 bit LVDS, GbE,CFII,
USB, Audio
32000-070301-RS : Dual ports USB cable
32200-026500-RS : RS232/422/485 cable
32100-052100-RS : ATX power cable
ITS-44-R10 : 2.5" IDE to SATA module
Jumpers setting
LABEL FUNCTION
JP1 LVDS LCD Voltage Select
JP2 Compact Flash Master/Slave Function Setting
JP3 COM2 RS-232/RS-422 or RS-485 Type Select
AT/ATX1 ATX/AT mode setting
CLR_CMOS1 Clear CMOS Setup
3
JP1 : LVDS LCD Voltage Select
JP1 DESCRIPTION
1-2 (Default) +3.3V
2-3 +5V
JP2 : Compact Flash Master/Slave Function Setting
JP2 DESCRIPTION
Short Master
Open(Default) Slave
JP3 : COM2 RS-232/RS-422 or RS-485 Type Select
JP3 DESCRIPTION
1-2 (Default) RS-232
2-3 RS-422 or RS-485
AT/ATX1: ATX/AT mode setting
AT/ATX1 DESCRIPTION
Short(Default) ATX mode
Open AT mode
CLR_CMOS1: Clear CMOS Setup
CLR_CMOS1 DESCRIPTION
1-2 (default) Keep CMOS Setup (Normal operation)
2-3 Clear CMOS Setup
4
Table of Connectors
LABEL FUNCTION
VGA1 VGA 15-pin female connector
COM1 Serial port connector
LAN1 RJ45 LAN connector
USB1,USB2 External USB connectors
AUDIO1 AUDIO connector
F_PANEL1 External switches and indicators panel
LPC1 LPC (Low Pin Count ) interface connector
COM2 Serial port connector
KB/MS1 Keyboard/Mouse connector
DIO1 8-bit Digital I/O connector
FAN1 Fan connector
LVDS1 LVDS LCD connector
INVERTER1 Inverter connector
ATXCTL1 ATX 5VSB and PSON connector
ATXPWR1 Power input connector
USB3 Internal 2 ports USB connector
CF1 Compact flash storage card socket
IDE1 IDE connector
BT1 +3.3V Battery Connector
MINI-PCIE1 PCI-E Mini Card Connector
VGA1: 15-pin female connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
5
COM1: Serial port connector
PIN NO. DESCRIPTION
1 DCD1
2 RX1
3 TX1
4 DTR1
5 GND
6 DSR1
7 RTS1
8 CTS1
9 RI1
LAN1: RJ45 LAN connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 MDI0+ 5 MDI2+
2 MDI0- 6 MDI2-
3 MDI1+ 7 MDI3+-
4 MDI1- 8 MDI3-
USB1: USB connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC (+5V) 5 VCC (+5V)
2 DATA5- 6 DATA4-
3 DATA5+ 7 DATA4+
4 GND 8 GND
USB2: USB connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC (+5V) 5 VCC (+5V)
2 DATA3- 6 DATA6-
3 DATA3+ 7 DATA6+
4 GND 8 GND
6
AUDIO1 : AUDIO connector
PIN NO. DESCRIPTION PIN No. DESCRIPTION
1 Speaker_R 2 Line_In_R
3 GND 4 GND
5 Speaker_L 6 Line_In_L
7 GND 8 GND
9 MIC_R 10 MIC_L
F_PANEL1: External switches and indicators panel
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 Power_LED+ 2 HD_LED+
3 Power_LED- 4 HD_LED-
5 Speaker+ 6 Reset_BT+
7 Speaker- 8 Reset_BT-
9 PWRBTN+ 10 PWRBTN-
LPC1 : LPC (Low Pin Count ) interface connector
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 +3.3V 2 LPC_AD0
3 FRAME# 4 LPC_AD1
5 LPC_CLOCK 6 LPC_AD2
7 LPC_RESET 8 LPC_AD3
9 SERIRQ 10 Ground
COM2 : Serial port connector
PIN No. DESCRIPTION PIN No. DESCRIPTION
1. DCD2# 2 DSR2#
3. RXD2 4 RTS2#
5. TXD2 6 CTS2#
7. DTR2# 8 RI2#
9. GND 10 NC
11 (RS422/485)TX2
12 (RS422/485)TX2-
13 (RS422/485)RX2
14 (RS422/485)RX2-
7
KB/MS1: Keyboard/Mouse connector
PIN No. DESCRIPTION
1 +5V
2 MS_DATA
3 MS_CLOCK
4 KB_DATA
5 KB_CLOCK
6 GND
DIO1: 8-bit Digital I/O connector
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 GND 2 +5V
3 OUTPUT3 4 OUTPUT2
5 OUTPUT1 6 OUTPUT0
7 INPUT3 8 INPUT2
9 INPUT1 10 INPUT0
FAN1: Fan connector
PIN No. DESCRIPTION
GND
1
+12V
2
Sensor
3
LVDS1: LVDS LCD connector
PIN
No. DESCRIPTION PIN
No. DESCRIPTION
8
1 GND 2 GND
3 1st LVDS data0 output +
4 1st LVDS data0 output -
5 1st LVDS data1 output +
6 1st LVDS data1 output -
7 1st LVDS data2 output +
8 1st LVDS data2 output -
9 1st LVDS clock output + 1st LVDS clock output -10
11 1st LVDS data3 output +
12 1st LVDS data3 output -
13 GND 14 GND
15 NC 16 NC
17 NC 18 NC
19 NC 20 NC
21 NC 22 NC
23 NC 24 NC
25 GND 26 GND
27 +LCD (3.3V,5V) 28 +LCD (3.3V,5V)
29 +LCD (3.3V,5V) 30 +LCD (3.3V,5V)
INVERTER1 : Inverter connector
PIN No. DESCRIPTION
+12V
1
+12V
2
ENABKL
3
BRIGHTNESS
4
GND
5
GND
6
ATXCTL1: ATX 5VSB and PSON connector
PIN No. DESCRIPTION
1 5VSB
2 GND
3 PS_ON-
ATXPWR1: Power input connector
PIN No. DESCRIPTION
1 12V
2 GND
3 GND
4 5V
USB3: Internal 2 ports USB connector
9
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 VCC (+5V) 2 GND
3 DATA0- 4 DATA1+
5 DATA0+ 6 DATA1-
7 GND 8 VCC (+5V)
CF1:Compact flash storage card socket
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 GROUND 26 PULL DOWN
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC
12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 VCC
20 A0 45 ACTIVE#
21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 PULL DOWN 50 GROUND
10
IDE1: IDE connector
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 (KEY)
21 DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 CHRDY 28 GND
29 DACK 30 GND
31 INTERRUPT 32 N/C
33 SA1 34 P66DET
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND
41 5V 42 GND
43 GND 44 NA
BT1 : +3V Battery Connector
PIN No. DESCRIPTION PIN No. DESCRIPTION
1 BAT (+3.3V) 2 GND
11
MINI-PCIE1: PCI-E Mini Card Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
12
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5V
7 CLKREQ# 8 N/C
9 GND 10 N/C
11 CLK- 12 N/C
13 CLK+ 14 N/C
15 GND 16 N/C
17 N/C 18 GND
19 N/C 20 N/C
21 GND 22 PCIRST#
23 PCIE_RXN1 24 VCC3A
25 PCIE_RXP1 26 GND
27 GND 28 1.5V
29 GND 30 SMBCLK
31 PCIE_TXN1 32 SMBDATA
33 PCIE_TXP1 34 GND
35 GND 36 USBD-
37 N/C 38 USBD+
39 N/C 40 GND
41 N/C 42 N/C
43 N/C 44 N/C
45 N/C 46 N/C
47 N/C 48 1.5V
49 N/C 50 GND
51 N/C 52 VCC3

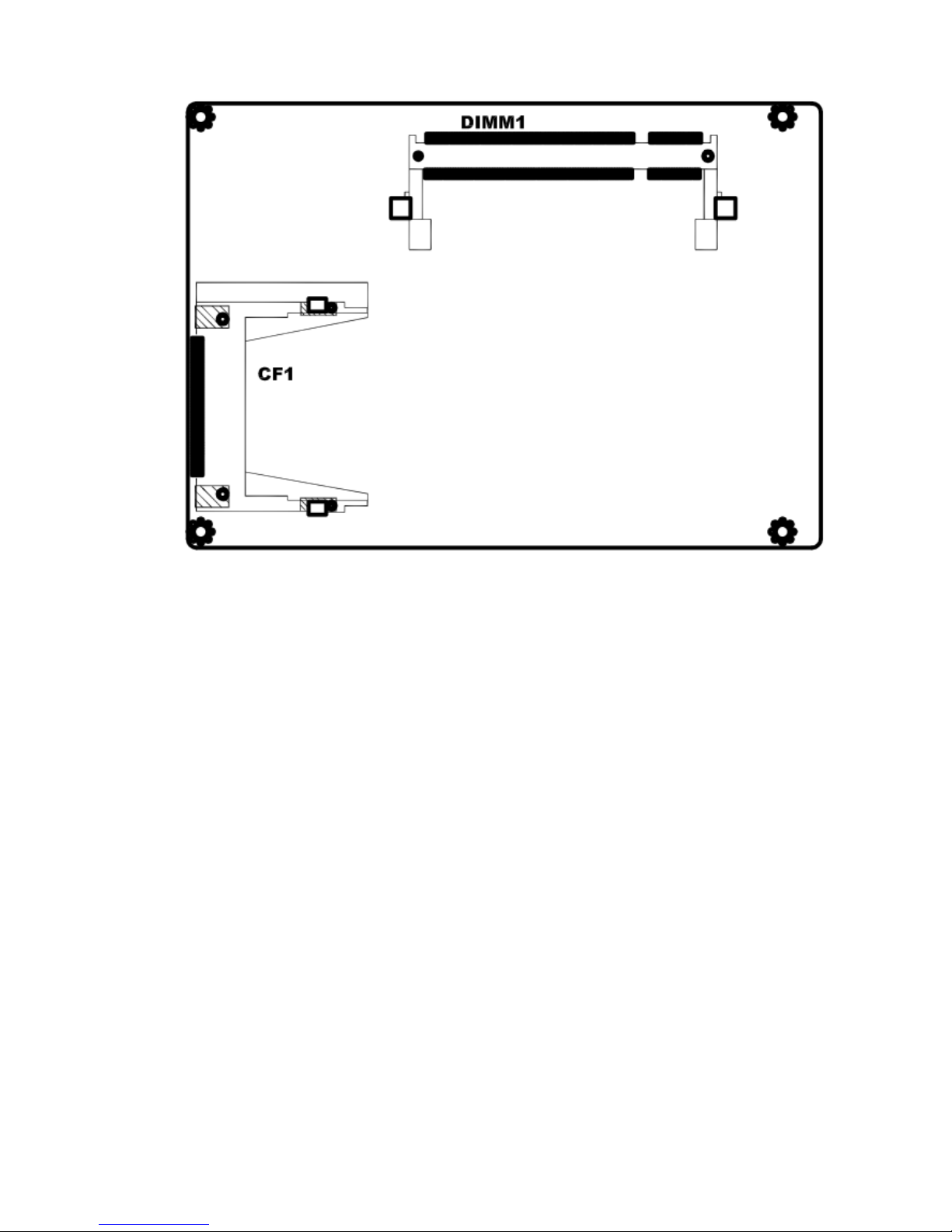

Layout
13
14

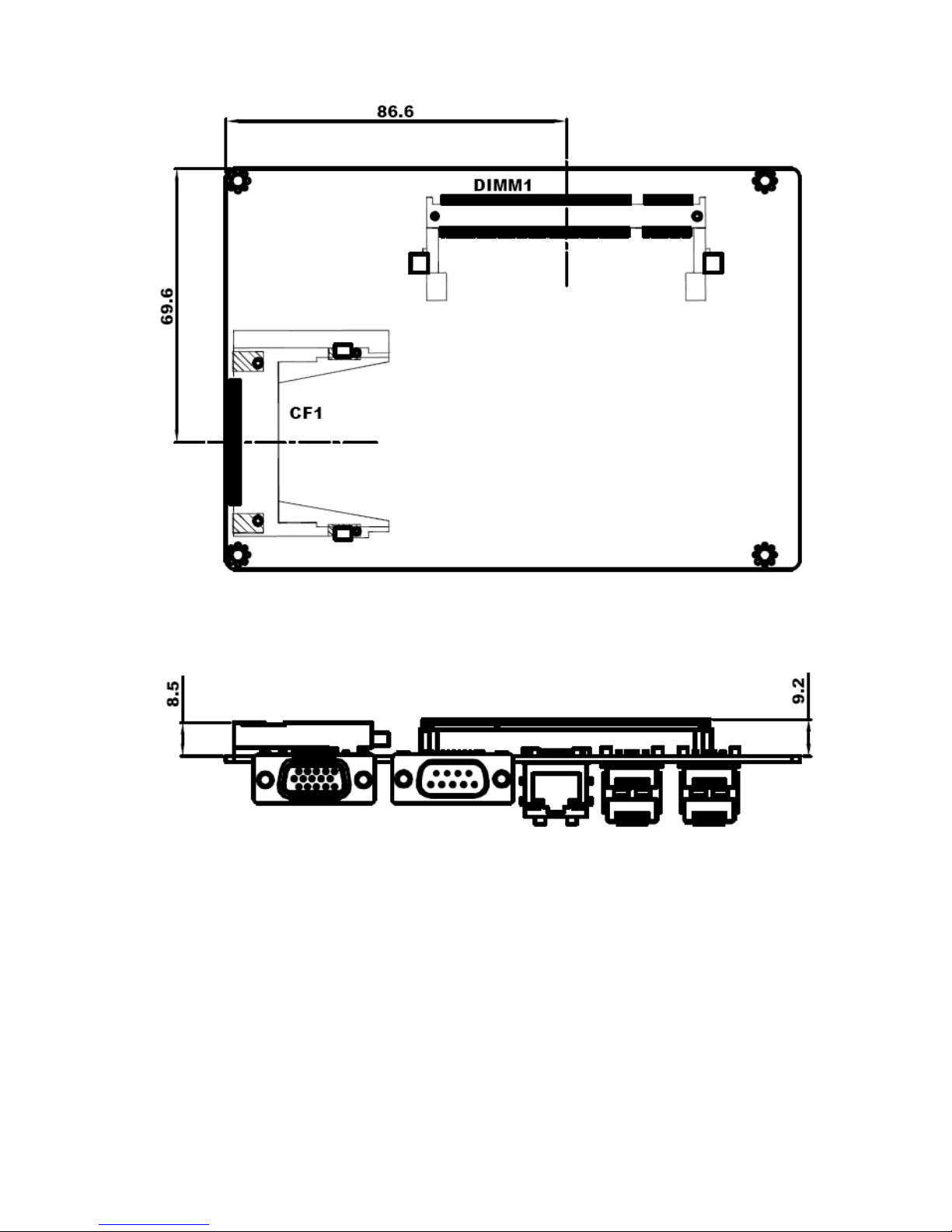

Dimension
