ENOCHS Encore Power 4250 User manual

Encore Power 4200 - left hand
Encore Power
High-Low Tables
Power 4250
& Power 4200
Encore Power 4250
Installation
& Operation Manual

TABLE OF CONTENTS
Page
Introduction
Technical Use of Tables
Intended Use of Tables
Disposal of Equipment
Maintenance and Service Questions
Classification
3
Symbols in this Manual
Electrical Requirements
Environmental Conditions
4
Safety Information
If Table Malfunctions
5
Product at a Glance
6-7
Setting Up Your Table
Before Operating Table
Electro Magnetic Interference
Patient Load
8
Power Features : Foot Control
Height adjustment
9
Back adjustment
Hand Control Operation
Height adjustment
Back adjustment
10
Table Features

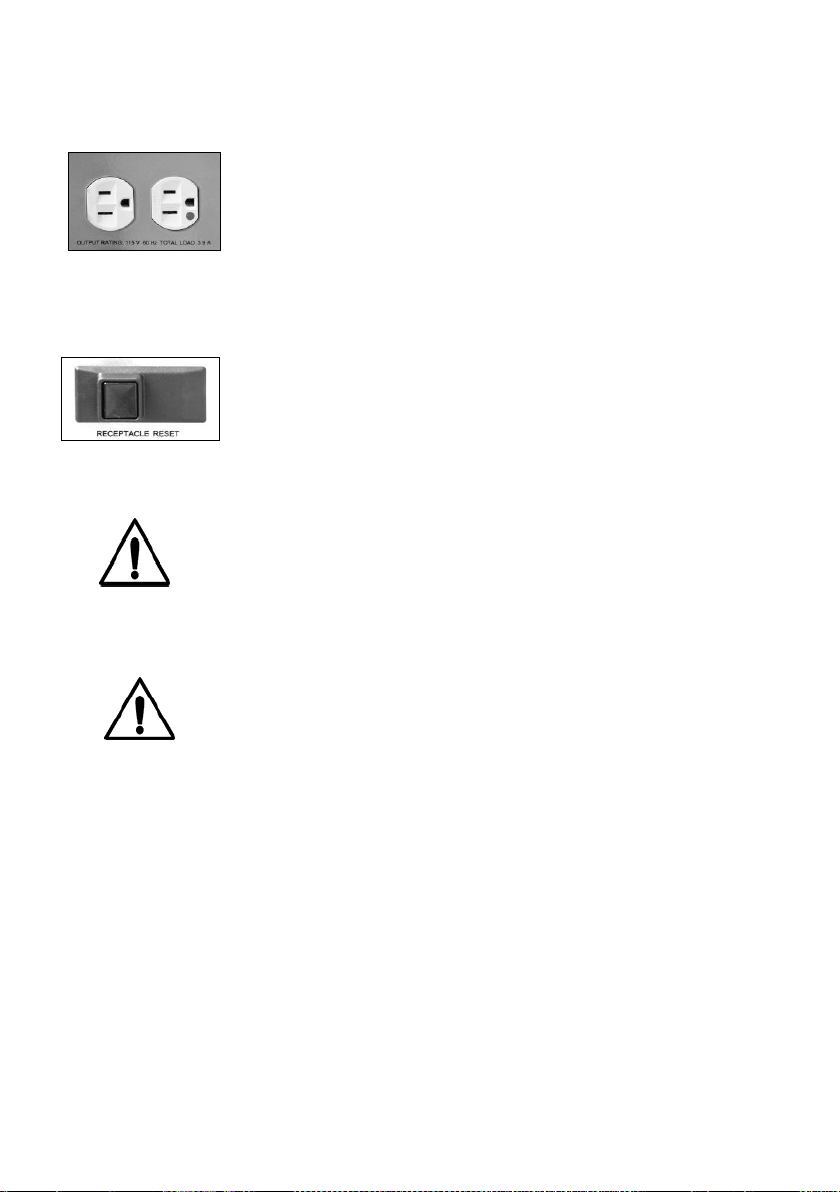

Receptacles , accessory
Receptacle Circuit Breaker
11
Instrument Warming Drawer
Irrigation Basin
Mains Power Entry Module
12
Mains Power Circuit Breaker & reset
Mains Power Indicator
Paper roll holder
Paper cutter
Pelvic Tilt
Pelvic Tilt adjustment
Perineal Recess
13
Leg Extension
Stirrups
Stirrup adjustment
14
Storage
Vacuum Formed Top
Caster Base (optional)
15
Table Maintenance and Cleaning Recommendations
16
Upholstery Care
17
Semi-annual Maintenance Checklist
18
Troubleshooting
19
Product Specifications
20
Table Maintenance History
21-22
Guarantee of Quality Warranty
23
Index
24
2

3
MEDICAL EQUIPMENT WITH RESPECT TO
ELECTRIC SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL 60601-1,
IEC/EN 60601-1, CAN/CSA C22.2 No. 601.1
CLASSIFICATION: Class I, Type B Applied Part, IPXO
45VW
INTRODUCTION
This manual covers the installation, operation and maintenance for the ENOCHS
High-Low Examination Table Encore Series which includes the Encore Power
4250 and the Encore Power 4200. Please take extra time to read and understand
all operations and maintenance requirements for maximum performance of this
product. Improper operation of this product could result in injury to staff and/or
patient as well as damage to the product.
TECHNICAL DESCRIPTION
This series of tables is designed for use in hospitals, clinics and private physician
examination rooms. Examination tables have positioning capability to adjust table
height and back section of the upholstered couch section by use of a foot control
and/or optional hand control.
INTENDED USE OF TABLES
The Encore Power 4250 and Encore Power 4200 high-low tables are intended to
be used for general examinations by qualified medical professionals. Tables are
designed to position and support patients during procedures.
DISPOSAL OF EQUIPMENT
At the end of the product life, consult local codes and ordinances for proper
disposal of table, accessories and other consumable goods.
Note: products may have become contaminated from normal use.
MAINTENANCE AND SERVICE QUESTIONS
Contact ENOCHS with questions concerning this manual, proper operation of the
product or for the nearest Authorized Service Company. A Service Manual with
circuit diagrams, component parts list and information to assist qualified technical
personnel in repairing parts of the equipment designated repairable by
manufacturer is available from ENOCHS upon request.
ENOCHS Examining Room Furniture
P.O. Box 50559 Indianapolis, IN 46250
Phone
800-428-2305
FAX
317-580-2944
E-mail
[e-mail]

SYMBOL DEFINITIONS
ELECTRICAL REQUIRMENTS
Electrical rating for the Encore Power 4250 table is 115V AC, 60 Hz, 10 ampere.
Do not connect table to other voltages. If incorrect power source is used, table will
not function properly and component parts could be damaged.
ENVIRONMENTAL CONDITIONS
TRANSPORTATION/STORAGE
Ambient Temperature Range:
-20ºC to +40ºC (-4º F to 104º F )
Relative Humidity:
10% to 100%
Atmospheric Pressure:
500 hPa to 1060 hPa (0.49atm to 1.05atm)
OPERATIONAL
Ambient Temperature Range:
+10ºC to +37ºC (+50º F to 98º F )
Relative Humidity:
30% to 75%
Atmospheric Pressure:
700 hPa to 1060 hPa
This symbol indicates a
potential hazard to
operator’s or patient’s
personal safety if
information stated within
the WARNING is not
followed.
This symbol indicates
potential damage to
equipment if information
or instruction in the
CAUTION is not
followed.
This symbol
indicates additional
information for an
applicable
statement.
WARNING
CAUTION
NOTE
Attention, consult
accompanying documents
Protective Earth Grounding
ON (power connection to the mains)
Type B, Applied Part
Duty cycle (motor run time)
1 minute ON, 9 minutes OFF

Off (power disconnection from
the mains)
IPXO
IPX1
Ordinary equipment (enclosed
EQUIPMENT without protection
against ingress of water)
Drip proof equipment (enclosed
EQUIPMENT protected against
splashing water)
4

Safety Information
Failure to follow these instructions could result in
bodily injury and/or product damage.
Table is rated for a 500 pound patient load, evenly distributed.
Operating table with a patient over recommended load, will result in
damage to table.
DO NOT use this product in presence of FLAMMABLE
ANESTHETIC MIXTURES WITH AIR OR WITH OXYGEN OR
NITROUS OXIDE.
All exposed metal parts of this product are grounded. For
procedures involving cauterization or similar treatment, insulate
patient from metal parts of table with non-conductive material.
Failure to follow recommended procedures could result in
electrical shock and/or burns to patient.
Before positioning or adjusting table make sure arms, legs,
accessories and other objects are clear and safe from all moving
parts of table.
DO NOT REPLACE IEC Mains Power Cord with other type of cord.
DO NOT USE other type of hand control.
DO NOT USE extension cord unless NEMA approved for specifications.
DO NOT USE table if mains power, foot control or hand control cord is cut,
worn, frayed or otherwise damaged.
DO NOT USE table if abnormal sounds are heard during any adjustment.
IF TABLE MALFUNCTIONS
1. IMMEDIATELY stop using foot control or hand control.
2. Unplug mains power cord from wall outlet.
3. Assist patient off table if applicable
4. Report malfunction of table to ENOCHS at 1-800-428-2305.
Mains power cord provides power for all table electrical operations. Before
operating, confirm the unit is plugged into a Hospital Grade 115 Volt, NEMA
ground wall receptacle.
DO NOT SUBMERGE FOOT CONTROL in water or any other
liquid. Failure to follow this instruction will cause severe damage to
product.
CAUTION
WARNING
Duty cycle of the system is the run time of the table in
minutes followed by a required rest time in minutes.
The Encore Power Series Tables are designed for
intermittent operation with a duty cycle of 1 minute
ON / 9 minutes OFF. DO NOT EXCEED duty cycle,
doing so could damage system.

5

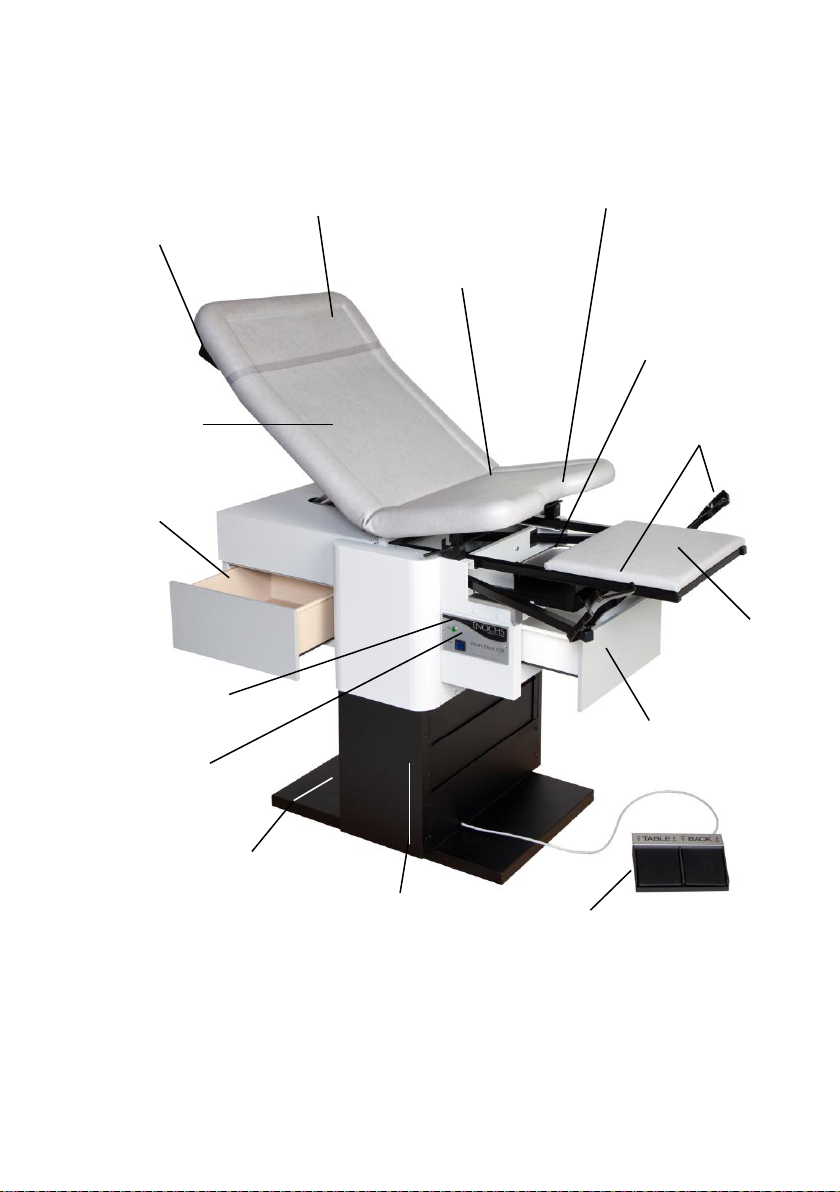

PRODUCT AT A GLANCE
Range of Motion
Power Back : 0º horizontal to +80º =±5º
Power Height : Min: 24 ±.5 in. Max: 40 ±.5 in.
Perineal
recess
Paper cutter
Paper roll holder
Irrigation
basin
Pelvic tilt
Range of Motion
Min. Flat, 7º
Max. 11º ±2º
Pull-out
leg
extension
Power back
Stirrups
Instrument warming
drawer (available on
Power 4250 only)
Foot control
Instrument Warming
Drawer ON/OFF
SWITCH (available
on Power 4250 only)
Drawer storage
Mains Power light
Power Height
Mains Power Input Module
6

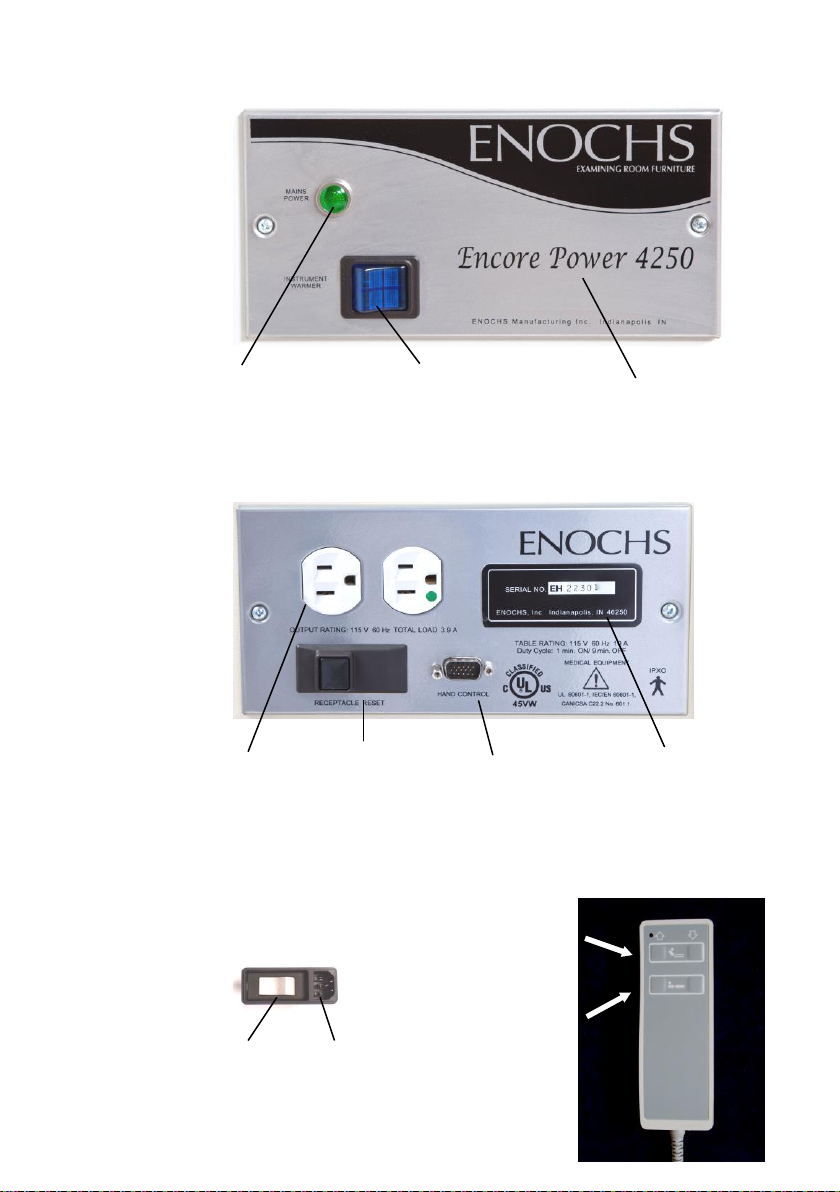

Front Panel
Mains Power
Indicator
Instrument Warmer ON/OFF
(applies to Power 4250 only)
Model Name
(available on Encore Power 4250 only)
Electrical
Accessory
Receptacles
Receptacle
Circuit Breaker
Back Panel
Serial Number
Plate
Hand Control
Input
Hand Control
(Optional Accessory)
Back Up/ Down
Adjustment
Height Up/
Down
Adjustment
Mains Power
Input Module
ON/OFF Switch
& Circuit
Breaker Reset
Power
Supply Cord
Input
7

SETTING UP YOUR TABLE
Remove table from skid by lifting only at table’s base. DO NOT LIFT
AT COUCH SEAT, HEAD SECTION OR BY STIRRUPS, LEG
EXTENSION or BASIN DRAWER -- lifting at these points could result
in product damage and/or bodily injury.
Table rating is 115V AC, 60 Hz, 10 ampere.
Connect table to correct electrical source. Do not connect table to other voltages. If
incorrect power source is used, table will not function properly and component parts
could be damaged.
Once table is positioned in the final location, it must sit firmly on all four levelers to
operate correctly. To level unit adjust the four threaded levelers located under each
corner of the table base.
BEFORE OPERATING TABLE
ALWAYS place the foot control on floor away from all moving parts of the table
ALWAYS keep hand control and cord clear from all moving parts of the table
NEVER place foot control on the base of the table to operate
Keep patient feet, legs and arms away from all moving parts
Keep all accessories, room equipment and operator stools away from all moving
parts of table
ELECTROMAGNETIC INTERFERENCE
Electromagnetic interference can impact performance of medical equipment. If
interference is experienced, determine interfering device and, if practical, remove it from
the area. If removing the interfering device is not practical,
Increase distance between affected devices
Connect table or any affected devices into isolated circuits
Contact ENOCHS if interference persists
PATIENT LOAD
The Encore Power Series tables are designed for a patient a load of 500 lbs.
evenly distributed. Staff should take special care to position patients over table’s
center point and NOT at an edge, end of table or on the leg extension.
WARNING
CAUTION
DO NOT EXCEED table’s weight limit to avoid
product damage.
WARNING
The Equipment shall be transported only when the unit is in
the fully down position without the patient.
8

POWER FEATURES
FOOT CONTROL
Place Foot Control in clear area to avoid accidental
activation. NEVER place foot control on base of table to
operate, always place foot control away from any moving
parts of table to avoid product damage and/or bodily injury.
Before positioning or adjusting table, make sure arms,
legs, accessories and other objects are clear and safe from all
moving parts of table to prevent bodily injury to patient or staff
and/or product damage.
Place Foot Control in a clear plastic bag or position unit to a
safe area to avoid damage by solutions used in procedures
and to assist in maintaining a clean unit.
FOOT CONTROL OPERATION
Height adjustment
Raise Table: Place foot firmly on center of pedal
marked TABLE. Depress left side of pedal
designated by UP. When desired height is
reached, release pressure from pedal
Lower Table: Place foot firmly on center of pedal
marked TABLE. Depress right side of pedal
designated by DN. When desired height is
reached, release pressure from pedal.
"Easy Touch" foot control allows fast convenient adjustment of table’s
HEIGHT and the couch BACK .
NOTE
WARNING
Tables are designed for intermittent operation with a duty
cycle of 1 minute ON / 9 minutes OFF. DO NOT EXCEED
duty cycle, doing so could damage system.

9

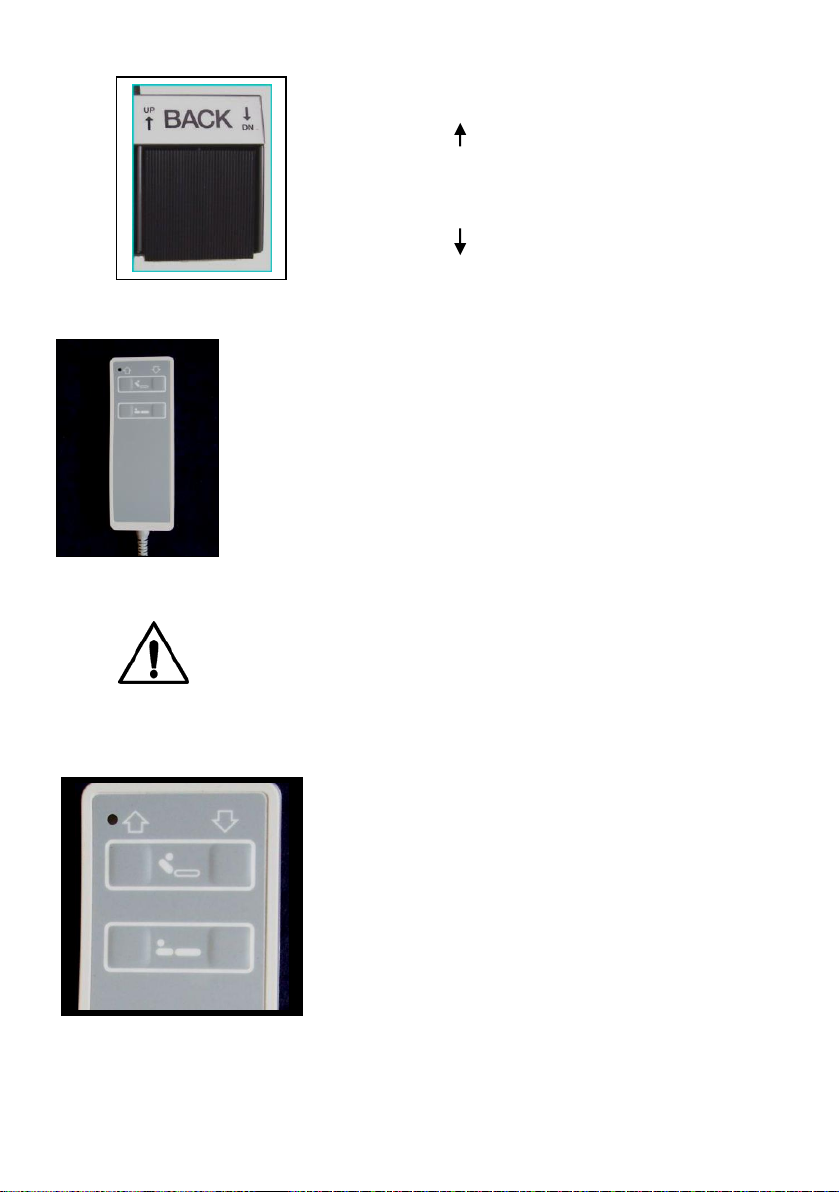

Back adjustment
Raise Back: Place foot firmly on center of pedal
marked BACK. Depress left side of pedal
designated by UP. When desired angle is
reached, release pressure from pedal.
Lower Back: Place foot firmly on center of pedal
marked BACK. Depress right side of pedal
designated by DN. When desired angle is
reached, release pressure from pedal.
HAND CONTROL
The hand control (optional accessory) allows fast easy
adjustment of table’s HEIGHT from 24" to 40" and the
couch BACK to various degrees from horizontal to an 80º
chair position.
DO NOT CONNECT ANY OTHER HAND CONTROL INTO
INPUT PORT.
To install: Connect hand control cable to input port on the
back face plate of table and secure with fasteners.
To disconnect : Unscrew fasteners, securely grasp plug and
pull from port. DO NOT PULL plug out with hand control
cable.
HAND CONTROL OPERATION
Height adjustment
Raise Table: Press button marked TABLE ▲.
When desired height is reached, release
pressure from button.
Lower Table: : Press button marked TABLE
▼. When desired height is reached, release
pressure from button.
Back adjustment
Raise Back: Press button marked BACK ▲.
When desired angle is reached, release
pressure from button.
Lower Back Press button marked BACK ▼. When
desired height is reached, release pressure from
button
Before activating hand control, confirm area around all
moving parts of the table is clear of any obstructions to avoid
product damage and/or bodily injury.
WARNING
10

TABLE FEATURES
ELECTRICAL ACCESSORY RECEPTACLES (Encore Power 4250 only)
UL Listed, hospital grade, dual accessory receptacles are
located on back side of the table. A circuit breaker with a
reset button is directly below receptacles. Unit has a total 3.9
amp maximum load.
ELECTRICAL ACCESSORY RECEPTACLE CIRCUIT BREAKER
(Encore Power 4250 only)
If accessory receptacle circuit is overloaded by exceeding the
maximum amperage, the circuit breaker will trip. The button
on the circuit breaker will pop out, interrupting power to
receptacles. Receptacles will not function until circuit is reset.
Reset: Depress reset button to reestablish power to receptacles.
CAUTION
DO NOT EXCEED maximum receptacle load of 3.9 amps total
Risk of Electrical Shock Hazard: Accessory equipment
connected to the accessory receptacles must be certified
according to the medical device safety standards (i.e., UL
60601-1, CAN/CSA C22.2 No. 601.1, or IEC 60601-1 for
electro-medical equipment). All combinations of equipment
must be in compliance with IEC 60601-1-1 systems
requirements. Anyone connecting additional equipment to the
accessory receptacle configures a medical system, and
therefore is responsible that the system complies with the
requirements of the system standard IEC 60601-1-1.
The use of accessory equipment not complying with the safety standards UL
60601-1, CAN/CSA C22.2 No. 601.1, or IEC 60601-1 will lead to a reduced level
of safety of the resulting system.
Read and retain all user manuals for accessory equipment powered by the
receptacles to ensure continued safety of the system.
WARNING! –Risk of Electrical Shock Hazard: Do not plug a multiple socket
outlet or an extension cord into the accessory receptacles of the examination
table.
WARNING
11

INSTRUMENT WARMING DRAWER (applies only on Encore Power 4250)
Located at footend of table, the instrument warming drawer
is designed to warm speculums and instruments to
approximate body temperature. The ON/OFF toggle
switch with circuit breaker is located on the front side of
table for instant confirmation of unit’s status.
Warmer ON: Press "ON"side of switch. Switch will be
illuminated when unit is ON.
Warmer OFF: Press "OFF" side of switch. Switch will not be
illuminated when unit is OFF.
Reset circuit breaker: Turn switch OFF, then ON
IRRIGATION BASIN
The 4” (10.2 cm) deep stainless steel irrigation basin fits
into the basin drawer and operates independent of the
leg extension. Basin easily lifts out for cleaning.
To Access: Grasp basin drawer handle, extend to
desired length.
To Remove Basin: Extend basin drawer to full extension and lift basin out.
To Store: Gently push basin back under seat section.
MAINS POWER INPUT MODULE
The mains power connection at the base of the table,
provides power for tables height and back adjustment as
well as the dual electrical receptacles and instrument
warmer featured on the Encore Power 4250. The module
consists of an ON/OFF toggle switch, internal circuit
breaker and IEC input.
Connect Mains Power: Plug the power cord’s IEC end into the Mains Power
Entry Module then plug cord into a NEMA wall receptacle. Confirm
ON/OFF switch is in the ON position.
Disconnect Mains Power: Unplug power cord from wall outlet or press the
ON/OFF switch to the OFF position
UNDER NO CIRCUMSTANCES SHOULD Mains
Power Cord be replaced with any other type cord.
WARNING
Irrigation basin drawer is not designed to support any
patient weight.
CAUTION
12

MAINS POWER CIRCUIT BREAKER
This double pole protective device trips if the rated current
level is exceeded, interrupting the electrical current to the
table. When breaker is tripped, the ON/OFF toggle switch
is in the neutral position.
To Reset: Press mains power ON/OFF Switch to OFF
position, then to the ON position.
MAINS POWER INDICATOR
The green indicator light on front side of table illuminates when table has power.
PAPER ROLL HOLDER
Holder is located at head end section of table and accommodates 18" (45.7 cm) or 21"
(54.3 cm) table paper.
Installing Paper Roll: Lift end of paper roll rod out of the open u-bracket on
back of table couch, slide paper roll onto rod and insert rod end back into bracket.
PAPER CUTTER
Located at head end section to reduce cross contamination, cutter is attached to
upholstered top by quick release snaps located on either side of couch back.
PELVIC TILT The three position pelvic tilt manually adjusts at flat º, 7º,
and 11º. Tilt lowers from either side of table with use of
release lever located under the seat section.
PELVIC TILT ADJUSTMENT
To Raise: Grasp either side of seat section, lift to desired degree. Seat will
automatically lock at chosen angle.
To Lower: Support seat section with one hand, depress release lever
located under the seat section on either side of table and lower seat
to desired degree.
PERINEAL RECESS
The moulded recessed at the end of the seat section is
designed to allow greater access to patient’s perineal region
during procedures.
Recess measures 10" wide at opening and 2" deep at center.
BEFORE USING pelvic tilt release
levers, confirm all hands, fingers and
arms are away from under seat
section.
WARNING
13

PULL-OUT LEG EXTENSION
The extra wide padded leg extension moves in and out from
under the seat section. Extension is padded and upholstered
in durable vinyl. Independent operation allows fast transition
between leg extension and basin. Patients with limited hip
rotation may be positioned with feet on extension while still
allowing full access to basin by practitioner.
To Extend: Grasp front edge of extension and pull out to desired length.
To Store: Push unit gently back under seat section of table.
Irrigation Basin Access: push extension into stored position lifting slightly
while pushing under seat section for direct access to basin.
STIRRUPS Concealed when not in use, the multi-position stirrups offer
length as well as lateral adjustment to accommodate each
patient. Stirrup locks into position with weight of patient’s
foot. Stirrup shoes are coated in durable Plastisol for
efficient cleaning and patient comfort
STIRRUP ADJUSTMENT
Lateral Adjustment: Grasp stirrup bars, located under seat section and pull out to
full bar extension. Unfold stirrup shoes. Lift bar approximately ½"(1.3cm) and
move outward, lowering to desired angle.
Length Adjustment: First make desired lateral adjustment of stirrups.
To Decrease Stirrup Bar Length: Firmly push stirrup bar into table stopping at
desired length. Stirrup bar automatically locks, prohibiting increase in length.
To Increase Stirrup Bar Length: Remove weight from stirrups, lift bar
approximately ½ " (1.3cm), return to center position and bring to full extension.
Make lateral adjustment to desired position then push bar into table to desired
length.
Perineal Angle: To increase patient’s leg angle for great perineal access, decrease
stirrup bar length creating a shorter distance from stirrup shoe to end of table.
Stirrup Storage: Lift bars approximately ½" (1.3cm) and move to center position.
Fold down stirrup shoes against bar and gently slide bars under seat section.
CAUTION
Do not use leg extension to support
entire patient weight. Extension
designed to support weight of lower
portion of patient’s legs.
Confirm stirrup bars are secure in the
lateral position before using.
Stirrups are designed to support
patient’s legs, not entire patient’s
weight
WARNING
14

STORAGE
Table has a 6" deep side drawer and a 4.5" deep footend drawer totaling 1.4 cubic
feet of storage area. High impact polystyrene drawers with laminate fronts have an
integrated stop that eliminates accidental dumping of drawer contents. Drawers
operate on a steel reinforced, side-guide mounting system providing disciplined,
non-binding drawer movement. Nylatron strips on the bottom edges of the drawer
protect against wear and allow smooth drawer movement. Drawers rated at 45 lbs.
each.
Removal of Footend Drawer: Must be done by qualified technician.
Removal of Side Drawer: Pull drawer out to full extension, lift approximately 15º then
remove.
Replace of Side Drawer: Inserting drawer at approximately 15º angle, lower front
edge while pushing drawer into the table.
VACUUM FORMED TOP
Top is 100% seamless and manufactured without crevices or decorative embossing
that collect dirt and makes cleaning difficult. Top is padded with high density foam
with additional contoured padding on the sides for patient comfort. Top is
constructed with a steel frame and backing designed for strength and durability.
The perineal recess is an exclusive feature of this top.
CASTER BASE (optional)
Caster base designed for moving table without patient.
TABLE WITH CASTER BASE IS NOT RECOGNIZED BY
THE FDA AS A TRANSPORT UNIT AND SHOULD NOT BE
USED IN PLACE OF A STRETCHER.
Using tables with caster base in a manner other than what
manufacturer has intended could result in patient injury or
product damage.
WARNING
Caster base has four (4) 3-1/2" casters - two swivel
and two fixed. A foot actuated locking mechanism
is located on head end of unit . Caster base raises
table approximately 1-1/4" off floor
Caster base is intended to remain attached to table
after initial installation.
To Lock: Securely push down locking pedal at the headend of the caster
base with foot.
To Unlock: Carefully press down on locking bar to release locking mechanism.
The Equipment shall be transported only when the unit is in the
fully down position without the patient.
15

TABLE MAINTENANCE
ANNUAL PREVENTATIVE MAINTENANCE INSPECTION by an authorized
service group is recommend by Manufacturer. Reference Semi-annual Maintenance
Checklist , page 18
CLEANING RECOMMENDATIONS
SPECIAL CLEANING ALERT
Follow guidelines for cleaning procedures set forth by the CDC (reference
Isolation Precautions), OSHA (reference Bloodborne Pathogen Standards), APIC
(Association for Practitioners in Infection Control ) and any other appropriate
federal or state agencies.
PAINTED OR STAINLESS STEEL SURFACES:NEVER USE ABRASIVE
CLEANERS on these surfaces. Abrasive cleaners will cause irreversible
damage to finishes. Clean stainless steel surfaces with commercial cleaners
designed for this type of surface. Most soil can be cleaned from painted surfaces
with mild soap and water. Disinfect with cleaners formulated for painted or
stainless steel surfaces.
FOOT CONTROL:BEFORE CLEANING unplug table from wall receptacle. DO
NOT USE excessive liquid on foot control, doing so could result in product
damage. With soft bristle brush, remove loose dirt particles from pedal tread.
Clean outer case with sponge or soft cloth. To avoid damage by housekeeping,
place foot control on table base for storage when not in use.
HAND CONTROL: BEFORE CLEANING unplug table from wall receptacle.
Using a sponge or soft cloth, clean outer case with disinfecting solution
recommended for vinyl or plastic surfaces. To avoid damage by housekeeping,
properly store hand control on table when not in use.
VACUUM FORMED TOP:Manufacturer of material recommends cleaning
upholstered surface after each patient. Certain substances will stain if not
removed immediately, consult Manufacturer’s Upholstery Cleaning, page 17.
Most soil can be easily removed with warm soapy water and several clear rinses.
Disinfect using products designed specifically for vinyl. DO NOT USE cleaners
formulated for nonporous surfaces.
DO NOT SUBMERGE FOOT CONTROL in water or
any other liquid. Failure to follow this instruction will
cause severe damage to product.
CAUTION
16

UPHOLSTERY CARE
S P E C I A L AL E R T
Follow guidelines for cleaning procedures set forth by the CDC (reference:
Isolation Precautions), OSHA (reference: Bloodborne Pathogen Standards),
APIC (Association for Practitioners in Infection Control ) and other
appropriate federal or state agencies.
Upholstery surface should be cleaned after each patient. Vinyl upholstery requires
general periodic cleaning to maintain a neat appearance and prevent build up of dirt
and contaminates. Warm soapy water and several clean water rinses may be used
for general cleaning of upholstery. Indiscriminate use of strong solvents,
bleaches or cleaners formulated for nonporous surfaces will severely damage
or discolor vinyl surface. Procedures for removing substances that cause staining
are listed below.
SUBSTANCE
SOLUTION
PROCEDURE
Blood
Cold water- DO NOT USE
hot or soapy water, this will
set stain.
THEN USE
3/4 cup bleach to one gallon
warm water for final cleaning
IMMEDIATELY, following appropriate guidelines,
wipe blood from surface. If stain remains, use
household ammonia directly on stain followed by a
cold water rinse.
THEN
Wipe entire surface with bleach solution followed
by a clear cold water rinse.
Vomitus
Commercial Disinfectant
THEN USE
3/4 cup bleach to one gallon
warm water for final cleaning
IMMEDIATELY, following appropriate guidelines,
wipe area until substance is removed. Rinse with
cold water.
THEN
Wipe entire surface with bleach solution followed
by a clear cold water rinse.
Urine
1 part household ammonia to
5 parts water
THEN USE
3/4 cup bleach to one gallon
warm water for final cleaning
IMMEDIATELY, following appropriate guidelines,
wipe down area until substance is removed. Rinse
with clear water.
THEN
Wipe entire surface with bleach solution followed
by a clear cold water rinse.
Surface
Mildew
1 Tablespoon bleach to one
quart water
Sponge area until mildew is removed. Rinse with
clear cold water.
Ball-point Ink
Isopropyl alcohol 70%
followed by
clear water rinse
IMMEDIATELY remove mark using full strength
Isopropyl alcohol 70% . Rub lightly until ink is
removed. Rinse with a clear cold water. Ink will
stain vinyl permanently if not removed
immediately.
Chewing
Gum,
Lip Stick,
Grease, Oil,
Shoe Polish
Scuffs
Mineral Spirits or Carbon
Tetrachloride
Gum: Following appropriate guidelines, peel off
loose gum. Using a soft cloth saturated with
solution, rub soiled area lightly until gum is
removed. Rinse with clear cold water.
Lip stick, grease, oil: Taking care not to smear
substance, gently remove substance with soft
cloth and solution. Rinse with clear cold water.
Shoe polish: IMMEDIATELY remove polish as it
contains dye which permanently stain upholstery.
Rinse with a clear cold water rinse.
For substances not listed call ENOCHS 1-800-428-2305 for instructions
The following cleaners are NOT RECOMMENDED for this product:
powder abrasives
steel wool
industrial strength cleaners
lacquer solvents
peroxide
full strength chlorine bleach
waxes
vinyl cleaners
vinyl conditioners
17

Semi-annual Maintenance Checklist
Maintenance of the table is responsibility of the owner. Manufacturer recommends following
areas be inspected by certified technician every six months to assure proper operation of
table. Copy of this checklist should be used for each inspection and maintained in table’s
master file. Each inspection area is required to indicate a pass or fail status. ALL AREAS
failing inspection must be serviced/repaired immediately by certified technician. See
ENOCHS Service Manual for Power Encore Series Tables for repair/service advise and
instructions. Direct all questions to ENOCHS at 1-800-428-2305.
Serial Number: EH
Inspection Date:
PASS
FAIL
INSPECTION AREA


grounding continuity


mains power cord and electrical plug free from all nicks, cuts, abrasions
or any other damage.


mains power cord ON/OFF switch operates


mains power indicator light on front face plate functional


table’s receptacles functional (applies to Encore Power 4250 only)


warming drawer indicator ON/OFF switch functional
(applies to Encore Power 4250 only)


warming drawer functional (applies to Encore Power 4250 only)


all foot control pedals move freely, returning to neutral position without
sticking


foot control power cord free of damage and firmly held in place by strain
relief at back of foot control and at table base


TABLE UP/DN functions exhibit smooth range of movement


BACK UP/DN functions exhibit smooth range of movement


pelvic tilt adjusts smoothly and easily


leg extension moves freely in and out of table


irrigation basin drawer moves freely in and out of table


stirrup length and lateral adjustments have smooth range of movement


upholstery is free from cuts, rips or punctures


accessories rails (if applicable) are secure


accessories in good working order
18

TROUBLESHOOTING
SYMPTOM
CAUSE
SOLUTION
Table does not respond to foot
or hand control, Mains Power
Light is not ON.
Table not getting
Mains Power
Follow instructions above to
Confirm Power to Table
Table does not respond to foot
or hand control, Mains Power
Light is ON
Table height does not work,
but table back works
Internal Problem
Call for service
Table back does not work, but
height works
Electrical receptacles and
warmer work, but table height
and back will not respond to
foot control
Electrical receptacles and
warmer work, but table height
and back will not respond to
hand control
A. Hand control not
installed correctly
B. Internal Problem
A. Make sure connection of
hand control to table is
solid.
B. Call for service
Instrument warmer not
warming
A. Warmer ON/OFF
switch circuit
breaker tripped
B. Table does not have
power
A. Reset circuit breaker
B. Follow instructions above
to Confirming Power to
Table
Electrical receptacle not
working
A. Receptacle circuit
breaker tripped
B. Table does not
have power
A. Reset circuit breaker
B. Follow instructions above
to Confirming Power to
Table
Confirming Mains Power Procedure
Confirm wall receptacle has power.
If receptacle does not have power, call building maintenance.
If receptacle has power then confirm Mains Power Cord is correctly installed.
Correctly install cord and if table functions, no additional action needed.
If table does not function, confirm the table’s Mains ON/OFF Circuit Breaker
has not been tripped.
If tripped, reset and table functions, no additional action required
If table does not function, call for service
19

20
PRODUCT SPECIFICATIONS
Adjustments: Power: height: Min: 24 ±.5 in. Max: 40 ±.5 in.
back: 0º horizontal to 80º ±5º
Manual: pelvic tilt: flat, 7º, 11º (± 2 º)
leg extension: extends out 19" from end of seat section
Classification: Class 1, Type B Applied Parts IPXO
Controls: "hands free" foot control (standard) or hand control (optional).
Both are Safety Extra-Low Voltage (SELV) and IPX1
Couch top: 100% seamless vacuum formed style, all steel frame construction
Electrical receptacles: hospital grade dual electrical receptacles with circuit
breaker and reset
Instrument warmer: located in foot end drawer
Instrument warmer ON/OFF switch: located on front side of table, illuminates
when warming unit is ON. Switch has internal circuit breaker with reset
Irrigation basin: 4" deep stainless steel basin
Mains power entry module: IEC connection, internal circuit breaker with reset
Mode of operation: Table: Intermittent Operation ,
duty cycle:1 minute ON / 9 minutes OFF
Receptacles & warming drawer: Continuous Operation
Paper roll holder: accommodates 18" or 21" paper widths
Patient load: 500 lbs., evenly distributed on main couch
Perineal recess: moulded without seams , 10" W x 2" D at center
Power system: electro-mechanical
Protection against ingress of fluids: Table: IPX0 Foot control: IPX1
Hand control(optional): IPX1
Ratings: Table: 115V 60 Hz 10 amps
Receptacles : 115V 60Hz 3.9 amps Total Load
Stirrups: positive lock multi-position stirrups, length and lateral adjustment
Storage: side drawer-15.5" Wx15" D x 6" H foot-end drawer-15.5" Wx15" D x 4.5" H
total storage space - 1.4 cubic feet
Table weight: 415 lbs.

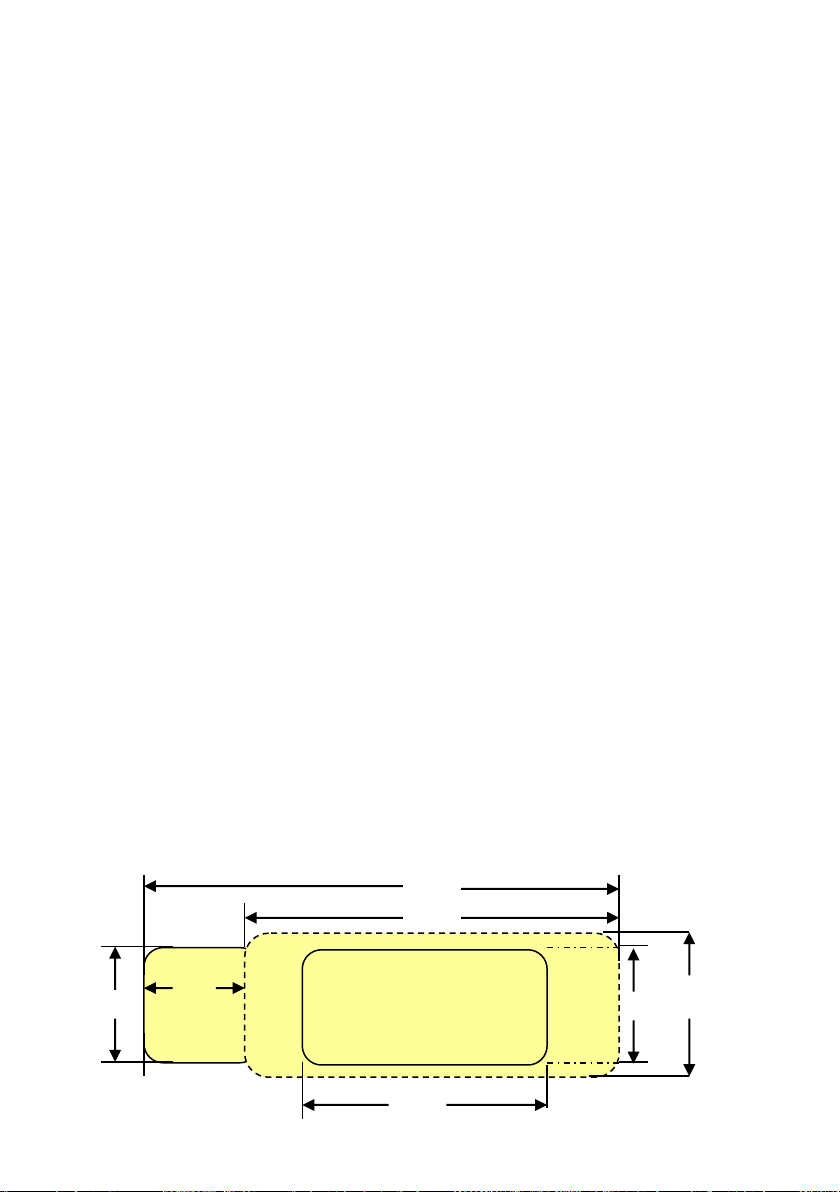

Dimensions:
Leg Rest
19″
floor base
Vacuum
Top
27″
52″
33″
71″
19″
22”
