INTRODUCTION
This manual covers the installation, operation and maintenance for ENOCHS
manually adjusted examination tables which include the Regency 456, 455 and 450
OBGYN examination tables, the Excel 356, 355 and 350 general examination
tables. Take extra time to read and understand all operations and maintenance
requirements for maximum performance of the product. Improper operation of the
product could result in injury to staff and/or patient as well as damage to the
product.
TECHNICAL DESCRIPTION
These manually adjustable examination tables are designed for use in hospitals,
clinics and private physician examination rooms. These tables are designed with a
fixed height and manually adjustable back section of the couch top.
INTENDED USE OF TABLES
Regency and Excel Series of tables are intended to be used for general
examinations by qualified medical professionals. Tables are designed to position
and support patients during procedures.
DISPOSAL OF EQUIPMENT
At the end of the product life, consult local codes and ordinances for proper
disposal of table, accessories and other consumable goods.
Note: products may have become contaminated from normal use.
MAINTENANCE AND SERVICE QUESTIONS
Contact ENOCHS with questions concerning this manual, proper operation of the
product or for the nearest Authorized Service Company. A Service Manual with
circuit diagrams, component parts list and information to assist qualified technical
personnel in repairing parts of the equipment designated repairable by
manufacturer is available from ENOCHS upon request.
MEDICAL EQUIPMENT WITH RESPECT TO
ELECTRIC SHOCK, FIRE AND
MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL 60601-1,
IEC/EN 60601-1, CAN/CSA C22.2 No. 601.1
CLASSIFICATION: Class I, Type B Applied Part, IPXO
45VW
ENOCHS Examining Room Furniture
P.O. Box 50559 Indianapolis, IN 46250
Phone
800-428-2305
FAX
317-580-2944
E-mail
[e-mail]
3

SYMBOL DEFINITIONS
ELECTRICAL REQUIRMENTS
Electrical rating for the Regency and Excel Series tables when offered with
electrical features is 115V AC, 60 Hz, 10 ampere. Do not connect table to
other voltages. If incorrect power source is used, table will not function properly
and component parts could be damaged. Regency 450 and Excel 350 do not
have electrical features.
ENVIRONMENTAL CONDITIONS
TRANSPORTATION/STORAGE
Ambient Temperature Range:
-20ºC to +40ºC (-4º F to 104º F )
Relative Humidity:
10% to 100%
Atmospheric Pressure:
500 hPa to 1060 hPa (0.49atm to 1.05atm)
OPERATIONAL
Ambient Temperature Range:
10ºC to +37ºC (+50º F to 98º F )
Relative Humidity:
30% to 75%
Atmospheric Pressure:
700 hPa to 1060 hPa
Attention, consult
accompanying documents
Protective Earth Grounding
ON (power connection to the mains)
Type B, Applied Part
Off (power disconnection from
the mains)
Mode of Operation or
Duty Cycle

IPXO
Ordinary equipment (enclosed EQUIPMENT without
protection against ingress of water)
This symbol indicates a
potential hazard to
operator’s or patient’s
personal safety if
information stated within
the WARNING is not
followed.
This symbol indicates
potential damage to
equipment if information
or instruction in the
CAUTION is not
followed.
This symbol
indicates additional
information for an
applicable
statement.
WARNING
CAUTION
NOTE
4

Safety Information
Failure to follow these instructions could result in bodily injury
and/or product damage.
The Regency and Excel Series tables are rated for a 600 pound
patient load, evenly distributed on the main couch top. Operating
table with a patient over recommended load may result in damage
to table.
DO NOT use these tables in presence of FLAMMABLE
ANESTHETIC MIXTURES WITH AIR OR WITH OXYGEN OR
NITROUS OXIDE.
All exposed metal parts of these tables are grounded. For
procedures involving cauterization or similar treatment, insulate
patient from metal parts of table with non-conductive material.
Failure to follow recommended procedures could result in
electrical shock and/or burns to patient.
Before positioning or adjusting table back and pelvic tilt make sure
arms, legs, accessories and other objects are clear and safe from
all moving parts of table.
DO NOT REPLACE IEC Mains Power Cord with other type of cord.
DO NOT USE extension cord unless NEMA approved for specifications.
DO NOT USE table if mains power cord is cut, worn, frayed or otherwise
damaged.
DO NOT USE table if abnormal sounds are heard during back or pelvic tilt
adjustment.
IF TABLE MALFUNCTIONS
1. IMMEDIATELY stop using table.
2. Unplug mains power cord from wall outlet.
3. Assist patient off table.
4. Report malfunction of table to ENOCHS at 1-800-428-2305.

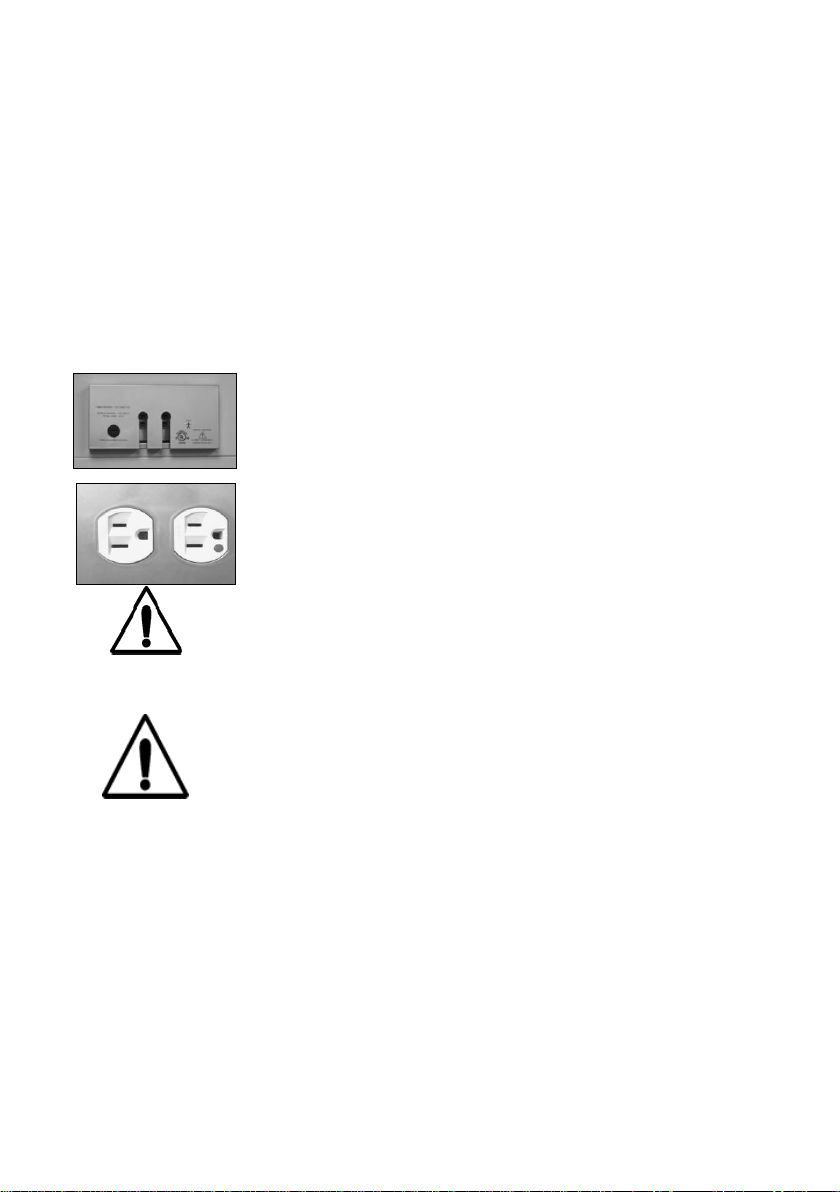

Mains power cord provides power for table’s electrical outlets and instrument warming
drawer when applicable. Before operating, confirm the unit is plugged into a Hospital
Grade 115 Volt, NEMA ground wall receptacle.
CAUTION
Duty cycle of receptacles: continuous
Duty cycle of instrument warming drawer: continuous

WARNING
