Enphase Energy System with IQ Battery 5P Owner’s Guide
Enphase Energy System
with IQ Battery 5P
Owner’s Guide
2
Enphase Energy System with IQ Battery 5P Owner’s Guide
To ensure optimal performance and reliability and to
meet warranty requirements, the Enphase Energy
System must be installed according to the instructions in
the respective product quick install guides.
The Enphase Energy System equipment is intended to
operate with an internet connection. Maintaining an
internet connection is important, not only for updating
software and rmware but also for measuring the health
of the system. Failure to maintain an internet connection
may have an impact on the warranty.
In addition, features like live status monitoring, energy
and power monitoring, work when the system has an
active internet connection.
Visit https://enphase.com/en-gb/warranty/uk for full
terms and services.
Product information is subject to change without notice.
All trademarks are recognized as the property of their
respective owners. User documentation is updated
frequently.
Check the Enphase website (https://enphase.com/en-
gb/installers/resources/documentation) for the latest
information.
Warranty
Other information
This manual is intended for use by owners of Enphase
Energy Systems with IQ Battery 5P.
Audience
Visit https://enphase.com/en-gb/patents for Enphase
patent information. © 2023 Enphase Energy. All rights
reserved.
Enphase, the e and CC logos, IQ, and certain other
marks listed at https://enphase.com/trademark-usage-
guidelines are trademarks of Enphase Energy, Inc. in the
US and other countries. Data subject to change.
Waste electrical products (including batteries)
should not be disposed of with household
waste. Refer to your local codes for disposal
requirements.
Environmental protection
ELECTRONIC DEVICES: DO NOT THROW AWAY.
Do not install or use the Enphase Energy System
equipment if the equipment is damaged.
3
Enphase Energy System with IQ Battery 5P Owner’s Guide
Contents
System information 6
Key components 6
Component introduction 7
IQ Battery 5P 7
IQ Gateway 7
Communications Kit 7
System block diagram 8
System monitoring and
management 11
Enphase App 11
Enphase web application 11
Know your smart prole 10
Charge battery from the grid mode 12
System care 13
Troubleshooting 14
Safety information 23
Revision history 25
4
Enphase Energy System with IQ Battery 5P Owner’s Guide
Enphase Energy System
with IQ Battery 5P
5
Enphase Energy System with IQ Battery 5P Owner’s Guide
Enphase Energy System
IQ MICROINVERTERS
IQ BATTERY 5P ENPHASE APP
6
Enphase Energy System with IQ Battery 5P Owner’s Guide
System information
IQ Battery 5P stores energy and dispatches it when
you need it. IQ Battery 5P is built on a distributed
architecture platform. This modular design means you
can quickly and easily expand your system as your
needs grow.
IQ Battery 5P
The Enphase App is a mobile app where you can monitor
and control your system status from wherever you
are and know exactly how much energy your solar PV
system is producing. You can generate reports on energy
production by day, week, month, or year.
Enphase App
Under each solar panel lies an Enphase microinverter that
converts DC power generated by the panel into AC power
that your home can use.
IQ Microinverters
The brain of the Enphase Energy System is Enphase
IQ Gateway. The IQ Gateway collects production and
performance data from IQ Series Microinverters and IQ
Battery 5P, manages your system, and communicates
with the Enphase cloud.
IQ Gateway
Key components
Current Transformers measure the current owing
through the system. The Enphase Energy System uses one
CT to measure the solar power generated on your roof
and one CT to measure the electricity consumption of
your entire home. These currents measured are fed to the
IQ Gateway.
Current Transformers
An accessory used to enable communication between IQ
Battery 5P and IQ Gateway. This device connects to IQ
Gateway via USB cable and IQ Batteries are connected to
this device via control cables.
Communications Kit
7
Enphase Energy System with IQ Battery 5P Owner’s Guide

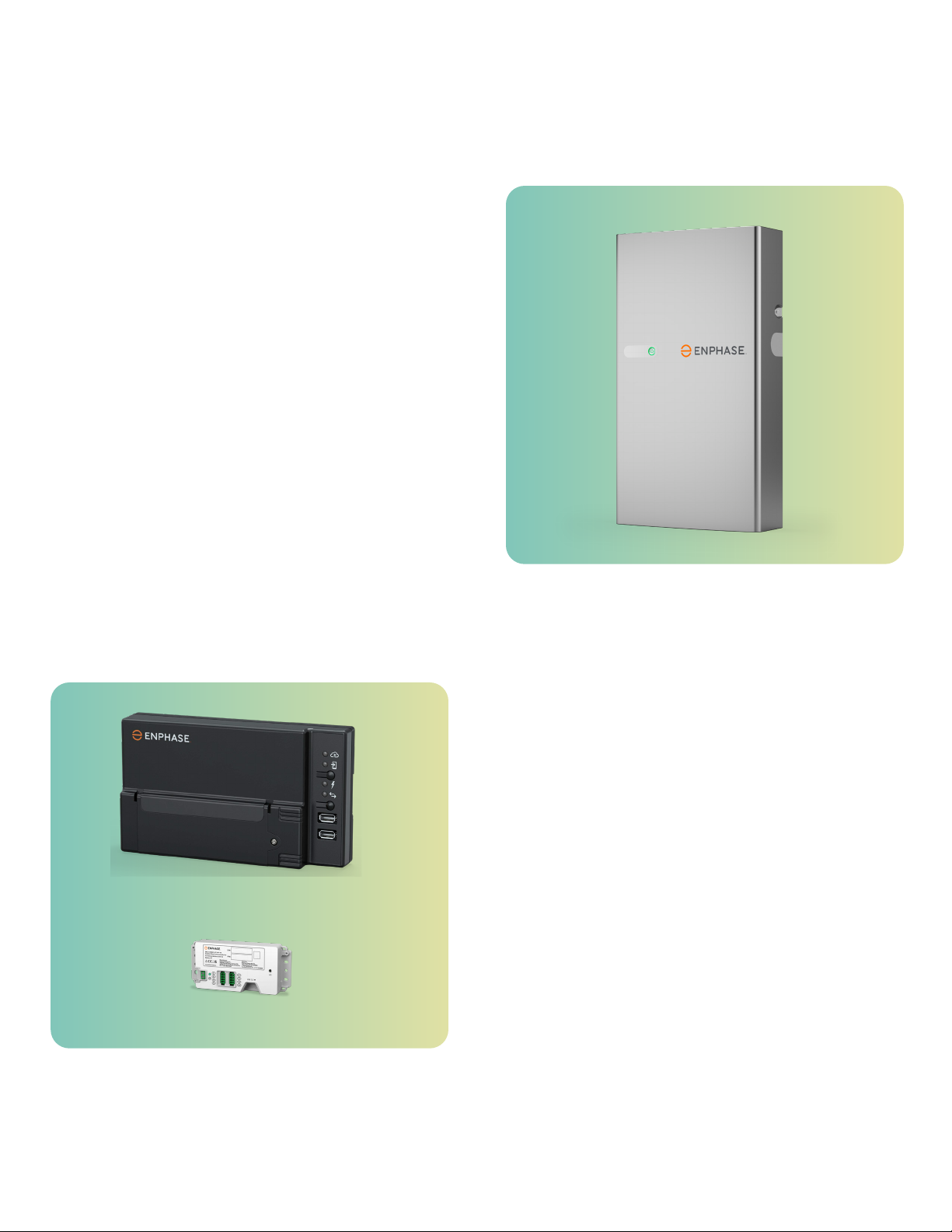

IQ Battery 5P is an AC-coupled storage system with an energy
capacity of 5.0 kWh. It houses two major components inside
the cabinet which make the IQ Battery 5P powerful and
reliable:
• The battery packs, internal to IQ Battery 5P, store energy
for later use, such as night-time or lower solar production
circumstances. IQ Battery 5P can supply up to 3.2 kVA of
power to the loads in your home.
• The IQ Microinverters, internal to IQ Battery 5P, convert
stored DC energy into usable AC electricity for your home,
ensuring reliable power supply by sharing the load.
IQ Battery 5P communicates through wired communication to
the Communications Kit that then communicates through USB
to the IQ Gateway.
IQ Gateway collects production and performance data
from your Enphase Energy System. It then transmits the
data to the Enphase Cloud through Ethernet or Wi-Fi to
make it visible in the Enphase App. The IQ Gateway also
houses advanced algorithms that control and optimise
your Enphase Energy System for the best performance.
The IQ Gateway uses a Communications Kit as an
accessory to enable communication with IQ Battery 5P.
IQ Battery 5P
IQ Gateway and Communications Kit
Component
introduction
8
Enphase Energy System with IQ Battery 5P Owner’s Guide
The power supply to your home can either be single-phase or three-phase.
A single-phase power supply is a two-wire alternating current (AC) circuit with Line and Neutral.
A three-phase power supply is a four-wire AC circuit with Line 1, Line 2, Line 3, and Neutral.
A typical home power supply has a voltage of 230 V (L-N) and frequency of 50 Hz.

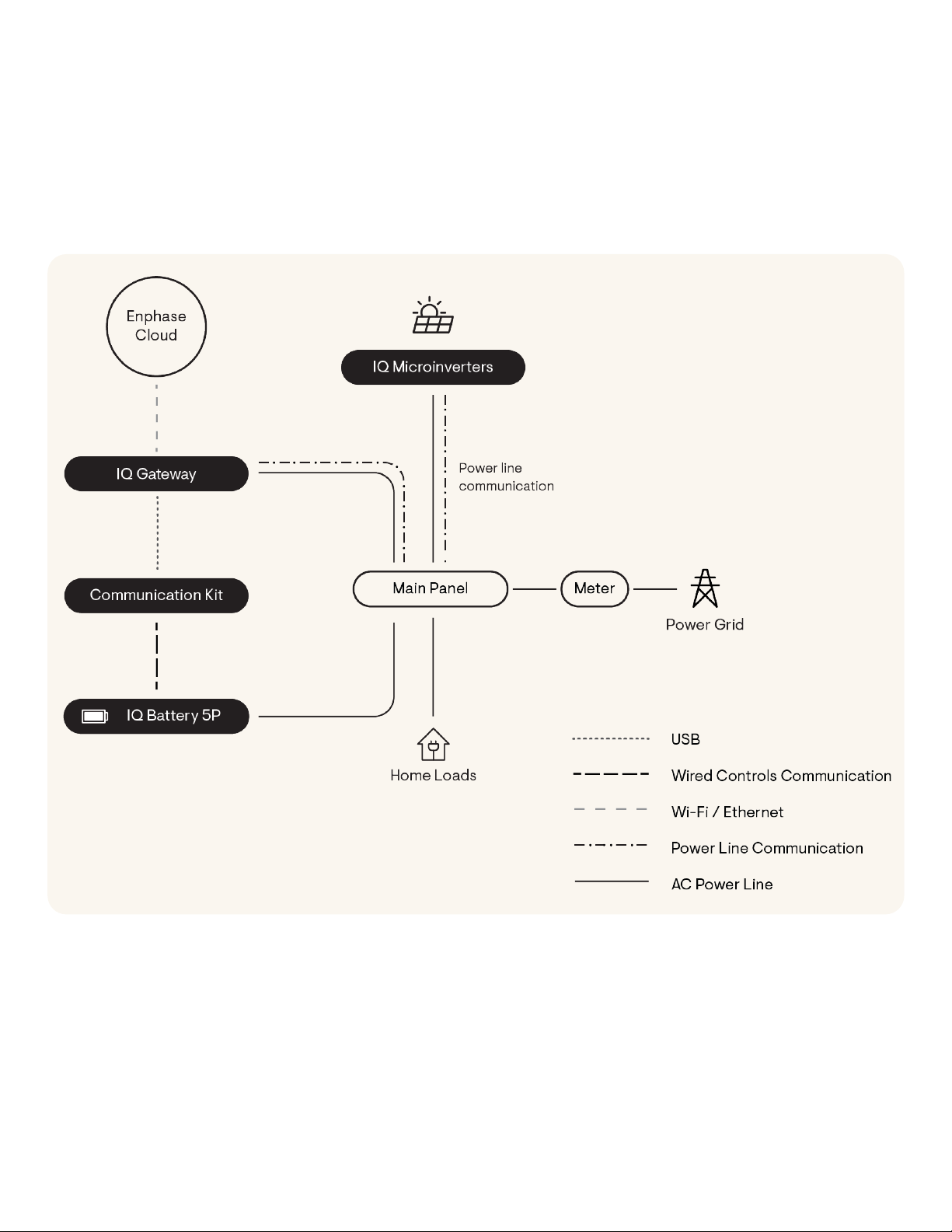

Below you can nd a simplied representation of your Enphase Energy System.
System block diagram
9
Enphase Energy System with IQ Battery 5P Owner’s Guide
System monitoring
and management Instructions to activate your Enphase App account
are sent to you at the email address you provided to
your installer. Look for an email with the subject line
“Activate Your Online Solar Monitoring Account.” from
donotreply@enphaseenergy.com. You will also receive
monthly emails from this address. Be sure to unblock
this address from your spam or junk mail lters. Read
the Enphase App terms of service at https://enphase.
com/en-gb/legal/terms-of-service.
Make, use, save, and export your own power right from the
palm of your hand with the Enphase App. You can quickly and
easily monitor and control your Enphase Energy System and
modify system settings directly from the Enphase App.
NOTE: Internet connectivity for your Enphase Energy System
is essential to keep your system updated and provide accurate
information on the Enphase App.
The mobile application is available for both iOS
and Android devices. You can install the latest
version of Enphase App from the App Store or Play
Store.
You can access the Enphase App using your
internet browser on your desktop or mobile device.
Log in to the Enphase App at https://enlighten.
enphaseenergy.com.
Enphase App
Enphase web application
Getting started
10
Enphase Energy System with IQ Battery 5P Owner’s Guide

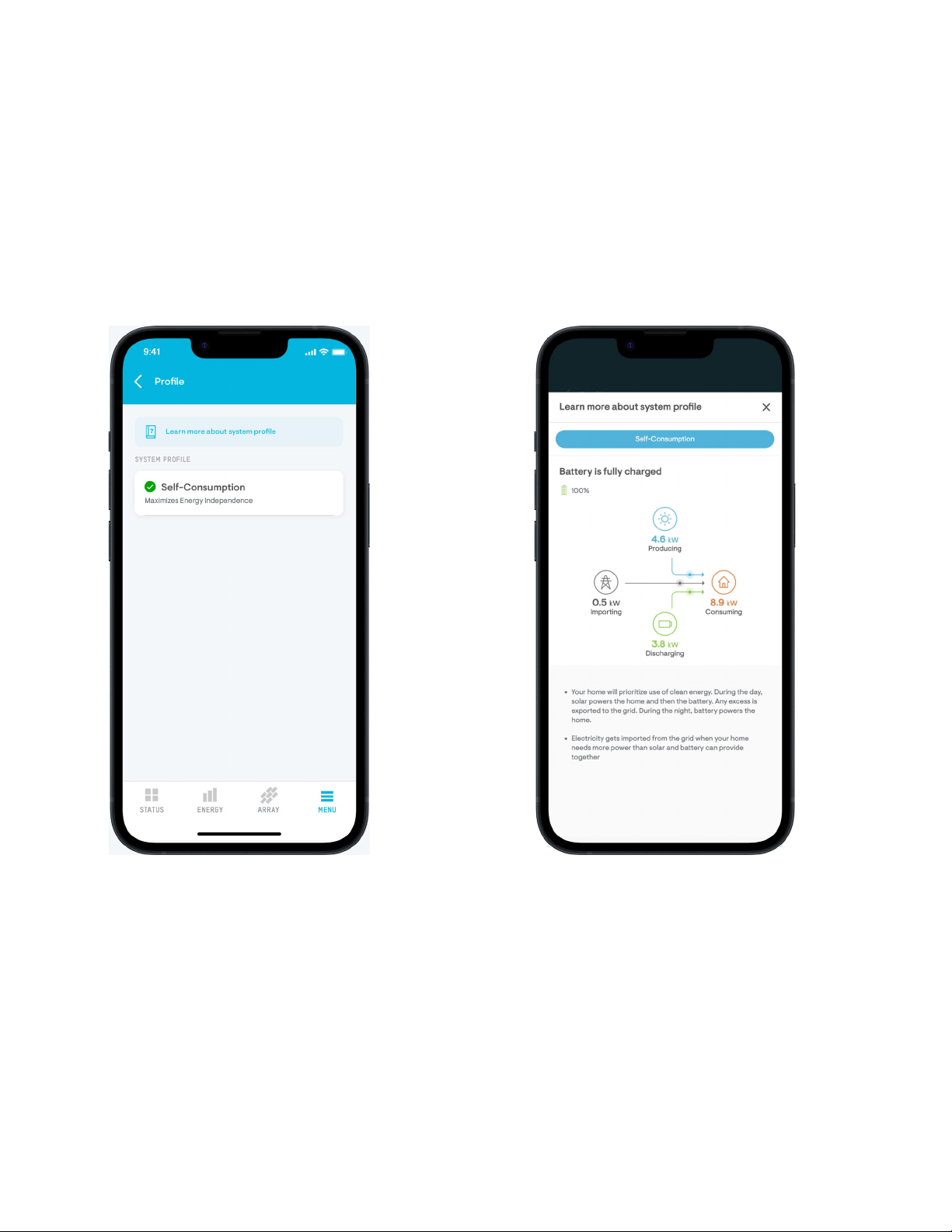

Know your smart prole
Your Enphase Energy System features a Self-Consumption smart prole, which helps maximising usage of solar and storage
power at your home.
Self-Consumption prole always prioritises your consumption or storage of your produced solar energy. It enables you to
use as much as possible of your generated energy at your own home.
This prole is only available for Enphase Energy Systems that include compatible Enphase IQ Batteries.
11
Enphase Energy System with IQ Battery 5P Owner’s Guide
Normal operation in the Self-Consumption prole
always prioritises the consumption or storage of solar
production over export to the grid. In jurisdictions where
export is not allowed (zero export regulations), energy is
never exported to the grid.
During daylight hours, energy is used to power the home
or charge the batteries.
Operation in Self-Consumption prole
During regular operation, solar production
powers the home and charges the battery.
Once the battery is fully charged, solar
production powers the home, and the excess
solar power generated is exported to the grid.
In cases when the home is consuming more
power than solar production can provide, the
battery starts discharging to meet the power
requirement.
12
Enphase Energy System with IQ Battery 5P Owner’s Guide
Charge battery from the grid
is an additional feature that
you can enable to charge your
battery from the grid when the
energy prices are low.

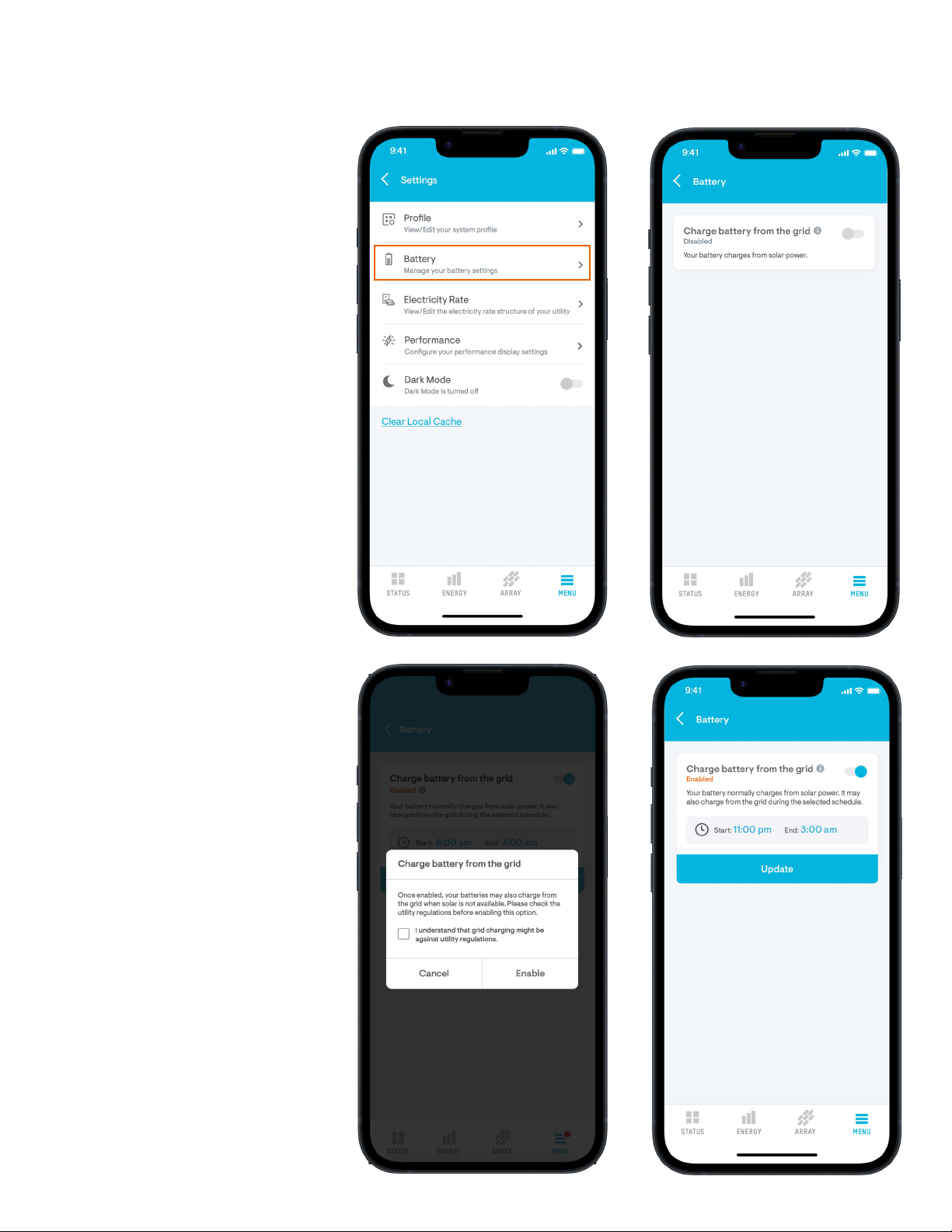

To enable Charge battery from
the grid through the Enphase
App go to Menu→ Settings→
Battery. As shown below you
can schedule a time window
during which your batteries can
be charged from the grid. Usual
practice is to enable/schedule
Charge battery from the Grid
when the utility rates are low.
Charge battery from the grid mode
13
Enphase Energy System with IQ Battery 5P Owner’s Guide

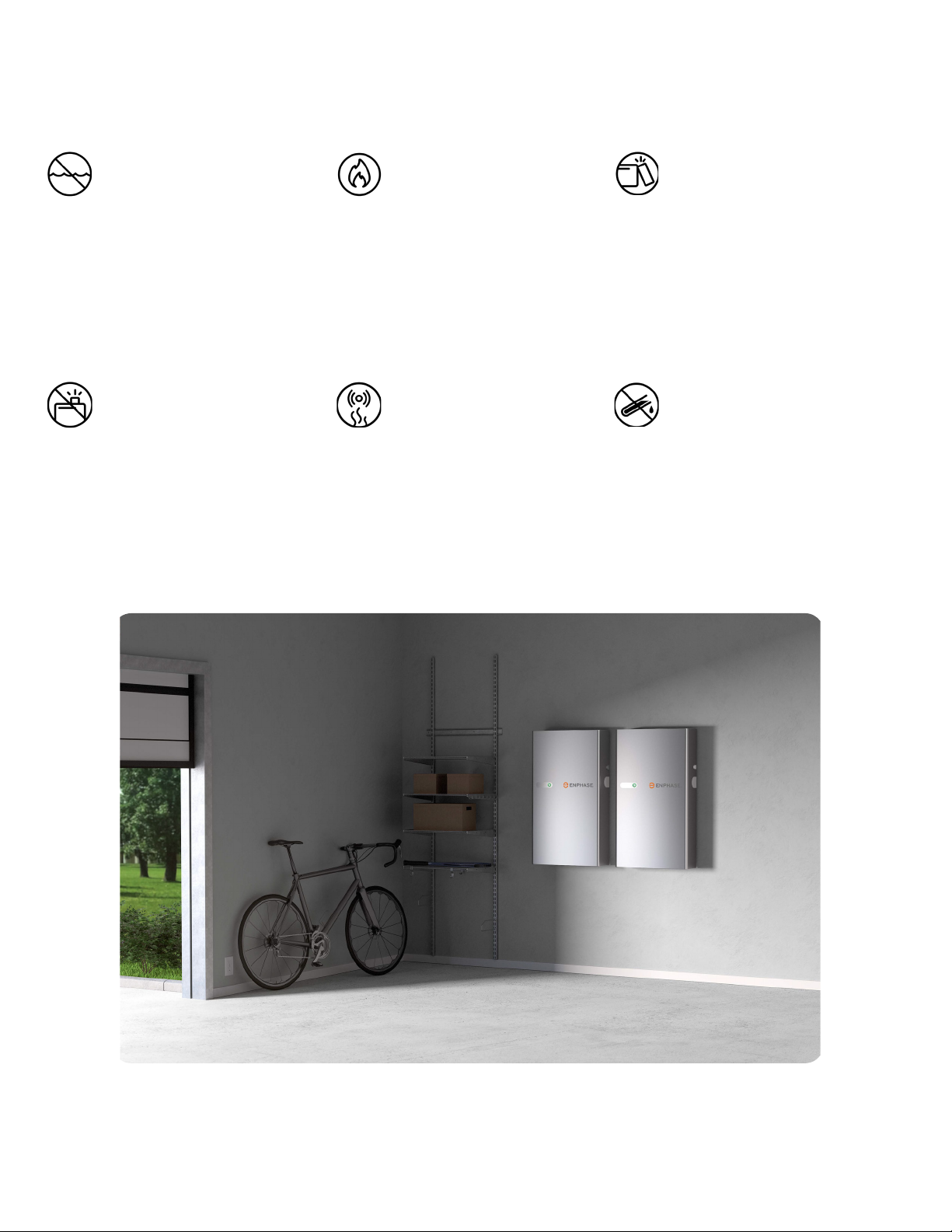

The Enphase Energy System
equipment is outdoor rated.
However, it should not be immersed
in water.
For a system installed indoors,
a nearby smoke detector is
recommended. For an outdoor
installation, a smoke detector is not
necessary.
Do not block vents or store
ammable, sparking, or explosive
objects near the equipment.
Use a slightly damp (water only)
or dry cloth to clean or dust the
equipment as needed. Do not
use cleaning solvents or harsh
chemicals on the equipment.
Store all objects that could fall onto
or collide with the unit away from
the equipment.
Never rest anything on top of the
equipment.
System care
14
Enphase Energy System with IQ Battery 5P Owner’s Guide
Your system has experienced a shutdown if it is no longer providing power to your home. System shutdowns may be caused
by failure of any external wiring or accessories of the system, by a failure of the wired communication systems, or any other
equipment failure related to the Enphase Energy System. Recovery steps following system shutdown vary depending on the
cause of the shutdown. If solar production and grid are available and the batteries still do not recover, restart the batteries

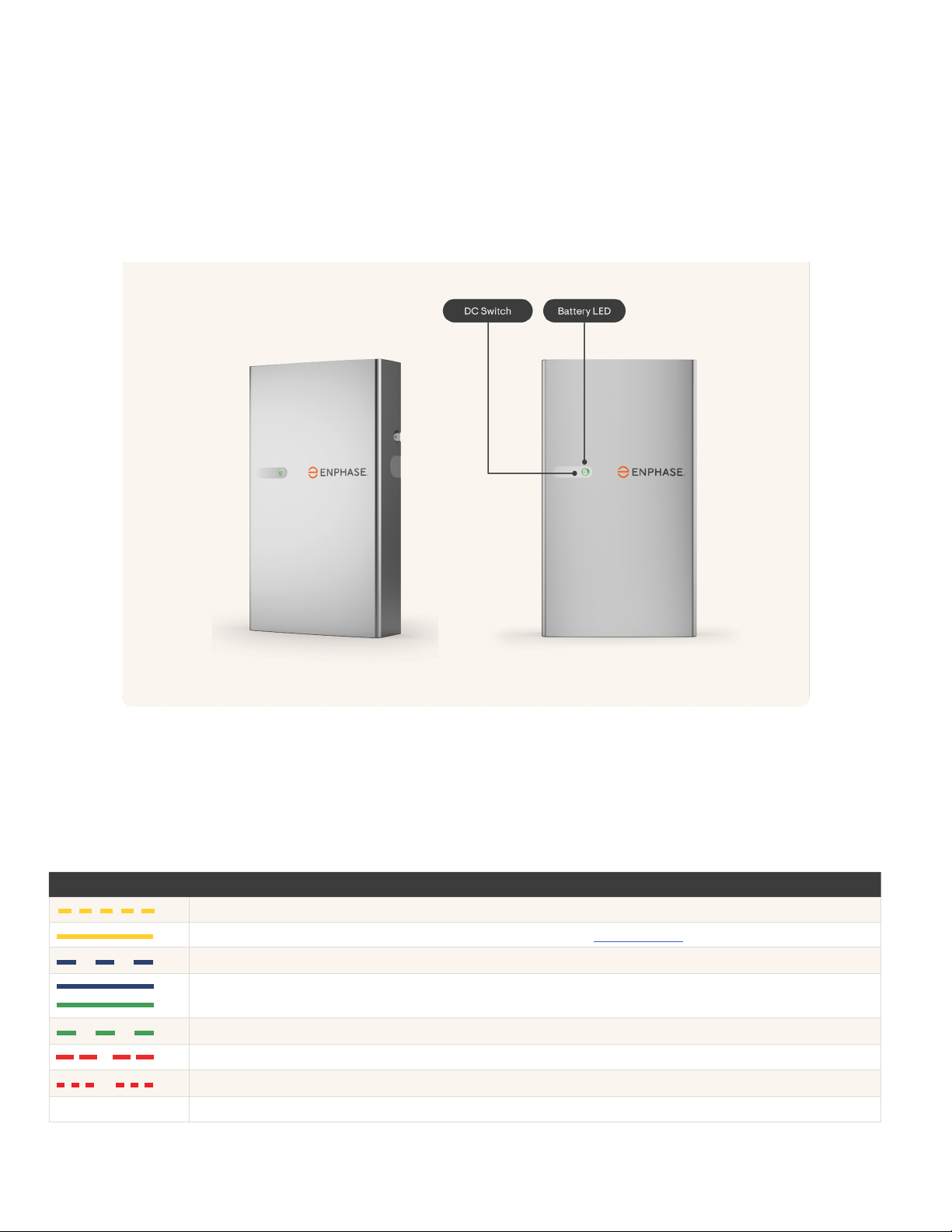

by cycling the DC switches on the IQ Battery 5P unit, see Reset the IQ Battery 5P using DC switch (on page 20).
System recovery after shutdown

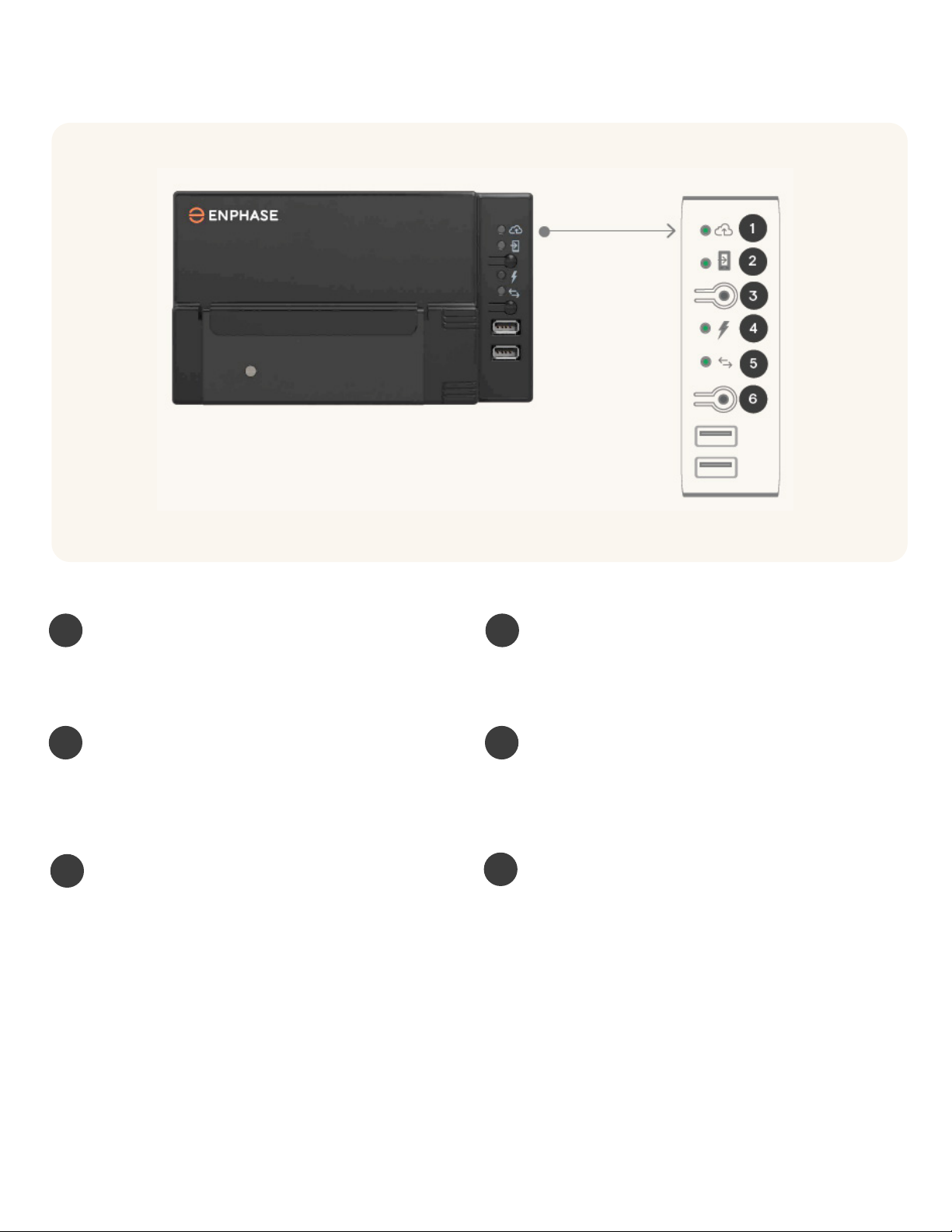

If your Enphase App shows "Microinverters not reporting" or "Batteries not reporting", give the system up to 15 to 20 minutes
to recover on its own. The Enphase Energy System reconnects automatically and recovers from wired communications
failures. If more than 20 minutes have elapsed and you do not see communication established, contact Enphase Support.
Shutdown due to communications system failure
Troubleshooting

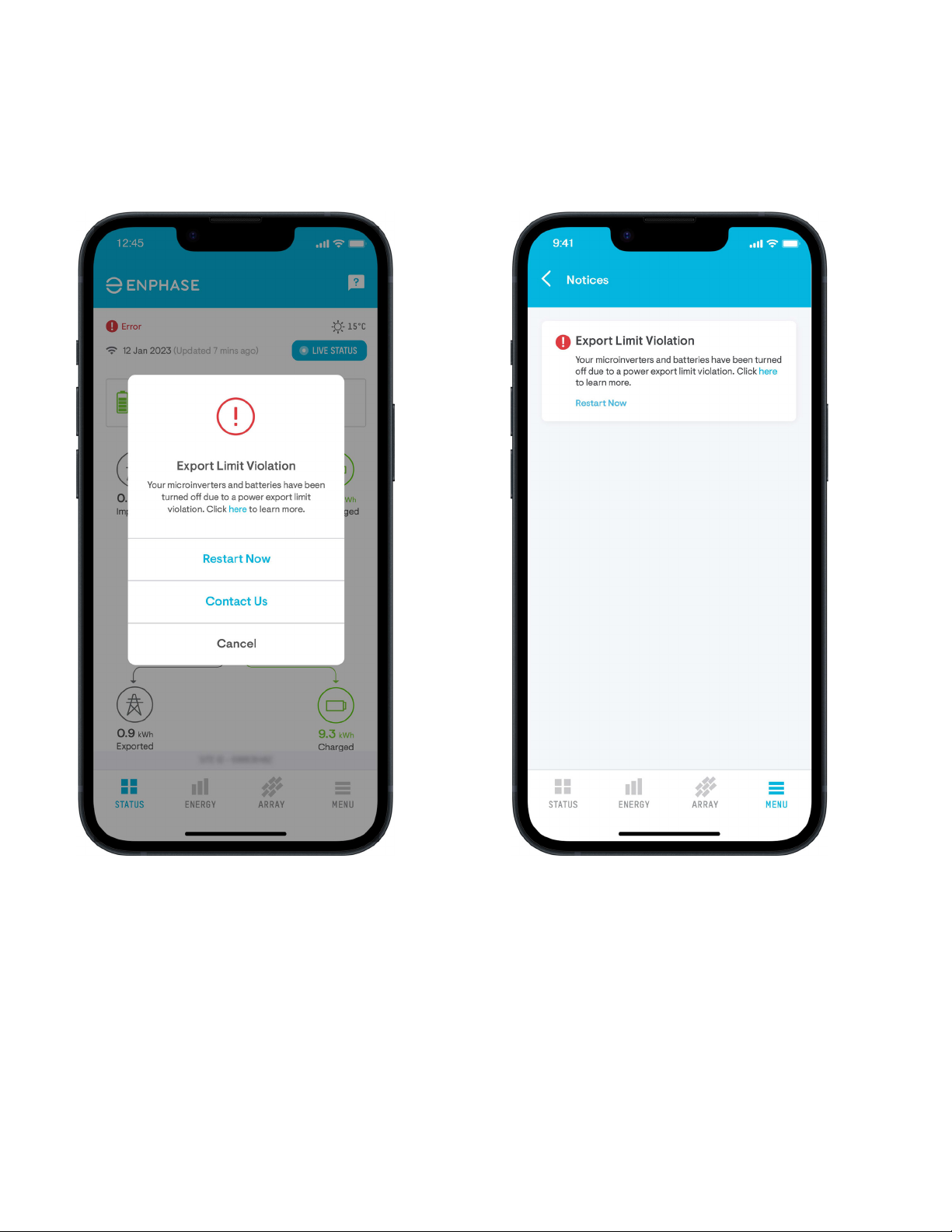

G100 is a compliance requirement for the UK that ensures safety of the customer's grid connection as well stability of the
grid. The requirement asks for regulation of grid import and grid export power on the site.
• Grid import: This is the electricity drawn from the grid to supply home loads.
• Grid export: This is the surplus electricity from the solar PV system that is sent back to the grid.
As a requirement of UK G100 compliance, the Enphase system must stop solar production and battery operations if grid
import power or grid export power exceeds the power limit criteria.
There can be two types of violations:
Overview of G100 and related shutdown
15
Enphase Energy System with IQ Battery 5P Owner’s Guide

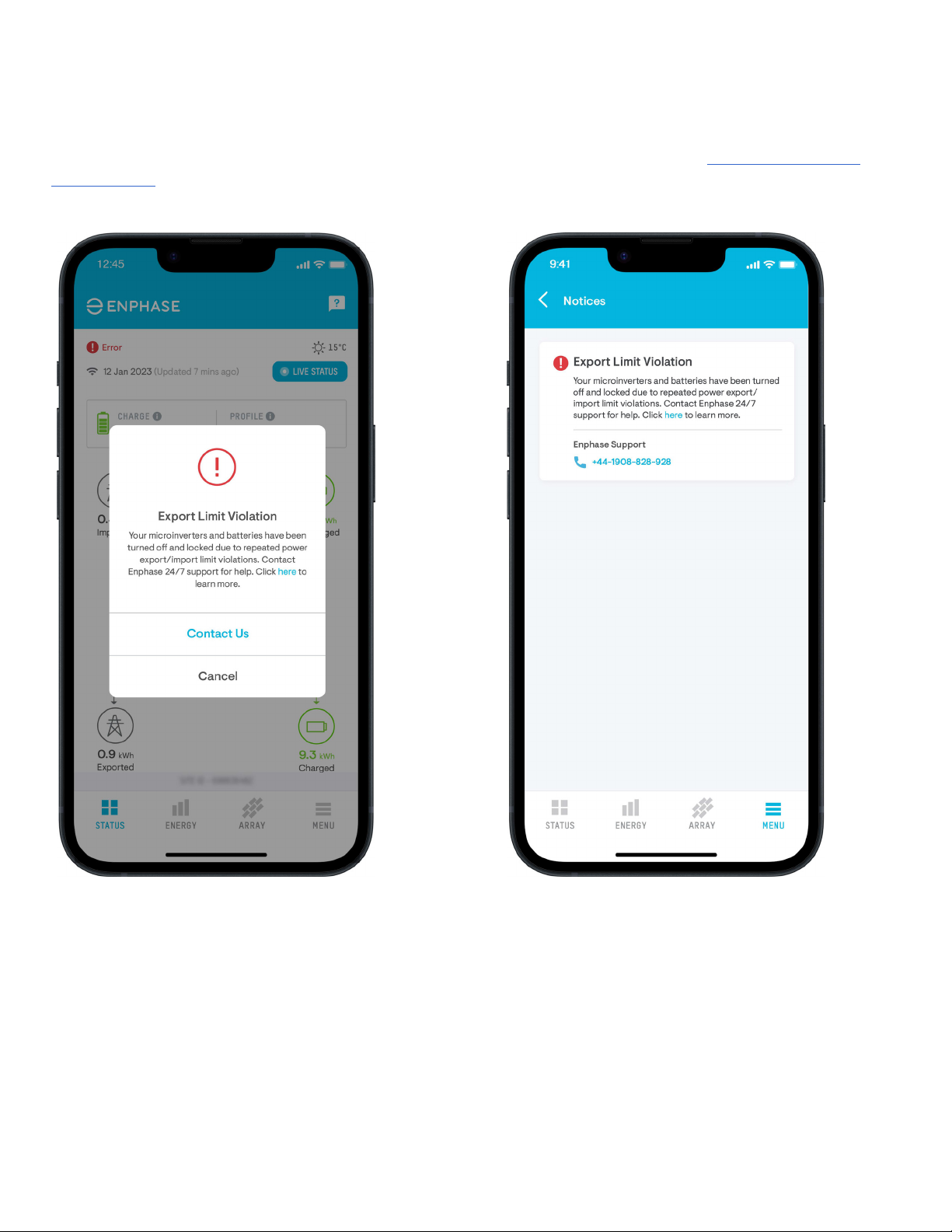

As a recommendation, check with your installer if the allowable export limit on site is appropriate to your system to avoid
future grid export violations.
This is only applicable if your site has a pre-dened power export limit which is set by your installer during the
commissioning of your Enphase Energy System.
If the solar PV system starts exporting power to the grid beyond the authorized export limit, the Enphase solar PV and
battery system is required to fully shutdown and notify the homeowner and installer.
To self-recover the system from a grid export limit violation through the Enphase App, click Restart Now.
1. Grid export limit violation:
16
Enphase Energy System with IQ Battery 5P Owner’s Guide
As recommendations to homeowner in the event of an grid import limit violation:
• Check with your installer if the allowable import limit on site is appropriate to your system to avoid future grid import
violations
• Ensure that you turn-o signicant loads such as an EV charging point or heat pumps before you restart the
Enphase system to avoid any further overload of the cut-out fuse.
• Avoid turning-on high power devices all at the same time, this may result in an import limit violation.
2. Grid import limit violation:
This is only applicable if you have a battery on the site and it is charging from the grid.
In this case when the site starts importing power from the grid to charge the battery beyond the allowed import limit set
by the installer during system commissioning, the Enphase solar PV and battery system is required to fully shutdown and
notify the homeowner and installer.
To self-recover the system from a grid import limit violation through the Enphase, click Restart Now.
17
Enphase Energy System with IQ Battery 5P Owner’s Guide
Self-recovery from grid import/grid export power violation mentioned above can only be done for a total of three times
within a 30-day period by the homeowner.
If a total of four grid import or grid export power violations occur within a 30-day period, your system will get locked
out and will require engagement from Enphase customer support to recover. Reach out to us at https://enphase.com/
en-gb/contact to investigate such behavior on site before allowing system operation to resume.
System recovery after G100 related lockout
18
Enphase Energy System with IQ Battery 5P Owner’s Guide
You can see the IQ Gateway LEDs and buttons in the image shown below.
IQ Gateway LEDs
1 2
Green when IQ Gateway is connected to the internet. Green when IQ Gateway’s AP Mode is activated. Normally
used only by the installer.
3
Press to enable IQ Gateway’s AP mode for connecting
with a mobile device.
4
Green when IQ microinverters are producing power.
5
Green when devices are communicating with IQ Gateway.
6
Press to start/stop a 15-minute scan for devices over the
power line. Normally only used only by the installer
Network communications LED Access point (AP) mode LED
AP mode button Power production LED
Device communications LED Device scan button
19
Enphase Energy System with IQ Battery 5P Owner’s Guide
You can see the Communications Kit LEDs in the image shown below.
Communications Kit
1Status LED
The LED on the Communication Kit indicates the connectivity status. The various states are as follows:
LED COLOUR LED STATE EVENT
Red ERROR (control or BUS error)
Blinking green Communications Kit rmware update
Green Communications Kit is operational
Blue No USB communication
If the IQ Gateway has stopped reporting to the Enphase App, see this webpage for more information
https://support.enphase.com/s/article/Reconnecting-your-Envoy-S-or-IQ-Envoy.
If the IQ Gateway is not powered on or has failed, the IQ Battery 5P units will not discharge. If the IQ Gateway fails, contact
your installer to submit a warranty claim for replacement (where applicable).
The Network communications LED (LED 1) in the IQ Gateway is lit solid green when connected to the internet. If the
Enphase App shows that the IQ Gateway is not reporting, and the Network communications LED on the IQ Gateway lit red,
then you may need to reconnect the IQ Gateway to the internet using Wi-Fi, hard-wired Ethernet, or a cellular network.
Check that the IQ Gateway ON. If not, switch it ON.
For more information on how to access monitoring when there is no connectivity, visit:
https://support.enphase.com/s/article/Connecting-to-your-system-without-cell-connectivity.
IQ Gateway communications troubleshooting
1
20
Enphase Energy System with IQ Battery 5P Owner’s Guide
You can check and record the colour of all the LEDs on the front of the IQ Battery 5P batteries using the following table. If
the IQ Battery 5P lights are solid or pulsing green or blue, the batteries are operating normally.
IQ Battery 5P LED status
LED COLOUR STATE DESCRIPTION
Rapidly ashing yellow Starting up/establishing communications.
Solid yellow Not operating due to high temperature. See Troubleshooting to restart the system.
Soft pulse blue Discharging
Solid blue or green Idle. Colour transitions from blue to green as the state of charge increases. Check
the Enphase App/Enphase Installer Platform for charge status .
Soft pulse green Charging
Red double ash IQ Battery 5P is in an error state. Contact Enphase Support to troubleshoot the issue.
Red triple ashes DC control switch is OFF, and AC from external source is present.
O DC control switch is OFF, and AC from external source is not present .
In the unlikely event that a battery does not automatically recover from a failure scenario, you can manually reset the
battery to resume normal functioning.
To reset the battery, lightly press the DC switch button on the front of the battery. The battery LED state will change to a
red triple ash pattern. Then switch o the AC circuit breaker for the battery in the electrical panel and wait 30 secs. After
30 secs turn on the AC circuit breaker again and wait for the battery to show a red triple ash pattern. Then press the DC
switch once again to turn on the battery. The LED state should change to green/blue.
Reset the IQ Battery 5P using DC switch
Other manuals for IQ Battery 5P
3
Table of contents
Other enphase Batteries Pack manuals
