Enplus AC044K-BE-24 User manual

EV Charger
User Manual
AC044K-BE-24

- 1 -
Contents
Preface........................................................................................................................- 2 -
Safety Instruction.......................................................................................................- 2 -
1 Product Overview ...................................................................................................- 3 -
1.1 Product Introduction..........................................................................................- 3 -
1.2 Schematic Diagram ...........................................................................................- 4 -
1.3 Specification Parameter.....................................................................................- 4 -
1.4 Performance and Characteristics.......................................................................- 5 -
1.5 Working Environment .......................................................................................- 6 -
1.6 Product Naming ................................................................................................- 6 -
1.7 Product Dimension............................................................................................- 7 -
2 Installation Instruction ............................................................................................- 7 -
2.1 Product Installation ...........................................................................................- 7 -
2.1.1 Package Verification.................................................................................- 7 -
2.1.2 Installation Preparation.............................................................................- 8 -
2.1.3 Installation Process...................................................................................- 9 -
2.2 Power-on Checking......................................................................................... - 11 -
3 Charging Operation...............................................................................................- 12 -
3.1 Connect Charger to EV ...................................................................................- 12 -
3.2 Start Charging & Stop Charging .....................................................................- 12 -
4 Troubleshooting ....................................................................................................- 13 -
5 Disposal.................................................................................................................- 14 -

- 2 -
Preface
Before any operation, please read the user manual carefully to understand the correct use of the product. After
reading, please keep the user manual for future review.
Thank you for your support on our products, our company focus on new energy field of electric vehicle
charging, dedicated to provide customers with excellent charging product and complete solutions. The EV
chargers have the characteristics of advanced function, steady performance, wide application range and strong
practicability, winning a good reputation in the industry.
Safety Instruction
1) Keep the explosive or flammable materials, chemicals, vapors and other hazard objects away from the
charger.
2) Keep the charging socket clean and dry. If dirty, please wipe with clean dry cloth. Touch the socket
core is strictly forbidden when power on.
3) Do not use the charger in case the product has defects, crack, abrasion, bare leakage and so on. Please
contact the working staff in case of above conditions.
4) Do not attempt to dissemble, repair, and refit the charger. If necessary, please contact the working staff.
Improper operation will result in product damage, electric leakage, etc.
5) In case any abnormal condition happens, please press the emergency stop button immediately, cut off
all input and output power supply.
6) Please make charging cautiously in raining or lighting weather.
7) The children should not get close to or use the charger to avoid being hurt.
8) During the charging, the EV is not allowed to drive. Charging only when the EV stops still. For Hybrid
car, charging only when switching the engine off.
The input and output voltages of this product are dangerous high voltage, which can
endanger human life safety. Please strictly observe all warnings and operating instructions
on the product and in the manual. Unauthorized and non-professional service personnel
should not remove the cover of this product.

- 3 -
1 Product Overview
1.1 Product Introduction
The three phase 44KW charger is combination of two 22KW chargers in a floor-standing housing, which
provides AC charging to two electric vehicles simultaneously. It’s equipped with the function of charging by
scanning the RFID card. The RFID card is a key component to start or stop the charging session. The LED
indicators on the left and right panels help you understand what is happening with the charger by indicating
different colors.
With internet connection via a built-in EN-GATE, more functions like monitoring, operation management and
remote upgrade are available on the backend named Charge Management System.
Compatible with all types of cables, the socket locks the charging cable into the charger to ensure a safe
charging. The protection grade of the charger is high as IP54, with the excellent capacity of water and rust
proof, assuring the safe outdoor operation and maintenance. Designed according to Electric Vehicle Charging
System Standard EN 61851-1: 2011 and EN 61851-22: 2002, the charger is compliant with the industrial
standards and safe for usage.

- 4 -

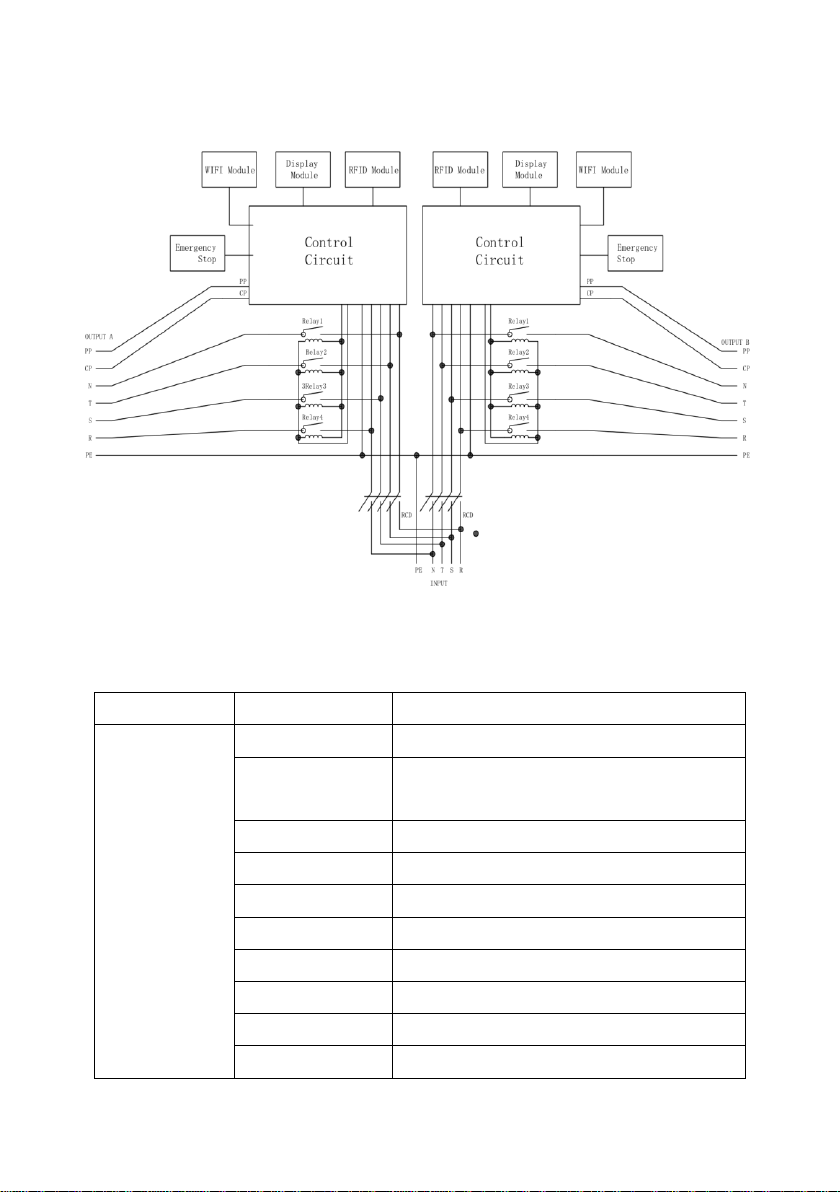

1.2 Schematic Diagram
1.3 Specification Parameter
Model No.
AC044K-BE-24
Configuration
Product Name
Double 22KWAC Charger
User Interface
LED indicator, LCD screen, Touch buttons, RFID
card reader, Emergency stop button
Charging Outlet
Two charging sockets (type 2)
Card Quantity
4pcs
Energy Meter
MID certified
RCD
Type A + 6mADC
Housing Material
Galvanized Steel
Installation Way
Floor-stand
Product Dimension
290*230*1200mm ( L*W*H )
Net Weight
32.5KG

- 5 -
Electrical
Parameter
Input Voltage
380V±20%
Input Frequency
50Hz
Max Power
2x22kW
Output Voltage
380V±20%
Max Output Current
32A
Standby Power
<10W
Environmental
Index
Application Place
Indoor / Outdoor
Working Temp
-30℃~ +50℃
Working Humidity
5% ~ 95% without condensation
Working Altitude
<2000m
Protection Grade
IP54
Cooling Method
Natural air cooling
Safety Standard
EN 61851-1: 2011, EN 61851-22: 2002
MTBF
100,000 hours
Special Protection
Anti UV design
Safety Design
Protections from over voltage, under voltage, over load, short circuit,
current leakage, ground fault, over temperature, under temperature, lighting
& surge.
Communication
Charger v.s. EN-GATE communication: CAN
EN-GATE v.s. Backend communication: Ethernet
Internet Communication Protocol: OCPP 1.6
1.4 Performance and Characteristics
Performance:
LED Indicator: Different light color indicate different working status of the charger.
LCD Screen: Real-time display the charger status and charging data.
Touch Buttons: Four touch buttons to adjust the charger's configuration and settings.
RFID Card: Built-in card reader to realize the function of charging with RFID card. Scan RFID card
first to start charging, and scan RFID card again to end charging.
Emergency Stop Button: In case of emergent issues happen, press the button to cut off charging output
for safety.

- 6 -
Characteristics:
Dust & Water Proof: IP54 protection grade, workable under severe conditions, no need of extra shelter.
Low Standby Power Consumption: The standby power is as low as 8W, energy saving and green.
CompatibleApplication: The product is equipped with type 2 charging sockets, compatible for all EV
charging by using either type 1 or type 2 charging cable.
Easy Installation: The floor-standing design makes it easy for installation. One installation, but two
22KW chargers, which increases the usage rate and saves the installation cost.
All Direction Protection: Protections from over voltage, under voltage, over load, short circuit, current
leakage, ground fault, over temperature, under temperature, lighting & surge to ensure the product working
safely and avoid accidents effectively.
Safety Design: The charger is designed with over-current and ground fault protection components that
constantly monitor safety status. No voltage is present in the charging socket until your vehicle is properly
connected. Each charger is locked with keys, allowing access to its interior only by maintenance
professionals.
1.5 Working Environment
Altitude: ≤2000 meters
Temperature: -30℃~50℃
Humidity: 5%~95%
Indoor/Outdoor use
Natural air cooling for ventilation
Keep the charger away from flammable or explosive materials.
1.6 Product Naming
AC 044K - BE - 24
2nd Generation with LCD screen & RFID card (24)
Charging socket type 2
Max Power 44kW
Product Code of AC charger

- 7 -

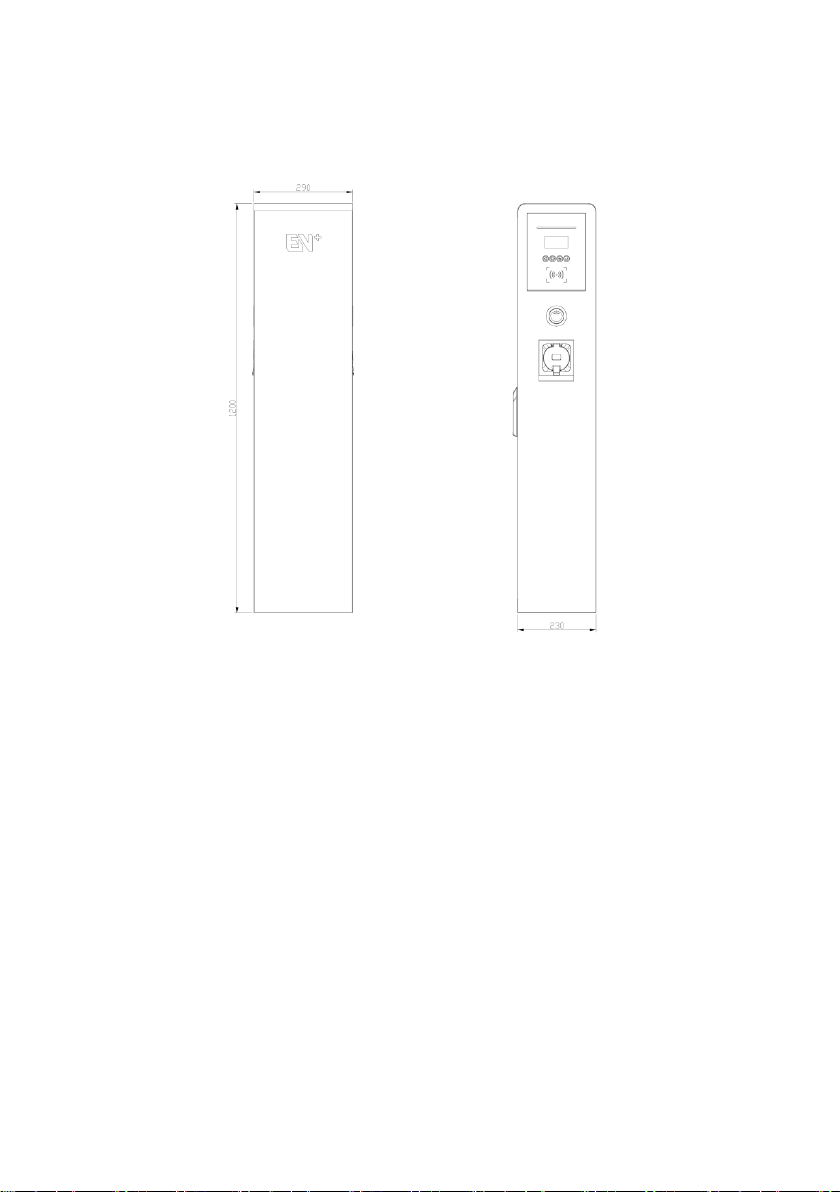

1.7 Product Dimension
2 Installation Instruction
2.1 Product Installation
2.1.1 Package Verification
Unpack to check and verify following items after receiving the charger:
Visual inspection on external appearance. In case there is any broken or damage, notify the seller
immediately.
Check accessory type and quantity. If there is quantity in short or type inconformity, make the record in
time and contact the seller at once.

- 8 -

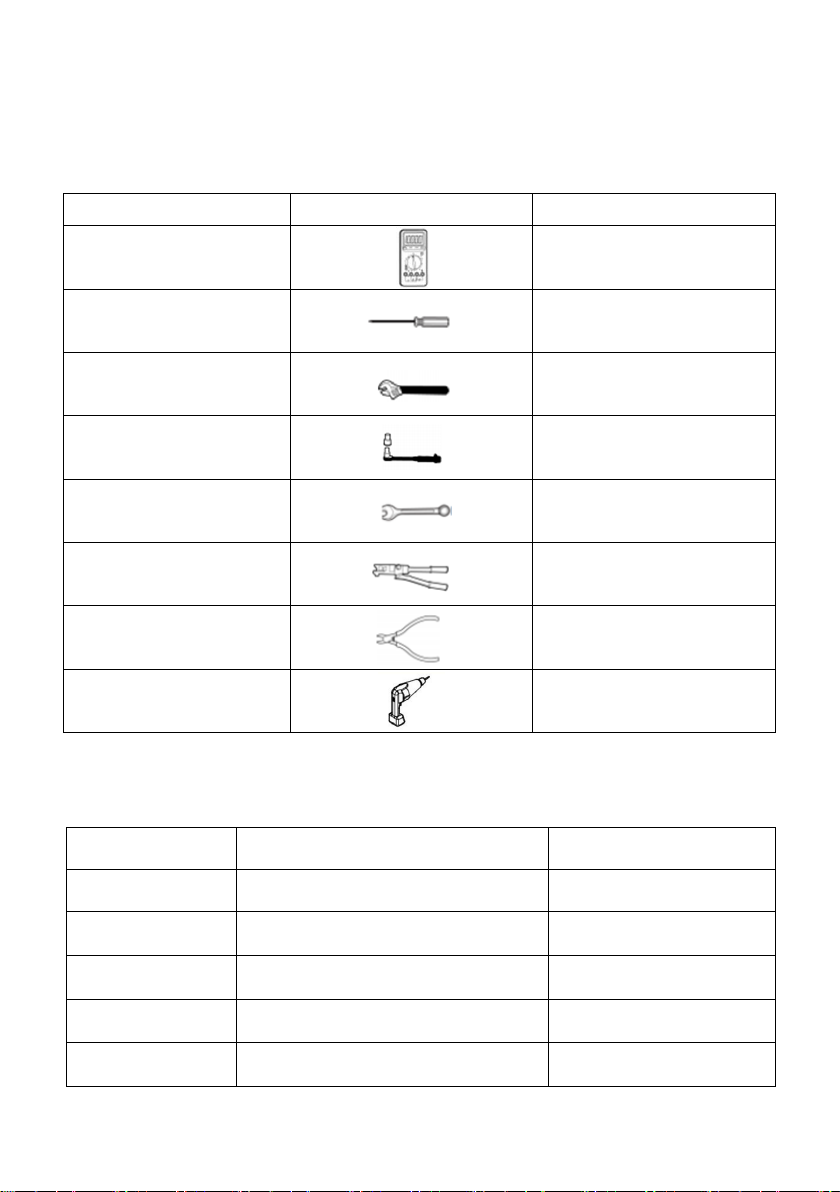

2.1.2 Installation Preparation
1) Tools
Tool Name
Function
Multimeter
Check electrical connection and
electrical parameter
Cross Screwdriver
(PH2x150mm, PH3x250mm)
Tight the screws
Insulated Spanner
Tight the bolts and nuts
Insulated Torque Wrench
Tight the bolts
Combination Wrench
Tight the bolts
Hydraulic Clamp
Press OT terminals
Diagonal Pliers
Cut cables
Percussion Drill
Drill screw holes
2) Cables & Materials
Name
Specification
Quantity
Power supply cable
≧5*10mm²three-phase power supply cable
Depend on actual requirement
Network cable
STP, Category 5 Enhanced, 8 cores
Depend on actual requirement
Network cable plug
RJ45
Depend on actual requirement
Insulated tape
0.15mm*18mm, 0~600V, 0℃~80℃
Depend on actual requirement
Cable tie
4*200mm
Depend on actual requirement

- 9 -
2.1.3 Installation Process
1) Installation Notice
a) Electrical product should be installed, operated, serviced, and maintained only by qualified personnel. No
responsibility is assumed by the manufacturer for any consequences arising out of the installation of this
product.
b) Aqualified person is one who has skills and knowledge related to the construction, installation and
operation of electrical product and who has received safety training to recognize and avoid the hazards
involved.
c) All applicable local, regional, and national regulations must be respected when installing, repairing, and
maintaining this product.
2) Layout Cables
Select the standing positions of the charger on the ground. Lay network cables and power supply cables under
the ground. Cables come out of the ground from the center of standing position with about 100cm length
above the ground.
3) Fix Charger
Locate the footprint of the charger on the ground of standing position. Drill the four screw holes as indicated
below on the ground for the fixation of the charger. Place the charger on the standing position and fix the four
screws.

- 10 -

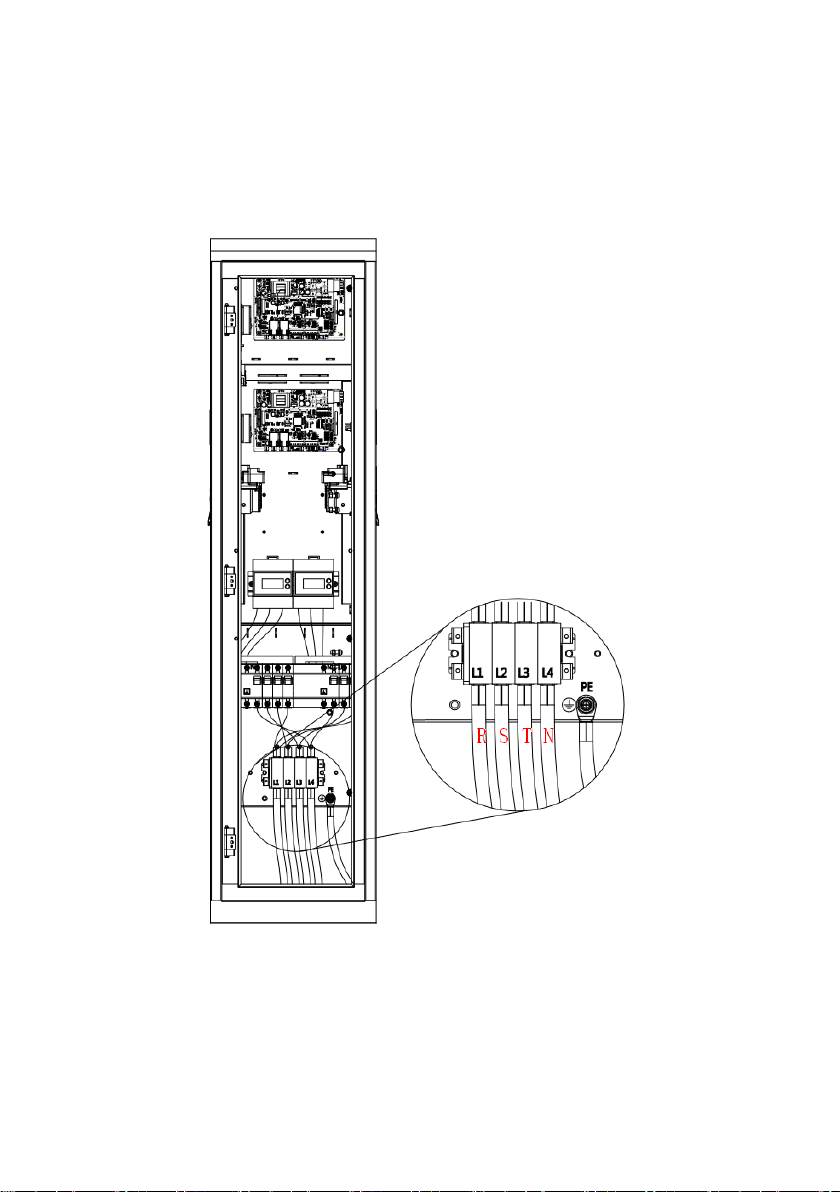

4) Connect Power Cables
The power supply cables go through the input cable inlet at the charger's bottom, and connect to the
corresponding L1, L2, L3, L4 and PE terminals inside the charger. Please note that L1, L2, L3, L4 correspond
to R, S, T, N phases.
5) Connect Network Cable
Anetwork cable is needed to connect the charger’s EN-GATE to the Internet by Ethernet. One end of the
network cable connects to the Internet’s router, and the other end connects to the ETN port of the EN-GATE.

- 11 -
8) Lock Charger
Turn on the breaker switch inside the charger and close the back door of the charger. Use the equipped keys to
lock the charger.
2.2 Power-on Checking
1) Check before Power-on
Please check the followings before any operation:
1. The charger’s location is easy for operation and repairing.
2. Double confirm the charger is installed properly.
3. AC input’s current leakage protection switch is reasonable.
4. No other stuff or component left on the top of the charger.
2) Power-on Charger
1. Make sure all checking is done according to the above items.
2. Turn on the current leakage protection switch of AC input.
3. Power-on the charger and observe the LED indicator, which should be standby status.

- 12 -
State
Description
LED Status
Standby
Power-on, but no gun plug-in
Flashing green, 2S on 2S off
Ready to charge
Gun plug-in, but not start charging yet
Flashing yellow, 2S on 2S off
In charging
Gun plug-in, and start charging by RFID
Breathing green, on/off gradually
Stop charging
Charging stop, but gun is still plug-in
Solid green
Fault
Error happens
Solid red
4. Observe the screen display and the symbol on the top right corner. The screen should display as the
following picture.
3 Charging Operation
3.1 Connect Charger to EV
Park EV near to the charger, take out the charging cable from EV, and plug its guns respectively into the
socket of the charger and the EV. After plug-in, please check the gun is correctly and tightly connected. With
appropriate connection, the charger LED indicator will change to flashing yellow light, which indicates that
the charger is ready for charging.
3.2 Start Charging & Stop Charging
After the charger is connected to EV and ready for charging, scan the RFID card for once on the identification
area of front panel, then the charging starts. When the charging starts, the gun will be locked on the charger
socket. The charger screen will display the running information on the screen, such as charged electricity,
charged time, voltage, current and power.

- 13 -
When the EV is fully charged, the charging will stop and the charger LED indicator will be solid green.
Please end the charging session by scanning the RFID card for a second time. If not scanning the RFID card
again, the charger will not unlock the gun on the charger side and the user cannot plug out the gun.
In charging state before the EV is fully charged, the user can stop charging by scanning the RFID card for a
second time. The charging session will end and the gun on the charger side will be unlocked. Another solution
to stop charging is to end the charging session from the EV side.After the gun on the EV side is unlocked and
plugged out, the charging session will end and the gun on the charger side will be unlocked automatically.
4 Troubleshooting
Problems
Possible Causes
Solutions
Input over voltage
AC input voltage may be too
high.
1. Check the input voltage from the backend.
2. If the voltage is over 456Vac for a short time，wait
till the power grid recovers to normal range.
Input under voltage
AC input voltage may be too
low.
1. Check the input voltage from the backend.
2. If the voltage is under 304Vac for a short time,
wait till the power grid recovers to normal range.
Input over current
AC input current may be too
large.
1. Shut off the leakage current protection switch of
power distribution cabinet immediately.
2. Check whether there is low resistance connection
between AC output cables of the charger.
Input over frequency
AC input frequency may be
too high.
1. Check the input voltage frequency from the
backend.
2. If the frequency exceeds 55Hz for a short time,
wait till power grid recover to normal range.
Input under frequency
AC input frequency may be
too low.
1. Check the input voltage frequency from the
backend.
2. If the frequency is lower than 45Hz for short time,
wait till power grid recover to normal range.

- 14 -
Over temperature
Temperature may be too high
inside the charger.
1. Check the surrounding conditions of chargers
installed whether there is heating product nearby.
Make sure environmental temperature is under 50℃.
Over leakage current
Leakage current to the earth
may be too high.
1. Shut off the leakage current protection switch of
power distribution cabinet immediately.
2. Check whether there is broken of AC output cables
or low resistance connection to the earth.
Leakage current sensor
abnormal
Detection of leakage current
sensor is abnormal.
1. Shut off the leakage current protection switch of
power distribution cabinet immediately.
2. Check whether there is broken of AC output cables
or low resistance connection to the earth.
Grounding fault
Inappropriate grounding
connection of input/output
cables or inverse connection
of L/N input cables.
1. Shut off the leakage current protection switch of
power distribution cabinet immediately.
2. Check if AC input/output cables are normal, and if
inverse connection of L/N input cables.
CAN communication
abnormal
Poor connection between AC
charger and EN-GATE.
1. Check whether CAN bus connection is reliable and
correct.
Charging cable
connection abnormal
Poor connection of charging
cable with EV/Charger.
1. Check if charging cable connection is correct and
firm.
Note: If the above problems cannot be solved, please contact the seller.
5 Disposal
The packaging materials are environmentally friendly and can be recycled. Put the packaging in applicable
containers to recycle it. Do not dispose this product with the household waste. It shall be handed over to the
applicable collection point for the recycling of electrical and electronic product. For more detailed
information about recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.

Shenzhen EN-plus Technologies Co., Ltd.
201/301, 6 Bldg, No. 1026 Songbai Road, Nanshan District, Shenzhen, China.
http://www.en-plus.com.cn
Due to the EN+ policy of continual product development,
specifications, colors and details of our products and those mentioned
in this manual are subject to change without notice.
V1.1_20191220
