Entel HT900 Series User manual

HT902/912/922/982(U)
Entry
User Guide – HT900 Series v10/10
Common Information
(all models)
HT902S/912S/922S/982S(U)
Entry Selcall
HT903/913/923/983(U)
Entry LCD
HT905/915/925/985(U)
Advanced Selcall, 8-key
HT906/916/926/986(U)
Advanced Selcall, Full Keypad
Professional submersible handheld transceivers
II 2 G Ex ib IIC T4
Ex ib IIC T4
ATEX approved Intrinsically Safe

Common Information (all models) Page
Certification 2
Radio / battery care 3
Battery care / information 4
Packing List 5
Optional Accessories 5 & 6
PreparingYour Radio For Use 6 & 7
HT902/912/922/982(U)
Feature List 8

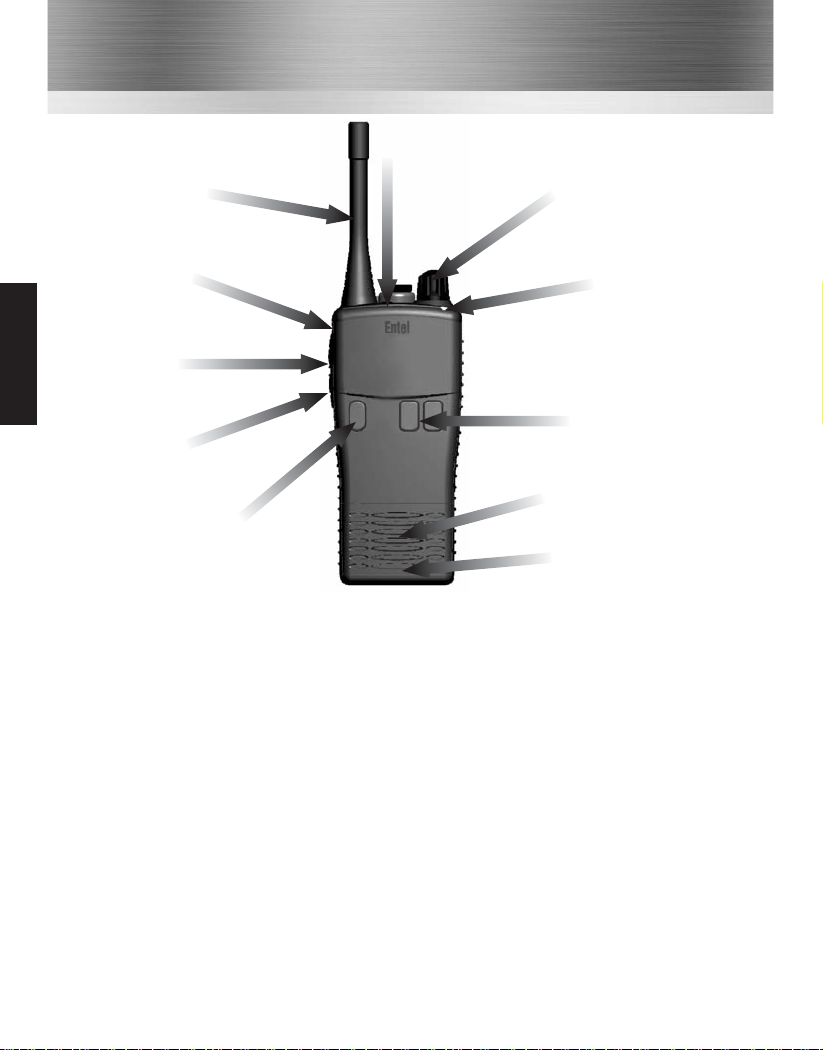

Controls & Indicators 9
HT902S/912S/922S/982S(U)
Feature List 10

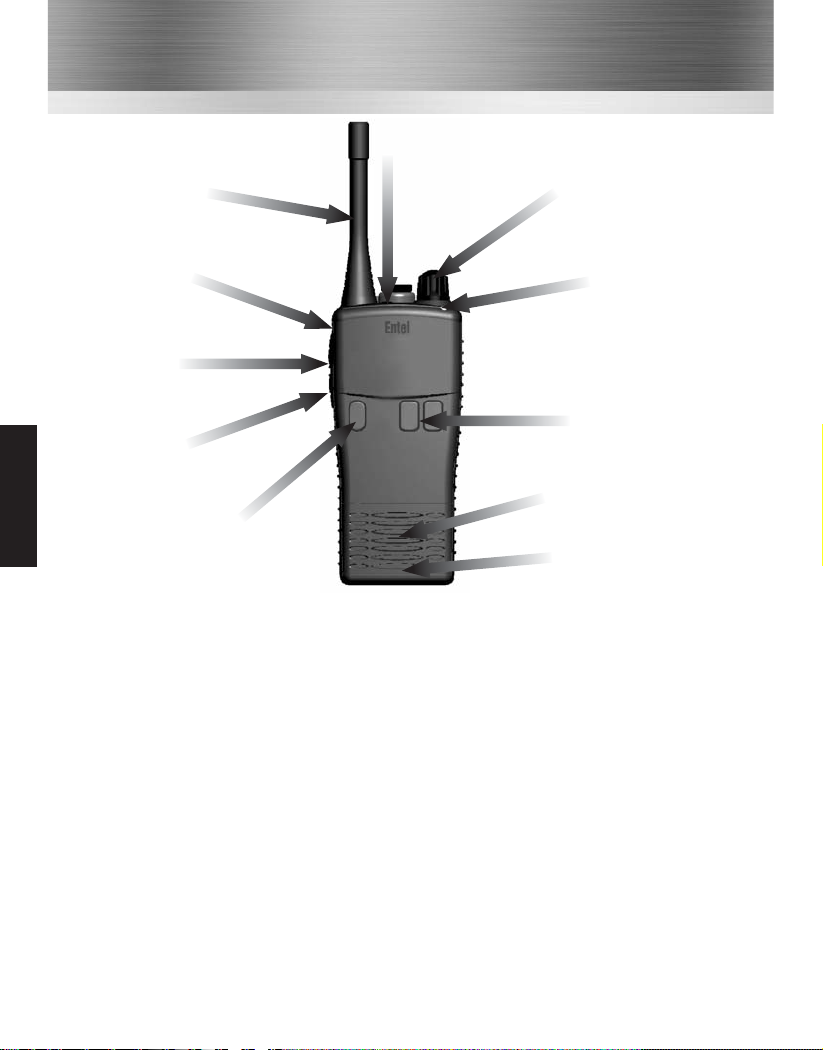

Controls & Indicators 11
HT903/913/923/983(U)
Feature List 12
Controls & Indicators 13
HT905/915/925/985(U)
Feature List 14
Controls & Indicators 15

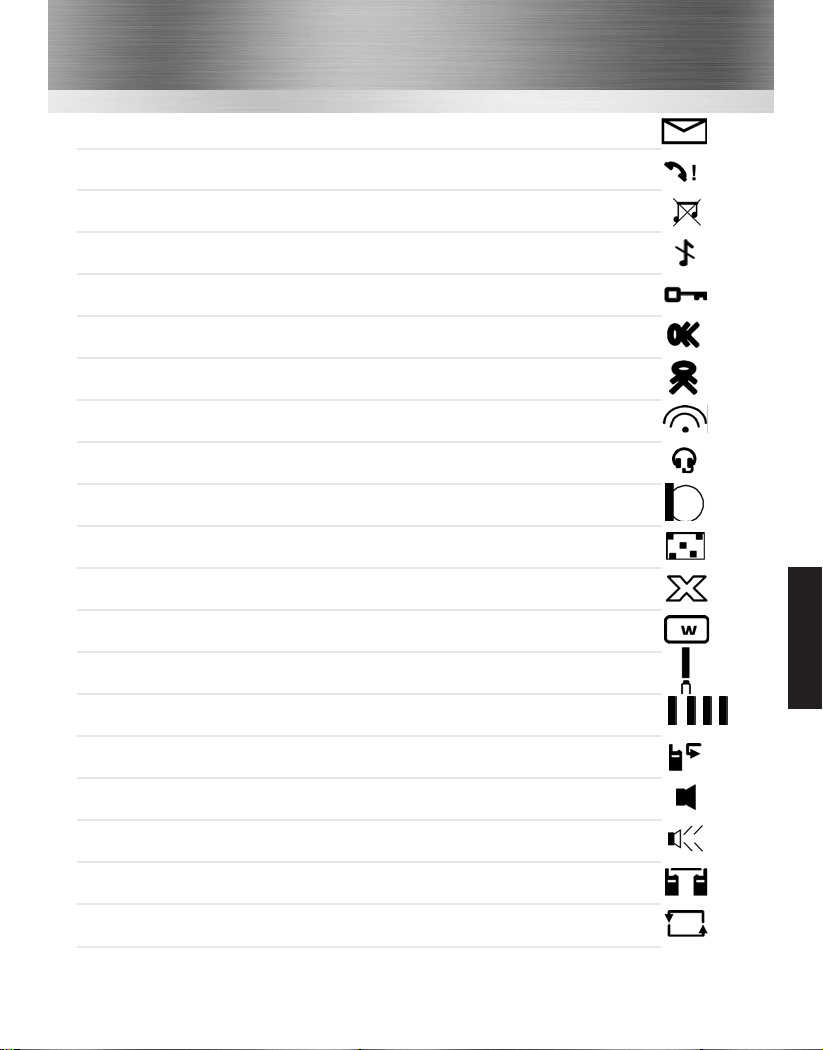

LCD Icons 16
HT906/916/926/986(U)
Feature List 18
Controls & Indicators 19
LCD Icons 20
Certification information 21
Introduction
This guide covers the basics of your radio’s operation.To meet your exact
requirements the radio may have been customised by your Entel authorised dealer.
These features will be explained in a separate guide issued by the dealer.
1
Table of Contents
Common

2
Certification
Declaration of Conformity
We Entel UK Limited of:
Entel UK Ltd
320 Centennial Avenue
Centennial Park
Elstree
Borehamwood
Hertfordshire
WD6 3TJ
United Kingdom
Declares under our sole responsibility that the product range:
HT900 Series Handheld Radio Transceiver
Conforms to the following standards or other nominative documents:
•EN 300 086-2 V1.2.1, EN 301 489-1 V1.8.1:2008, EN 301 489-5 V1.3.1:2002,
EN 60950-1:2006, in accordance with Directive 99/5/EC.
•EN 60079-0:2006, EN 60079-0:2009, EN 60079-11:2007 in accordance with Directive 94/9/EC
Related Certificate:
94/9/EC: Sira 10ATEX2066X Marking: II 2 G Ex ib IIC T4 Gb
IECEx SIR 10.0035X
Notified Body No. 0518
Sira Certification, Rake Lane, Chester CH4 9JN, UK
Quality Assurance Notification:
94/9/EC Intertek Notified Body 0359
Intertek House, Leatherhead KT22 7SB, UK
M Austin
Quality Manager
1 October 2010
Date:
Common

3
Radio care
Battery care
Introduction
Your Entel radio is supplied with a high performance
Lithium Ion (Li-Ion) battery. These batteries:
•Extend talk time
•Reduce the battery’s size and weight
•Do not suffer from ‘memory effect’ that reduces the
life of Ni-Cad and NiMH batteries
•Have a low toxicity, therefore reducing the impact
on the environment
Battery Pack Precautions
•Switch the transceiver OFF before charging
•Charge the battery pack before use
•Do not recharge the battery pack if it is already fully
charged.This could lead to a premature battery
replacement warning message (See Battery
Communications on page 4)
•Charge the battery in accordance with the
instructions enclosed with your charger
•Do not charge the transceiver and/or battery pack
if they are wet
The battery pack includes potentially hazardous
components. Please:
•Do not disassemble or reconstruct battery
•Do not short-circuit the battery
•Do not incinerate or apply heat to the battery
•Do not immerse the battery unless attached securly
to the radio in water or get it wet by other means
Warranty
The HT9XX comes with a 24 month warranty, for
details see our full terms & conditions.
Advice
•Do not use options or accessories not specified by
Entel
•Ensure that the radio is used within the parameters
for which it was designed
•Please switch the transceiver off before connecting
optional accessories
Warning
Turn the transceiver off in the following locations outside
of the radio’s ATEX approval rating:
•In explosive atmospheres (flammable gas, dust
including metallic & grain powders etc)
•Whilst taking on fuel or while parked near fuel
station
•Near explosives or blasting sites
•In aircraft, medical institutions or near persons
known to be wearing a pacemaker
Caution
•Do not disassemble or modify the transceiver for
any reason
•Do not transmit while touching the antenna
terminal or any exposed metallic parts of the
aerial as this may result in a burn
•Please check and observe regulations in your
country with regards to use whilst driving
End of Life Disposal
•When your Entel transceiver reaches the end of its
useful life, please ensure that the unit is disposed of
in an environmentally friendly way. For country
specific information please see:
www.entel.co.uk/recycling
Cleaning your Radio
After exposure to any potentially corrosive substance
including salt water it is recommended to thoroughly
wash the transceiver in fresh water. If washing with the
battery removed from the radio, ensure that the battery
is not immersed in water & clean only with a damp cloth.
Note: Do not wash
the transceiver if
you suspect the
waterproofing seal
may be damaged.
Please return to
your supplier for
inspection / repair.
Common

4
Battery care / information
•Do not charge the battery near fires or under
direct sunlight
•Use only the specified charger and observe
charging requirements
•Do not pierce the battery with any object or
strike it with an instrument
•Do not use the battery pack if it is damaged in
any way
•Do not reverse-charge or reverse-connect the
battery
•Do not touch a ruptured or leaking battery
If liquids from the battery get into your
eyes, immediately:
•Wash your eyes out with fresh water avoiding
rubbing them. Seek medical treatment
Battery Pack
•If a battery is not to be used for an extended
period of time (e.g. several months) remove the
battery pack from the equipment and store in a
cool and dry location (around 0°C) part charged.
Do not fully discharge the battery before storage.
•Each charge cycle reduces the battery’s life.
Minimise the number of times you charge your
battery especially in hotter environments which
further shortens a battery’s life.
The battery pack has an over-current protection
circuit fitted.When charging a completely discharged
battery i.e. first charge, ensure the battery is removed
from the radio and then re-attached (if fitted to radio
when charging).This will reset the protection circuitry
and ensure normal operation.This process will need
to be repeated if the battery is allowed to completely
discharge in the future. In normal use this is unlikely.
Battery Communications
Each battery used with your radio has a
microprocessor fitted, which logs the number of times
your battery has been charged.
On a radio with an LCD display, the number of times
the battery has been charged, together with the
remaining charge cycles available, will be shown during
switch on (if not de-activated by your dealer).
The warranty on all batteries is 12 months or 450
charge cycles, whichever is the sooner. After 420
cycles, at switch on the radio will emit a series of
short tones, and on LCD models a waste bin icon will
flash to alert you to the need to buy a new battery.
After 450 cycles, at switch on the radio will emit a
series of long beeps, and on LCD models the message
will change to BATTERY COUNT EXCEEDED
REPLACE BATTERY. The radio will continue to
operate but its operational time may be reduced,
eventually failing all together.
Note: only genuine Entel batteries should be used.
Only genuine batteries offer the battery charge count
feature informing you when the battery is reaching the
end of its useful life. Non ATEX batteries will not
work on ATEX radios ensuring customer safety.
Customer satisfaction is assured as you can not be
supplied with sub standard, potentially dangerous
battery packs from 3rd party manufacturers, ensuring
it delivers the expected capacity and endurance.
On HT series batteries a breathable membrane is
used.This is clearly marked on the battery label.
Piercing the membrane will allow water ingress to the
battery and will invalidate the warranty.
Common

Packing List
•HT9XX Radio
•CNB950E Rechargeable 1800mAh Li-Ion battery
•CBH750 Spring loaded belt clip
•CATXX Antenna
•User guide CD
•CSAHT Intelligent rapid charger (only supplied with HT9X2, HT9X2S and HT9X3 models)
5
Battery & Charger Options
CNB950E Spare ATEX approved 1800mAh Lithium-Ion battery pack with rear clip
CSAHT 1-way intelligent rapid charger, 100-240v
CSBHT 6-way intelligent, rapid charger, 100-240v
CCAHT-230 1-way trickle charger with 230V mains adapter
CCAHT-110 1-way trickle charger with 110V mains adapter
CCAHT-12 1-way trickle charger with cigar lighter lead, 12V DC operation
Carry Options
CLC952 Heavy duty black leather case with strap & belt loop
CLC953 Heavy duty black leather case with strap & belt loop
CLC956 Heavy duty black leather case with strap & belt loop
CBH750 Spare spring loaded belt clip
Audio Accessory Options
CMP950 Heavy duty submersible speaker microphone
EHP9 D-shaped earpiece (plugs into CMP950 above)
EA12/950 D-shaped earpiece with in-line PTT/microphone & VOX*
EA15/950 Earpiece microphone with transparent acoustic tube & VOX*
EA19/950 D-shaped earpiece with boom microphone and in-line PTT & VOX*
EHP950 D-Shaped earpiece (connects directly to radio)
EPT40/950 Bone conductive earpiece microphone with PTT and VOX*
CHP950HS Single earpiece heavy duty ear defender headset with boom mic for hard hat &VOX*
Note:The use of non Entel approved accessories will invalidate your ATEX intrinsically
safe approval. Refer to certificate Sira 10ATEX 2066X for permitted accessories.
Common
Optional Accessories

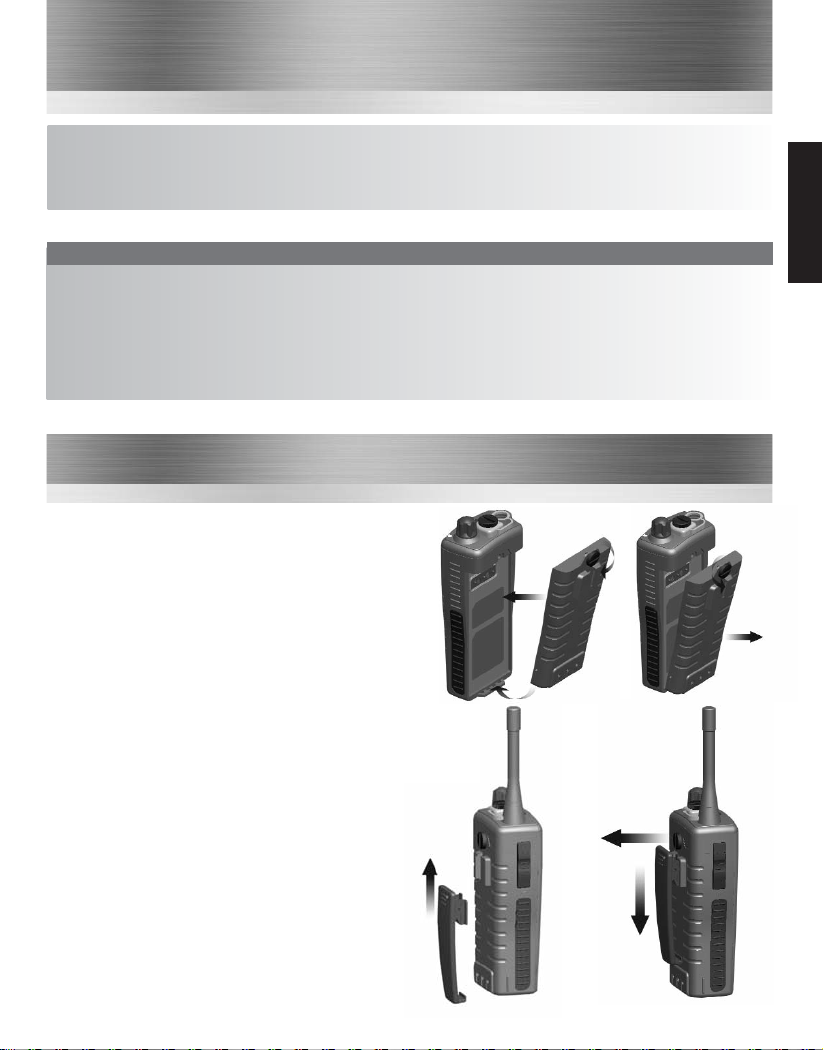

Attaching / Removing the Battery Pack
1To attach, locate the pegs on the bottom of the
battery and place into the slots on the radio.
Then press the top of the battery against the
radio. Secure battery by tightening the screw
clockwise by hand. (Do not over tighten)
2To remove, unscrew the locking screw
anticlockwise and pull the battery away from the
top of the radio.
Optional Accessories cont...
34
12
a
b
6
PreparingYour Radio For Use
CHP950HD Double earpiece defender headset with boom mic and in line PTT for hard hat & VOX*
CHP950D Double earpiece headband defender headset with boom mic and in line PTT &VOX*
CHP950BT Bluetooth double earpiece headband defender headset with boom mic and ear cup PTT
* VOX = Voice Operated Transmit (hands free operation)
Antenna Options
CXW640 Antenna adapter for external aerial
CAT20 Helical antenna VHF
CAT80 Whip antenna UHF
CAT20S Stubby antenna VHF
CAT80S Stubby antenna UHF For complete up to date list of optional
accessories visit www.entel.co.uk
CAT10S-78 78MHz compressed antenna
CAT10S-85 85MHz compressed antenna
CAT10S 66-88MHz uncut compressed antenna
CAT700-40 30-50MHz antenna
Bluetooth option board in radio is required to use Bluetooth audio accessories.
Common
Attaching / Removing the Belt Clip
3To attach, press the clip into the slot on the back
of the battery and slide up until you hear a
“click”.
4To remove, pull the tab (a) towards the belt clip.
Then slide the belt clip downwards (b).

7
Common
Preparing Your Radio For Use cont...
Attaching / Removing the Aerial
1To attach, carefully align the aerial with the
socket. Screw in the aerial clockwise (taking
care not to cross the thread) until it is seated
firmly with the accessory cover’s rubber ring
between the aerial & the the top of the radio.
2To remove, unscrew the aerial anti-clockwise.
12
Attaching / Removing Audio Accessories
3To attach, remove the accessory cover by unscrewing the
locking screw anti-clockwise (leave cover secured under
antenna as this provides a waterproof seal). Attach accessory
plug by locating over the socket. Carefully tighten the locking
screw clockwise until finger tight (do not tighten with a
screwdriver etc).
4To remove, unscrew accessory plug the locking screw by
hand in an anti-clockwise direction (carefully use a coin or
screwdriver if too tight). Ensure you re-fit the accessory
waterproof cover so as to protect the accessory socket.
ChargingYour Radio
Several charger options are available.
Please refer to your charger user guide.
Turning your radio on
Turn your radio on by pressing the on / off button on the front of the radio. The radio will bleep and
the LED will illuminate constant yellow for approximately 4 seconds, followed by a second “warble” (if
not disabled by the Dealer when programmed).
HT9X2

Standard Features:
•16 programmable channels
•CTCSS & DCS (analogue & digital squelch) with squelch tail elimination (removes the ‘shh’ noise)
•Exceptionally loud and clear audio
•Robust design, exceeds MIL-STD-810C/D/E/F
•Environmentally protected to IP68 i.e. submersible to 5 metres for up to 60 minutes
•1800mAH Lithium-Ion battery for superior operational time
•Full band switching allows access to all channels in each band
•Battery charge count
•Radio cloning mode
•Low battery alert indicates when the battery needs recharging
Dealer programmable features:
•VOX for hands free operation
•High / Low transmit power
•Normal & priority scan (programmable per channel position)
•Panic (personal attack) button causes high pitch, high volume, siren tone to be emitted from the
radio’s speaker
•Key lock button
•Prefixed minimum volume level and fixed bleep level
•Channel monitor (CTCSS/DCS Defeat)
•Talkaround (allows communication away from a base station)
•Transmit time out-timer (ensures channels are not blocked)
•Voice scrambler with 1 code per channel (option)
•Automatic power save to further increase operational time
•User adjustable squelch level
HT902/912/922/982(U)
8
HT9X2

HT9X2S
9
Controls & Indicators
3Channel / Scan
control
Antenna
5Dealer
programmable
button 1
4Push To Talk
(PTT) button
6Dealer
programmable
button 2
1On / Off
2Volume control
Speaker
Microphone
1On / Off button. Press to turn radio on, press and hold to turn off.
2Press up / down buttons to increase / reduce volume.
3Channel / Scan control. Rotate to select the desired channel or scan setting.
4Push To Talk (PTT) button. Press to speak and release to listen.
5Dealer programmable button 1 (ask your dealer for more information).
6Dealer programmable button 2 (ask your dealer for more information).
7Dealer programmable button 3 (ask your dealer for more information).
8LED indicator.
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
7Dealer
programmable
button 3
8LED indicator

All the features of the HT902/912/922/982 (see page 8) plus the following features:
Standard Features:
•Entry level selective calling
•Voice scrambler with 4 code per channel included as standard
Dealer programmable features:
•Open or closed channel modes (allows private conversations)
•Call a group, individual or all radios at once
•Up to 16 pre-programmed contacts
•Multiple ringtones
•Stun (disable) a lost or stolen radio
•Revive (enable) a recovered radio
•Panic button with remote alert
•Emergency microphone live
•Automatic Lone-Worker alarm mode
•Automatic Man-Down alarm mode (optional)
•Silent alarm call mode
•Continue emergency alarm even if radio switched off
HT9X2S
HT902S/912S/922S/982S(U)
10
HT9X2S

11
Controls & Indicators
1On / Off button. Press to turn radio on, press and hold to turn off.
2Press up / down buttons to increase / reduce volume.
3Channel / Scan / Contact control. Rotate to select the desired channel or scan setting.
4Push To Talk (PTT) button. Press to speak and release to listen.
5Dealer programmable button 1 (ask your dealer for more information).
6Dealer programmable button 2 (ask your dealer for more information).
7Dealer programmable button 3 (ask your dealer for more information).
8LED indicator.
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
Antenna
5Dealer
programmable
button 1
4Push To Talk
(PTT) button
6Dealer
programmable
button 2
1On / Off
2Volume control
Speaker
Microphone
7Dealer
programmable
button 3
8LED indicator
3Channel / Scan /
Contact Control
HT9X3

HT9X3
All the features of the HT902/912/922/982 (see page 8) plus the following additional features:
Standard Features:
•LCD screen to display channel number / battery charge count
•255 channel capacity
HT903/913/923/983(U)
12
HT9X3

13
Controls & Indicators
1On / Off button. Press to turn radio on, press and hold to turn off.
2Channel / Scan control or volume control (dealer definable).
3Channel / Scan control or volume control (dealer definable).
4Push To Talk (PTT) button. Press to speak and release to listen.
5Dealer programmable button 1 (ask your dealer for more information).
6Dealer programmable button 2 (ask your dealer for more information).
7Dealer programmable button 3 (ask your dealer for more information) and LED indicator.
8LED indicator.
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall / message received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
Antenna
5Dealer
programmable
button 1
4Push To Talk
(PTT) button
6Dealer
programmable
button 2
1On / Off
Speaker
Microphone
7Dealer
programmable
button 3
8LED indicator
2Channel / Scan control
or volume control
(dealer definable)
3Channel / Scan control
or volume control
(dealer definable)
HT9X5

HT905/915/925/985(U)
14
All the features of the HT903/913/923/983 (see page 12) plus the following features:
Standard Features:
•Advanced selective calling
•Voice scrambler with up to 4 codes per channel
•Intuitive menus (like a mobile phone)
•Info button (user guide built-in to radio)
Dealer programmable features:
•Speed dial
•Who's calling (caller ID)
•255 user contact list (just like a mobile phone)
•Missed, received & dialled numbers lists
•Multiple ring / alert tones
•Power on password option
•Manual location information sent with emergency call
•Fully automatic indoor location (option)
•Send / Receive status, text and email messages
HT9X5

15
Controls & Indicators
HT9X5
3Dealer programmable
multi-function buttons
1On/Off button. Press to turn radio on, press and hold to turn off.
2Multi-function dealer programmable control (ask your dealer for more information).
3Dealer programmable multi function buttons.
4Push To Talk button. Press to speak and release to listen.
5Dealer programmable button 1 (ask your dealer for more information).
6Dealer programmable button 2 (ask your dealer for more information).
7Dealer programmable button 3 (ask your dealer for more information).
8LED indicator.
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall / message received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
Antenna
5Dealer
programmable
button 1
4Push To Talk
(PTT) button
6Dealer
programmable
button 2
1On / Off
Speaker
Microphone
7Dealer
programmable
button 3
8LED indicator
2Multi-function control
HT9X5

16
•Message Received
•Missed Call
•Key Bleeps Off
•Silent Profile
•Keypad Locked
•Man Down
•Lone Worker
•Bluetooth device connected
•Accessory Connected
•VOX Enabled
•Scramble Enabled
•Do Not Disturb
•Whisper Mode
•Battery State
•Receive strength / TX Output Low / Mid / High
•Call Diverted
•Speaker muted
•Speaker unmuted
•Talkaround enabled
•Channel scanning
RX / L / M / H
LCD Indicators
HT9X5

17
INTENTIONALLY
LEFT BLANK

HT9X6
HT906/916/926/986(U)
18
All the features of the HT905/915/925/985 (see page 14) plus the following features:
Standard Features:
•Keypad
Dealer programmable features:
•Edit contact list
•Free dial radio contacts
•Free dial telephone numbers
•Free dial DTMF numbers
HT9X6

19
Controls & Indicators
1On / Off button. Press to turn radio on, press and hold to turn off.
2Multi-function dealer programmable control (ask your dealer for more information).
3Dealer programmable / function buttons.
4Push To Talk (PTT) button. Press to speak and release to listen.
5Dealer programmable button 1 (ask your dealer for more information).
6Dealer programmable button 2 (ask your dealer for more information).
7Dealer programmable button 3 (ask your dealer for more information).
8LED indicator
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
3Dealer programmable
multi-function buttons
Antenna
5Dealer
programmable
button 1
4Push To Talk
(PTT) button
6Dealer
programmable
button 2
1On / Off
Speaker
Microphone
7Dealer
programmable
button 3
3Multi-function rotary
control
Keypad
8LED indicator
HT9X6
