Entel HX402 User manual

HX402/412/422/482(U)
Entry
User Guide – HX400 Series v10/10
Common Information
(all models)
HX402S/412S/422S/482S(U)
Entry Selcall
HX405/415/425/485(U)
Advanced Selcall, 8-key
HX406/416/426/486(U)
Advanced Selcall, Full Keypad
Professional compact handheld transceivers
HX403/413/423/483(U)
Entry Display

1
Table of Contents
Common Information (all models) Page
Certification 2
Radio / Battery Care 3
Battery Care / Information 4
Packing List 5
Optional Accessories 5 & 6
Preparing Your Radio For Use 6 & 7
HX402/412/422/482(U)
Feature List 8
Controls & Indicators 9
HX402S/412S/422S/482S(U)
Feature List 10
Controls & Indicators 11
HX403/413/423/483(U)
Feature List 12
Controls & Indicators 13
LCD Icons 14
HX405/415/425/485(U)
Feature List 16
Controls & Indicators 17
LCD Icons 18
HX406/416/426/486(U)
Feature List 20
Controls & Indicators 21
LCD Icons 22
Common
Introduction
This guide covers the ‘basics’ of your radio’s operation.To meet your exact requirements
the radio may have been customised by your Entel authorised dealer.These features will be
explained in a separate guide issued by the dealer.

2
Common
Certification
Declaration of Conformity
We Entel UK Limited of:
320 Centennial Avenue
Centennial Park
Elstree
Borehamwood
Hertfordshire
WD6 3TJ
United Kingdom
Declares under our sole responsibility that the product range:
HX400 VHF/UHF Handheld Radio Transceiver
Conforms to the following standards or other nominative documents:
•EN 300 086-2 V1.2.1, EN 301 489-1 V1.8.1:2008-04, EN 301 489-5 V1.3.1:2002-08,
EN 60950-1:2006, in accordance with Directive 99/5/EC.
Serial Number________________________________
M Austin
Quality Manager
1 October 2010
Date:

3
Common
Introduction
Your Entel radio is supplied with a high
performance Lithium-Ion (Li-Ion) battery.
These batteries:
•Extend talk time
•Reduce the batteries’ size and weight
•Do not suffer from ‘memory effect’ that
reduces the life of Ni-Cad and NiMH
batteries
•Have a low toxicity, therefore reducing the
impact on the environment
Battery Care
Battery Pack Precautions
•Switch the transceiver OFF before
charging
•Charge the battery pack before use
•Do not recharge the battery pack if it is
already fully charged as this will use one its
charge cycles and may shorten its life
•Charge the battery in accordance with the
instructions enclosed with your charger
•Do not charge the transceiver and/or
battery pack if they are wet
Radio Care
Warranty
The HX4XX comes with a 24 month warranty, for
details see our full terms & conditions.
Advice
•Do not use options or accessories not specified
by Entel
•Ensure that the radio is used within the
parameters for which it was designed
•Please switch the transceiver off before
connecting optional accessories
Warning
Turn the transceiver off in the following locations:
•In explosive atmospheres (flammable gas, dust
including metallic & grain powders etc)
•Whilst taking on fuel or while parked near a fuel
station
•Near explosives or blasting sites
•In aircraft, medical institutions or near persons
known to be wearing a pacemaker
Caution
•Do not disassemble or modify the transceiver for
any reason
•Do not transmit while touching the antenna
terminal or any exposed metallic parts of the
aerial as this may result in a burn
•Please check and observe regulations in your
country with regards to use whilst driving
End of Life Disposal
•When your Entel transceiver reaches the end of
its useful life, please ensure that the unit is
disposed of in an environmentally friendly way.
For country specific information please see
www.entel.co.uk/recycling

4
Battery Care / Information
Common
The battery pack includes potentially
hazardous components. Please:
•Do not disassemble or reconstruct battery
•Do not short-circuit the battery
•Do not incinerate or apply heat to the battery
•Do not immerse the battery in water or get
it wet by other means
•Do not charge the battery near fires or
under direct sunlight
•Use only the specified charger and observe
charging requirements
•Do not pierce the battery with any object or
strike it with an instrument
•Do not use the battery pack if it is damaged
in any way
•Do not reverse-charge or reverse-connect
the battery
•Do not touch a ruptured or leaking battery
If liquids from the battery get on your
skin or into your eyes, immediately:
•Wash your eyes out with fresh water
avoiding rubbing them.
•Seek medical treatment.
Battery Pack
•If a battery is not to be used for an extended
period of time (e.g. several months) remove
the battery pack from the equipment and
store in a cool and dry location (around 0°C)
part charged. Do not fully discharge the
battery before storage.
•Each charge cycle reduces the battery’s life.
Minimise the number of times you charge
your battery especially in hotter
environments which further shortens a
battery’s life.
Battery Communications
Each battery used with your radio has a
microprocessor fitted, which logs the number of
times your battery has been charged. On the
advanced 8-key and 20-key display models, the
number of times the battery has been charged,
together with the remaining charge cycles
available, will be shown during switch on.This
information may also be accessed and displayed
via the menu. (If not de-activated by your dealer)
Note: only genuine Entel batteries should be
used. Only genuine batteries offer the battery
charge count feature informing you when the
battery is reaching the end of its useful life.
Genuine batteries ensure customer satisfaction
delivering the expected capacity and endurance.
This cannot be guaranteed with sub standard,
potentially dangerous battery packs from 3rd
party manufacturers.

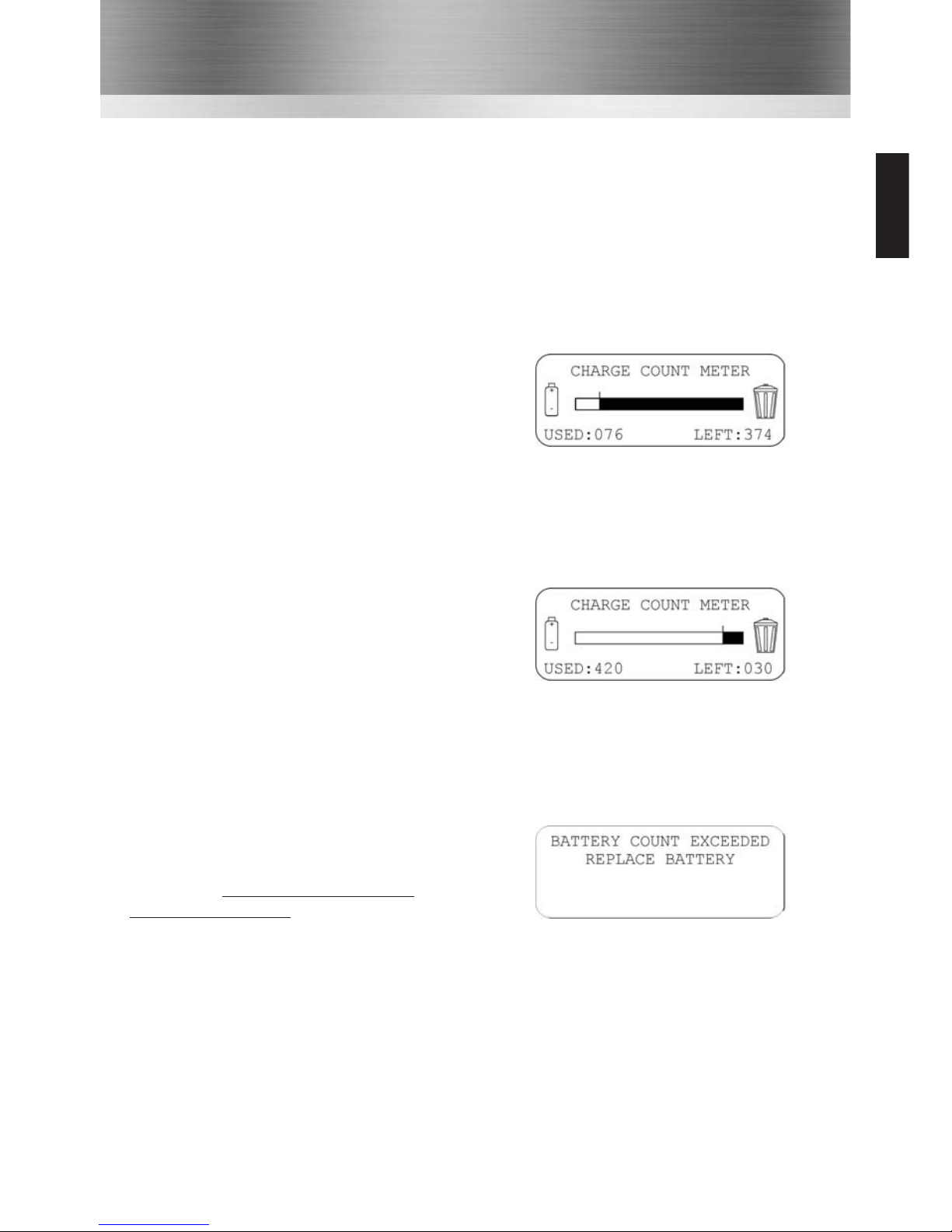

After 450 cycles, at switch on the radio will emit
a series of long beeps, and LCD models the
message will change to CHARGE COUNT
EXCEEDED REPLACE BATTERY. The radio will
continue to operate but its operational time
may be reduced, eventually failing all together
The warranty on all batteries is 12 months or
450 charge cycles, whichever is the sooner. After
420 cycles, at switch on the radio will emit a
series of short tones, and on LCD models a
waste bin icon will flash to alert you to the need
to buy a new battery.

5
Packing List
•HX4XX Radio
•CNB450E Rechargeable 1800mAh Li-Ion battery
•CBH450 Spring loaded belt clip
•CATXXX Antenna
•User guide CD
•CSAHX Intelligent rapid charger (only supplied with HX4X2, HX4X2S & HX4X3 models)
Optional Accessories
Battery & Charger Options
CNB450E Spare 1800mAh Lithium-Ion battery pack with rear clip
CSAHX 1-way dual slot intelligent rapid charger, 100-240v
CSBHX 6-way dual slot intelligent, rapid charger, 100-240v
Common
Audio Accessory Options
CMP1/450 Compact medium duty speaker microphone with earpiece jack
CMP450 Heavy duty submersible speaker microphone
EHP9 D-shaped earpiece (plugs into CMP1/450 or CMP450 above)
EA12/450 D-shaped earpiece with in-line PTT/microphone & VOX*
EA15/450 Earpiece microphone with transparent acoustic tube & VOX*
EA19/450 D-shaped earpiece with boom microphone and in-line PTT & VOX*
EHP450 D-Shaped earpiece (connects directly to radio)
EPT40/450 Bone conductive earpiece microphone with PTT
CXR5/450 Bone conductive skull microphone with in-line PTT
CXR16/450 D-shaped earpiece and throat microphone with in-line PTT
CHP1/450 Light weight single earpiece headset with in-line PTT & VOX*
CHP450HS Single earpiece ear defender headset with boom mic and in line PTT for hard hat & VOX*
CHP450HD Double earpiece defender headset with boom mic and in line PTT for hard hat & VOX*
CHP450D Double earpiece headband defender headset with boom mic and in line PTT & VOX*
CHP450BT Bluetooth double earpiece headband defender headset with boom mic and ear cup PTT
* VOX = Voice Operated Transmit (hands free operation)
Carry Options
CFC450 Soft leatherette case with clear window finished in black with carry strap
CLC452 HX4X2 heavy duty black leather case with strap & belt loop
CLC455 HX4X3 / HX4X5 heavy duty black leather case with strap & belt loop
CLC456 HX4X6 heavy duty black leather case with strap & belt loop
CBH450 Spare spring loaded belt clip
Bluetooth option board in radio is required to use Bluetooth audio accessories.

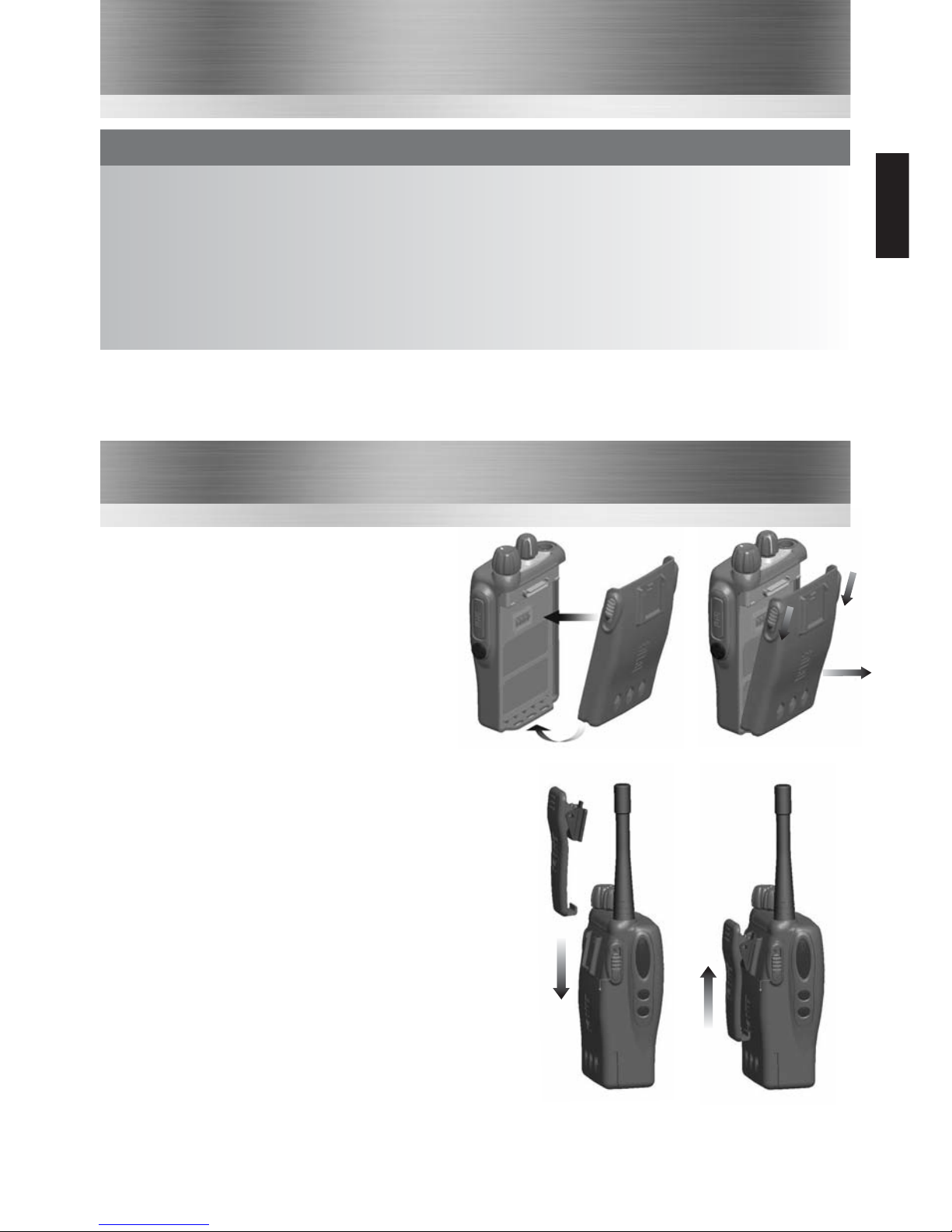

Attaching / Removing The Battery Pack
1To attach, locate the pegs on the bottom of
the battery and place into the slots on the
radio.Then press the top of the battery
against the radio until you hear a click.
2To remove, slide the two latches on the side
of the battery down and pull the battery away from the
top of the radio.
Attaching / Removing The Belt Clip
1To attach, press the clip into the slot on the back of the
battery and slide down until you hear a “click”.
2To remove, pull the tab (a) towards the belt clip.Then
slide the belt clip upwards (b).
Antenna Options
CXW400 Antenna adapter for external aerial connection
CAT420 Helical antenna VHF
CAT480 Whip antenna UHF
CAT480S Stubby antenna UHF
CAT410S-78 78MHz compressed antenna
CAT410S-85 85MHz compressed antenna
CAT410S 66-88MHz uncut compressed antenna
CAT400-40 30-50MHz antenna
6
Optional Accessories cont...
For complete up to date list of optional accessories visit www.entel.co.uk
12
12
Common
b
Preparing Your Radio For Use
a

7
Preparing Your Radio For Use cont...

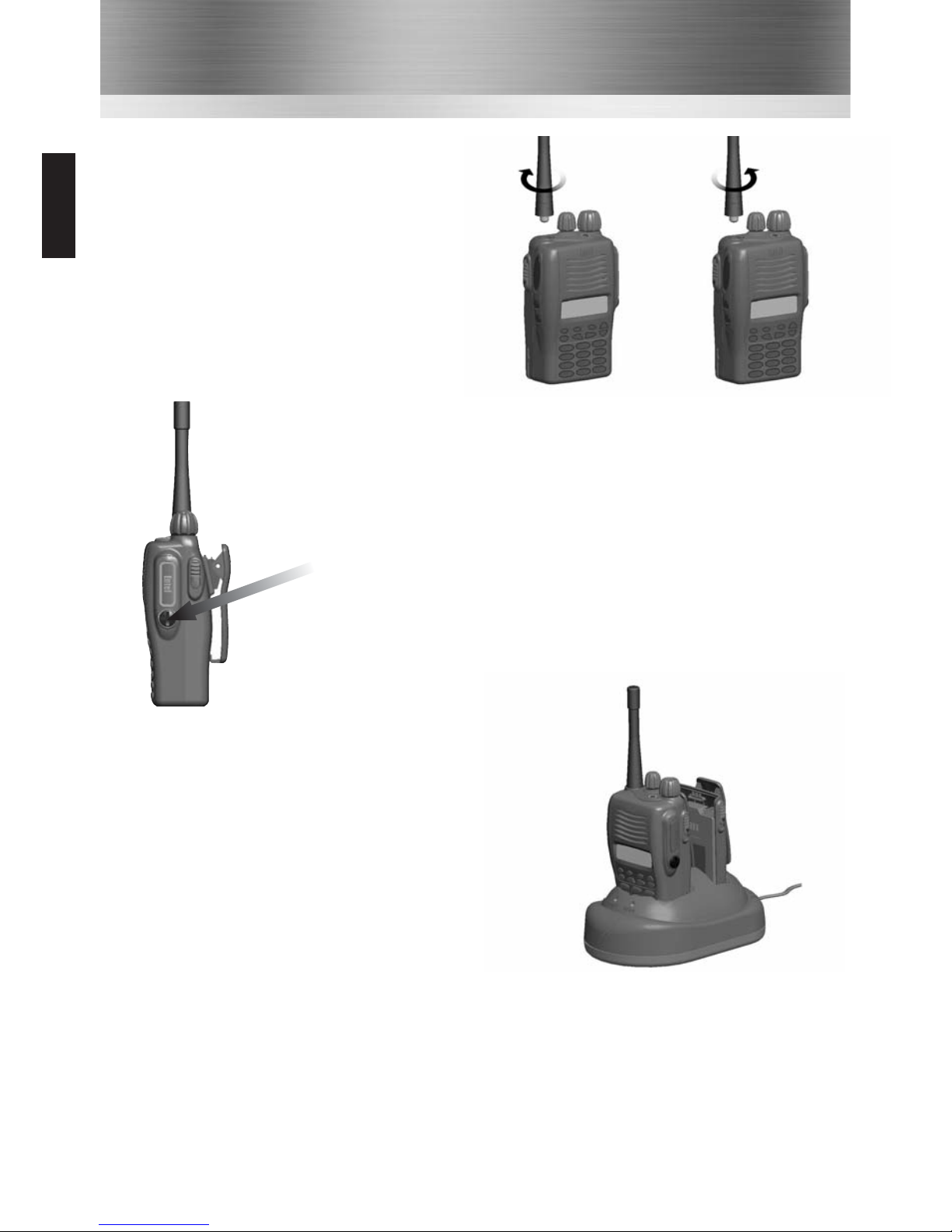

Attaching / Removing the Aerial
1To attach, carefully align the aerial with the
socket. Screw in the aerial clockwise (taking
care not to cross the thread) until it is seated
firmly against the top of the radio.
2To remove, unscrew the aerial
anti-clockwise.
Common
Attaching / Removing Audio Accessories
1To attach, remove the accessory cover by unscrewing the locking screw
anti-clockwise (store the cover in a safe place). Connect the accessory
plug into the radio’s socket. Carefully tighten the locking screw clockwise
until finger tight (do not tighten with a screwdriver etc).
2To remove, unscrew the locking screw by hand in an anti-clockwise
direction (carefully use a coin or screwdriver if too tight). Ensure you
re-fit the accessory cover so as to protect the socket.
Charging Your Radio
Several charger options are available. Please refer to
your charger user guide.
Turning your radio on
Turn your radio on using the on / off / volume control on the top of the radio.The radio will beep
and the LED will briefly illuminate yellow.The beep may be disabled by the dealer.

HX4X2
Standard Features:
•16 programmable channels
•Full transmit power output (5 Watts VHF, 4 Watts UHF)
•CTCSS & DCS (analogue & digital squelch) with squelch tail elimination (removes the ‘shh’ noise)
•Exceptionally loud and clear audio
•Robust design, exceeds MILSTD-810C/D/E/F
•Environmentally protected to IP55
•1800mAH Lithium-Ion battery for superior operational time
•Full band switching allows access to all channels in each band
•Low battery alert indicates when the battery needs recharging via a warning bleep and a slowly
flashing red LED
Dealer programmable features:
•VOX for hands free operation
•High/Low transmit power
•Normal & priority scan (programmable per channel position)
•Panic (personal attack) button causes high pitch, high volume, siren tone to be emitted from
the radio’s speaker
•Key lock button
•Prefixed minimum volume level and fixed bleep level
•Channel monitor (CTCSS/DCS Defeat)
•Talkaround (allows communication away from a base station)
•Transmit time out-timer (ensures channels are not blocked)
•Voice scrambler with 1 code per channel (option)
•Automatic power save to further increase operational time
•User adjustable squelch level
HX402/412/422/482(U)
8

9
1On / Off / Volume control. Rotate clockwise to turn on and increase volume, anticlockwise to
reduce volume and turn off.
2Channel / Scan control. Rotate to select the desired channel or scan setting.
3Push To Talk (PTT) button. Press to speak and release to listen.
4Dealer programmable buttons 1 & 2 (ask your dealer for more information).
5Dealer programmable button 3 (ask your dealer for more information) and LED indicator.

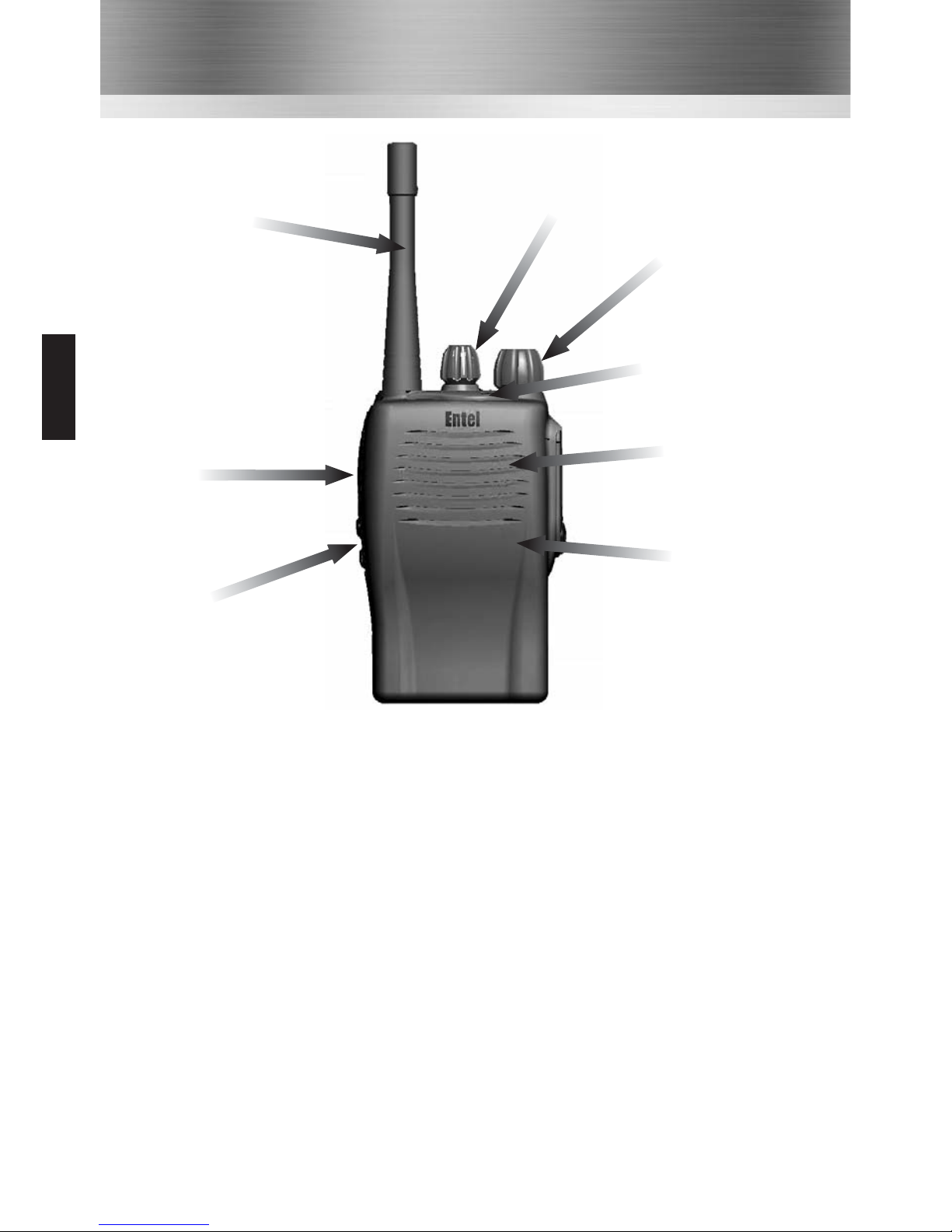

HX4X2
2Channel / Scan control
Antenna
4Dealer
programmable
buttons 1 & 2
3Push To Talk
(PTT) button
1On / Off / Volume control
5Dealer programmable
button 3 & LED indicator
Speaker
Microphone
Controls & Indicators
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning

HX4X2S
All the features of the HX402/412/422/482 (see page 8) plus the following features:
Standard Features:
•Entry level selective calling
Dealer programmable features:
•Open or closed channel modes (allows private conversations)
•Call a group, individual or all radios at once
•Up to 16 pre-programmed contacts
•Multiple ringtones
•Voice scrambler with 4 codes per channel (option)
•Stun (disable) a lost or stolen radio
•Revive (enable) a recovered radio
•Panic button with remote alert
•Emergency microphone live
•Automatic Lone-Worker alarm mode
•Automatic Man-Down alarm mode (option)
•Silent alarm call mode
•Continue emergency alarm even if radio switched off
HX402S/412S/422S/482S(U)
10

11
1On / Off / Volume control. Rotate clockwise to turn on and increase volume, anticlockwise to
reduce volume and turn off.
2Channel / Scan Control. Rotate to select the desired channel or scan setting.
3Push To Talk (PTT) button. Press to speak and release to listen.
4Dealer programmable buttons 1 & 2 (ask your dealer for more information).
5Dealer programmable button 3 (ask your dealer for more information) and LED indicator.
4Dealer
programmable
buttons 1 & 2
3Push To Talk
(PTT) button
Antenna
2Channel / Scan Control
Speaker
Microphone
HX4X2S
Controls & Indicators
5Dealer programmable
button 3 & LED indicator
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning
1On / Off / Volume control

HX4X3
Standard Features:
•LCD screen
•255 channel capacity
•Full transmit power output (5 Watts VHF, 4 Watts UHF)
•CTCSS & DCS (analogue & digital squelch) with squelch tail elimination (removes the ‘shh’ noise)
•Exceptionally loud and clear audio
•Robust design, exceeds MILSTD-810C/D/E/F
•Environmentally protected to IP55
•1800mAH Lithium-Ion battery for superior operational time
•Full band switching allows access to all channels in each band
•Low battery alert indicates when the battery needs recharging via a warning bleep and a slowly
flashing red LED
Dealer programmable features:
•VOX for hands free operation
•High/Medium/Low transmit power
•Normal & priority scan (programmable per channel position)
•Panic (personal attack) button causes high pitch, high volume, siren tone to be emitted from
the radio’s speaker
•Key lock button
•Prefixed minimum volume level and fixed bleep level
•Channel monitor (CTCSS/DCS Defeat)
•Talkaround (allows communication away from a base station)
•Transmit time out-timer (ensures channels are not blocked)
•Voice scrambler with 4 codes per channel (option)
•Automatic power save to further increase operational time
HX403/413/423/483(U)
12

13

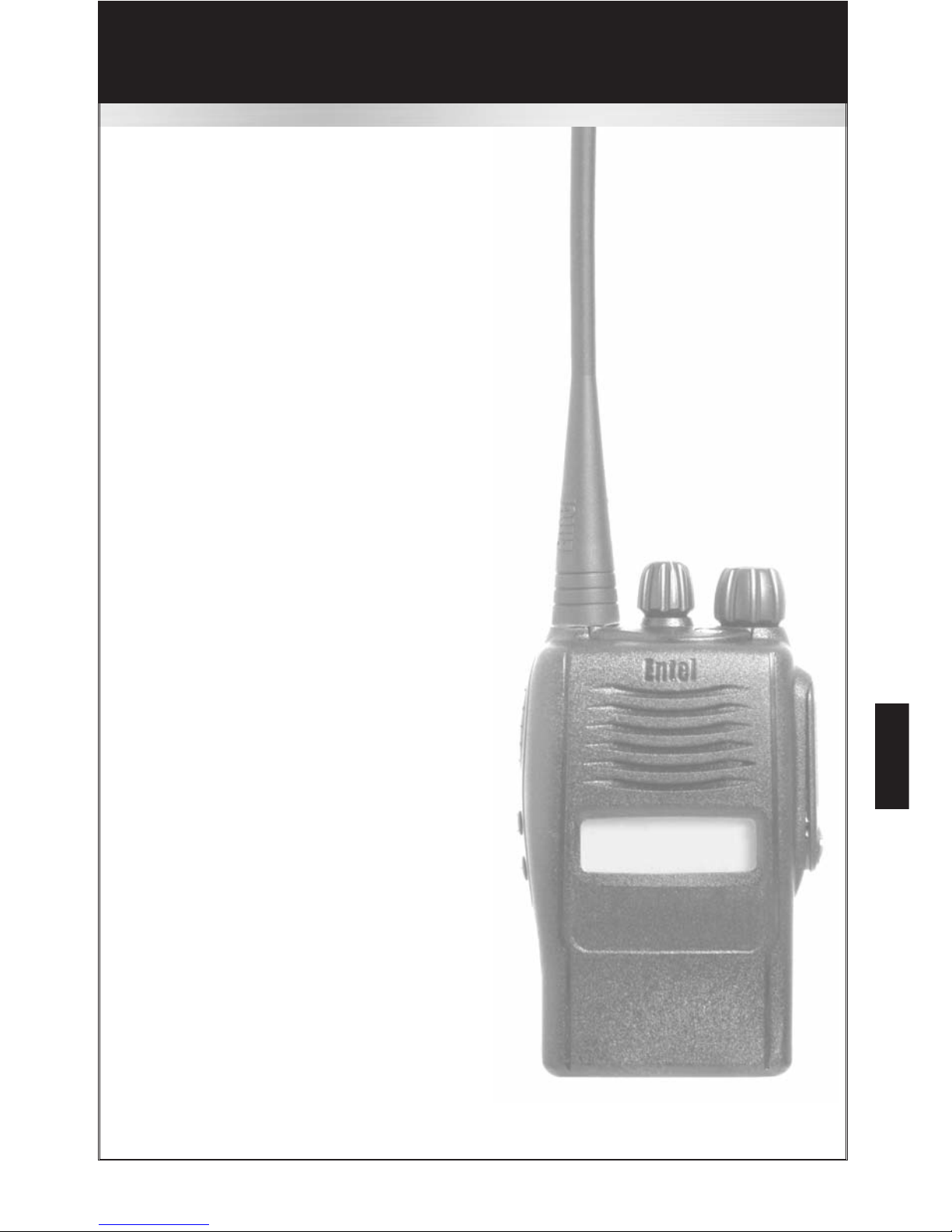

HX4X3
1On / Off / Volume control. Rotate clockwise to turn on and increase volume, anticlockwise to
reduce volume and turn off.
2Multi-function dealer programmable control. (ask your dealer for more information).
3Push To Talk button (PTT), press to speak and release to listen.
4Dealer programmable buttons 1 & 2 (ask your dealer for more information).
5Dealer programmable button 3 (ask your dealer for more information) and LED indicator.
4Dealer
programmable
buttons 1 & 2
3Push To Talk
(PTT) button
Antenna
2Multi-function control
1On / Off / Volume control
Speaker
Microphone
Controls & Indicators
5Dealer programmable
button 3 & LED indicator
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall / message received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning

14
•Missed Call
•Keypad Locked
•Bluetooth Device Connected
•Accessory Connected
•VOX Enabled
•Scramble Enabled
•Whisper Mode
•Battery State
•Receive Strength / TX Output Low / Mid / High
•Speaker Muted
•Speaker Unmuted
•Talkaround Enabled
•Channel Scanning
LCD Indicators
RX / L / M / H
HX4X3

15
INTENTIONALLY
LEFT BLANK

HX4X5
All the features of the HX402S/412S/422S/482S (see page 10) plus the following features:
Standard Features:
•LCD screen
•255 channel capacity
•Intuitive menus (like a mobile phone)
•Info button (user guide built-in to radio)
Dealer programmable features:
•Speed dial
•Who's calling (caller ID)
•255 user contact list (just like a mobile phone)
•Missed, received & dialled numbers lists
•Multiple ring / alert tones
•Power on password option
•Manual location information sent with emergency call
•Fully automatic indoor location (option)
•Send / Receive status, text and email messages
•Voice scrambler with up to 4 codes per channel (option)
HX405/415/425/485(U)
16

17

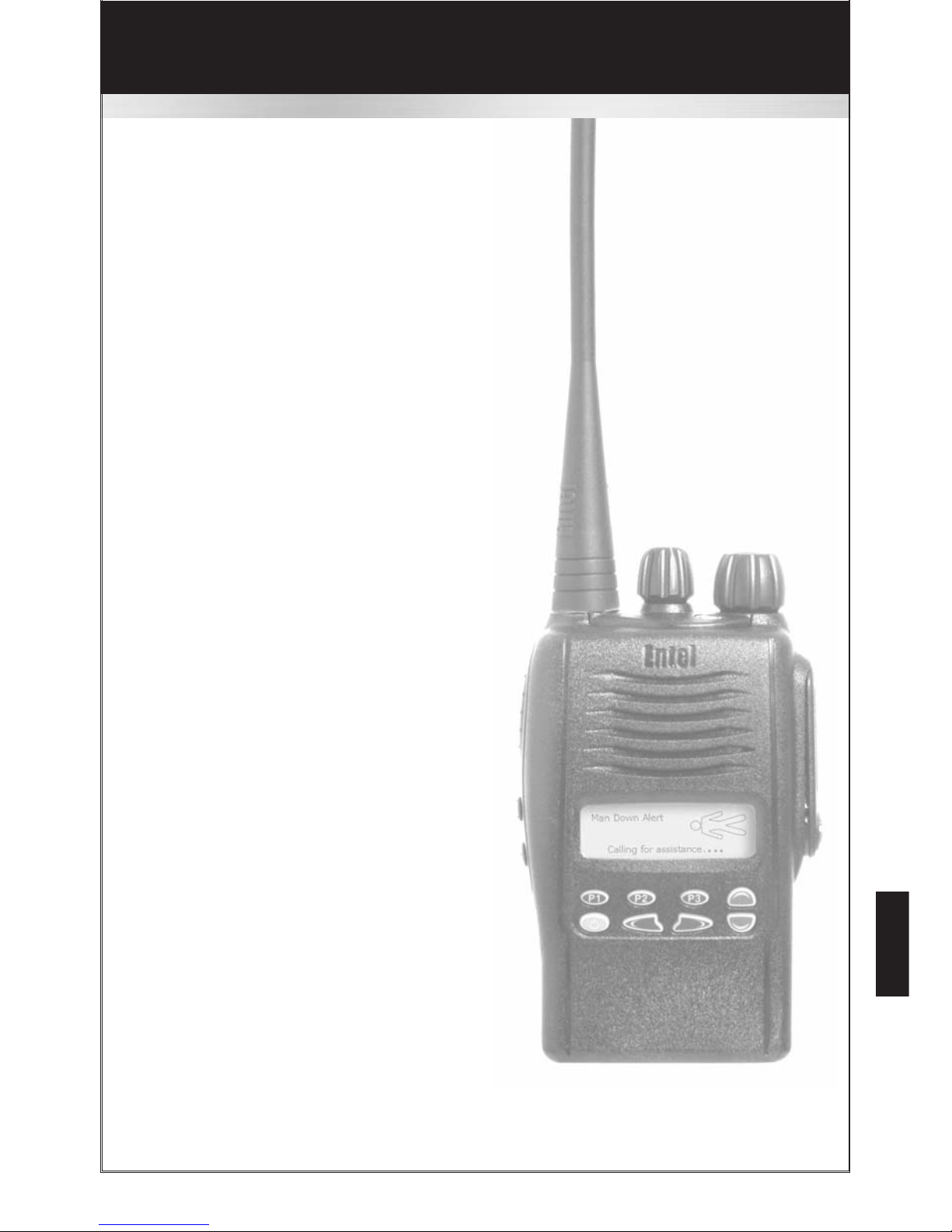

HX4X5
6Dealer programmable
function keys
1On / Off / Volume control. Rotate clockwise to turn on and increase volume, anticlockwise to
reduce volume and turn off.
2Multi-function dealer programmable control. (ask your dealer for more information).
3Push To Talk button (PTT), press to speak and release to listen.
4Dealer programmable buttons 1 & 2 (ask your dealer for more information).
5Dealer programmable button 3 (ask your dealer for more information) and LED indicator.
4Dealer
programmable
buttons 1 & 2
3Push To Talk
(PTT) button
Antenna
2Multi-function control
1On / Off / Volume control
Speaker
Microphone
Controls & Indicators
5Dealer programmable
button 3 & LED indicator
•RED steady = Transmitting
•RED flashing slowly = Battery needs re-charging
•GREEN steady = Receiving
• GREEN flashing slowly = Selcall / message received
•YELLOW steady = Non valid signal detected
•YELLOW flashing rapidly = Scanning

•Message Received
•Missed Call
•Key Bleeps Off
•Silent Profile
•Keypad Locked
•Man Down
•Lone Worker
•Bluetooth Device Connected
•Accessory Connected
•VOX Enabled
•Scramble Enabled
•Do Not Disturb
•Whisper Mode
•Battery State
•Receive Strength / TX Output Low / Mid / High
•Call Diverted
•Speaker Muted
•Speaker Unmuted
•Talkaround Enabled
•Channel Scanning
LCD Indicators
RX / L / M / H
HX4X5
18

19
INTENTIONALLY
LEFT BLANK
