Entel HT20 User manual
HT20 User uide v07/11
Submersible marine handheld transceiver
HT20
LCD
Topic Page
Certification 2
Introduction 3
Packing List 3
Radio Care 3
Preparing Your Radio For Use 4
Battery Care / Information 5 & 6
Using Your HT20 7
Reception 7
Transmitting 7
Channels 8 & 9
Functions 10
The Scan Function 10
VOX (Voice Operate Transmit) 10
LCD Indicators 11
Optional Accessories 12 & 13
Standard Features 13
Controls 14 & 15
lossary of Terms 16
Troubleshooting 17
Channel Chart 18 & 20
Technical Specifications 21 & 22
Notes 23 & 24
TOC
Table of Contents
1
2
Certificate
Declaration of Conformity
Introduction
We Entel UK Limited of:
320 Centennial Avenue
Centennial Park
Elstree
Borehamwood
Hertfordshire
WD6 3TJ
United Kingdom
Declares under our sole responsibility that the product range:
HT20 Series Handheld Radio Transceiver
Conforms to the following standards or other nominative docum
ents:
•EN 301 178 -2 V1.2.2: 2007-02, EN 60945:2002, EN6095 0-1: 2006, in accordance with
Directive 1999/5/EC.
Serial Number ________________________________
M Austin
Quality Manager
1 October 2010
Date:
Warranty
The HT20 comes with a 24 month warranty,
for details see our full terms & conditions.
Advice
• Do not use options or accessories not
specified by Entel
• Ensure that the radio is used within the
parameters for which it was designed
• Please switch the transceiver off before
connecting optional accessories
Warning
Turn the transceiver off in the following
locations:
•In explosive atmospheres (flammable gas,
dust including metallic & grain powders etc)
•Whilst taking on fuel or while parked near a
fuel station
•Near explosives or blasting sites
•In aircraft, medical institutions or near
persons known to be wearing a pacemaker
Caution
•Do not disassemble or modify the
transceiver for any reason
•Do not transmit while touching the antenna
terminal or any exposed metallic parts of the
aerial as this may result in a burn
•Please check and observe regulations in your
country with regard to use whilst driving
End of Life Disposal
When your Entel transceiver reaches the end of its
useful life, please ensure that the unit is disposed of in
an environmentally friendly way. For country specific
information please see www.entel.co.uk/recycling.

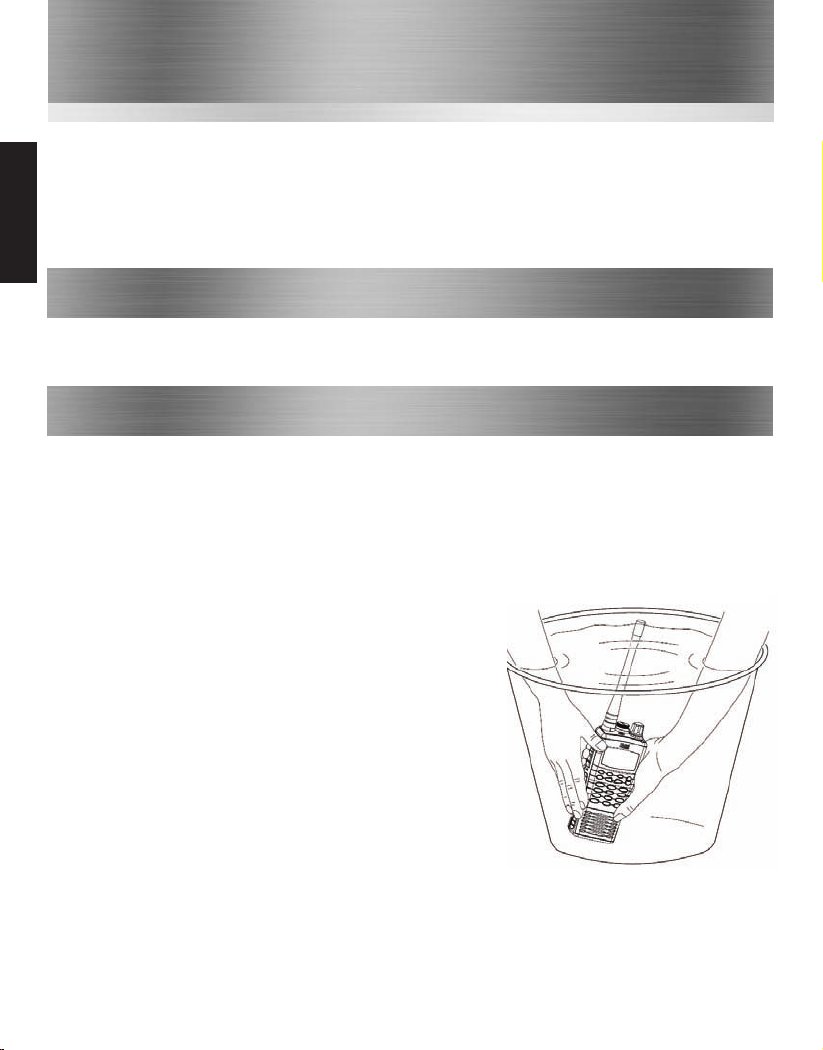

Cleaning your Radio
After exposure to any potentially corrosive substance
including salt water it is recommended to thoroughly
wash the transceiver in fresh water. If washing with the
battery removed from the radio, ensure that the
battery is not immersed in water & that the accessory
cap is attached & clean only with a damp cloth.
Introduction
3
Introduction
The Entel HT20 is a professional marine handheld transceiver that operates on the VHF marine band.
The HT20 has 58 marine international channels, 10 weather & 36 dealer programmable private
channels. The 58 marine channels are switchable to comply with USA, International or Canadian
regulations. This is done via the radio’s keypad. It has an emergency channel, which can be immediately
selected from any channel using the red 16/9 button. Weather channels can also be accessed immediately
using the [WX] key. The HT20 includes the following features: Scan, A/B quick access channels, battery
life indicator, VOX (voice activated transmit), low battery indicator, large LCD with back light.
•HT20 Transceiver
•CNB750E Rechargeable 2000mAh Li-Ion battery
•CBH750 Spring loaded belt clip
Packing List
•CATXX Antenna
•CCA trickle charger included with certain models
Radio Care
Note: Do not
wash the
transceiver if
you suspect the
waterproofing
seal may be
damaged. Please
return to your
supplier for
inspection /
repair.
Preparing Your Radio For Use
43
Preparing
56
a
b
---
Attaching / Removing the Belt Clip
5To attach, slot the clip onto the slot on the
b ack of the battery and slide up until you
hear a “click”
6To remove, pull the tab towards the belt
clip (a). Then slide the belt clip
downwards (b)
Attaching / Removing the Aerial
1
To attach, carefully align the aerial with the
socket. Screw in the aerial clockwise (taking
care not to cross the thread) until it is seated
firmly with the accessory cover’s rubber ring
between the aerial & the the top of the radio.
2
To remove, unscrew the aerial anti-clockwise.
12
Attaching / Removing Audio Accessories
3To attach, remove the accessory cover by unscrewing the
locking screw anti-clockwise (leave cover secured under
antenna as this provides a waterproof seal). Attach accessory
plug by locating over the socket. Carefully tighten the locking
screw clockwise until finger tight (do not tighten with a
screwdriver etc).
4To remove, unscrew accessory plug the locking screw by
hand in an anti-clockwise direction (carefully use a coin or
screwdriver if too tight). Ensure you re-fit the accessory
waterproof cover so as to protect the accessory socket.
Introduction
Your Entel radio is supplied with a high
performance Lithium-Ion (Li-Ion) battery. These
batteries:
•Extend talk time
•Reduce the battery’s size and weight
•Do not suffer from ‘memory effect’ that
reduces the life of Ni-Cad and NiMH
batteries
•Have a low toxicity, therefore reducing the
impact on the environment
Battery Pack
•If a battery is not to be used for an
extended period of time (e.g. several
months) remove the battery pack from the
equipment and store in a cool and dry
location (around 0°C) part charged.
Do not fully discharge the battery before
storage
•Each charge cycle reduces the battery’s life.
Minimise the number of times you charge
your battery especially in hotter
environments which further shortens a
battery’s life
5
Battery Care / Information
Battery Pack Precautions
•Switch the transceiver OFF before
charging
•Charge the battery pack before use
•Do not recharge the battery pack if it is
already fully charged.
•Charge the battery in accordance with the
instructions enclosed with your charger
•Do not charge the transceiver and /or
battery pack if they are wet.
The battery pack includes potentially
hazardous components. Please:
•Do Not disassemble or reconstruct
battery
•Do Not short-circuit the battery
•Do Not incinerate or apply heat to the
battery
•Do Not immerse the battery in water
unless attached securely to the radio or
get it wet by other means
•Use only the specified charger and
observe charging requirements
•Do Not pierce the battery with any
object or strike it with an instrument
•Do Not use the battery pack if it is
damaged in any way
•Do Not reverse-charge or reverse-
connect the battery
•Do Not touch a ruptured or leaking
battery.
If liquids from the battery get into your eyes,
immediately:
•Wash your eyes out with fresh water &
avoiding rubbing them.
•Seek medical treatment.
Battery
Battery Charging
1. Connect the AC adapter to the charger
pod. The LED status light will illuminate
green indicating ready for charge
2. Turn the transceiver off
3. Insert the battery pack into the charger
pod, either with or without the
transceiver attached. The LED status light
changes from green to RED & trickle
charge begins
4. A fully discharged battery pack will take
approximately 6 hours to charge,
depending on the remaining power
condition. When charge is complete, the
LED status light turns green.
Overcharging:
The battery pack has an over-current
protection circuit fitted. When charging a
completely discharged battery i.e. first charge,
ensure the battery is removed from the radio
and then re-attached (if fitted to radio when
charging). This will reset the protection
circuitry and ensure normal operation. This
process will need to be repeated if the battery
is allowed to completely discharge in the
future. In normal use this is unlikely.
5 6
Battery Care / Information
Battery Indicator
For your safety and convenience your
transceiver continually monitors the battery
pack and gives an indication on the LCD:
•3 Segments: 12 hours
•2 Segments: 1 hour
•1 Segment: 20 mins
Note: Only genuine Entel batteries should be
used. Customer satisfaction is assured as you
can not be supplied with sub standard,
potentially dangerous battery packs from 3rd
party manufacturers, ensuring it delivers the
expected capacity and endurance.
On HT series batteries a breathable
membrane is used. This is clearly marked on
the battery label. Piercing the membrane will
allow water ingress to the battery, & will
invalidate the warranty.
Battery
Attaching / Removing the Battery Pack
1To attach, locate the pegs on the bottom of the
battery into the slots on the radio and press the
top of the battery against the radio. Secure
battery by tightening the screw clockwise by
hand. (Do not over tighten)
2To remove, unscrew the locking screw
anticlockwise & pull the battery away from the
top of the radio.
12
7
Using Your HT20
1. To Turn the radio on rotate the volume control clockwise, to select the desired audio level
continue rotating the control clockwise. to increase volume & counter clockwise to decrease.
After power-on, the transceiver will always default to the last channel selected.
2. One second after start-up a tone is generated to indicate the transceiver has passed its
self-diagnostic test. During standby the LED indicator will pulse amber every 3 seconds, to verify
its circuitry is functioning correctly.
3. Use the [UP/DOWN] keys to select a desired channel. A full listing of all available channels can be
found on page 17-18.
4. When receiving a signal the LED indicator illuminates green & an “RX” is displayed on the LCD.
5. While the radio is operating, if you hear white noise you may need to adjust the squelch threshold
of the radio, for more information see page 8 “Adjusting Squelch Threshold”. On some channels a
slight adjustment of the squelch threshold is needed as some channels have a higher noise level
than others.
Reception
Transmitting
1. Perform steps 1 through 3 of RECEPTION.
2. Before transmitting, monitor the channel and make sure it is clear.
3. For communications over short distances, press the [H/L] key and select low power (1 watt).
Transmitting on 1 watt prolongs battery life, and should be selected whenever possible.
4. When receiving a signal, wait until the signal stops before transmitting. The transceiver cannot
transmit and receive simultaneously.
5. Press the [PTT] (Push-To-Talk) button to begin your transmission. To confirm transmission in
progress the LCD indicator illuminates TX and the LED illuminates RED.
6. Hold the transceiver 1 inch from your mouth and speak slowly and clearly into the microphone.
7. When the transmission is finished release the [PTT] button.
Turning The Radio On & Off
Turn the ON/OFF control on the top of the radio clockwise until the LCD iluminates & a short
beep is emitted. To turn the radio off turn the ON/OFF control anti-clock wise until the LCD
deluminates.
Using Your radio
Before using your radio you may need to adjust the volume on the radio to take in to account
background noise. Adjust the volume using the rotary control on the top of the radio.
Channels
7
Using Your
8
Channels
INT, USA & Canadian Modes
In compliance with worldwide license regulations the following versions of HT20 are available:
Version A: INT, USA & Canadian modes
Version B, C & D: INT mode only
1. In the case of version A only; to change the channel set of the transceiver, hold down the
[WX] key. The mode changes from USA to Canadian to International.
2. Refer to the marine channel charts in this booklet for allocated channels in each mode.
NOAA Weather Channels
(Applicable to version A model only)
1. To receive a weather channel, press the [WX] key. The transceiver enters into weather
channel mode.
2. There are 10 weather channels. Use the & buttons to select the desired channel.
3. To exit from the weather channels press the [WX] key. The transceiver recalls the previous
working channel.
Emergency Channels
To select the emergency channel, press the [16/9] button from any channel. Channel 16 appears
on the display. To recall the previous channel used, press the [16/9] button once again.
Channel 9
Channel 9 is used as a hailing channel for initial, non-emergency contact with other vessels. Hold
down the [16/9] key for 1 second to select channel 9.
To recall the previous channel used, press the [16/9] button twice.
Monitor Channels
Press the blue monitor button on the top of the radio to defeat the squelch mute and release
button to mute radio. A long press (radio will beep) will hold the squelch mute open until
pressed again to cancel again to return to squelch mute.
Adjusting Squelch Threshold
Press & hold the blue monitor button on the top of the radio and switch radio on, then after the
radio emits a beep release the blue button. This will cause the radio to display a number
representing the squelch threshold from 01-16, 01 is the more sensitive & 16 is the less sensitive.
Use the UP & DOWN channel buttons to adjust the level & press MEM to store the
new squelch level.
SIMPLEX / DUPLEX CHANNEL USE
Your transceiver has been factory programmed in accordance with FCC (USA), Industry Canada
and International regulations. The mode of operation cannot be altered from simplex to duplex
or vice versa. Simplex or duplex mode is automatically activated, depending on the channel and
the channel set and whether USA, Canadian, or International mode is selected.
Refer to the channel charts listed on pages 18-20 of this user manual.
If you have a licence to use a specific simplex or semi-duplex channel, contact your dealer who
may be able to programme your channel using the transceiver’s private channel memory.
CHANNEL A/B INSTANT ACCESS
For your convenience, two user assigned channels can be programmed for instant access. If the
[A/B] key is pressed and no channel A or B has been assigned, a short beep will be heard.
PRO RAMMIN A/B INSTANT ACCESS BUTTONS
1. Hold down the [A/B] key and turn on the transceiver.
2. The letter A will appear on the display and dashes "_ _" indicate that no channel has been
designated channel A.
3. Press the [UP/DOWN] button until the desired channel number is displayed.
4. With the desired channel number displayed, press the [MEM] key once. The "A" will stop
flashing, indicating that the displayed channel is now designated channel A.
5. Press the A / B button again. The letter "b" will appear on the display.
Repeat steps 2 through to 4.
6. Switch transceiver off and on to exit this mode and save changes. If you wish to clear instant
access channels follow step 1 then press the [MEM] key. The “A” will flash. Now switch the
transceiver off and on again.
Note: Should you later wish to delete any stored channels simply press "MEM" key whilst in
A/B programming mode.
OPERATION OF A/B INSTANT ACCESS BUTTONS
Pressing the [A/B] button will toggle between A, B and the previous selected working channel.
Channel A is represented by the "A" to the left of the channel number on the LCD, & channel B
is represented by "B".
Note: Do not confuse this "A" with the one that is sometimes displayed to the right hand side of
the channel number (in USA and Canadian modes)
9
Channels
Channels
9
Functions
10
The Scan Function
1. Select the desired channel to be scanned using the & buttons.
2. Press the [MEM] button to store the channel in the transceiver’s memory. [MEM] is
displayed on the LCD. This channel is now memorised to be scanned.
3. To add further channels, repeat steps 1 & 2.
4. To delete a channel from the transceiver’s scan list, press the [MEM] button on a channel
that displays the [MEM] icon until the icon disappears.
5. All channels programmed remain in the transceiver’s scan memory, even if the power is
switched off.
6. Adjust the squelch control until the white noise is eliminated.
7. To start scanning, press the [SCAN] key. The scan proceeds from the lowest to the highest
programmed channel number & stops on channels when a transmission is received.
8. To stop the scan at any time, press the [SCAN] key again.
VOX (Voice Operated Transmit)
Press the [MEM] button & switch the transceiver on. The VOX symbol & a "0" will flash. "0"
indicates VOX is switched off, 1 is for low sensitivity, 5 is for normal sensitivity, and 9 is for
high sensitivity. Use the [UP/DOWN] button to select the desired level, press [MEM] to
confirm, the transceiver is now set to VOX. To switch VOX off, go back into VOX programming
mode by holding the [MEM] key whilst switching on. Press the UP/DOWN button until the
vox level is "off" and press [MEM] to confirm.
In VOX mode the transceiver will react to your voice, and transmit automatically without you
having to press the PTT button. There is always a slight delay for the electronic switching &
consideration will need to be given. To get optimum performance from the VOX feature you
should use a noise cancelling headset or earpiece microphone (see accessory options).
Functions
11
LCD Indicators
Indicator Description
High power selected (5 Watts)
Low power (1 Watt).
The Radio is Transmitting.
The Radio is Recieving.
Indicated channel is memorised for scanning.
Scrambler mode enabled (version A & B only).
Voice operated transmit mode enabled.
Indicates the channel set for USA.
Indicates the channel set for Canadian.
Indicates the channel set for International.
NOAA weather channels selected (USA & Canadian waters only).
A ship-to-ship channel (in USA or Canadian mode).
Battery life indicator.
Indicates keypad is locked, excluding the PTT, H/L & LAMP buttons.
Private channel number selected.
Duplex channel selected (not simplex).
LCD
11
Accessories
Carry Options
CFC750 HT64X soft leatherette case finished in black with carry strap
CLC752 HT642, HT648 heavy duty black leather case with strap & belt loop
CLC753 HT20 & HT649 heavy duty black leather case with strap & belt loop
CBH750 Spare spring loaded belt clip
Audio Accessory Options
CMP1/750 Compact medium duty speaker microphone with earpiece jack
CMP750 Heavy duty submersible speaker microphone
EHP9 D-shaped earpiece (plugs into CMP1/750 or CMP750 above)
EA12/750 D-shaped earpiece with in-line PTT/microphone & VOX*
EA15/750 Earpiece microphone with transparent acoustic tube & VOX*
EA19/750 D-shaped earpiece with boom microphone and in-line PTT & VOX*
EHP750 D-Shaped earpiece (connects directly to radio)
EPT40/750 Bone conductive earpiece microphone with PTT
CXR5/750 Bone conductive skull microphone with in-line PTT
CXR16/750 D-shaped earpiece and throat microphone with in-line PTT
12
Battery & Charger Options
CNB750E Spare 2000mAh Lithium-Ion battery pack with rear clip
CLB750 Non Rechargeable MDSS Lithium-Metal battery
CSAHT 1-way intelligent rapid charger, 110-230v
CSBHT 6-way intelligent, rapid charger, 110-230v
CCAHT-230 1-way trickle charger with 230V mains adapter
CCAHT-110 1-way trickle charger with 110V mains adapter
CCAHT-12 1-way trickle charger with cigar lighter lead, 12V DC operation
Optional Accessories
Attaching & Removing Accessories
To attach an accessory: Remove the accessory cover by
unscrewing the locking screw anti-clockwise (leave cover
attached or store in a safe place).
Attach accessory plug to the socket. Carefully tighten the
locking screw clockwise until finger tight (do not tighten
with a screwdriver etc).
To remove an accessory: Unscrew the locking screw of
the accessory by hand in an anti-clockwise direction
(carefully use a coin or screwdriver if too tight).
Ensure you re-fit the accessory cover so as to protect
the socket.
Accessories
Optional Accessories
For complete up to date list of optional accessories visit www.entel.co.uk
13
CHP1/750 Light weight single earpiece headset with in-line PTT & VOX*
CHP750HS Single earpiece ear defender headset with boom mic and in line PTT for hard hat & VOX*
CHP750HD Double earpiece defender headset with boom mic and in line PTT for hard hat & VOX*
CHP750D Double earpiece headband defender headset with boom mic and in line PTT & VOX*
CHP750BT Bluetooth double earpiece headband defender headset with boom mic and ear cup PTT
CBH750 Spare spring loaded belt clip
* VOX = Voice Operated Transmit (hands free operation)
Standard Features:
•Environmentally protected to IP67 i.e. submersible to 1 metre for up to 30 minutes.
•Robust design, exceeds MIL-STD-810C/D/E/F.
•LCD screen to display channel number & current settings \ status.
•2000mAH Lithium-Ion battery for superior operational time.
•INT, USA, CAN channels.
•Full transmit power output 5 Watts.
•Exceptionally loud & clear audio .
•Ch 16 \ 9 shortcut button.
•WX shortcut button.
•Scan button.
•Monitor button.
•MEM button.
•Automatic power save to further increase operational time.
•Low battery alert indicates when the battery needs charging or replacing.
•Battery charge count to indicate when a battery needs replacing.
Dealer Programmable Features:
•Key lock button
•Prefixed minimum volume level and fixed bleep level
•VOX (Voice Operated Transmit) Function.
Standard Features
13 14
Controls
1 Power & Volume Control: Powers the radio on and off and controls the volume.
2 The Microphone: Internal condenser microphone
3 Up / Down Buttons: Press up / down buttons to change channel.
4 16/9 Button: A momentary press of the button selects channel 16 and a longer press
select channel 9.
5 WX Button: Immediately recalls the weather channels.
6 Scan Button: Starts / Stops scanning the memorised channels.
7 The MEM Button: Memorises a desired channel for scanning.
8 The A/B Button: Provides Instant access to preassigned channels (if programmed)
9 Speaker: The Radio’s Speaker.
Controls
15
Controls

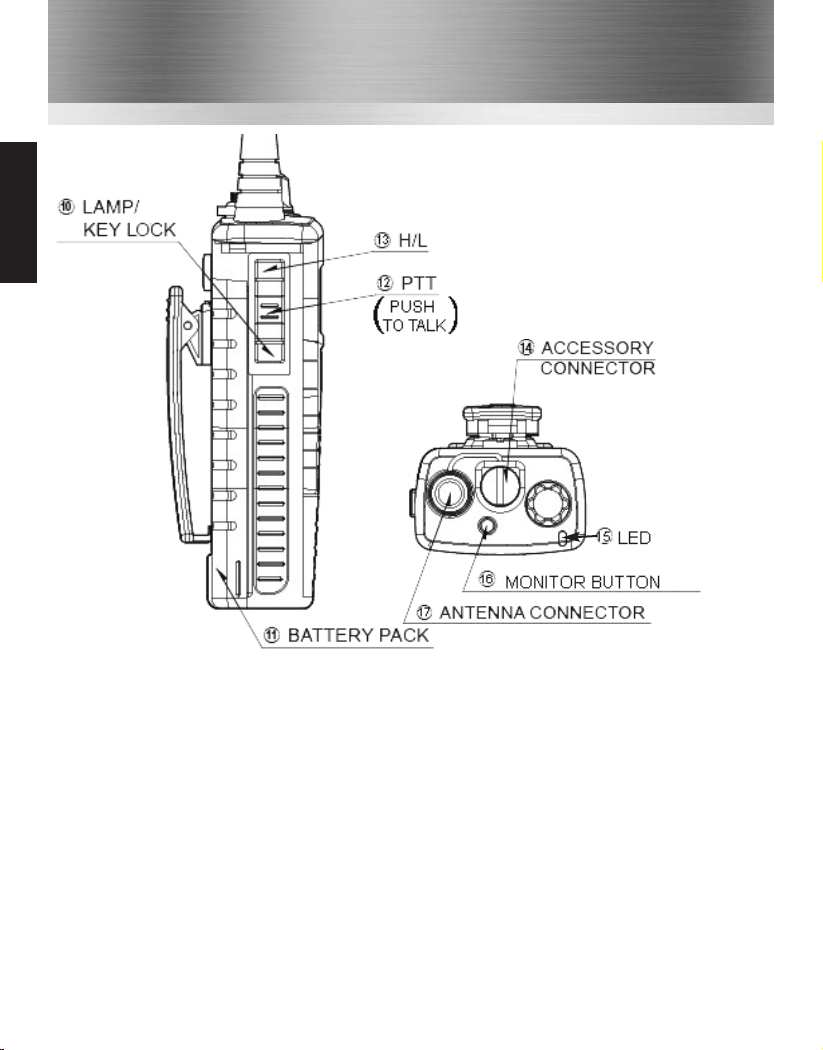

10 Lamp / Key lock Button: Momentarily pressing this button illuminates the LCD display.
Holding this button for over 1 second activates the key lock. To deactivate the key lock
press & hold the button again until the lock removes.
11 The Radio’s Battery Pack: Rechargeable lithium-ion battery pack.
12 PTT (Push To Talk Switch): Hold down to transmit, release to receive.
13 H/L Button: Press and hold this button for 1 second to toggle between high and low power
(1 & 5 Watts).
14 The Accessory Connector: Used to attach any HT20 approved accessory.
15 LED Indicator: Indicates the status of the radio:
•RED Steady = Transmitting
• RED Flashing slowly = Battery needs re-charging
• REEN Steady = Receiving
16 Monitor Button: Press to monitor the channel without the squelch mute.
17 Antenna Connector: Use to attach the antenna of the radio.
Controls
15 16
lossary of Terms
Term Description
Canadian
Channels
Channels designated as defined and regulated by Industry Canada, (RIC),
Marine Communications & Traffic Services.
Duplex Transmit and receive on different frequencies.
Encryption Scrambled audio for extra privacy.
FM Frequency Modulation.
International
Channels
Channel designations as defined for use in international waters by the
International Telecommunications Union (ITU).
Marine
Channels
Special channels reserved for marinas located in selected European
countries. These channels are pre-programmed in the transceiver as P1 & P2.
Private
Channels
Channels which are assigned by regulatory agencies governing VHF radio use
for a specific region or country. These channels are prefixed with a "P" and
can only be programmed into the transceiver by authorised dealers.
PTT Press To Talk (Transmit)
RX Receive
Simplex Transmit and receive on the same frequency.
Squelch To suppress background noise
TX Transmit
Transceiver A device that can transmit and receive
USA
Channels
Channel designations as defined by the Federal Communications Commission
(FCCVOX )
VOX Voice Operated Transmit
VHF Very High Frequency (30MHz to 300 MHz)
lossary
17
Troubleshoot
Troubleshooting
SYMPTOM PROBABLE CAUSE REMEDY
Transceiver not switching on Battery needs charging or
battery is exhausted
Charge the battery pack
replace the battery pack
The scan key does not start
the scan
No channels memorised
(MEM) Squelch is not adjusted
Use the MEM key to enter
desired channels into scan
memory. Adjust the squelch to
threshold or to the point
where the white noise just
disappears.
Cannot change any function Key lock is switched on Turn key lock off
The LED on the charger does
not illuminate when charging
Defective battery or charger.
Dirty terminal contact on
battery or charger
Contact your dealer Clean
contacts with dry clean cloth
No transmit or cannot select
high power
Some channels are low power
only Battery pack exhausted
Change to high power channel
Charge / replace the battery
Transceiver transmits without
pressing PTT button Buttons
seem to work intermittently
VOX has been enabled
Hold MEM button for 2 secs,
use UP or DOWN button &
select “off” to turn VOX
off
17
Channel Chart
18
Channel Chart
CH Channel Set S/D Frequency Channel Use
USA CAN INT Receive Transmit
1A XS 156.05000 PORT OPERATION AND COMMERCIAL
1X X D 160.65000 156.05000 PUBLIC, PORT OPERATIONS
2X X D 160.70000 156.10000 PUBLIC, PORT OPERATIONS
3A XS 156.15000 US OVERMENT, COAST UARD
3X X D 160.75000 156.15000 PUBLIC, PORT OPERATIONS
4A XS 156.20000 COMMERCIAL FISHIN
4XD 160.80000 156.20000 PUBLIC, PORT OPERATIONS
5A X X S 156.25000 PORT OPERATIONS, VTS IN SEATTLE
5XD 160.85000 156.25000 PUBLIC, PORT OPERATIONS
6X X X S 156.30000 INTER-SHIP SAFETY
7A X X S 156.35000 COMMERCIAL
7XD 160.95000 156.35000 PUBLIC, PORT OPERATIONS
8X X X S 156.40000 COMMERCIAL (INTER-SHIP ONLY)
9X X X S 156.45000 BOATER CALLIN CHANNEL
10 X X X S 156.50000 COMMERCIAL / INTERSHIP
11 X X X S 156.55000 COMMERCIAL / PORT OPERATIONS
12 X X X S 156.60000 PORT OPERATION
13 X X S 156.65000 INTER-SHIP NAVI ATION SAFETY
13 XS 156.65000 INTER-SHIP NAVI ATION SAFETY
14 X X X S 156.70000 PORT OPERATION
15 XR 156.75000 - SHIP MOVEMENT
15 X X S 156.75000 SHIP MOVEMENT \ INTERSHIP
16 X X X S 156.80000 INTERNATIONAL DISTRESS
17 X X X S 156.85000 STATE CONTROLLED \ INTERSHIP
18A X X S 156.90000 COMMERCIAL
18 XD 161.50000 156.90000 PORT OPERATION, SHIP MOVEMENT
19A X X S 156.95000 COAST UARD
19 XD 161.55000 156.95000 PORT OPERATION, SHIP MOVEMENT
20A XS 157.00000 PORT OPERATION
20 X X D 161.60000 157.00000 PORT OPERATION AND SHIPMENT
20 XD 161.60000 157.00000 PORT OPERATION AND SHIPMENT
21A X X S 157.05000 U.S. OV, CANADIAN COST UARD
21 XD 161.65000 157.05000 PORT OPERATION, SHIP MOVEMENT
Channel Chart
19
Channel Chart
CH Channel Set S/D Frequency Channel Use
USA CAN INT Receive Transmit
22A X X S 157.10000
22 XD 161.70000 157.10000 PORT OPERATION, SHIP MOVEMENT
23A XS 157.15000 U.S. OVERNMENT ONLY
23 X X D 161.75000 157.15000 PUBLIC CORRESPONDENCE
24 X X X D 161.80000 157.20000 PUBLIC CORRESPONDENCE
25 X X X D 161.85000 157.25000 PUBLIC CORRESPONDENCE
26 X X X D 161.90000 157.30000 PUBLIC CORRESPONDENCE
27 X X X D 161.95000 157.35000 PUBLIC CORRESPONDENCE
28 X X X D 162.00000 157.40000 PUBLIC CORRESPONDENCE
37 XS 157.85000 MARINA CHANNEL
60 X X D 160.62500 156.02500 PUBLIC \ PORT OPERATIONS
61A X X S 156.07500 -
61 XD 160.67500 156.07500 PUBLIC \ PORT OPERATIONS
62A XS 156.12500 -
62 XD 160.72500 156.12500 PUBLIC \ PORT OPERATIONS
63A XS 156.17500 PORT OPERATIONS
63 XD 160.77500 156.17500 PUBLIC \ PORT OPERATIONS
64A X X S 156.22500
64 X X D 160.82500 156.22500 PUBLIC \ PORT OPERATIONS
65A X X S 156.27500 PORT OPERATIONS
65 XD 160.87500 156.27500 PUBLIC \ PORT OPERATIONS
66A XS 156.32500 PORT OPERATIONS
66A XS 156.32500 PORT OPERATIONS
66 XD 160.92500 156.32500 PUBLIC \ PORT OPERATIONS
67 X X S 156.37500 INTERSHIP
67 XS 156.37500
68 X X X S 156.42500 NON-COMMERCIAL
69 X X X S 156.47500 INTERSHIP
70 X X X R 156.25000 - DI ITAL SELECTIVE CALLIN
71 X X X S 156.57500 PORT OPERATIONS
72 X X X S 156.62500 NON-COMMERCIAL \ INTERSHIP
73 X X X S 156.67500 INTERSHIP
Other manuals for HT20
1
Table of contents
Other Entel Transceiver manuals
Entel
Entel HX446E User manual
Entel
Entel HX400 series User manual
Entel
Entel HT644 Series Setup guide
Entel
Entel HT502 User manual
Entel
Entel HT900 Series User manual
Entel
Entel HX402 User manual
Entel
Entel HT544 Setup guide
Entel
Entel HT952 User manual
Entel
Entel DX Land Series Setup guide
Entel
Entel HT644 GMDSS User manual
