Entes EPM-04 User manual

1
MULTIMETER
EPM-04 / 04C / 04CS
INDEX
Precautions for Installation and Safe Usage.........................................................................1
Front Panel and Usage of Buttons.............................................................................1
General Information and Applications.............................................................................1
Using the Buttons............................................................................................2
Transformer Menu (Ctr / trn / Utr / ConnECtýon) ........................................................................2
User Password Settings (Pin Menu).......................................................................2
Activating the User Password (Pin Act Menu)......................................................2
Changing the User Password (Pin CHg Menu).........................................................2
Output Setting Menu ..............................................................................3
Current Setting Menu (SP Current Menu) ................................................................3
High/Low Current Settings (SP Cur Hý, SP Cur Lo Menu)..........................................3
Hysteresis Settings for High/Low Currents (I-H Hys, I-L Hys Menu).................3
Delay-on Time for High/Low Currents (I-H ond, I-L ond Menu)..............................3
Delay-off Time for High/Low Currents (I-H ofd, I-L ofd Menu).......................................3
Start and Auto Function (StArt dEL and Auto rSt Menu).........................................4
Instant Trip Function (CUr ýnS trP Menu).................................................................4
Voltage Setpoint Menu (SP Volt Menu) ..................................................................4
High/Low Voltage Settings (SP UoL Hý, SP UoL Lo Menu)..................................4
Hysteresis Settings for High/Low Voltages (U-H Hys, U-L Hys Menu)............5
Delay-on Time for High/Low Voltages (U-H ond, U-L ond Menu).............5
Delay-off Time for High/Low Voltages (U-H ofd, U-L ofd Menu)................5
Frequency Menu .........................................................................................................6
High/Low Frequency Settings (Frq Hý, Frq Lo Menu).............................................6
Hysteresis Settings for High/Low Frequencies (F-H HyS, F-L HyS) ..............................6
Delay-on / Delay-off Time for High/Low Frequencies (Frq ond, Frq oFd)....6
Phase Sequence (Voltage Sequence Menu) and Instant Trip (UoL ýnS trP Menu) Menu ........6
Erasing the Max., Min. and Max. Demand Values (Reset Menu)........................6
Demand Time for Demand and Max. Demand (dE tý Menu)....................................................7
Communication Menu (RS-485) .........................................................................7
Technical Features and Default Factory Settings ................................................................7
Connection Diagram ................................................................................................8
Output, SP Current and SP Volt menus are available for EPM-04C/04CS; RS-485 menu
is available for EPM-04CS.
Dimensions
General information
EPM-04/04C/04CS is designed for measuring Phase current, frequency, neutral
current and voltages (Phase-Phase and Phase-Neutral) in a
3-Phase system.
EPM-04C/04CS;
Device has 2 warning output which named as Out1 and Out2. (NO-Normally
Open) Please refer to Output menu for the functions of the relays.
Connection Diagram
MULTIMETER
EPM-04 / 04C / 04CS
8
A4034 / Rev.8
Available only for EPM-04C/04CS
Available only for EPM-04CS
Panel Cut-out
91mm
91mm
Type PR 19 (96x96)
70mm
Wall 79.3mm
90mm
Tip 19
50mm
1 ....... Phase LEDs:The LEDs turn on when the voltage value, which is applied
to one of the current inputs, reach 30 V
2 ....... First displays k LED (for L1). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
3 ....... Display for L1.
4 ....... Second displays k LED (for L2). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
5 ....... Display for
L2.
6 ....... Third displays k LED (for L3). Measurement parameter is the unit of kilo
when LED is turned on. ie: kA, kV
7 ....... Display for L3.
8 ....... Displays network frequency when Hz LED is turned on.
9 ....... kLED for neutral current. Measurement parameter is displayed in unit of
kilo when this LED is turned on.
10 ....... Display for neutral current and frequency (for EPM-04C/04CS).
11 ....... First warning output LED (Out1). Turned on when the output is activated.
12 ....... Second warning output LED (Out2). Turned on when the output is activated.
13 ....... Over current / voltage warning output for L1. (EPM-04C/04CS)
14 ....... Low current / voltage warning output for L1. (EPM-04C/04CS)
15 ....... Over current / voltage warning output for L2. (EPM-04C/04CS)
16 ....... Low current / voltage warning output for L2. (EPM-04C/04CS)
17 ....... Over current / voltage warning output for L3. (EPM-04C/04CS)
18 ....... Low current / voltage warning output for L3. (EPM-04C/04CS)
19 ....... Over current / frequency warning output for frequency and neutral current
(EPM-04C/04CS).
20 ....... Low current / frequency warning output for frequency and neutral current
(EPM-04C/04CS).
21 ....... Monitoring the L1, L2, L3 voltages values when V LED is turned on and
displays the frequency in 4th display.
22 ....... Monitoring the L1, L2, L3 currents values when A LED is turned on and
displays the neutral current in 4th display.
23 ....... Indicates the activating delta connection when is turned on. Neutral
current protection is disactivated even if is activated.
24 ....... HLED for max. instant current and voltage. Max. instant currents and
voltages are displayed when this LED is turned on.
25 ....... LLED for min. instant current and voltage. Min. instant currents and
voltages are displayed when this LED is turned on.
26 ....... MLED for max. demand. Max. demand values are displayed when this
LED is turned on.
27 ....... SET button. It is used to enter into the menu and to save the values.
If SET button is pressed for 3 sec. in the measurement mode, you can
enter into menus. This button is used for monitoring the max. (H), Min.
(L) current values and max. demand values in measurement mode.
28 ....... Downward selection button.
29 ....... Upward selection button.
30 .......
ESC button. Escaping from the menu. And also used for switching off the
Latch function while this function has activated.
Failure to follow those instructions will result in death or serious injury.
- Disconnect all power before working on equipment.
- When the device is connected to the network, do not remove the front
panel.
- Do not try to clean the device with solvent or the like.Only clean with dry
cloth.
- Verify correct terminal connections when wiring.
- Electrical equipment should be serviced only by your component seller.
- Only for rack panel mounting.
- Fuse must be F type and limit value doesnt exceed 1A.
- No responsibility is assured by manufacturer or any of its subsidiaries
for any consequences arising out of the use of this material.
~
Un
Out 2 Out 1
PK-26
I
L3
I
L2
I
L1
kl
K L
kl
K L
kl
K L
L1 L2 L3 N
GND A B TR
N
L1
L2
L3
1
A
Current Measurement
Inputs
Auxiliary
Supply
Relay output
System
Choose according to contactor current
Voltage Measurement
Inputs
RS485
70mm
79.3mm
90mm
Type PR 19 (96x96)
96mm
96mm
60.6
106.0
10.8 30.1 7.6 9.5
26.5 21.5
53.0
58.0
10.0
8.5
14.0
45.0
90.0
Type PK 26
*
**
12 4 63 5 7
8 9
10
19 20
30
27
28 29 25
24
26
21 22 23
12 11
17
18
15
16
13
14
2
3
4
5
6
7
8
9
10
15
17
19
18
16
13
14
2021 22 23
27
25
24
30
28
29
26
1 11 12
Note: For CT-25 models:
PR-19
kl
K L
kl
K L
kl
K L
IL1 IL2 IL3
Out 1 Out 2 GND B A TR
17 18 19 20
RS485
System
N
L1
L2
L3
1 A
L1
L2
L3
N
Current Measurement Inputs
Auxiliary
Supply
1 2 3 4 5 6
11 12
Output Relay
13 141516
Choose according to contactor current
7 8 9 10
Voltage Measurement Inputs
In CT-25 (120A) compliant models, only CT-25 current transformer
must be used.
Other type of CTs have a high risk to damage to device.
PRECAUTIONS FOR INSTALLATION AND SAFE USE
Summary of the Contact Operations
Voltage
Frequency
Current
Phase Seq.
Voltage
Frequency
Current
Under
Under
Under
Over
Over
Over
ALTERNATIVE 2 (H-L)
Current
Voltage
Frequency
Phase Seq.
Under/Over
Under/Over
Under/Over
ALTERNATIVE 1 (U-I)
Out 1
Out 2
-->
-->
-->
-->
-->
-->
-->
-->
-->
Valid for EPM-04C/04CS
k: When CT-25 is used, Red cable is connected to k terminal.
l: When CT-25 is used, Black cable is connected to l terminal.

User Password Setup:
In this menu user password is defined and activated.
You must define and activate a 4 digit user password for preventing device
settings from the illegal usage.
There are 2 sub menu in the Pýn menu.
ESC
SET
Press ESC button one by
one until SAU E SEt yES
is displayed.
Press SET button. When
SAU E SEt yES is
displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
This menu is used for activating the user password.
After the user password is activated for entering to the menus;
if the button is pressed for 3sec., while the instant values
are observed, user password is required. If the user password
is entered wrong device does not latch.
Note: Factory default value of user password is 0000
Activating the user password :
Press SET button for 3 sec. (trA Fo menu is displayed)
Find the Pýn menu by scrolling UP/DOWN buttons.
Press SET button (Pýn ACt IUA tE is displayed.)
SET
SET
SET
SET
2
MULTIMETER
EPM-04 / 04C / 04CS
Using the Buttons:
Some buttons and button groups are used for the below special function
when device is in the measurement mode (Without selecting a menu).
: Switching to the previous menu and escaping the programming
menu without saving the changes.
If the Latch function is turned on (EPM-04C/04CS); output will be
released when current(s) of system is exceed the defined values.
When the systems current turns back to normal values then output
doesnt react. Output can be trigged by the ESC button.
Monitoring for phase currents (A LED is activated) or phase voltages
(V LED is activated).
Used for changing the menu settings and parameters in programming
mode.
ESC
Commissioning the EPM-04C/04CS and menu setting:
Energize the device after implementing the connections respected to the
user manual.
Enter the proper menu settings in order to correct measurements and
applications.
Current Transformer Ratio Setup:
In this menu, current transformer ratio is set between 1 - 2000.
(This menu is not available in the devices which are adapted
with CT-25.)
Note: If the current transformer is not used between the system
and device, current transformer ratio is entered as 1.
Example: If a current transformer which has a ratio of 30/5A is
used between the system and device;
Current transformer ratio is entered as = 30/5 = 6.
SET : Used for monitoring min. / max. currents and voltages or max. demand
values. Switching to the programming mode if it pressed for 3 sec. In
programming mode; it is used for switching to the menu and saving
changes for the parameters.
SET
SET
ESC
SET
Press SET button; trA Fo Ctr menu is displayed (In CT-25 adapted
devices, trA Fo trn is displayed instead.)
(Not: trA Fo Utr or Con nEC týo n menu can be displayed by scrolling
the UP/DOWN buttons.)
Press SET button. Blinking the first digit of displayed value appears.
(trA Fo Utr or Con nEC týo n menu can be
programmed similarly.)
Enter the blinking digit value by scrolling
UP/DOWN buttons. Switch to the other
digits by using SET button, use ESC button
to go to previous digit. After you entered
the last digit press SET button, trA Fo Ctr
is displayed.
(Data is entered but is not
activated yet. For activating the new data
please follow the below steps).
SET
Press SET button for 3 sec. (trA Fo menu is displayed)
Voltage Transformer Ratio:
In this menu, voltage transformer ratio is set between 0000,1 - 4000,0.
Note: If the voltage transformer is not used between the system and
EPM-04, voltage transformer ratio is entered as 1.
Example: If a voltage transformer which has a ratio of 34.5KV/100V
is used between the system and device; Voltage transformer ratio
is entered as 345. (34500/100)
Selecting the Connection Type :
Connection can be selected as Star or Delta in this menu.
Phase-Neutral voltage monitoring can be implemented if the Star
connection is selected.
Phase-Phase voltage monitoring can be implemented if the Delta
connection is selected.
NOTE: When the Delta connection is selected, neutral current
monitoring can not be implemented even if it is activated.
SET
Press ESC button one by one until
SAU E SEt yES is displayed.
Press SET button. When SAU E
SEt yES is displayed (If you
press ESC button or choose no
option instead of yES then new
data will be cancelled and
previous value will be activated).
Press SET button. Blinking the first digit of displayed value appears.
Enter the blinking digit value by scrolling
UP/DOWN buttons. Switch to the other
digits by using SET button, use ESC button
to go to previous digit. After you entered
the last digit press SET button, Pýn ACt
oF is displayed.on can be selected by
scrolling UP/DOWN buttons.
(Data is
entered but is not activated yet. For
activating the new data please follow the
below steps).
SET
Programming the Turn Number:
This menu is available for CT-25 adapted devices. User defines the
turn number, which is the number of how many tour the current
cable has rounded into the CT-25. Numbers can be selected
between 1-20. Greater the number of turn means greater the
sensivity.
Press SET button 3 sec. (trA Fo menu is displayed.)
Find the Pýn menu
by scrolling
UP/DOWN buttons.
Press SET button
(Pýn ACt IUA tE is
displayed.)
SET
SET
Find the Pýn CHA n9E menu by scrolling UP/DOWN buttons.
Changing of User Password:
This menu is used for changing the user password .
Note: Factory default value for user password is 0000
Press ESC button one by
one until SAU E SEt
yES is displayed.
ESC
SET
MULTIMETER
EPM-04 / 04C / 04CS
7
Serial Communication (for EPM-04CS)
EPM-04S have MODBUS RTU communication protocol which is optical
isolated. All measured parameters can be transfer to the
computer.Transformer ratios and communication parameters can be
set. Saved values can be reset.
Programmed parameter for communication explained below.
Press SET button 3 sec.
(trA Fo menu is displayed.)
Find RS-485 menu by
scrolling UP/DOWN
buttons.
Press SET button (Adr ESS menu is
displayed.)
Enter the parameter values by scrolling UP/DOWN buttons
(001...247 / 2400...38400 /no, EUEn, odd).
Press SET button, Adr ESS / bAU d / PArýty is displayed.
(Data is
entered but is not activated yet. For activating the new data please
follow the below steps)
Press ESC button one by one until SAU E SEt yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
Find  Adr ESS / bAU d / PArýty menu
by scrolling UP-DOWN buttons.
SET
SET
SET
SET
ESC
SET
03H READ HOLD REGISTERS
06H PRESET SINGLE REGISTER
10H PRESET MULTIPLE REGISTERS
MODBUS RTU PROTOCOL ( Available only for EPM-04CS)
Standart MODBUS RTU message is shown below.
TADDRESS
8 BIT
FUNCTION
8 BIT
DATA
NX8BIT CRCH CRCL T
The T times corresponds to a time in which data must not be exchanged on the
communication bus to allow the connected devices to recognize the end of one
message and the beginning of another. This time must be at least 3.5 characters
at the selected baud rate. Adress range (1-247) is address of the connected
device. The data field contains data sent to the slave by master or data sent to
master by slave.
CRC is a error check method by using MODBUS RTU protocol and consists of 2
bytes.
Available Modbus Function:
Read Hold (03) function is used for reading measured values and set value. If any
request of reading of a register, excepted mentioned in register table, device will
send an error message.
For example to read phase1 voltage by sending a message to the device.
01 03 00 00 00 02 XX XX
01
Device address
03 Function
00 MSB address
00 LSB address
00 Register number MSB
02 Register number LSB
XX CRC MSB
XX CRC LSB
Preset Multiple Register(10H) is used to set more then one register at same time.
i.e. Setting CT as 100, Ut as 20.0;
01 10 80 00 00 02 04 00 C8 00 64 XX XX
01 Device Address
10 Function
80 MSB address
00 LSB address
00 Register number MSB
02 Register number LSB
04 Byte count
00 Data MSB
C8 Data LSB
00 Data MSB
64 Data LSB
XX CRC MSB
XX CRC LSB
Preset Single Register (06) function is used for writting the setting values, erasing
the energy counter or resetting the min., max., max. demand values.
Current transformers ratio can be set 0-2000, voltage transformer ratio can be set
1-40000.
i.e. Setting CT as 100;
01 06 80 02 00 64 XX XX
01 Device address
06 Function
80 MSB address
02 LSB address
00 Data MSB
64 Data LSB
XX CRC MSB
XX CRC LSB
Default Settings
Ctr - 0001
Utr - 0001
trn - 01
ConnEC - StAr
Frq Hý - 63
F-H HyS - 01.00
Frq Lo - 47
F-L HyS - 01.00
Frq ond - 003.0
Frq oFd - 003.0
bAUd - 9600
AddrES - 001
PArty - no
I-H L-1 - 5.000
I-H L-2 - 5.000
I-H L-3 - 5.000
I-H L-n - 5.000
I-H HyS- 0.100
I-H ond - 010.0
I-H oFd - 010.0
I-L L-1 - 0.000
Pin Act - oF
Pin - 0000
dt - 15
Out relay - U-I
Latch - oFF
Out Inverse - oFF
I-L L-2 - 0.000
I-L L-3 - 0.000
I-L L-n - 0.000
I-L HyS - 0.200
I-L ond - 010.0
I-L oFd - 010.0
Str Art dEL - 0.000
Auto reset - oFF
Cur ýns trip - oFF
U-H L-1 - 250
U-H L-2 - 250
U-H L-3 - 250
U-H HyS - 10
U-H ond - 003.0
U-H 0Fd - 003.0
U-L L-1 - 180
U-L L-2 - 180
U-L L-3 - 180
U-L HyS - 010.0
U-L ond - 003.0
U-L oFd - 003.0
VoL PHS SEq - oFF
VoL ýnS trýP - oFF
Press SET button. When
SAU E SEt yES is
displayed (If you press
ESC button or choose
no option instead of yES then new data will be cancelled and
previous value will be activated).
Technical Features
Rated Voltage (Un) :Please look at back side of the device.
Operating frequency (f) : 45-65 Hz
Auxiliary Supply Power Consumption : < 4 VA
Measuring Input Power Consumption : < 1 VA
Measurement range
Current : 0.05-5.5A~
: 2 - 120 A~ for CT-25
Voltage : 10-300 V AC (Phase - Neutral)
10-500 V AC (Phase - Phase)
Class : 1±1% digit [(10%-100%) x full scale]
Current Transformer Ratio : 1 ... 2000
Turn number for CT-25 adapted models : 1 .... 20
Voltage Transformer Ratio : 1 ... 4000
Max. Ctr x Vtr : 40.000
Communications (for EPM-04CS) : MODBUS RTU (RS 485)
Optic isolated, programmable
Baud Rate (for EPM-04CS) : 2400-4800-9600-19200-38400 bps
Address (for EPM-04CS) : 1-247
Parity (for EPM-04CS) : No, Odd, Even, 8 Data Bits, 2 Stop Bits
Output Relays(for EPM-04C/04CS) : 2 NO, 250 V AC, 5A, 1250 VA
Ambiant Temperature : -5°C; +50°C
Display : Red LED display
Dimensions : PR-19, PK-26
Equipment Protection Class : Double Insulation - Class II ( )
Box Protection Class : IP 40
Terminal Protection Class : IP 00
Box Material : Nonflamable
Mounting :Panel Mounted (PR-19)
Rail Mounted (PK-26)
Wire Cross section (for terminals) : 2.5 mm2
Weight : 0.56 kg (PR-19)
0.52 kg (PK-26)
Mounting Category : Class III
Panel Size : 91x91 mm (PR-19)
46x107 mm (PK-26)
Below measurement and application can be implemented with
EPM-04/04C/04CS.
1) Phase currents (IL), Neutral current (IN), Phase-Phase and Phase-Neutral
voltages can be measured .
2)
Existence of live phases can be observed by L1-L2-L3 LEDs on the device.
3) Min. and max. values for measured currents and voltages can be monitored
with only one button.
4) Max. demand values for measured current can be monitored, demand
time can be defined in dE tý menu.
5)
A 4 digit password can be defined from pin menu in order to prevent the
change of settings by unauthorized person.
6) Current transformer ratio is programmable. (1 .... 2000)
Current transformer ratio can be programmed in term of turn number
between 1.....20 (for CT-25 adapted devices).
Voltage transformer ratio is programmable. (0.1 .... 4000)
7) A user defined measurement range is used for monitoring the voltages
and currents; and Out1 & Out2 outputs are used for warning the user and
disconnecting the device in case of exceeding the limits of measurement
range.
8) In case of using the device for measuring the current values of motors etc.,
start delay (AUto rSt) function can be used for preventing the equipment
against the improper tripping, which is because of the demurrage current.
9) When a failure has occured use the Latch function, in order to keep the
device with saving its position (Latched), even if the failure conditions are
removed.
7th, 8th and 9th subjects are valid for EPM-04C/04CS.
Press SET button (001 / 9600 /no menu
is displayed.)
EPM-04CS COMPUTER CONNECTION
31 DEVICES CAN BE CONNECTED AT THE SAME LINE
GNDTR B A GNDTR B A
GNDTR B A
GND
B
A
RS485/RS232
CONVERTER
PC
...
EPM-04CS-1EPM-04CS-2EPM-04CS-31
MAX. 1200 mt.
MAX. 247 DEVICES CAN BE CONNECTED AT SAME LINE BY USING REPEATER.
GND
TR BA
...
EPM- 04CS -247
GND
B
A
RS485/RS232
CONVERTER
PC
...
EPM- 04CS -1EPM- 04CS -2EPM- 04CS -31REPEATER
MAX. 1200 mt. MAX. 1200 mt.
1
2.00
120
2
1.00
60.0
3
0.66
40.0
4
0.50
30.0
5
0.40
24.0
6
0.33
20.0
7
0.28
17.1
8
0.24
15.0
9
0.22
13.3
10
0.20
12.0
11
0.18
10.9
12
0.16
10.0
13
0.15
9.23
14
0.14
8.57
15
0.13
8.00
16
0.12
7.50
17
0.11
7.05
18
0.11
6.66
19
0.10
6.31
20
0.10
6.00
I-H L-1 - 100.0
I-H L-2 - 100.0
I-H L-3 - 100.0
I-H L-n - 100.0
I-H HyS - 2.000
I-H ond - 010.0
I-H oFd - 010.0
I-L L-1 - 0.000
I-L L-2 - 0.000
I-L L-3 - 0.000
I-L L-n - 0.000
I-L HyS - 2.000
I-L ond - 010.0
I-L oFd - 010.0
Str Art dEL - 0.000
Auto reset - oFF
Cur ýns trp - oFF
CT-25 type
.../5A type
For activating the user password, in the measurement mode
For activating the user password, in the measurement mode

3
MULTIMETER
EPM-04 / 04C / 04CS
Enter the new password by scrolling
UP/DOWN/SET buttons.
Enter the new password again by
scrolling UP/DOWN/SET buttons.
Press ESC button one by one until SAU E SEt yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
SET
SET
SET
ESC
SET
Enter the old password by scrolling
UP/DOWN/SET buttons.
SET
Output menu :
In this menu, using of oUt PUt function is explained with details below.
Out Relay function:
In this menu high-low or voltage-current monitoring is
determined for Out1 and Out2
outputs .
Note: When U-I (voltage-current) is selected; Out2 is
monitoring according to high or low voltage, frequency
values and phase sequence, Out1 is monitoring according
to high or low-current value.
When H-L (high-low) is selected; Out2 is monitoring
according to high values for voltage, frequency and low-
current, Out1 is monitoring according to low values for
voltage or current.
Please refer to page 8 for a summary of the contact
operations.
SET
ESC
SET
Press SET button, oUt rEL AY is displayed.
(Data is entered but is not
activated yet. Activating
the new data, please
follow the below steps)
Press ESC button one by
one until SAU E SEt
yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will be
cancelled and previous value will be activated).
Press SET button for 3 secs. (trA Fo menu is displayed).
Find oUt PUt menu by scrolling UP-DOWN buttons.
Press SET button oUt rEL AY / oUt LAt CH / oUT ýnU ErS
are displayed.
Press SET button, U-I blinks in 4th display. (oFF blinks for oUt LAt CH
and oUT ýnU ErS)
Select U-I or H-L by scrolling UP/DOWN buttons. (Select on or oFF for
oUt LAt CH and oUT ýnU ErS)
SET
SET
SET
Out Latch function:
If the Latch function is turned on;
OUT1-OUT2 outputs, which are released when a failure has
occured, keep remained at its position even if the failure is
over. Press button in order to triggering the relay when
the failure situation is removed.
If the Latch function is turned off;
Released outputs triggered at the end of delay off time when
the failure situation is removed.
ESC
Out inverse function:
If oUt ýnU ErS function is selected off;
Device is started with closed output contacts (out1, out2) in
the normal network conditions according to settings.
Otherwise devices started with open position of the contacts.
Default setting is off.
In this menu, max. current value for IL1 is
programmed.
The current value can be programmed
between;
0,001....5,000 A (Ctr = 1);
000,1....120,0 A (for CT-25 adapted device trn=1).
If the value is set to zero (0), the high current warning
is disabled (
I-H L-2 and I-H L-3 are programmed
similarly).
Refer SP Cur Hý for details.
In this menu, min. current value for IL1 is
programmed.
The current value can be programmed
between;
0,001....5,000 A (Ctr = 1);
000,1....120,0 A (for CT-25 adapted device trn=1).
If the value is set to zero (0), the low current warning
is disabled (
I-L L-2 and I-L L-3 are programmed
similarly).
Refer SP Cur Lo for details.
Note: Low Current values are programmed for IL1, IL2, IL3
and IN separately but I-L HyS (hysteresis), I-L ond (delay on
time) and I-L oFd (delay off time) values are common and they
have same valuesfor
IL1, IL2, IL3 and IN .
Delay time for activating the output for high current
warning. It is common for all currents (
IL1, IL2, IL3
and IN
)
The value can be programmed between 000,0 and
999,9 in terms of seconds.
( Refer SP Cur Hý for details.)
In this menu, required hysteresis current for high
current warning is programmed.
(same for IL1, IL2,
IL3 and IN.)
The current value can be programmed between;
0,001....2,500 A (Ctr = 1)
000,1....60,00 A (for CT-25 adapted device trn=1)
Refer SP Cur Hý for details.
In this menu, required hysteresis current for low
current warning is programmed.
(same for IL1, IL2,
IL3 and IN.)
The current value can be programmed between;
0,001....2,500 A (Ctr = 1)
000,1....60,00 A (for CT-25 adapted device trn=1)
Refer SP Cur Lo for details.
Press SET button, Pýn CHA n9E is displayed.
(Data is entered but is not activated yet. For activating the new data
please follow the below steps)
(Refer to Page-5 for Setting instructions)
MULTIMETER
EPM-04 / 04C / 04CS
In this menu, values of min., max., max. demand are erased. It
saves the instantaneously measured min. and max. values of the
device into its memory. Please kindly look at to the section of
FUNCTIONS OF BUTTONS for min. and max. values.
Note:
Measured electrical parameters which are saved to the
memory are not affected from the electric interruptions.
In the rES Et HL or rES Et dE menu; when you choose yES and
quit from all menus, if you confirm the changes, min., max. and
max. demand values of all parameters are erased at the same
time.
Press SET button for 3
sec. (trA Fo menu is
displayed.)
Find rES Et menu by
scrolling UP-DOWN
buttons.
Press SET button
(rES Et HL menu is displayed.)
Press SET button, rES Et dE / rES Et HL is displayed.
(Data is entered
but is not activated yet. Activating the new data, please
follow the below steps)
By using the UP-DOWN buttons, other
parameters can be selected. If you want to delete the value, choose yES,
if not choose no.
SET
SET
SET
Find rES Et dE / rES Et HL menu by
scrolling UP-DOWN buttons.
Press SET button (rES Et dE no
/ rES Et HL no is displayed.)
SET
Press ESC button one by one until SAU E SEt yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
SET
Max. Demand time can be defined between 01-60 minute in this
menu.
Press SET button for 3 sec.
(trA Fo menu is displayed.)
Find dE tý menu by scrolling UP-DOWN
buttons.
Press SET button. Blinking the first digit of
displayed value appears.
SET
ESC
SET
6
Setpoints for Frequency :
In this menu, Frequency range can be defiend
according to High and Low values of Frequency
measurement.
If the frequency of the system decreases the Frq Hý
value; output is switched on and LED is turned on.
(Refer to Output menu) and H LED for frequency is
turned off.
If the frequency of the system exceeds the high set
value, H LED relating to frequency blinks, output
switched off at the end of defined time (Frq Ond),
LED turned off (Refer to Output menu) and H LED for
frequency is turned on continuously.
If the frequency of system are under the high set value
(Frq Hý) as a hysteresis (F-H HyS), output is turned
on at the end of defined time (Frq oFd), LED is turned
on and H LED is turned off. at the end of the adjusted
time (Frq Ofd), output1 LED turns on and Hi LEDs
turn off.
If the frequency of the system is over the low set value
(Frq Lo), output is turned on, LED is turned on L LED
is turned off.
If the frequency of the system decreases the low set
value (Frq Lo), L LED blinks; output is turned off at
the end of defined time (Frq ond), LED is turned off
and L LED is turned on continuously.
If the frequency of the system is over the low set value
(F-L HyS) as a hysteresis (Frq Hys), output is turned
on at the end of defined time (Frq Ofd), LED is turned
on and L LED is turned off.
Note: System frequency is measured for L1.
There are 6 submenus.
Frq Hý, Frq Lo, F-H HyS, F-L HyS, Frq Ond, Frq oFd.
Max. value for system frequency, this value
can be defined between 0...70.00 Hz.
If the value is set to zero (0), the high
frequency warning is disabled.
Min. value for system frequency, this value
can be defined between 0...70.00 Hz.
If the value is set to zero (0), the low
frequency warning is disabled.
Note: Attention for common using of output
and relay LED for voltage.
In this menu, required hysteresis value can
be defined between 0...20.00 Hz. in order
to switching off the high frequency
warning.
Delay-on time for activation of alarm for high
and low frequency value.
This value can be defined between
000.0..999.9 in term of second..
Phase sequence can be turned on/off in this menu.
Inversed phase voltage which is applied to the
measurement inputs (L1-L2-L3), can be monitored.
Default setting is off. In order to let the device to warn
user in case of inversed phase situation please change
the off position as on in UoL PHS SEq menu. Phase
sequence function is disabled if the selection is
selected off.
L1, L2 and L3 LEDs blink and output output released
immediately when UoL PHS SEq is turned on and
phase sequence is inverted with any reason.
Note: Output 2 is used if U-I is selected and Output1
is used if H-L is selected in Output menu for the
Phase Sequence monitoring.
Press SET button. Blinking
the first digit of displayed
value appears.
Press ESC button one by one until SAU
E SEt yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
SET
SET
ESC
SET
SET
Press SET button, [(U-H ond / U-H oFd /
U-L ond / U-L oFd) / (I-H ond / I-H oFd /
I-L ond / I-L oFd)] are displayed.
(Data is
entered but is not activated yet. For activating
the new data please follow the below steps)
Enter the blinking digit value by scrolling UP/DOWN buttons. Switch
to the other digits by using SET button, use ESC button to go to
previous digit. After you entered the last digit press SET button, dE
tý is displayed.
(Data is entered but is not activated yet. For activating
the new data please follow the below steps).
SET
In this menu, high set points for current values are programmed.
Hý values for
IL1, IL2, IL3 and IN can be entered one by one.
If all the current values are under the Hý value; Out1 output is
switched on, LED of Output1 turned on and LED of H turned
off.
If any current (
IL1, IL2, IL3 and IN) exceeds the high set value,
H LED blinks. Output 1 output switches off at the end of the
defined time (
I-H ond ), Output 1 LED turned off and H LED
turned on continuously.
If all currents (
IL1, IL2, IL3 and IN) are below the high set value
(Hi) as a hysteresis current (
I-H HyS ), output 1 output switches on
at the end of the defined time (I-H Ofd), output 1 LED turned on
and H LED turned off.
This menu has 7 sub menus.
I-H L-1, I-H L-2, I-H L-3, I-H L-n, I-H HyS, I-H ond, I-H oFd
Note: High Current values are programmed for IL1, IL2, IL3
and IN
separately but I-H HyS (hysteresis), I-H ond (delay on
time) and I-H oFd (delay off time) values are common and they
have same valuesfor
IL1, IL2, IL3 and IN .
In this menu, low set points for current values are programmed.
Lo values for
IL1, IL2, IL3 and IN can be entered one by one.
If all the current values are over the Lo value; Out1 output is
switched on, LED of Output1 turned on and LED of L turned
off.
If any current (
IL1, IL2, IL3 and IN) exceeds the low set value,
L LED blinks and Output 1 output switches off at the end of the
defined time (
I-L ond ), Output 1 LED turned off and L LED
turned on continuously.
If all currents (
IL1, IL2, IL3 and IN) are over the low set value (Lo)
as a hysteresis current (
I-L HyS ), output 1 output switches on at
the end of the defined time (I-L Ofd), output 1 LED turned on and
L LED turned off.
This menu has 7 sub menus.
I-L L-1, I-L L-2, I-L L-3, I-L L-n, I-L HyS, I-L ond, I-L oFd
Delay time for activating the output for low current
warning. It is common for all currents (
IL1, IL2, IL3
and IN
)
The value can be programmed between 000,0 and
999,9 in terms of seconds.
( Refer SP Cur Lo for details.)
Delay time for releasing the output for high current
warning. It is common for all currents (
IL1, IL2, IL3
and IN
)
The value can be programmed between 000,0 and
999,9 in terms of seconds.
( Refer SP Cur Hý for details.)
Delay time for releasing the output for low current
warning. It is common for all currents (
IL1, IL2, IL3
and IN
)
The value can be programmed between 000,0 and
999,9 in terms of seconds.
( Refer SP Cur Lo for details.)
Enter the value by scrolling
UP/DOWN buttons and
confirm it by SET button. Press ESC
button for switching the previous menu.
In this menu, required hysteresis value can
be defined between 0...20.00 Hz. in order
to switching off the low frequency warning.
Delay-off time for disactivation of alarm for
high and low frequency value.
This value can be defined between
000.0..999.9 in term of second..
Reset function.
Demand Time.
In case of using the device for measuring the current values
of motors etc., start delay (AUto rSt) function can be used for
preventing the equipment against the improper tripping, which
is because of the demurrage current. If the system current
decreases 50mAxCtr then start-up delay is resetted and related
output detect the system automatically. This feature must be
observed in case of using this function.

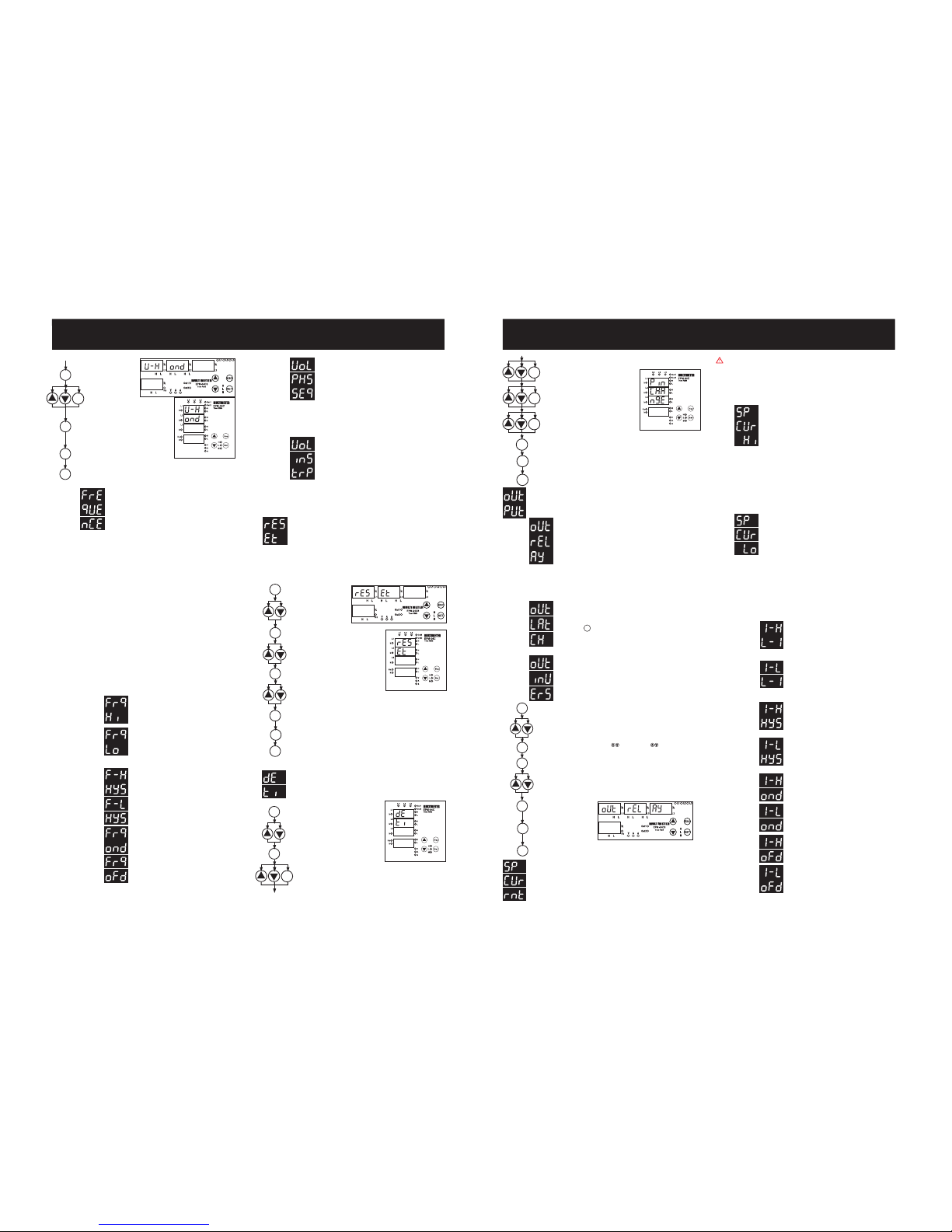

Programming SP CUr rnt :
Using purposes of submenus of SP CUr rnt explained below
with details.
Instant Tripping Function.
At position ON, if any VL-L / VL-N values exceeds 1.5
times of high voltages
(UoL Hý L-1/L-2/L-3) values;
the voltage output switches OFF instantly, output
LED turned OFF and H LED, for related voltage, is
turned ON . (Please refer to Output.)
If any phase voltage decrease 0.5 times low voltages
(UoL L-1/L-2/L-3) ; the voltage output switches OFF
instantly, output LED turned OFF and Lo LED, for
related voltage, is turned ON .
(Refer to Page-4 for CUr ýnS trP, AUt o rSt and
UoL ýnS trP)

MULTIMETER
EPM-04 / 04C / 04CS
Press SET button for 3 sec.
(trA Fo menu is displayed.)
Find 
SP CUr rnt / SP UoL t
menu by scrolling
UP-DOWN buttons.
SET
SET Press SET button, SP CUr Hý / SP UoL Hý
menu is displayed.
Press SET button [(I-H L-1/I-L L-1) /
(U-H L-1/U-L L-1) menu is displayed.]
Press SET button. Blinking the first digit of
displayed value appears.
Press ESC button one by one until SAU E SEt yES is displayed.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
SET
SET
ESC
SET
Find [(SP CUr Hý/SP CUr Lo) / (SP UoL
Hý/SP UoL Lo)]
menu by scrolling UP-
DOWN buttons.
Auto Reset Function :
If Auto Reset function is selected as ON;
Each time that the current decreases 50mAxCtr value,
start-up delay time is reset and when the current value
increases 50mAxCtr, start-up delay function is
activated.
If Auto Reset function is selected as OFF;
If the power supply is switched off and then switched
on, start-up delay function is activated.
Start-up delay:
Start Delay Time is used to prevent from faulty
switchings caused by motor start-up current
(demurrage current).
Out1 remain switched ON in this time period (When
U-I is selected); In this time period, even if the current
value exceeds the limits device doesnt sense it as a
warning. The device doesnt give a warning even if the
current value isnt in the setting interval.
This function is used with Auto Reset function.
Press SET button. When SAU E SEt yES is displayed (If you press
ESC button or choose no option instead of yES then new data will
be cancelled and previous value will be activated).
Find  SP CUr rnt / SP UoL t 
menu by scrolling UP-DOWN buttons.
Press SET button (SP CUr Hý / SP Uol Hý
menu is displayed.)
Press SET button [(CUr ýnS trP on /
AUt o rSt on) / UoL ýnS trP off] is displayed.
Select on in order to activating the instant trip function (AUt o rSt),
select off in order to disactivating the instant trip function, by scrolling
UP/DOWN buttons.
Press SET button, [(CUr ýnS trP / AUt o rSt) / UoL ýnS trP] is displayed.
(Selection is entered but is not activated yet. For activating the new
selection, please follow the below steps).
Press ESC button one by one until SAU E SEt yES is displayed.
SET
SET
SET
SET
ESC
SET
Find [(CUr ýnS trP / AUt o rSt) / UoL ýnS trP]
menu by scrolling UP-DOWN buttons.
Press SET button for 3 sec.
(trA Fo menu is displayed)
In this menu, high set points for voltage values are
programmed. Hý values for Phase-Neutral / Phase-
Phase (according to Star / Delta selection) can be
entered one by one.
Note: High Voltage values are programmed for
(Phase-Neutral / Phase-Phase) separately but Hý
HyS (hysteresis) and Hý ond (delay on time) and
Hý oFd (delay off time) values are common; these
parameters have same valuesfor Phase-Neutral /
Phase-Phase.
When Connection type (Star/Delta) is selected (refer
to Connection menu), device will change the
U-H L-1, U-H L-2 and U-H L-3 values automatically
according to connection.
If all the voltage values (Phase-Neutral / Phase-Phase)
are under the Hý value; releated relay is switched on,
its LED turned on (please refer Output) and releated
H LEDs are turned off.
If all the voltage values (Phase-Neutral / Phase-Phase)
are over the Hý value, H LED blinks and releated
output
is switched off at the end of delay on time (U-H ond),
its LED turned off (please refer Output) and releated
H LEDs are turned on.
If all voltage (Phase-Neutral / Phase-Phase) are below
the high set value (Hi) as a hysteresis voltage (
U-H HyS ),
releated
output is switched on at the end of the delay
off time (U-H oFd), its LED turned on (please refer
Output) and H LED is turned off.
Programming SP UoL t :
Using purposes of submenus of SP UoL t explained below with
details.
Example : If the connection type is selected as Star
(with neutral); U-H HyS=10V U-H L-1=250V,
U-H L-2=255V, U-H L-3=260V
and then this connection type is selected as Delta
(without neutral), device will change the values after
calculated them according to Phase-Phase values.
New values;
U-H L-1 (L1-L2 Phase to phase voltage) = 433 V
U-H L-2 (L2-L3 Phase to phase voltage) = 441 V
U-H L-3 (L3-L1 Phase to phase voltage) = 450 V
U-H-HyS = 10 V.
There are 6 submenus.
U-H L-1, U-H L-2, U-H L-3, U-H HyS,
U-H ond, U-H oFd.
4

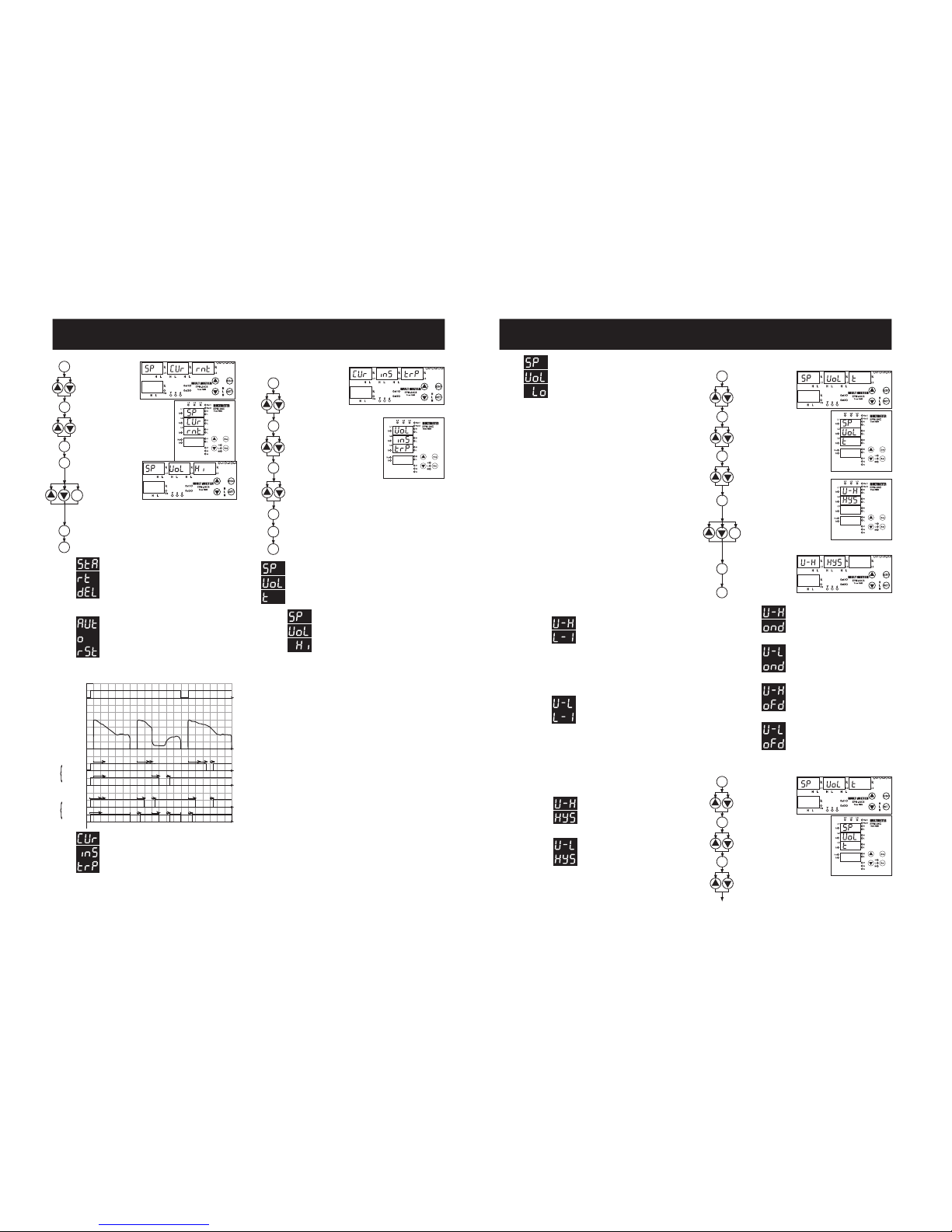

Programming CUr ýnS trP, AUt o rSt and UoL ýnS trP
Programming the SP CUr Hý, SP CUr Lo, SP UoL Hý and SP UoL Lo.
Enter the blinking digit
value by scrolling
UP/DOWN buttons.
Switch to the other digits
by using SET button, use
ESC button to go to previous digit. After you entered the last digit
press SET button, I-H L-1/I-L L-1) / (U-H L-1/U-L L-1 is displayed.
(Data is entered but is not activated yet. For activating the new data
please follow the below steps).
SET
Instant Tripping Function.
At position ON, if any phase current ( IL1, IL2, IL3 and
IN
) exceeds 1.5 times of high (I-H L-1, I-H L-2, I-H L-
3, I-H L-n)
values, the current output  switches off
instantly, output LED turned off and H LEDs for related
currents turned on. (Please refer to Output.)
At position OFF, if any phase current (
IL1, IL2, IL3 and
IN
) decrease 0.5 times of low (I-L L-1, I-L L-2, I-L L-3,
I-L L-n)
values, the current output  switches off
instantly, output LED turned off and L LEDs for related
currents turned on. (Please refer to Output.)
At position OFF, instant tripping function is cancelled.
MULTIMETER
EPM-04 / 04C / 04CS
Low value for L1, when the Star is
selected; low value for L1-L2, when the
Delta selected can be defined in this
menu.
0....300 for Star connection and
0....500 for Delta connection can be
defined.
If the value is set to zero (0), the high
voltage warning is disabled. Refer
SP
Uol Lo for details.
Note: L2 and L3 phases can be
programmed similarly.
(Refer to Page-4 for SP CUr Hý, SP CUr Lo,
SP UoL Hý ve SP UoL Lo)
When Connection type (Star/Delta) is selected (refer
to Connection menu), device will change the
U-L L-1, U-L L-2 and U-L L-3 values automatically
according to connection.
In this menu, low set points for voltage values are
programmed. Lo values for Phase-Neutral / Phase-
Phase (according to Star / Delta selection) can be
entered one by one.
Example : If the connetion type is selected as Star
(with neutral); U-L-Hys=10V
U-L L-1=180V, U-L L-2=175V, U-L L-3=170V
and then this connection type is selected as Delta
(without neutral), device will change the values after
calculated them according to Phase-Phase values.
New values;
U-L L-1 (L1-L2 Phase to phase voltage) = 311 V
U-L L-2 (L2-L3 Phase to phase voltage) = 303 V
U-L L-3 (L3-L1 Phase to phase voltage) = 294 V
U-L-HyS = 10 V.
If all the voltage values (Phase-Neutral / Phase-Phase)
are over the Lo value; releated
output is switched on,
its LED turned on (please refer Output) and releated
L LEDs are turned off.
If any of the voltage valueses (Phase-Neutral / Phase-
Phase) decrease the Lo value, L LED blinks and
releated
output is switched off at the end of delay
on time (U-L ond), its LED turned off (please refer
Output) and releated L LED is turned on continuously.
If all voltage (Phase-Neutral / Phase-Phase) values
increase the low set value (Lo) as a hysteresis voltage
(
U-L HyS ), releated relay is switched on at the end of
the delay off time (U-L oFd), its LED turned on (please
refer Output) and L LED is turned off.
Note: Low Voltage values are programmed for (Phase-
Neutral / Phase-Phase) separately but U-L HyS
(hysteresis), U-L ond (delay on time) and U-L oFd
(delay off time) values are common; these parameters
have same valuesfor Phase-Neutral / Phase-Phase.
High value for L1, when the Star is
selected; high value for L1-L2, when the
Delta selected can be defined in this
menu.
0....300 for Star connection and
0....500 for Delta connection can be
defined.
If the value is set to zero (0), the high
voltage warning is disabled. Refer
SP
Uol Hý for details.
Note: L2 and L3 phases can be
programmed similarly.
In this menu, required hysteresis voltage
for high voltage warning is programmed.
(same for Phase-Neutral/Phase-Phase.)
0....200V for Star connection and
0....200V for Delta connection can
be defined.
Refer SP UoL Hý for details.
In this menu, required hysteresis voltage
for low voltage warning is programmed.
(same for Phase-Neutral/Phase-Phase.)
0....200V for Star connection and
0....200V for Delta connection can
be defined.
Refer SP UoL Lo for details.
Press SET button for 3 sec.
(trA Fo menu is displayed.)
SET
SET Press SET button (SP UoL Hý / SP CUr Hý
menu is displayed.)
Press SET button [(U-H L-1/U-L L-1) / (I-H
L-1/I-L L-1) menu is displayed.]
Press SET button. Blinking the first digit of
displayed value appears.
Press ESC button one by
one until SAU E SEt yES
is displayed.
SET
SET
ESC
SET
Find [(SP UoL Hý / SP UoL Lo) / (SP CUr Hý
/ SP CUr Lo)]
menu by scrolling
UP-DOWN buttons
Find [(U-H HyS / U-L HyS) / (I-H HyS / I-L HyS)] menu by scrolling
UP-DOWN buttons.
Delay on time for activating the output for
high voltage warning. It is common for all
voltages (same for Phase-Neutral/Phase-
Phase.)
The value can be programmed between
000,0 and 999,9 in terms of seconds.
( Refer SP UoL Hý for details.)
Delay on time for activating the output for
low voltage warning. It is common for all
voltages (same for Phase-Neutral/Phase-
Phase.)
The value can be programmed between
000,0 and 999,9 in terms of seconds.
( Refer SP UoL Lo for details.)
Delay off time for activating the output for
high voltage warning. It is common for all
voltages (same for Phase-Neutral/Phase-
Phase.)
The value can be programmed between
000,0 and 999,9 in terms of seconds.
( Refer SP UoL Hý for details.)
Delay off time for activating the output for
low voltage warning. It is common for all
voltages (same for Phase-Neutral/Phase-
Phase.)
The value can be programmed between
000,0 and 999,9 in terms of seconds.
( Refer SP UoL Lo for details.)
5
Programming the U-H HyS, U-L HyS, I-H HyS, I-L HyS
Press SET button for 3 sec.
(trA Fo menu is displayed.)
SET
SET Press SET button (SP UoL Hý / SP CUr Hý
menu is displayed.)
Press SET button [(U-H L-1 / U-L L-1) /
(I-H L-1 / I-L L-1) menu is displayed.]
SET
Find [(SP UoL Hý / SP UoL Lo) / (SP CUr Hý
/ SP CUr Lo)] menu by scrolling
UP-DOWN buttons.
L1
L2
L3
Find [(U-H ond / U-H oFd / U-L ond / U-L oFd) / (I-H ond / I-H oFd / I-L
ond / I-L oFd)]
menu by scrolling UP-DOWN buttons.
Programming the U-H ond, U-H oFd, U-L ond, U-L oFd,
I-H ond, I-H oFd, I-L ond, I-L oFd.
Enter the blinking digit value by
scrolling UP/DOWN buttons.
Switch to the other digits by using
SET button, use ESC button to go to
previous digit. After you entered the last
digit press SET button,
[(U-H HyS / U-L HyS) / (I-H HyS / I-L HyS)] is displayed. (Data is
entered but is not activated yet. For activating the new data please
follow the below steps).
SET
Please refer to below graphics for the operating
principle of
StA rt dEL and Aut o rSt functions
There are 6 submenus.
U-LL-1, U-L L-2, U-L L-3, U-L HyS,
U-L ond, U-L oFd.
Find  SP UoL t / SP CUr 
menu by scrolling
UP-DOWN buttons.
Press SET button. When
SAU E SEt yES is
displayed (If you press ESC button or choose no option instead of yES
then new data will be cancelled and previous value will be activated).
Find  SP UoL t / SP CUr 
menu by scrolling
UP-DOWN buttons.
Hi ond = 10 sn.
Lo ond = 10 sn.
Hi ofd = 5 sn.
Lo ofd = 5 sn.
Start = 15 sn.
L1 Hi = 3A
L1 Lo = 1A
Ins. trp = on
Start Start Start
t(s)
Start
Start
Start
5A
4A
3A
2A
1A
Un (on)
Un (off)
I L1
Hi
ond
Hi
ond
Hi
ofd
Hi
ond
t(s)
t(s)
t(s)
t(s)
t(s)
Hi
ond
Hi
ond
Hi
ofd Hi
ofd
Lo
ofd
Ins.
trp.
Lo
ond
Lo
ofd
Lo ond
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190200
Lo
ofd
Lo
ofd
Ins.
trp.
Switch-on
Switch-off
Switch-on
Switch-off
Out1
Out2
Auto
on
Auto
of
Out1
Out2
Switch-on
Switch-off
Switch-on
Switch-off
