Entrematic Ditec ION4 User manual

Ditec ION4-ION6
Sliding gates
(translation of the original instructions)
www.entrematic.com
IP2288EN • 2019-04-10
Technical Manual

2
IP2288EN
EN
Contents
Subject Page
1. General safety precautions 3
General safety precautions for the user 4
2. Declaration of incorporation of partly completed machinery 5
2.1 Machinery Directive 5
3. Technical specifications 6

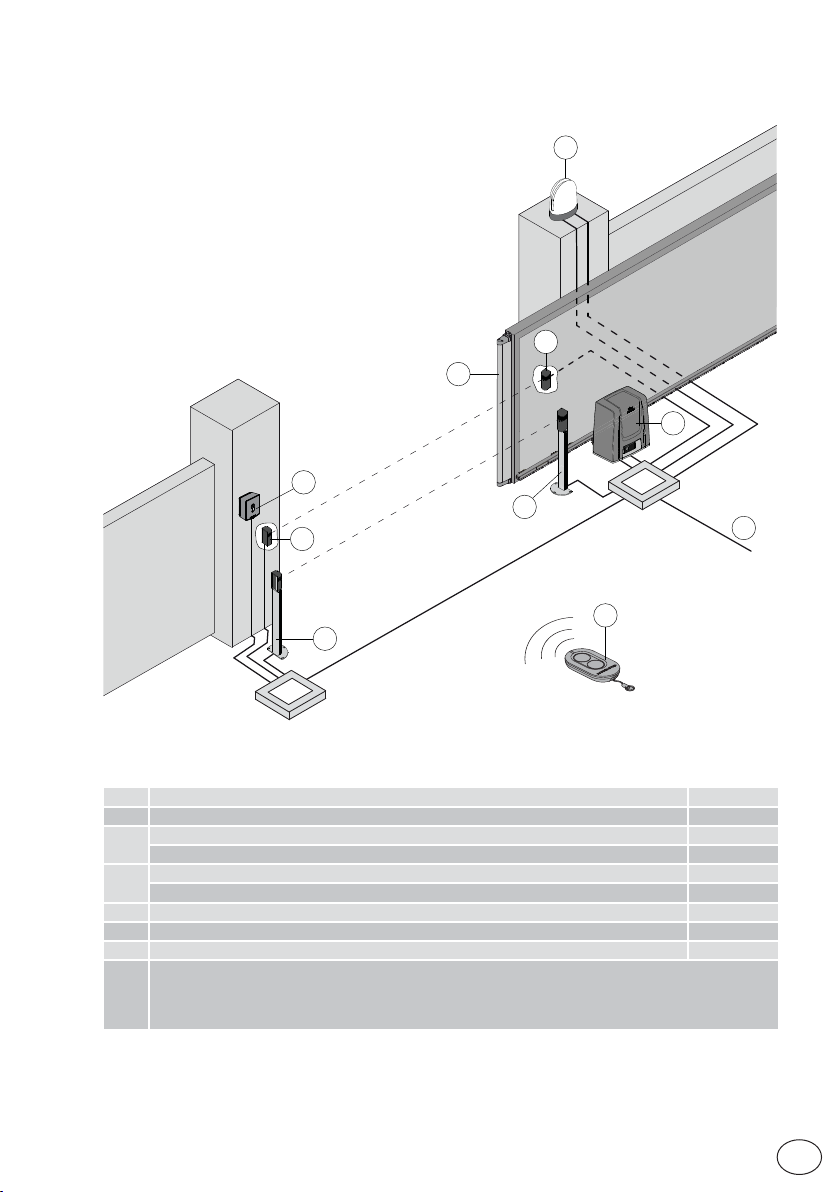

4. Standard installation 7

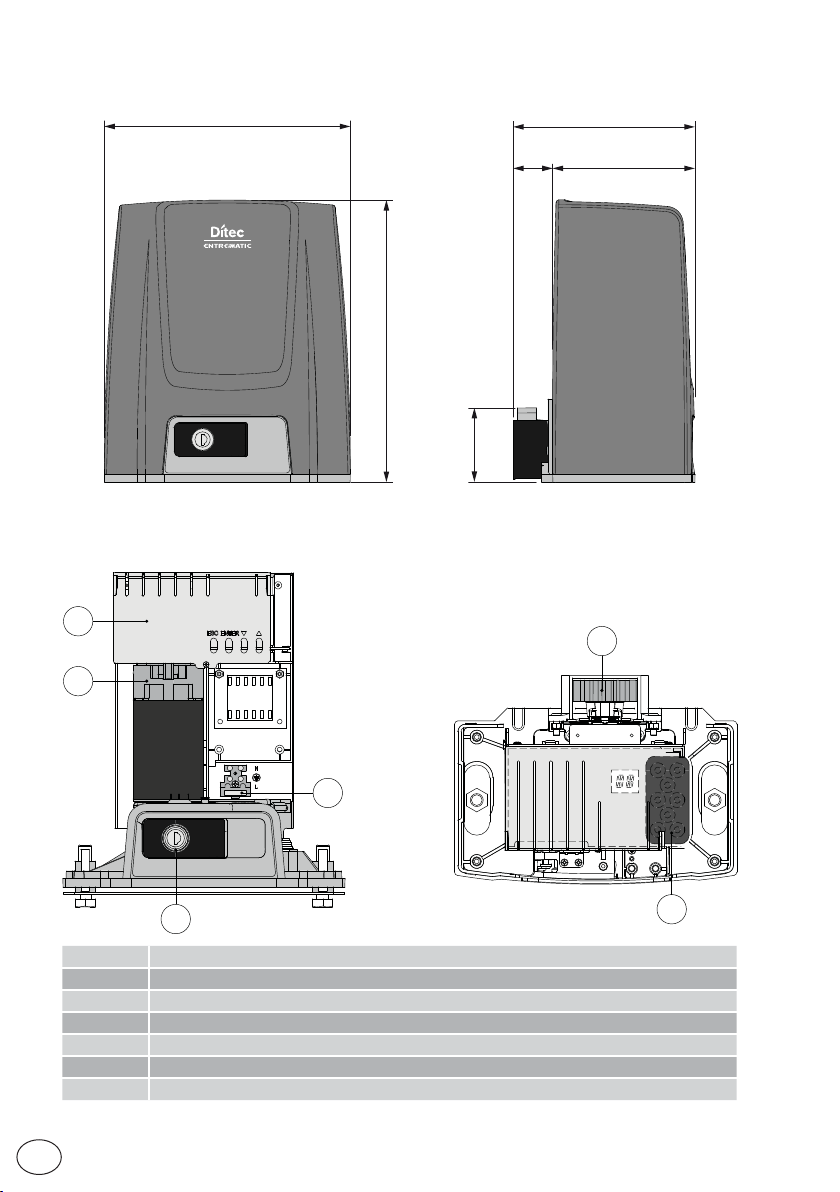

5. Dimensions 8
6. Main components 8
7. Installation 9
7.1 Preliminary checks 9
7.2 Base plate position 9

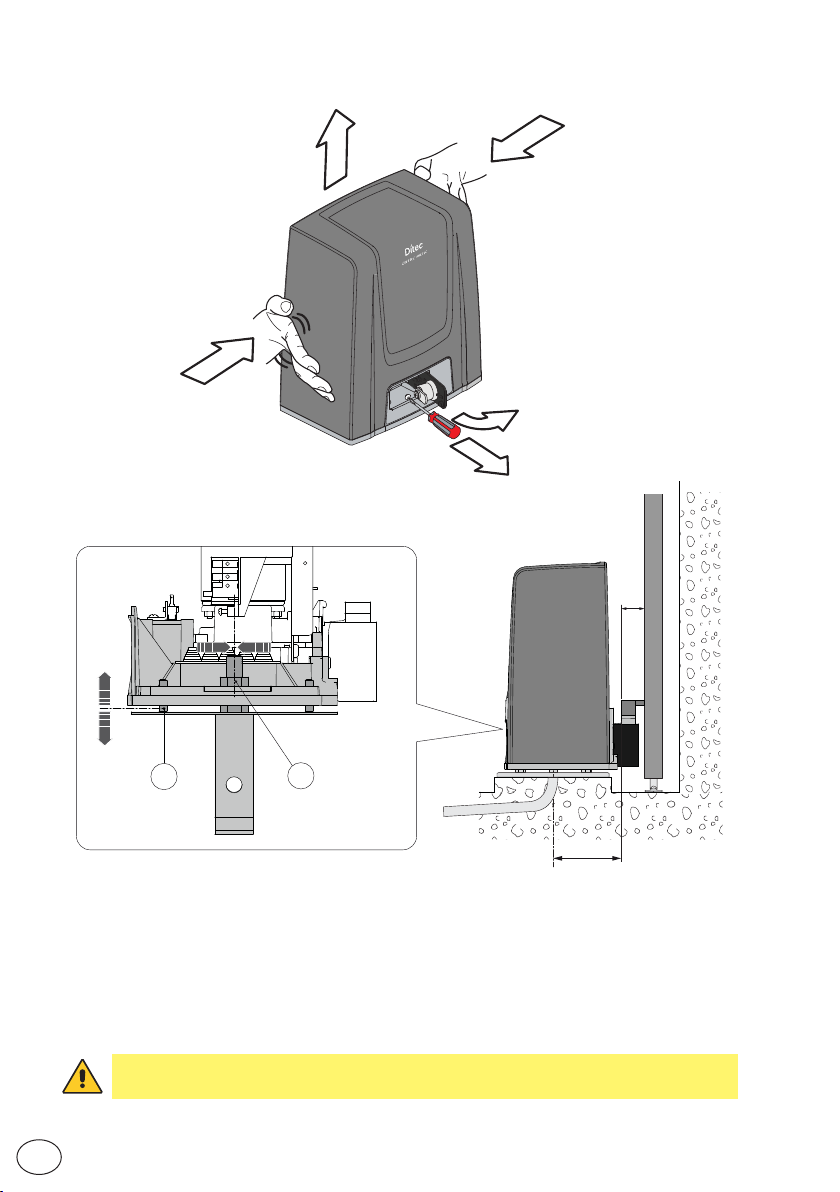

7.3 Gearmotor installation 10
7.4 Rack installation 11
7.5 Operation with virtual encoder 12
7.6 Installation of optional accessories 12
7.6.1 Magnetic limit switches 12
7.6.2 Battery kit 12
7.6.3 Remote release handle 12
8. Electrical connections 13
9. LCU48 card 14
10. Using of the menus 15
10.1 Switching the display on and off 15
10.2 Navigation keys 15

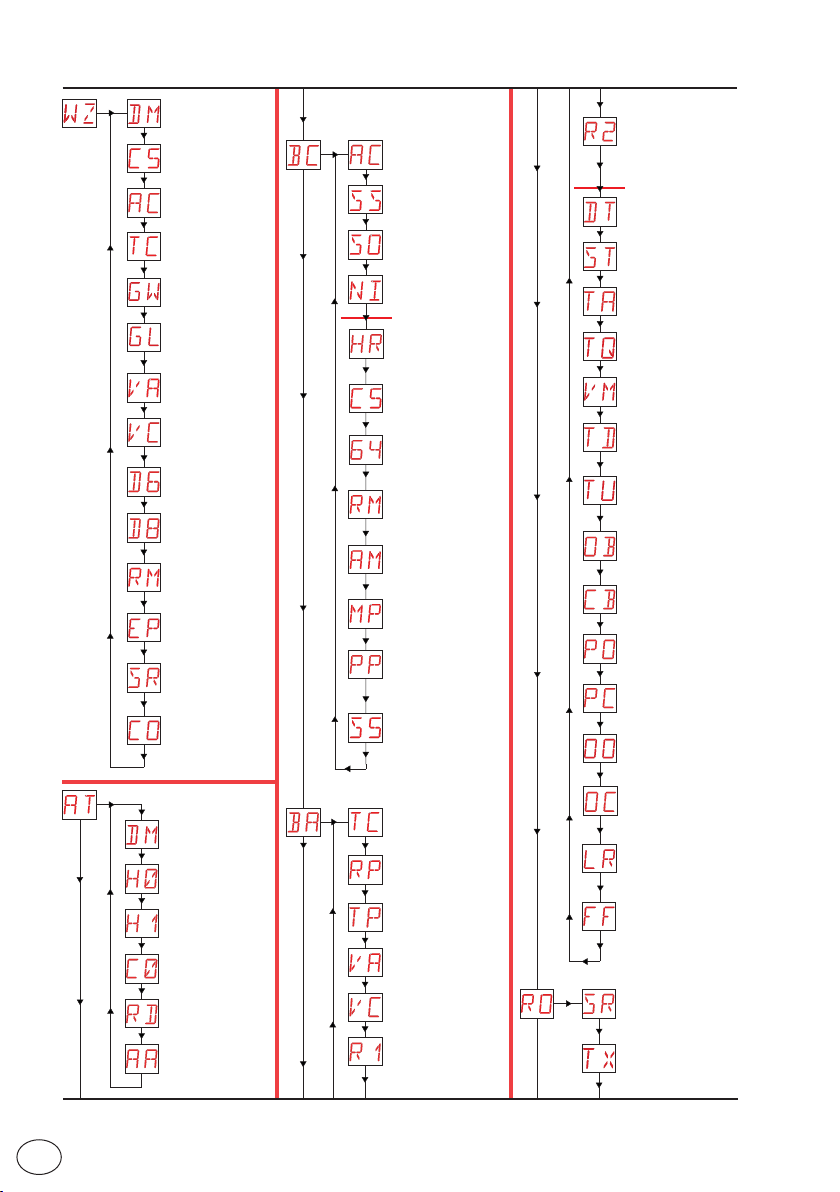

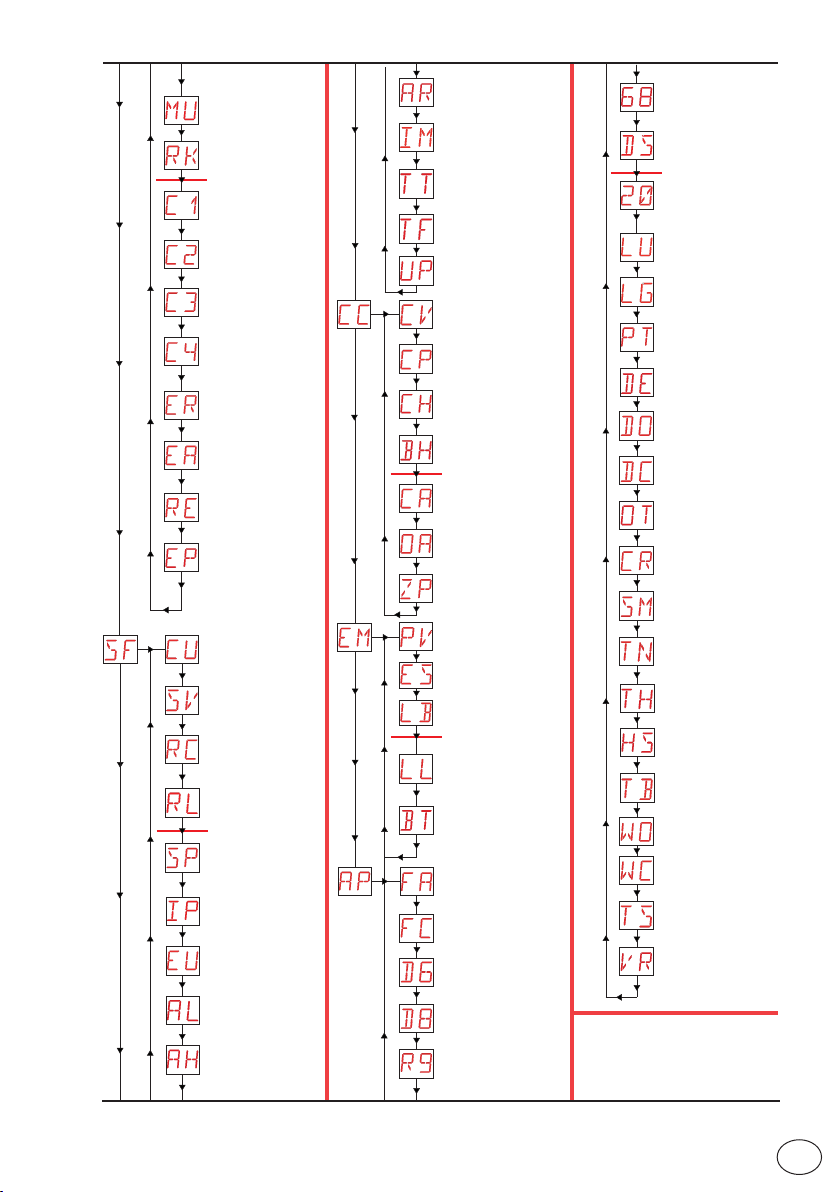

10.3 Menu map 16
11. Product start-up 18

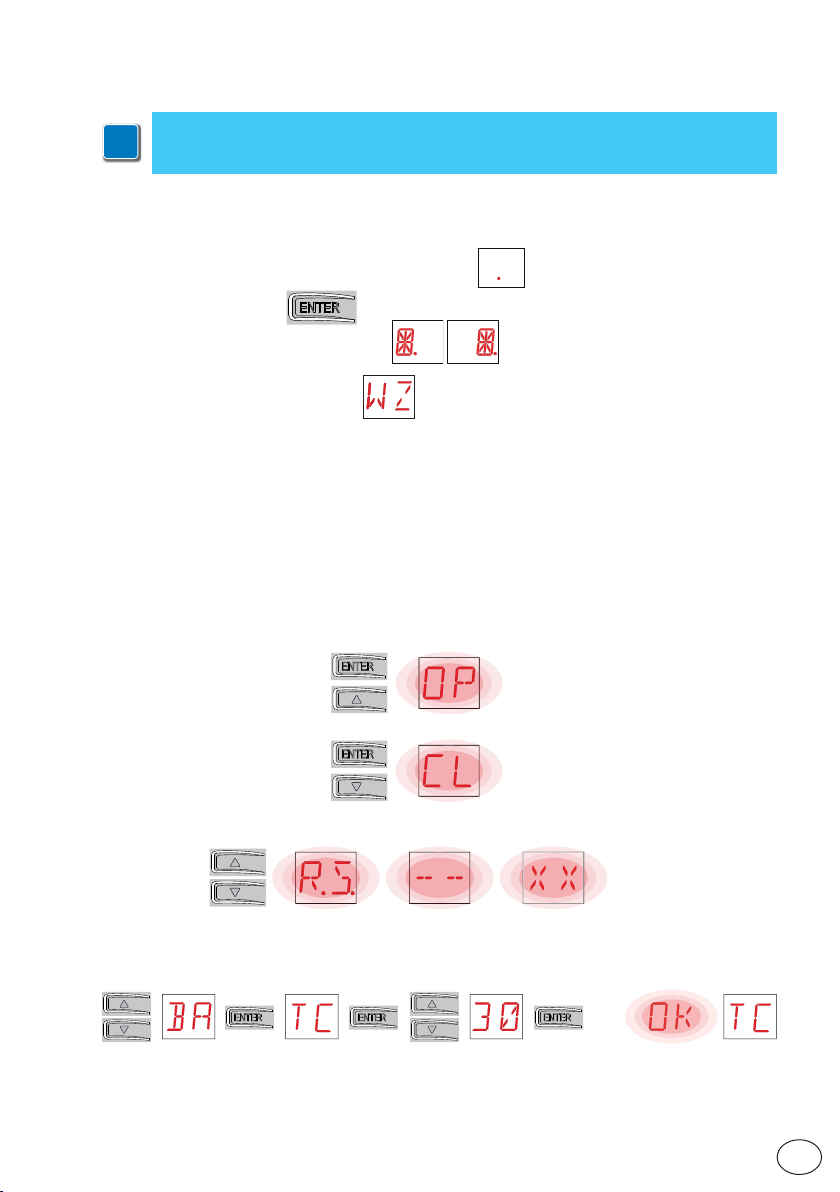

11.1 WZ configuration wizard menu 18
12. Commands 20
12.1 SOFA1-SOFA2 or GOPAVRS self-controlled safety edge 21
13. Outputs and accessories 21
14. Jumper setting 22
15. Adjustments 23
15.1 Main menu 23
15.2 Second level menu - AT (Automatic Configurations) 24
15.3 Second level menu - BC (Basic Configurations) 25
15.3.1 Additional BC level parameters that can be configured (available with AT → AA enabled) 26
15.4 Second level menu - BA (Basic Adjustment) 27
15.4.1 Additional BA level parameters that can be configured (available with AT → AA enabled) 28
15.5 Second level menu - RO (Radio Operations) 30
15.5.1 Additional RO level parameters that can be configured (available with AT → AA enabled) 31
15.6 Second level menu - SF (Special Functions) 32
15.6.1 Additional SF level parameters that can be configured (available with AT → AA enabled) 33
15.7 Second level menu - CC (Cycle Counter) 34
15.7.1 Additional CC level parameters that can be configured (available with AT → AA enabled) 35
15.8 Second level menu - EM (Energy Management) 35
15.8.1 Additional EM level parameters that can be configured (available with AT → AA enabled) 36
15.9 Second level menu - AP (Advanced Parameters) 36
15.9.1 Additional AP level parameters that can be configured (available with AT → AA enabled) 38
16. Signals visualised on the display 40
16.1 Display of automation status 40
16.2 Display of safety devices and commands 42
16.3 Display of alarms and faults 43
17. Troubleshooting 46

3
IP2288EN
EN
1. General safety precautions
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed by qualified person-
nel, in accordance with Good Working Methods and in compliance with the current regulations.
Read the instructions carefully before installing the product.
Bad installation could be dangerous.
This manual and those for any accessories can be downloaded from www.entrematic.com.
The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environ-
ment or left within reach of children, as they are a potential source of danger.
Before installing the product, make sure it is in perfect condition.
Do not install the product in explosive areas and atmospheres: the presence of inflammable
gas or fumes represents a serious safety hazard.
Before installing the motorisation device, make all the necessary structural modifications to
create safety clearance and to guard or isolate all the crushing, shearing, trapping and general
hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability. The mo-
torisation device manufacturer is not responsible for failure to observe Good Working Methods
when building the frames to be motorised, or for any deformation during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed taking into
account: applicable laws and directives, Good Working Methods, installation premises, system
operating logic and the forces developed by the motorised door or gate.
The safety devices must protect against crushing, cutting, trapping and general danger areas
of the motorised door or gate.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motorised door or gate.
When necessary, connect the motorised door or gate to an effective earthing system that com-
plies with the current safety standards.
During installation, maintenance and repair operations, cut off the power supply before
opening the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The electronic parts must be handled using earthed antistatic conductive arms. The manu-
facturer of the motorisation declines all responsibility if component parts not compatible
with safe and correct operation are fitted.
Only use original spare parts for repairing or replacing products.
The installer must supply all information concerning the automatic, manual and emergency op-
eration of the motorised door or gate, and must provide the user with the operating instructions.
The installer must ensure that the temperature range indicated in the technical specifications
is compatible with where the gate will be used.
Please follow these instructions. Failure to observe the information given in
this manual may lead to personal injury or damage to the equipment.
Keep these instructions for future reference.

4
IP2288EN
EN
These precautions are an integral and essential part of the product
and must be supplied to the user.
Read them carefully since they contain important information on safe
installation, use and maintenance.
These instructions must be kept and forwarded to all possible future
users of the system.
This product must only be used for the specific purpose for which it
was designed.
Any other use is to be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for any damage caused
by improper, incorrect or unreasonable use.
Avoid operating in the proximity of the hinges or moving mechanical
parts. Do not enter within the operating range of the motorised door
or gate while it is moving.
Do not obstruct the motion of the motorised door or gate, as this may
cause a dangerous situation.
The motorised door or gate may be used by children over the age of 8
and by people with reduced physical, sensorial or mental abilities, or
lack of experience or knowledge, as long as they are properly super vised
or have been instructed in the safe use of the device and the relative
hazards.
Children must be supervised to make sure they do not play with the
device, nor play/remain in the sphere of action of the motorised door
or gate.
Keep remote controls and/or any other command devices out of the
reach of children, to avoid any accidental activation of the motorised
door or gate.
In the event of a product fault or malfunction, turn off the power supply
switch. Do not attempt to repair or intervene directly, and contact only
qualified personnel.
Failure to comply with the above may cause a dangerous situation.
Any repair or technical intervention must be carried out by qualified
personnel.
Cleaning and maintenance work must not be carried out by children
unless they are supervised.
To ensure that the system works efficiently and correctly, the manufac-
turer’s indications must be complied with and only qualified personnel
must perform routine maintenance on the motorised door or gate. In
particular, regular checks are recommended in order to verify that the
safety devices are operating correctly.
All installation, maintenance and repair work must be documented and
General safety precautions for the user

5
IP2288EN
EN
2.1 Machinery Directive
Pursuant to Machinery Directive (2006/42/EC) the installer who motorises a door or gate has the
same obligations as the manufacturer of machinery and as such must:
- prepare the technical data sheet which must contain the documents indicated in Annex V of the
Machinery Directive;
(The technical data sheet must be kept and placed at the disposal of competent national authori-
ties for at least ten years from the date of manufacture of the motorised door or gate);
- draw up the EC Declaration of Conformity in accordance with Annex II-A of the Machinery Direc-
tive and deliver it to the customer;
- affix the EC marking on the motorised door or gate, in accordance with point 1.7.3 of Annex I of
the Machinery Directive;
- ensure compliance of the motorised door or gate with safety regulations, by installing the neces-
sary safety devices;
made available to the user.
Only lock and release the door wings when the motor is switched off.
Do not enter within the operating range of the wing.
To dispose of electrical and electronic equipment correctly, users
must take the product to special "recycling centres" provided by
the municipal authorities.
2. Declaration of incorporation of partly com-
pleted machinery
(Directive 2006/42/EC, Annex II-B)
The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Land-
skrona, Sweden, declares that the Ditec ION4-ION6 automation for swing gates:
- is designed to be installed on a manual gate to form a machine pursuant to Directive 2006/42/
EC. The manufacturer of the motorised gate must declare conformity with Directive 2006/42/
EC (annex II-A) prior to initial machine start-up;
- complies with the applicable essential safety requirements indicated in Annex I, Chapter 1 of
the Directive 2006/42/EC;
- complies with the RED Directive 2014/53/EU;
- the safety functions are compliant with Category 2, PLc according to EN ISO 13849-1;
- the technical documentation complies with Annex VII-B of the Directive 2006/42/EC;
- the technical documentation is managed by the Technical Office of Entrematic Italy (with
headquarters in Largo U. Boccioni 1 – 21040 Origgio (VA) – ITALY) and is available upon request,
sending an e-mail to [email protected]om ;
- a copy of the technical documentation will be given to competent national authorities, following
a suitably justified request.
Landskrona, 26-02-2018 Matteo Fino
(Chairman)

6
IP2288EN
EN
3. Technical specifications
Example of lifespan calculation for ION4
Gate wing weight>150Kg 10
Gate wing width> 4.5m 10
Dust 10
Safety edges installed 10
VA/VC > default 10
Total stress index 50
Estimated lifespan - 80,000 cycles
Estimated daily cycles 22 (for 10 years)
0
10
20
30
40
50
60 70
80
90
100
0
10.000
indice di gravosità
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
110.000
120.000
130.000
140.000
150.000
cicli
Index of conditioning factors
ION4 ION6
Gate wing weight
>150Kg 10 -
>200Kg 20 10
>300Kg 30 20
>400Kg - 30
Gate wing width >4m 20 10
>8m - 20
Wheel diameter <100mm 10
Saline environment 10
Safety edge installed 10
R1/R2 > default 10
VA/VC > default
OC/CB < default 10
0
10
20
30
40
50
60 70
80
90
100
0
10.000
indice di gravosità
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
100.000
110.000
120.000
130.000
140.000
150.000
cicli
Index of conditioning factors
Index of conditioning factors
cycles
cycles
ION4 ION4J ION6 ION6J
Maximum stroke 12m
Maximum gate weight 400Kg 600Kg
Gate speed 0,1÷0,3 m/s
Thrust 200N nominal, 600N start-up 300N nominal, 800N start-up
Power supply 230 V~ 50/60Hz 120 V~ 50/60Hz 230 V~ 50/60Hz 120 V~ 50/60Hz
Power absorption 0,45A 0,9A 0,6A 1,2A
Fuse T1A F2A F1,6A F3,15A
Power 100 W 130 W
Intermittence 80 cycles/day, 30 continuous cycles
Lifespan From 50,000 to 150,000 cycles, depending on the conditions indicated in table
(see the product lifespan charts)
Acoustic pressure LpA ≤ 70dB(A)
IP degree of protection 44
Usage temperature -20°C +55°C ( -35°C +55°C with active NIO)
Product size 300 x 260 x 195
Control panel LCU48
Motor output 24V 10A max
Power supply to accessories 24V 0,3A max
Radio frequency 433,92 MHz
Storable radio codes 100 / 200 vedi RO → MU → 20/10

7
IP2288EN
EN
4. Standard installation
5
A
3
6
2
1
4
4
4
4
Rif. Description Cable
1Remote control /
2Flashing light 2 x 1 mm²
Antenna (integrated into the flashing light) coaxial 58 Ω
3Key selector switch 4 x 0,5mm²
Digital combination wireless keypad /
4Photocells 4 x 0,5 mm²
5Actuator ION with control panel 3G x 1,5 mm²
6Safety edge 2 x 0,5 mm²
A
Connect the power supply to a type-approved omnipolar switch, with a contact opening distance of at
least 3mm (not supplied).
The connection to the mains must follow an independent path, separate from the connections to the
control and safety devices.

8
IP2288EN
EN
5. Dimensions
6. Main components
Rif. Descrizione
8Motor
9Control panel
10 Key release
11 Pinion
12 Cable inlet
13 Power supply terminal and fuse
260
300
80
195
15540
8
10
9
12
11
12

9
IP2288EN
EN
7.1 Preliminary checks
Check the stability of the wing (derailing and lateral falls) and the sliding wheels and that the upper
guides do not cause any friction.
The sliding guide must be securely fixed to the ground for the full length within doorway and must
have no irregularities that could hinder the movement of the wing.
The opening and closing stops must be fitted.
If the gate has slits, make sure they are covered to prevent shearing points or install active safety
edges on the columns.
Safety device should be installed at the end of the wing to reduce the collision force.
NB:
•Make sure that the gate can not exit the sliding guides and fall.
•Make sure that the protection system and any manual release function correctly.
7. Installation
The given operating and performance features can only be guaranteed with the use of DITEC ac-
cessories and safety devices.
Unless otherwise specified, all measurements are expressed in mm.
7.2 Base plate position
Make a concrete base with the anchor ties and base plate embedded, which must be level and
clean and of the size indicated in the figure.
i
NB: if the concrete base has already been made, base plate can be fixed using M8 plugs
(not supplied).
OPENING
160
X+20 [*]
40
min
Ø80 90°
220
260
[*] CROSSCRN2
[*] CROSSCRI
X=40
M12
low type

10
IP2288EN
EN
- Release the gearmotor [1] (see OPERATING INSTRUCTIONS). Loosen the front screw [2] and
remove the casing by pressing on its sides [3-4].
- Place the gearmotor on the base plate.
- Adjustthegearmotor horizontallyby slidingitalongthe slotsofthe gearmotorbase andverticallywith
four levelling screws [A].
NB: during the vertical adjustment, keep the gearmotor slightly raised from the base plate so
that the rack can be fixed and subsequent adjustments are possible.
- After adjusting, fix the gearmotor using screws [B].
7.3 Gearmotor installation
WARNING: The gearmotor must be suitably raised from the ground to avoid flooding.
Tighten the [B] screws using a tightening torque of 20-25 Nm.
X
100
±5
AB
-5 +20
3
3
2
4
1

11
IP2288EN
EN
- Release the gearmotor (see OPERATING INSTRUCTIONS) and open the gate.
- Place the rack against the pinion and sliding the gate manually fix it along its whole length.
NB: To make it easier to align the rods correctly, use a scrap piece of rack and rest it underneath
the junction point, as shown in the figure detail.
- Once fixed, vertically adjust the gearmotor to give a play of about 2 to 3 mm between the pinion
and the rack.
- Secure the gearmotor with the [B] screws using a tightening torque of 20-25 Nm.
- Slightly lubricate the rack and pinion after assembly.
Manually check that the gate slides evenly and without friction.
7.4 Rack installation
min.80
2÷3

12
IP2288EN
EN
7.5 Operation with virtual encoder
ION4-ION6 gearmotors do not require limit switches because they have a virtual encoder.
Mechanical opening and closing end stops must be installed.
The gate automatically slows when approaching the end stops.
WARNING: when the gate reaches the opening or closing limit stop, it reverses briefly to facilitate
manual release of the gearmotor.
7.6 Installation of optional accessories
For installation of the battery kit, refer to the SBU-IONSBU-BBU20-BBU65 (IP2254) manual.
For installation of the remote release handle, refer to the IONSBM and ASR2 manual.
For the installation of the limit switch kit, refer to the NES100FCM manual.
To position the limit switches, you can use the menu → (visible by activating the additional
configurations → ).
The display shows the status of the limit switches:
• : opening limit switch configured and activated;
• : closing limit switch configured and activated;
• (both parts of display active): opening limit switch not configured and activated;
• (no part of display active): closing limit switch not configured and activated;
• (central part of display active): no limit switch activated;
With the limit switches configured as STOP (FA = SX; FC = SX) the anti-violation function is activated. When
the automation stopped open or closed, if the gate backs off releasing the limit switch, it is brought back into
position avoiding openings from external forces [energy saving must be disabled ES = OFF].
i
i
i
The limit switch kit is used to stop the gate before it reaches the opening and closing
mechanical stops.
With a limit switch installed, slowdown is carried out at regulated power to overcome
possible friction.
The battery kit guarantees operation if there is a power cut.
For advanced control of battery-powered operation, refer to the
EM menu.
The kit can be used to remotely release the gearmotor.
A microswitch guarantees safety.
When the handle is released, the control panel performs a reset
7.6.1 Magnetic limit switches
7.6.2 Battery kit
7.6.3 Remote release handle

13
IP2288EN
EN
8. Electrical connections
Before connecting the power supply, make sure the plate data correspond to that of the
mains power supply.
An omnipolar disconnection switch with a contact opening distance of at least 3mm must be
fitted on the mains supply.
Check there is an adequate residual current circuit breaker and overcurrent cutout upstream
of the electrical system.
For the power supply, use a H05RN-F 3G1.5 type electric cable. Connect it to terminals L (brown),
N (blue), (yellow/green) inside the automation.
NOTE: the maximum permisible section of the wire is AWG14 (2 mm2).
In order to comply with essential requirements of standards in force, reclose the cover once
the wires have been connected to the terminal.
In the external automation section, the connections to the mains power supply and any other low
voltage wires (230V) must be made on an independent channel separated from the connections
to the command and safety devices (SELV = Safety Extra Low Voltage).
The channel must penetrate the automation through the holes on the base plate by a few cen-
timetres.
Make sure there are no sharp edges that may damage the power supply cable.
Make sure the mains power wires (230V) and the accessory wires (24V) are separated. The cables
must be double insulated. Unsheathe them in line with the relative connection terminals, and
use cable fasteners (see ref. A) or straps (not supplied by us) to hold them in place.
A
A
B
B

14
IP2288EN
EN
+-LP 30
LSW
M+ M-
520 0168
C
O
M
SCHEDA AD INNESTO
AUX
UPDOWN SBU
BAT
ENTERESC
RDX
6ZENRS
ZENPRS
JR1
JR5
130
24V~
Trasformatore
Alimentazione
Fusibile
Motore
SSW
Lampeggiante
Kit batteria
NES100FCM
Finecorsa
Passo-passo
Apertura parziale
-
+
Uscita 24 V
Antenna
Arresto di sicurezza
Sicurezza in chiusura
Microswitch
di sblocco
24V
LN
9. LCU48 card
Power supply
Flashing light
SBU battery
kit
Step-by-step Partial opening
24V output
Safety stop
Closing safety device Antenna
Transformer Fuse
Release
microswitch
Limit switch
NES100FCM
Motor
PLUG-IN BOARD

15
IP2288EN
EN
The procedure to switch on the display is as follows:
• press the ENTER key
• the display functioning check starts
• the first level menu is displayed
The procedure to switch off the display is as follows:
• press the ESC key
NB: there is no automatic exit from the WZ quick configuration menu. For all the other menus,
the display switches off automatically after 60 seconds of inactivity.
10.1 Switching the display ON and OFF
10. Using of the menus
i
NB: pressure on the keys may be quick (less than 2 s) or prolonged (longer than 2 s).
Unless specified otherwise, quick pressure is intended.
To confirm the setting of a parameter, prolonged pressing is necessary.
• The simultaneous pressing of the ↑ and ENTER keys produces an opening command.
• The simultaneous pressing of the ↓and ENTER keys produces a closing command.
• The simultaneous pressing of the ↑ and ↓ keys produces a POWER RESET command (pow-
er supply interruption and automation restart).
• Keep the UP ↑ or DOWN ↓ key pressed to begin fast menu scrolling.
To set a parameter, select the desired value and press ENTER for 2 seconds to save.
Example: setting of 30 seconds for parameter TC
x 2 s
• In some menus, the parameter measurement unit can be viewed by pressing the ENTER key
once the value has been displayed.
10.2 Navigation keys

16
IP2288EN
EN
10.3 Menu map
Standard settings
*
*
Opening direction
RT= right
LF= left
Contact 1-5 command
operation
Automatic closure
enabling
Automatic clos-
ing time
Gate weight
Gate length
Opening
speed
Closing speed
Selection of device con-
nected to terminals 1-6
Selection of device con-
nected to terminals 1-8
Radio receiver
operation
Setting of radio coded
messages
Remote control
storage
Confirm configura-
tion
Quick configuration menu
Opening direction
RT= right
LF= left
Reset general
settings
Activation of advanced
parameters menu
Residential 0
Residential 1
Condominium 0
Automatic closure
enabling
Automation status
at switch-on
Reversal safety
operation
Activation of anti-
freeze system NIO
Contact 1-5 command
operation
Activation of "operator
present" function
Radio receiver
operation
AUX1 board
operation
Start-up at maxi-
mum power
Setting of step-by-step
sequence via com-
mand 1-5
Duration of STOP in
step-by-step sequence
via command 1-5
Operation of safety
stop/closure com-
mand
Automatic configurations
Standard adjustments
Automatic closing
time after partial
opening
Thrust adjustment on
obstacles and opening
current
Opening
speed
Closing speed
Automatic clos-
ing time
Partial opening measure-
ment adjustment
Thrust adjustment on
obstacles and closure
current
Obstacle recognition
time adjustment
Start-up time
adjustment
Adjustment of acceleration
time on opening
Adjustment of acceleration
time on closure
Deceleration time adjust-
ment during opening
Deceleration distance on
opening
Deceleration time adjust-
ment during closure
Deceleration distance on
closing
Adjustment of approach
speed during opening
Adjustment of approach
speed during closure
Obstacle detection limit
during opening
Initial movement
speed
Function of output
+LP-
Electric lock release time
Obstacle detection limit
during closure
Remote control
storage
Visualisation of number of
remote controls stored
Wireless operations

17
IP2288EN
EN
Additional configurable pa-
rameters available with
AT → AA enabled.
*
*
Firmware update
*
*
*
*
Setting of memory opening
via remote control
Setting of radio coded
messages
Maximum number of
remote controls that can
be stored in the integrated
memory
Menu navigation via remote
control keypad
Selection of function CH1 of
the stored remote control
Selection of function CH2 of
the stored remote control
Selection of function CH3 of
the stored remote control
Selection of function CH4 of
the stored remote control
Deletion of a remote control
Total memory
deletion
Control panel firmware
version
Configuration storage
Configuration loading
Password setting
Password insertion
Deletion of user settings
Loading of last configura-
tion set
Alarm counter
Alarm log
Special functions
Alarm reset
Motor current visu-
alisation
Visualisation of maximum
and minimum tempera-
tures recorded
Limit switch test. Visual-
ises FA/FC only (N.O. / NO
if they are not configured)
Total number of
operations
Partial number of
operations
Power supply hours
Power supply hours
via battery
Maintenance alarm
setting
Visualisation of mainte-
nance alarm mode
Reset of partial operations
counter
Power supply via solar
panels
Energy saving
Signal for batteries
almost flat
Voltage threshold for indi-
cating when the batteries
are almost flat
Battery mode
Selection of opening
limit switch mode
Selection of closure
limit switch mode
Selection of device con-
nected to terminals 1-6
Selection of device con-
nected to terminals 1-8
Configuration of input 1-9
Selection of device con-
nected to terminals 1-6
and 1-8
Switch-on time for
independently commanded
courtesy light
Fixed partial opening
Display mode
Partial opening com-
mand of terminal 1-20
Courtesy light switch-on
time
Duration of disengagement
after edge intervention
Duration of disengagement
on stop during opening
Duration of disengagement
on stop during closure
Selection of type of
obstacle
Stroke estimate correction
NIO intervention tempera-
ture and automatic ramps
Selection of operating
mode for device connected
to terminals 1-6
Visualisation of internal
panel temperature
Automatic ramp adjust-
ment
High temperature protec-
tion enable
Setting pre-flashing time
on opening
Adjustment of approach
speed during closure
Renew automatic closing
time after safety device
release
Learning speed setting
Cycle countersEnergy management
Advanced parameters

18
IP2288EN
EN
11. Product start-up
11.1 WZ configuration wizard menu
for 2 sec.
To access the WZ configuration wizard menu:
Hold down the ENTER button for 2 seconds.
When OK has stopped flashing, DM, the first menu parameter, is displayed.
For rapid configuration of the product, use the WIZARD (WZ) menu or the second level AT (Auto-
matic Configurations) menu [See par. 15.2].
For detailed, customised configuration, use the main menus BC, BA, RO, SF, CC, EM, AP.
To set a parameter:
1. Press ENTER to access the configuration items.
2. Scroll UP/DOWN the possible options.
3. To confirm, press the ENTER button for 2 seconds. The selected value flashes and when it has
finished, the next parameter appears.
for 2 sec.
WZ - Wizard
Display Description
DM - Selection of opening direction (looking at the automation from the side being examined)
• RT: opens to the right (default)
• LF: Opens to the left
C5 - Operation of command associated with contact 30-5
• 1-5: step-by-step (default)
• 1-3: Opening
AC - Enabling of automatic closure
• ON: enabled (default)
• OF: disabled
TC - Setting of automatic closing time [seconds]
[N.B.: only visible if you have selected AC = ON in the previous step]
• from 0” to 59” with intervals of 1 second.
• - from 1’ (default) to 2’ with intervals of 10 seconds.
GW - Selection of gate weight.
The selected value sets parameters R1 and R2 to adjust the maximum thrust current of the
motor.
• LG: up to 200 kg → (R1=R2=30%)
• MG: between 200 kg and 300 kg for ION4 and ION4J, between 200 kg and 400 kg for ION6
and ION6J → (R1=R2=50%) (default)
• HG: between 300 kg and 400 kg for ION4 and ION4J; between 400 kg and 600 kg for ION6
and ION6J → (R1=R2=70%)
GL - Selection of gate length
The selected value sets parameters OB and CB for adjusting the deceleration space
• 02: between 0 and 2 m → (OB=CB=50cm)
• 04: between 2 and 4 m → (OB=CB=60cm) (default)
• 06: between 4 and 6 m → (OB=CB=70cm)
• >6: over 6 m → (OB=CB=80cm)
VA - Selection of opening speed
• LO: 15 cm/s
• ME: 20 cm/s (default)
• HI: 25 cm/s

19
IP2288EN
EN
WZ - Wizard
VC - Selection of closing speed
• LO: 15 cm/s
• ME: 20 cm/s (default)
• HI: 25 cm/s
D6 - Selection of device connected to terminals 1-6
• NO: none
• PH: photocells (default)
For other options, see the specific menu.
D8 - Selection of device connected to terminals 1-8
• NO: none
• PH: photocells (default)
For other options, see the specific menu.
RM - Radio receiver operation
• 1-3: Step-by-step
• 1-5: opening (default)
EP - Setting the coded area messages
If the possibility to receive coded messages is enabled, the control panel will be compatible
with remote controls of the “ENCRYPTED” type.
• ON: enabled
• OF: disabled (default)
SR - Remote control storage
When you press ENTER, SR starts to flash and you can associate the desired buttons. Once
OK is displayed, SR starts to flash again and you can associate the next button.
To quit, press ESC or ENTER for 2 seconds and go on to the next item.
NB: if NO flashes on the display, the remote control may already be stored.
CO - Saving of parameters
Here you can save the parameters that have previously been set.
• YS: to save and perform a card RESET
• NO: to quit without saving and go back to a blank screen (central part only)
NB: the CO item and YS/NO sub-menus flash constantly.
for 2 sec.
To save the configuration:
In the CO parameter select YS (yes) and press the ENTER button for 2 seconds.
When the configuration has been saved, a power reset is automatically performed on the card.
To quit without saving changes:
In the CO parameter select NO and press the ENTER button for 2 seconds.
Or: from any main parameter, press the ESC button for 2 seconds.
NOTES
• The set values are only stored on the card if they are saved using the CO parameter.
• The CO parameter and YS/NO options flash constantly.
• When a configuration item is confirmed, it automatically moves on to the next parameter.
• You can scroll through the menu parameters using the UP/DOWN buttons.
• There is no automatic timeout function to quit.
Example
for 2 sec.
for 2 sec.

20
IP2288EN
EN
12. Commands
i
You are advised to read paragraph 15 for all the details about the possible adjustments.
WARNING: terminal 30 (common positive for commands) has the same functions as terminal 1, so
the commands visualised on the display are indicated with 1-5, 1-3, etc.
It is different from terminal 1, however, because of the maximum current that can be dispensed
and it is also active when the control panel is in standby → .
Command Function Description
30 5 NO
STEP-BY-STEP
When selecting → → , the closure of the contact ac-
tivates a sequential opening or closing operation: opening-stop-
closing-opening.
WARNING: if automatic closure is enabled, the duration of the
stop can be defined by selecting → .
The “opening-stop-closing-opening” sequence can be changed
to “opening-stop-closing-stop-opening” by selecting → .
OPENING When selecting → → , the closure of the contact ac-
tivates an opening operation.
1 6 NO CLOSURE When selecting → → , closing the contact activates
a closing operation.
1 6 NC SAFETY STOP
When selecting → → , opening of the safety contact
stops and prevents any movement.
NB: to set different safety contact functions, see the →
parameter settings.
1 8 NC
CLOSING
SAFETY
DEVICE
The opening of the safety contact triggers a reversal of the
movement (reopening) during the closing operation.
When selecting → → , the opening of the contact pre-
vents any operation when the automation is idle.
When selecting → → , the opening of the contact only
prevents closure when the automation is idle.
1 6
8 NC
CLOSING/
OPENING
SAFETY
DEVICE
The opening of the safety contact stops and prevents any move-
ment.
NB: operation corresponds to that of contact 1-6 with →
→ .
1 20 NO PARTIAL
OPENING
The closure of the contact activates a partial opening operation.
Once the automation stops, the partial opening control performs
the opposite operation to the one performed before the stop.
1 20 NC
AUTOMATIC
CLOSURE OR
STOP
Selecting → → , the permanent closure of the contact
enables automatic closure if → .
Selecting → → , the opening of the safety contact
causes the movement to stop.
NB: the flashing light flashes.
WARNING: make a jumper for all NC contacts if not used, or deactivate them via the relative menu.
Terminals with the same number are equal.
