Entrematic Ditec QIK80EH User manual

Ditec QIK80EH
Electromechanical barrier
(Translation of the original instructions)
www.ditecentrematic.com
IP2085EN
Technical Manual

28
IP2085EN - 2014-09-01
Contents
Key
Subject Page
1. General safety precautions 29
General safety precautions for the user 30
2. EC Declaration of Conformity 31
2.1 Machinery Directive 31
3. Technical specifications 32
3.1 Operating instructions 32
4. Standard installation 33
5. Dimensions 34
6. Main components 35
7. Mechanical installation 36
8. Installation of bar 37
9. Bar balancing 38
10. Selecting opening direction 39
11. Limit switch adjustment 40
12. Access to control panel 40
13. Electrical connections 41
14. Routine maintenance plan 42
Operating instructions 43
Manual release instructions 45
Instructions for maintenance workers 46
i
This symbol indicates instructions or notes regarding safety, to which special atten-
tion must be paid.
This symbol indicates useful information for the correct functioning of the product.
All the rights concerning this material are the exclusive property of Entrematic Group AB.
Although the contents of this publication have been drawn up with the greatest care, Entrematic Group AB
cannot be held responsible in any way for any damage caused by mistakes or omissions. We reserve the
right to make changes without prior notice.
Copying, scanning and changing in any way are expressly forbidden unless authorised in writing by Entrematic
Group AB.

29
IP2085EN - 2014-09-01
1. General safety precautions
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed by qualified person-
nel, in accordance with Good Working Methods and in compliance with the current regulations.
Read the instructions carefully before installing the product.
Bad installation could be dangerous.
The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environ-
ment or left within reach of children, as they are a potential source of danger.
Before installing the product, make sure it is in perfect condition.
Do not install the product in explosive areas and atmospheres: the presence of inflammable
gas or fumes represents a serious safety hazard.
Before installing the motorisation device, make all the necessary structural modifications to
create safety clearance and to guard or isolate all the crushing, shearing, trapping and general
hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability. The mo-
torisation device manufacturer is not responsible for failure to observe Good Working Methods
when building the frames to be motorised, or for any deformation during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed taking into
account: applicable laws and directives, Good Working Methods, installation premises, system
operating logic and the forces developed by the motorised door or gate.
The safety devices must protect against crushing, cutting, trapping and general danger areas
of the motorised door or gate.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motorised door or gate.
When necessary, connect the motorised door or gate to an effective earthing system that com-
plies with the current safety standards.
During installation, maintenance and repair operations, cut off the power supply before
opening the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The electronic parts must be handled using earthed antistatic conductive arms. The manufac-
turer of the motorisation declines all responsibility if component parts not compatible with safe
and correct operation are fitted.
Only use original spare parts for repairing or replacing products.
The installer must supply all information concerning the automatic, manual and emergency
operation of the motorised door or gate, and must provide the user with the operating
instructions.
Failure to respect the information given in this manual
may cause personal injury or damage to the device.
Keep these instructions for future reference

30
IP2085EN - 2014-09-01
These precautions are an integral and essential part of the product
and must be supplied to the user.
Read them carefully since they contain important information on safe
installation, use and maintenance.
These instructions must be kept and forwarded to all possible future
users of the system.
This product must only be used for the specific purpose for which it
was designed.
Any other use is to be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for any damage caused
by improper, incorrect or unreasonable use.
Avoid operating in the proximity of the hinges or moving mechanical
parts. Do not enter within the operating range of the motorised door
or gate while it is moving.
Do not obstruct the motion of the motorised door or gate, as this may
cause a dangerous situation.
The motorised door or gate may be used by children over the age of 8
and by people with reduced physical, sensorial or mental abilities, or
lack of experience or knowledge, as long as they are properly supervised
or have been instructed in the safe use of the device and the relative
hazards.
Children must be supervised to make sure they do not play with the
device, nor play/remain in the sphere of action of the motorised door
or gate.
Keep remote controls and/or any other command devices out of the
reach of children, to avoid any accidental activation of the motorised
door or gate.
In the event of a product fault or malfunction, turn off the power supply
switch. Do not attempt to repair or intervene directly, and contact only
qualified personnel.
Failure to comply with the above may cause a dangerous situation.
Any repair or technical intervention must be carried out by qualified
personnel.
Cleaning and maintenance work must not be carried out by children
unless they are supervised.
To ensure that the system works efficiently and correctly, the manufac-
turer’s indications must be complied with and only qualified personnel
must perform routine maintenance on the motorised door or gate. In
particular, regular checks are recommended in order to verify that the
safety devices are operating correctly.
All installation, maintenance and repair work must be documented and
General safety precautions for the user

31
IP2085EN - 2014-09-01
2. EC Declaration of Conformity
2.1 Machinery Directive
(Directive 2006/42/EC, Annex II-B)
The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Land-
skrona, Sweden, declares that the Ditec QIK80EH type motorised barrier complies with the
essential requisites of the following EC directives:
- Electromagnetic Compatibility Directive 2004/108/EC
- Machinery Directive 2006/42/EC
- Construction Products Directive 89/106/EC
conforms to the following characteristics of the standard EN 13241-1 (Attachment ZA):
- Factory production control (Conforming)
- Release of hazardous substances (Conforming)
- Resistance to wind load (Class 5)
- Safe opening (Conforming)
- Mechanical strength and stability (Conforming)
- Manoeuvring forces (Conforming)
Notified body: Treviso Tecnologia - CERT
Registration number: 1600
Address: Via Pezza Alta, 34 31046 Rustignè di Oderzo (TV)
Landskrona, 12-02-2013 Marco Pietro Zini
(Entrance Automation President)
Pursuant to Machinery Directive (2006/42/EC) the installer who motorises a door or gate has the
same obligations as the manufacturer of machinery and as such must:
- prepare the technical data sheet which must contain the documents indicated in Annex V of the
Machinery Directive;
(The technical data sheet must be kept and placed at the disposal of competent national authori-
ties for at least ten years from the date of manufacture of the motorised door);
- draw up the EC Declaration of Conformity in accordance with Annex II-A of the Machinery Direc-
tive and deliver it to the customer;
- affix the EC marking on the motorised door or gate, in accordance with point 1.7.3 of Annex I of
the Machinery Directive;
- ensure compliance of the motorised door or gate with safety regulations, by installing the neces-
sary safety devices;
- refer to the installation manual of the EL34 control panel for the operating force adjustments,
in compliance with EN12453 and EN12445.
made available to the user.
Only lock and release the door wings when the motor is switched off.
Do not enter within the operating range of the wing.
To dispose of electrical and electronic equipment correctly, users
must take the product to special "recycling centres" provided by
the municipal authorities.

32
IP2085EN - 2014-09-01
3. Technical specifications
3.1 Operating instructions
Service class: 4 (minimum 10-5 years of working life with 100-200 cycles per day).
Applications: INTENSE (for apartment block, industrial and commercial entrances and car parks
with vehicle access or access for intense pedestrian use).
- Performance characteristics are to be understood as referring to the recommended weight (ap-
prox. 2/3 of maximum permissible weight). When used with the maximum permissible weight
a reduction in the above mentioned performance can be expected.
- Service class, running times, and the number of consecutive cycles are to be taken as merely
indicative, having been statistically determined under average operating conditions, and are
therefore not necessarily applicable to specific conditions of use.
QIK80EH
Power supply 230 V~ 50/60 Hz
Absorption 1.2 A
Torque 200 Nm
Insulation class Class 1
Opening time 6÷12 s/90°
Closing time 6÷12 s/90°
Bar length (max) 7950 mm
Service class 4 - INTENSE
Intermittence S2 = 50 min
S3 = 50%
Temperature min -20° C max +55° C
Degree of protection IP24D
Control panel EL34
i
Every automatic system contains variable elements (friction, balancing and environ-
mental factors) that may substantially alter both the lifespan and performance of the
system or its components (including the spring). Tests have shown that the average
spring lifespan is around 100,000 cycles, so you are advised to check its state of wear
when this limit is reached. If there are clear signs of wear, or it is difficult to balance
the bar correctly, replace the spring.

33
IP2085EN - 2014-09-01
4. Standard installation

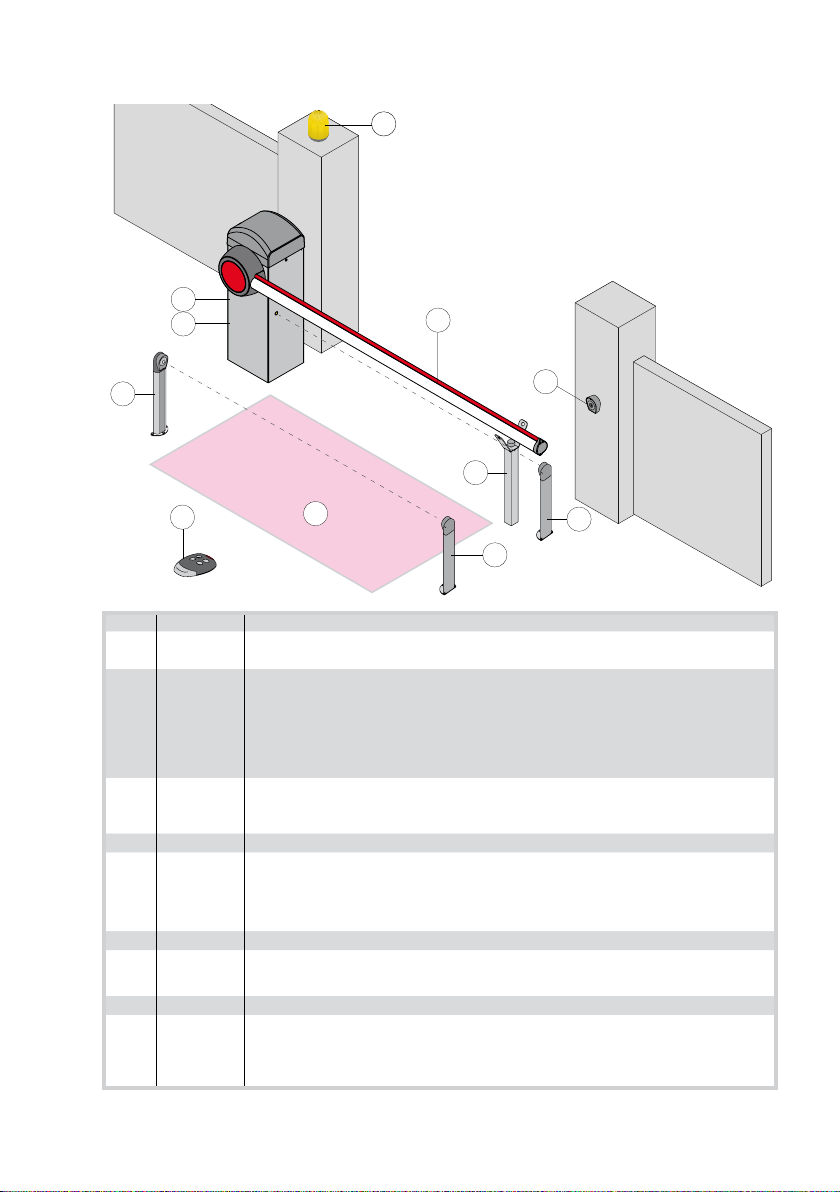

A
5
8
7
7
7
6
2
3
4
1
Ref. Code Description
1QIK80EH
QIK80Z
Barrier cabinet
Cabinet fastening base
2
QIKC40
QIKCG
QIKLUX
QIKC
QIKAM
QIKGR
Bar 3975 mm
Joint for bar
Bar lighting kit
Box of 10 bar reflectors
Mobile support
Aluminium skirt 2000 mm
3
QIKAF
QIKAFE
QIKAFZ
Fixed support
Fixed support with electromagnetic block
Fixed support fastening base
4LAMPH Flashing light
5
XEL5
LAN4
LAN7
XELCA
Key selector switch
Combination keyboard
Card decoder
Column for control accessories
6GOL4 Remote control
7XEL2
XELCB
Photocells
Photocell column
8LAB9 Magnetic loop detector for passage control
A
Connect the power supply to a type-approved omnipolar switch, with a contact
opening distance of at least 3 mm (not supplied). Connection to the mains must
be via an independent channel, separate from the connections to the control and
safety devices.

34
IP2085EN - 2014-09-01
5. Dimensions
140815
405PL = min 4500 - max 7600
100
525
1180
80 80
355
560

35
IP2085EN - 2014-09-01
6. Main components
1
5
4
3
22
3
4
6
78
9
Ref. Code Description
124 V motor with encoder

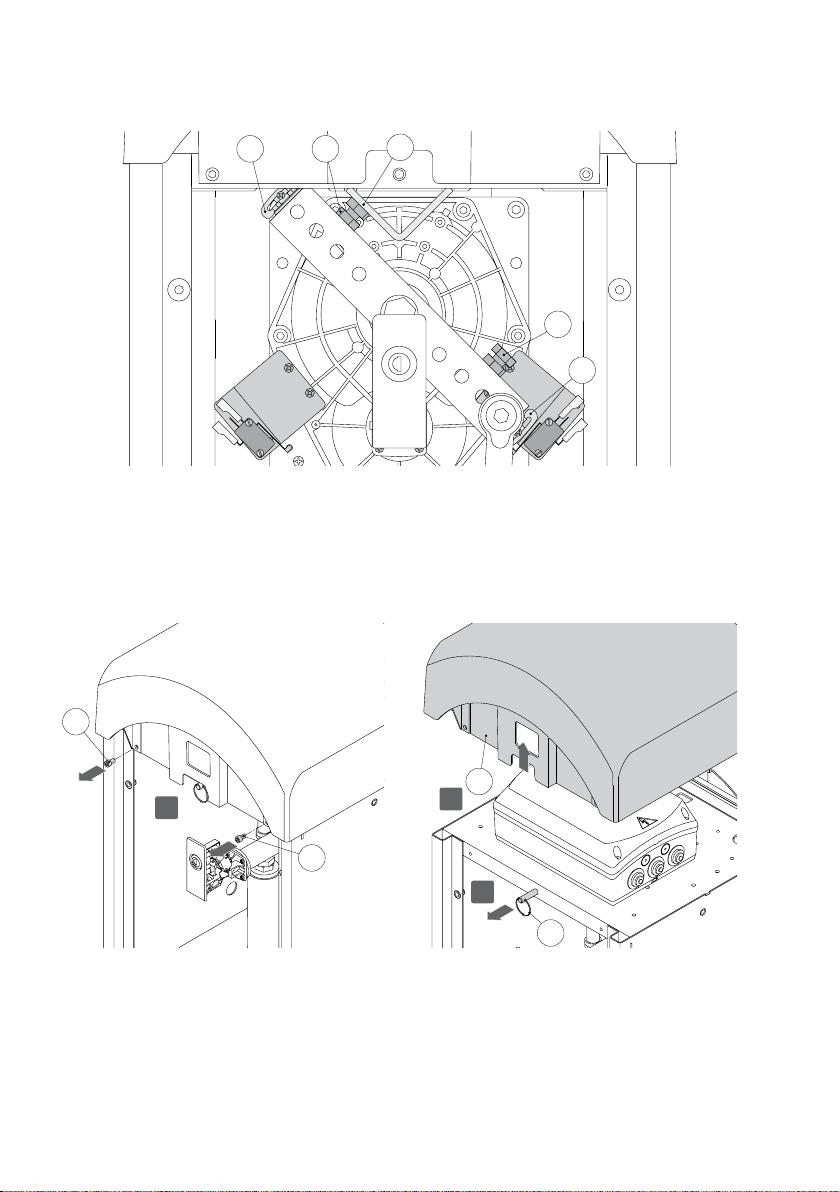

2Opening/closing limit switches
3Limit switch adjustment
4Mechanical stop adjustment
5Key release
6Blue spring Ø63 mm
7Control panel
8BATKH Continuous mode battery kit
9MD2 Display module for diagnostics and advanced control

36
IP2085EN - 2014-09-01
7.1 Mechanical installation
7. Installation
The given operating and performance features can only be guaranteed with the use of DITEC
Entrematic accessories and safety devices.
Unless otherwise specified, all measurements are expressed in mm.
800
600
700
550
600
405
205
355 205
164
Ø12,5
348

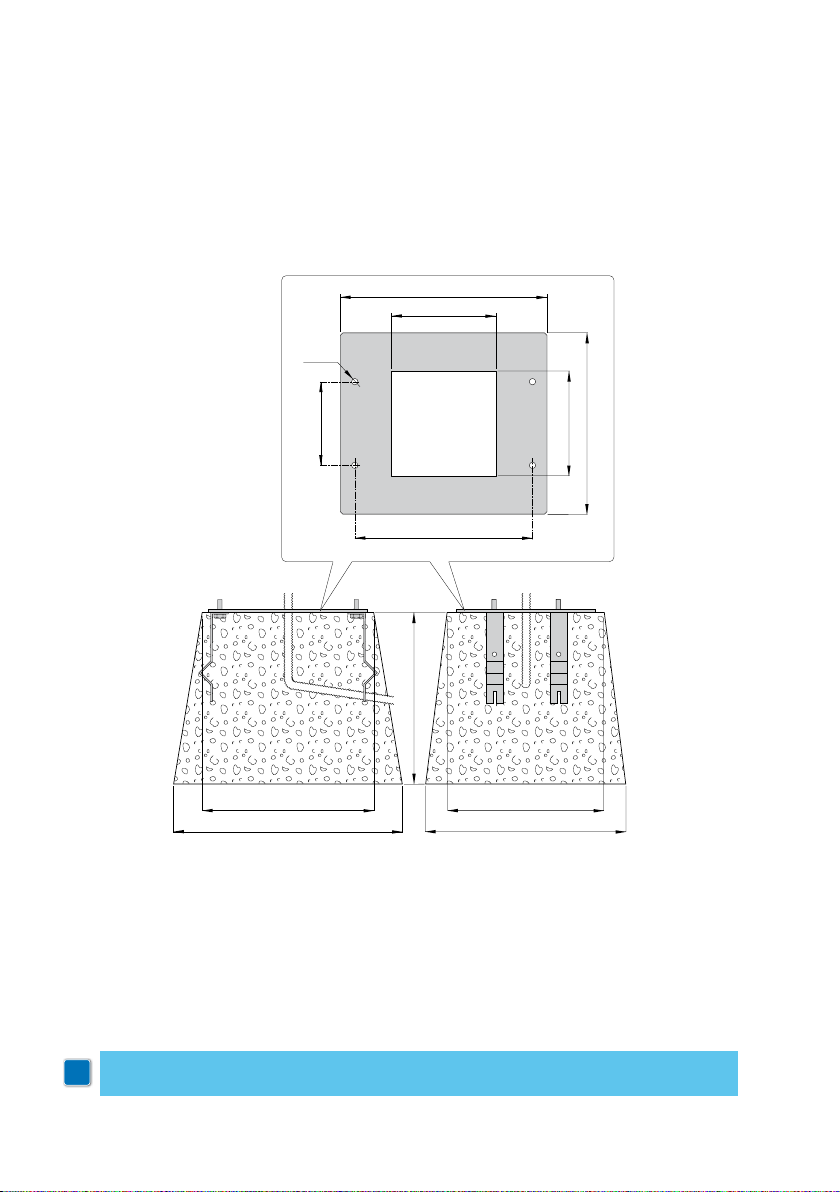

- If the surface does not allow cabinet to be fastened strongly and firmly, prepare a concrete
base with embedded anchor ties and QIK80Z base plate which must be level and clean.
- Insert elements made of iron or another material in the anchor ties to attach the ties to the
concrete reinforcement.
- Pass the cable ducts through the central hole of the plate.
WARNING: make sure that the fastening is strong and firm.
- Secure the cabinet.
i
NB: to open the cabinet, release the automation as described on page 45 and unscrew
the 4 screws on the front.

37
IP2085EN - 2014-09-01
8. Installation of bar
L
Ø3
Ø3
- Cut the length of the bar to L=PL+350 mm.
- Install the bar as shown in the figure.
1
3
4
5
2

38
IP2085EN - 2014-09-01
9. Bar balancing
- Release the automation as described on page 45 and place the bar in the vertical opening position.
- Place the spring in the correct position depending on the choice of opening direction as de-
scribed on page 39.
- Using the nuts above the spring (see ref. [B] on page 39), compress the spring until the bar is
balanced at an angle of 5°-30° to the floor (in this position, the bar must be stationary or point
slightly upwards).
WARNING: compression of the spring must comply with measurement A indicated on page 39.
- Make sure that the bar remains still when in the open or closed position.
WARNING: never use the force of the motor to support the weight of the bar. Always use
the balancing spring.
WARNING: for PL≥4000 mm, you must use the fixed support QIKAF-QIKAFE or the mobile
support QIKAM. With the fixed support with the electromagnetic block QIKAFE installed,
use the configurations indicated for the mobile support QIKAM.
PL
PL (mm)
4500-5199 QIKM5 / / /
5200-5999 / QIKM5 / /
6000-6999 / / QIKM5 /
7000-7600 / / / QIKM5
PL
PL (mm)
4500-4999 QIKM5 / / /
5000-5799 / QIKM5 / /
5800-6799 / / QIKM5 /
6800-7200 / / / QIKM5
2 m2 m min 500
560
PL
PL (mm)
4600-4799 QIKM5 / / /
4800-5499 / QIKM5 / /
5500-6499 / / QIKM5 /
6500-6800 / / / QIKM5
2 m2 m min 500
560
PL
PL (mm)
4800-5899 / / QIKM5 /
5900-6500 / / / QIKM5
PL
560
2 m2 m2 m min 500
PL (mm)
6700 / / / QIKM5

39
IP2085EN - 2014-09-01
10.Selecting opening direction
Apertura verso destra
DIP2=OFF
Apertura verso sinistra
DIP2=ON
A A
B
C
85 Nm
- Select the opening direction as shown in the figure.
- Mount the spring using the special screw M12x40 [C] with thread locking compound and tightly
fasten as shown in the figure.
- Set the DIP2 on the control panel EL34 as shown in the figure.
- Once you have installed the bar, adjust the compression of spring QIKM5 using the nuts [B]
until measurement A≥245 mm is obtained.
Righthand opening Lefthand opening

40
IP2085EN - 2014-09-01
11.Limit switch adjustment
C
C
A
A
B
- Adjust the opening and closing position of the bar using the special screws [A].
- Adjust the opening and closing limit switches using the special cams [C] so that the switches
are activated approx. 3 mm before the mechanical stop [B].
1
D
D
F
E
3
2
12.Access to control panel
- Unscrew and remove the front screws [D].
- Pull the ring [E] and lift the cabinet cover [F].

41
IP2085EN - 2014-09-01
13.Electrical connections
NB: the electrical connections and start-up of the gearmotors are shown in the EL34
control panel installation manual.
i
Before connecting the power supply, make sure the plate data correspond to that of the
mains power supply.
An omnipolar disconnection switch with a contact opening distance of at least 3mm
must be fitted on the mains supply.
Check there is an adequate residual current circuit breaker and overcurrent cutout upstream
of the electrical system.
Use a H05RN-F 3G1.5 type electric cable and connect it to the terminals L (brown), N (blue),
(yellow/green) in the automation.
Secure the cable using a special cable clamp and remove the sheath only where the clamp is.
Connection to the mains power supply (in the section outside the automation) is made on an
independent channel separated from that containing the connections to the control and safety
devices.
The channel must penetrate the automation by at least 50mm via the holes on the base plate.
Make sure there are no sharp edges that may damage the power supply cable.
Make sure the mains power wires (230V) and the accessory wires (24V) are separated.
The cables must be double insulated. Remove their sheaths near the relative connecting ter-
minals, and secure them with cable fasteners (not supplied).

42
IP2085EN - 2014-09-01
14.Routine maintenance plan
Perform the following operations and checks every 6 months, according to the intensity of use
of the automation.
Disconnect the 230 V~ power supply and batteries (if present):
- Clean and oil the levers and check the nuts and screws are all well tightened.
- Clean and grease the spring-post as shown in the figure.
- Check the electrical connections.
- Check that the manual release is operating correctly.
- Check that the bar is balanced correctly as shown on page 38.
- Check the state of wear of the mechanical parts, in particular the spring after about 100,000
work cycles.
Reconnect the 230V~ power supply and batteries (if present):
- Check that obstacle detection is operating correctly.
- Check that all control and safety functions are working correctly.
NB: For spare parts, see the spares price list.
i
i
Only use original spare parts for repairing or replacing products.
The installer must supply all information concerning the automatic, manual and emergency
operation of the motorised door or gate, and must provide the user with the operating
instructions.
The installer must prepare and keep a maintenance record showing all the routine and
extraordinary maintenance work carried out.

43
IP2085EN - 2014-09-01
Operating instructions
General safety precautions
for the user
DETACH AND DELIVER TO THE CUSTOMER
These precautions are an
integral and essential part of
the product and must be supplied
to the user.
Read them carefully since they
contain important information on
safe installation, use and main-
tenance.
These instructions must be kept
and forwarded to all possible future users of the system.
This product must only be used for the specific purpose for which it was
designed. Any other use is to be considered improper and therefore
dangerous.
The manufacturer cannot be held responsible for any damage caused
by improper, incorrect or unreasonable use.
Avoid operating in the proximity of the hinges or moving mechanical
parts. Do not enter within the operating range of the motorised door
or gate while it is moving.
Do not obstruct the motion of the motorised door or gate, as this may
cause a dangerous situation.
The motorised door or gate may be used by children over the age of 8
and by people with reduced physical, sensorial or mental abilities, or
lack of experience or knowledge, as long as they are properly supervised
or have been instructed in the safe use of the device and the relative
hazards.
Do not allow children to play or stay within the operating range of the
motorised door or gate.
Keep remote controls and/or any other command devices out of the
reach of children, to avoid any accidental activation of the motorised
door or gate.
In the event of a product fault or mal-
function, turn off the power supply
switch. Do not attempt to repair or
intervene directly, and contact only
qualified personnel.
Failure to comply with the above may
cause a dangerous situation.

44
IP2085EN - 2014-09-01
DETACH AND DELIVER TO THE CUSTOMER
Any repair or technical intervention must be carried out by qualified
personnel.
Cleaning and maintenance work must not be carried out by children
unless they are supervised.
To ensure that the system works efficiently and correctly, the manufac-
turer’s indications must be complied with and only qualified personnel
must perform routine maintenance on the motorised door or gate. In
particular, regular checks are recommended in order to verify that the
safety devices are operating correctly.
All installation, maintenance and repair work must be documented and
made available to the user.
Only lock and release the door wings when the motor is switched off.
Do not enter within the operating range of the wing.
To dispose of electrical and electronic equipment correctly, users
must take the product to special "recycling centres" provided by
the municipal authorities.

45
IP2085EN - 2014-09-01
For any problems and/or information, contact the Technical Service.
DETACH AND DELIVER TO THE CUSTOMER

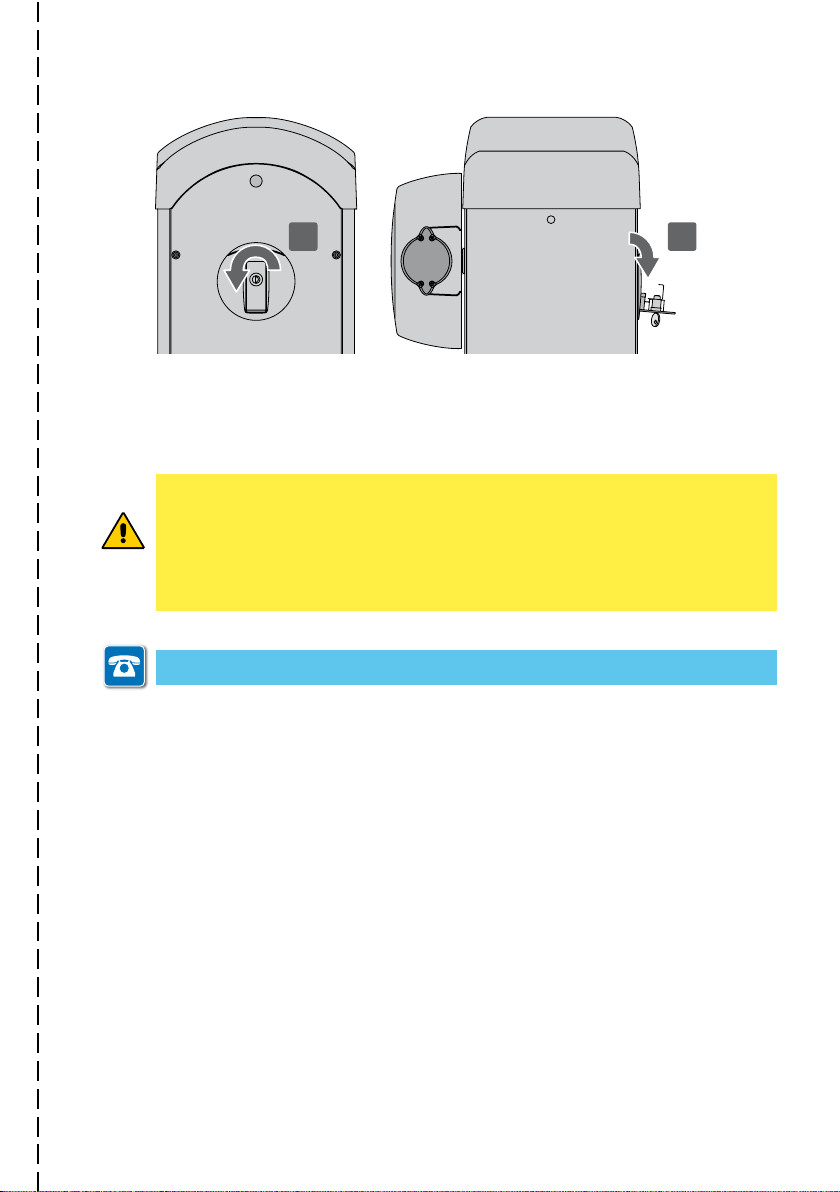

In the event of a fault or power failure, insert the key, turn it anticlockwise and completely open
the hatch. Manually open the barrier.
To block the barrier again, close the hatch, turn the key clockwise and remove the key.
Manual release instructions
WARNING: do not release with the springs under tension without bar. Perform bar
locking and release with the motor switched off. Do not enter the operating range of
the bar. When the barrier is released, the bar may move of its own accord.
When the hatch is closed but the key is still horizontal, the release microswitch is open
and all manoeuvres are prevented.
To deactivate the barrier, the power supply must be removed and the batteries discon-
nected (if present).
1 2

46
IP2085EN - 2014-09-01

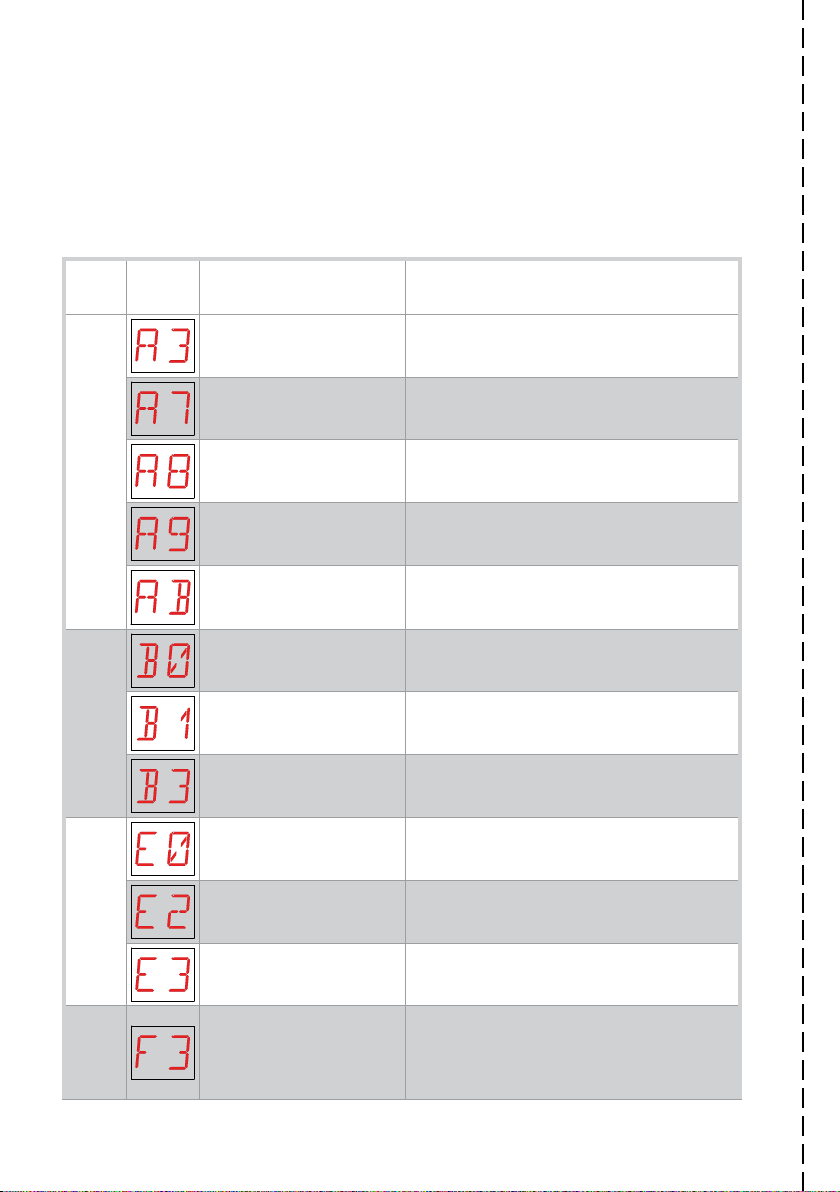

Type
Power
supply
Display Description Operation
Accessories alarm
Failed test on safety sensor in-
stalled on terminal 8.
Check the wiring and correct operation of the safety
sensor.
Incorrect connection between
terminal 9 and terminal 41.
Connect contact 1-9 as shown.
Short-circuiting of flashing
light driver.
Contact Technical Support.
Current overload on flashing
light output.
Check correct connection of the flashing light to
terminals 0-14.
Detection of "gate open" indi-
cator light
Check the gate indicator light is wired/working cor-
rectly.
Batteries alarm
Batteries almost flat. Restore the power supply or replace the battery kit.
Flat batteries. Restore the power supply or replace the battery kit.
Batteries not connected or ab-
sent.
Check the battery kit is correctly connected to the
control panel, or disable the advanced battery test
(if there are no batteries).
Encoder alarm
Encoder fault. If the alarm persists, contact Technical Support.
Reversal of the motor leads. Check the motor leads.
Encoder disconnected, false
encoder contacts, encoder
fault.
Check the encoder is connected correctly, clean the
contacts by connecting and disconnecting the en-
coder plug on the contacts, or replace the encoder.
Functional
alarm
High internal temperature.
When the internal temperature
is high, the automation oper-
ates at low speed.
/
Indication of alarms on MD2 module (if installed)
Instructions for maintenance workers
The MD2 display module shows the following alarms, that take priority over all other
displayed messages.
DETACH AND DELIVER TO THE CUSTOMER
