Showven uFlamer Volcano User manual

1
USER MANUAL
uFlamer Volcano
V1.1
Showven Technologies Co., Ltd

1
USER MANUAL
uFlamer Volcano
★Please read this manual carefully before operating this product.
★Warranty card attached in the manual, please keep it well.
▲Warning
Unauthorized repair are prohibited, it may cause serious incident.
Make sure power supply in consistent with the rated voltage of the equipment, and the
socket must well grounded. Unplug and turn off the machine when not use.
Before connect the power cable, communication DMX cable should well connected and
ensure the command keep at firing OFF status. And safety lock stay at test mode.
The device can only be placed horizontally. Safety distances are marked on the device (at
least 15m in all projection directions, at least 10m to the other sides of the device).
After turning on the device, no person allows to stay in the danger area. Ensure all persons
that are part of the show be informed about the safety distance, risks and functions of the
device.
Always have a CO2 fire extinguisher and an extinguishing blanket in case of needed.
If there be any doubt as to the safety operation of the device in any circumstances, the
device should be taken out of service immediately. Be sure the device is in good operating
condition before use. If fail to fire correctly, immediately shut down and check it accordingly.
Any questions please always contact SHOWVEN (inf[email protected]) for help.
Be sure to use high quality flame fluid, otherwise, it is easily lead to failure or danger. Be
careful when refill the flame fluid tank. Please keep flame fluid away from heat source,
sparks, fire or other possibility of ignition. Do not smoke!
The operator responsible for the control of uFlamer Volcano must always have a clear view
of the device, so that he/she can stop the show immediately when there is danger. The main
AC power switch should near operator. So that operator can turn off the power of all
devices in case of abnormal.
The device shall not be altered and applied to other use purpose.
Disclaimers:
SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents and damages
resulting from:
1. Ignoring warnings or regulations as shown on flamer or this manual.
2. Use for other applications or circumstances other than those indicated herein.
3. Changes to the flamer, including use of non-original spare parts.
4. Removed safety cover without authorization from SHOWVEN.
5. Use this machine by unqualified or untrained personnel.
6. Improper use of machine.

2
▲Foreword
Thanks for choosing SHOWVEN uFlamer Volcano. Please read following manual carefully and
completely before operating this product. Operate according to instructions is very important for
safety, and can elongate the service life of the machine.
Strictly follow the instruction in the manual when operate uFlamer Volcano. If you have any
doubts, please contact SHOWVEN technologies Co., Ltd by [email protected].
We assume the person who use or come in contact with the device are familiar with how the
device should be handled. This includes proper use, maintenance and repair of the machine as
defined in this user manual.
▲Functional Characteristics
\ 5-heads liquid flamer
\ Independent control of each head
\ Internal pump, plug and play system
\ Flames up to 10m
\ Reinforced stainless steel housing
\ 25L built-in stainless steel fuel tank
\ Support automatic refueling station
\ Real-time fuel level display, both electronically and mechanically
\ Safety switch key
\ Integrated valve block design
\ Premium and independent jet valve
\ Customized water-proof ignitor
\ IPX3 rain-proof, can be used in rainy day
\ DMX control, with both 3-pin and 5-pin XLR port
\ Compatible with fireworks firing system
▲Technical Specifications
\ DIMENSION: 630x460x405mm
\ HOUSING MATERIAL: 304 STAINLESS STEEL
\ WEIGHT:48Kg
\ WORK POWER: 2000W
\ INPUT:100-120V & 200-240V, 50/60Hz
\ FLAMER HEIGHT: 8-10m
\ FLAME ANGLES: 5 directions
\ FUEL: ISOPAR, ISOPROPANOL, BIOETHANOL
\ FUEL TANK CAPACITY: 25L
\ FUEL CONSUMPTION: 60mL/s per nozzle
\ WORK TEMP.: -20 to 50
\ INTERFACE: SEETRONIC 3-PIN & 5-PIN XLR
NEUTRIK PowerCON TRUE1
\ IGNITION: High voltage electron ignition
\ CONTROL: DMX, 9-60V PYRO SIGNAL
\ WATER PROOF LEVEL: IPX3

3
▲Structure of uFlamer Volcano
1. Fuel Tank Lid 2. Top Panel 3. Handle 4. Control Panel 5. Safety Loop
▲Connection dimension diagram of bottom bracket
3
1
4
1

4
▲Overview of Control Panel
1. LCD screen operate panel
2. Pressure indicator
3. Safety indicator
4. 5-pin XLR Socket
5. 110V/220V Power Socket
6. Auto-reset Fuse
7. Fuel Input Quick Coupler (G1/4, ISO7241B
8. Safety Lock
9. ON/OFF Switch
10. 3-pin XLR Socket
11. DC 9V-60V fireworks igniter signal port
▲Operation Panel

5
1. LED Display Area:
RX: Radio receiving (reserved)
DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal
ERR: Light on when there is an error
PUMP: Light on when pump is running
2. Button Functions:
MENU: Switch interface to setup parameter;
+: Parameter Up
-: Parameter Down
ENTER: Confirm and save parameters (screen will flash when parameters saved)
Note: screen display will switch to main interface if not press button in 10s.
3. Welcome Interface:
Volcano202004
F5-01207005
First Line: Product model and software version
Second Line: Equipment series number
4. Main Interface:
DMX: 1 M: 6CH-P
P: 100 L: 50%
First Line
DMX DMX address 1(value from 1-512);
MChannel Mode 6CH-P
6CH-P: professional channel mode;
6CH-N: normal channel mode
6CH-S: safety channel mode
Second Line
P: Pressure Value 100 (100=10bar)
L: Liquid level 50%
5. Alert Message:
Alert Message
Explanation
E0
Test Mode
Safety lock located at TEST MODE
Factory Mode
DMX signal blocked in factory mode
Invert ON
When turned on, all angles will be mirrored
Prim Valve ON
Priming Valve is open
E1 Pressure Err
Pressuriser for about 13s, pressure value failed to reach 100%, system
will report E1.
Possible fault: No fuel, pump failure, pipeline problem etc.
E2 P Relief Err
Pipeline can't release pressure leads to pressure relief error.
Possible fault: pressure release valve failure, pipeline problem or
control system problem etc.
E4 ExtIgnite ON
The ExtIgnite Time is switched to ON

6
E6 Tip Err
if the machine slant over 45° , it stops running, system will report E6
E7 Low Fuel
When fuel 0 report E7 low fuel
6. Interface setup:
1. 6CH Normal Mode / 6CH Pro Mode
Press “MENU”to switch through setup menu.
Menu
Range
Explanation
Set DMX Address
1~512
DMX address setup
2. 6CH Safe Mode
Press “MENU”to switch through setup menu.
Menu
Range
Explanation
Set DMX Address
1~512
DMX address setup
Safety Address
1~512
Safety Address
7. Advanced Interface:
Press “MENU” 3s enters advanced interface, press “MENU” to switch interface, press “MENU” 3s
can back to main interface.
Menu
Contents
Explanation
Drive Test
OFF / Pump / Igniter /
Relief Valve / Jet Valve
--
1. Pump
Pump running 1s, if pressure reached the
target value, the pump will not running.
Keep safety Lock located at USER MODE
before test.
2. Igniter
Ignition from head No.1 to 5
3. Relief Valve
Relief valve will be on and off 3 times
4. Priming Valve
Priming Valve will on and off 3 times
5. Jet Valve 1
6s after Relief Valve was on, related Jet
Valve will on and off 3 times. Keep safety
Lock located at USER MODE before test.
6. Jet Valve 2
7. Jet Valve 3
8. Jet Valve 4
9. Jet Valve 5
Ext Ignite
OFF / ON
Trigger through 9-60V ExtIgnite signal
(such as fireworks ignitor signal) ON/OFF
switch. Firing all 5 heads.
Ext Ignite Time
0.1-2.0 S
Firing time setup when activated through
ExtIgnite signal
Language
English / Chinese
Language switch
Mode Select
OFF / ON
Turn ON/OFF tip over function
DMX channel mode
6CH Normal Mode / 6CH
Pro Mode/ 6CH Safe
Mode
DMX channel mode switch, detail info
please check 5.DMX control
Default Parameter
OFF / ON
Reset default parameter settings
Invert
OFF / ON
When turned on, all angles will be
mirrored.
Fuel Input
OFF / ON
When ON, operators can fuel machine
through Fuel Input Quick Coupler

7
PV ON Fuel level
0-80% (default value
20%)
When fuel level lower than set value,
priming valve will turn on automatically.
PV Off Fuel Level
10%-100% (default value
100%)
When fuel level reached set value, proming
valve will turn off automatically
PV EMER OPEN
OFF / ON
Default value is OFF
ON: Turn on the Priming Valve for 3s
Current Voltage
12V
Mainboard power supply voltage display
▲Operation Instructions

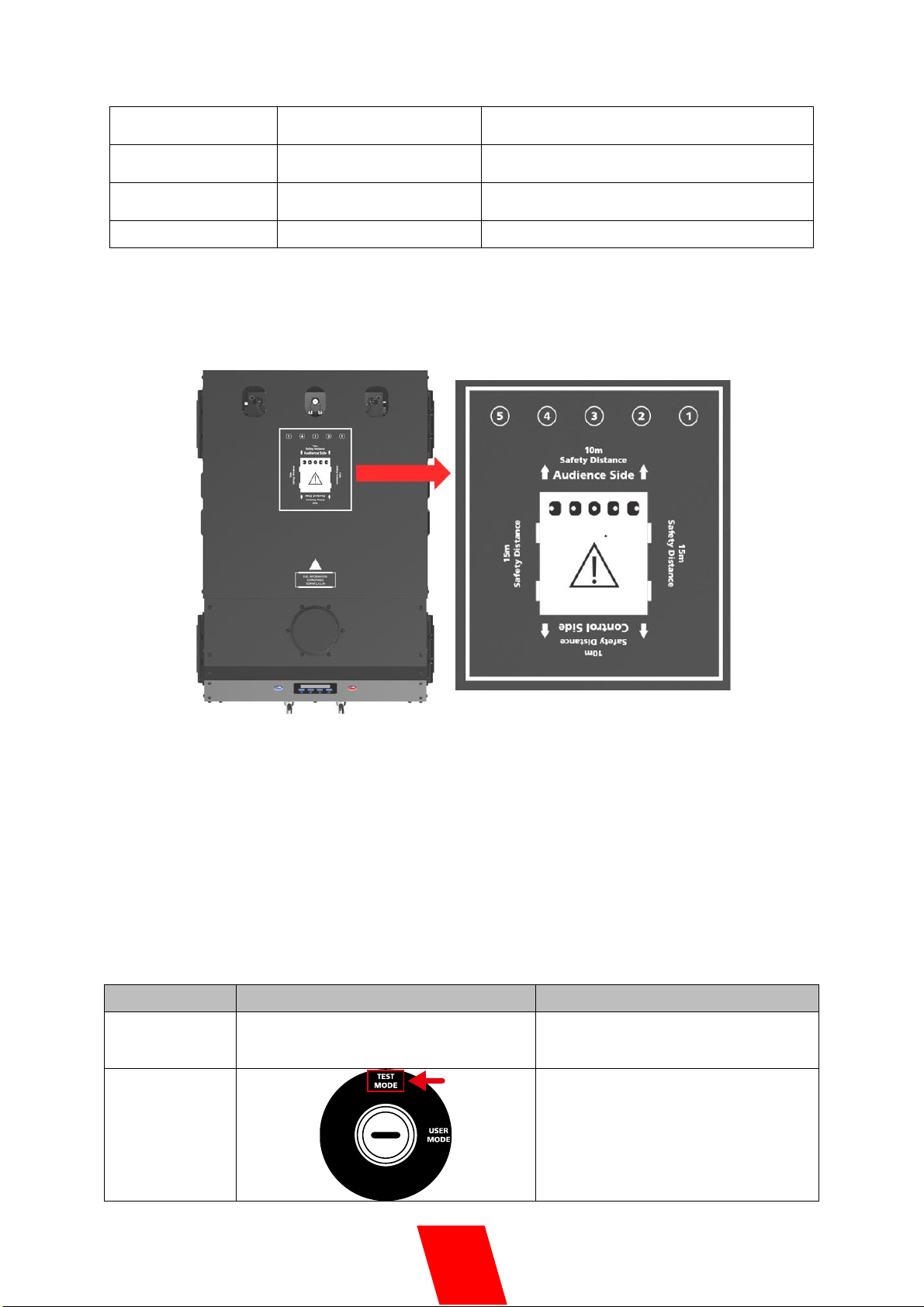

1. Direction explanation
Please read the safety distance printed on top panel of CIRCLE FLAMER carefully.
1.1-5 indicate the related head number of uFlamer Volcano. Right side one is head 1, head 3 is in
the middle, left side is head 5.
2. Audience side and control side are indicated in the picture.
3. Safety distances for uFlamer Volcano are indicated in above picture. At least 15m in all
projection directions, at least 10m to the audience side and control side.

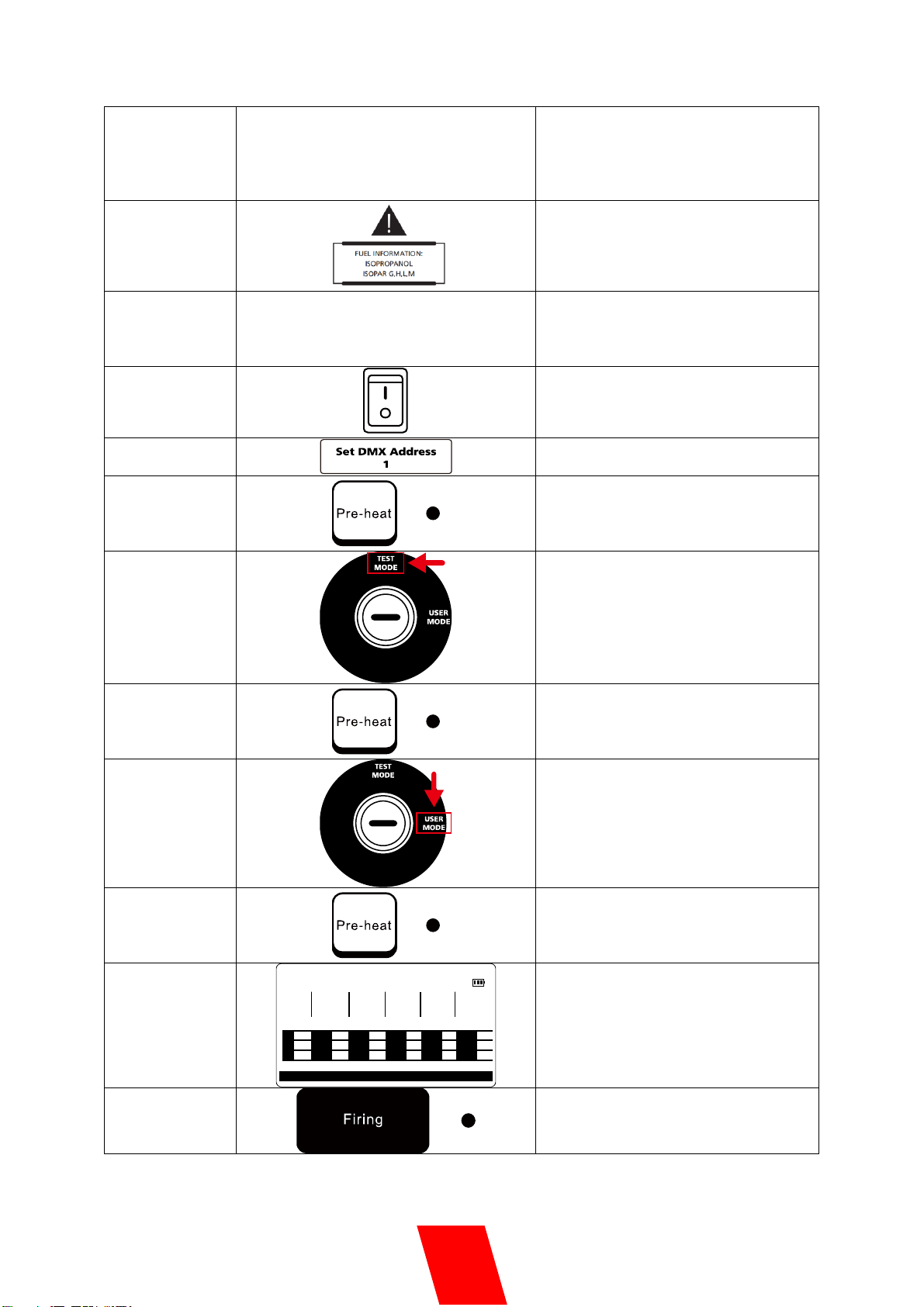

2. Quick Operation Sheet
Immediately upon receiving the machine, carefully unpack the packing carton, check the
machine received in good condition. Ensure safety operation of machine, please do following
below operation procedures when operate uFlamer Volcano.
Operation step
Schematic diagram and explanation
Explanation
Installation
The device can only be placed
horizontally, if placed on truss, please
locked with extra safety ropes.
Locate safety
lock at TEST
MODE
Before operate machine please
locate safety lock at TEST MODE.
TEST MODE: operator can test the
device, but the fuel ejection
function disabled, so there is no fuel
eject and flames.
USER MODE: the device can

8
generate flames normally. Please
strictly follow the safety distance
requirement, remove all human,
animal or flammable objects in the
danger area.
Fueling
Please fueling with high quality fuel
according to requirement of this
manual
Power and
DMX cable
connection
Make sure power supply in
consistent with the rated voltage of
the equipment, and the socket must
well grounded.
Switch ON the
machine
Please confirm safety lock located at
TEST MODE before switch on the
POWER ON/OFF.
Set DMX
address
Please refer to 5. DMX control.
Compression
Host controller: Press ”pre-heat”
button (light on)
DMX console: switch DMX value of
channel 6 to 50-200
Check device
status in TEST
MODE
Reconfirm safety lock located at
TEST MODE before test. In this
status, igniter will activated, but
there is no flame.
Pressure Relief
Host controller: Press “pre-heat” key
(light off)
DMX console: switch DMX value of
channel 6 to 0-49/201-255
Press the
safety lock to
USER MODE
Before switch to USER MODE, Please
strictly follow the safety distance
requirements, remove all human,
animal or flammable objects in the
danger area.
Pressurise
Host controller: Press” pre-heat”
button (light on)
DMX console: switch DMX value of
channel 6 to 50-200
Input firing
sequence
F1 MAIN
Synchronizarion CIRCLE FLAMER No. 1-10
From 1-15 Steppsequence short 2.4s
F I L E
NO.
Termin al Monit or
FI R I N G
HEIGHT
31 0.5s
DURTN
F I R I N G TRIG
DELAY
0.0s 10.0s 1
REPEAT
COUNTS
REPEAT
DELAY
1
1
7
13
2
8
14
3
9
15
4
10
16
5
11
17
6
12
18
MAIN FILE SELECT CONFIG ABOUT
For example, if want to firing
sequence 31
Host Controller: input 31 @sequence
DMX console: channel 5 DMX value
@ 80-81
Firing
Host controller: Press “FIRING” key
DMX console: switch DMX value of
channel 3 to 254-255

9
Pressure Relief
Relief pressure when show finished
or CIRCLE FLAMER not use for a
long period.
Host controller: Press “pre-heat” key
(light off)
DMX console: switch DMX value of
channel 6 to 0-49/201-255
Switch safety
lock to TEST
MODE
Guarantee safety use for next time
Power off
Power off, tear down power cable
and DMX cable, pack up the device
when it is cooled down.
3. Angle Definitions
Below schematic shows 5 heads and the projection directions of uFlamer Volcano from Audience
Side view.
4. Firing sequence list
uFlamer Volcano with more than 97 preset firing sequences. Operator use related channel DMX
value or sequence No. to access certain sequence. Sequence list as below:
Single Ignition Sequence List
Sequence
No.
Ignition
head No.
Description
Flame
Activity
Firing
Duration
(for reference)
CH5 DMX
Reference
Value
1
1
Single ignition SHORT
flame
Static
0.1s
3-5
2
2
Single ignition SHORT
flame
Static
0.1s
6-7
3
3
Single ignition SHORT
Static
0.1s
8-10

10
flame
4
4
Single ignition SHORT
flame
Static
0.1s
11-12
5
5
Single ignition SHORT
flame
Static
0.1s
13-15
6
1
Single ignition LONG
flame
Static
0.28s
16-17
7
2
Single ignition LONG
flame
Static
0.28s
18-20
8
3
Single ignition LONG
flame
Static
0.28s
21-22
9
4
Single ignition LONG
flame
Static
0.28s
23-25
10
5
Single ignition LONG
flame
Static
0.28s
26-28
Step Sequences List
Sequence
No.
Ignition
head No.
Description
Flame
Activity
Firing Duration
(for reference)
CH5 DMX
Reference
Value
11
Step 1-5
SHORT flame Step
sequence
L -> R
0.54s
29-30
12
Step 5-1
SHORT flame Step
sequence
R -> L
0.54s
31-33
13
Step
1>3>5>2>4
SHORT flame Step
sequence
L>M>R>L>
R
0.54s
34-35
14
Step
5>3>1>4>2
SHORT flame Step
sequence
R>M>L>R>
L
0.54s
36-38
15
Step
1>5>2>3>4
SHORT flame Step
sequence
L>R>L>M>
R
0.54s
39-40
16
Step
5>1>4>3>2
SHORT flame Step
sequence
R>L>R>M>
L
0.54s
41-43
17
Step1>5>2
>4>3
SHORT flame Step
sequence
L>R>L>R>
M
0.54s
44-45
18
Step
5>1>4>2>3
SHORT flame Step
sequence
R>L>R>L>
M
0.54s
46-48
19
Step
2>4>1>5>3
SHORT flame Step
sequence
L>R>L>R>
M
0.54s
49-50
20
Step
4>2>5>1>3
SHORT flame Step
sequence
R>L>R>L>
M
0.54s
51-53
21
Step
2>4>3>1>5
SHORT flame Step
sequence
L>R>M>L>
R
0.54s
54-56
22
Step
4>2>3>5>1
SHORT flame Step
sequence
R>L>M>R>
L
0.54s
57-58
23
Step
2>3>4>1>5
SHORT flame Step
sequence
L>M>R>L>
R
0.54s
59-61
24
Step
4>3>2>5>1
SHORT flame Step
sequence
R>M>L>R>
L
0.54s
62-63
25
Step
3>1>5>2>4
SHORT flame Step
sequence
M>L>R>L>
R
0.54s
64-66
26
Step
3>5>1>4>2
SHORT flame Step
sequence
M>R>L>R>
L
0.54s
67-68
27
Step
3>2>4>1>5
SHORT flame Step
sequence
M>L>R>L>
R
0.54s
69-71
28
Step
3>4>2>5>1
SHORT flame Step
sequence
M>R>L>R>
L
0.54s
72-73

11
29
Step 2>3>4
SHORT flame Step
sequence
L>M>R
0.32s
74-76
30
Step 4>3>2
SHORT flame Step
sequence
R>M>L
0.32s
77-79
31
Step 1>3>5
SHORT flame Step
sequence
L>M>R
0.32s
80-81
32
Step 5>3>1
SHORT flame Step
sequence
R>M>L
0.32s
82-84
33
Step 1>5
SHORT flame Step
sequence
L->R
0.21s
85-86
34
Step 5>1
SHORT flame Step
sequence
R->L
0.21s
87-89
35
Step 2>4
SHORT flame Step
sequence
L->R
0.21s
90-91
36
Step 4>2
SHORT flame Step
sequence
R->L
0.21s
92-94
37
Step 1-5
LONG flame Step
sequence
L->R
1.45s
95-96
38
Step5-1
LONG flame Step
sequence
R->L
1.45s
97-99
39
Step
1>3>5>2>4
LONG flame Step
sequence
L>M>R>L>
R
1.45s
100-101
40
Step
5>3>1>4>2
LONG flame Step
sequence
R>M>L>R>
L
1.45s
102-104
41
Step
1>5>2>3>4
LONG flame Step
sequence
L>R>L>M>
R
1.45s
105-107
42
Step
5>1>4>3>2
LONG flame Step
sequence
R>L>R>M>
L
1.45s
108-109
43
Step1>5>2
>4>3
LONG flame Step
sequence
L>R>L>R>
M
1.45s
110-112
44
Step
5>1>4>2>3
LONG flame Step
sequence
R>L>R>L>
M
1.45s
113-114
45
Step
2>4>1>5>3
LONG flame Step
sequence
L>R>L>R>
M
1.45s
115-117
46
Step
4>2>5>1>3
LONG flame Step
sequence
R>L>R>L>
M
1.45s
118-119
47
Step
2>4>3>1>5
LONG flame Step
sequence
L>R>M>L>
R
1.45s
120-122
48
Step
4>2>3>5>1
LONG flame Step
sequence
R>L>M>R>
L
1.45s
123-124
49
Step
2>3>4>1>5
LONG flame Step
sequence
L>M>R>L>
R
1.45s
125-127
50
Step
4>3>2>5>1
LONG flame Step
sequence
R>M>L>R>
L
1.45s
128-130
51
Step
3>1>5>2>4
LONG flame Step
sequence
M>L>R>L>
R
1.45s
131-132
52
Step
3>5>1>4>2
LONG flame Step
sequence
M>R>L>R>
L
1.45s
133-135
53
Step
3>2>4>1>5
LONG flame Step
sequence
M>L>R>L>
R
1.45s
136-137
54
Step
3>4>2>5>1
LONG flame Step
sequence
M>R>L>R>
L
1.45s
138-140
55
Step 2>3>4
LONG flame Step
sequence
L>M>R
0.86s
141-142
56
Step 4>3>2
LONG flame Step
sequence
R>M>L
0.86s
143-145
57
Step 1>3>5
LONG flame Step
sequence
L>M>R
0.86s
146-147

12
58
Step 5>3>1
LONG flame Step
sequence
R>M>L
0.86s
148-150
59
Step 1>5
LONG flame Step
sequence
L>R
0.57s
151-152
60
Step 5>1
LONG flame Step
sequence
R>L
0.57s
153-155
61
Step 2>4
LONG flame Step
sequence
L>R
0.57s
156-158
62
Step 4>2
LONG flame Step
sequence
R>L
0.57s
159-160
63
Step
15>3>24
SHORT flame Step
sequence
LR>M>LR
0.40s
161-163
64
Step
24>3>15
SHORT flame Step
sequence
LR>M>LR
0.40s
164-165
65
Step
15>24>3
SHORT flame Step
sequence
LR>LR>M
0.40s
166-168
66
Step
3>24>15
SHORT flame Step
sequence
M>LR>LR
0.40s
169-170
67
Step
3>15>24
SHORT flame Step
sequence
M>LR>LR
0.40s
171-173
68
Step
24>15>3
SHORT flame Step
sequence
LR>LR>M
0.40s
174-175
69
Step
24>135
SHORT flame Step
sequence
LR>LMR
0.25s
176-178
70
Step
135>24
SHORT flame Step
sequence
LMR>LR
0.25s
179-181
71
Step
15>234
SHORT flame Step
sequence
LR>LMR
0.25s
182-183
72
Step
234>15
SHORT flame Step
sequence
LMR>LR
0.25s
184-186
73
Step
15>3>24
LONG flame Step
sequence
LR>M>LR
0.86s
187-188
74
Step
24>3>15
LONG flame Step
sequence
LR>M>LR
0.86s
189-191
75
Step
15>24>3
LONG flame Step
sequence
LR>LR>M
0.86s
192-193
76
Step
3>24>15
LONG flame Step
sequence
M>LR>LR
0.86s
194-196
77
Step
3>15>24
LONG flame Step
sequence
M>LR>LR
0.86s
197-198
78
Step
24>15>3
LONG flame Step
sequence
LR>LR>M
0.86s
199-201
79
Step
24>135
LONG flame Step
sequence
LR>LMR
0.57s
202-203
80
Step
135>24
LONG flame Step
sequence
LMR>LR
0.57s
204-206
81
Step
15>234
LONG flame Step
sequence
LR>LMR
0.57s
207-209
82
Step
234>15
LONG flame Step
sequence
LMR>LR
0.57s
210-211
Multi ignition firing sequence list
Sequence
No.
Ignition
head No.
Description
Flame
Activity
Firing Duration
(for reference)
CH5 DMX
Reference
Value
83
12345
Multi ignition SHORT
flame
Static
0.1s
212-214

13
84
1245
Multi ignition SHORT
flame
Static
0.1s
215-216
85
234
Multi ignition SHORT
flame
Static
0.1s
217-219
86
135
Multi ignition SHORT
flame
Static
0.1s
220-221
87
15
Multi ignition SHORT
flame
Static
0.1s
222-224
88
24
Multi ignition SHORT
flame
Static
0.1s
225-226
89
12345
Multi ignition LONG
flame
Static
0.28s
227-229
90
1245
Multi ignition LONG
flame
Static
0.28s
230-232
91
234
Multi ignition LONG
flame
Static
0.28s
233-234
92
135
Multi ignition LONG
flame
Static
0.28s
235-237
93
15
Multi ignition LONG
flame
Static
0.28s
238-239
94
24
Multi ignition LONG
flame
Static
0.28s
240-242
95
3
Multi ignition LONG
flame
Static
User defined
243-244
96
234
simultaneously
Static
User defined
245-247
>97
12345
simultaneously
Static
User defined
248-255
5. DMX control
1. Normal Channel Mode
Channel
Function
CH1
Manual mode head selection
0: all five heads 1-51: head NO.1
52-102: head NO.2 103-153: head NO.3
154-204: head NO. 4 205-255: head NO.5
CH2
/
CH3
Ignition ON/OFF
0~253: ignition OFF;
254~255: ignition ON
CH4
Firing duration setup
0 and 255 is permanent firing (8s is limit duration firing time, 5 heads
simultaneously firing limit time is 2s);
1~254 correspond to 10~2540ms duration time (Manual firing duration = DMX
Value * 10ms)
CH5
Program sequence setup
0-2: no preset sequence; set according to CH1 and CH4;
3~255: preset sequence. DMX Value = 2+ Sequence No. * 2.55 (round off). CH1 and
CH4 invalid.
CH6
Mode setup
0~49: Pressure Relief Mode (Emergency Stop)
50~200: Firing Mode
201~255: Pressure Relief Mode (Emergency Stop)

14
2. Professional Channel Mode
Channel
Function
CH1
Head NO.1 0~253: Firing OFF 254~255: Firing ON
CH2
Head NO.2 0~253: Firing OFF 254~255: Firing ON
CH3
Head NO.3 0~253: Firing OFF 254~255: Firing ON
CH4
Head NO.4 0~253: Firing OFF 254~255: Firing ON
CH5
Head NO.5 0~253: Firing OFF 254~255: Firing ON
CH6
Mode setup
0~49: Pressure Relief Mode (Emergency Stop)
50~200: Firing Mode
201~255: Pressure Relief Mode (Emergency Stop)
3. Safety Channel Mode
Channel
Function
CH1
Manual mode head selection
0: all five heads 1-51: head NO.1
52-102: head NO.2 103-153: head NO.3
154-204: head NO. 4 205-255: head NO.5
CH2
/
CH3
Ignition ON/OFF
0~253: ignition OFF;
254~255: ignition ON
CH4
Firing duration setup
0 and 255 is permanent firing (8s is limit duration firing time, 5 heads
simultaneously firing limit time is 2s);
1~254 correspond to 10~2540ms duration time (Manual firing duration = DMX
Value * 10ms)
CH5
Program sequence setup
0-2: no preset sequence; set according to CH1 and CH4.
3~255: preset sequence. DMX Value = 2+ Sequence No. * 2.55 (round off). CH1 and
CH4 invalid.
CH6
Mode setup
0~49: Pressure Relief Mode (Emergency Stop)
50~200: Firing Mode
201~255: Pressure Relief Mode (Emergency Stop)
▲SHOWVEN Flamer Nozzle Information
SHOWVEN offer two types of nozzles to generate different effect height. Nozzle M and Nozzle L.
Standard configuration is Nozzle M.
1. Nozzle Types
●SFSMA002 Nozzle M
Short flame：5~7m
Long flame：8~10m
●SFSMA003 Nozzle L
Short flame：3~5m
Long flame：6~8m

15
2. Nozzle replacement
Change nozzle
Use 14mm outer hexagon socket wrench to disassemble the nozzle, clean the nozzle and nozzle
socket with air gun (air compressor), change a different nozzle and install it.
Nozzle disassemble tool: SFMET944
Ignitor Position Adjustment
After change the nozzle please adjust the ignitor’s position according to below parameters. The
default position when we ship out from factory is for Nozzle M (standard nozzle). When replace
to nozzle L (indoor nozzle) need to remove the ignitor a little bit to the center, makes the
ignitor closer to the fuel stream.
Nozzle
amm
bmm
Short flame height m
Long flame height m
M
4 0.5
4 0.5
5~7
8~10
L
2.5 0.5
4 0.5
3~5
6~8
Note: Do unplug the power cable when service flamer.

16
▲SHOWVEN host controller ZK6200/ZK6300
1. Hardware description:
\ MODEL: ZK6200/ZK6300
\ DIMENSION: 390×300×110mm
\ WEIGHT: 3.5kg
\ VOLTAGE: 100-240V, 50/60Hz
\ POWER: 15W
\ MAX CASCADE OF DEVICE: 18units (ZK6200)/ 54units (ZK6300)
\ SUPPORT MACHINES: SPARKULAR series, CIRCLE FLAMER series, SONICBOOM series
2. SHOWVEN host controller introduction:
1. Standard DMX512 signal output
2. Support 18uits (ZK6200) or 54units (ZK6300) of uFlamer Volcano
3. 5 standard dynamic modes: Synchronization, Center to Ends, Ends to Center, Left to Right,
Right to Left. And an user definable Special Effect mode, support 8 files, each file support 36000
lines maximum (effects lasts for 30min)
4. Multi trigger sources: manual, music or midi input
5. RDMX monitoring function: system can send back uFlamer Volcano working status info such as
pressure, warming etc. and display on the screen
6. Emergency stop function
3. Operational Panel
1. Cable connection area
2. Manual firing operation region
3. Mode selection area
4. LCD display area
5. Edit/Control area

17
2. Maintenance
1. To maintain the system in good performance and running
status, it is recommended to running the device at least once
per month.
2. Maintenance of the nozzle: Nozzle need to be cleaned up ,
and it is recommended that once every six months
(depending on the environment and frequency of use). In
the process of using the equipment, if the flame shape is
seriously deformed or the fuel injection line is significantly
deformed or coarsened, the nozzle should be removed
immediately for cleaning.
3. Maintenance of the O-ring: If it is found that the O-ring of the nozzle is damaged or ageing
when cleaning the nozzle, the O-ring should be replaced in time (material and size of O-ring:
fluororubber O-ring, the outermost diameter is 14 mm, and the line diameter is 2 mm).
▲Accessories list
No.
Part No.
Description
QTY
1
RMWAS025
Fluororubber O-ring
5
2
RMBOT036
Safety loop
2

18
Warranty Instructions
▲Sincere thanks for your choosing uFlamer Volcano, you will receive quality service from us.
▲The product warranty period is one year. If there are any quality problems within 7 days after
shipping out from our factory, we can exchange a brand new same model machine for you.
▲We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors)in warranty period.
Please don't repair machine without factory permission.
★Below situations NOT included in warranty service:
1. Damage caused by improper transportation, usage, management, and maintenance, or
damage caused by human factors;
2. Disassemble, modify or repair products without Showven’s permission;
3. Damage caused by external reasons (lightning strike, power supply etc)
4. Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
★Invoice and warranty card are necessary when applying for maintenance service from
SHOWVEN.
Warranty Card
Product Name:
Serial No.
Purchase Date:
Tel:
Address:
Info. feedback
about the
problem:
Actual problem:
Maintenance
detail:
Service Engineer:
Service Date:
