Envision Scrip Talk Station User manual

V.1.3

Table of Contents
1 Introduction to ScripTalk Station................................... 2
2 What's In This Package?.............................................. 3
3 Getting Started.............................................................. 3
4 How to Use ScripTalk Station....................................... 4
4.1 General Instructions for Setup............................... 4
4.2 Powering On the ScripTalk Station........................ 4
4.3 Scanning & Reading Prescriptions........................ 4
4.4 Changing the Voice Speed.................................... 6
4.5 Spell Mode ........................................................... 6
4.6 Operating With Batteries....................................... 6
4.7 Low Battery Indication........................................... 6
4.8 Other Information About Your ScripTalk Station..... 7
5 Warranty....................................................................... 7
6 Contact Us.................................................................... 8

If you have difficulty reading a label, find a caregiver to read the printed label on the
prescription. Do not guess or make assumptions as to the contents or directions for any
prescription medication.
Warning! Only use the DC power supply provided by En-Vision America. Damage may
occur if a different power supply is used.
Warning! The reader is water resistant only. It should not be placed in water. If dropped
into water, it should be removed immediately and dried off.
IMPORTANT SAFETY INSTRUCTIONS:
READ ALL INSTRUCTIONS BEFORE USING
Warning!
Introduction to ScripTalk Station
ScripTalk Station is a portable electronic device that aids individuals (blind, visually
impaired, or otherwise print impaired) with the ability to manage their own medications
in a convenient and effective way.
ScripTalk Station identifies the data within a Talking Label or RFID tag placed on a
medication container and verbalizes the user’s prescription information.
1

What’s In This Package?
The ScripTalk Station Package consists of:
· The ScripTalk Station Reader
· AC/DC Power Adapter (5V)
· Two AA Batteries
· One Sample Pill Bottle - Used for demonstrating ScripTalk Station features
· User’s Manual (printed version & recorded CD version) & Warranty Card
Getting Started

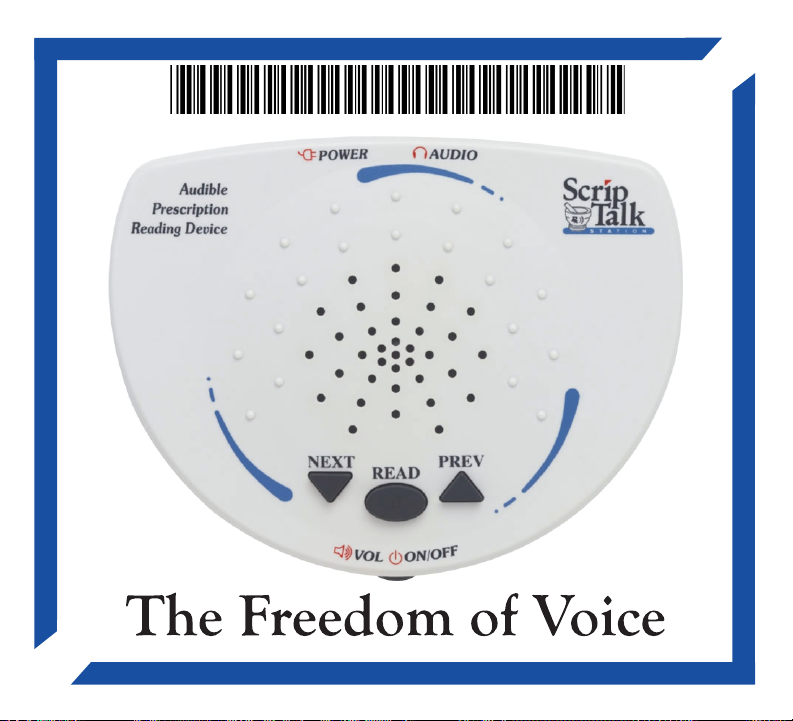

Place the ScripTalk Station unit on the table in front of you with the 3 buttons
closest to your body. The button at the center is an oval-shaped Read Button.
The button on the right-hand side is the Previous Button (or “Up Arrow” button)
and the button on the left-hand side is the Next Button (or “Down Arrow” button).
On the top of the device is a semi-circle of tactile dots which are a guide for
prescription placement. The prescription should be placed above or on this semi-
circle when reading.
On the front edge of the device, there is a thumbwheel switch provided for
ON/OFF and Volume control.
On the back edge of the ScripTalk Station, there is a power jack and a stereo
audio jack. The ScripTalk Station can also operate on two AA (1.5V) batteries.
2
3

How To Use ScripTalk Station
General Instructions for Setup
· Connect the power adapter to the wall socket.
· Plug in the other end of the power adapter into the DC jack on the ScripTalk
Station Reader.
· Alternatively, the device can operate with the two batteries provided. The polarity
of the battery placement is marked within the compartment.
· Stereo headphones (not supplied) can be connected to the audio jack for
private listening.
Powering On the ScripTalk Station
The ScripTalk Station is switched ‘ON’ by turning the thumbwheel switch towards
the left. Turning the thumbwheel further to the left increases the volume. The
ScripTalk Station unit generates a series of beeps to indicate that the system is
initializing. A voice then says “ScripTalk Station ready” and is followed by a double
beep. The device is now ready to read a prescription label.
Scanning & Reading Prescriptions
Scanning a Prescription
Place the prescription on the top of the unit, above the semi-circle of tactile dots.
The container should be within one inch of the reader. Press the Read Button to
start the scan. You will a beeping sound. The beeping sound indicates that
ScripTalk Station is attempting to read the prescription. Once the unit identifies
4
4.1
4.2
4.3

the prescription, the speed of the beeps will increase. The pill bottle should not
be moved away until the reader begins speaking the prescription information.
If a prescription label is identified, ScripTalk Station will begin speaking the
prescription information in its entirety. When finished, it sounds a double beep.
Canceling a Scan
To cancel or end the speaking of a prescription label, simply press the Read
Button. The voice will stop and you will hear two beeps.
Manually Scrolling Through Prescription Information
While the device is speaking your prescription details, you can press the Previous
or Next Button to move through the previous and next items of information. By
using this manual mode, any specific part of the prescription can be read out as
required, as many times as needed.
Once ScripTalk Station reaches the first field, it repeats the same item if Previous
Button is pressed. Similarly, once the last field is reached, it repeats the same
item if Next Button is pressed.
Manual Time Out
After ScripTalk Station is done voicing out the prescription details, the device goes
into sleep mode. (Please note: Information for that prescription is held in memory
for only 30 seconds.)
Multiple Prescriptions Detected
You should only present one prescription at a time for ScripTalk Station to read.
If more than one ScripTalk prescription is identified during a read, a verbal warning
is given.

Changing the Voice Speed
You can change the voice speed by pressing and holding the Next or Previous
Button for about 3 seconds. You will be prompted to adjust the voice to the
desired speed using the Next or Previous Buttons. Once you have found your
preferred speed, press the Read Button to set. The selected voice speed will be
saved even after the device is powered off.
Spell Mode
If you have trouble understanding a word or wish to have the spoken information
spelled out for you, you can use the Spell Mode feature. This is enabled by
selecting the last or slowest step in the voice speed adjustment. Press and hold the
Next or Previous Button for about 3 seconds until you are prompted to change
the voice speed. Then press the Next or down arrow button until you hear “Spell
Mode”, then press the Read Button to select. You can then scan your prescription
and hear the information spelled out. To cancel this function, follow the steps to
reset the voice to your desired speed.
Operating With Batteries
ScripTalk Station can be operated with 2 AA (1.5V) batteries.
Low Battery Indication
If the batteries get low, the unit will voice out a Low-Battery indicator whenever the
Read Button is pressed. This prompt indicates that the batteries need to be
replaced.
4.4
4.5
4.6
4.7

4.8
5
Other Information About Your ScripTalk Station Reader
Leaving the ScripTalk Station On
If the device is left on battery power for more than 5 minutes, an audio chirp will be
heard every 1.5 minutes as a reminder to turn off the device.
What Happens if the Reader Doesn’t Find a ScripTalk Label?
After pressing the Read Button, the device will try to find and read a Talking Label
for about 15 seconds. If during this process the label is removed from the reading
range of the device or no label is presented, the device will timeout. You will hear
the prompt “Warning, unable to read label. It is very important that you do not
make guesses as to the contents or directions for this prescription. If you continue
to have difficulty, contact a caregiver to visually read this prescription or contact
your pharmacy.” You will then hear two beeps.
Listening to the ScripTalk Station Onboard Help
To hear an introduction, instructions and basic help information, press and hold the
Read Button for about 3 seconds. To stop this playback of information, press the
Read Button again.
Warranty
En-Vision America, Inc. (hereafter “Seller”) warrants that the products manufactured
by it and suppled hereunder are free from defects in material and workmanship. If
any such products shall be proved to Seller’s satisfaction to be non-conforming
within twelve (12) months from date of delivery, Seller shall have the option to credit
the purchase price of such product or repair or replace such product. Such credit,
repair, or replacement shall be Seller’s sole obligation and Buyer’s exclusive
remedy hereunder and shall be conditioned upon Seller’s receiving written notice of
any alleged nonconformity withing fifteen (15) days after receipt of shipment and, at
Seller’s option, return of such products to Seller, F.O.B. its factory. Products
supplied by Seller that are manufactured by someone else are not warranted by

Seller in any way, but Seller agrees to assign to Buyer any warranty rights in such products that
Seller may have from the original manufacturer. This exclusive remedy shall not be deemed to
have failed or its essential purpose so long as the Seller is willing and able to repair or replace
nonconforming products or credit the purchase price withing ninety (90) days of the date the
Seller determines that such products are nonconforming. Any suggestions by Seller or Seller’s
agents regarding use, application, or suitability of the products shall not be construed as an
expressed warranty unless confirmed in writing by Seller.
Warning: Changes or modifications not expressly approved by the manufacturer
could void the authority to operate the equipment.
For more information, please contact us at:
En-Vision America, Inc.
1845 Hovey Ave.
Normal, IL 61761
Toll Free: [phone]
Customer Support: [phone]
Tech Support: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.envisionamerica.com
