EOS Tech VT-300 User manual

User Manual Rev.1.2.1EN
Network Drive Recorder
Network Drive Recorder
VT-300

1
Thank you for purchasing
this network drive recorder.
Please read this user
manual carefully before
you use the NDVR and
keep it handy for future
reference.
Before reading this user manual

2
⚠WARNING
Failure to follow these safety instructions could result in fire,
electric shock, or other injuries, or damage to product or other
property. Read all the safety information below before using
product.
* Do not disassemble or modify s product under user's own
discretion, or it may cause product failure, electric shock or
fire.
* When terminal is in malfunction, do not operate terminal.
* If foreign matter or water gets into terminal or smoking, stop
using and contact service center for A/S.
* When other electronic product is installed in vehicle, be
careful that terminal power cable is cut or gets damaged, or it
may cause product failure or electric shock or fire.
* Do not change the terminal installation location without
authorization, or there may be blind area in image
photography and user shall be liable on this.
* Fuse shall be in rated capacity.
* Unauthorized installation may cause failure in vehicle or
product.
* When power is connected, do not remove memory card,
cause memory card failure.
* Do not touch memory card with oily or wet hand, or it may
cause product failure.
* Please use only authenticated and recommended memory
card, or it may cause data loss.
* Do not put foreign material into card insertion slot of the
terminal, or card may not be inserted or it may cause product
failure.
* An improper connection could result in loss of data or memory
card defect.
* For cleaning, do not use water, benzene or alcohol to product
and parts. Please use soft and dry cloth, or it may cause
product failure.
* Do not apply strong impact to the terminal, or terminal may
break by the impact or it may cause product failure.
Section 1
Important safety information

3
* GPS receiver module requires warming up time for initial start
up. It may take several seconds or several minutes after
power is turned on according to signal receiving environment.
* Metallic coating on front window of vehicle may cause signal
trouble in GPS.
* Be careful for In-Cabin camera angle not to be shaded by
inside room mirror when the product install.
* Adhere after working Air Drier (Air Conditioner) in case of
much humidity.
* Do not operate the terminal in driving or it may cause a traffic
accident. Park vehicle safely first and then operate the
terminal.
* When service is required please contact our service center for
A/S.
* Do not touch to camera lens. Finger prints are may cause
unclear recorded video quality.

2
Getting to know the network drive
recorder

5
Your network drive recorder comes with the accessories shown
on this page. If any of these items is missing from your box, call
customer center.
* The exact appearance of each item may vary by model.
* Micro SDXC memory card are not included.
* You can purchase parts and accessories after consulting with
your local distributor. Product is not responsible for reduced
malfunctions caused by any unauthorized use of accessories
such as the power cable etc.,
* The exact appearance of each item may vary by model.
Section 1
Unpacking
Main NDVR GPS Module & Cradle
Tamperproof cover Screw seal Screw Screw wrench
Cable Clip & Tie Uninterrupted power cable CD

6
Section 2

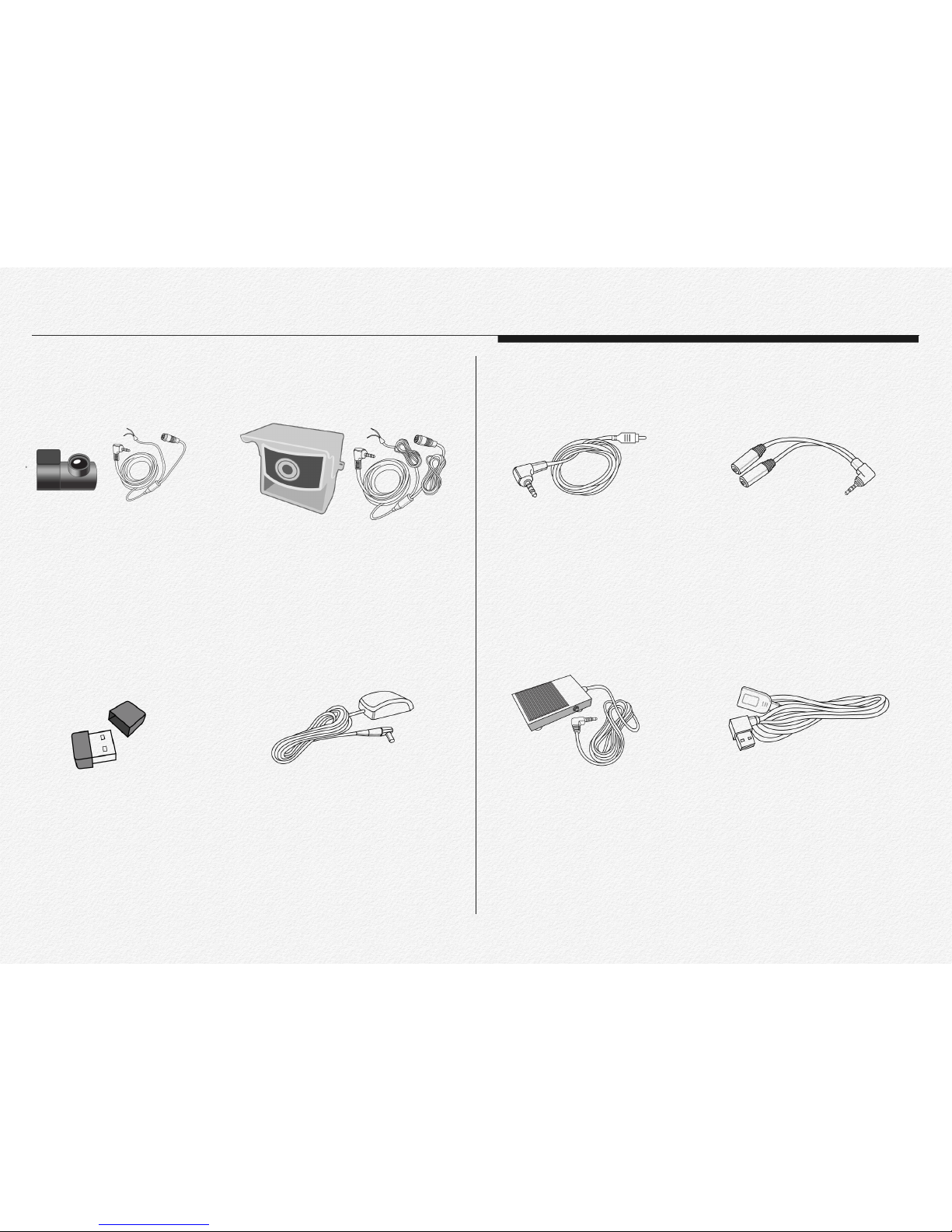

Optional Accessories
RCAM-D16M
3rd Camera
* 720x480p
* 6 meters cable
* Reverse gear signal wire port
* DC 5V power use from NDVR
* Korea origin
* 720x480p / IP67 / Waterproof
* 160(D) wide angle / IR LED
* 23 meters cable
* Reverse gear signal wire port
* DC 5V power use from NDVR
RCAM-9990IR
3rd Camera
* IEEE 802.11 b/g/n
* 2.4GHz frequency bands
* OFDM, Peak rate 150Mbps
* Peak throughput 90Mbps.
* 64/128 WEP,WPA,WPA2,TKIP,AES
WF-700RA
Wireless LAN USB Adopter
* IP67 / Waterproof
* 6 meters cable length
* Magnetic type
* MCX connecter
GPSA-6000
External GPS Antenna for
metal film coating vehicle.
* 2.5mm EarPhone jack to RCA
* 3 meter cable length
* UL approved
VOC-300
Video-out Cable
* 2.5mm EarPhone jack type
* 1 male to 2 female jack use
* This part is may need to use video-out
cable and panic button use at once
YCB-100
Y-Type Cable
* IP54 / Metal type
* 5 meters cable length
* 10A/250VAC
* This part is able to connect to
Video-out port from NDVR
FS-5M
Panic Foot Switch
* L-angle male to right angle female
* Use for external flash memory
USB-200
USB 2.0 Cable

7
Section 3
Part & Names
Read this section to learn about the NDVR features, how to use the
controls, and more.

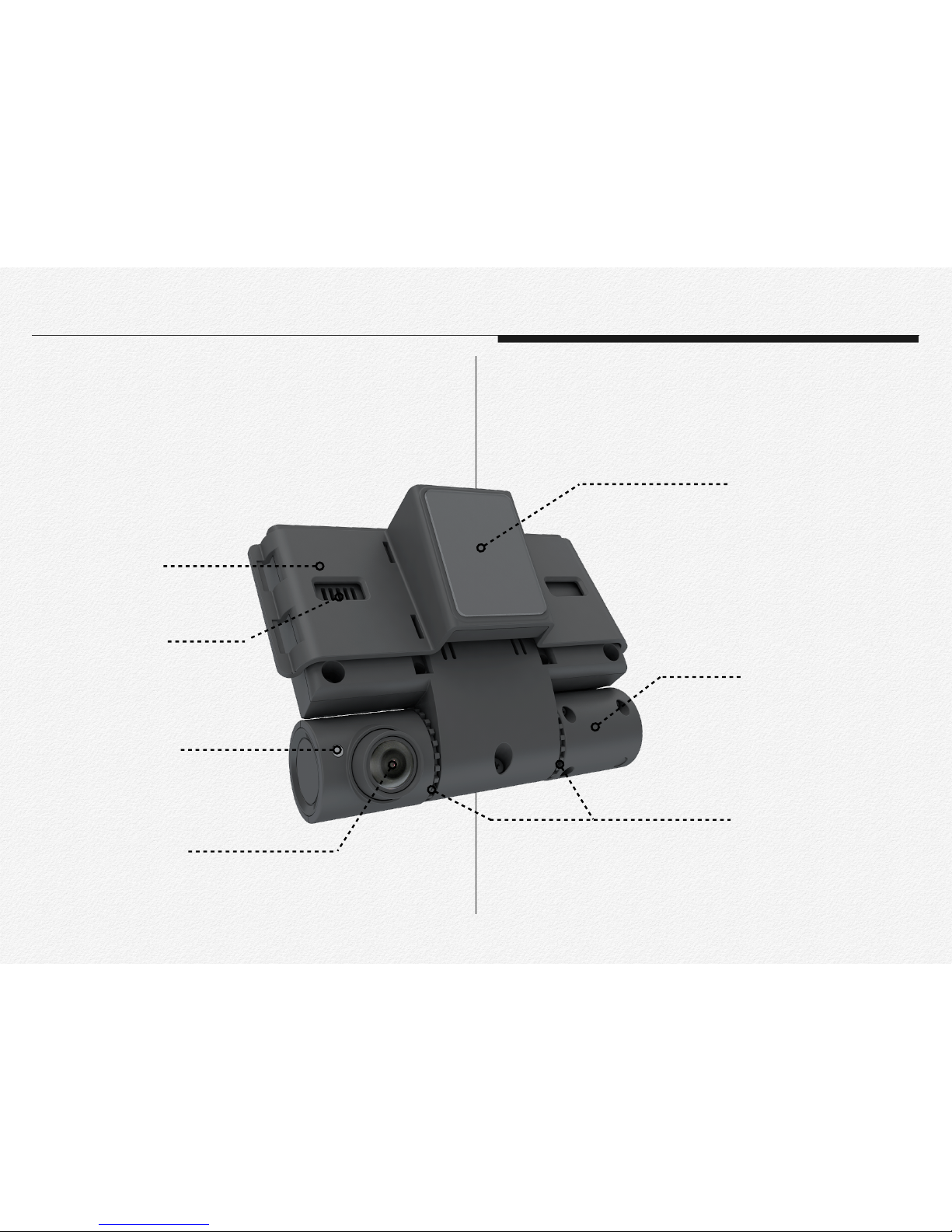

GPS & Cradle
Operating LED
Road view camera
(Six-element lens)
GPS receiver module
(GNSS worldwide)
In-cabin view camera
Angle hook for
tamperproof case
Speaker
Main device-Road side view

In-cabin view camera
(Six-element lens)
In-cabin IR LEDs
(Infrared night vision
recording)
Micro SD card slot
(Dual slot)
DC power
GPS port
Video-out port
3rd camera port
USB 2.0 port
Micro USB port
Network state LED
Record state LED
GPS state LED
Manual event recording button
Microphone and
Reset button
Main device-InCabin side view
In Cabin view

9
GPS cable jack
Install type
assignment icon
External GPS antenna MCX
connecter
Main device joint hook
Tamperproof cover hook
GPS Receiver
module inside
GPS & Windshield cradle
GPS & Cradle

Main device joint hook
Lock screw joint hole
GPS Cradle joint hook

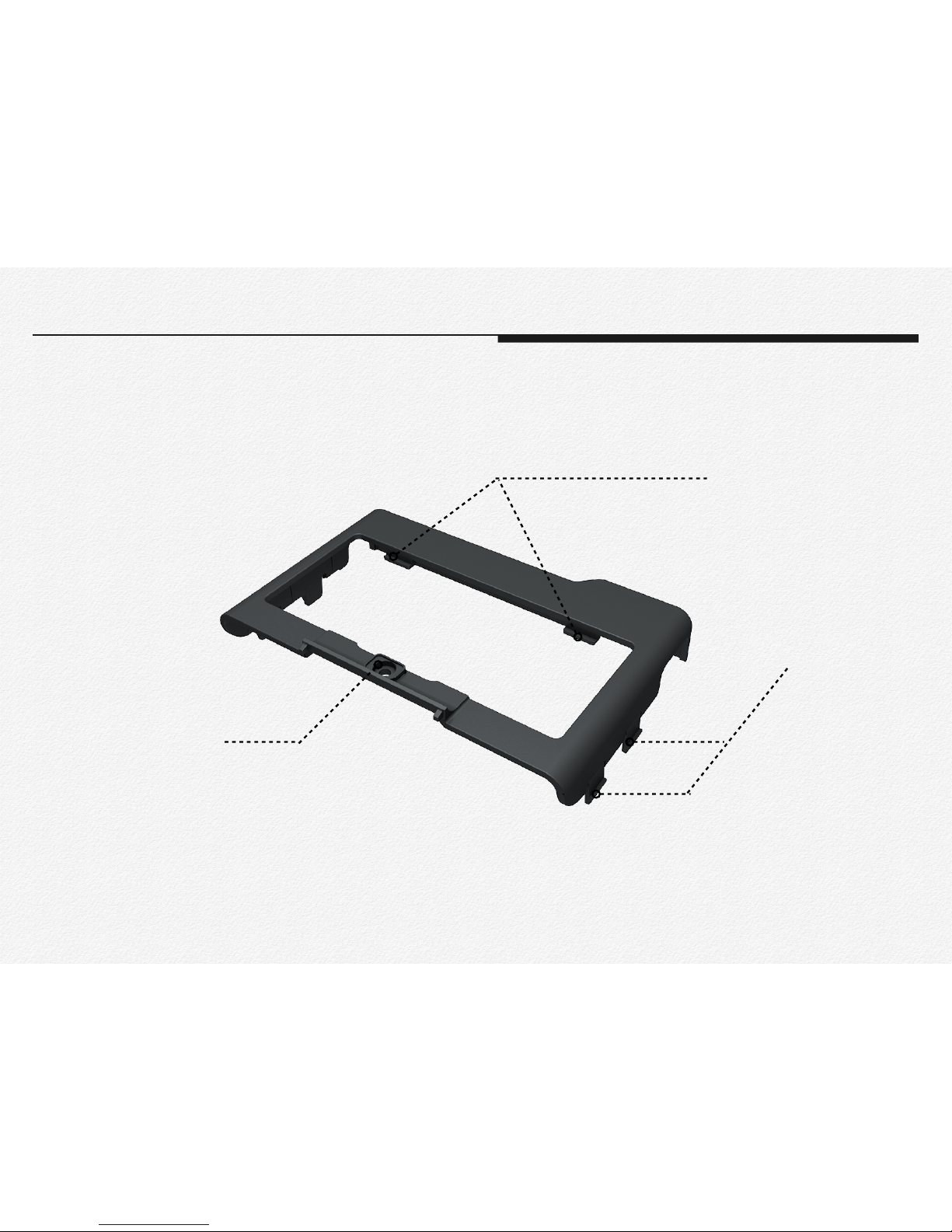

Tamperproof cover
Tamperproof cover

11
GPS IN
The ‘GPS IN’ port is use to receiving GPS signal from GPS
module receiver. !
VIDEO OUT
The ‘VIDEO OUT’ port is use to out put video signal by live
streaming to video monitor. It is need to connect to ‘Video out
cable’ if use the ‘Video out’ function to monitoring cargo inside
or backward view.
Section 4
Terminal ports
Main device-Road side view

12

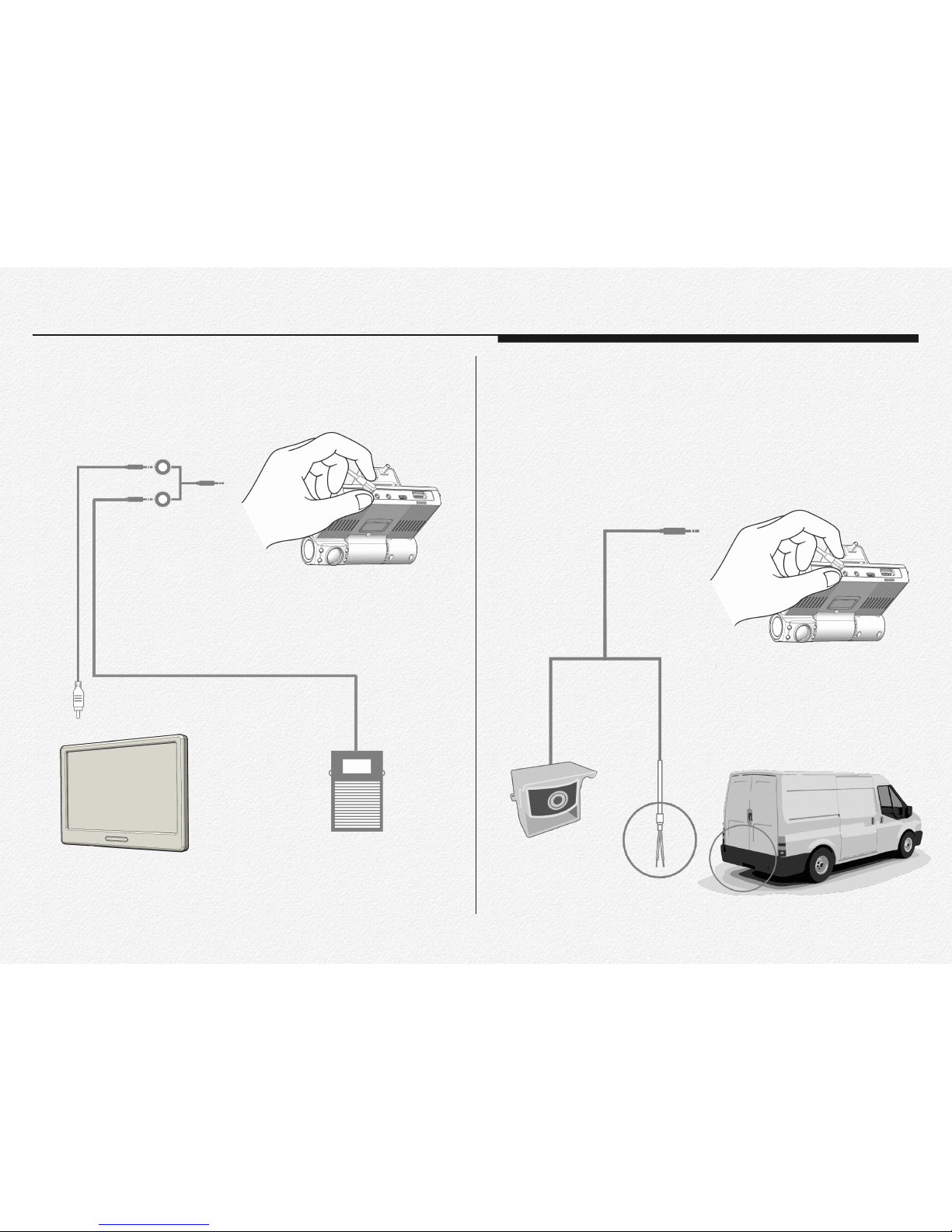

The ‘VIDEO OUT’ port is able to connect to use panic button
switch. And If need to use for video out and panic button switch
at once then it is able to connect by Y-type cable use.(Extra)
CAMERA IN
The ‘CAMERA IN’ port is able to connect external 3rd camera
for 3 Channel video recording. The ‘CAMERA IN’ port is supply
power DC 5v to 3rd camera and able to receive analog signal
for reverse gear detection or electronic dry signal from 3rd
party’s device as like GPS tracker.
Video monitor (RCA) SOS Panic foot S/W
Y-type cable
VIDEO OUT
3rd Camera
Dry signal cable
(High & Low)
CAMERA IN

13
MicroUSB
The ‘micro USB’ port is able to use communication with other
devices for record and save to external hard drive(SSD/HDD)
or charging battery for smart phone or pocket Wi-Fi modem
use for a long time etc. The port is supplying DV 5v power to
connected device. (Host mode)
USB
The ‘USB’ port is able to use wireless LAN user adopter or 3G/
LTE USB modem for telematics server transmission and the
port is support to record and save at external removable flash
memory back up automatically or charge to battery for smart
phone or pocket Wi-Fi modem use for a long time etc. The port
is supplying DV 5v power to connected device. (Host mode)
Wireless LAN USB Adopter for
internet access
Back up and save data to external
device(SSD/HDD/Flash memory)

14

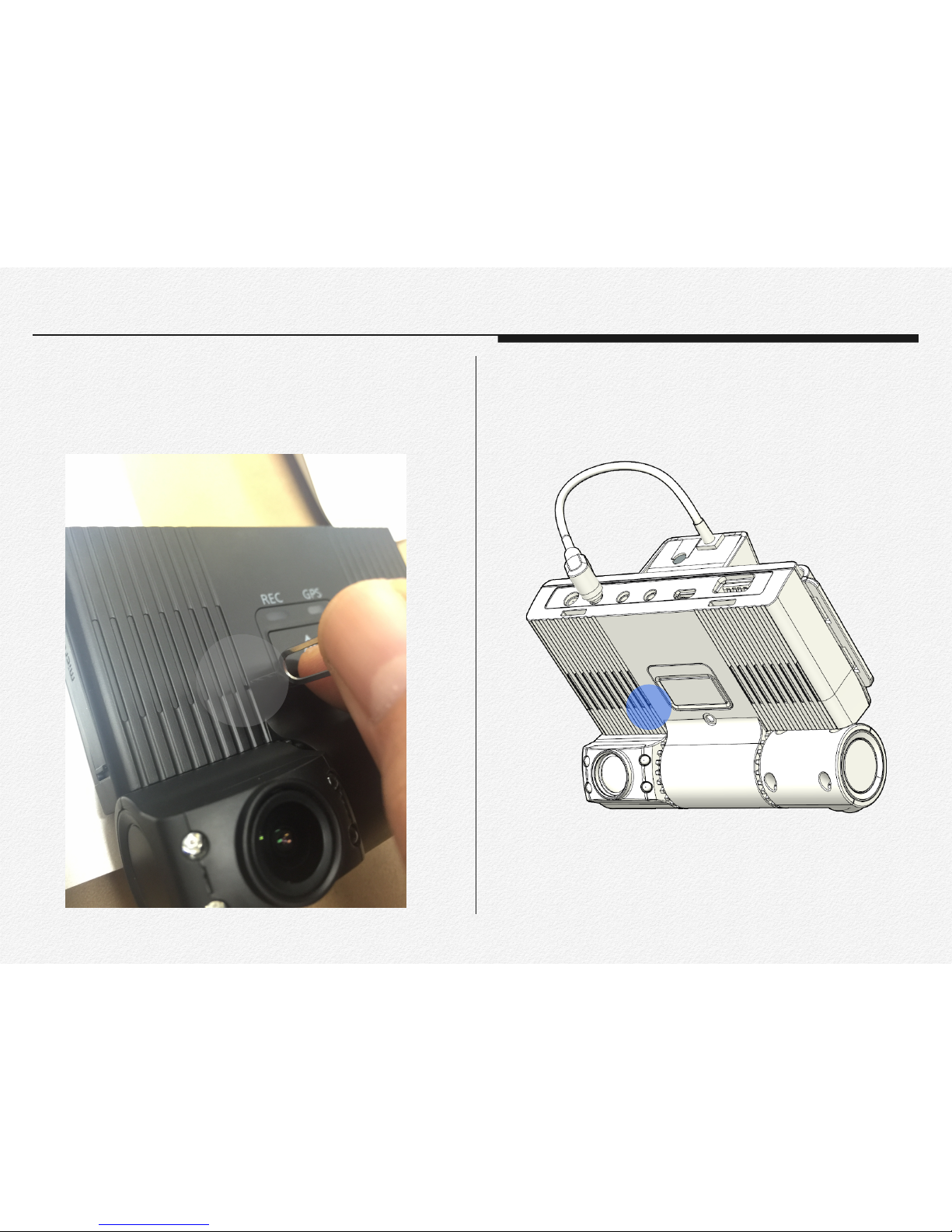

Reset button
When the NDVR is freezes or hold operating then makes reset
power by push reset button.
Microphone(MIC)
Microphone is located beside of reset button hole.

⚠All the devices are must be connected to each port before supply the power to main NDVR.

3
Please read this chapter for
basic operation of NDVR.
Getting ready to start recording

17
* You can use micro SDHC, and SDXC cards with this network
drive recorder. We recommend you use an micro SDHC,
SDXC card. This drive recorder supports SDHC, SDXC cards
up to 128GB. We cannot guarantee normal operation with
SDHC cards bigger than 128GB.
* MMC (Multi Media Card) and MMC Plus are not supported.
* Compatible memory card capacity:"
- SDHC: 4GB ~ 32GB"
- SDXC: ~ up to 128GB
* When you use unauthorized memory cards, the driving
recorder can not record videos correctly and your recordings
may be lost.
* The memory cards released after this drive recorder was
released may not be compatible with the network drive
recorder.
* To ensure stable recording and playback, use writing speed
40MB/s (Class 10) or higher memory cards. (MLC/Multi Level
Cell) Type memory card is recommended)
* SDHC/SDXC cards are a higher version of micro SD memory
cards and support higher capacities than micro SD memory
cards.
Section 1
Selecting a suitable memory card

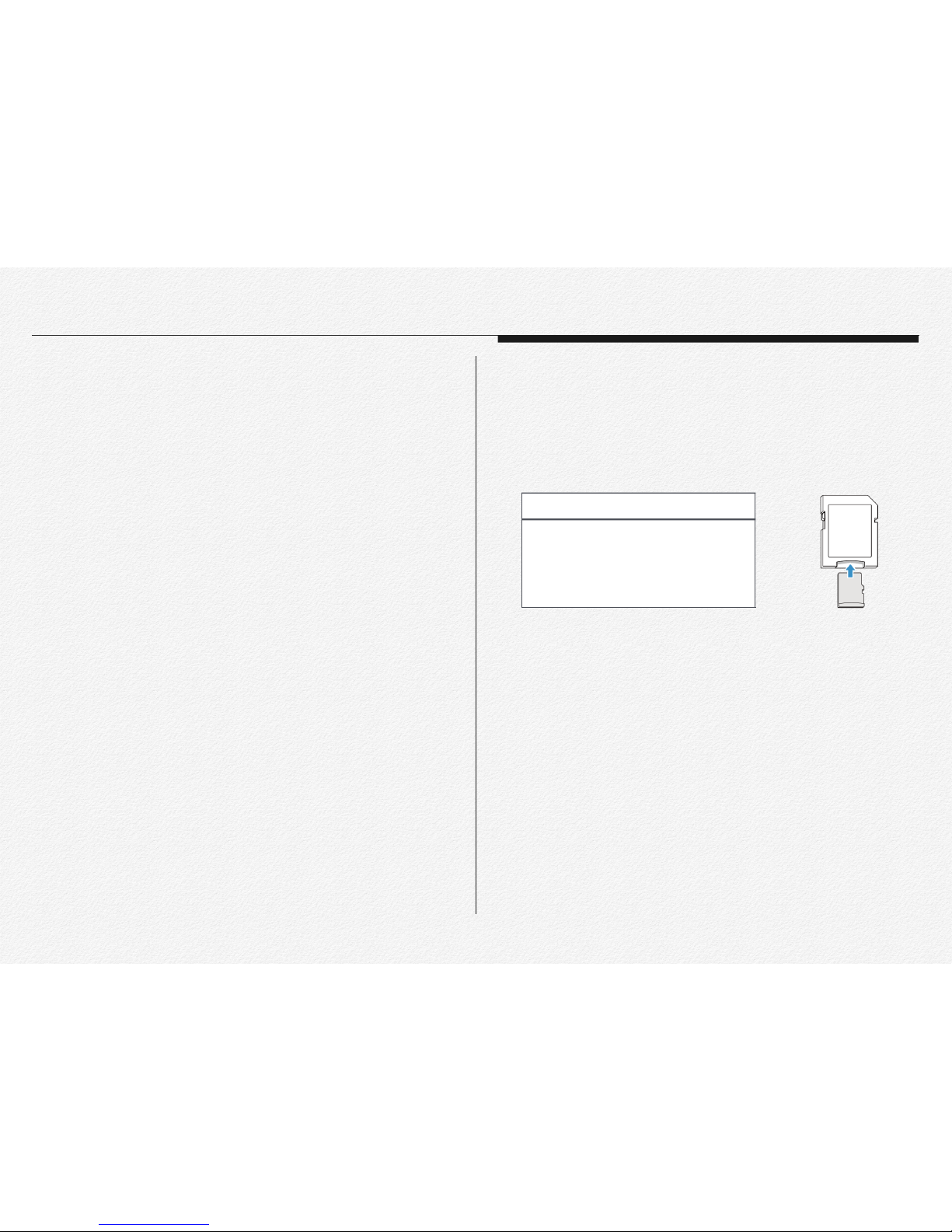

Using the memory card adaptor
To use a micro memory card with a
computer or card reader you must
attach it to or insert it into an adaptor.

18
• Damaged data may not be recoverable. We recommend you
make a back-up of important data separately on the hard disk
of your PC.
• Turning the power off or removing a memory card during an
operation such as formatting, deleting, recording, and
playback may cause data loss.
• If you modify the name of a file or folder stored in the memory
card with your PC, your NDVR may not recognize the
modified file.
• The memory card does not support any data recovery mode.
Therefore, care should be taken to prevent the memory card
from being damaged while recording.
• A memory card has a certain life span. If you cannot record
new data, you have to purchase a new memory card.
• Do not bend, drop, or subject the card to strong impacts.
• Do not place foreign substances on the memory card
terminals. Use a soft dry cloth to clean the terminals if
required.
• Do not paste anything other than the label provided with the
card on the label pasting area of the card.
• Do not use a damaged memory card.
• Be careful to keep the memory card out of the reach of
children, who might swallow it.
• We are not responsible for data loss due to misuse, including
loss caused by any PC virus.
• We recommend using a memory card case to avoid data loss
that can be caused by moving the card or by static electricity.
• After a period of use, the memory card may get warm. This is
normal and is not a malfunction.
The NDVR supports micro SDHC, and SDXC memory cards,
giving you a wider choice of cards!
The data storage speed of cards may differ, depending on the
manufacturer and production system.
• MLC (multi level cell) system: faster write speed enabled.
• TLC (Triple level cell) system: only lower write speed is supported.!
"""For best results, we recommend using a memory card that
supports a faster write speed 40MB/s or higher.
"Using a lower write speed memory card for recording video may
cause difficulties when storing.
Section 2
Handling a memory cards

19

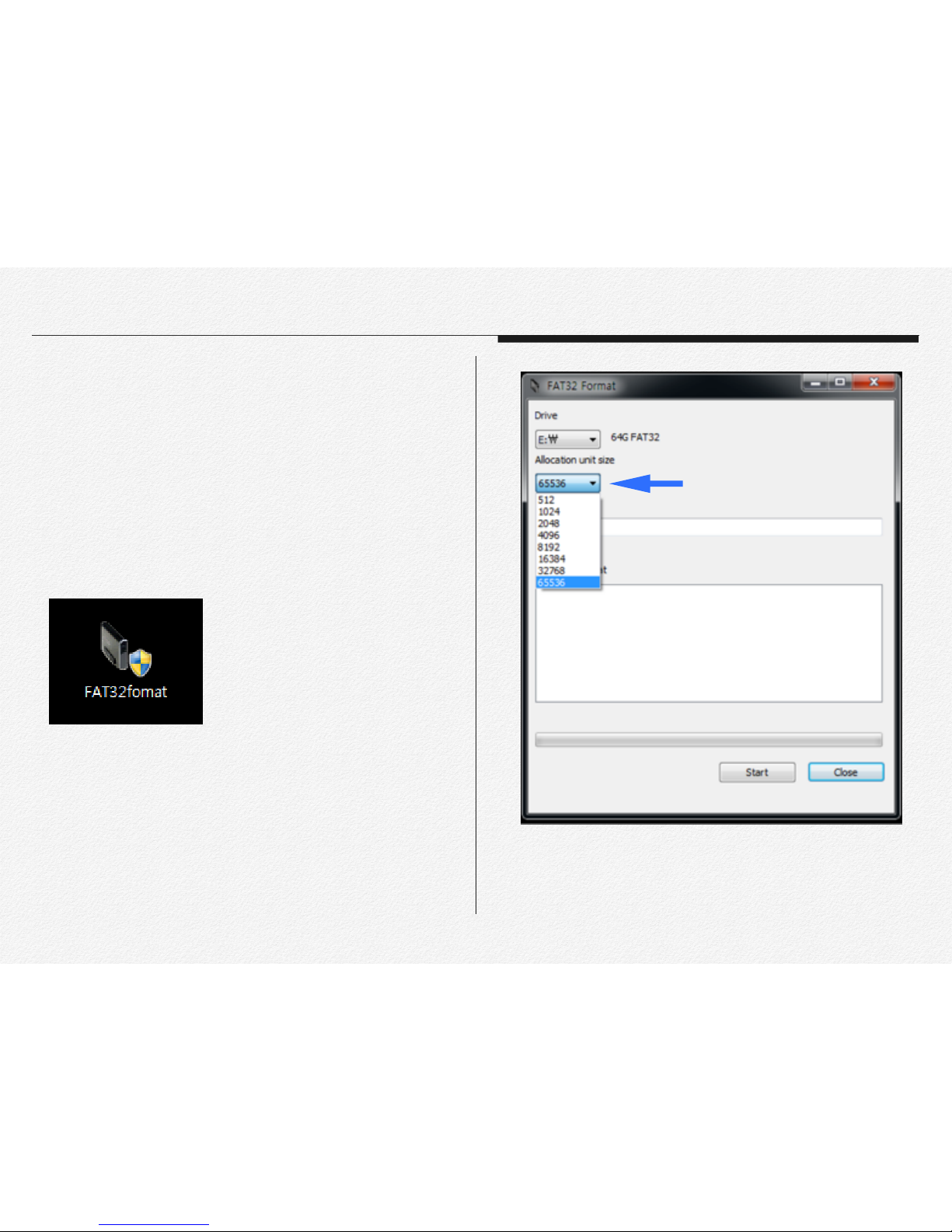

• Please format FAT32 before copy the firmware to micro SD
card when you need firmware update.
A. Window PC User.
1. Connect removable memory card(micro SDXC card) to PC
first.
2. Unzip ‘FAT32format.zip’ file and running FAT32format.exe."
"
"
"
"
3. Select memory card unit size(Allocate unit size);"
(Ex. 32GB -> 32768 / 64GB-> 65536)"
"
Section 3
Format memory cards
Select memory size
