2Your WF-M1560
Your WF-M1560
After you set up your WF-M1560 (see the Start Here sheet), turn to this Quick Guide and
your online User’s Guide for instructions on using your product.
Using the Control Panel
The control panel makes it easy to use all the features of your product.
Note: To turn off the “beep” heard when you press a button, press the rCopy button
to select copy mode, press xMenu, press uor dto select Maintenance, then press
OK. Select Sound, then select Off and press OK. If you turn off the sound, the dialing
sound made when you transmit a fax is also turned off.
Features Where to find information
Copy, scan, and fax from the easy-to-use
control panel
See this Quick Guide for the basics.
See the online User’s Guide for details.
Easy networking—Wi-Fi and Ethernet®See this Quick Guide, the Start Here sheet
and online User’s Guide.
High-capacity ink cartridge See this Quick Guide for installation
instructions.
Advanced paper handling with the Automatic
Document Feeder
See this Quick Guide or the online
User’s Guide for paper loading instructions.
Number Description
1 Turn the product on or off
2 View menus and status on the LCD Screen
3 Use the arrow keys and OK button to navigate menus
4 Enter numbers, letters, and symbols
English
1 32 4 5 6
711810912 13 14

Using the Control Panel 3
5 Select fax dialing settings
6 Stop printing/copying/scanning/faxing or reset settings
7 View wireless network status
8 Access your product’s Copy mode
9 Access your product’s Fax mode
10 Access your product’s Scan mode
11 Display detailed settings for each mode
12 Cancel/return to the previous menu
13 Select Wi-Fi settings
14 Start printing/copying/scanning/faxing
Number Description

4Using Special Papers
Using Special Papers
Epson offers a wide array of high quality papers, making it easy to maximize the impact of
your documents and reports.
You can purchase genuine EPSON ink and paper at EPSON®Supplies Central®at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also
purchase supplies from an EPSON authorized reseller. To find the nearest one, call
800-GO-EPSON (800-463-7766).
Note: Media availability varies by country.
For detailed paper loading instructions, see the Start Here sheet or online User’s Guide.
For best results:
■Fan and align the edges of the paper before loading.
■Load paper against the right edge guide with the printable side faceup; it is usually
whiter or brighter. Load letterhead or pre-printed paper top edge first.
Paper name Size
Part
number
Sheet
count
EPSON Bright White Paper Letter (8.5 × 11 inches
[216 × 279 mm])
S041586 500
EPSON Brochure & Flyer Paper Matte
Double-sided
Letter (8.5 × 11 inches
[216 × 279 mm])
S042384 150
EPSON Ultra Premium Presentation
Paper Matte
Letter (8.5 × 11 inches
[216 × 279 mm])
S041341 50
EPSON Premium Presentation Paper
Matte
8 × 10 inches (203 × 254 mm) S041467 50
Letter (8.5 × 11 inches
[216 × 279 mm])
S041257
S042180
50
100
EPSON Premium Presentation Paper
Matte Double-sided
Letter (8.5 × 11 inches
[216 × 279 mm])
S041568 50
EPSON Presentation Paper Matte Letter (8.5 × 11 inches
[216 × 279 mm])
S041062 100
Legal (8.5 × 14 inches
[216 × 356 mm])
S041067 100
EPSON Photo Quality Self-adhesive
Sheets
A4 (8.3 × 11.7 inches
[210 × 297 mm])
S041106 10
EPSON Iron-on Cool Peel Transfer
paper
Letter (8.5 × 11 inches
[216 × 279 mm])
S041153 10

Using Special Papers 5
■Always load paper short edge first and make sure the left edge guide is against the
paper as shown.
■If you use paper with binder holes, only use letter-, A4-, or legal-size and load only
one sheet at a time.

6Placing Originals for Copying, Scanning, or Faxing
Placing Originals for Copying,
Scanning, or Faxing
Before you copy, scan, or fax, place your documents on the scanner glass or in the
Automatic Document Feeder (ADF). Place photos on the scanner glass only and not in the
ADF.
Using the Scanner Glass

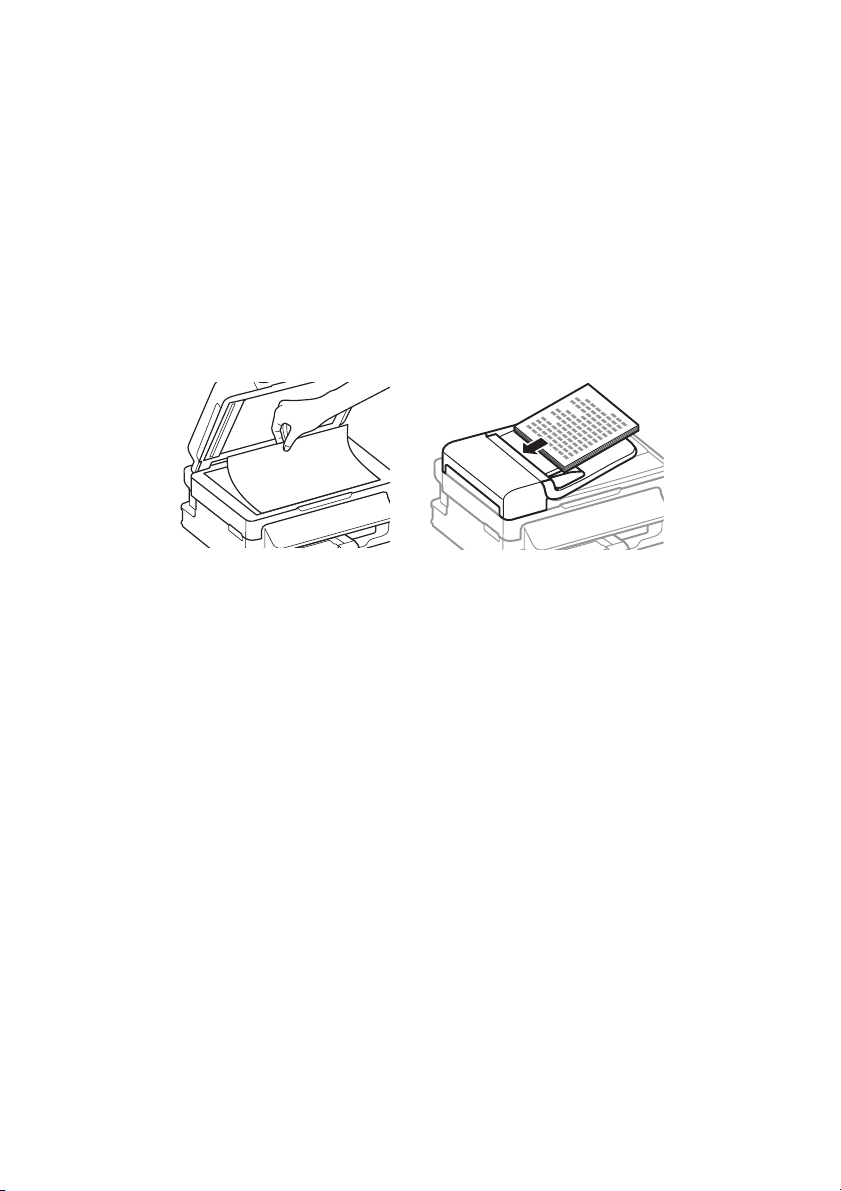

You can place a document or photo up to letter-size (or A4-size) on the scanner glass.
1. Raise the document cover.
2. Place your original facedown on the front right corner of the scanner glass, with the
top of your original against the right side.
3. Close the cover gently so you don’t move your original.

Using the Automatic Document Feeder 7
Using the Automatic Document Feeder
You can place up to 30 sheets of letter- or A4-size paper or 10 sheets of legal-size paper at a
time. Load only plain paper in the ADF.

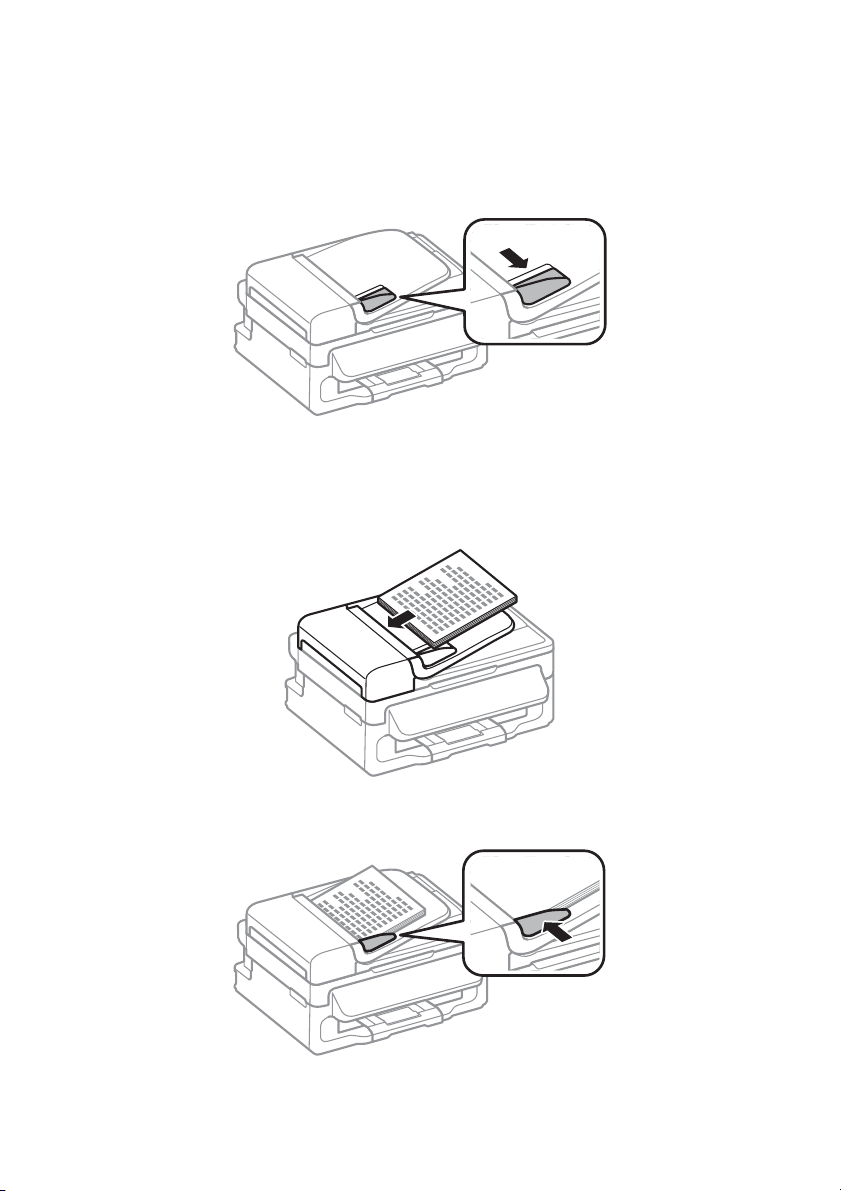

1. Move the edge guide outward.
2. Fan the originals, then tap them on a flat surface to even the edges.
3. Insert the originals faceup, top edge first. The ADF light on the control panel turns
on.
4. Slide the edge guide against the originals, but not too tightly.

8Copying a Document
Copying a Document
Follow the steps in this section to copy documents.
If you use the Automatic Document Feeder (ADF), you can copy up to 30 sheets of letter-
or A4-size paper or 10 sheets of legal-size paper at a time. Load only plain paper in the
ADF.
1. Load paper in the sheet feeder.
2. Place your original document on the scanner glass, or load your documents in the
ADF (see page 6).
3. Press the rCopy button.
4. Press uor d or use the numeric keypad to select the number of copies you want (up
to 99).
5. To change the layout, press xMenu, then press OK.
6. Press uor dto select With Border to leave a small margin around the document or
ID Card Copy (when copying ID cards) to copy both sides of an ID card on a single
sheet of paper. Then press OK.
7. To change paper type, paper size, or any other print settings, press uor dto select the
setting, then press OK. Press uor dto select an option, then press OK. If you are
copying legal-size documents on to letter-size paper, select Reduce/Enlarge, then
select Legal->Letter.
Note: Not all Paper Type, Paper Size, Layout, and Quality settings may be available
depending on the options you choose. See the online User’s Guide for details.
To clear copy settings, press yStop/Reset.
8. After you finish selecting settings, press xMenu to exit the settings menu.
9. Press the xStart button to begin copying. To cancel copying, press yStop/Reset.

Printing From Your Computer 9
Printing From Your Computer
This section describes the basic steps for printing from a Windows®or Mac computer. For
detailed instructions on printing, see the online User’s Guide.
Printing in Windows
1. Select the print command in your application.
2. Make sure your EPSON product is selected, then click the Preferences or
Properties button.
(If you see a Setup, Printer, or Options button, click it. Then click Preferences or
Properties on the next screen.)
Click here to open
your printer software
Select your EPSON
product

10 Printing in Windows
3. On the Main tab, select the basic print settings. Make sure you choose the correct
Paper Type setting for the paper you are using (see page 12 for details).
Tip: For quick access to the most common settings, select one of the Printing
Presets on the left side of the screen. You can delete these presets or create your
own by clicking the Add/Remove Presets button.
4. For more printing options, click the More Options tab.
Note: For more information about print settings, click Help or see your online
User’s Guide.
5. Click OK to save your settings.
6. Click OK or Print to start printing.
Click here
for quick
access to
preselected
settings
Select your
Document Size
Click here for
2-Sided Printing
Select your
Paper Type

Printing With a Mac 11
Printing With a Mac
Follow the steps below to print from Mac OS X.

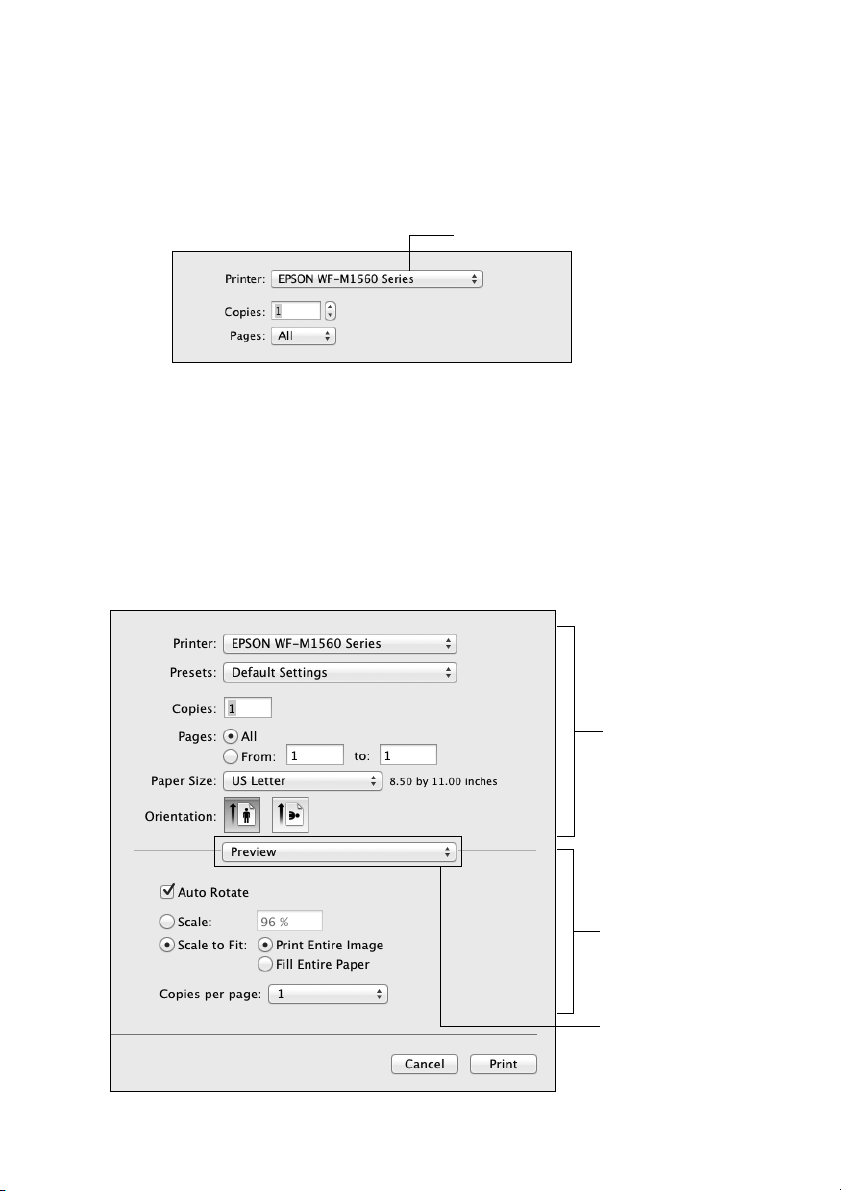

1. Open the File menu and select Print.
2. Select your EPSON product as the Printer setting.
3. Click the arrow or Show Details to expand the print window, if necessary.
4. Select basic copy and page settings.
5. Choose a Paper Size setting. You can also select a custom setting to create a custom
paper size.
Note: If the setting you want isn’t shown (for example, Scale), check for it in your
application before printing. Or select your application from the pop-up menu in this
window and check if the setting is available.
Select your EPSON product
Copy and page
settings
Application
settings
Pop-up menu

12 Selecting the Correct Paper Type

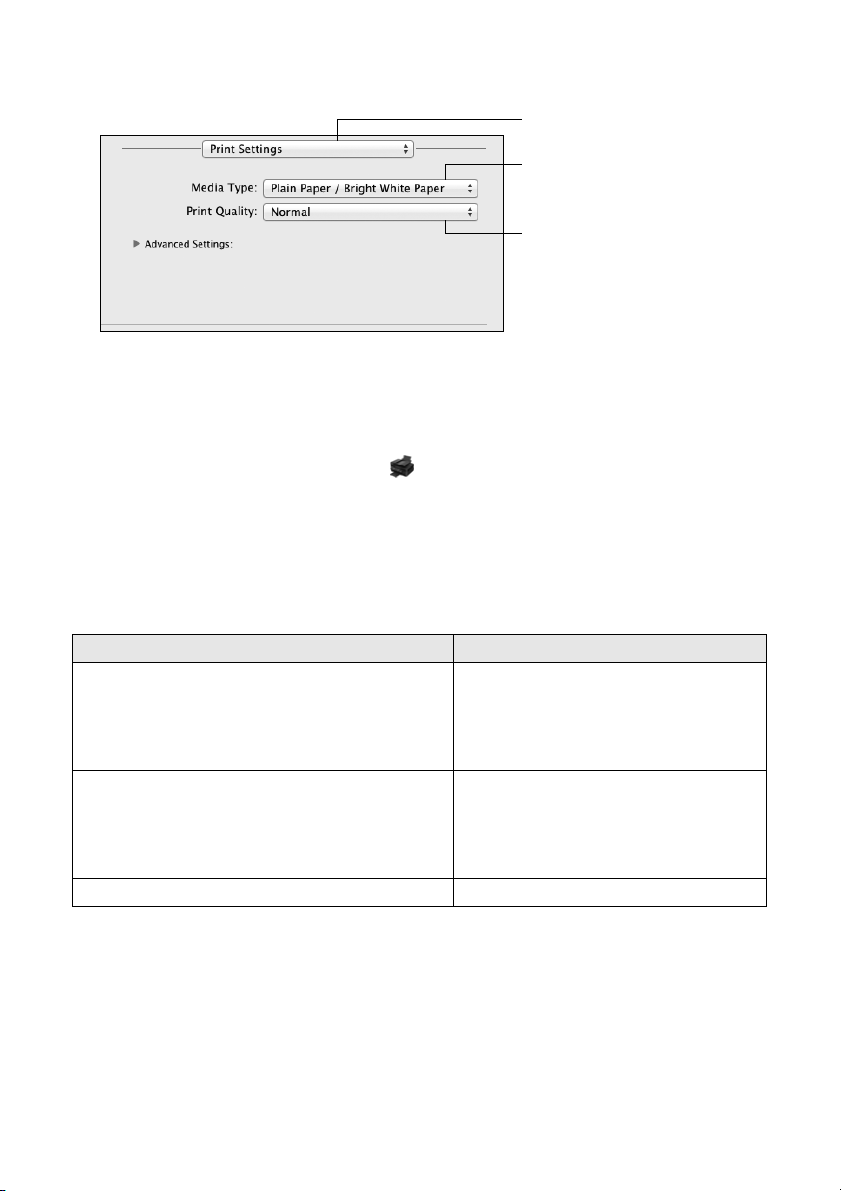

6. Choose Print Settings from the pop-up menu, and select the following print settings:
7. Choose any other printing options you may need from the pop-up menu. See the
online User’s Guide for details.
8. Click Print.
9. To monitor your print job, click the printer icon in the Dock.
Selecting the Correct Paper Type
Select the correct Paper Type (Windows) or Media Type (Mac OS X) setting in your
printer software so the ink coverage can be adjusted accordingly.
For this paper/media Select this setting
Plain paper
EPSON Bright White Paper
EPSON Presentation Paper Matte
EPSON Photo Quality Self-adhesive Sheets
EPSON Iron-on Cool Peel Transfer paper
Plain Paper/Bright White Paper
EPSON Premium Presentation Paper Matte
EPSON Premium Presentation Paper Matte
Double-sided
EPSON Ultra Premium Presentation Paper Matte
EPSON Brochure & Flyer Paper Matte Double-sided
Premium Presentation Paper Matte
Envelopes Envelope
Choose Print Settings
Select your Media Type
(see below)
Select higher quality or faster
printing (if available)

Scanning a Document or Photo 13
Scanning a Document or
You can use your product to scan original documents and photos and save them on your
computer.
Note: For detailed scanning instructions, see the online User’s Guide.
Quick Scanning With the Scan Button
Use the uScan button to quickly scan a document or photo and save it on your
computer. You can even scan a document and have it automatically included in an email
message.
1. Place your original document or photo as shown on page 6.
2. Press the uScan button.
3. Press uor dto select one of the following options, then press OK.
■Scan to PC automatically creates a JPG image and saves it to your computer;
ideal for scanning photos.
■Scan to PC (PDF) automatically creates a PDF file and saves it to your computer;
ideal for scanning documents.
■Scan to PC (Email) automatically scans a photo, resizes it, launches your email
application, and attaches a JPG image to a new outgoing message. This works
with MAPI-type email such as Microsoft®Outlook or Windows Live Mail, but
not web-based email such as Gmail.
■Scan to PC (WSD) lets you manage network scanning in Windows 7 or
Windows Vista®(English only). To use this feature, you must first set up WSD
(Web Services for Devices) on the computer you want to scan to.
4. Do one of the following:
■If your printer is connected directly to your computer with a USB cable, press
OK to select USB Connection.
■If your printer is connected to a network, press uor duntil you see your
computer name, then press OK.
Once your image is scanned, you see its icon on your computer screen, or as an attachment
in your email application.

14 Scanning With EPSON Scan Software
Scanning With EPSON Scan Software
You can scan original documents and photos and save them as files on your computer
using the EPSON Scan software. You can also launch EPSON Scan from any
TWAIN-compliant application.
Note: For Mac OS X 10.6/10.7/10.8, see “Scanning With Mac OS X 10.6/10.7/10.8” on
page 15.
1. Place your original document or photo as shown on page 6.
2. Do one of the following to start EPSON Scan:
■Windows: Select the EPSON Scan icon on your desktop.
■Mac OS X 10.5: Double-click EPSON Scan in Applications > Epson
Software.
■To scan from an application, start your application. Then open the File menu,
choose Import or Acquire, and select your product.
EPSON Scan opens in Office Mode the first time you use it. (You can change the
scan mode using the Mode selector in the upper right corner.)
Note: You cannot use Home mode to scan with the Automatic Document Feeder.
3. Click Scan. The image is scanned and you see its icon in the folder you have selected.

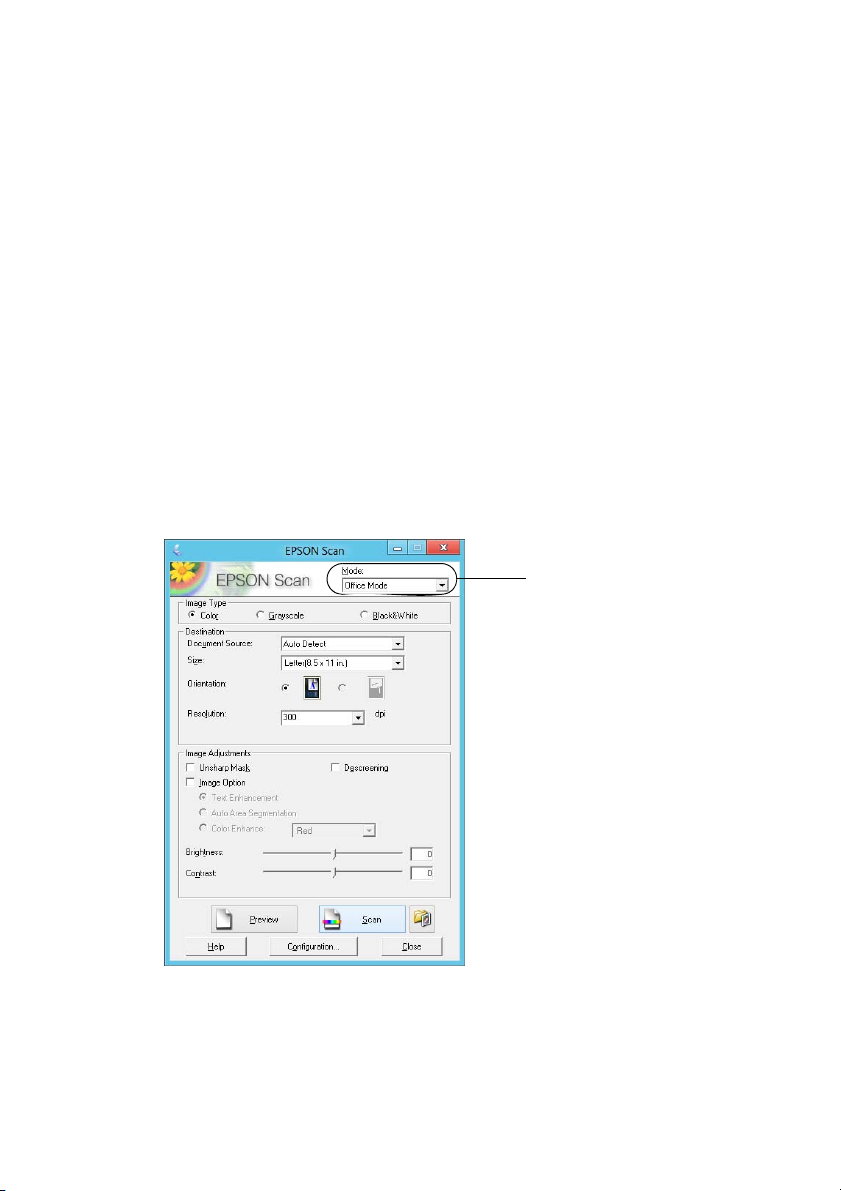

Click here to change
the scan mode

Scanning With Mac OS X 10.6/10.7/10.8 15
Scanning With Mac OS X 10.6/10.7/10.8
You can scan original documents and photos and save them as files on your computer.
1. Place your original document or photo as shown on page 6.
2. Open an image editing application such as Image Capture and select your product
from the DEVICES or SHARED list, if necessary.
3. If you see the Show Details button, click it.
If you are scanning an item on the scanner glass, your product begins a preview scan.
4. Select the Scan Mode setting indicating where you placed your original.
5. In the Scan To pop-up menu, select the folder in which you want to save your image.
6. Click Scan to begin scanning. Your image is saved to the folder you selected.
Note: With Mac OS X 10.6/10.7/10.8, in addition to scanning with Image Capture, you
can download and install EPSON Scan scanning software. EPSON Scan provides
additional image adjustment and photo correction features for enhancing scanned
images, and provides an interface for TWAIN-compliant OCR scanning software, such
as ABBYY®FineReader®. To download EPSON Scan, visit Epson’s driver download site
epson.com/support (U.S.) or epson.ca/support (Canada).

16 Faxing a Document
Faxing a Document
Your product lets you send faxes by entering fax numbers or selecting entries from a speed
dial or group dial list. If you use the Automatic Document Feeder (ADF), you can fax up
to 30 sheets of letter- or A4-size paper or 10 sheets of legal-size paper at a time. Load only
plain paper in the ADF.
Note: You can also send or receive a fax from your computer using the EPSON FAX
Utility. For more information, see the online User’s Guide.
Breakdown or repair of this product may cause loss of fax data and settings. Epson is
not responsible for backing up or recovering data and settings during or after the
warranty period. We recommend that you make your own backup or print out your fax
data and settings.
This product allows you to store names, telephone numbers, and fax data in its memory
even when the power is turned off. Use the following procedure to erase the memory if
you give away or dispose of the product: Select xMenu > Restore Default Settings >
Reset All Settings. This procedure will erase all of your network settings and fax data.
Connecting a Phone or Answering Machine

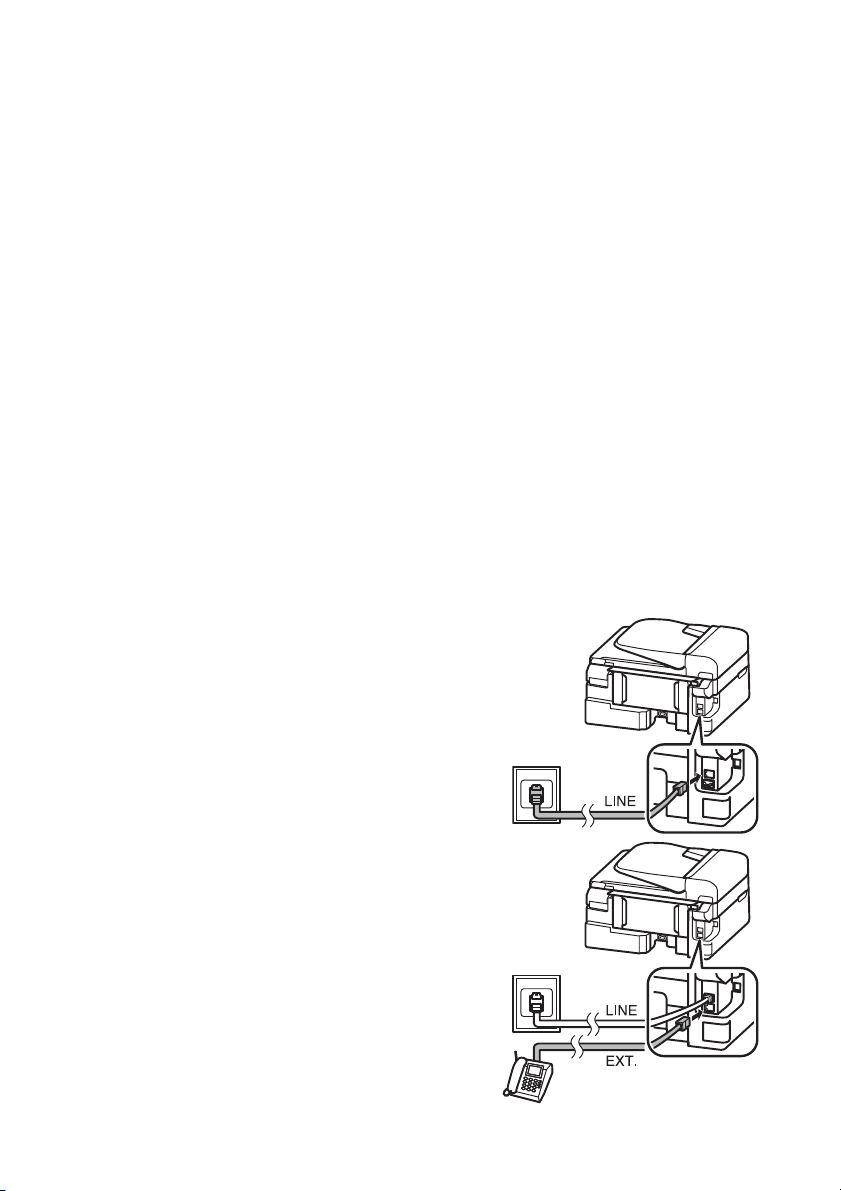

1. Connect the phone cable from the wall jack to
the LINE port on the back of the product.
Note: If you’re connecting the product to a
DSL phone line, you must plug a DSL filter
into the wall jack or you won’t be able to use
the fax or telephone equipment. Contact your
DSL provider for the necessary filter.
2. To use a telephone or answering machine, you
need a second phone cable. Connect one end
of the cable to the telephone or answering
machine, and connect the other end to the
EXT. port on the back of the product.
Telephone
wall jack
Telephone
wall jack

Setting Up Fax Features 17
In Auto Answer mode, if the incoming call is a fax and you pick up the phone or the
answering machine answers, the product automatically begins receiving the fax. If the
other party is a caller, the phone can be used as normal or a message can be left on the
answering machine.
Note: Any phone or answering machine must be connected to the EXT. port for your
product to detect an incoming fax call when the phone is picked up. Epson cannot
guarantee compatibility with VoIP, cable phone systems, or fiberoptic digital services
such as FiOS™.
Setting Up Fax Features
Before sending or receiving faxes, you should create a fax header and select the number of
rings before the fax answers.
Note: To select other settings or use the EPSON FAX Utility, see the online
User’s Guide.
Entering Fax Header Information
You should enter your name and phone number in the fax header before sending faxes so
that recipients can identify the origin of the fax.
Note: Some fax machines automatically reject incoming faxes that do not include
header information.
If you leave your product unplugged for a long period of time, the date and time settings
may get lost. See the online User’s Guide for instructions on resetting them.
Entering Your Sender Name
1. Press the KFax button, then press xMenu.
2. Press uor dto select Fax Settings, then press OK.
3. Press uor dto select Header, then press OK.
4. Press OK to select Fax Header.
5. Use the numeric keypad to enter your sender name or
other header information (see “Using the Keypad to Enter
Numbers and Characters” below). You can enter up to 40 digits.
6. When you’re done, press OK to return to the Fax Header screen.

18 Setting Up Fax Features
Entering Your Phone Number
1. From the Fax Header screen, press uor d to select Your Phone Number, then press
OK. You see the phone number input screen.
2. Use the numeric keypad to enter your phone number (up to 20 digits).
3. When you’re done, press OK.
4. Press xMenu to exit the Fax Settings menu.
Using the Keypad to Enter Numbers and Characters
When entering phone numbers and text in Fax mode, follow these guidelines:
■To enter a fax number, use the numeric keypad. Press the Redial/Pause button
to insert a pause symbol (–) when a pause is required during dialing. Press rto enter a
space or lto delete a character.
■To enter characters, press a keypad button repeatedly to switch between uppercase,
lowercase, or numbers. Press 1to enter symbols. Press rto move to the next character
or enter a space. Press lto delete a character.
Selecting the Number of Rings to Answer
If you connected an answering machine and it is set to pick up on the fourth ring, you
should set the product to pick up on the fifth ring or later:
1. Press the KFax button, then press xMenu.
2. Press uor d to select Fax Settings, then press OK.
3. Press uor d to select Communication, then press OK.
4. Press uor d to select Rings to Answer, then press OK.
5. Press uor d or use the numeric keypad to select the number of rings, then press OK.
Select more rings than you use for the answering machine.
6. Press xMenu to exit the Fax Settings menu.

Sending a Fax From the Control Panel 19
Sending a Fax From the Control Panel
You can send a fax by manually entering a fax number, as described below.
Note: To dial the number using a telephone, by redialing, or by selecting from your
speed dial list, see the next section. To send a fax from your computer using the
EPSON FAX Utility, see your online User’s Guide.
1. Press the KFax button.
2. Place your original(s) for faxing (see page 6).
3. Use the numeric keypad to enter the fax number (see “Using the Keypad to Enter
Numbers and Characters” on page 18). You can enter up to 64 digits.
4. To change fax settings, press xMenu and select settings as necessary. When you’re
done, press xMenu again.
5. Press the xStart button to send your fax. If you are prompted, select where you
placed your document (ADF or scanner glass).
Note: If the recipient’s fax machine prints only in black and white, your fax is
automatically sent in black and white even if you select color.
■If you are scanning with the ADF, your document is automatically scanned and
faxed.
■If you place your document on the scanner glass, you
see this screen after the first page is scanned:
If you need to fax additional pages, place your
original on the scanner glass. Then press 1to continue. If you do not need to fax
another page, press 2. Your document is faxed.
■If the fax number is busy, you see a redialing message and the product redials
after one minute. To redial immediately, press Redial/Pause.
To cancel faxing, press yStop/Reset at any time.
Other Ways to Dial a Fax Number
Here are some other ways you can dial a fax number:
■Press the Redial/Pause button to redial the last fax number you used.
■To use a speed dial entry, press the Speed Dial/Group Dial button once, select
or type the number of a speed dial entry, and press OK. Then press the xStart
button.
Note: For more information on setting up speed dial entries, see the online
User’s Guide.

20 Receiving Faxes
■To use a group dial entry, press the Speed Dial/Group Dial button twice,
select or type the number of a group dial entry, and press OK. Then press the xStart
button.
Note: For more information on setting up group dial entries, see the online
User’s Guide.
■If you’ve connected a telephone to the product, dial the number from the phone.
Select Send, then press the xStart button.
Note: Don’t hang up the phone until you begin transmitting the fax.
Note: If you turn off the product, the following data stored in the product’s temporary
memory will be lost: received faxes that haven’t yet been printed, faxes scheduled to
be sent later, and faxes being retransmitted automatically.
Receiving Faxes
Before receiving faxes, make sure you load plain paper and select the correct settings for the
paper you’ve loaded. Also, enable the Auto Answer feature if you would like to receive faxes
automatically.
1. Press the KFax button, then press xMenu.
2. Press uor d to select Fax Settings, then press OK.
3. Press uor d to select Send/Receive Setup, then press OK.
4. Press uor d to select Paper Size, then press OK.
5. Press uor d to select the paper size you loaded, then press OK.
Note: If the incoming fax is larger than the paper you loaded, it is reduced to fit or
printed on multiple pages, depending on the Auto Reduction setting you select.
6. To receive faxes automatically, press uor d to select Auto Answer, press OK, press
uor d to select On, then press OK again.
7. Press xMenu when done.
Note: To change the number of rings before the product answers, see page 18.
If you run out of paper during printing, you see an error message. Load more paper and
press OK to continue.
To receive faxes manually, turn off the Auto Answer feature and follow these steps:
1. When your telephone rings, lift the phone off the hook.
2. Press 2to select Receive, then press 1to select Yes.
3. After all the pages are received, replace the phone on the hook.
4. Press OK to print the fax.
