Quick Setup

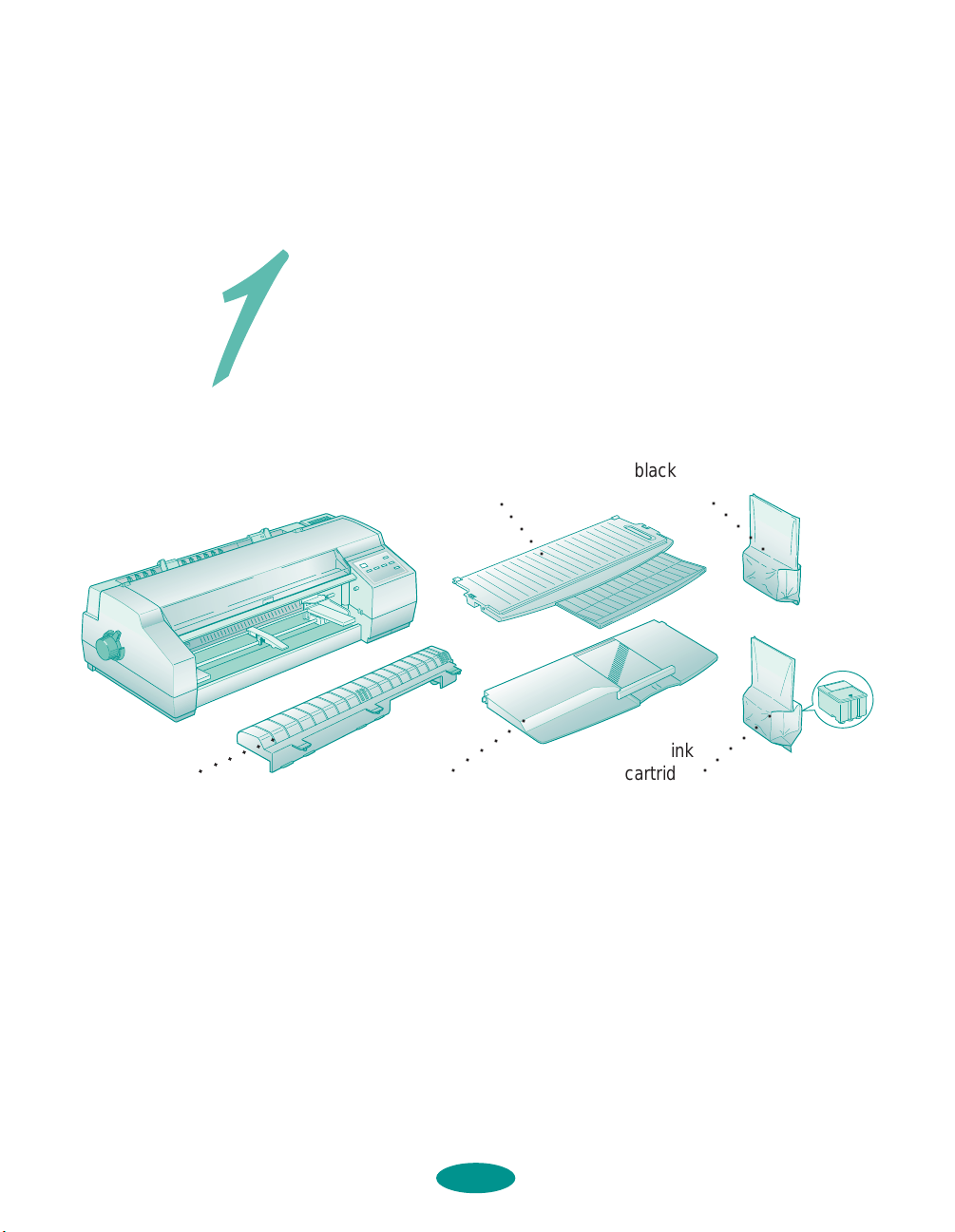

Unpack the Printer
Remove any packing material from the printer, as described on
the Notice Sheet in the box. Save all the packaging so you can
use it if you need to transport the printer later. You’ll find these
items inside:
4007158
Place the printer flat on a stable desk near a grounded outlet.
Leave plenty of room in back for the cables and for a stack of
continuous paper, if you use it. Leave enough room in front for
the paper support and output tray you’ll install in the next step.
Do NOT put the printer:
◗In an area with high temperature or humidity
◗In direct sunlight or dusty conditions
◗Near sources of heat or electromagnetic interference, such
as loudspeakers or cordless telephone base units
Also, be sure to follow the Safety Instructions in the Introduction
of your User’s Guide.
Here’s how to set up your new
EPSON Stylus®COLOR 1520 printer ...
○○○○○
black ink
cartridge
○○○○○
○○○○○○
color ink
cartridge
output tray
paper support
○○○○○○
cable cover
○○○○○○
1
Quick setupLoire2 5/22/97, 10:29 AM1

1. Place the hole in the right side of the paper support on
the printer’s right post. Then slightly lift the left side of the
paper support and push the notch down over the printer’s
left post.
Attach the Paper Support and OutputTray
○○○○○○○○
hole
○○○○○○○○○
notch
2. Press the two notches at the back of the output tray onto
the metal posts inside the printer.
Then flip down the legs on the underside of the output
tray so it sits up on the paper support.
○○○○○○○○○○
leg
○○○○○○○○○○○
post
○○○○○○○○○○
post
○○○○○○
leg
2
Quick setupLoire2 5/22/97, 10:29 AM2

Caution:
Do not plug the printer
into an outlet
controlled by a wall
switch or timer, or on
the same circuit as a
large appliance. This
may disrupt the power,
which can erase the
printer’s memory and
damage the power
supply.
1. First make sure the power is off. Check the Operate
button; it’s off when its surface is even with the button
guards on each side.
Plug In the Printer
○○○○○○○○○○○
Operate
2. Plug the power cord into a properly grounded outlet. To
protect the printer from power surges, you may want to
use a surge protector.
Install the Ink Cartridges
1. Press the Operate button to turn on the printer. The
Operate and Ink Out lights come on and the ink
cartridge holders move to the installation position. The
Pause light begins flashing.
2. Open the cover. The Cover Open light comes on.
3
Quick setupLoire2 5/22/97, 10:29 AM3

Warning:
If ink gets on your
hands, wash them
thoroughly with soap
and water. If ink gets in
your eyes, flush them
immediately with water.

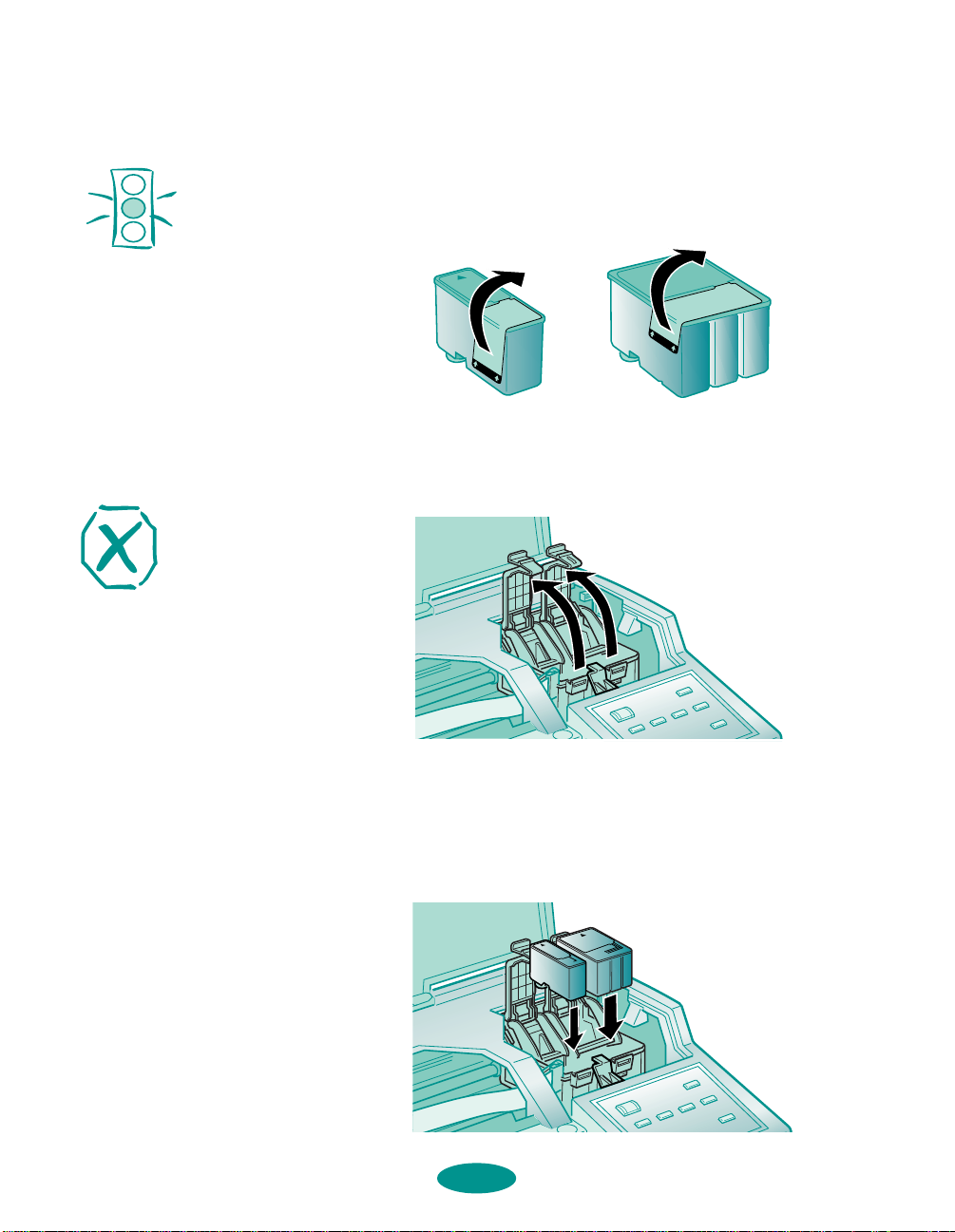

3. Open the ink cartridge packages. Completely remove the
disposable yellow portion of the tape seal on top. Don’t
remove the white portion.
Caution:
You must completely
remove the yellow
portion of the tape seal
or you will permanently
damage the ink
cartridge. Don’t
remove the tape seal
from the bottom or ink
will leak.
5. Lower the ink cartridges into their holders with the labels
face up and the arrows pointing toward the back of the
printer.
4. Pull up the ink cartridge clamps.
4
Quick setupLoire2 5/22/97, 10:30 AM4

single sheet
icon
Load the Paper

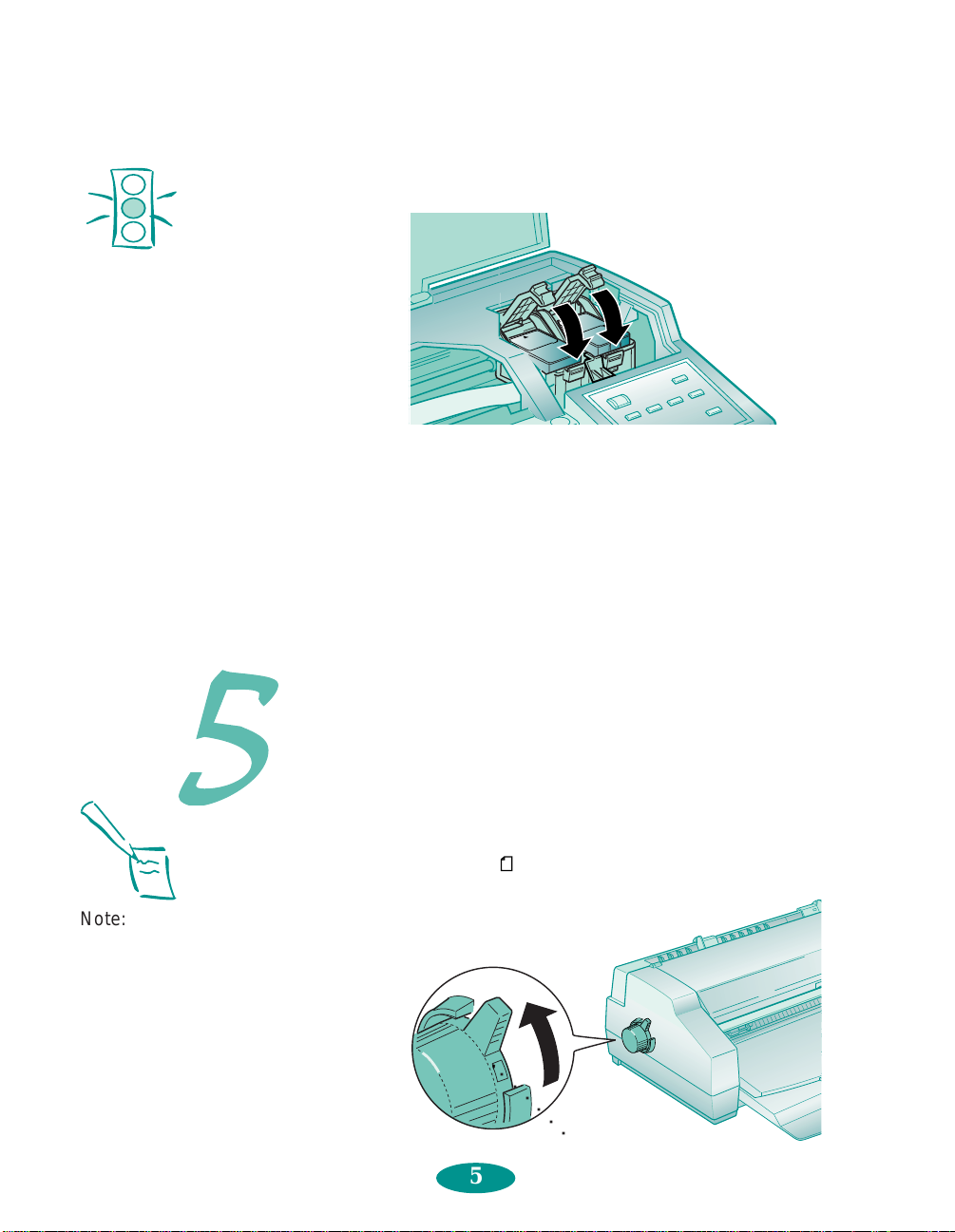

6. Push down the clamps until they lock in place.
7. Press the Alt button to return the print heads to their home
position and charge the advanced ink delivery system.
Charging takes up to 7 minutes, with the Pause light
flashing until it’s finished; then the Pause light stays on.
Don’t turn off the printer or interrupt this important
process or you’ll use up more ink than necessary.
8. Close the printer cover. Then press the Pause button to turn
off the Pause light.
Caution:
Never turn off the printer
when the Pause light is
flashing. However, if the
Pause light is still flashing
after 10 minutes and the
printer is not moving or
making noise, you may
turn off the printer.
To test the printer operation, load about 10 sheets of letter-size
plain paper in the built-in sheet feeder as described here.
1. Make sure the paper release lever is set to the single sheet
position (the appears beneath the lever handle).
○○○○○○
5
Note:
For instructions on
loading other types of
paper or using the other
paper feeders, see your
User’s Guide .
Quick setupLoire2 5/22/97, 10:30 AM5

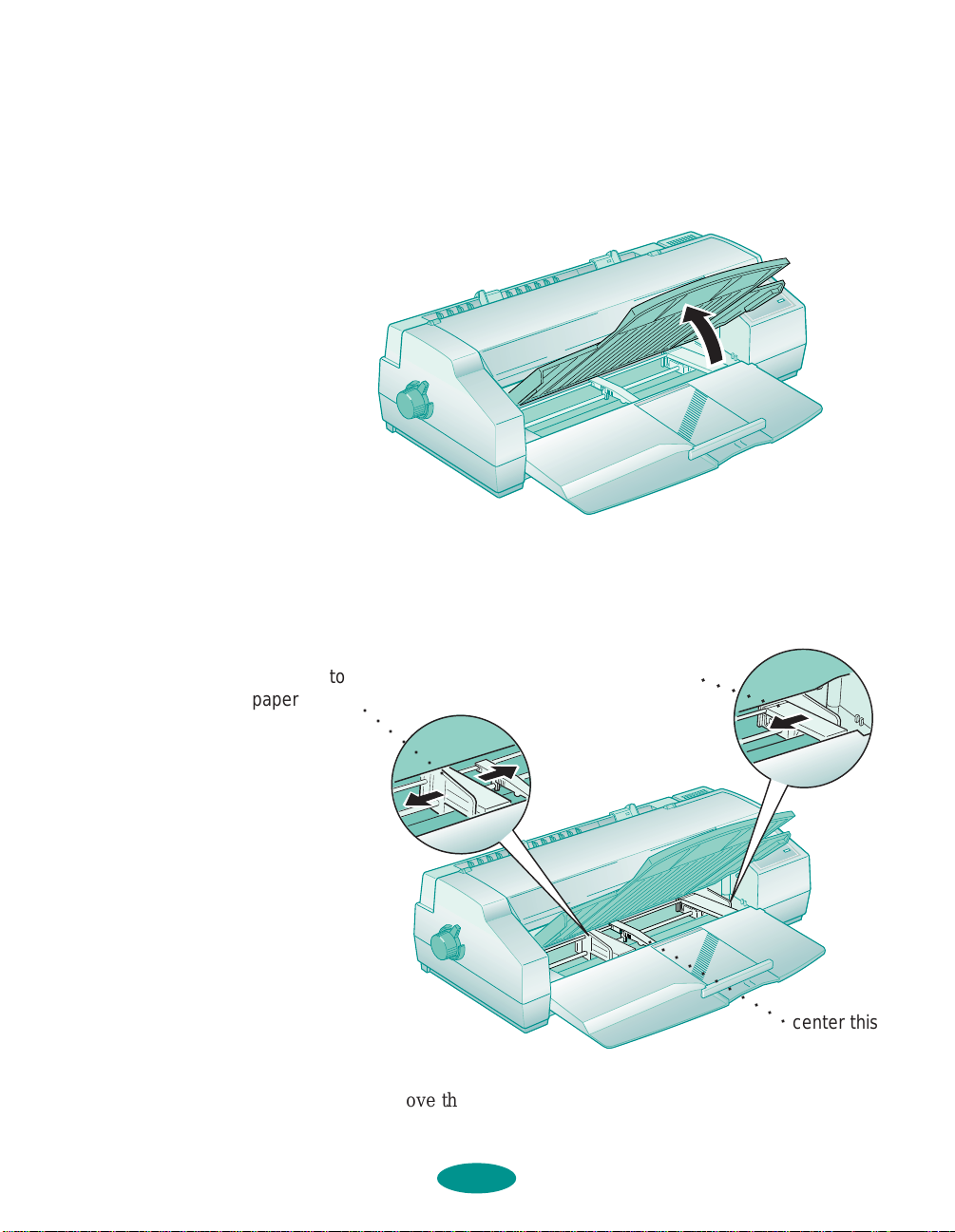

2. Lock the output tray in an upright position on the two
upper posts.
3. Slide the right edge guide all the way left until it stops.
Then slide the left edge guide to match the approximate
width of your paper.
○○○○○○○○○○○
center this
midway
○○ ○○○○○
slide this to
paper’s width
○○○○○○
slide this left
4. Move the center support midway between the two edge
guides.
6
Quick setupLoire2 5/22/97, 10:30 AM6

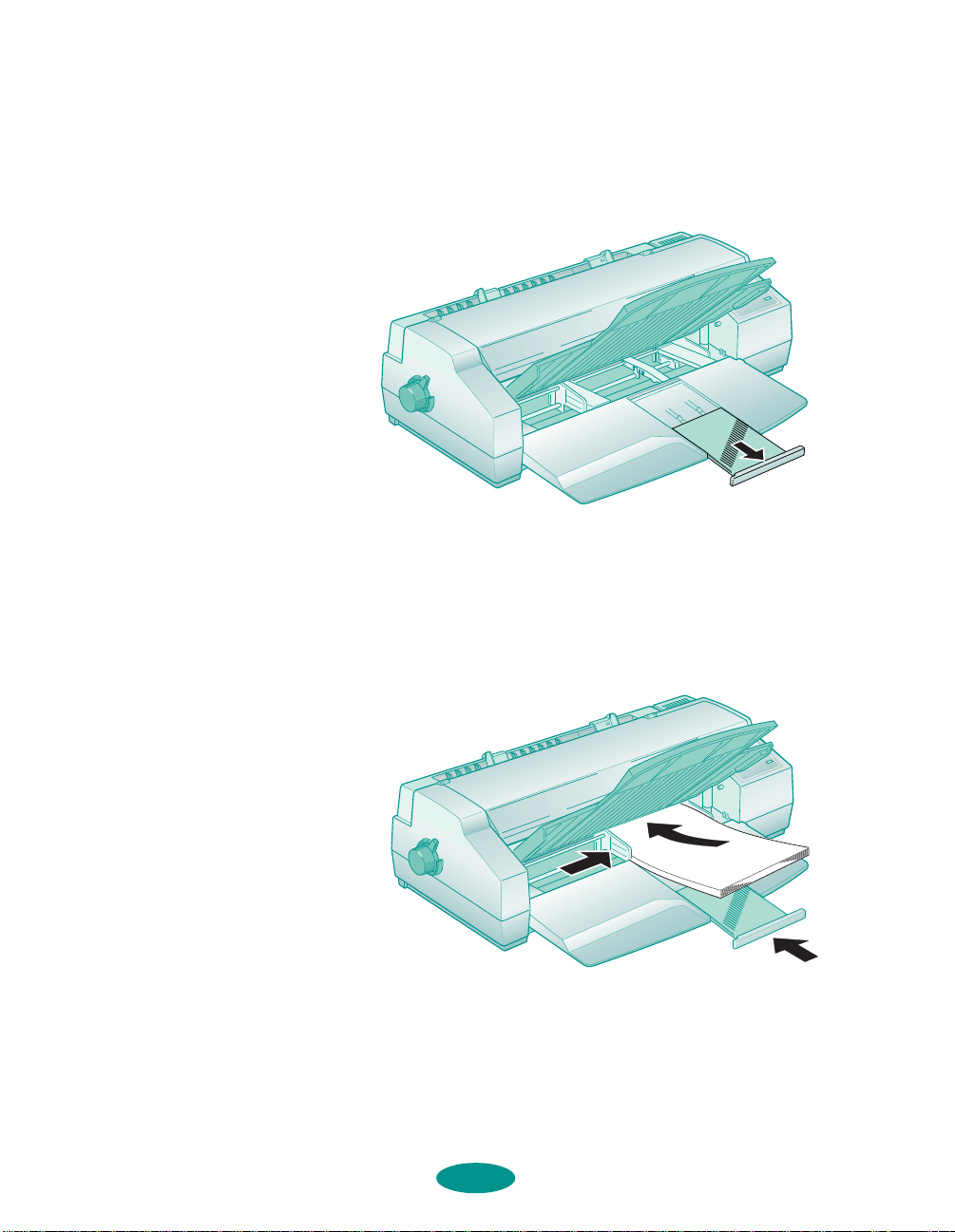

5. Slide out the rear paper support guide until it stops.
6. Fan a stack of paper and then even the edges.
7. Load the stack with the printable surface face down and
slide it all the way into the feeder. Press the stack against
the right edge guide.
8. Slide the left edge guide against the left side of the paper.
Then slide the rear paper support guide against the end of
the paper.
9. Lower the output tray.
7
Quick setupLoire2 5/22/97, 10:30 AM7

Test the Printer
1. Turn off the printer and wait until the Operate light turns
off.
2. While holding down the Load/Eject button, turn on the
printer. Then release the Load/Eject button.
3. The first page prints on the first and last lines to measure
the page length. The next sheet prints a multicolor nozzle
check pattern and character samples at 360 dpi (dots per
inch).
Press the Pause button after the second page prints to
stop the test.
4. Press the Load/Eject button to eject any loaded pages.
Then turn off the printer.
If you have any problems with the test, see Chapter 7 in your
User’s Guide for more information.
Connecting to a PC
Connect the Printer toYour Computer
You can connect your EPSON Stylus COLOR 1520 printer to
either an IBM®compatible PC or an Apple®Macintosh.
®You’ll
need a shielded parallel cable to connect directly to a PC or an
Apple System Peripheral-8 serial cable to connect directly to a
Macintosh. (For a complete list of system requirements, see the
Introduction in your User’s Guide.)
To connect your printer to a network interface you must first
install an optional interface card. See Appendix A of your
User’s Guide for instructions.
1. Turn off the printer and your computer.
2. Connect the cable to the printer’s parallel interface; then
squeeze the wire clips together until they lock in place. (If
your cable has a ground wire, connect it now.)
8
Caution:
Never turn off the printer
while it’s printing test
pages. Always press the
Pause button and eject
any loaded paper first.
Quick setupLoire2 5/22/97, 10:30 AM8

Note:
The printer is assigned to
parallel port LPT1 when
you install the software; if
you want to use a different
port, see your Windows®
documentation for
instructions.
3. Connect the other end of the cable to your computer’s
parallel port and secure it as necessary. (See your
computer documentation for details.)
1. Turn off the printer and your Macintosh.
2. Connect one end of the cable to the serial connector on
the back of the printer.
Connecting to a Macintosh
3. Connect the other end of the cable to either the printer
port or the modem port on your Macintosh.
Note:
If you’re using a
PowerBook®with a
combination printer/modem
port, connect the printer to
that port. In the PowerBook
setup, set the port to
Normal. See your
PowerBook documentation
for more information.
If your Macintosh has a
built-in modem, use the
printer port.
if you have a ground
wire, connect it here
○○○○○○○○○
9
Quick setupLoire2 5/22/97, 10:30 AM9

Install the Printer Software
Now you need to install the printer software so you can
control printing from your computer.
You can install the printer software for Windows®95,
Windows 3.1, or Windows NT™3.51/4.0 from the EPSON
printer software CD-ROM. If you don’t have a CD-ROM drive,
you can create diskettes from the CD-ROM using another
computer.
The installation instructions are slightly different for each
Windows version. See the sections below for your operating
system.
Windows 95 Plug-and-Play
1. Turn on your printer, then turn on your computer.
2. At the New Hardware Found screen, make sure your
printer name is displayed and the Driver from disk
provided by hardware manufacturer button is selected.
Then click OK. (If you don’t see the New Hardware
Found screen, see “While Running Windows 95” below.)
3. Insert the EPSON printer software CD-ROM or diskette.
4. Type D:\or A:\(or the correct drive letter) and click OK.
5. At the next screen, keep or change the printer model
name. Then select Yes (No is the default) to use the
printer as the Windows default printer. Click Finish.
6. Follow the instructions on the screen. Your printer
software icons appear in an EPSON folder and a printer
icon appears in the Printers folder.
Installing on a PC
10
Note:
You’ll also find diskettes
for the EPSON Plot! utility
and AutoCAD®in your
printer box. (These utilities
are also on the CD-ROM.)
You don’t need to install
these utilities unless you
need to. See page 1 of
the Introduction to your
User’s Guide for details.
Quick setupLoire2 5/22/97, 10:30 AM10

While RunningWindows 95
If you couldn’t use the plug-and-play method:
1. Make sure Windows 95 is running and the printer is on.
Exit any open application programs.
2. Insert the EPSON printer software CD-ROM or diskette.
If you inserted the CD-ROM and Windows 95 is set up to
start CD-ROM software automatically, click Install at the
first screen and go to step 5.
3. Double-click the My Computer icon, then double-click
your CD-ROM or diskette drive icon.
4. If you clicked the CD-ROM drive icon, click Install at the
first screen. If you clicked the diskette drive icon,
double-click the Setup icon.
5. Select Epson Stylus COLOR 1520 in the Printer Model
tab and click OK.
6. Follow the instructions on the screen. Your printer
software icons appear in an EPSON folder and a printer
icon appears in the Printers folder.
Windows 3.1
1. Make sure Program Manager is running and the printer is
on. Exit any open application programs.
2. Insert the EPSON printer software CD-ROM or diskette.
3. From the File menu, select Run.
4. Type D:\SETUP or A:\SETUP (or substitute the correct
drive letter) and click OK.
5. Highlight Epson Stylus COLOR 1520 and click OK.
6. Follow the instructions on the screen. Your printer
software icons appear in an EPSON program group and
your printer is set as the Windows default printer.
Note:
To make diskette versions
of the printer software on
the CD-ROM, run the
MAKE_FD.EXE program
on the CD-ROM and
follow the instructions on
the screen.
11
Quick setupLoire2 5/22/97, 10:30 AM11

Windows NT 4.0
The instructions below tell you how to install the printer
software on all the Windows NT 4.0 computers that are
connected remotely to the printer via an optional network
interface card.
If you’ll be connecting the printer directly to a print server and
sharing access to it on the network, see your Windows NT 4.0
documentation for printer software installation and connection
instructions.
1. Turn off your printer.
2. Turn on your computer and log onto Windows NT 4.0
with the appropriate access privileges. Exit any open
application programs.
3. Insert the EPSON printer software CD-ROM.
4. Double-click the My Computer icon. Then double-click
your CD-ROM drive icon.
5. Click the SETUP icon.
6. Select Epson Stylus COLOR 1520 in the Printer Model
tab and click OK.
7. Follow the instructions on screen. A printer icon for your
printer now appears in the Printers folder.
8. Follow the steps in Chapter 4 of your User’s Guide to set
up your printer for network use.
To make diskette versions of the printer software on the
CD-ROM, run the MAKE_FD.EXE program on the CD and
follow the instructions on the screen.
12
Quick setupLoire2 5/22/97, 10:30 AM12

Windows NT 3.51
The instructions below tell you how to install the printer
software on all the Windows NT 3.51 computers that are
connected remotely to the printer via an optional network
interface card.
If you’ll be connecting the printer directly to a print server and
sharing access to it on the network, see your Windows NT 3.51
documentation for printer software installation and connection
instructions.
1. Make sure Program Manager is running and the printer is
on. Exit any open application programs.
2. Insert the EPSON printer software CD-ROM.
3. From the File menu, select Run.
4. Type D:\SETUP (or substitute the correct drive letter) and
click OK.
5. Select Epson Stylus COLOR 1520 in the Printer Model
tab and click OK.
6. Follow the instructions on the screen. Your printer is set
as the Windows default printer.
7. Follow the steps in Chapter 4 of your User’s Guide to set
up your printer for network use.
To make diskette versions of the printer software on the
CD-ROM, run the MAKE_FD.EXE program on the CD-ROM and
follow the instructions on screen.
13
Quick setupLoire2 5/22/97, 10:30 AM13

Installing on a Macintosh
1. Turn on your Macintosh and turn off any virus protection
programs you may have. (See your virus protection
documentation for instructions.)
2. When your Macintosh has finished starting up, turn on your
printer.
3. Insert the EPSON printer software CD-ROM and
double-click the Installer icon.
4. Click Continue to display the Installer Script dialog box.
5. Click Install and follow the instructions on the screen to copy
the software to your hard disk. After the files are copied, a
message tells you that installation is complete.
6. Click Restart to restart your Macintosh.
If you connected your printer to a serial interface on your
Macintosh, follow the steps in the next section to select the printer
in the Chooser.
If you connected your printer to an AppleTalk network with an
optional interface card, see “Network Printing on a Macintosh” in
Chapter 4 of your User’s Guide for instructions on setting up your
printer on the network.
SelectingYour Printer
After you install the software, you need to select your printer in
the Chooser.
1. Open the Chooser in the Apple menu.
2. Click the EPSON Stylus(EX) icon.
3. Click the icon for the port where you connected your printer.
(On a PowerBook with a combination printer/modem port,
select the modem port icon.)
4. Click On if you want to turn on background printing so you
can use your Macintosh while you print. (Keep in mind that
background printing is slower and may slow down your
system while you print.)
Note:
If your Macintosh doesn’t
have a CD-ROM drive,
you can make diskettes
from the CD-ROM using
another Macintosh. See
“Making Macintosh
Diskettes from the
CD-ROM” on page 15
for instructions.
14
Quick setupLoire2 5/22/97, 10:31 AM14

Making Macintosh Diskettes from the CD-ROM
Before making diskettes from the CD-ROM, name the
formatted diskettes you’ll use Disk1 and Disk2 (using a capital
“D” and no space before the number). If they’re not named
correctly, the diskettes won’t be able to install your software.
1. Turn on the Macintosh and turn off any virus protection
programs you may have. (See your virus protection
documentation for instructions.)
2. Insert the EPSON printer software CD-ROM in the
CD-ROM drive.
3. Double-click the CD-ROM icon on the desktop. (You must
double-click the icon even if a window opens when you
insert the CD-ROM.) The new window contains the Disk1
and Disk2 folder icons.
4. Double-click the Disk1 folder icon to open the folder.
5. Insert the diskette you named Disk1 in a diskette drive.
You see the Disk1 diskette icon on the desktop.
6. Select all the icons in the CD-ROM Disk1 folder and drag
them to the Disk1 diskette icon on the desktop.
7. When the icons are copied, eject the diskette and repeat
steps 4 through 6 for the CD-ROM folder and diskette you
named Disk2.
8. Eject Disk2. Then install the printer software on your
Macintosh using the diskettes. See “Installing on a
Macintosh” on page 14 for instructions.
15
5. If you chose the printer port in step 3, click Inactive to
turn off AppleTalk.
6. Close the Chooser.
Quick setupLoire2 5/22/97, 10:31 AM15

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners.
EPSON disclaims any and all rights in those marks.
Copyright © 1997 by Epson America, Inc. 5/97
Printed on recycled paper with at least 10% post-consumer content.
16
SeeYour EPSON Documentation
Your EPSON Stylus COLOR 1520 User’s Guide tells you how to:
◗print everything from a memo to a back lit display
◗use your printer software to fine-tune your printouts
◗keep your printer working at its best
◗solve any problems you may have
You can also access EPSON’s convenient online help from the
printer software to get quick information while you’re printing.
Quick setupLoire2 5/22/97, 10:31 AM16
