Network Guide

Copyright and Trademarks 2
Copyright and Trademarks
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means, mechanical, photocopying, recording, or otherwise, without the prior written permission of
Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein.
Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or
abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.)
failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation and its affiliates shall not be liable against any damages or problems arising from the use
of any options or any consumable products other than those designated as Original Epson Products or Epson
Approved Products by Seiko Epson Corporation.
Microsoft®, Windows®, and Windows Vista®are registered trademarks of Microsoft Corporation.
EPSON is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation.
This product includes software developed by the University of California, Berkeley, and its contributors.
Info-ZIP copyright and license
This is version 2005-Feb-10 of the Info-ZIP copyright and license. The definitive version of this document should
be available at ftp://ftp.info-zip.org/pub/infozip/license.html indefinitely.
Copyright © 1990-2005 Info-ZIP. All rights reserved.
For the purposes of this copyright and license, “Info-ZIP” is defined as the following set of individuals:
This software is provided “as is,” without warranty of any kind, express or implied. In no event shall Info-ZIP or its
contributors be held liable for any direct, indirect, incidental, special or consequential damages arising out of the
use of or inability to use this software.
Permission is granted to anyone to use this software for any purpose, including commercial applications, and to
alter it and redistribute it freely, subject to the following restrictions:
Mark Adler, John Bush, Karl Davis, Harald Denker, Jean-Michel Dubois, Jean-loup Gailly, Hunter
Goatley, Ed Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert Heath,
Jonathan Hudson, Paul Kienitz, David Kirschbaum, Johnny Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich Wales, Mike White

Copyright and Trademarks 3
General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2009 Epson America, Inc. 3/09
❏Redistributions of source code must retain the above copyright notice, definition, disclaimer,
and this list of conditions.
❏Redistributions in binary form (compiled executables) must reproduce the above copyright
notice, definition, disclaimer, and this list of conditions in documentation and/or other materials
provided with the distribution. The sole exception to this condition is redistribution of a standard
UnZipSFX binary (including SFXWiz) as part of a self-extracting archive; that is permitted without
inclusion of this license, as long as the normal SFX banner has not been removed from the binary
or disabled.
❏Altered versions--including, but not limited to, ports to new operating systems, existing ports with
new graphical interfaces, and dynamic, shared, or static library versions--must be plainly
marked as such and must not be misrepresented as being the original source. Such altered
versions also must not be misrepresented as being Info-ZIP releases--including, but not limited to,
labeling of the altered versions with the names “Info-ZIP” (or any variation thereof, including, but
not limited to, different capitalizations), “Pocket UnZip,” “WiZ” or “MacZip” without the explicit
permission of Info-ZIP. Such altered versions are further prohibited from misrepresentative use of
the Zip-Bugs or Info-ZIP e-mail addresses or of the Info-ZIP URL(s).
❏Info-ZIP retains the right to use the names “Info-ZIP,” “Zip,” “UnZip,” “UnZipSFX,” “WiZ,” “Pocket
UnZip,” “Pocket Zip,” and “MacZip” for its own source and binary releases.

Contents 4
Copyright and Trademarks
Safety Instructions
Warnings, Cautions, and Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1 Introduction
About Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features of the Network Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Network Interface Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Status Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Network Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
About the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Terms and Concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 2 How To
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Selecting a Printing Method for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Printing Method Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing Components on Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
About Installing Components on Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Windows XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Windows Server 2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Macintosh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting Up the Network Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting the Network Interface to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Configuring the Network Interface for Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configuring the Network Interface for Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installing the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
About Installing the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Windows XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents

Contents 5
Windows Server 2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Macintosh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Chapter 3 Network Software
EpsonNet Config for Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
About EpsonNet Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Installing EpsonNet Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Accessing the EpsonNet Config User’s Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
EpsonNet Config for Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
About EpsonNet Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Accessing the EpsonNet Config User’s Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
EpsonNet Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
About EpsonNet Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installing EpsonNet Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
For Windows Vista/XP/2000/Server 2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Configuring the Printer Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 4 Troubleshooting
General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cannot configure the network interface or cannot print from the network. . . . . . . . . . . 54
Cannot print even if you have assigned the IP address to the computer
and the printer.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Unable to start EpsonNet Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
The message “EpsonNet Config cannot be used because no network is installed.”
appears when you start EpsonNet Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
The message “Could not complete communicating configuration data”
appears when you send settings to the network interface. . . . . . . . . . . . . . . . . . . . . 55
The Model Name and IP Address do not appear in the EpsonNet Config dialog box. . 55
Problems Specific to Your Network Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Windows 2000 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Printing a Network Status Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Contents 6
Chapter 5 Tips for Administrators
Setting an IP Address on the Printer’s Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Network Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Universal Plug and Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Windows 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Windows XP/Server 2003 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Mac OS X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Index

Safety Instructions 7
Safety Instructions
Warnings, Cautions, and Notes
wWarnings
must be followed carefully to avoid bodily injury.
cCautions
must be observed to avoid damage to your equipment.
Notes
contain important information and useful tips on the operation of your printer.

Introduction 8
Chapter 1
Introduction

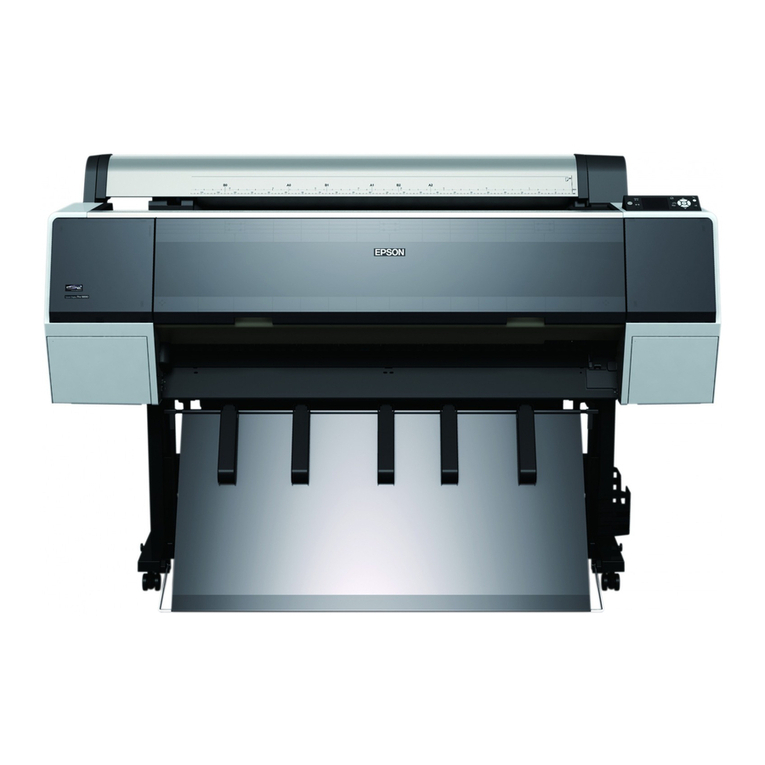

About Your Printer
Your printer has a built-in Ethernet interface and can connect anywhere on your network
using 10Base-T or 100Base-TX. The built-in Ethernet interface, which is called the network
interface in this manual, automatically selects the correct standard when it connects to a
network. In addition, it supports and automatically selects the IEEE 802.2, IEEE 802.3,
Ethernet II, and Ethernet SNAP network protocols.
Because the network interface supports multiple protocols and automatically detects
protocols on your network, you can print from Microsoft®Windows®and Mac OS®X
applications.
Use the Software CD-ROM that came with the printer to easily configure the network
interface for use on the TCP/IP network and install the printer driver.
If you want to configure the network interface for protocols such as TCP/IP, AppleTalk®,
and SNMP, use EpsonNet Config, the configuration utility provided with your product, to
quickly and easily configure the network interface to use those protocols.
Note:
The EpsonNet Config utility configures the network interface to work only with protocols that exist
on your network. This does not imply that you can use all of the above-mentioned protocols on your
network or operating system. The protocols that the network interface can use may vary depending
on the operating system and the network configuration.
About This Guide
This Network Guide contains information about using the printer on a network. It includes
how to set up the network interface, install the configuration software, and modify network
settings of your printer and computers.
For information about your printer, see your User’s Guide.
Note:
❏To read the online guide, you must have Adobe®Reader®or Adobe Acrobat®Reader installed
on your computer.
❏This guide is written for network administrators, and many of the steps included here require
detailed network knowledge and administrator rights.

Introduction 9
❏The term “network administrator” refers to the person responsible for maintaining the network.
“Administrator” is synonymous with “Supervisor” in this guide.
❏The term “network interface” refers to the built-in Ethernet interface of the printer in this guide.
Operating Environment
The network interface supports the following environments.
Features of the Network Interface
❏Connects your Epson printer using a built-in Ethernet interface, which is called the
network interface in this manual, to the network.
❏Supports multiple protocols.
❏Supports both 10Base-T and 100Base-TX.
❏Supports DHCP.
❏Supports Automatic Private IP Addressing (APIPA) that assigns an IP address
automatically to the network interface even if there is no DHCP server on the network.
❏Supports the Dynamic DNS function.
OS Protocol
Windows Vista®
Windows XP (Home,
Professional)
Windows 2000 (Professional)
Windows Server 2003
TCP/IP (using LPR, Standard
TCP/IP Port, or EpsonNet
Print)
Mac OS X 10.5 Bonjour
TCP/IP
Mac OS X 10.4 Bonjour
TCP/IP
AppleTalk
Mac OS X 10.3.9 Rendezvous
TCP/IP
AppleTalk

Introduction 10
❏Supports SNMP and MIB.
❏Supports SNTP (Simple Network Time Protocol).
❏Supports Bonjour on Mac OS X 10.4 or later.
❏Supports Rendezvous on Mac OS X 10.3.9.
Network Interface Operation
Status Light
The indicator lights provide you with important information on the operations of the network
interface.
The status light on the left side indicates whether the network interface is connected to
10Base-T or 100Base-TX. The light is orange when the connection is 100Base-TX, green
when the connection is 10Base-T.
The data light on the right side flashes when the host interface receives data.
If the light on the left side is solid green and the light on the right side is off, the connection
is disconnected.
Network Connector
RJ-45 connector: This connector is used to connect an Ethernet cable to a network. You
can use this cable for both 10Base-T and 100Base-TX.
Status light Data light Network Status
Green Green Ready (10 M link)
Green Green (Flashing) Receiving packets (10 M link)
Orange Green Ready (100 M link)
Orange Green (Flashing) Receiving packets (100 M link)
Status light Data light

Introduction 11
cCaution:
You must use a category-5 shielded twisted-pair cable to connect the network interface to a
network.
About the Software
The Software CD-ROM provided with your printer includes the following network software.
Note:
The software provided varies depending on your printer model.
❏EpsonNet Config is a Windows-based configuration utility for administrators that allows
you to configure the network interface for various protocols such as TCP/IP and SNMP.
See “EpsonNet Config for Windows” on page 43.
❏EpsonNet Config for Macintosh is a Macintosh-based configuration utility for
administrators that allows you to configure the network interface for TCP/IP, AppleTalk,
and IPP. See “EpsonNet Config for Macintosh” on page 44.
❏EpsonNet Print is a utility that enables TCP/IP printing for Windows. (Windows
Vista/XP/2000/Server 2003 also support OS standard LPR printing.) See “EpsonNet
Print” on page 45.
Terms and Concepts
Configuration -- a prepared set of conditions for proper operation of a device. Configuring
the network interface is to prepare it to work with protocols available on a network.
DHCP -- a dynamic host configuration protocol. It is a protocol that assigns dynamic IP
addresses to devices on a network.
ftp -- a TCP/IP application protocol for file transfer
lpd -- a TCP/IP remote printing protocol application
Print queue -- a location where a print job is stored as a file, until the network interface
sends the job to the assigned printer
Protocol -- a rule that controls how data or information is exchanged through a network.
Computers and software cannot communicate with each other using different protocols.
TCP/IP -- Transmission Control Protocol/Internet Protocol, a layer of protocols that
provides communication between nodes on a network

How To 12
Chapter 2
How To
Overview
This section describes the general procedure on how to set up the network interface for
use on a network.
1. Check the network interface operation.
Check the functions and operations of the network interface, such as status lights and
RJ-45 connector. See “Network Interface Operation” on page 10 for details.
2. Select a printing method.
Select a printing method appropriate for your network environment and operating
system. If you are not sure, see “Selecting a Printing Method for Windows” on page 13
for details.
3. Install the necessary components on your computer.
Make sure the necessary components (such as TCP/IP) are installed on the computer,
and network settings (such as IP address, subnet mask, etc.) of the computer is set.
See “About Installing Components on Your Computer” on page 14 for details.
4. Connect the network interface to the network.
Connect the network interface to the network. See “Connecting the Network Interface
to the Network” on page 21 for details.
5. Configure the network interface and install the printer driver on all the computers that
will use the printer.
See “Configuring the Network Interface for Windows” on page 22 or “Configuring the
Network Interface for Macintosh” on page 25 for details.
6. If necessary, configure the network settings of the network interface using EpsonNet
Config.
Configure the network interface for TCP/IP, MS Network, etc. using EpsonNet Config.
See “About EpsonNet Config” on page 43.

How To 13
Selecting a Printing Method for Windows
Check if there is a Windows Vista/XP/Server 2003/2000 print server on your network, and
then use the suggestions below.
If a print server exists, set the printer to connect with LPR on the server and turn it into a
shared printer. Your clients can then print to this shared printer.
If no Windows print server exists, we recommend TCP/IP printing via LPR. This is the
method to use when you connect the printer to your network through the printer’s Ethernet
port. See “Windows Vista” on page 14, “Windows XP” on page 16, “Windows Server 2003”
on page 17, or “Windows 2000” on page 19.
Printing Method Features
This section describes features of the printing methods available for you to choose.
LPR (TCP/IP) printing for Ethernet connection
Advantages
❏No computer as a network interface is required.
❏No special utility for Windows Vista/XP/2000/Server 2003 is required.
❏You can see the printer status using EPSON Status Monitor.
❏For Windows Vista/XP/2000/Server 2003, you can create a print log using the event
viewer.
❏You can print via a router.
Disadvantages
❏You need to set up TCP/IP.
Microsoft Network Shared printing
Advantages
❏Easy to set up.
❏No computer as a network interface is required.

How To 14
❏No special print utility is required.
Disadvantages
❏Epson Status Monitor cannot be used.
❏You cannot print via a router.
❏It takes longer to start printing because more time is required to search for a network
printer.
Note:
Instructions for setting up Microsoft network shared printing are included in the printer User’s
Guide.
Installing Components on Your Computer
About Installing Components on Your Computer
Before configuring the network interface and printing from the computer, you need to install
the necessary components (such as TCP/IP) and assign an IP address and subnet mask
for your computer, depending on the printing method you want to use. See the section in
this chapter appropriate for your operating system.
Note:
❏The Windows operating system CD-ROM may be required during the installation.
❏When using TCP/IP for printing, you need to set the IP address, the subnet mask, and the
default gateway of the computer. These may be set automatically if your network uses DHCP.
Windows Vista
For Windows Vista, use the following procedure to install the necessary components.
1. Click Start, click Control Panel, and then click View network status and tasks or
double-click Network and Sharing Center.
2. Click View Status, and then click the Properties button.
Note:
If the User Account Control screen appears, click the Continue button.

How To 15
3. Check if the following necessary components are in the list. If they are already installed,
go to the next chapter.
The following table lists the components required for configuring the network interface
with EpsonNet Config.
The following table lists the components required for network printing.
4. If the necessary components are not in the list, click Install to install them, as described
below.
For LPR or Internet printing:
Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
5. For LPR or Internet printing:
Double-click Internet Protocol Version 4 (TCP/IPv4) on the Local Area Connection
Properties dialog box to open the Internet Protocols Version 4 (TCP/IPv4) Properties
dialog box. Set the IP address and so on if necessary, then click OK.
6. Restart the computer.
EpsonNet Config’s setting screens Necessary components
TCP/IP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)

How To 16
The necessary components are now installed. Go to the section “Connecting the Network
Interface to the Network” on page 21.
Windows XP
For Windows XP, use the following procedure to install the necessary components.
1. Click Start, highlight Control Panel, and then click Network and Internet
Connections. Select Network Connections.
2. Under LAN or High-Speed Internet, click the Local Area Connection icon.
3. Under Network Tasks, click Change settings of this connection.
4. Check if the following necessary components are in the list. If they are already installed,
go to the next chapter.
The following table lists the components required for configuring the network interface
with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)

How To 17
The following table lists the components required for network printing.
5. If the necessary components are not in the list, click Install to install them, as described
below.
For LPR:
Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
For Microsoft Network Shared printing:
Select Client and then click Add. Select Client for Microsoft Networks and then click
OK.
6. For LPR or Microsoft Network Shared printing:
Double-click Internet Protocol (TCP/IP) on the Local Area Connection Properties
dialog box to open the Internet Protocols (TCP/IP) Properties dialog box. Set the IP
address and so on if necessary, then click OK.
7. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network
Interface to the Network” on page 21.
Windows Server 2003
For Windows Server 2003, use the following procedure to install the necessary
components.
1. Click Start, point to Control Panel, and then select Network Connections. Click
Local Area Connections.
2. Click the Properties button.
Printing method Necessary components
LPR Internet Protocol (TCP/IP)
Microsoft Network Shared printing TCP/IP client for Microsoft Networks

How To 18
3. Check if the following necessary components are in the list. If they are already installed,
go to the next chapter.
The following table lists the components required for configuring the network interface
with EpsonNet Config.
The following table lists the components required for network printing.
4. If the necessary components are not in the list, click Install to install them, as described
below.
For LPR:
Internet Protocol (TCP/IP) is installed by default. You cannot add or delete it.
For Microsoft Network Shared printing:
Select Client and then click Add. Select Client for Microsoft Networks and then click
OK.
EpsonNet Config’s setting screens Necessary components
TCP/IP, SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)
Printing method Necessary components
LPR or Internet printing Internet Protocol (TCP/IP)
Microsoft Network Shared printing TCP/IP
Client for Microsoft Networks

How To 19
5. For LPR or Microsoft Network Shared printing:
Double-click Internet Protocol (TCP/IP) on the Local Area Connection Properties
dialog box to open the Internet Protocols (TCP/IP) Properties dialog box. Set the IP
address and so on if necessary, then click OK.
6. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network
Interface to the Network” on page 21.
Windows 2000
For Windows 2000, use the following procedure to install the necessary components.
1. Click Start, point to Settings, and then select Network and Dial-up Connections. The
Network and Dial-up Connections screen appears.
2. Right-click the desired network connection and then select Properties.
3. Check if the following necessary components are in the list. If they are already installed,
go to the next chapter.
The following table lists the components required for configuring the network interface
with EpsonNet Config.
EpsonNet Config’s setting screens Necessary components
TCP/IP or SNMP (IP trap) Internet Protocol (TCP/IP)
MS Network Internet Protocol (TCP/IP)

How To 20
The following table lists the components required for network printing.
4. If the necessary components are not in the list, click Install to install them, as described
below.
For LPR:
Select Protocol and then click Add. In the Select Network Protocol dialog box, select
Internet Protocol (TCP/IP) and then click OK.
For Microsoft Network Shared printing:
To use Internet Protocol, see the description described earlier to install Internet
Protocol (TCP/IP).
Select Client and then click Add. Select Client for Microsoft Networks and then click
OK.
5. For LPR or Microsoft Network Shared printing:
Double-click Internet Protocol (TCP/IP) on the Configuration menu to open the
TCP/IP Properties dialog box. Set the IP address and so on if necessary, then click OK.
6. Restart the computer.
The necessary components are now installed. Go to the section “Connecting the Network
Interface to the Network” on page 21.
Macintosh
To assign an IP address, subnet mask, etc. to your Macintosh, follow the steps below.
1. From the Apple menu, select System Preferences.
2. Open the Network control panel. Click the TCP/IP tab.
Note:
For Mac OS X 10.5, select Ethernet as the connecting method on the Network control panel,
select the method to assign the IP address from the Configure menu, and then assign the IP
address.
3. Select Built-in Ethernet from the Show pull-down menu.
4. Assign an IP address and other settings if necessary.
Printing method Necessary components
LPR Internet Protocol (TCP/IP)
Microsoft Network Shared printing Internet Protocol (TCP/IP)
Client for Microsoft Networks
