Safety Instructions
Important Safety Instructions
Read all of these instructions before using your printer. Also, be
sure to follow all warnings and instructions marked on the
printer.
❏Do not block or cover the openings in the printer’s cabinet.
Do not insert objects through the slots.
❏Take care not to spill liquid on the printer.
❏Use only the type of power source indicated on the printer’s
label.
❏Connect all equipment to properly grounded power outlets.
Avoid using outlets on the same circuit as photocopiers or air
control systems that regularly switch on and off.
❏Avoid electrical outlets controlled by wall switches or
automatic timers.
❏Keep the entire computer system away from potentialsources
of electromagnetic interference, such as loudspeakers or the
base units of cordless telephones.
❏Do not use a damaged or frayed power cord.
❏If you use an extension cord with the printer, make sure that
the total ampere rating of the devices plugged into the
extension corddoes not exceed the cord’sampere rating. Also,
make sure that the total ampere rating of all devices plugged
into the wall outlet does not exceed the wall outlet’s ampere
rating.
❏Do not attempt to service the printer yourself.
❏If you plan to use the printer in Germany, the building
installation must be protected by a 10 or 16 amp circuit
breaker to provide adequate short-circuit protection and
over-current protection for this printer.
❏Unplug the printer and refer servicing to qualified service
personnel under the following conditions:

5
R4C649_UK
short.bk Rev.C
Daily_UK.fm A5 size
12/1/00
R
Proof Sign-off:
T.Kubota CRE Nakano
N.Nomoto
E.Lipsett
English
The power cord or plug is damaged; liquid has entered the
printer; the printer has been dropped or the cabinet damaged;
the printer does not operate normally or exhibits a distinct
change in performance.
A Few Precautions
Take note of the following when using the printer, handling the
ink cartridges, or choosing a location for the printer.
When using the printer
Observe the following:
❏Do not put your hand inside the printer or touch the ink
cartridges during printing.
❏Do not move the print head by hand; otherwise, you may
damage the printer.
❏Always turn the printer off using the Ppower button. When
this button is pressed, the Ppower light flashes briefly and
then goes out. Do not unplug the printer or turn off the power
to the outlet until the Ppower light stops flashing.
❏Before transporting the printer, make sure that the print head
is in the home (far right) position and the ink cartridges are
in place.
When handling the ink cartridges
Observe the following:
❏Keep ink cartridges out of the reach of children. Do not allow
children to drink from or otherwise handle the cartridges.
❏Be careful when you handle the used ink cartridges, as there
may be some ink remaining around the ink supply port. If ink
gets on your skin, wash the area thoroughly with soap and
water.
❏If ink gets into your eyes, flush them immediately with water.
If discomfort or vision problems remain after a thorough
flushing, see a physician immediately.
❏Do not shake an ink cartridge; this can cause leakage.

6
R4C649_UK
short.bk Rev.C
Daily_UK.fm A5 size
12/1/00
LProof Sign-off:
T.Kubota CRE Nakano
N.Nomoto
E.Lipsett
❏Install the ink cartridge immediately after you remove it from
its package. Leaving the cartridge unpacked for a long time
before use may result in reduced print quality.
❏Do not use an ink cartridge beyond the date printed on the
cartridge carton. For best results, use up the ink cartridges
within six months of installing them.
❏Do not dismantle the ink cartridges or try to refill them. This
could damage the print head.
❏After bringing an ink cartridge inside from a cold storage site,
allow it to warm up at room temperature for at least three
hours before using it.
❏Store ink cartridges in a cool, dark place.
❏Do not touch the green IC chip on the side of the cartridge.
This may affect normal operation and printing.
❏In this ink cartridge, the IC chip retains a variety of cartridge
related-information, such as the amount of ink remaining, so
that a cartridge may be removed and reinserted freely.
However, each time the cartridge is inserted, some ink is
consumed because the printer automatically performs a
reliability check.
❏If you remove an ink cartridge for later use, protect the ink
supply area from dirt and dust and store it in the same
environment as the printer. Note that there is a valve in the
ink supply port, making covers or plugs unnecessary, but care
is needed to prevent the ink from staining items that the
cartridge touches. Do not touch the ink cartridge ink supply
port or surrounding area.
When choosing a place for the printer
Observe the following:
❏Place the printer on a flat, stable surface that extends beyond
the printer base in all directions. The printer will not operate
properly if it is tilted or at an angle.
❏Leave enough space in front of the printer for paper to be fully
ejected.

7
R4C649_UK
short.bk Rev.C
Daily_UK.fm A5 size
12/1/00
R
Proof Sign-off:
T.Kubota CRE Nakano
N.Nomoto
E.Lipsett
English
❏Avoid places subject to rapid changes in temperature and
humidity. Also, keep the printer away from direct sunlight,
strong light, or heat sources.
❏Avoid places subject to shocks and vibrations.
❏Avoid places subject to dust.
❏Leave enough room around the printer to allow for sufficient
ventilation.
❏Place the printer near a wall outlet where the plug can be
easily unplugged.
For United Kingdom Users
Use of options
EPSON (UK) Limited shall not be liable against any damages or
problems arising from the use of any options or consumable
products other than those designated as Original EPSON
Products or EPSON Approved Products by EPSON (UK) Limited.
Safety information
wWarning:
This appliance must be earthed. Refer to the rating plate for
voltage and check that the appliance voltage corresponds to the
supply voltage.
Important:
The wires in the mains lead fitted to this appliance are coloured
in accordance with the following code:
Green and yellow — Earth
Blue — Neutral
Brown — Live
If you have to fit a plug:
As the colours of the mains lead of this appliance may not match
the coloured markings used to identify the terminals in a plug,
please proceed as follows:
The green and yellow wire must be connected to the terminal in
the plug which is marked with the letter Eor the earth symbol (G).

8
R4C649_UK
short.bk Rev.C
Daily_UK.fm A5 size
12/1/00
LProof Sign-off:
T.Kubota CRE Nakano
N.Nomoto
E.Lipsett
The blue wire must be connected to the terminal in the plug
marked with the letter N.
The brown wire must be connected to the terminal in the plug
marked with the letter L.
If damage occurs to the plug, replace the cord set or consult a
qualified electrician.
Replace fuses only with a fuse of the correct size and rating.
Warnings, Cautions, and Notes
wWarnings
must be followed carefully to avoid bodily injury.
cCautions
must be observed to avoid damage to your equipment.
Notes
contain important information and useful tips on the operation of your
printer.
Loading Paper
Loading Special Paper and Other Media

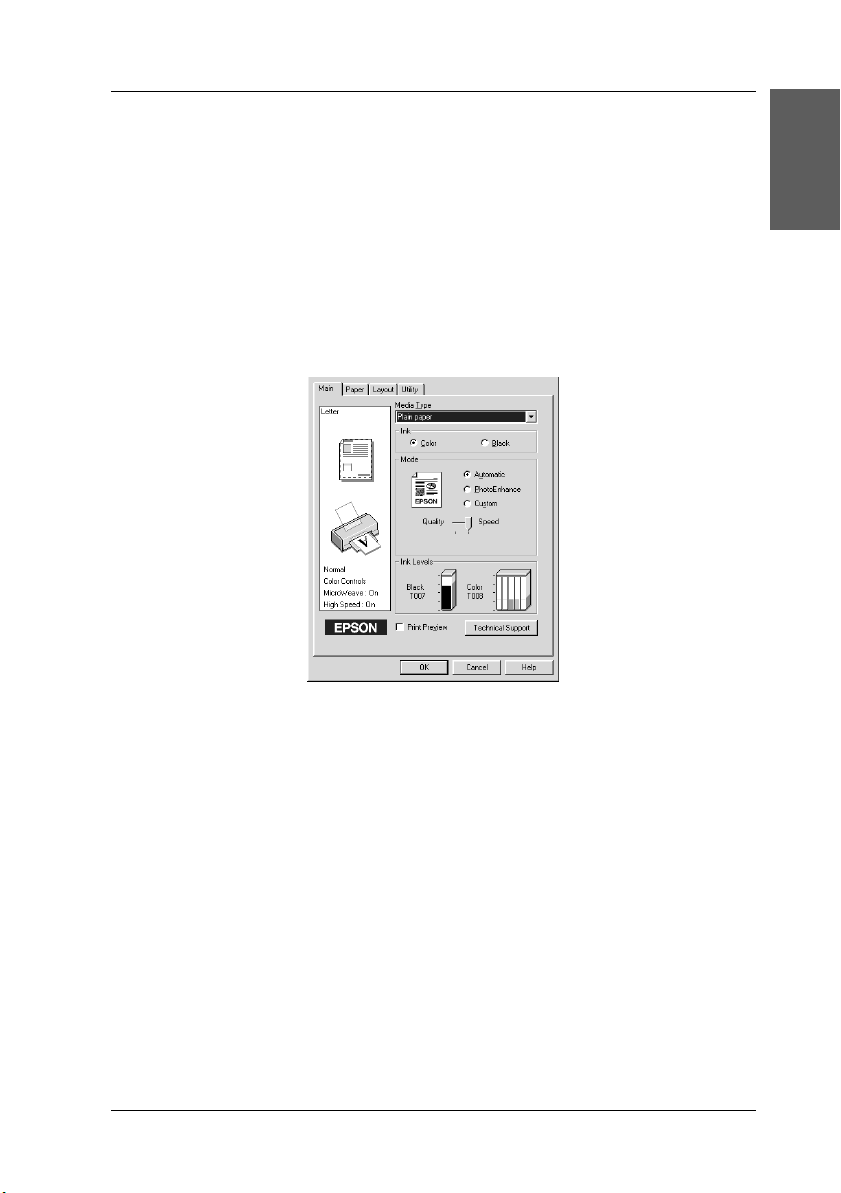

You can print on a wide variety of special media, including ink
jet paper, photo quality glossy film, photo paper, transparencies,
index cards, and adhesive sheets.
When loading special media distributed by EPSON, read the
instruction sheets packed with the media first and keep the
following points in mind. For more details on using special media,
see “Paper Handling” in the online Reference Guide.

9
R4C649_UK
short.bk Rev.C
Daily_UK.fm A5 size
12/1/00
R
Proof Sign-off:
T.Kubota CRE Nakano
N.Nomoto
E.Lipsett
English

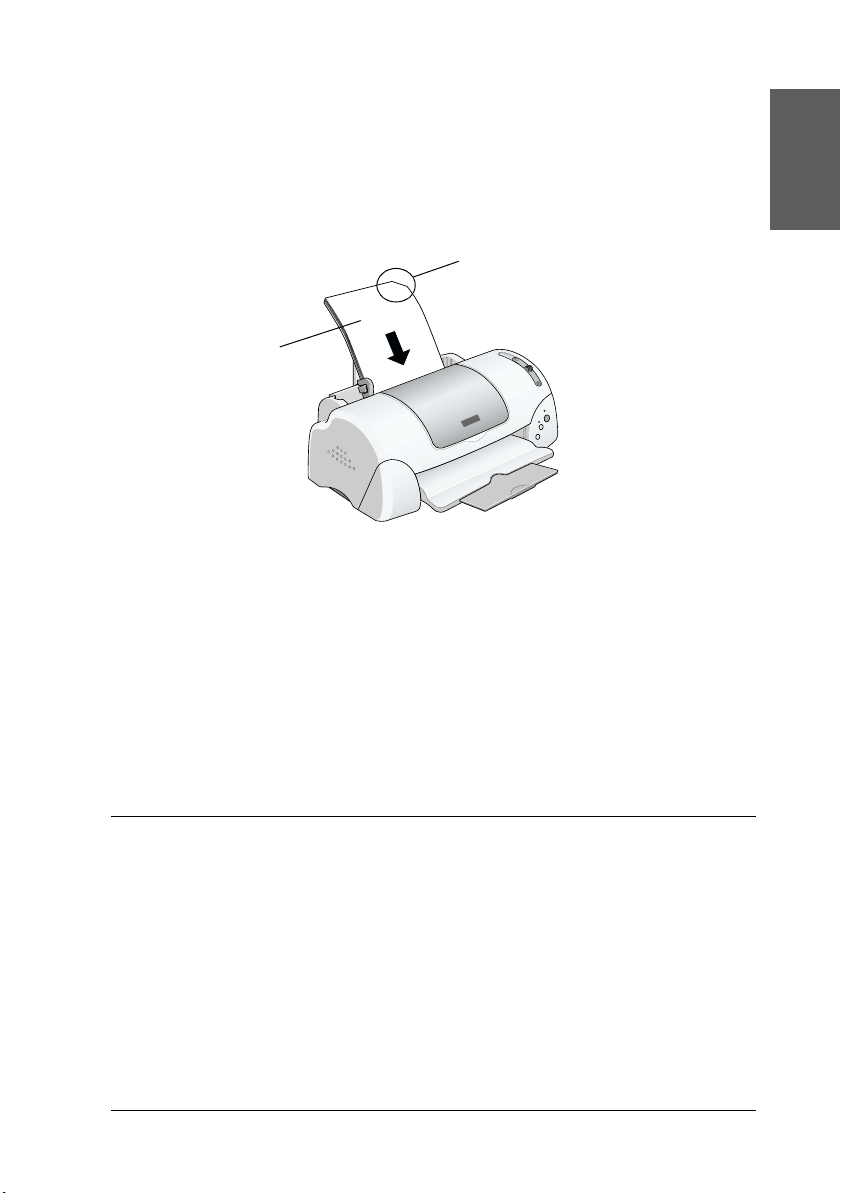

❏Make sure that the printable side of the paper is facing up
when loading media into the sheet feeder. See the instruction
sheets packed with the media to determine which side is the
printable surface. Some types of media have cut corners to
help identify the correct loading direction, as shown in the
illustration.
❏Make sure that the paper stack fits under the arrow mark
located on the inside surface of the left edge guide.
For more information on loading capacities for EPSON special
media, see your online Reference Guide.
About special media cleaning sheets
Cleaning sheets packaged with EPSON special media should not
be used with this printer. The cleaning function performed by
these sheets is not necessary with this type of printer, and the
sheets could jam in the printer.
Loading Envelopes
Before printing on envelopes, please read instructions and notes
on the online Reference Guide.
printable
side up
cut corner
