EPSON FX-880
4008484
®

NOTICE
All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise, without the prior written permission of SEIKO EPSON CORPORATION.

The contents of this manual are subject to change without notice.

All effort have been made to ensure the accuracy of the contents of this manual. However,
should any errors be deteced, SEIKO EPSON would greatly appreciate being informed of
them.

The above not withstanding SEIKO EPSON CORPORATION can assume no responsibility for
any errors in this manual or the consequences thereof.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
General Notice: Other product names used herein are for identification purpose only and may
be trademarks or registered trademarks of their respective owners. EPSON
disclaims any and all rights in those marks.
Copyright © 1996 SEIKO EPSON CORPORATION. Printed in Japan.

PRECAUTIONS
Precautionary notations throughout the text are categorized relative to 1)Personal injury and 2)
damage to equipment.
DANGER Signals a precaution which, if ignored, could result in serious or fatal personal injury.
Great caution should be exercised in performing procedures preceded by DANGER
Headings.
WARNING Signals a precaution which, if ignored, could result in damage to equipment.
The precautionary measures itemized below should always be observed when performing
repair/maintenance procedures.
DANGER
1. ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL
DEVICES PERFORMING ANY MAINTENANCE OR REPAIR PROCEDURES.
2. NOWORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIER WITH
BASIC SAFETY MEASURES AS DICTATED FOR ALL ELECTRONICS TECHNICIANS IN
THEIR LINE OF WORK.
3. WHEN PERFORMING TESTING AS DICTATED WITHIN THIS MANUAL, DO NOT
CONNECT THE UNIT TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. WHEN
THE POWER SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN
WORKING ON POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.
WARNING
1. REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON
CERTIFIED REPAIR TECHNICIAN.
2. MAKE CERTAIN THAT THE SOURCE VOLTAGES IS THE SAME AS THE RATED
VOLTAGE, LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON PRODUCT
HAS A PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT
CONNECT IT TO THE POWER SOURCE.
3. ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE
POWER SOURCE BEFORE REMOVING OR REPLACING PRINTED CIRCUIT BOARDS
AND/OR INDIVIDUAL CHIPS.
4. IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE
STATIC DISCHARGE EQUIPMENT, SUCH AS ANTI-STATIC WRIST STRAPS, WHEN
ACCESSING INTERNAL COMPONENTS.
5. REPLACE MALFUNCTIONING COMPONENTS ONLY WITH THOSE COMPONENTS BY
THE MANUFACTURE; INTRODUCTION OF SECOND-SOURCE ICs OR OTHER
NONAPPROVED COMPONENTS MAY DAMAGE THE PRODUCT AND VOID ANY
APPLICABLE EPSON WARRANTY.

PREFACE
This manual describes basic functions, theory of electrical and mechanical operations,
maintenance and repair procedures of FX880. The instructions and procedures included herein
are intended for the experienced repair technicians, and attention should be given to the
precautions on the preceding page. The chapters are organized as follows:
CHAPTER 1. PRODUCT DESCRIPTIONS
Provides a general overview and specifications of the product.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of electrical and mechanical operations of the product.
CHAPTER 3. TROUBLESHOOTING
Provides the step-by-step procedures for troubleshooting.
CHAPTER 4. DISASSEMBLY AND ASSEMBLY
Describes the step-by-step procedures for disassembling and assembling the product.
CHAPTER 5. ADJUSTMENTS
Provides Epson-approved methods for adjustment.
CHAPTER 6. MAINTENANCE
Provides preventive maintenance procedures and the lists of Epson-approved lubricants and
adhesives required for servicing the product.
APPENDIX
Provides the following additional information for reference:
• Connector pin assignments
• Electric circuit boards components layout
• Exploded diagram
• Electrical circuit boards schematics

REVISION STATUS
Rev. Date Page(s) Contents
A 1997/09/30 All First release

TABLE OF CONTENTS
PRODUCT SPECIFICATION
1.1 SPECIFICATION ..................................................................................1-1
1.2 OPERATION.........................................................................................1-7
1.2.1 Control panel ................................................................................................ 1-7
1.2.2 Switches........................................................................................................ 1-7
1.2.2.1 Usual Operation.................................................................................. 1-7
1.2.2.2 Operations at Power-on...................................................................... 1-8
1.2.3 Indicators ( LEDs )........................................................................................ 1-9
1.2.4 Buzzer............................................................................................................ 1-9
1.2.5 Default setting mode 1............................................................................... 1-10
1.2.5.1 Setting Method.................................................................................. 1-10
1.2.5.2 Setting Items..................................................................................... 1-10
1.2.6 Default Setting Mode 2............................................................................... 1-11
1.2.6.1 Setting Items..................................................................................... 1-11
1.2.7 EEPROM Clear Function............................................................................ 1-12
1.2.8 Bi-D Adjustment.......................................................................................... 1-13
OPERATING PRICIPLES
2.1 MAIN COMPONENTS.......................................................................... 2-1
2.1.1 C229MAIN Board........................................................................................... 2-1
2.1.2 C229PSB/PSE Board.................................................................................... 2-1
2.2 PRINTER MECHANISM.......................................................................2-2
2.2.1 Printhead....................................................................................................... 2-2
2.2.2 Paper Feed Mechanism................................................................................ 2-2
2.2.3 Carriage Movement Mechanism.................................................................. 2-2
2.2.4 Tractor Feed Mechanism ............................................................................. 2-2
2.2.5 Platen Gap Adjustment Mechanism............................................................ 2-2
2.2.6 Ribbon Feed Mechanism ............................................................................. 2-2
2.3 CIRCUIT OPERATION......................................................................... 2-4
2.3.1 C229PSB/PSE Power Supply Circuit .......................................................... 2-4
2.3.2 C229MAIN Board Circuit .............................................................................. 2-5

TROUBLESHOOTING
3.1 OVERVIEW ..........................................................................................3-1
3.1.1 Main Component Checking Point ............................................................... 3-1
3.1.2 Error............................................................................................................... 3-3
3.2 UNIT LEVEL TROUBLESHOOTING....................................................3-4
3.3 UNIT REPAIRING OF THE POWER SUPPLY BOARD ..................... 3-11
3.4 UNIT REPAIRING OF THE MAIN BOARD......................................... 3-13
3.5 REPAIRING THE PRINTER MECHANISM......................................... 3-16
DISASSEMBLY AND ASSEMBLY
4.1 OVERVIEW ..........................................................................................4-1
4.1.1 Disassembly Precautions........................................................................... 4-1
4.1.2 Tools and Instruments................................................................................. 4-1
4.1.3 Service Check After Repair.......................................................................... 4-2
4.1.4 Abbreviations for Small Parts...................................................................... 4-3
4.2 DISASSEMBLY AND ASSEMBLY.......................................................4-4
4.2.1 Printhead Removal....................................................................................... 4-5
4.2.2 HP (Home Position) Detector Removal....................................................... 4-6
4.2.3 Pre-disassembly Procedures ...................................................................... 4-7
4.2.4 Upper Housing Removal.............................................................................. 4-8
4.2.5 C229MAIN Board Removal........................................................................... 4-9
4.2.6 C229PSB/PSE Board Removal.................................................................. 4-11
4.2.7 ROM Removal ............................................................................................. 4-12
4.2.8 Platen Removal........................................................................................... 4-13
4.2.9 Printer Mechanism Removal...................................................................... 4-14
4.2.10 Printer Mechanism Disassembly............................................................. 4-15
4.2.10.1 CR Motor Removal.......................................................................... 4-15
4.2.10.2 PF Motor Removal.......................................................................... 4-16
4.2.10.3 PF Gear Train Disassembly............................................................ 4-17
4.2.10.4 PG (Platen Gap) Detector Removal................................................ 4-18
4.2.10.5 Release Detector Removal............................................................. 4-18
4.2.10.6 Front PE (Paper End) Detector Removal........................................ 4-19
4.2.10.7 Rear PE Detector Removal............................................................. 4-19
4.2.10.8 Carriage Assembly Removal........................................................... 4-20
4.2.10.9 Rear Paper Guide Assembly Removal............................................ 4-21
4.2.10.10 Ribbon Drive (RD) Assembly Removal......................................... 4-22

ADJUSTMENT
5.1 ADJUSTMENT OVERVIEW .................................................................5-1
5.1.1 Required Adjustment ................................................................................... 5-1
5.1.2 Adjustment Tools ......................................................................................... 5-1
5.2 ADJUSTMENT AND RESETTING THE PRINTER............................... 5-2
5.2.1 Platen Gap Adjustment ................................................................................ 5-2
5.2.2 Factory Setting.............................................................................................. 5-4
5.2.3 Bi-D Adjustment............................................................................................ 5-6
MAINTENANCE
6.1 PREVENTIVE MAINTENANCE............................................................ 6-1
6.2 LUBRICATION .....................................................................................6-2
APPENDIX
7.1 CONNECTOR SUMMARY ...................................................................7-1
7.2 COMPONENT LAYOUT....................................................................... 7-6
7.3 EXPLODED DIAGRAM ........................................................................ 7-9
7.4 DIMENSION AND WEIGHT................................................................7-11
7.5 CIRCUIT DIAGRAM ........................................................................... 7-12

PRODUCT SPECIFICATION
CHAPTER
1

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-1
1.1 SPECIFICATION
The FX-880 is a small hoot, 9 pins serial impact dot matrix printer. The main specification is as
follows;
HARDWARE SPECIFICATIONS
Print method 9 pins Impact dot matrix
Print pin arrangement 9 ´1
Print pin diagrams 0.29 mm ( 0.0114 inch )
RESOLUTION
Table 1-1. Resolution ( dpi )
Printing mode Horizontal
density Vertical density Adjacent dot print
High speed draft 90 72 No
Draft 120 72 No
NLQ 240 144 No
Bit image 60, 72, 80, 90 or
120 72 Yes
120 or 240 72 No
PRINTING SPEED
Table 1-2. Printing Speed (cps)
Printing mode Character
pitch Printable column Printing speed
Normal Copy
High speed Draft 10cpi 80 410 345
Draft 10cpi 80 310 260
NLQ 10cpi 80 78 65
l When the power supply voltage drops to the lower limit, the printer stops printing once and
then starts to print rest data on that line again more slowly than before.
l When the head temperature rises to the upper limit, the printer stops printing once. If the
head temperature falls down to the normal level, it begins to print again more slowly than
before.
FEEDING METHOD
Friction feed Front, Rear
Push tractor feed Front, Rear
Push & Pull tractor feed Front, Rear
Pull tractor feed Front, Rear, Bottom
FEED SPEED
Normal mode 62 ms 1/6 inch feed
0.127MPS ( 5.0 IPS) continuos feeding
Copy mode 83 ms 1/6 inch feeding
0.078MPS (3.1 IPS) continuos feed
FEEDER
Front push tractor
Rear push tractor
CSF ( Option, bin1 / bin2 )
Pull tractor ( Option )
Roll paper holder ( Option )

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
2

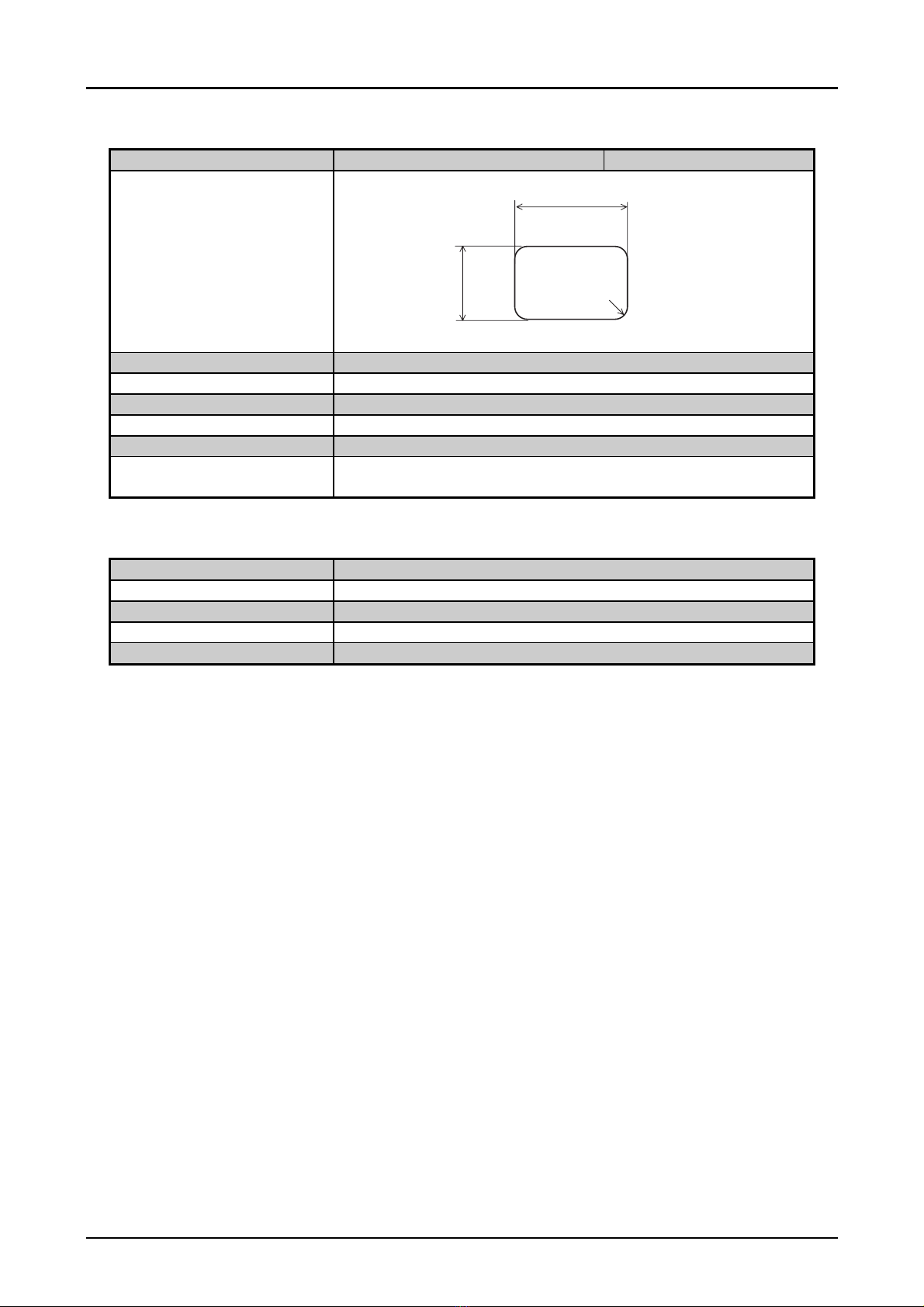

PAPER / MEDIA
Table 1-3. Cut Sheet
Insertion Front entry Rear entry
Width 148 ~ 257mm ( 5.8 ~ 10.1”)
Length 182 ~ 364mm ( 7.2 ~ 14.3” ) 92 ~ 364mm ( 3.6 ~ 14.3”)
Thickness 0.065 ~ 0.14mm ( 0.0025~ 0.0055”)
Weight 52 ~ 90g/m2(14 ~ 24 lb)
Quality Plain paper, Reclaimed paper *, not curled, not folded, not crumpled
Table 1-4. Cut Sheet ( Multi-Part )
Insertion Front entry
Width 182 ~ 257mm ( 7.2 ~ 10.1” )
Length 182 ~ 364mm ( 7.2 ~ 14.3” )
Copies 1(original) + 5
Total thickness 0.12 ~ 0.46mm ( 0.0047 ~ 0.018” )
Weight 40 ~ 58g/m2( 12 ~ 15 lb)
Quality Plain paper, Reclaimed paper, not curled, not folded, not crumpled
Jointing Line glue at the top or one side of form
Table 1-5. Envelope
Insertion Rear entry only
Envelope No.6 No.10
Width 165mm ( 6.5” ) 241mm ( 9.5” )
Length 92mm ( 3.6” ) 105mm ( 4.1” )
Total thickness 0.16 ~ 0.52mm ( 0.0063 ~ 0.020” )
The difference of thickness at the printable area is within 0.25mm
( 0.0098” )
Weight 45 ~ 90g/m2 ( 12 ~ 24 lb )
Quality BOND paper, plain paper, air mail, no glue at a flap, not curled, not
folded, not crumpled
Table 1-6 Continuous Paper ( Single Sheet and Multi-Part )
Insertion Front entry Rear entry Bottom entry
Width 101.6 ~ 254mm ( 4 ~ 10” )
Length 101.6 ~ 558.8mm ( 4 22” )
Copies 1(original) + 5
Total thickness 0.065 ~0.46mm ( 0.0025 ~ 0.018” )
Weight 52 ~ 82g/m2 ( 14 ~ 22 lb )
Weight ( multi part) 40 ~ 58g/m2 ( 12 ~ 15 lb )
Quality Plain paper, Reclaimed paper, carbon less multi part paper
Jointing Point glue or both sides paper staple

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
3
Table 1-7. Continuous Paper with Labels
Insertion Front entry Bottom entry
Label size See the figure below;
Label
63.5m m (2.5")
23.8m m (15/16")
R 2.5m m (0.1")
Figure 1-1. Label
Base sheet width 101.6 ~ 254.0mm ( 4 ~ 10” )
Base sheet length 101.6 ~ 558.8mm ( 4 ~ 22” )
Base sheet thickness 0.07 ~ 0.09mm ( 0.0028 ~ 0.0035” )
Total thickness 0.16 ~ 0.19mm ( 0.0063 ~ 0.0075” )
Label weight 68g/m2(17 lb)
Quality A very continuous form labels, a very mini-line labels or the
same quality labels
Table 1-8. Roll Paper
Insertion Rear entry
Width 216mm ( 8.5” )
Thickness 0.07 ~ 0.09mm ( 8.5” )
Weight 52 ~ 82g/m2( 14 ~ 22 lb )
Quality Plain paper, not curled, not folded, not crumpled

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
4
TYPEFACE
Bit map Font EPSON Draft 10cpi, 12cpi, 15cpi
EPSON Roman 10cpi, 12cpi, 15cpi, Proportional
EPSON Sans Serif 10cpi, 12cpi, 15cpi, Proportional
Bar code fonts EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39,
Code 128, POSTNET
CHARACTER TABLES
Standard version 11 tables
NLSP version 19 tables
INPUT BUFFER
0 Kbytes / 32 Kbytes
ELECTRICAL SPECIFICATION
120 V version
Rated voltage AC 120 V
Input voltage range AC 103.5 to 132 V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.7 A ( Max. 1.6 A )
Power consumption Approx. 34 W ( ISO/IEC10561 Letter pattern)
Insulation resistance Min. 10 MW( between AC line and chassis)
Dielectric strength AC 1000 V rms 1 min. or AC 1200 V rms 1 sec.(between AC line and
chassis)
230 V version
Rated voltage AC 220 to 240 V
Input voltage range AC 198 to 264 V
Rated frequency range 50 to 60 Hz
Input frequency range 49.5 to 60.5 Hz
Rated current 0.4 A ( Max. 0.9 A )
Power consumption Approx. 34 W ( ISO/IEC10561 Letter pattern)
Energy Star compliant
Insulation resistance Min. 10 MW( between AC line and chassis)
Dielectric strength AC 1000 V rms 1 min. or
AC 1200 V rms 1 sec. ( between AC line and chassis)

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
5
ACOUSTIC NOISE
55 dB(A) ( ISO 7779 pattern )
ENVIRONMENTAL CONDITION
Temperature 5 to 35 °C ( Operating )
-30 to 60 °C ( Non-operating)
Humidity 10 to 80 % ( Operating without condensation )
0 to 85 % ( Non-operation without condensation)
RELIABILITY
Total print volume 6.5 million lines ( Except Print head)
MTBF (4000 POH )
Print head life approx. 100 million characters
RIBBON CARTRIDGE
Type Fabric
Color Black
Ribbon life Approx. 3 million characters ( Draft 10 cpi, 14 dot / chr. )
SAFETY APPROVALS
120 V version
Safety standards UL 1950 CSA C22.2 No. 950
EMI FCC part 15 subpart B class B, CSA C108.8 class B
230 V version
Safety standards EN60950 ( VDE, NEMKO )
EMI EN55022 ( CISRP pub.22 ) class B
AS/NSZ.3548 class B
CE MARKING
230 V version
Low Voltage Directive 73/23/EEC
EN60950
EMC Directive 89/336/EEC EN55022 class B
EN61000-3-2
EN61000-3-3
EN50082-1
IEC801-2
IEC801-3
IEC801-4
INTERFACE
Bi-directional parallel Interface ( IEEE-1284 nibble mode supported )
Type-B I/F level 2 ( Option )
CONTROL CODE
ESC/P
IBM 2380 Plus emulation
PHYSICAL SPECIFICATIONS
Dimensions 415mm( W ) ´350mm ( D ) ´154mm ( H )
Weight Approx. 7.6 kg

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
6
CONSUMPTION & OPTIONS
Table 1-9. Consumable & Option
Consumption Code No.
Ribbon cartridge #8750
Ribbon pack #8758
Options
High capacity cut sheet feeder ( Bin1 ) C80638*
Single bin cut sheet feeder ( Bin 2 ) C80637*
Pull tractor unit C80020*
Roll paper holder #8310
Front paper guide C81402*
Front sheet guide C81400*
Serial Interface card C82305* / C82306*
32KB intelligent serial Interface card C82307* / C82308*
32KB intelligent Interface card C82310* / C82311*
Local Talk I/F card C82312*
32KB IEEE-1284 I/F card C82313*
Coax I/F card C82314*
Twinax I/F card C82315*
IEEE-1284 parallel I/F card C82345*
Ethernet I/F card C82347*
“*”: According to each destination.
Figure 1-2. Exterior View of the FX-880

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
7
1.2 OPERATION
This section describes the operations equipped with this printer.
1.2.1 Control panel
The control panel of this printer consists of 5 switches and 5 LEDs, as shown below;
T e a r O ff/B in LF/FF Load/Eject Pause PaperO ut
Font
O perate
Tearoff
Bin1
Bin2
Draft
D raftC ondensed
Rom an
R om an C ondensed
Sans serif
Sans serifC ondensed
M icro A djust 3sec
Figure 1-3. Panel Operation Outline
1.2.2 Switches
1.2.2.1 Usual Operation
In the normal mode, pressing panel switches executes the following functions;
(1)
Operate
This switch turns the printer on and off it is the secondary switch in the power supply circuit.
CAUTION
Unplug the power cable from the AC Inlet when connecting/
disconnecting the Interface cable to/from the printer.
(2) Pause
This switch alternates printer activity between printing and non-printing states.
If this button is held down for over 3 seconds when the printer is in the non-printing status, the
Micro Adjust function and Font selection are enabled. If it is pressed again, these function are
disabled.
(3) Load/Eject
- Loads the paper when the printer is out of paper.
- Ejects the paper to the paper park.
(4) LF/FF
- Feeds a line if pressed shortly.
- Feeds the continuos paper or eject the cut sheet.
(5) Tear Off
Advances the continuos paper to the Tear-OFF position. If it is pressed again, the paper is
moved to the TOF position.
(6) Bin
Selects the CSF bin number when the CSF is used.
(7) Font
Selects the font from the list on the panel when the Micro Adjust function is enabled.
(8) Micro Adjust
The Micro Adjust switch is available in the Micro Adjust mode.
Micro switch executes micro feed forward or backward by 1/216 inch one by one.
The TOF adjustment is enabled in the TOF position after loading the paper, and the Tear-off
adjustment is enable in the Tear-off position.

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
8
1.2.2.2 Operations at Power-on
Pressing the specified switch (switches) while turning on the printer enables the following special
functions:
1. Self test
- Switches : Load / Eject while turning on the printer.
Function: Executes the printing LQ self test printing.
- Switch: LF / FF turning on the printer.
Function: Executes the Draft self test printing.
2. Data dump mode
Switches : Load / Eject and LF / FF switches at same time while turning on the printer.
Function: Executes the data dump function.
3. Clearing the line counter value for the ribbon life in the EEPROM
Switches: Tear-off / Bin and Pause at same time while turning on the printer.
Function: Clears the line counter value stored in the EEPROM.
4. Bi-D adjustment
Switches: Pause switch, while turning on the printer.
Function: Executes the Bi-D adjustment.

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-
9
1.2.3 Indicators ( LEDs )
This printer has the following indicators to indicate its current condition as shown in the table below:
1. Pause ( Orange )
Comes On when the printer is paused, and goes Off when the printer is not paused.
Blinks when the Micro adjust function and the Font selection are enabled or the printhead is in
the overheated condition.
2. Paper Out ( Red )
Comes On when the printer is in the Paper out condition.
Blinks when the paper eject error has occurred .
3. Tear Off / Bin ( Green )
Blinks when the continuos paper is in the tear off position.
Comes On when the CSF Bin1 is selected, and goes Off when the CSF Bin2 is selected.
4. Font ( Green )
Indicates the font selections.
Table 1-10. LED Status
Printer status Font Tear-Off /
Bin Pause Paper Out
Pause ¾¾On ¾
Paper out error ¾ ¾ On On
Release lever error ¾¾On ¾
Paper eject warning ¾ ¾ On Blinks
Head hot warning ¾¾ Blinks Blinks
Micro adjust & Font selection ¾ ¾ Blinks ¾
Tear off ¾According as
paper path ¾¾
Bin selection ¾According as
bin selection ¾ ¾
Font selection According as
font
selection
¾¾¾
Fatal error Blinks Blinks Blinks Blinks
1.2.4 Buzzer
This printer has the buzzer to indicate its current condition with the following indications:
Table 1-11. Buzzer Status
Printer status Beep sounds
Paper out error ŸŸŸ
Release lever error – – – – –
Paper eject warning ŸŸŸ
Illegal panel operation Ÿ
Note: The symbols used in the table represents the following:
“ Ÿ” = A beep sounds for approximately 100 ms with the interval of approximately 100 ms.
“ – “ = A beep sounds for approximately 500ms with the interval of approximately 100ms.

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-1
0
1.2.5 Default setting mode 1
You can change some parameters that the printer refers to at printer initialization.
1.2.5.1 Setting Method

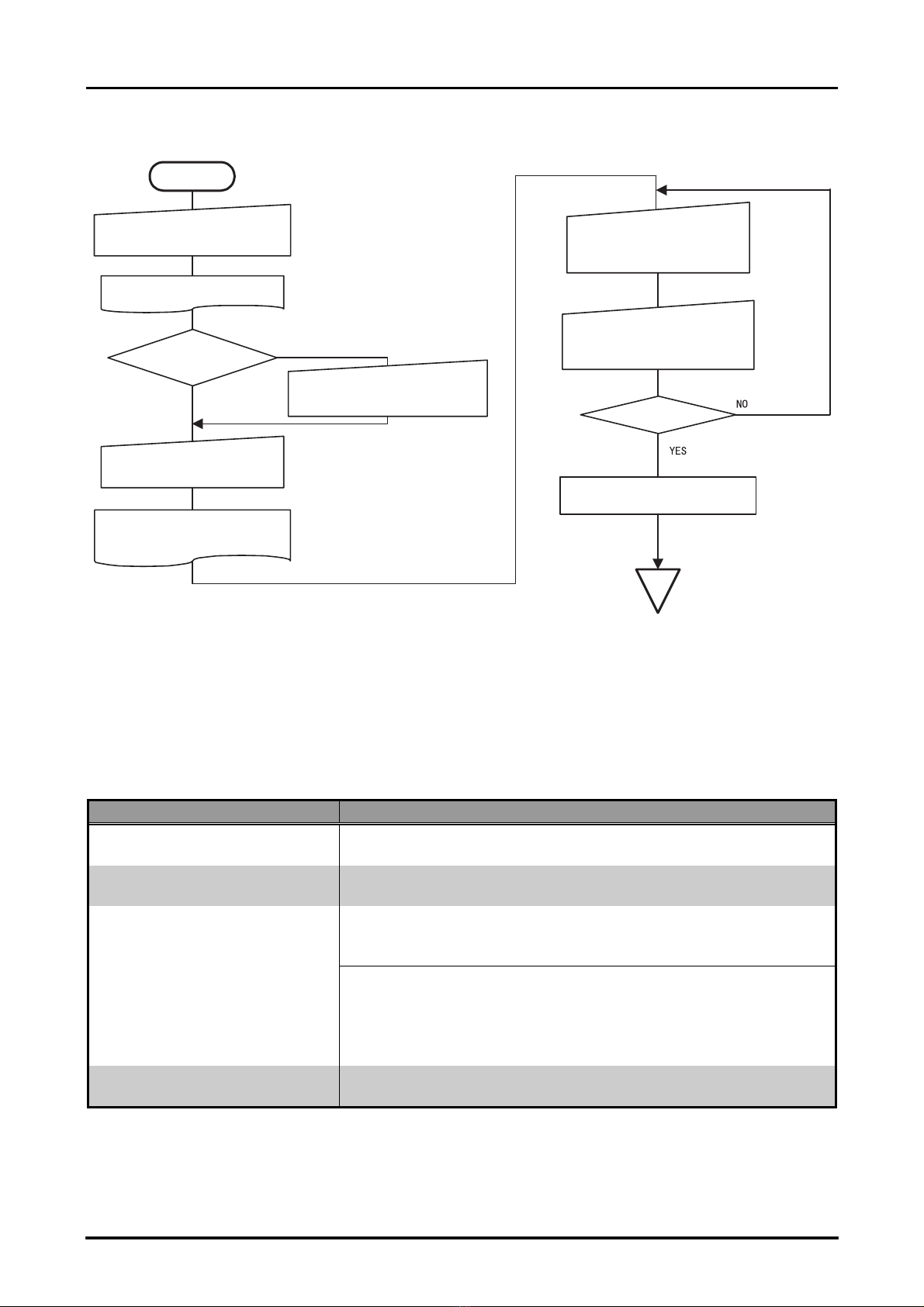

Refer to the following flowchart for the default setting mode 1.
START
Language selection sheet
C hange the language?
YES
NO
Selectthe m enu,selectm ethod and
currentsetting are printed.
T u rn th e p rin te r o ff to s a v e th e
settings.
END
R e fe rrin g to th e F o n t a n d T e a r o ff/ B in
LED s,push Tearoff/Bin s w itc h to
selectthe m enu.
R eferring to the Pause and P aper
O u t L E D s , p u s h Load /Eject sw itch
to change the setting value.
H o ld in g d o w n Tearoff/B in s w itc h ,
tu rn o n th e p rin te r.
Push down Load/E ject s w itc h to
selectthe aim ed language.
Push down Tearoff/B in sw itch.
Finish?
Figure 1-4. Flowchart for Default Setting Mode 1
1.2.5.2 Setting Items
Setting values available for the default setting mode including factory settings are as shown in the
following table:
Table 1-12. Setting Values Available for Default Setting Mode 1
Items Setting values
(BOLD font : factory setting)
Skip over perforation On, Off
Auto tear off On, Off
Auto line feed On, Off
Print direction Bi-D, Uni-D
I/F mode Auto, Parallel, Option
Auto I/F wait time 10 sec., 30 sec.
Software ESC/P, IBM 2380 Plus
0 slash 0, Ø
High speed draft On, Off
Input buffer On, Off
Buzzer On, Off
Auto CR ( IBM 2380 Plus )*1 On, Off
IBM character table
( IBM 2380 Plus )*1 table 2, table 1
*1: This setting is effective when the IBM 2380 Plus emulation is selected only.

FX-880 Service Manual
Chapter 1 Product Description
Rev. A 1-11
1.2.6 Default Setting Mode 2
Refer to the following flowchart for the default setting mode 2.
START
Language selection sheet
C hange the language?
YES
NO
Selectthe m enu and the m ethod,
and the currentsettings are printed.
T u rn th e p rin te r o ff to s a v e th e
settings.
END
R eferring to the Fontand Tear
o ff/ B in L E D s , p u s h Tearoff/Bin
sw itch to select the m enu.
R eferring to the P ause and P aper
O u t L E D s , p u s h Load /E ject sw itch
to change the setting value.
H o ld in g d o w n Tearoff/B in and
LF/FF s w itc h e s , tu rn th e p rin te r o n .
Push down Load/E ject s w itc h to
selectthe aim ed language.
Push down Tearoff/Bin sw itch.
Finish?
Figure 1-5. Flowchart for Default setting mode 2
1.2.6.1 Setting Items
Setting values available for the default setting mode including factory settings are as shown in the
following table:
Table 1-13. Setting Values Available for Default Setting Mode 2
Items Setting values (BOLD font : factory setting)
Page length for front tractor 3 inch, 3.5 inch, 4 inch, 5.5 inch, 6 inch, 7 inch, 8 inch, 8.5 inch,
11 inch, 70/6 inch, 12 inch, 14 inch, 17 inch
Page length for rear tractor 3 inch, 3.5 inch, 4 inch, 5.5 inch, 6 inch, 7 inch, 8 inch, 8.5 inch,
11 inch, 70/6 inch, 12 inch, 14 inch, 17 inch
Character table Standard version:
Italic, PC437, PC850, PC860, PC863, PC865, PC861, BRASCII,
Abicomp, Roman 8, ISO Latin 1
NLSP version:
Italic, PC437, PC850, PC437 Greek, PC 853, PC855, PC852,
PC857, PC866, PC869, MAZOWIA, Code MJK, ISO 8859-7,
ISO Latin 1T, Bulgaria, PC774, Estonia, ISO 8859-2, PC866
LAT.
International character set for
Italic table Italic U.S.A., Italic France, Italic Germany, Italic U.K., Italic
Denmark 1, Italic Sweden, Italic Italy, Italic Spain 1
