Product Support Bulletin
Subject: Epson LQ Color Driver for Microsoft Windows 3.0 and 3.1
Date: 4/3/92 PSB No: P-0087
Page(s): 1 of 3
Originator: RSS
The purpose of this bulletin is to announce the availability of an additional color
driver for the LQ-860, LQ-2500, and LQ-2550 for the Microsoft Windows 3.0 and
3.1 environments. This driver is primarily intended to provide Device Independent
Bitmap (DIB) support for Windows based application software. The most popular of
these is Paintbrush which is included with Windows 3.0 and 3.1.
When upgrading to Microsoft Windows version 3.1, it is recommended to use the
Epson driver that is included with that version of Windows. The Microsoft Windows
version 3.1 drivers have DIB support built-in, in addition to new enhancements.
This bulletin also contains information regarding how the driver is being distributed.
In addition, specifications on the color driver and instructions on how to install the
driver into your Windows Package are included.
DISTRIBUTION
The Microsoft Windows LQ Color Driver is available from the following sources:
1)
The driver can be ordered from Accessory Marketing. The part number is
WINCOLOR. To place an order with Accessory Marketing call (800) 922-
8911. For a limited time the driver is being distributed free of charge.
2) The driver is available from CompuServe. After logging into CompuServe,
to access the Epson Forum, type ‘GO EPSON” at the prompt.
3)
The Epson Bulletin Board is the final means for accessing the driver. The
Epson BBS number for consumers is [phone].
SPEClFlCATlONS
The driver consists of 3 files:
GENDRV.DLL, EPSON24C.DRV, and
OEMSETUP.INF.

PSB No: P-0087
Page: 2 of 3
The fonts supported are:
Graphic densities supported:
(Horizontal x Vertical)
Paper Sources:
Cartridge or Optional Fonts:
Paper Size:
Courier, Roman, San Serif, Prestige, Script, OCR-A,
OCR-B, Orator, Orator-S.
360x 180, 180x 180, 120x 180.
Tractor, Bin 1, Bin 2, Manual.
Mu&font Cartridge
Letter, 8 l/2 x 11 in.
Letter, 11 x 8 l/2 in.
Legal, 8 l/2 x 14 in.
Fanfold, 14 7/8 x 11 in.
Tabloid, 11 x 17 in.
A4,210 x 297 mm
A3,297 x 420 mm
Fanfold, 210 x 305 mm
Fanfold, 358 x 305 mm
#6 envelope, 6 l/2 x 3 5/8 in.
#lO envelope, 9 l/2 x 4 l/8 in.
INSTALLATlON INSTRUCTlONS
1)
2)
3)
4
5)
6)
7)
Choose Control Panel from the Main Group window in Program Manager.
The Control Panel window appears.
Choose the Printers icon. The Printers dialogue box appears.
Choose the Add Printer button. The dialogue box expands to display a list of
printer-driver files.
Select ‘Unlisted Printer” at the end of the display.
Choose Install.
Select the correct drive and path to find the Windows driver.
Select the ‘EPSON LQ COLOR” and choose OK.

PSB No: P-0087
Page: 3 of 3
8)
Define the new driver as ACTIVE to begin using it immediately.
Refer to the MS Windows User’s Manual for further information about printer-driver
installation.
NOTES
The LQ-2500 is only supported with tractor paper. This is because in single sheet
mode or CSF mode the printer has a large top and bottom non-printable area.
For best results you should print at 360 x 180 DPI for normal printing and 180 x
180 DPI for draft printing.

EPSON ANEFUCA, mc.
EPSON
Product Support Bulletin
Subject: 24 Pin Printer Error and Beep Codes
Date: 4/3/91 PSB No: P-0076
Page(s): 1 of 4
Originator JV
Epson printers issue beep tones when certain error conditions exist. Those beeps
can assist you in locating and repairing customer’s printers. The following error
codes are listed by product name.
NOTE: Most of the beeps issued by the printers are of .I second duration with a .l
second pause between beeps. Where the beeps or the pauses are longer,
it has been noted in the text. The description “3 Beeps x 2” means two sets
of three beeps.
LQ-2OO/AP-3000
1 beep: BEL code
1 beep:
A Control Panel setting is accepted.
3 beeps: Paper End detected
5 beeps: Abnormal carriage movement
On-Line light is flashing: Printhead is over heated. Carriage will stop until
the printhead cools down.
LQ-500. LQ-510. LQ-1010. LQ-850. LQ-950. LQ-1050,
Ll 000. AP-4000. AP-4500
1 beep:
BEL code (.5 set beep)
1 beep:
A Control Panel setting is accepted
3 beeps: Paper End detected
5 beeps: Abnormal carriage movement

PSB No: P-0076
Page: 2 of 4
LQ-800. LQ-1 OOd. L750
1 beep: BEL code
1 beep: A Control Panel setting is accepted
3 beeps: Paper End detected
5 beeps: Abnormal carriage movement
(.5 sec. pause between beeps)
5 beeps:
LQ-860
+35V supply is abnormal
1 beep: BEL code
(.5 sec. beep)
1 beep: A Control Panel setting is accepted
3 beeps: Paper End detected
5 beeps: Color select mechanism error
(.5 sec. beep, .5 set between beeps)
5 beeps: Abnormal carriage movement
(.5 sec. beep, .5 set between beeps)
5 beeps:
CG ROM failure
(.5 sec. beep, .5 set between beeps)
LQ-1500
1 beep: BEL code
5 beeps: Paper End detected
5 beeps: Abnormal carriage movement
(.5 sec. pause between beeps)

PSB No: P-0076
Page: 3 of 4
LQ-2500
NOTE: Printers with LCD displays use error messages along with beeps to
inform the user of problems. The following messages will help you to
troubleshoot problems.
A blank LCD screen with the Power-on LED lit can be caused by a bent
pin on one of the PROMS or jumper Jl may be set incorrectly.
1 beep: BEL code
5 beeps:
Abnormal voltage-
5 beeps: Abnormal carriage movement
(.5 sec. pause between beeps)
LQ-2500 LCD Codes:
00 Invalid ID request to CGROM
03 EEROM read/write error
10
LQ-2550
Abnormal carriage movement
1 beep: BEL code
3 beeps:
Paper End detected
5 beeps: Abnormal carriage movement (.5 sec. pause between
beeps)
5 beeps: Platen Gap adjustment error (.5 sec. pause between
beeps)
5 beeps: Case open
L&2550 LCD Codes:
00 (1)
The font could not be found. The printer’s internal program could not
find the target font.
(2)
Missing or damaged 7A ROM
02
Internal ROM check does not match. The versions may have been mixed.

PSB No: P-0076
Page: 4 of 4
LQ-2550 cont.
03
10
11
12
20
A ‘Verify After Write” check to the SRAM has failed. The SRAM could be bad.
This is a motor control error. Four possible areas of failure are:
a. CR home condition not detected at power up
b. Platen gap motor HP not detected correctly
c. Friction/Tractor feed switching error
d. Physical obstruction such as a jammed ribbon
Skewed paper detect error. Since the initial reading upon loading a single
sheet paper, the paper has skewed. This is a printhead wire protection
feature.
Illegal paper positioning.
(1)
If the paper is loaded using the knob instead of the LOAD/EJECT switch,
this error condition will occur. This is a printhead wire protection feature.
(2)
PE sensor may have failed or is not connected.
CPU error. An undefined op-code was detected.
NOTES:
Error codes 11 and 12 are usually caused by new operators who are
un-familiar with the machine. Both of these errors are corrected by
turning the printer off, taking out the paper and turning the printer back
on. Both features were added to ensure proper paper handling and
prevent paper jams, which can result in printhead failures.
Incorrect jumper settings on the ROMA board may cause errors 10 or
20. The correct settings are documented in the Service Manual (page
A-54, figure A-52) and on TIB LQ2550-005.
Enors 0,2, 3, 10, and 20 may require a repair, adjustment or
replacement.

EPSON
EPSON AMERICA, INC.
INFORMA
Product Support Bulletin
Subject : LQ - 2550 Error Codes 11 and 12
Date: 4/11/90 PSB No: P-0064
Page: 1 of 1 Originator: ASB
There are two new error codes which can occur in printers with ROM version
022287 or higher. They are error 11 and error 12.
Error 11 indicates that the paper is not straight.
Error 12 indicates that the paper was loaded using the platen knob instead of the
LOAD/EJECT button.
When these errors occur, the printer stops, the audible alarm sounds, and one
of these two error messages will appear on the front panel.
The solution to both of these errors is the same. Follow the steps below:
1. Turn the printer off.
2. Remove the paper. (Use the platen knob if necessary.)
3. Turn the printer back on.
4. Load the paper using the LOAD/EJECT button as described in the manual.
OR
4. If you are using a sheet feeder, begin printing again. The printer automatically
loads the paper.
NOTE: Use the platen knob only for removing jammed paper. Never use it when
you are loading paper. Use the LOAD/EJECT button for loading the paper.

EPSON AMERICA, INC.
Product Support Bulletin
Subject:
Power Specifications
Date: 2/7/90 PSB No: P-0060
Page: 1 of 2 Originator: RFB
The following information is a list of the power requirements for
the Epson 9 and 24 pin printers and laser printers.
504 VA maximum

PSB No: P-0060
Page: 2 of 2
Product
1 Voltage 1
Max. Current
Consumption 1 Power Consumption 1 BTU/HR
LX810
1
12ov
.7 Amp
84 VA maximum
I
286.69
T750 120v 1.0 Amp
120 VA maximum 409.56
TlOOO 120v .7 Amp 84 VA
maximum 286.69
If the power requirements of a particular Epson printer is not listed please
refer to the appropriate User's Manual for the electrical specifications.
In the event that the User's Manual is not available, locate the silver label
on the back of the Epson printer.
This is a reliable source for the electrical
requirements.
The following formula is used to calculate the electrical
power requirements:
VOLTAMPS is equivalent to WATTS
VOLTAMPS = Volts * Amps
AMPS
BTU/HR
= Voltamps/Volts
= Watts * 3.413
Example:
120V * 1A
= 120VA
120VA/120V
= 1A
120VA is equivalent to 120W
120W * 3.413 = 409.56 BTU/HR
Heat output is rated in BTU/HR.

EPSON
EPSON AMERICA, INC.
INFORMATION
Product Support Bulletin
Subject: LQ - 2550 Selectype Functions
Date: 9/12/89 PSB No: P-0050
Page: 1 of 2 Originator: ML
This describes the Selectype functions in detail. Macros and defaults are
changed in the same manner. This subject is also covered in the User’s
Manual on pages 3 - 12 through 3 - 29 and in the Technical Manual on pages
1 - 30 through 1 - 33.
Selectype Functions
1 Press the “Selectype” button on the front panel.
2The arrows will be flashing and the LCD panel will read “Selectype
Mode”.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
The LCD panel changes to read: “Load Macro”.
Press the Line Feed Button (the flashing down arrow) to reveal on
the LCD panel, “Change Macro”.
To change the macro, press the Load/Eject button to enter the “Change
Macro” mode.
Use the tine Feed button (the flashing down arrow) to select the
function to be changed.
To change the desired function, such as font, pitch, country, etc...,
within the “Change Macro” mode, press the Load/Eject button.
To change the selection of the function, use the Form Feed button (the
flashing up arrow) or the tine Feed button (the flashing down arrow).
Once the desired functions within “Change Macro” are selected, press
the On - tine button.
Press the On - tine button a second time to save the macro.
Wait for the LCD panel to read “Save Macro”.
Press the Load/Eject button to select save.
The LCD panel will then read “Macro #X Saved” momentarily and then
will read “Change Macro”.
Press the “Selectype” button to exit Selectype.
Tips for other Selectype uses
1. When changing the defaults, reset the printer by cycling the
Power switch.

PSB NO: P-0050
Page: 2 of 2
2. Use the above directions for both the “Change Macro” and “Change
Defaults” modes.
3. Use Macro #1 for the settings that are used most often.
4. Set Macros #2- #4 for other needed settings.
5. When a different macro is needed, enter the Selectype and choose
“Load Macro” with the Load/Eject button.
6. Press the tine Feed button (the flashing down arrow) to change the
macro number to load.

EPSON
EPSON AMERICA, INC.
INFORMATION
Product Support Bulletin
.
Subject:
CENTRONICS PARALLEL REQUIREMENTS TO ELIMINATE RANDOM
Date: 7/24/89
Page: 1 of 1 PSB No: P-0048
Originator: ML
The self test can be run in draft mode or Letter Quality mode, depending on
which button is held down as the printer is turned on. With the color ribbon
cartridge installed, the self test prints in seven colors (black, magenta, cyan,
violet, yellow, red, and green).
Some colors require two passes, such as
yellow and blue combined to make green.
When a black ribbon is installed in the LQ-2550 and the self test is run,
some lines of the self test are printed in double-strike mode. The printer is
making the double passes for the color test, leaving a light and dark
appearance to the printout.
The self test cannot detect whether a black or
color ribbon is installed before printing is executed.
The self test can be performed using paper that is at least 8 - 1/2 inches
wide, but wide carriage paper is recommended.
To perform the self test, follow the instructions below:
1. The power cable is connected to a properly grounded electrical outlet.
2. The printer is turned off and the ribbon is installed.
3. While holding down the LINE FEED button (draft mode) or the FORM
FEED button (Letter Quality mode), turn on the printer. The printer will
beep three times and the POWER and PAPER OUT lights will turn on, if
paper is not installed in the printer,
4. Press the PAPER SELECT button until the type of paper desired is
selected.
5. Adjust the tractors or the paper guides to accommodate the size of the
paper being using.
6. Press the LOAD/EJECT button once, to automatically load the paper.
7. Press the ON LINE button, to start the self test.
8. A list of the printer’s current settings is printed first, followed by a series
of characters. The self test continues until the paper runs out or until the
printer is reset.
9. Press the LOAD/EJECT button, to eject the paper, and turn the printer
Off.
10. After the printer is turned off, always wait at least 5 seconds before turning
it back on.

EPSON
EPSON AMERICA, INC.
SERVICE
PRODUCT SUPPORT BULLETIN
PSB N0.:P-0033 DATE: 10/12/88
SUBJECT: THE MOST ASKED LQ-2550 QUESTIONS
PAGE: 1 of 2
Q:
Is there an optional color kit?
A:
No, color is standard.
Q:
How many colors in the ribbon?
A:
The four colors combine to print out 7 different colors.
Color can be set in the macros and other color selection
is software controlled.
Q:
Does the color ribbon come with the printer?
A:
Yes.
Q:
What print driver in my software package, do I choose?
A:
LQ-2500 is the most compatible driver to use.
If that is
not available, any other LQ driver should be compatible. If
there is not-an LQ driver available, then an Epson 9 pin will
work in most text cases.
Q:
If my graphics software package does not support the LQ-2550
or LQ-2500 in color, then which driver should I choose?
Al
Use a JX driver with LQ Patch (made b MAPP Systems,
available through Accessory Marketing
J
for color graphics.
Q:
Does it have foreign characters?
A:
It has all the foreign characters that are present in the
extended IBM character set.
Q:
Does the scanner for the LQ-2500 printer work with the
LQ-2550?
A: No.
Q:
Can the LQ-2500 ribbons be used in the LQ-2550?
A:
NO, the LQ-2500 ribbons cannot be used in the LQ-2550,
but the LQ-2550 ribbons can be used in the LQ-2500.
Q:
How many copies in multi-part forms will it print?
A:
1 original and up to 5 copies, with a maximum paper
thickness of 0.46 mm (.018").
EPSON AMERICA SERVICE, 23610 TEL0 AVENUE, TORRANCE, CALIF. 90505

NUMBER: No.P-0033
PAGE: 2 of 2
Q:
How do I set the macro defaults when installing an
optional serial (or buffer) interface board?
A:
Set the macro defaults to the parallel interface.
The
optional interface board is enabled by setting the
dip switches on the board to their proper configur-
ations.
Q:
How are the macros and defaults set?
A:
Use the SelecType functions on the front panel.
For
more detailed instructions, refer to the User's Manual
(pages 3-8 to 3-41).
Q:
Do I need a multi-font cartridge?
A:
No, there are 7 fonts + draft built in.
Q:
What options are available for the LQ-2550?
A:
The following is a list of options for the LQ-2550:
7343-A
Dual Bin Cut Sheet Feeder
7314-A
Pull Tractor
I
7762
I
Black Ribbon
I-
I
7763
I
Color Ribbon
I
I
I
1
I
8148
I
8k Buffer Serial Interface
I
8143
Serial Interface
8172
32k Buffer Centronics
Interface Board

EPSON
EPSON AMERICA, INC.
SERVICE
PRODUCT SUPPORT BULLETIN
PSB NO.:
P-0031
DATE: 10/04/88 PAGE: 1 of 1
SUBJECT: CENTRONICS PARALLEL REQUIREMENTS TO ELIMINATE RANDOM
CHARACTERS USING THE LQ-2500 AND LQ-2550
The purpose of the bulletin is to resolve the problem of random
characters generated by the LQ-2500 and the LQ-2550. We have
received numerous reports from the field regarding this problem.
After intensive testing, the problem was isolated to improper
Centronics parallel cables. The types of problems encountered
were:
(1)
Unsuitable shielding
- some cable manufactures neglect
to include the twisted pair grounds. The cables
without proper shielding allow electronic fields to
affect the data transfer, thus causing extraneous
characters.
Shielded cables encase the data lines to
protect against external noise.
(2)
Unacceptable use of parallel communications - The
recommended length of a parallel cable is 6 to 10 feet
long.
When a parallel cable is longer than 10 feet,
the flow may become inconsistent causing random
characters to be printed. For data transfer over
10 feet in length serial communications is recommended.
If the two issues noted above are corrected, the majority of the
problems regarding random characters should be eliminated.
Proper shielding should always be verified before any other work
is initiated.
Many of the older inexpensive cables were
manufactured without shielding to help keep production costs
down.
The length of a Centronic parallel cable should be kept
to a maximum of 10 feet for optimum performance. For data
transmission over 10 feet in length serial communications is
recommended.
EPSON AMERICA SERVICE, 23610 TEL0 AVENUE, TORRANCE, CALIF, 90505

EPSON AMERIC& INC. EPSON
Product Support Bulletin
Subject: Quick Reference for Current Dot-Matrix Printer Print Speeds
Date: 10/9/92
Page(s): 1 of 1 PSB No: P-0030C
Originator: SLS
9-PIN PRINTERS
/ 1% l%Y D”:,“n”-“,““c”p4 legal llLFPI , Model
AP-2250 200 CPS 240 CPS n/a
40 CPS 48
CPS
LX-81 0
200 CPS 240 CPS n/a 40
CPS 48
CPS
FX-870/1170 11 285 CPS 1 342 CPS I 380 CPS I 57 CPS I 68 CPS II
11 DFX-5000
400 CPS 480 CPS 533 CPS 80 CPS
1 96 CPS 1)
DFX-8000
11 800 CPS 1 960 CPS I 1066 CPS 1 160 CPS 11921
Model
AP-3250
LQ-570/1070
~LQ-860
LQ-870/1170
~LQ-2550
240PIN PRINTERS
Draft
10 CPI Draft
12 CPI
167 CPS I 200 CPS
210 CPS 252 CPS
246 CPS 295 CPS
275 CPS 1 330 CPS
333 CPS I 400 CPS
High-Speed
Draft 10 CPI
1 lc%Pl / IEPI
n/a
1 60 CPS 1 72 CPS
225 CPS
70 CPS 84 CPS
300 CPS 82 CPS
98
CPS
3OOCPS 1 92 CPS I IIOCPS
~
n/a
1 111 CPS I 133CPS
GLOSSARY OF TERMS
CPI: Characters Per Inch
CPS: Characters Per Second
Draft: Draft uses a minimum number of dots per character for high-speed printing.
Elite:
12 Characters Per Inch (12 CPI)
Pica:
10 Characters Per Inch (10 CPI)
LQ:
Letter Quality reduces the print speed and increases the number of dots per
character to increase the print quality. (24-pin printers only)
NLQ:
Near Letter Quality reduces the print speed and increase the number of dots
per character to increase the print quality. NLQ printing requires two passes
per character. (9-pin printers only)

EPSON AMERICA, INC.
EPSON
Product Support Bulletin
Subject: Quick Reference for 9/24 Pin Printer Paper Specifications
Date: 10/9/92
Page(s): 1 of 1 PSB No: P-0022D
Originator: SLS

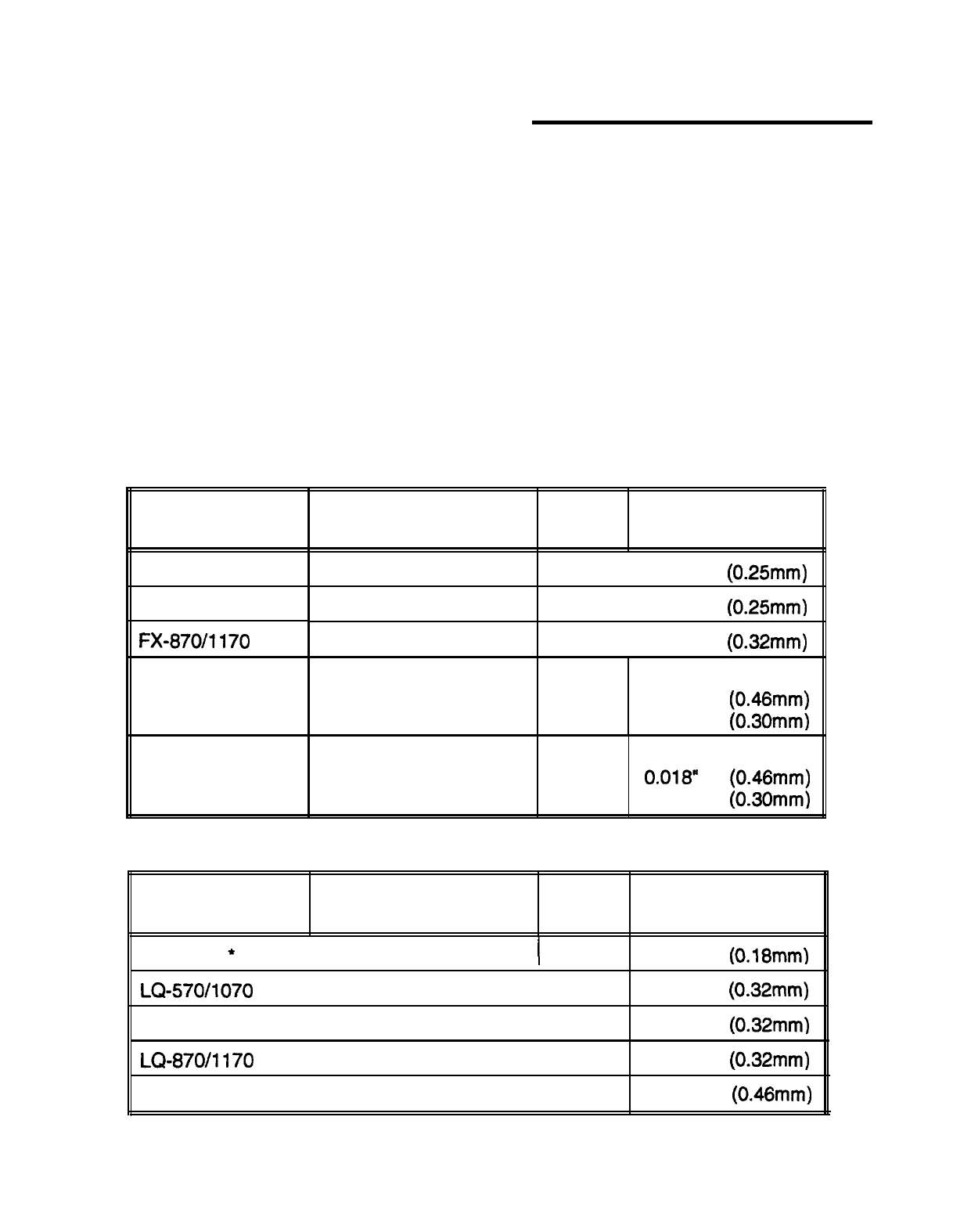

This PSB provides a quick reference for the paper specifications on Epson’s current
line of 9-pin and 24-pin dot-matrix printers when using continuous paper. The
‘Maximum No. of Copies” is the maximum allowable number of copies when using
continuous multi-part carbonless paper. The “Total” number is the maximum
allowable number of copies including the original. The ‘Maximum Total Thickness”
is the maximum allowable total thickness including the original plus any copies.
9-PIN PRINTERS
Model Orig. + Maximum No.
of Copies Total Maximum Total Thickness
AP-2250 l 1
2
3
I
0.0098” (0.25mm)
LX-810
3
I
0.0098” (0.25mm)
1
2
1
3
FX-870/1170
4
I
0.0126” (0.32mm)
DFX-5000
(Front Tractor)
(Rear Tractor)
1
5
1
36
0.018’
(0.46mm)
4 0.012” (0.30mm)
DFX-8000
(Front Tractor)
(Rear Tractor)
1
5 6
0.018’
(0.46mm)
1
34
0.012” (0.30mm)
24-PIN PRINTERS
Model
Orig. + Maximum No. Total Maximum Total
of Copies Thickness
AP-3250 *
I
11
I
2 0.0071” (0.18mm)
LQ-570/1070
I
1
3
I
4 0.0126” (0.32mm)
LQ-860
I
1
3
I
4 0.0126” (0.32mm)
LQ-870/1170
I
1
3
I
4 0.0126” (0.32mm)
LQ-2550
I
1
5
I
6
0.018’
(0.46mm)
* Note:
The AP-2250 and AP-3250 require an optional push tractor to use
continuous paper.

EPSON
EPSON AMERICA, INC.
INFORMATION
Product Support Bulletin
Subject:

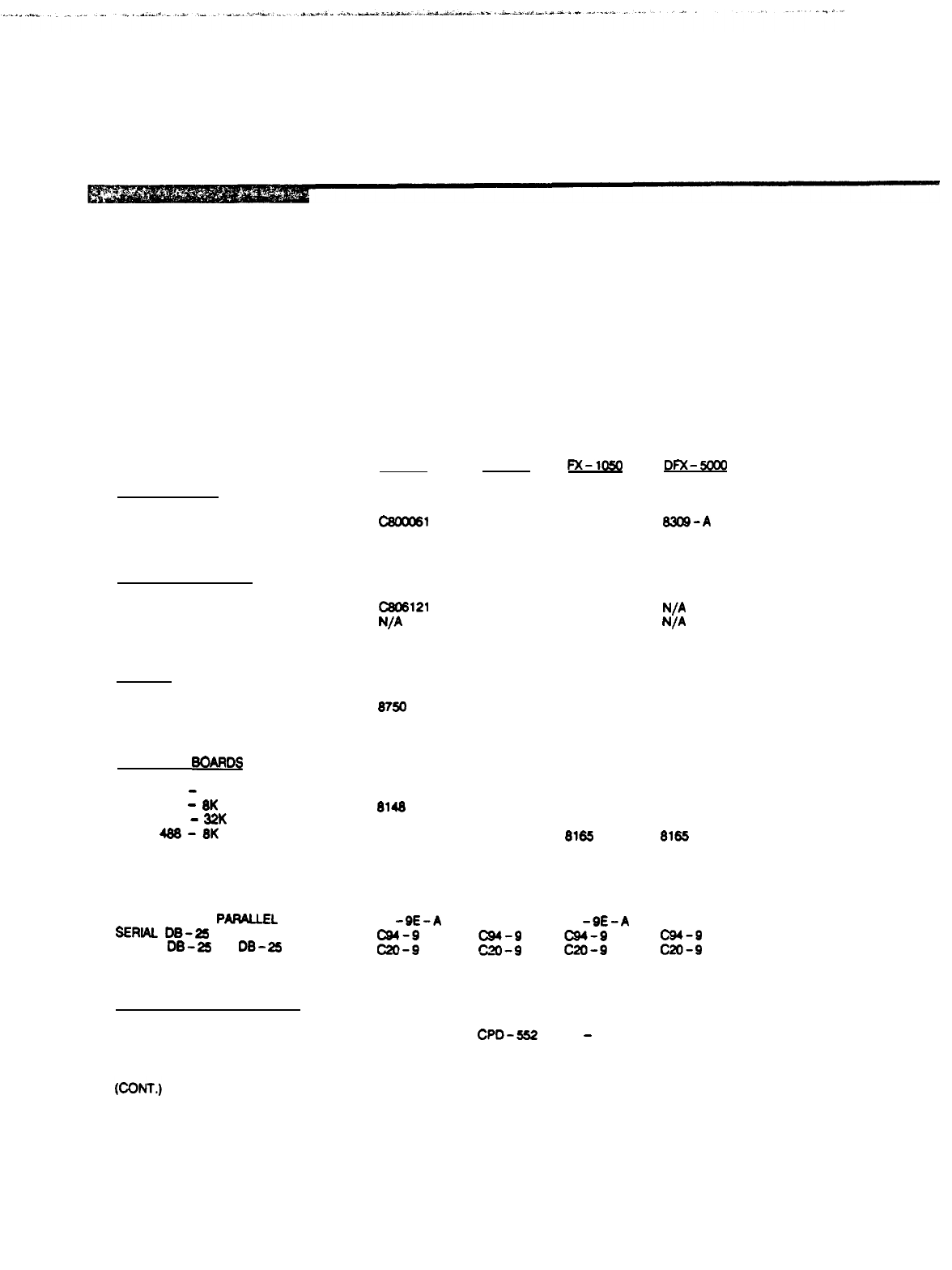

Epson Dot - Matrix Printer Options and Accessories
Date: 8/1/89
Page: 1 of 2 PSB No: P-0017B
Originator: RFA
9 - PIN DOT MATRIX OPTIONS
U-810 FX-850
FX-1050
DFX-5000
TRACTOR UNITS
PULL TRACTOR c8ooo61
7311 -A 7312-A
8309-A
CUT SHEET FEEDERS
SINGLE BIN c806121
7339-A 7340-A
DOUBLE BIN
WA
WA 7348-A 7348-A N/A
RIBBONS
STANDARD (BLACK)
INTERFACE BOARDS
SERIAL
- OK BUFFER
8143
8143 8143 8143
SERIAL
- 8K BUFFER
8148 8148 8148 8148
PARALLEL - 32K BUFFER
8172 8172 8172 8172
IEEE 488 - 8K BUFFER
8165 8165 8165 8165
8750 8750 8755 8786
CABLES
STANDARD IBM PARMLEL
SERlAL DB-25 TO DB-9
SERIAL 06-25 TO 08-25
Cl -QE-A
Cl -9E-A Cl
-QE-A
Cl -QE-A
=I;
EiZx EEx
g:;
MISC. PRINTER ACCESSORIES
PRINTER STAND
CPD-552
CPD-552
KP - STAND 8501-A

PSB No: P-0017B
Page: 2 of 2
24 - PIN MATRIX OPTIONS
TRACTOR UNITS
PULL TRACTOR
CUT SHEET FEEDERS
SINGLE BIN
DOUBLE BIN
INTERFACE BOARD8
SERIAL - OKBUFFER
- 8K BUFFER
PARALLEL - 32K BUFFER
IEEE 488 -
8K BUFFER
CABLES
STANDARD IBM PARALLEL
SERJAL DB-25 TO DB-9
SERIAL 08-25 TO 08-25
SERAl DIN-8 TO DB-9
SERM DIN-6 TO DB-25
APPLE ][e. 08-25 TO DIN-6
APPLE ][c. DIN-6 TO DIN-S
FONT MODULES
COURIER
PRESTIGE
ELFi3
MULTI
MISC. PRINTER ACCESSORIES
WNDWVS DRIVER SOFTWARE
APPLE MAC LO -ARE
LQ PATCH SOFWARE
PRJNTER STAND
DCB-LO2
El=
CPD-552
LO-510 LO-850 LO-95Q LO-1050 LO-255Q
C8OOWl
7311 -A 7313-A 7312-A 7314-A
c806121 7339-A 7345-A 7346-A
WA
WA
7346-A 7347-A 7348-A
W-A
n53
7767
WA WA
7768 7769
7754
WA
7762
7763
77w
8143 8143 8143 8143
8143
8148 8148 8148 8148
8148
8172 8172 8172 8172
8172
8165 8185 8165 8165
8165
Cl -9E-A
E-i
WA
WA
WA
WA
Cl -QE-A
E-X
iz
8239
Cl -9E-A
z:;
zi
8239
Cl -9E-A
=I;
WA
WA
VA
WA
7400A
74mA 74mA
74m4
7400A
74OlA 7401A 7401A
7401A
74OlA
74a2A 7402A 7402A
74aA
7402A
74mA 74mA
7403A
740s
74wA
7407-A 7407-A 7407-A 7407-A
7407-A
DCB-LO2
C842001
LO1
CPD-552
DCB - LO2
ZYO’
DCB-LO2
C8UOO1
LO1
KP - STAND KP
- STAND
DCB-Lo2
i?iF1
KP - STAND
