Epson ColorPage EPL-C8200 User manual

R4C4450 Setup G.
Rev. C
A5 size COVER.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
Where to Find Information
Unpacking Guide
Provides you with information and instructions on how to
unpack and place the printer. Before using the printer, you need
to remove all protective materials as described in the instructions
contained in this guide.
Setup Guide (this manual)
Provides you with information on assembling the printer’s parts
and installing the printer’s software.
Reference Guide
Provides you with detailed information on the printer’s functions,
maintenance, troubleshooting, and technical specifications.
Administrator’s Guide (online guide)
Provides network administrators with information on both the
printer driver and network settings.
Color Guide (online guide)
Provides you with detailed information and useful tips on color
printing.
Quick Reference
Provides you with information on replacing consumables,
clearing jammed paper, and a panel message list. This guide can
be hung on the printer with the hook provided.
Online Help
Provides you with detailed information and instructions on the
printer software that controls your printer (online help will be
automatically installed when you install the printer’s software).

Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
R4C4450 Setup G.
Rev. C
A5 size FRONT.FM
7/18/00 Pass 0
R
Setup Guide
Color Laser Printer
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, mechanical, photocopying, recording,
or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No
patent liability is assumed with respect to the use of the information contained herein. Neither
is any liability assumed for damages resulting from the use of the information contained
herein.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of
this product or third parties for damages, losses, costs, or expenses incurred by purchaser or
third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly
comply with SEIKO EPSON CORPORATION's operating and maintenance instructions.
SEIKO EPSON CORPORATION shall not be liable against any damages or problems arising
from the use of any options or any consumable products other than those designated as
Original Epson Products or Epson Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States of America and other countries.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. EPSON disclaims any and all rights in those
marks.
Copyright © 1999 by SEIKO EPSON CORPORATION, Nagano, Japan
®

ii
R4C4450 Setup G.
Rev. C
A5 size FRONT.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
Declaration of Conformity
According to ISO/IEC Guide 22 and EN 45014
Manufacturer: SEIKO EPSON CORPORATION
Address: 3-5, Owa 3-chome, Suwa-shi,
Nagano-ken 392 Japan
Representative: EPSON EUROPE B.V.
Address: Prof. J. H. Bavincklaan 5 1183
AT Amstelveen
The Netherlands
Declares that the Product:
Product Name:Color Laser Printer
Model: YBB-1
Conforms to the following Directive(s) and Norm(s):
Directive 89/336/EEC:
EN 55022 Class B
EN 50082-1
IEC 801-2
IEC 801-3
IEC 801-4
Directive 73/23/EEC:
EN 60950
July 1999
H. Horiuchi
President of EPSON EUROPE B.V.

Contents iii
R4C4450 Setup G.
Rev. C
A5 size 4450SG.TOC
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
Contents
1 Safety Instructions
Laser Printer Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings, Cautions, and Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 System Requirements
3 Assembling the Printer
Installing the Expansion Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Face-Up Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Photoconductor Unit . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the Fuser Oil Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Installing the Options
Installing the 250 Sheet Lower Cassette Unit (A3W) . . . . . . . . . . 22
Installing the Large Capacity Paper Unit. . . . . . . . . . . . . . . . . . . . 24
Precautions before installing. . . . . . . . . . . . . . . . . . . . . . . . . . 24
Unpacking and removing the protective materials. . . . . . . 25
Installing the unit on the printer . . . . . . . . . . . . . . . . . . . . . . 28
Installing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Installing the Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installing the ROM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installing an Interface Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5 Plugging in the Printer

iv Contents
R4C4450 Setup G.
Rev. C
A5 size 4450SG.TOC
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
Testing the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Loading paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Printing a status sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Connecting to the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6 Installing the Printer Software
For All Windows Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Installing EPSON Font Manager. . . . . . . . . . . . . . . . . . . . . . 55
For DOS Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Making Basic Printer Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
For Windows 95/98 users . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
For Windows NT 4.0/3.51 users . . . . . . . . . . . . . . . . . . . . . . 60
For Windows 3.1 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7 Accessing Online Help
Accessing from the Windows Printer Driver. . . . . . . . . . . . . . . . 63
Accessing from Windows Applications . . . . . . . . . . . . . . . . . . . . 63
8PrintingwithWindows
Starting to Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Canceling Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
9 Using the Online Guide
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Installing Microsoft ®Internet Explorer . . . . . . . . . . . . . . . . . . . . 70
For Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
For Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
10 Safety Information

Contents v
R4C4450 Setup G.
Rev. C
A5 size 4450SG.TOC
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
ENERGY STAR Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
For United Kingdom Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Index

vi Contents
R4C4450 Setup G.
Rev. C
A5 size 4450SG.TOC
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______

Safety Instructions 1
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
1Safety Instructions
Laser Printer Precautions
This printer uses laser technology. The following precautions
apply whenever you use the laser printer. Even if you are familiar
with other types of printers, be sure to follow these precautions
carefully to ensure safe, efficient operation.
❏Because the printer weighs approximately 70 kg (154 lb), you
should not lift or carry it by yourself. Four people should carry
it, lifting it by the correct positions. Refer to the instructions
in the Unpacking Guide.

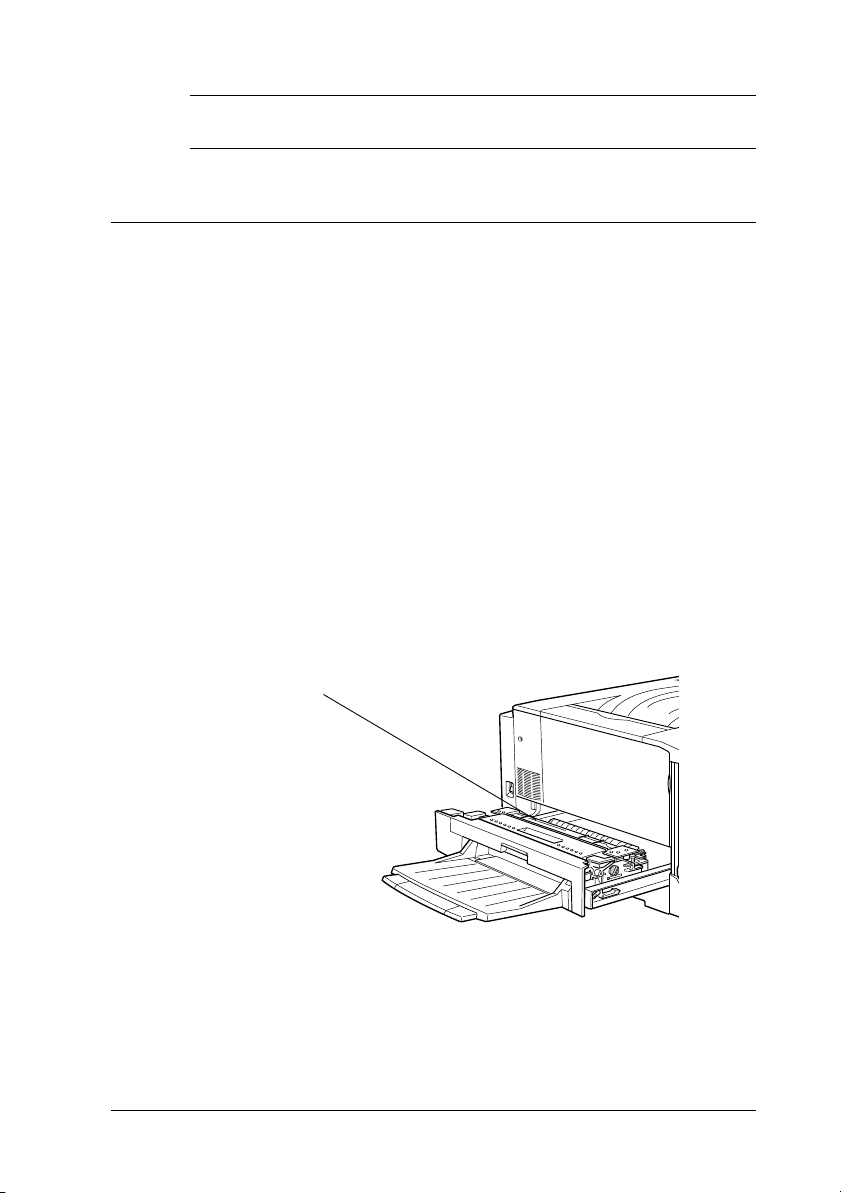

❏Be careful not to touch the fuser, which is marked CAUTION!
HIGH TEMPERATURE, or the surrounding areas. If the
printer has been in use, the fuser and the surrounding areas
may be very hot.
❏Avoid touching the components inside the printer unless
instructed to do so in this guide.
CAUTION! HIGH TEMPERATURE

2 Safety Instructions
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
❏Never force the printer’s components into place. Although the
printer is designed to be sturdy, rough handling can damage
it.
❏When handling the toner cartridges, always place them on a
clean, smooth surface.
❏Do not attempt to modify or take apart the toner cartridge. It
cannot be refilled.
❏Try not to touch the toner and avoid all contact with your eyes.
❏Do not dispose of the used toner cartridges, fuser oil roll, or
waste toner collector in fire, as they can explode and cause
injury. Dispose of them according to local regulations.
❏Do not use a toner cartridge for at least one hour after moving
it from a cool to a warm environment.
❏Keep the fuser oil roll horizontal at all times. Do not tilt it or
lean it against something, as it can cause oil leakage and
reduce print quality.
❏When removing the photoconductor unit, avoid exposing it
to room light any longer than necessary. The unit contains a
light-sensitive drum, which is the green cylinder that can be
seen through the openings to the unit. Exposure to light can
damage the drum, causing dark or light areas to appear on
the printed page and reducing the service life of the drum. If
you need to keep the unit out of the printer for long periods,
cover it with an opaque cloth.

Safety Instructions 3
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
❏Be sure not to scratch the surface of the drum. When you
remove the photoconductor unit from the printer, always set
the unit on a clean, smooth surface. Also, avoid touching the
drum, since oil from your skin can permanently damage its
surface and may affect print quality.
❏To get the best print quality, do not store the photoconductor
unit in an area subject to direct sunlight, dust, salty air, or
corrosive gasses (such as ammonia). Avoid locations subject
to extremes or rapid changes of heat or humidity. Also, be
sure to keep consumable components out of the reach of
children.
❏Do not leave jammed paper in the printer. It can cause the
printer to overheat.
Hinweis:
Die Geräteanschlußleitung muß den einshlägigen Normen genügen.
Es muß eine dreiadrige Leitung verwendet werden.
Die Anshlußleitung darf nicht leichter als H05VV-F order H05VVH2-
F sein.
Maschinenlärminformations-Verordnung-3. GSGV, 18. 01. 1991: Der
arbeitsplatzbezogene schalldruckpegel beträgt 70 dB (A) oder weniger
gemäß ISO 7779.

4 Safety Instructions
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
Important Safety Instructions
Read all of these instructions before operating your printer.
❏Follow all warnings and instructions marked on the printer.
❏Unplug this printer from the electrical outlet before cleaning.
Use a damp cloth for cleaning and do not use liquid or aerosol
cleaners.
❏Do not use this printer near water.
❏Do not place the printer on an unstable cart, stand, or table.
❏Slots and openings in the cabinet and the back or bottom are
provided for ventilation. Do not block or cover them. Do not
put the printer on a bed, sofa, rug, or other similar surface or
in a built-in installation unless proper ventilation is provided.
❏Use the type of power source indicated on the label. If you are
not sure of the type of power available, consult your dealer or
local power company.
❏If you are unable to insert the AC plug into the electrical
outlet, contact an electrician.
❏Do not put your printer where the cord will be stepped on.
❏Avoid using outlets that other appliances are plugged into.
❏Use only an electrical outlet that meets the power
requirements of this printer.
❏Never push objects of any kind through cabinet slots as they
may touch dangerous voltage points or short out parts that
could result in fire or electric shock.
❏Never spill liquid of any kind on the printer.

Safety Instructions 5
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
❏Unless specifically instructed in this guide, do not attempt to
service this product yourself. Opening or removing those
covers that are marked “Do Not Remove” may expose you to
dangerous voltage points or other risks. Refer all servicing in
those compartments to service personnel.
❏Unplug the printer and refer servicing to qualified service
personnel under the following conditions:
If the power cord or plug is damaged; if liquid has entered the
printer; if the printer has been dropped or the cabinet
damaged; if the printer does not operate normally or exhibits
a distinct change in performance. Adjust only those controls
that are covered by the operating instructions.
❏If you plan to use the printer in Germany, observe the
following:
To provide adequate short-circuit protection and over-
current protection for this printer, the building installation
must be protected by a 16 Amp circuit breaker.
Bei Anschluß des Druckers an die Stromversorgung muß
sichergestellt werden, daß die Gebäudeinstallation mit einem 16
A-Überstromschalter abgesichert ist.
Warnings, Cautions, and Notes
wWarnings must be followed carefully to avoid bodily injury.
cCautions must be observed to avoid damage to your equipment.
Notes contain important information and useful tips on the operation of
your printer.

6 System Requirements
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
2System Requirements
To use your printerwith a PC, you need MicrosoftWindows95,
98, Windows NT4.0, Windows 3.1, or Windows NT 3.51 ; and a
shielded, twisted-pair parallel interface cable.
To install and use the printer software (printer driver and utilities)
included on the CD-ROM or floppy disk packed with your
printer, your system should meet the following requirements:
Note:
❏Depending on the size of your printer data, you may need more
memory and hard disk space than above.
❏The EPSON Status Monitor 3 utility is not available for Windows
3.1 and Windows NT 3.51.
Component Minimum system Recommended system
CPU i486/25 MHz for
Windows 95, NT 4.0,
Windows 3.1, or NT 3.51
i486/66 MHz for
Windows 98
Pentium or higher
processor
RAM 16 MB RAM 32 MB RAM or more for
Windows 95, 98, 3.1, or NT
3.51
64 MB RAM or more for
Windows NT 4.0
Hard disk space 10 MB hard disk space
for Windows 95, 98, or
3.1
20 MB hard disk space
for Windows NT 4.0 or
NT 3.51
50 MB or more free disk
space for Windows 95,
98, 3.1, or NT 3.51
100 MB or more free disk
space for Windows NT 4.0
Display 800 x 600 pixel monitor Greater than 800 x 600
pixel monitor

Assembling the Printer 7
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
3Assembling the Printer
Before assembling the printer, make sure that all protective
materials packed around and inside your printer are removed.
Follow the instructions in the Unpacking Guide to remove these
materials.
Installing the Expansion Tray
The expansion tray is used for the wide-size paper setting. To
install the expansion tray on the right side of the printer, follow
the procedure below.

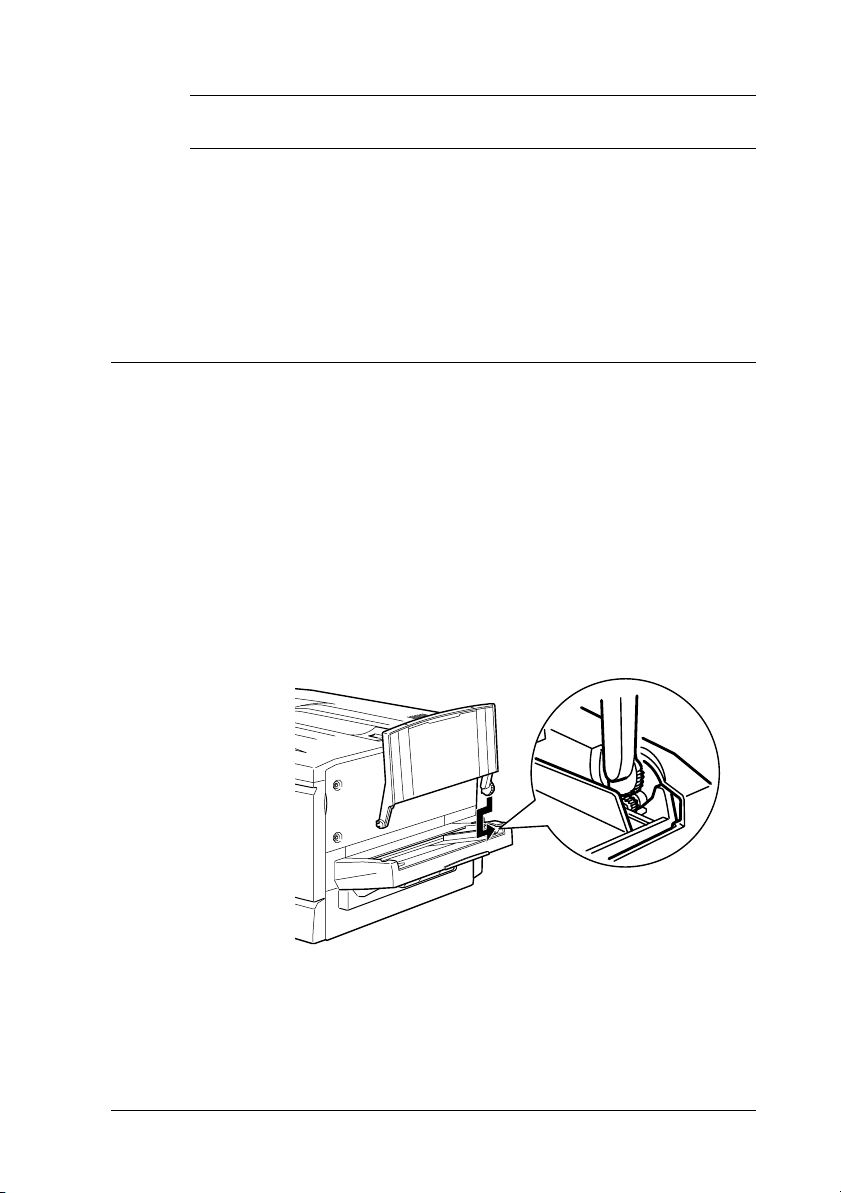

1. Hold the expansion tray vertically. Then insert its right leg
into the hollow of the MP tray to fit the pin on the leg into the
hole on the MP tray. Make sure that the gears of both trays fit
properly.
.

8 Assembling the Printer
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______

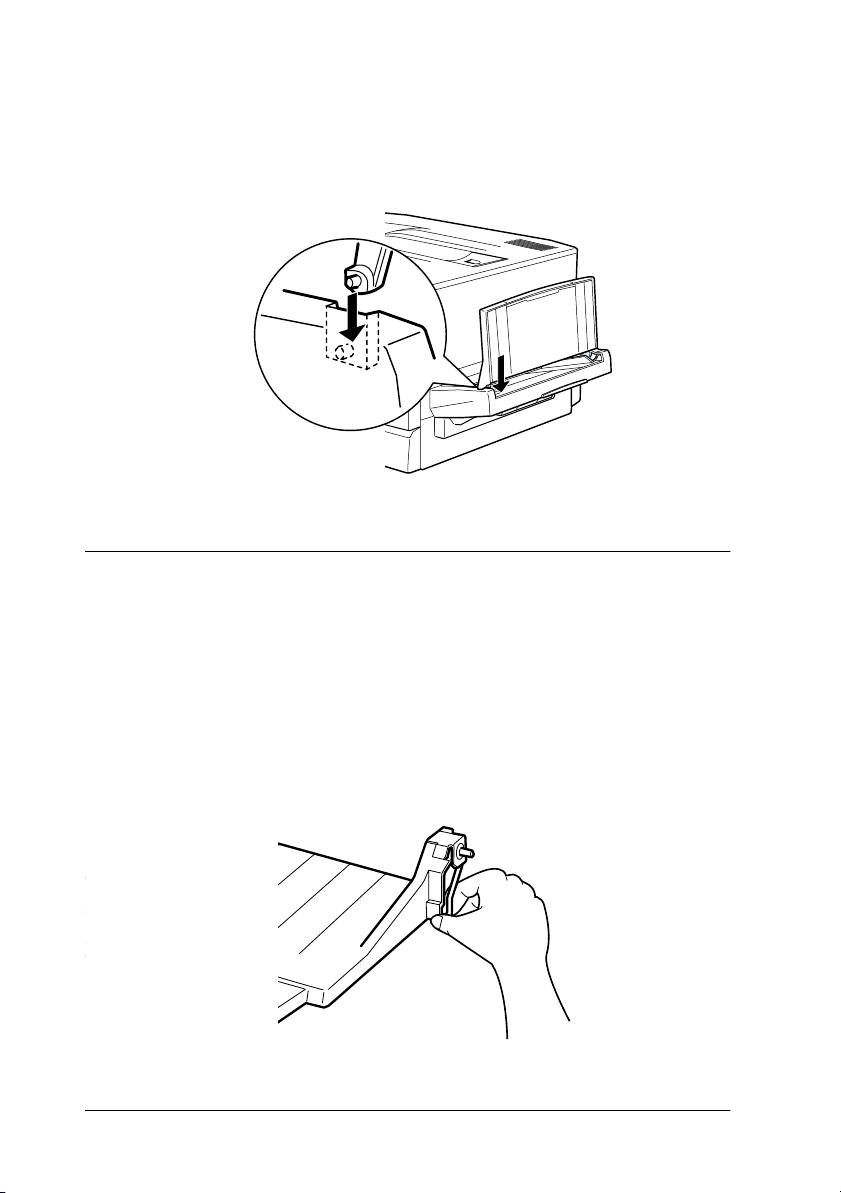

2. While holding the expansion tray vertically, insert the left leg
into the MP tray until the pin clicks into place in the hole on
the MP tray.
Installing the Face-Up Tray
Install the face-up tray onto the left side of the printer as follows:
1. Locate the output slot on the left side of the printer.
2. Squeeze the metal spring on the right side of the face-up tray
so that the end of the spring is folded down against the tray
as shown below.

Assembling the Printer 9
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______

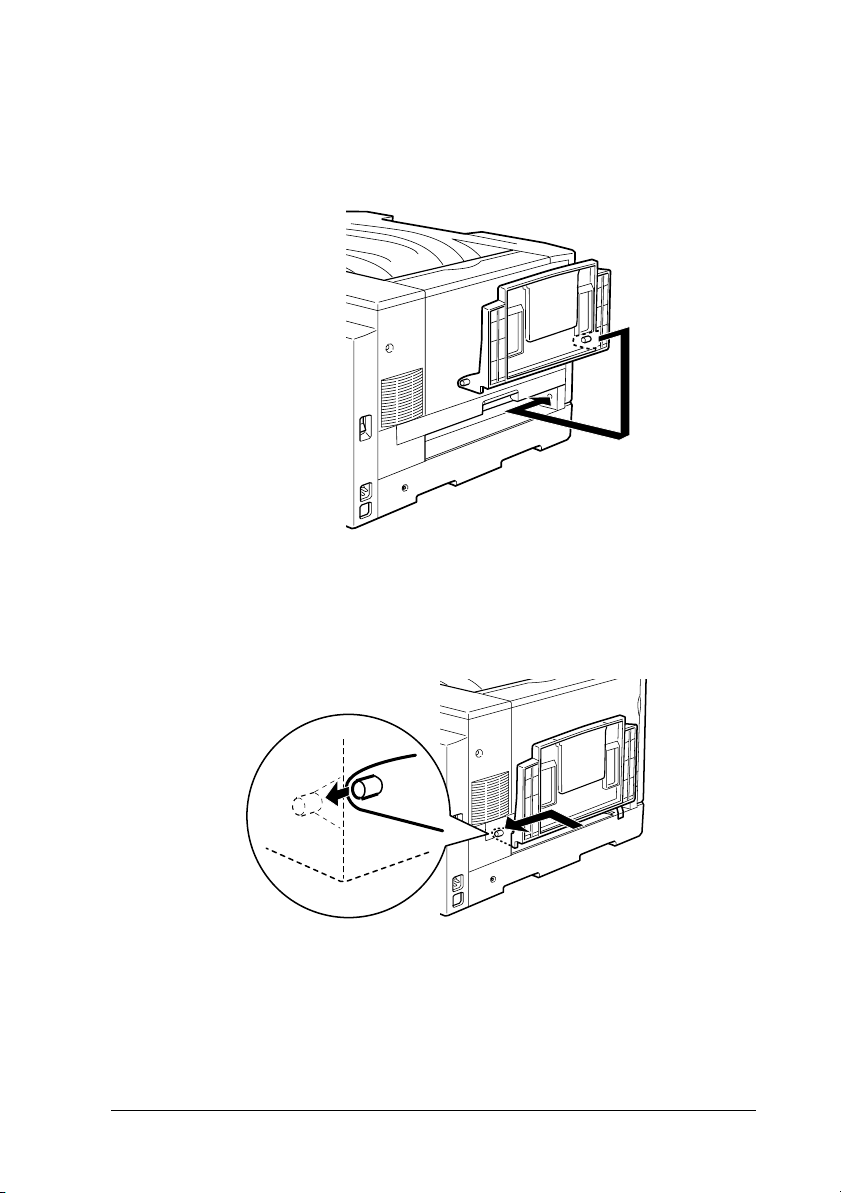

3. Insert the plastic mounting pin on the right side of the
face-up tray into the corresponding hole inside the output
slot.
4. Insert the left mounting pin on the face-up tray into the hole
on the left side of the output slot.

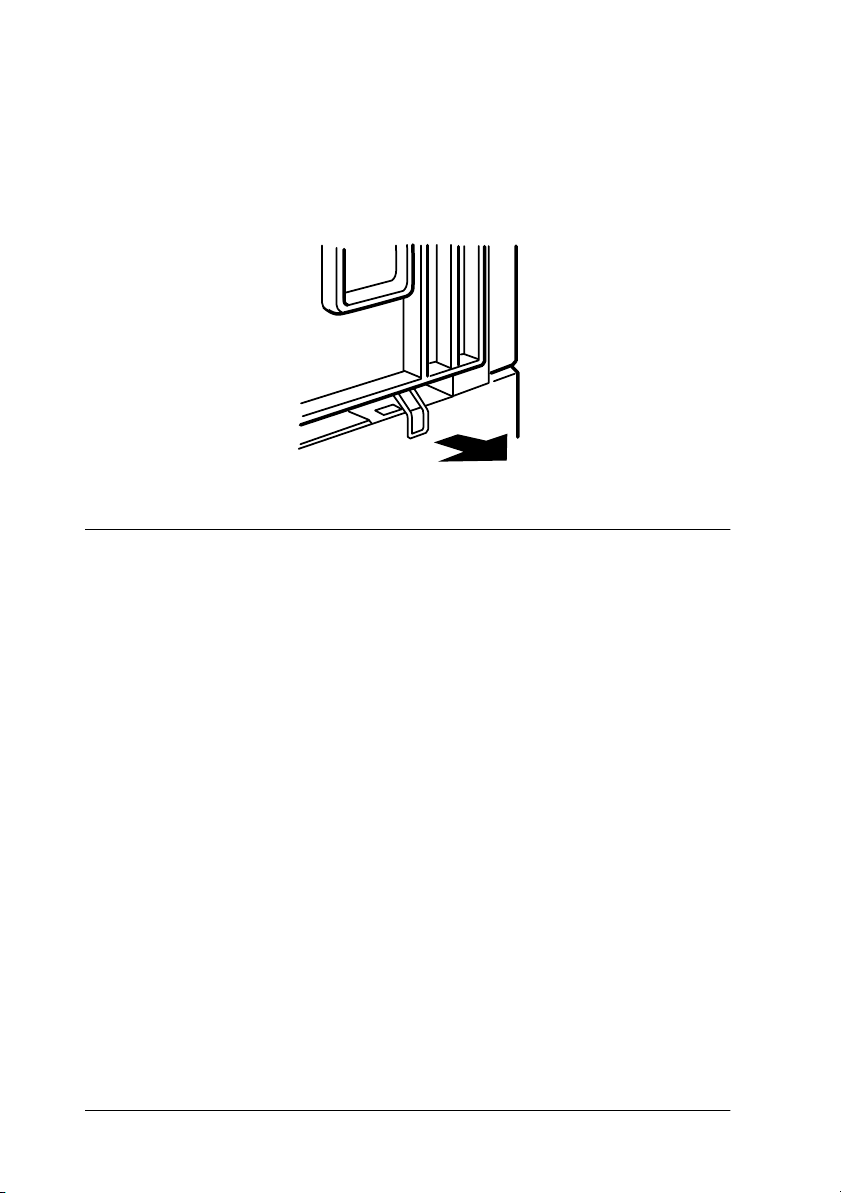

5. Release the spring so that the end rests against the outer case
of the printer as shown below.

10 Assembling the Printer
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
cCaution:
Do not insert the metal spring into the output slot or any
holes in the printer case. Doing so may damage the face-up
tray or your printer.
Installing the Toner Cartridges
You need to install four cartridges in the printer.
Note:
❏If toner gets on your skin or clothes, wash it off with soap and water
immediately.
❏Do not install a cartridge for at least an hour after moving it from
a cool to a warm environment.

Assembling the Printer 11
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
R
Proof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
1. Open the front cover.
2. Check which color appears in the cartridge installment
window and prepare a cartridge with the same color.
Black Cyan
Yellow Magenta

12 Assembling the Printer
R4C4450 Setup G.
Rev. C
A5 size SAFETY.FM
7/18/00 Pass 0
LProof Sign-off:
ABE K.Tsuno H.Kimura_______
H.Kimura _______
ABE J.Holmes _______
3. Take the cartridge out of its package, and gently shake it back
and forth and front to back as shown below to distribute the
toner evenly.
4. Hold the cartridge with the arrow side facing up, and insert
it all the way into the cartridge slot.
