Epson EB-X03 User manual

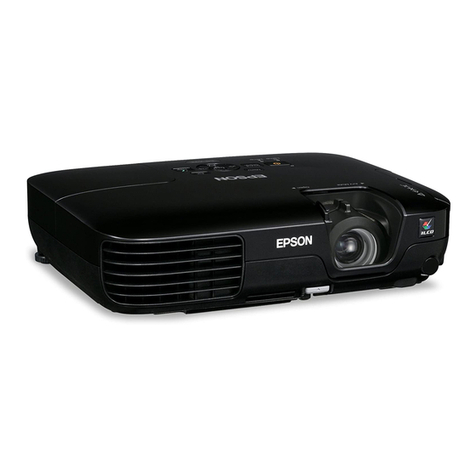

Epson EB-X03
Affordable XGA performance in a portable business projector.
3 x Brighter Colours* and reliable performance – 3LCD, 3-Chip Technology.
Look for both high colour brightness and high white brightness
One measurement of brightness is not enough – Look for both colour
brightness and white brightness. The Epson EB-X03 has:
Colour Brightness: 2,700 lumens
White Brightness: 2,700 lumens
HDMI input for high-quality, high-definition video – Deliver both audio and
brilliant HD video content with just one cable
Automatic Vertical Keystone Adjuster – This function automatically detects the
projector’s vertical angle and adjusts the vertical keystone distortion instantly
Optional Wireless connection to your laptop and mobile device – Connect
directly to your computer, smartphone or tablet, without wires

Product Specifications
Epson EB-X03
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x Component
(via D-sub 15-pin), 1 x HDMI
Input: Computer 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB 2.0 type A
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 1 x HDMI
Input: Control 1 x USB 2.0 type B
Input:EpsonUSBDocumentCamera Yes
Wireless Connectivity Optional
Speaker Output 1W
ADVANCED FEATURES
EasyMP Network & Control Yes (with optional Wireless LAN Unit)
EasyMP Network Projection Yes (with optional Wireless LAN Unit)
PC Free Presentations Yes
USB Plug ‘n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington Lock,
Security cable hole
Password protect function
Colour Modes Dynamic, Presentation, Theatre, Photo, sRGB,
Blackboard, Whiteboard
GENERAL
Dimensions D x W x H 234 x 297 x 77 mm
Weight 2.4 kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 2 years
Power Consumption: Lamp on Normal: 270W / Eco: 201W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal: 37dB / Eco: 29dB
PRODUCT NAME Epson EB-X03
PRODUCT CODE V11H555053
WHAT’S IN THE BOX
Power Cable, Remote Control + Batteries, User’s
Manual, 1.8m Computer Cable
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.55-inch without MLA (D8)
OPTICAL
Zoom 1 - 1.2 (Optical)
Screen Size 33" to 300" [0.9 to 9.0 m] (Zoom: Tele)
33" to 300" [1.08 to 10.8 m] (Zoom: Wide)
Projection Distance 60" screen 1.8 - 2.17 m
Throw Ratio 1.48 (Zoom: Wide), 1.77 (Zoom: Tele)
Projection Lens F Number 1.58 - 1.72
Projection Lens Focal Length 18.4 mm - 22.08 mm
Offset 8:01
Colour Light Output 2,700 Lumens
White Light Output 2,700 Lumens
Resolution XGA
Native Aspect Ratio 4:3
Contrast Ratio 10,000:1
Lamp Hours Normal: 5,000 Hours / Eco: 6,000 Hours
Lamp Type 200 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
* Whichever comes first
Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may
be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are
simulations. Specifications are subject to change without notice.
