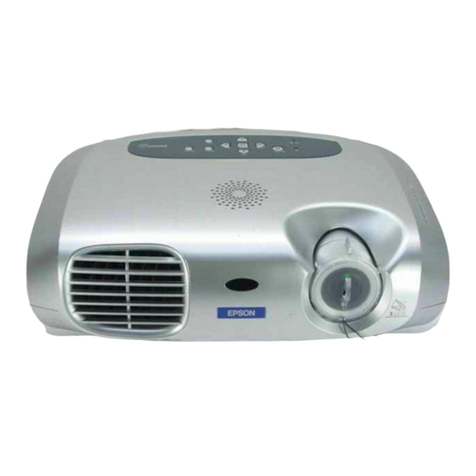

Epson EX50 User manual

• Stunning,razor-sharpdetail;HD-ready — native XGA resolution, up to 1600 x 1200
• Rich,vibrantcolor — 3-chip optical engine
• Reliableperformance — 3LCD technology
• Superbrightandcolorful — 2200 lumens color, 2200 lumens white*
• Automaticpictureadjustment — automatic keystone correction, and 1.2x optical zoom
• Plug’nPlayno-hasslesetup — instantly projects images from a PC via USB connection
• Quick,convenientcontrol — Sleep Mode, Instant Off®/On, Direct Power On/Off
• Flexibilitywithoutaddedcosts — included carrying case and component video adapter
• Ultralonglife — up to 4000-hour lamp life,** low power consumption
Stepuptoamazingperformance.Sharpandready.
Warranty
EX50
MultimediaProjector
Portable | Home | Office

Computer/Component Video
BACK PANEL
Composite
Video
PowerSpeaker Anchor
Bar
Monitor Out
S-video
USB (Type B)
Audio L/R
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specifications and terms are subject to change without notice. Epson and Instant Off are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PowerLite and PrivateLine
are registered trademarks, Duet is a trademark and Epson Connection is a service mark of Epson America, Inc. All other product and brand names are trademarks and/or registered trademarks of their respective companies.
Epson disclaims any and all rights in these marks. Copyright 2008 Epson America, Inc. CPD-25962 9/08 10K
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
SPECIFICATIONS
Projection System
Epson 3LCD, 3-chip optical engine
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
786,432 dots (1024 x 768) x 3
White Light Output*
2200 lumens (ISO 21118 Standard)
Color Light Output*
2200 lumens
Aspect Ratio
4:3
Native Resolution
1024 x 768 (XGA)
Resize
640 x 480 (VGA), 1152 x 864 (SXGA),
1280 x 800 (WXGA), 1440 x 900 (WSXGA),
1400 x 1050 (SXGA+)
Lamp Type
170 W UHE
Lamp Life**
Up to 4000 hours (Low Light Output Mode)
Up to 3000 hours (High Light Output Mode)
Throw Ratio Range
1.4 – 1.68
Size (projected distance)
30” – 300” (2.8’ – 28.5’)
Keystone Correction Automatic
Vertical: ±11 degrees
Keystone Correction Manual
Vertical: ±30 degrees
Plug 'n Play
Projector is Mac compatible via DVI to VGA
adapter (not included)
Contrast Ratio
Up to 2000:1 with Auto Iris
510:1 native
Color Reproduction
16.77 million colors
PROJECTIONLENS
Type
Digital zoom/Manual focus
F-number
1.6 – 1.74
Focal Length
18.4 mm – 22.12 mm
Zoom Ratio
Optical zoom 1.0 – 1.2
OTHER
Display Performance
NTSC: 560 lines
PAL: 560 line
(Depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/
PAL60/SECAM
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type B x 1
Monitor out: D-sub 15 pin x 1
Speaker
1 W (mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
260 W, 5 W standby
Fan Noise
35 dB (High Light Output Mode)
28 dB (Low Light Output Mode)
Security
Kensington®-style lock provision,
password protect function, security bar
DIMENSIONS(WXDXH)
Including feet: 12.9” x 9.6” x 4.0”
Excluding feet: 12.9” x 9.6” x 3.6”
Weight: 6.2 lb/2.8 kg
REMOTECONTROL
Features
Source search selection, power, volume,
e-zoom, A/V mute, freeze, menu, page up
and down, help, auto, mouse functions
Operating Angle
Right/left: ± 30 degrees
Upper/lower: ± 15 degrees
Operating Distance
19’ (6 m)
SUPPORT—THEEPSONCONNECTIONSM
Pre-sales support
U.S. and Canada 800-463-7766
Internet website www.epson.com
Service Programs
Two-year projector limited warranty, Epson
Road Service program, Epson PrivateLine®
dedicated toll-free support and 90-day lamp
warranty
What’s In The Box
Power cable, computer cable (VGA),
USB cable, soft carrying case, projector
remote control, batteries, user manual CD,
Quick Setup Sheet, PrivateLine support
card, registration card and password
protection sticker
ACCESSORYPARTNUMBERS
Universal projector
ceiling mount ELPMBPJF
Component to VGA video cable ELPKC19
S-video cable ELPSV01
SwissGear®backpack ELPKS63
Wheeled soft case ELPKS62
Soft shoulder case for
projector and laptop ELPKS61
Molded hardshell case ELPKS58
50" portable screen ELPSC06
60" portable pop-up screen ELPSC07
80" portable pop-up screen ELPSC08
Duet™screen ELPSC80
Epson DC-10s document camera ELPDC10S
Kensington security lock ELPSL01
PACKAGINGSPECIFICATIONS
EX50
Dimensions 16.8" x 14.9" x 7.2" (W x D x H)
Weight 11.9 lb
Replacement Lamp
Dimensions 6.3" x 5.5" x 5.6" (W x D x H)
Weight 0.7 lb
Master Carton
Dimensions 28.4" x 13.1" x 6.8" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
Replacement Air Filter
Dimensions 3.9" x 1.2" x 4.9" (W x D x H)
Weight 0.88 lb
Master Carton
Dimensions 12.8" x 5.3" x 4.7" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
* Light output varies depending upon modes (color and brightness) selected.
** Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
ORDERING INFORMATION
Product Name Product Code UPC
EX50 (U.S.) V11H284220 010343 87074 1
EX50 (Canada) V11H284220-F 010343 87139 7
Replacement Lamp V13H010L41 010343 86410 8
Replacement Air Filters V13H134A13 010343 86412 2
EX50
MultimediaProjector
