Swissvoice IP10S Phone User Guide
Swissvoice IP10S SIP Phone User Guide
Revision Revised By Date
Initial Tigran Avanesov 26 Oct 2004
Quadro
variants:
valid for SW-
version:
tested with
SW version:
Filename: MGCP config for SwissVoice IP10
User guide.doc
Version: 1
Template: SupportTemplate.dot
Last saved: 28.10.2004 19:07 by
Abstract: This document presents step-by-step how to configure
the Swissvoice IP10 phone via keypad to work together
with Quadro.
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
1

Swissvoice IP10S Phone User Guide
Table of Contents:
1Introduction ...........................................................................3
2Scenario ................................................................................3
2.1Objectives of the Scenario.......................................................3
2.2Abbreviations ........................................................................3
2.3Requirements and Preparations ...............................................3
2.3.1 Software .....................................................................3
2.3.2 Hardware ....................................................................3
3Configuration .........................................................................4
3.1Initial Configuration ...............................................................4
3.2Phone Configuration...............................................................4
4Quadro Configuration ..............................................................5
4.1Configuring the IP Lines..........................................................5
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
2

Swissvoice IP10S Phone User Guide
1 Introduction
This User Guide offers step-by-step instructions for the configuration of a Swissvoice IP10S phone to
work together with a Quadro.
2 Scenario
2.1 Objectives of the Scenario
2.2 Abbreviations
• DNS Domain Name Server
• DHCP Dynamic Host Configuration Protocol
• SIP Session Initiation Protocol
2.3 Requirements and Preparations
2.3.1 Software
• The l
•
sion: IP10 SP v1.0.0 (build 5)
•
Protocol: SIP
2. 2
• Quadro4x or Quadro16x.
• SOHO-SW-2.4.27 or higher on the Quadro board
fo lowing image ve
Application ver
rsion or higher on the Swissvoice phone:
3. Hardware
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
3

Swissvoice IP10S Phone User Guide
3 Configuration
pic. 1 pic. 2 pic. 3 pic. 4
3.1 Initial Configuration
If the user takes the phone from our official distributor, and keeps Quadro’s LAN IP address factory
default (172.30.0.1), then he/she needs to start from step 5-th step of 3.2 Phone Configuration and
omit the rest of step 3.1 Initial Configuration. If the user has the proper SIP version on the phone,
but carried out a factory reset then he/she needs to do the following:
1. Enable Quadro's DHCP server.
2. Power up the phone. Its DHCP client is enabled by factory default. If the phone is not in its
factory default state, the DHCP client has to be enabled:
a. Press the OK button on the keypad to enter the menu (pic. 3).
b. Use the Navigation buttons (pic. 2) to go to Admin Settings/Change Settings, and
enter the administrator password (by default “0000”). Press OK.
c. Then go to TCP/IP->DHCP and activate the DHCP client by selecting Yes in the
displayed menu. After completing the configuration the phone has to be rebooted.
3. The phone will get the needed information from the DHCP server.
3.2 Phone Configuration
1. Select the Menu by pressing the OK (pic. 3) button on keypad to enter the menu. Then, using
the Navigation buttons (pic. 2), go to the Admin Settings-> Change Settings, and enter the
administrator password (by default “0000”) and press OK. Then go to SIP Configuration.
2. Set Use Registrar to YES.
3. Set Proxy Server Quadro’s LAN IP.
4. Set Outbound Proxy Quadro’s LAN IP.
5. Set User Id the proper username from Quadro’s IP Lines Settings page.
6. Set Authenticate login the proper username from Quadro’s IP Lines Settings page.
7. Set Authenticate passw the proper password from Quadro’s IP Lines Settings page.
8. Reboot the phone.
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
4

Swissvoice IP10S Phone User Guide
4 Quadro Configuration
Quadro provides a possibility to connect MGCP and SIP phones to its LAN side, assign the corresponding
IP line to some active extension and use MGCP and SIP phone as simple phone with all telephony
services of the Quadro (e.g. call hold, waiting, transfer, etc.). 4 IP Lines are available on the Quadro4x
models and 8 IP Lines are available on the Quadro16x models.
The IP Line Settings page is used to configure IP lines for IP phones to be connected to the Quadro.
4.1 Configuring the IP Lines

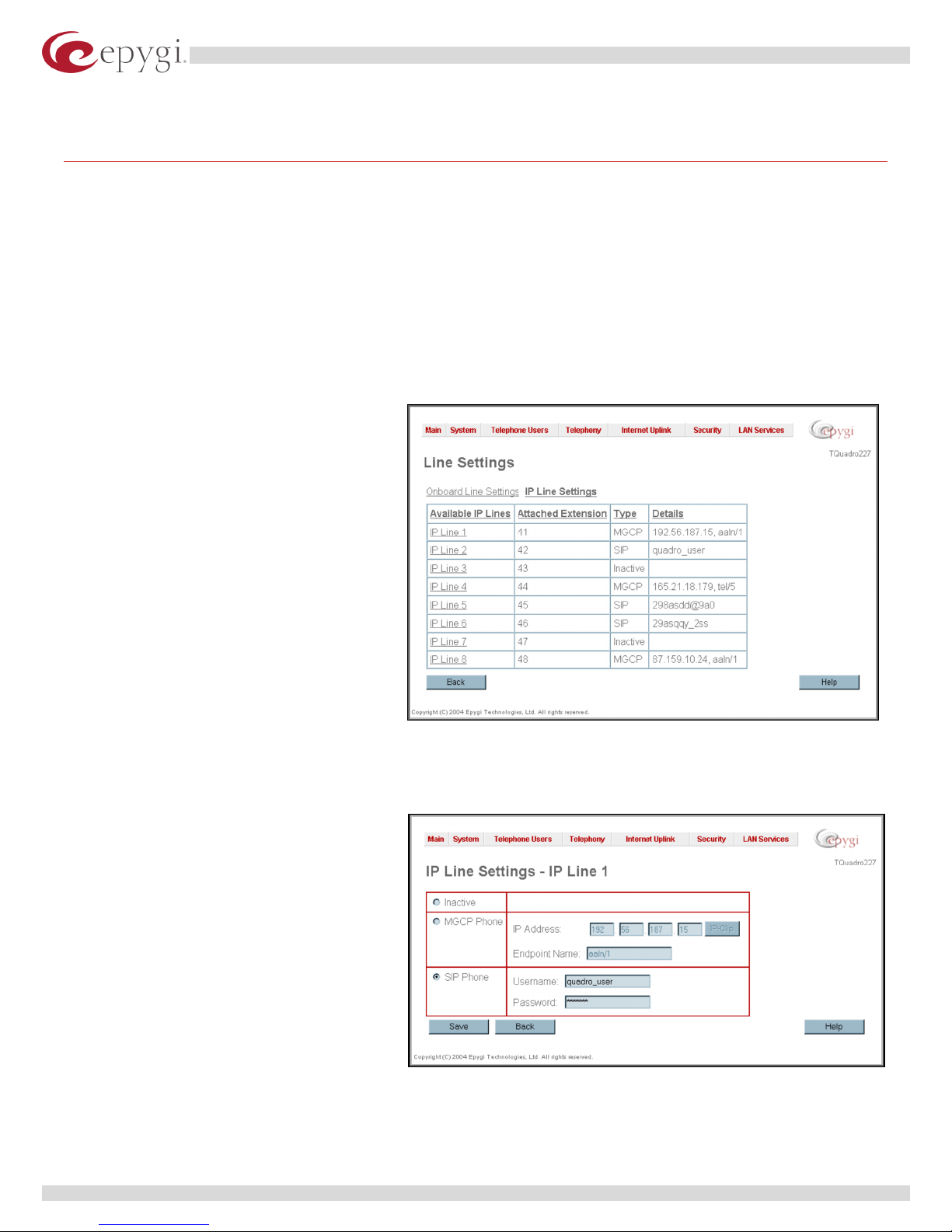

The IP Lines Settings page can be found under the Telephony menu, menu item Line Settings.
The IP Lines Settings page lists all
IP lines of the Quadro with additional
information about the phone type and
the configuration details for each of
them.
The table may be sorted ascending or
descending by clicking the column
heading.
Pressing one of the IP Line links in the
IP Lines column, the associated Edit
IP Line page is opened and offers the
following input options:
A group of manipulation radio buttons allows to enable the IP line and to configure it to be used by the
SIP or MGCP phone:
Selecting Inactive disables the corresponding IP line.
Selecting MGCP Phone configures the IP
line for MGCP phone to be connected to
the Quadro’s LAN. The MGCP phone’s IP
Address and its Endpoint Name will be
required for this selection. The Endpoint
Name is defined on the MGCP phone and
should match on Quadro for the
successful connection between the MGCP
device and the Quadro.
Selecting SIP Phone configures the IP
line for SIP phone to be connected to the
Quadro’s LAN. Username and
Password are required to be inserted
for this selection, which should match on
both Quadro and SIP Phone for a
successful connection establishment.
Copyright © 2004 Epygi Technologies, Ltd. All rights reserved.
5
