ASSEMBLY AND USAGE INSTRUCTIONS
ERDÉ TRAILER- MODEL
ERDÉ 153

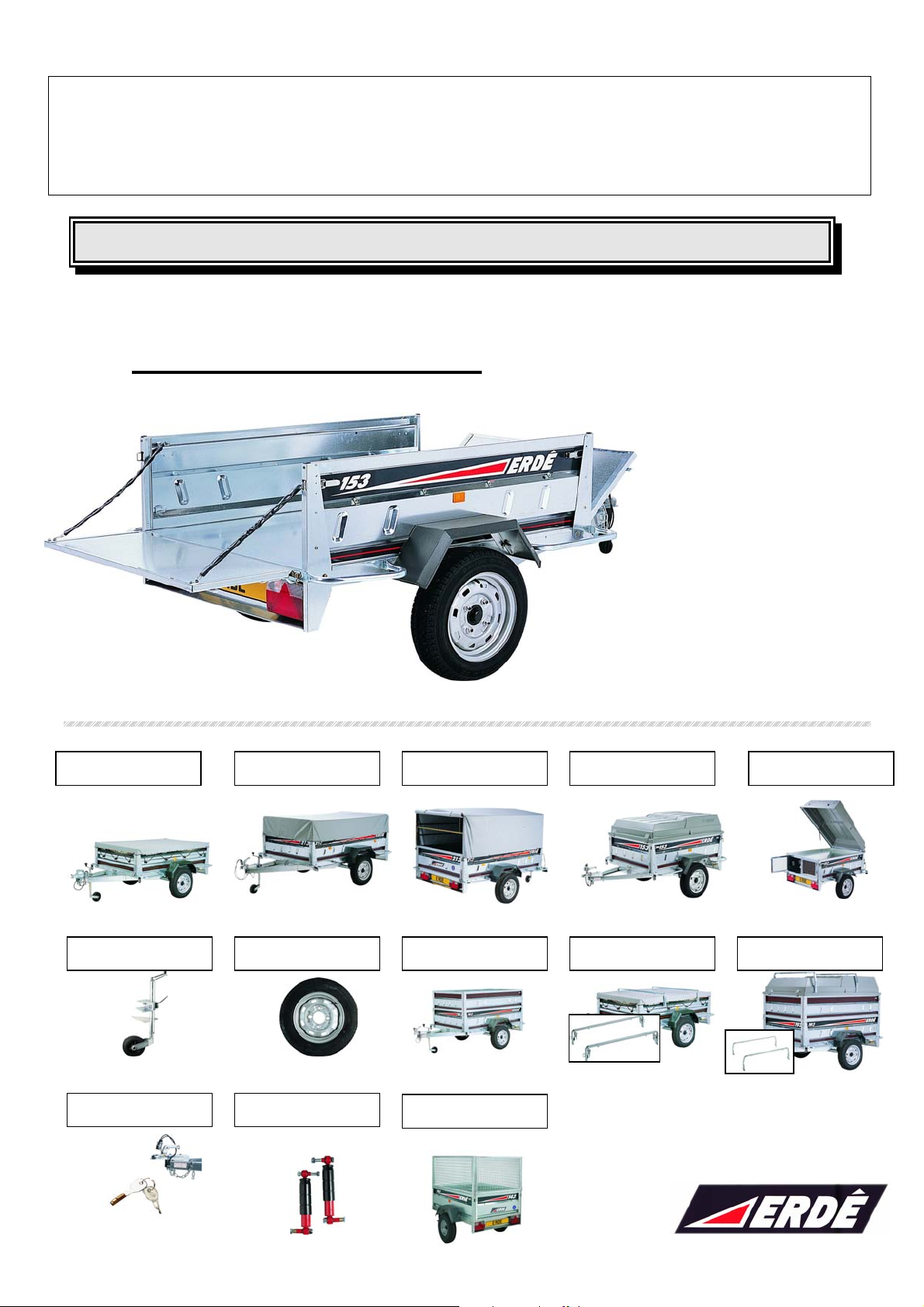

Equipments available as options
Side height extensions
Hydraulic shock
absorber kit
Load bars for
hard top cover
Universal load bars
Spare wheel
with or without carrier
Jockey wheel
Hunting kit Hard top cover
High trailer cover
with frame 30 cm
High trailer cover
with frame 60 cm
Flat soft cover
Coupling lock Mesh sides

ASSEMBLY INSTRUCTIONS
FOR THE ERDÉ 153 TRAILER

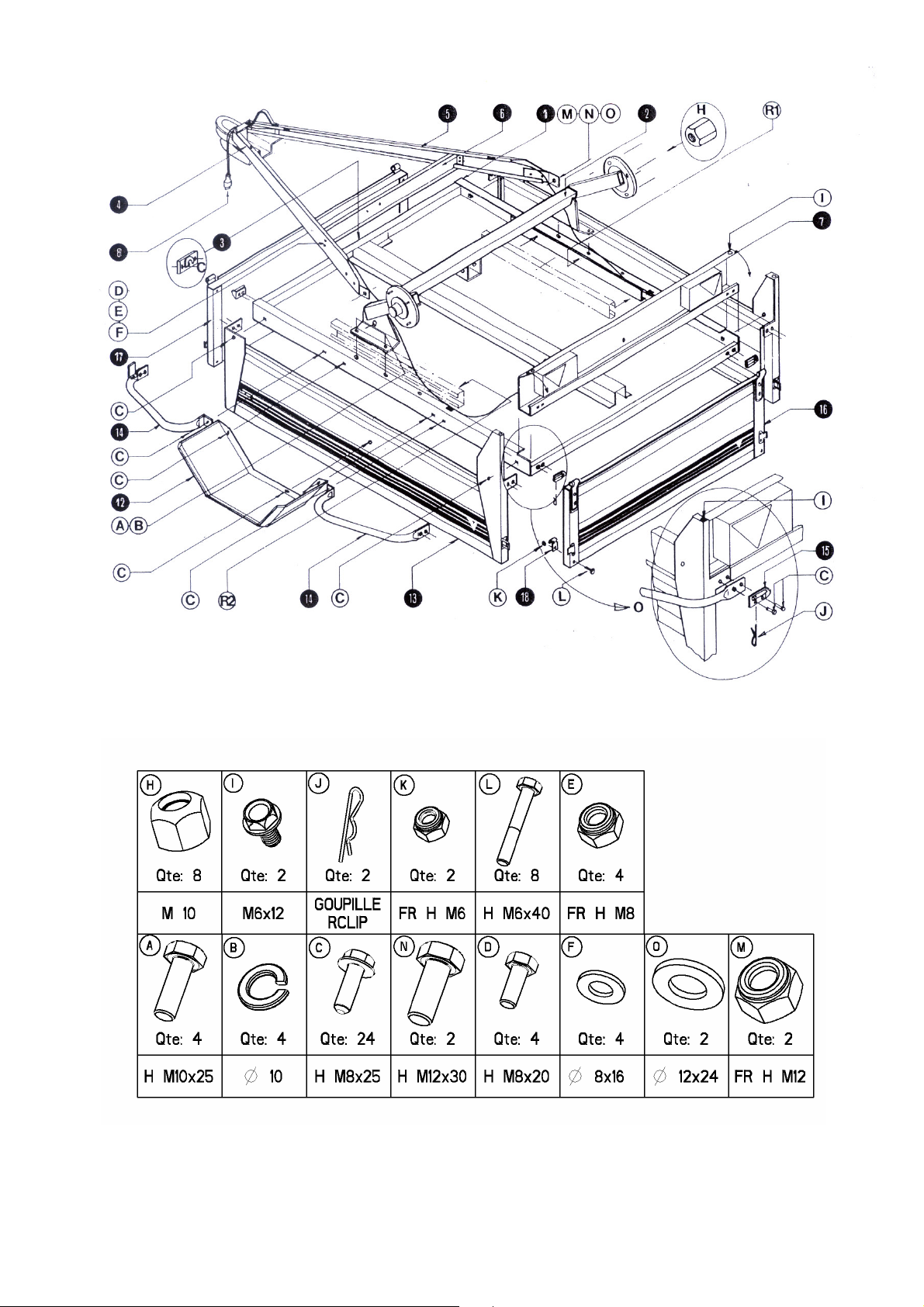

NB : All detail numbers below refer to the assembly diagram on the facing page. The parts
reference letters are also shown on the diagram, to show where they are fitted.
A - ASSEMBLY OF THE CHASSIS
Turn the trailer base panel upside down and place on two trestles or a table and follow these
instructions. Do not tighten all the bolts (unless instructed) until all these elements are
assembled (axle, drawbar, drawbar guide and light clusters). This ensures that when you
finally tighten all bolts/screws, there is a better overall fit.
1 - Fit the tipping hook (3) to the base of the trailer (1)
2 - Fit the axle support reinforcing bars (R1 and R2), under the base ledge, as shown in the
diagram. Caution : there is a left support and right support.
ATTENTION : to fit the left and right hand bars, all the holes must coincide (holes
underneath and to the side).
3 - Mount the axle as per (2), onto the base of the trailer (1), hubs facing towards the back of
the trailer (the bolts/non-slip washers screw down onto nuts already held into position on the
axle support reinforcing bars)
4 - Assemble the drawbar (partly assembled already)
Unscrew and take out the bolt HM 10x90 and spread the draw bar arms (4 + 5) between the
axle supports (2). Bolt firmly in place. Rescrew the bolt HM 10x90 already in place and spacer
5 - Assembly of the light cluster (7) - please note the position of the two holes (1) must
be towards the top.
6 - Unroll the lighting cable (8) and clip it to the central support (9). Tie it to the drawbar,
using the clips. Connect the « yellow plug » of the cable to the yellow side and the « green
plug » to the green side. Attention in connecting the lights, make sure that the small male lug
is fitted in the notch of the female plug.
7 - Fit the drawbar A frame support (6), between the drawbar arms (4 + 5)
Please note : face the flat side with tipping latch (already fitted) towards the top of the A.
Before securing firmly, ensure that the A frame support lines up with the base chassis, and
adjust if required.
TIGHTEN ALL THE BOLTS/SCREWS FITTED SO FAR
8 - Fit the wheels (valves must be on the outside when fitting)
VERY IMPORTANT, PLEASE ENSURE "DOMED" END OF WHEEL NUTS FACES
INWARDS I.E. AGAINST THE WHEEL (H).
For the following assembly operations, turn the trailer onto its wheels.
B - ASSEMBLY OF THE SIDE PANELS
1 - Fit the two side panels (13) to the trailer base (1)
Secure to the back the light cluster box (7) to the side panel support posts (I)
2 - Fit the side bumpers (14) and the hinge plates (15) as per the diagram "O". Both hinge
plates pins must face in the same direction. The smaller bumpers fit to the rear half of the trailer
ATTENTION : Please ensure you use one hinge plate with hole and one without, for the front
PANEL fitting, and the same for the back PANEL fitting.
3 - Fit the front and rear panels, by slipping the panels onto the base hinges and secure into
place using the cotter pin to lock into position
Fix the chain hooks (18) to the rear panel (16)
4 - Fix the mudguards (12) onto the side panels (13) and to the chassis (1) and tighten all
screws
DOUBLE CHECK ALL SCREWS AND BOLTS TO ENSURE FULLY TIGHTENED. It is
important to have the tipping latch firmly in position. Small alterations in tension are
possible by turning the latch ring clockwise or anteclockwise - fit the safety pin, once
firmly latched.
VERY IMPORTANT: IT IS ESSENTIAL THAT WHEEL NUTS ARE SECURE AND TIGHT
SAFETY - Please be safety conscious at ALL TIMES :
* in the trailer assembly
* in towing the trailer
* by regular maintenance checks
* by never exceeding maximum load capacities
* by driving slowly over road humps
PARTS REQUIRED
2 non-slip bolts HM 8x25
with nylock nuts
4 bolts HM 10x25
4 non-slip spring washers
2 nylock nuts HM 12
2 bolts HM 12x30
2 flat washers 12x24
4 bolts 8x20
4 nylock nuts HM 8
4 flat washers 8x16
8 wheel nuts
4 non-slip bolts HM 8x25
2 bolts M6x12
12 non-slip bolts HM 8x25
2 cotter pins
2 non-slip nuts HM 6
2 bolts HM 6x40
6 non-slip bolts HM 8x25
PARTS
REF.
C
A
B
M
N
O
D
E
F
H
C
I
C
J
K
L
C

USE AND MAINTENANCE OF ERDÉ TRAILERS 153
These trailers are light duty luggage road trailers and are not suitable for industrial use.
1) COUPLING
On the drawbar: all ERDÉ trailers are equiped with a 50 MM ball coupling with safety
catch, which prevents the trailer becoming detached.
COUPLING AND UNCOUPLING OF TRAILER:
Proceed as follows: lift the end of the handle attaching the coupling to the towball,
operating at the same time the locking trigger on the handle.
Option: It is possible to install an antitheft device that locks the coupling and provides
added security. This is a recommended optional extra.
On the car : towing brackets of a recognised standard should be fitted. Preferably these
should comply with the relevant British and international standards (UL standards
AU113 and 114 and international standards ISO1103 and 3553). European standard for
towball is 50 MM diameter. (Tow bars 400 to 600 kgs sufficient for all ERDÉ trailers)
For additionnal security a safety chain is fitted as standard. This should be secured to
the towing bracket at all times, so that in the event of uncoupling the trailer will still be
attached to the towing vehicle. (UK Reg.1995)
2) MAINTENANCE VERY IMPORTANT
Road trailers must be kept in a road-worthy condition and it is a legal requirement that
all trailers be maintained and comply with the different regulations. While there is very
little maintenance required on ERDÉ trailers, it is important that the unit should be
checked annually.
After assembly and the first 60 miles, check the tightness of all nuts/bolts of the following
main parts :* wheels * axle * drawbar
* coupling head * mudguard * lighting
3) HUBS
The wheel hubs including bearing are pregreased for life. No greasing needs to be
done. When necessary, replacement hubs and bearing are available as spares. Do not
put trailer in sea water, damage may occur if hubs/axle immersed in salt water.
4) LOADING VERY IMPORTANT
For your own safety it is important that the trailer is not over loaded. The suspension
units and tyres are designed to carry the following maximum weights.
MAXIMUM LOAD PERMISSABLE
- MODEL ERDÉ 153 390 Kilos
It is an offence to load the trailer to more than its marked gross weight.
The responsability for loading the trailer must be that of the user and as a guide, the
following table will give some typical loads :
QUANTITY/LOAD APPROXIMATE UNIT WEIGHT TOTAL WEIGHT
4 suitcases 25 Kilos 100 Kilos
3 tents 18 Kilos 80 Kilos
6 rucksacks 40 Kilos 240 Kilos
70 logs 3 Kilos 210 Kilos
To obtain good road holding, it is important that the load is loaded with
sufficient weight on the drawbar (5% to 10% of the load). A load on the rear
will cause pitching of the trailer. Once loaded, ensure that the trailer drawbar
is always kept horizontal or slightly on its nose, towards the car. If this is not
the case, change the height of your bracket by using a drop plate which will allow you to
change the height of the coupling.
If fitting a drop plate, refer to drop plate instructions.
Spares can be obtained from Wilstow Ltd 01284-852007
5) TYRE PRESSURE
Inflation pressure should be checked regularly to avoid any risk of abnormal wear and
punctures.
350x8 wheel : 2,5 bar/36 LBS per SQ inch - 480x8 wheel : 2,5 bar/36 LBS per SQ inch
400x10 wheel: 3,5 bar/50 LBS per SQ inch - 500x10 wheel: 3,5 bar/50 LBS per SQ inch
135x13 wheel: 2,5 bar/36 LBS per SQ inch - 145x13 wheel: 2,5 bar/36 LBS per SQ inch
If heavily loaded, or for long trips, it is necessary to increase tyre pressure by 0,50 bars.
Please note : all trailers wheels and tyres fitted to these trailers must be pneumatic and
capable of taking the maximum gross unit weight. They must
be rated to 60 MPH and maintained at the correct tyre pressures. As with
motor vehicles, it is illegal to drive with a mix of radial and crossply tyres on
the same axle. Option: a spare wheel and fixing kit is available and is highly
recommended for safety and convenience.
6) ELECTRICAL CONNECTIONS
The electrical fitments are based on the European standars system equiva-
lent BS 149A.
Contact Block N°1 - Left indicator (Yellow or orange wire)
Contact Block N°2 - Fog lamp (Blue wire)
Contact Block N°3 - Earth (White wire)
Contact Block N°4 - Right indicator (Green or violet wire)
Contact Block N°5 - Right tail + N°plate lights (Brown wire)
Contact Block N°6 - Stop lights (Red wire)
Contact Block N°7 - Left tail + N°plate lights (Black wire)
7) REGISTRATION
The number plate of the trailer must be identical to the towing vehicle.
The size of the number plate should be as per BSI standard 520 MM.
Hand written number plates are not acceptable and are illegal.
(Total gross weight of an unbraked trailer includes the weight of the trailer
and the load). It is an offence to load the trailer to more than its marked
gross weight.
TRAILER LAW
The following brief explanation of legislation governing the construction and use of trailer is
given as a guide.
Because legislation and regulation is subject to interpretation, we cannot be held reponsible,
this is not a statement of regulations, only a guide if you are in any doubt you should consult
the DEPT OF TRANSPORT.
THE TRAILER
TOWING WEIGHTS
MGVS (Maximum Gross Vehicle Weight) - WEIGHT OF TRAILER + LOAD.
1 - MGVW of a trailer fitted with over-run brakes 3 500 Kgs
2 - MGVW of an unbraked trailer must not exceed 750 Kgs
or 50% of the kerb weight of the towing vehicle, whichever the lower.
SUSPENSION: All trailers must be fitted with a suspension device on all wheels.
COUPLING : Either a ball (50 MM) or an eye type may be used.
Braked trailers must be fitted with auto-reverse brakes and the coupling must be
hydraulically damped. This is now a requirement but some older trailers may be exempt.
NUMBER PLATE : A rear number plate must be fitted and must be yellow reflecting
with the same registration number as the towing vehicle. The plate and numbers must
conform to BSAU145A. They cannot be hand written.
WHEELS AND TYRES : All trailer wheels and tyres for road use must be pneumatic
and capable of carrying MGVW. They must be rated up to 60 MPH and be maintened at
the correct pressure. As with cars, it is illegal to mix radial and crossply tyres on the
same axle.
MUDGUARDS : Mudgards must be fitted to all wheels, if adequate protection is not
given by the body of the trailer.
DIMENSIONS :
* Max length of 2 or 4 wheel trailers 7 metres
* Max length of 4 wheel trailers 12 metres
(Providing the max gross weight of the towing vehicle exceeds 3500 Kgs)
* Max length of trailer and vehicle 12 metres
* Max width of trailer or vehicle 2,3 metres
* Max width, if towing vehicle MGVW exceeds 3500 Kgs 2,5 metres
BRAKES : When brakes are required on the trailer they must be fitted to all wheels.
LIGHTS AND PROTECTORS : Trailer must be fitted with lights and reflectors. Bulbs
and reflectors must be 'E' or 'e' marked.
MAINTENANCE : it is requirement that all trailers are maintained and used in a
roadworthy condition and comply with the various regulations at all times.
LABELS: the maximum gross trailer weight of an unbraked trailer (up to
750 Kgs MGVW) must be marked on the trailer.
THE TOWING VEHICLE
The maximum gross trailer weight of an unbraked trailer (in the U.K.) is
750 Kgs or 50 PCT of the kerb weight of the towing vehicle.
The maximum gross weight of both braked and unbraked trailers should not however
exceed those stated in your vehicle hand book or the weight rating of your tow bracket.
TOW BRACKET
A towing bracket which conforms to the British standard AU24/1989, should be fitted to
the towing vehicle.
LIGHTING
Trailer lights are generally connected to the towing vehicle by means of a 12N plug and
12S socket. It is recommended that these are wired to BS AU149A.
If the towing vehicle is fitted with rear fog lights, a CUT-OUT is advisable.
A means of audible or visual warning is required to be fitted in the towing
vehicle to detect such failure of indicator lamp.
Care should be taken in stowage of the 12N and 12S plugs when not
connected, to avoid unnecessary damage.
USING THE TOWING VEHICLE AND TRAILER AS A COMBINATION
A trailer being towed by a passenger vehicle or commercial vehicle less that
7,5 tonnes GVW, must conform to the following maximum speeds:
60 MPH on motorways
60 MPH on dual carriageways and roads
50 MPH on other roads
Unless lower speeds are in operation.
A trailer must not be towed in the outside lane of a 3 lane road or motorway
LOADS
It is critical to your safety that trailers are never overloaded beyond their
design capability in such a way as to make it unsafe.
All loads should be evenly distributed and secured.
