Ergo PrimeCables Cab-PC-08164 User manual

1
2
3
4
6
5
A
1
C
D
6
B
E
8
F
63
3 2 4 1
718
1 3 2 3
51
F
7
11
9
2
4
D
F
4x4
Dx12
5
2
F
D
12
16
24
F
C
2
2
C
F
4
1
Cx12
F
4x4
1
5
4
9
1
10
8
10
5
Ax6
F
4x4
6
A
F
Item No.: Cab-PC-08165

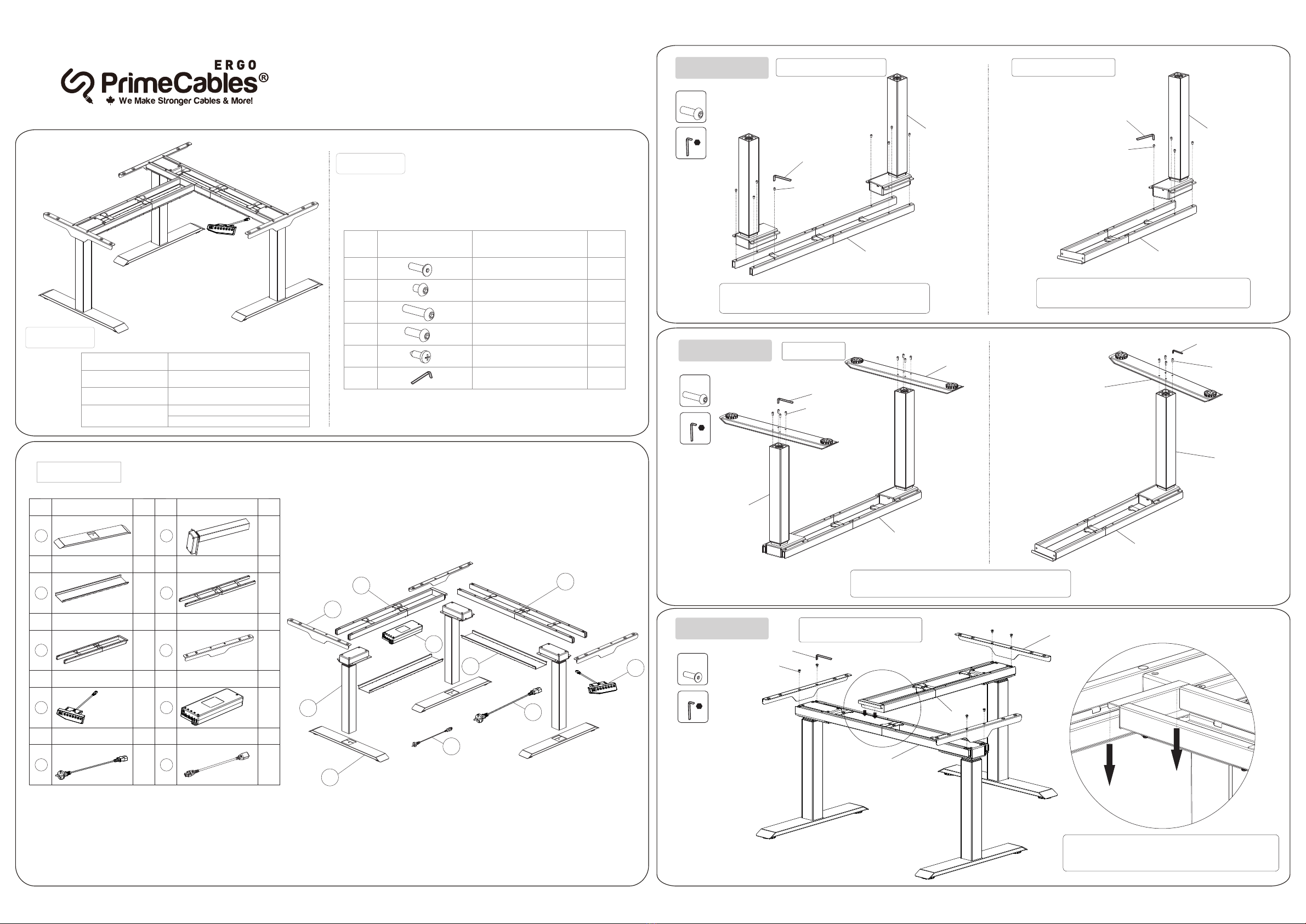

Installation guide
150KG
580-1230mm
1100-1900mm
3
1260-1860mm
Technical data
Column qty
Max. Weight
Capacity
Height Range
Width Range
Accessory list
Attention: The drawings below are only for reference which might be slightly
different from the actual object, please in kind prevail. Any tools missing or
installation problems, please contact the customer service firstly.
No. Image Spec Qty
M6
M6
M6
M6
St4.2
Wrench
4x4mm
Component list
No. Part Qty No. Part Qty
No. Part Qty No. Part Qty
No. Part Qty No. Part Qty
No. Part Qty No. Part Qty
No. Part Qty No. Part Qty
Feet Lifting Column
Supporting Beam
Cable Management
Auxiliary beam Supporting plate
Hand Switch Control Box
Cable
Power cable
STEP 1 Install supporting beam(4)
Install lifting column (2)and supporting beam (4)
together, use wrench (F) to tighten the screws (D).
Install auxiliary beam(5)
Install lifting column (2) and auxiliary beam (5)
together, use wrench (F) to tighten the screws(D).
STEP 2 Install feet (1)
Install feet (1) and lifting column (2) together, use
wrench (F) to tighten the screws (C).
STEP 3 Install Auxiliary beam (5) and
Supporting plate (6)
Buckle in the auxiliary beam (5) to the supporting
beam (4), and the specific position can be selected
according to the tabletop.

Bx8
F
4x4
8
7
10
2
Ex21
E
4
5
7
3
Bx8
F
4x4
1
2
3
B
F
8
3
8
F
4x4
3
54
9
Dx4
B
D
A C
H S M 1M 2 D CM 3
8
STEP 4
Connect All the Cables onto the
Control Box(8)
Port for
hand switch
Power port
Port for cable
connected to the
lifting column
STEP 5 Install the Tabletop, Hand Switch(7) and Control Box (8)
The expansion of the supporting
beam can be adjusted according
to the actual use.
Loosen
Pull
Tighten
STEP 6-A Install the Cable Management Tray (3)
Way 1
Buckle in
Buckle in the
other side
Tighten
The control box need
to install on the
tabletop
Firstly, screw the screw (B) into the supporting beam (4) with Allen Key (F),
and not tighten completely. Buckle one side of the cable management tray (3)
into the screw (B), then press the other side into the screw (B). Finally, the
screw (B) is locked with Allen Key (F). The cable management tray (3) on
the auxiliary beam (5) are installed in the same way.
STEP 6-B Install the Cable Management Tray (3)
Way 2
The Installation of cable management
tray (3) are installed in the same way
as Way 1 in Step 6-A.
The cable management tray (3) should be
mounted on the middle connecting rod when
the frame is stretched more than 1720 mm.
The length of the supporting
beam should not exceed this
hole position.
Common fault treatment
The following tips will help you detected and eliminate the common fault
and error.If the fault you met is not listed below, please contact with your
supplier. Only themanufacturer and professionals are capable for investigating
and correcting those fault and error.
Fault phenomenon Method
No response while long pressing
down arrow after connected with
a power supply
1.Check if all the cables be connected well
1.Check if all the cables be connected well
2.Contact your supplier or dealer
2.Contact your supplier or dealer
No response while pressing up
arrow/ down arrow after
connected with a power supply
Rising in a low speed
1.Check if overloaded, max loading: 150kg;
1.Check if overloaded, max loading: 150kg;
1.Check if overloaded, max loading: 150kg;
2.Contact your supplier or dealer
2.Contact your supplier or dealer
2.Contact your supplier or dealer
The motor not move as instructed 1. Contact your supplier or dealer
1.Reposition
2.Contact your supplier or dealer
Go down but not go up
Downward sliding
Frequently Reposition
Overwork
（Duty cycle:Max 2min on/18min OFF）
1.Restart after suspend for 18mins while
connecting with power;
2.Contact your supplier or dealer;
1. Press "M"and "3" together for 3 seconds or
more, after hearing continuous beeping for twice,
it will restore factory settings
Not enough up&down height
2.Contact your supplier or dealer
Attention
1. Power supply: AC100V-127V/200V-240V,50/60Hz
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet
dishcloth when cleaning, be careful not to let the drops into the internal parts, not loose
the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so
dispose of it in accordance with each country's environmental legislation, not the
general household waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when
playing, so any dangerous consequences caused by this improper action will not be on
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not
have any effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure
that the cleaner used will not pollute the environment.
10. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person in order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g.,
do not litter the tools around. Always be careful to treat the packaging materials in order
to avoid any possible danger, e.g. plastic bag may lead to choking hazard to children.
14. Keep the original package of the equipment if necessary in case of the future use in
transportation.
●“▲” Adjust the desk upwards
●
●
●
●
●
●
“▼”
“1”
Adjust the desk downwards
Position 1, first height position saved by user
Position 2, second height position saved by user
Alarm button for reminding of keeping same
position for long time
Position 3, third height position saved by user
Memory button for height memory function
“2”
“3”
“M”
“A”
LED display
Button
How to use handswitch Instruction
• Press the UP button or DOWN button to lift or lower the height of desk surface. The LED display
shows the real time value. The range of the height value: 58.0cm-123cm.
• Saving A Height Position
a. Press the UP button or DOWN button to lift or lower the height of desk surface. For instance, you
adjust the height to 80cm.
b. Press "M" SAVE button and the LED display shows" ", then press "1" to save the 1st height
position to 80cm. The LED display shows " ".
c. Repeat step a and step b to save the 2nd height position to 100cm The LED display shows " ".
Save the 3rd height position to 120cm The LED display shows " ".
d. Press "1", "2","3", to automatically reach the height saved before.
• Long-Time Sitting Reminder
a. Press REMINDER button "A" to activate the function. The LED display shows " "
b. Two seconds later, press the "▲" or "▼" button to adjust the reminder time only when the display
screen flashes. Then press any button to save the time setup, or wait 5 seconds and system will
save the time setup automatically. During the countdown, any operation will lead to a repeat
starting of the timer. When the countdown finishes, the buzzer will be active with a 10-second
"DiDi...DiDi...DiDi..."tone.
c. Within the 10-second reminder buzz, press any button to reactivate the time countdown that is
set up in (b) step. If no operation during the 10-second reminder buzz, there will be another
reminder buzz after 5 minutes. No operation during the second buzz will turn off the Long-Time
Sitting Reminder.
d. Press and hold the "A" button for three seconds to turn off the Long-Time Sitting Reminder. The
LED display shows " ".
Waste disposal
This marking indicates that this product should not be disposed with other household wastes.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe
recycling.
