Introduction
The upCentric™height adjustable table allows sedentary workers to easily
alternate between seated and standing positions throughout the work day
to reduce backaches and pains, reduce stress and tension and improve
circulation throughout the body.
Moving the table is intuitive with the easy-to-use up/down control. The quiet
motors housed in each of the table’s legs ensure a quick, smooth transition
in positions.
The sturdy upCentric frame accommodates a variety of dierent table top
widths to make retrotting the table for new users and areas very economical.
The durable open frame design provides optimal knee clearance and space
for storage.
Sit down. Stand up.
A healthy way to work.

5
Important Information
• Always make sure all screws are tightened before
use of the table and after moving or transporting.
• Duty cycle of the frame for desk is 10 %, max.
2 minutes operating/min. 18 minutes stop.
• Maximum load of the table is 300 lbs. (136kg).
Ensure the loading on each leg is less than 150 lbs (68kg)
otherwise it might cause permanent damage to the
leg(s) during operation.
• When the motor cable is connected to the control box
the legs can maintain an adequate locking force up to
300 lbs. (136kg) load on the table top. However, when
the cable is damaged or is disconnected from the control
box, it will cause the desk to sink to the bottom within hours
if the load on either leg is larger than 150 lbs (68kg).
• Make sure that no persons or items will collide with the
table, when adjusting upwards and downwards.
• Damaged cords must be replaced before connecting
the main power cable.
• Keep at least ¾" of free space around the whole
frame/tabletop.
• The upCentric is not intended to be used as a person lift.
• Do not pull or push the table if adjusting.
• Do not lift the frame above the table o of ground
when adjusting.

6
Safety Instructions
Before Installation/Reinstallation
Make sure that the table is being installed as described in the “Connection”
section, page 12 in this Owner’s Manual. When installing and using electrical
equipment, basic safety precautions should always be followed to avoid a risk
of re, electric shock, or injury to persons :
1. If the power cord is damaged it must be replaced.
2. Do not open any electrical components
(control box, motor housing, handset).
3. Never drop or insert any object into any opening.
4. Make sure the correct tools and assembly parts are
used when assembling the system.
5. Before transporting the table, always remove the
power cord from main power supply.

7
During Operation
1. Not intended for use by children.
2. For indoor use only.
3. Do not use table when the load exceeds 300 lbs. (136kg)
4. Always unplug the table from the electrical outlet
before cleaning.
5. Unplug from outlet before installing or
removing parts.
6. Keep the cord away from heated surfaces.
7. Do not operate where aerosol (spray) products are
being used or where oxygen is being administered.
8. To disconnect, lower table to minimum height,
then remove plug from outlet.
9. If table is heavily loaded, keep load away from
edges to prevent the possibility of the table
tipping over.
10. Any servicing is to be performed by an authorized
service representative. Contact service@ergocentric
or 1 866 438 3746 for more information.
11. Make sure that no persons or items will collide
with the table when adjusting upwards
and downwards.
12. If the control box or the legs make any unusual
noises or smells, immediately unplug table from
power supply.

8
Assembly Instructions

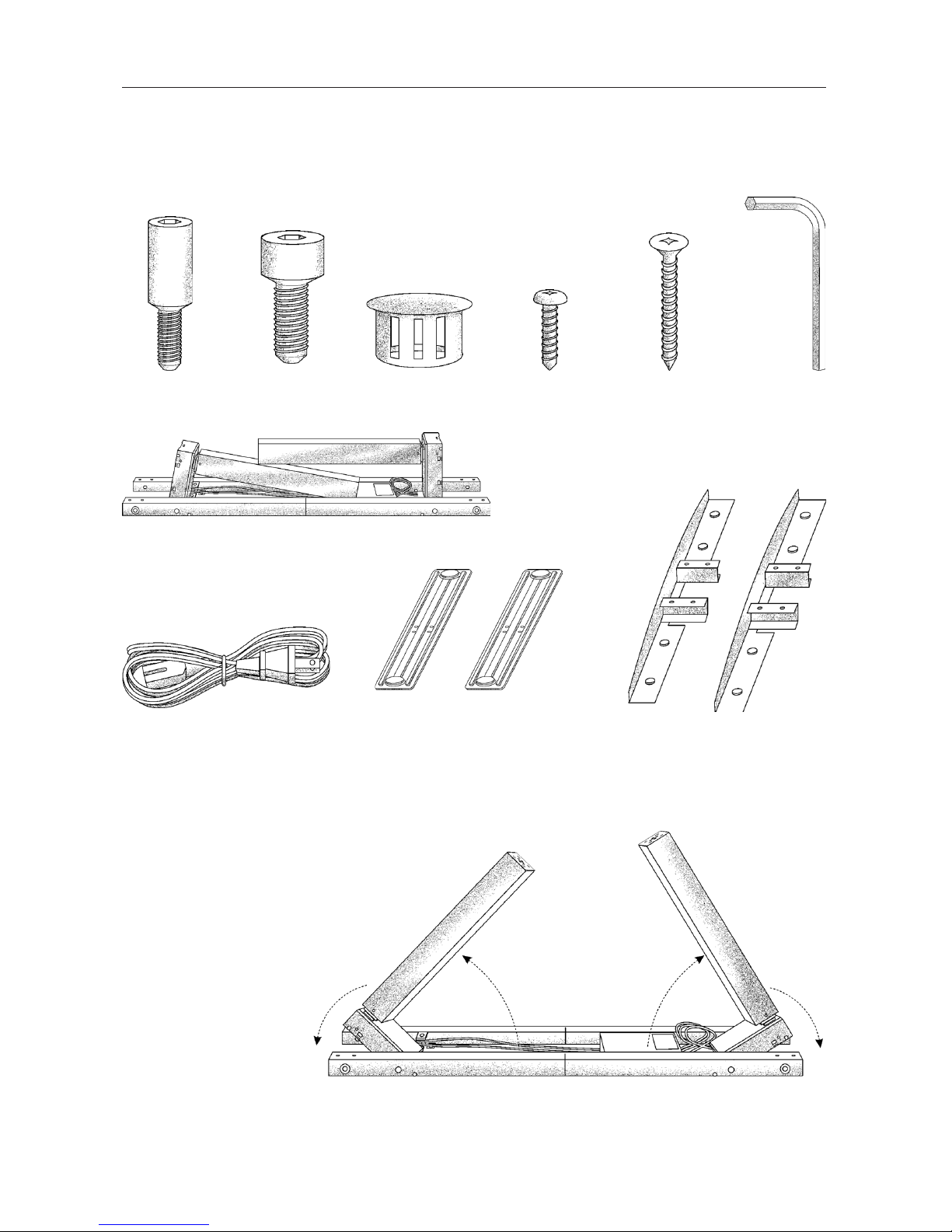

Parts
B x8
C x4
F x1
G x1
H x1
J x2
E x2 A x4 D x14
I x2
Step 1: Place frame (H) on
oor and fold legs out into
a vertically upright position.
* These 4 bolts are already inserted in the upCentric frame
*

9

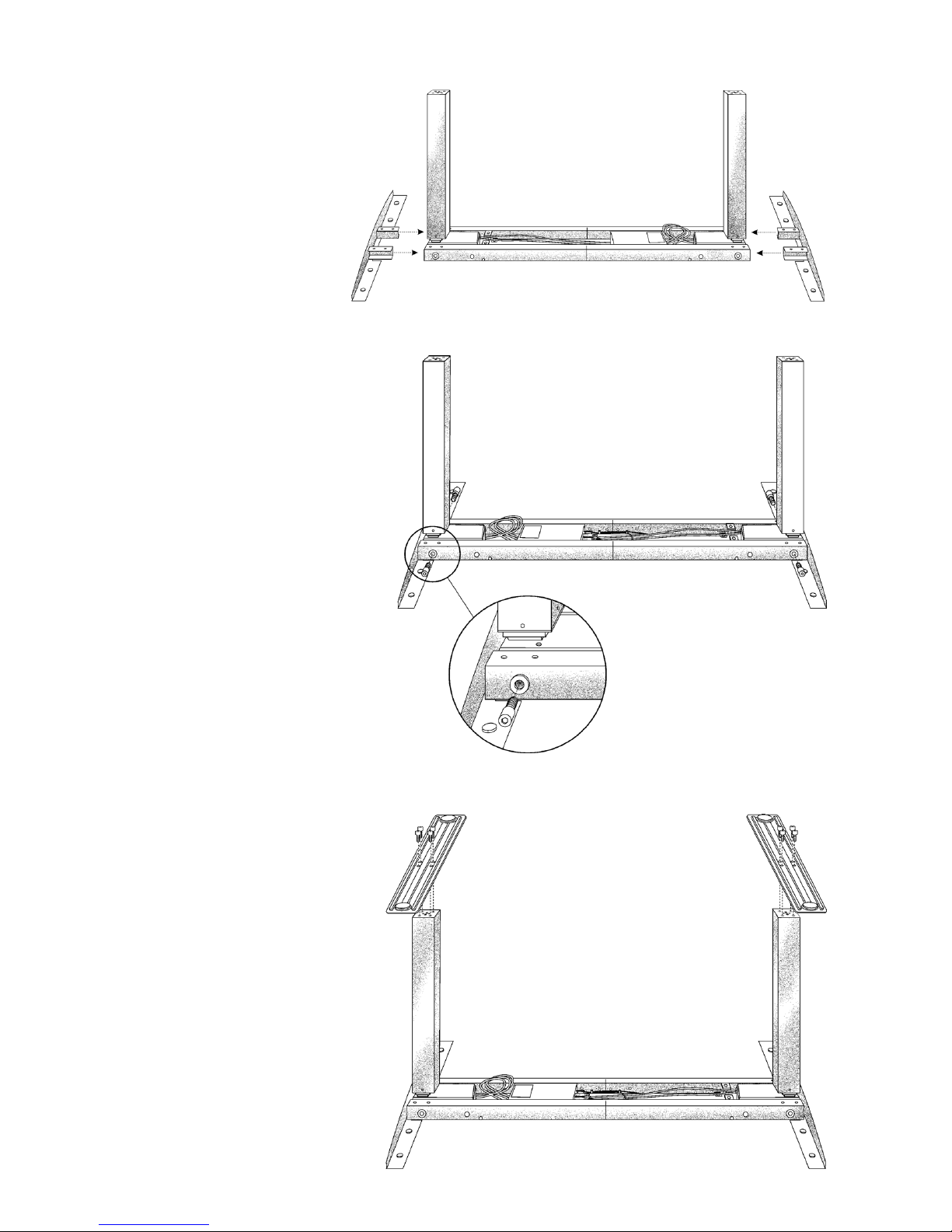

Step 2: Insert brackets (I)
into ends of table frame.
Step 3: Fasten brackets
and legs into place with
bolts. (A)
Step 4: Attach feet (J) to
the ends of the table legs
with bolts. (B)

10
Step 5: Adjust the table frame
width IF REQUIRED.
Ideal frame width: 2"- 4"
(5.08cm - 10.16cm) in from
edges of the tabletop.
(ie. 58"(147.32cm) wide tabletop, ideal
frame width would be 52"-56"
(132.08cm - 142.24cm) wide)
Step 5: Cont.
5.1 : Unclip wires from wire clips
(shown with circles) and loosen
8 bolts on inside of frame
(shown with arrows).
5.2 : Adjust frame by sliding each
side in opposite directions to the
desired width.
5.3 : Retighten 8 bolts on inside of
frame to secure the frame at the
desired width. Reclip wires back
into wire clips.
Step 6: Add plugs (C) into holes
on each side of the frame.

11
Step 7: Run power cord (G) and
control button wire through frame
at desired locations.
7.1 : Plug power cord into back
of control box.
7.2 : Run power cord through
the inlet hold on side of frame.
7.3 : Run control button
wire through the inlet hole on
opposite side of power cord
inlet hole. (plastic wire cover
clips into inlet hole).
Step 9: Reset control box before adjusting. Press and hold both up and
down buttons together for 3 to 5 seconds until you hear a beep.
7.1
7.2
7.3
Step 8: Attach table top and
control buttons.
8.1 : Place the frame in the center
of the table top and attach frame
to table top with 14 screws.(D)
8.2 : Attach control buttons to
the table top with screws (E) and
secure all loose wires into wire
clips on underside of frame.
8.1
8.2

12
Connection
Before the control box is connected to the main power supply, the individual
parts of this table must be connected as described below:
Step 1.
Motors (legs) must be connected with control cox using enclosed cables.
Step 2.
Handset must be connected with control box.
Step 3.
Control box must be connected to power supply.
Make sure to place the table on an equal leveled floor, or use adjusting
screws to level the frame. Make sure that all cords are long enough when the
frame is in both highest and lowest positions.
The control box is normally pre-assembled between the outer pipes,
underneath the table top. Handset is normally mounted underneath the table
top in a reachable distance for the user.
Getting Started
The rst time a table is assembled it must be reset before use.
How to Reset
Press and hold the up/down buttons on the handset at the same
time for 3 seconds.
Continue holding the buttons until both legs reach the lowest position.
When nished resetting, the handset will make a sound and the buttons can
be released.
Operation
Make sure the table is being installed as described under the “Connection
Section” in this user guide. When installing and using electrical equipment,
basic safety precaution should always be followed to avoid a risk of fire,
electric shock or injury to persons.
Press and hold the up button to raise the desk.
Press and hold the down button to lower the desk.

13
How to Set a Memory Postion
Use the up and down buttons to adjust table to the desired height.
Hold the up button and the desired memory button (1, 2, 3 or 4) together
until it beeps and P1, P2, P3 or P4 is shown on the display screen.
How to Move Table to a Saved Position
Press and hold the memory button (1, 2, 3 or 4) until the table adjusts to the
saved position.
Anti-Collision Safety Feature
The control box for the upCentric table frame includes an anti-collision function
which may reduce damage to the table in the event of collision with a rm
object. When the table is raised/lowered, the power consumption of each leg is
monitored and compared to a predetermined value. If the power consumption
for the legs is increased relative to a predetermined value, the system assumes
that there is an obstruction (collision) and the table will stop and then run in the
opposite direction up to three inches.
The sensitivity of this anti-collision feature is dierent when moving downwards.
The anti-collision activates with an applied force of 45lbs (20kg) when moving
upward, or with an applied force of 85lbs (38.5kg) + weight of the tabletop and
what is placed on the table when moving downward.
Situations where the anti-collision is not activated :
• If the collision occurs during the reset operation.
• If the collision occurs within the rst 2 seconds after de-activating
the handset.
• If the collision occurs downwards and the load on the table
and what is placed on the desktop is less than 85lbs (38.5kg)
• If the collision is not with a solid object.
Energy Preserving Feature
When the upCentric table is left in position for more than 3 minutes, it will go
into standby mode in order to reduce energy consumption. When adjusting
your table after a dormant period, hold the up or down button to take table
out of standby mode.

14
Problem Observe Solutions
The frame will not move. • Is the power cable connected
to the main power supply with
correct voltage ?
• Make sure that all plugs are
mounted correctly in the control
box and to the legs.
• One or more legs/cables
are defective.
• Look for visible damages on
cables, control box and legs.
• Connect plug to main power supply to make sure the voltage is ok.
• Check all connections.
• Perform reset and move upwards slightly.
If the table will not move upwards after reset it is defective.
• Damaged parts must be exchanged – contact ergoCentric.
The frame operates irregularly
or is tilted.
• Visual observation. • Perform reset.
The frame stops and can
only move downwards.
• Is the frame in highest position ?
• The frame could be overloaded.
• When the frame has reached the maximum height,
it will only move downwards.
• Remove some of the load and perform again.
The frame will only move downwards
even though frame is not overloaded.
• Visual observation. • Perform reset.
The frame always stops at the
same position, before reaching
maximum height.
• Has the system been
programmed to this
specic height ?
• Perform reset.
Not all legs move when adjusting
the frame downwards.
• The leg that does not move
could be defective or the
cable connection for the leg
is not ok.
• Check all connections, then perform reset.
If a leg will not move after reset it is defective.
• Damaged parts must be exchanged – contact ergoCentric.
Troubleshooting
Disposal Guidance
upCentric height adjustable tables may be disposed by dividing them into
dierent waste groups for recycling or combustion. We recommend that
the upCentric is disassembled as much as possible before disposal. Main
groups within sorting of waste : metal, plastic, cable scrap, combustible
material and collection for recoverable resources.

15
Problem Observe Solutions
The frame will not move. • Is the power cable connected
to the main power supply with
correct voltage ?
• Make sure that all plugs are
mounted correctly in the control
box and to the legs.
• One or more legs/cables
are defective.
• Look for visible damages on
cables, control box and legs.
• Connect plug to main power supply to make sure the voltage is ok.
• Check all connections.
• Perform reset and move upwards slightly.
If the table will not move upwards after reset it is defective.
• Damaged parts must be exchanged – contact ergoCentric.
The frame operates irregularly
or is tilted.
• Visual observation. • Perform reset.
The frame stops and can
only move downwards.
• Is the frame in highest position ?
• The frame could be overloaded.
• When the frame has reached the maximum height,
it will only move downwards.
• Remove some of the load and perform again.
The frame will only move downwards
even though frame is not overloaded.
• Visual observation. • Perform reset.
The frame always stops at the
same position, before reaching
maximum height.
• Has the system been
programmed to this
specic height ?
• Perform reset.
Not all legs move when adjusting
the frame downwards.
• The leg that does not move
could be defective or the
cable connection for the leg
is not ok.
• Check all connections, then perform reset.
If a leg will not move after reset it is defective.
• Damaged parts must be exchanged – contact ergoCentric.
If solutions are not eective, contact ergoCentric®for further assistance.
Phone : 1 866 GET ERGO (438-3746)
Email : ser[email protected]
Do not dispose of electrical appliances as unsorted municipal waste; use
separate collection facilities. Contact your local government for information
regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging your health and
well being.

16
Présentation
Avec la table ajustable en hauteur de la collection upCentricMC, les travailleurs
sédentaires peuvent aisément alterner dans la journée entre la position assise
et la position debout, ce qui contribue à réduire les maux de dos, diverses
douleurs musculaires, le stress et les tensions, sans compter que la circulation
sanguine s’en trouve améliorée.
Le réglage de la hauteur du plan de travail est intuitif avec les commandes
manuelles « Up » et « Down » qui sont d’utilisation facile. Les moteurs
silencieux enchâssés dans les colonnes du piètement permettent de
repositionner le plateau à diérentes hauteurs, avec rapidité et sans heurts.
Très solide, le piètement upCentric peut recevoir une variété de plateaux
de largeurs différentes, donnant ainsi la possibilité, à très peu de frais,
d’adapter la table aux besoins d’autres utilisateurs ou de locaux nouveaux. De
conception durable, ce châssis à structure ouverte ore un espace optimal
pour les genoux et de la place pour du rangement.
Informations importantes à retenir
• S’assurer d’avoir bien serré toutes les vis du châssis avant de l’utiliser
pour monter le poste de travail, surtout s’il a été déplacé ou transporté
dans un autre lieu.
• Le facteur de service est de 10 %; ceci signie que les colonnes du
châssis peuvent fonctionner pendant deux minutes en continu et
qu’elles seront ensuite arrêtées pendant 18 minutes au minimum.
• Capacité maximale de charge : 300 lb (136 kg), également répartis.
Veiller à ce que la charge supportée par chacune des colonnes
Assoyez-vous. Levez-vous.
La façon santé de travailler.

17
demeure inférieure à à 150 lb (68 kg), à défaut de quoi l’on risque de
les endommager de façon permanente pendant les manœuvres.
• Une fois que le câble du moteur est branché au boîtier des commandes
principales, les colonnes peuvent maintenir une force de verrouillage
susante pour supporter le plan de travail avec une charge maximale
de 300 lb (136 kg). Par contre, si le câble est endommagé ou débranché
du boîtier des commandes principales et si la charge au-dessus de l’une
ou l’autre des colonnes est supérieure à 150 lb (68 kg), le plan de travail
glissera vers le bas en l’espace de quelques heures.
• Veiller à ce qu’aucun obstacle (une personne ou un objet) n’entre en
contact avec la table lors de sa manœuvre, que ce soit vers le haut
ou vers le bas.
• Les cordons ou ls électriques endommagés doivent être remplacés
avant le branchement du câble d’alimentation principal.
• Maintenir un espace libre de ¾ po de rayon au minimum autour
du piètement et sous le plan de travail.
• La table upCentric n’a pas été conçue pour soulever des personnes.
• Éviter de tirer le plateau ou de le pousser
• Et éviter de lever le châssis en cours de réglage de la hauteur.
Consignes de sécurité
Avant l’installation et l’utilisation
Veiller à ce que l’installation respecte les instructions gurant à la rubrique
Branchements à la page 23 de la présente Notice d’utilisation. Comme
pour tout appareil électrique, avant d’installer et d’utiliser cette table, des
précautions élémentaires s’imposent en tout temps pour éviter le risque
d’incendie, de choc électrique ou de blessure, à savoir :
1. remplacer impérativement tout cordon ou l électrique endommagé
pour éviter tout risque ;
2. ne jamais ouvrir les composants électriques (boîtier des commandes
principales, boîtier du moteur, boîtier des commandes manuelles) ;
3. ne jamais jeter ou insérer un objet dans une ouverture;
4. s’assurer d’utiliser les outils et les pièces approprié pour l’assemblage; et
5. avant de déplacer le piètement, veiller à toujours débrancher le câble
d’alimentation principal.

18
Utilisation
1. Appareil non destiné à l’usage d’enfants.
2. Conçu pour utilisation en intérieur uniquement.
3. Ne pas manoeuvrer l’appareil s’il supporte un poids excédant
300 lb (136 kg).
4. Veiller à toujours débrancher l’appareil avant de le nettoyer.
5. Veiller à toujours débrancher l’appareil avant d’installer ou
de désinstaller des pièces.
6. Tenir le câble d’alimentation éloigné des surfaces chauées.
7. Ne pas manœuvrer l’appareil dans des espaces où des aérosols sont
pulvérisés ni dans des locaux où de l’oxygène est administré.
8. Pour débrancher l’appareil, abaisser la table au maximum et retirer
ensuite le câble d’alimentation de la prise de courant.
9. Si la table est trop lourdement chargée, veiller à répartir la charge
loin des bords pour éviter que l’appareil ne bascule.
10. L’entretien ne doit être eectué que par un technicien autorisé.
Contactez-nous au service@ergocentric ou 1 866 438-3746 pour
obtenir plus d’information.
11. Éviter que des personnes ou des objets susceptibles d’obstruer le
mouvement de la table ne se trouvent à proximité lors du réglage
de sa hauteur.
12. Si le boîtier des commandes principales ou les colonnes du
piètement font des bruits inhabituels ou dégagent des odeurs,
débrancher immédiatement l’appareil.

19
Instructions pour l’assemblage
Pièces
B x8
C x4
F x1
G x1
H x1
J x2
E x2 A x4 D x14
I x2
Étape 1: Poser le châssis du
piètement (H) sur le sol et
redresser les colonnes en
position verticale.
* Les quatre boulons sont déjà insérés dans le cadre upCentric
*

20
Étape 2: Insérer les ergots
des montants (I) aux deux
extrémités du châssis.
Étape 3: Fixer les
montants et les colonnes
en place avec les
boulons A.
Étape 4: Fixer les
pieds (J) aux extrémités
des colonnes avec les
boulons B.
