ergolet Luna IPx4 Installation instructions

LunaIPx4
Ceiling hoist
User instruction
Important information
This user instruction must be read
before the product is used.
This user instruction is intended for
technicians, installers, therapists and
other personnel, in connection with
the use, servicing and maintenance of
the LunaIPx4 ceiling hoist.
Date: 02.12.2013 - Version 04
Scan the QR code for further information

2
!

3
CONTENTS
1. Purpose, safety and use
1.1 Purpose 4
1.2 Safety instructions 4
1.3 Before use 5
1.4 Terminology 5
1.5 Unpacking 6
1.6 Transport 6
2. Installation and operation
2.1 Installation and dismantling of the ceiling hoist 7
2.2 Mounting and detaching the spreader bar 8
2.3 Pictograms and functions 10
2.4 Operation 11
2.5 Operation of safety functions 11
2.6 Charging 13
3. Using Luna
3.1 Using lifting slings 14
3.2 Room to room transfer 15
3.3 Using Luna in a shower environment 17
4. Maintenance
4.1 Cleaning 17
4.2 Storage 17
5. Check, warranty and troubleshooting
5.1 Annual check and warranty 18
5.2 Troubleshooting 18
6. Technical data and dimensions
6.1 Technical specifications 19
6.2 Dimensions 20
7. Environment and quality
7.1 Disposal 21
7.2 Quality 21
7.3 Symbols and abbreviations 22
8. Accessories 23

4
1. PURPOSE, SAFETY AND USE
1.1 Purpose
The LunaIPx4, referred to in this user guide as Luna, is also available in different models. If
not otherwise stated in this guide the description is valid for all models.
The Luna ceiling hoist is designed to transfer client between bed and chair/wheelchair or
from chair to toilet etc. in institutions such as nursing homes, hospitals, care centres and in
home care. The Luna ceiling hoist can be used as a ceiling mounted hoist or as a mobile
hoist in fixed or movable track systems.
Before using the Luna please read and follow these instructions:
Personnel will have received qualified instructions in using the Luna ceiling hoist.
Luna is used in suitable track systems that have been approved by Ergolet.
The installation of the track system is carried out by installers authorised by Ergolet.
Luna can only be fitted with spreader bars supplied by Ergolet.
The Luna has been developed for use with Ergolet lifting slings and other sling
products authorised by Ergolet. See Ergolet’s sling leaflet for specific information
about slings.
Luna is intended for use under normal temperatures (+2 to +40˚C) and relative
humidity (40 –90%).
If Luna is used near shower systems or bath, it should be ensured that the Luna or
hand control is not submerged (see section 3.3).
Luna should never be used in an environment containing chlorine or in other
aggressive environments.
1.2 Safety instructions
Important –Warning!
This user guide must be read thoroughly before Luna is taken into service.
All parts must be mounted correctly and according to this user guide.
There must be no indication of wear and tear on the Luna ceiling hoist, track
system or lifting sling.
NEVER begin lifting if there is suspicion of any defect (abnormal sound, loose
brackets etc.) In such cases the hoist must be taken out of service immediately and
you must contact your dealer or Ergolet.
The Luna lifting capacity is 200 kg or 275 kg and this must never be exceeded.
When using Luna in connection with other components e.g. slings or transportable
track systems it is always the component with the LOWEST weight capacity that
decides the maximum lifting capacity.
Ensure that the Luna or the spreader bar does not come into contact with the user,
when the sling is hung onto the spreader bar
Ensure that neither carers/helpers nor clients/users can be hurt during the lifting.
Never lift higher than necessary when hoisting.
!

5
1.3 Check before use
The carer is responsible for ensuring that a check is carried out BEFORE Luna and
accessories are used, including the following:
The lifting strap on the Luna is checked for wear and tear or damage. If there is
any sign of a defect, the Luna must be taken out of use immediately.
Check the up/down function, if any abnormal sound is heard the Luna must not
be used before it has been checked by a qualified technician.
When the up/down function are checked, ensure at the same time that the strap
not folds or twists. Check also that the strap moves freely into the Luna.
Lifting slings are checked for any damage especially as regards to lifting straps.
The slings must be not used if defects are detected.
If you are in any doubt concerning the use of the Luna please contact the dealer
or Ergolet for advice and guidance.

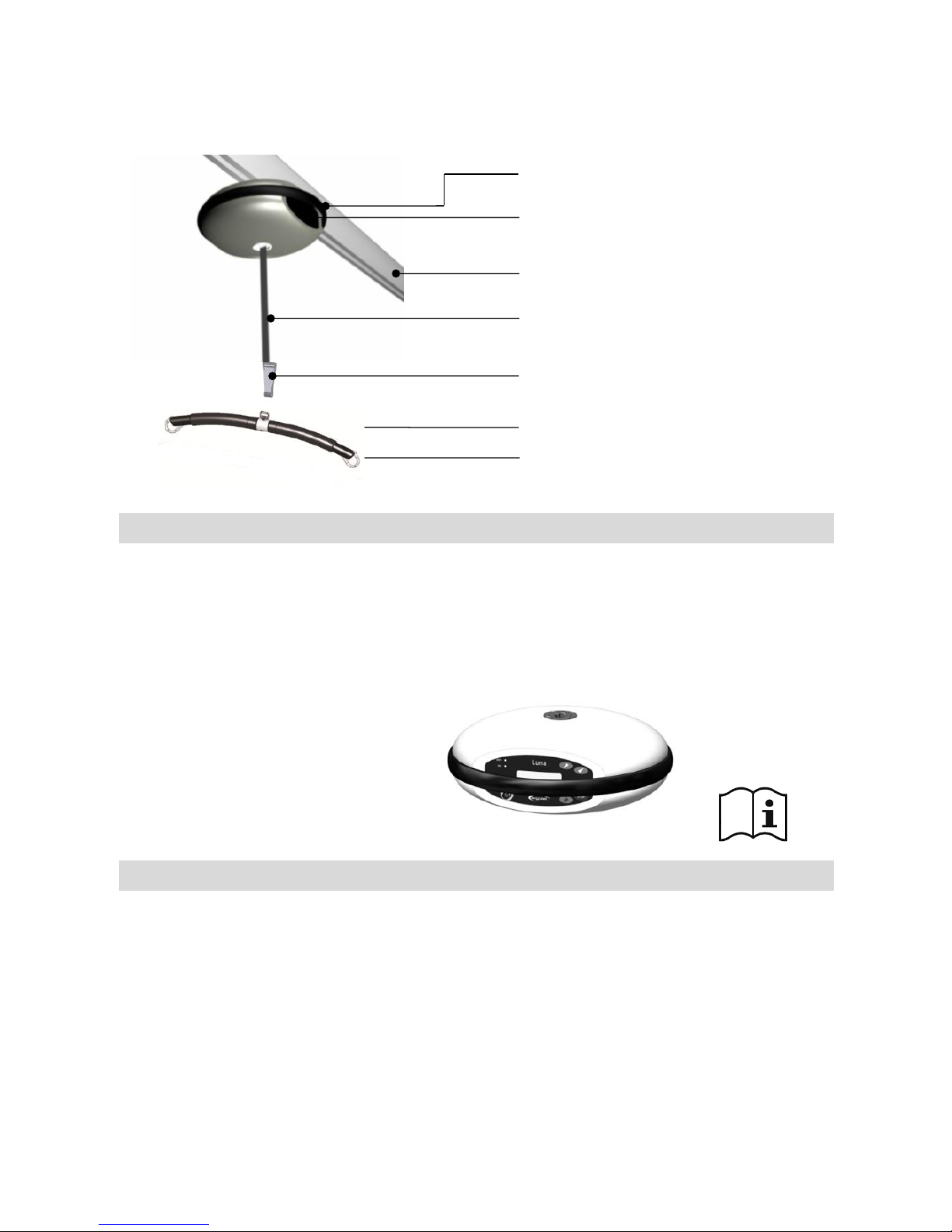

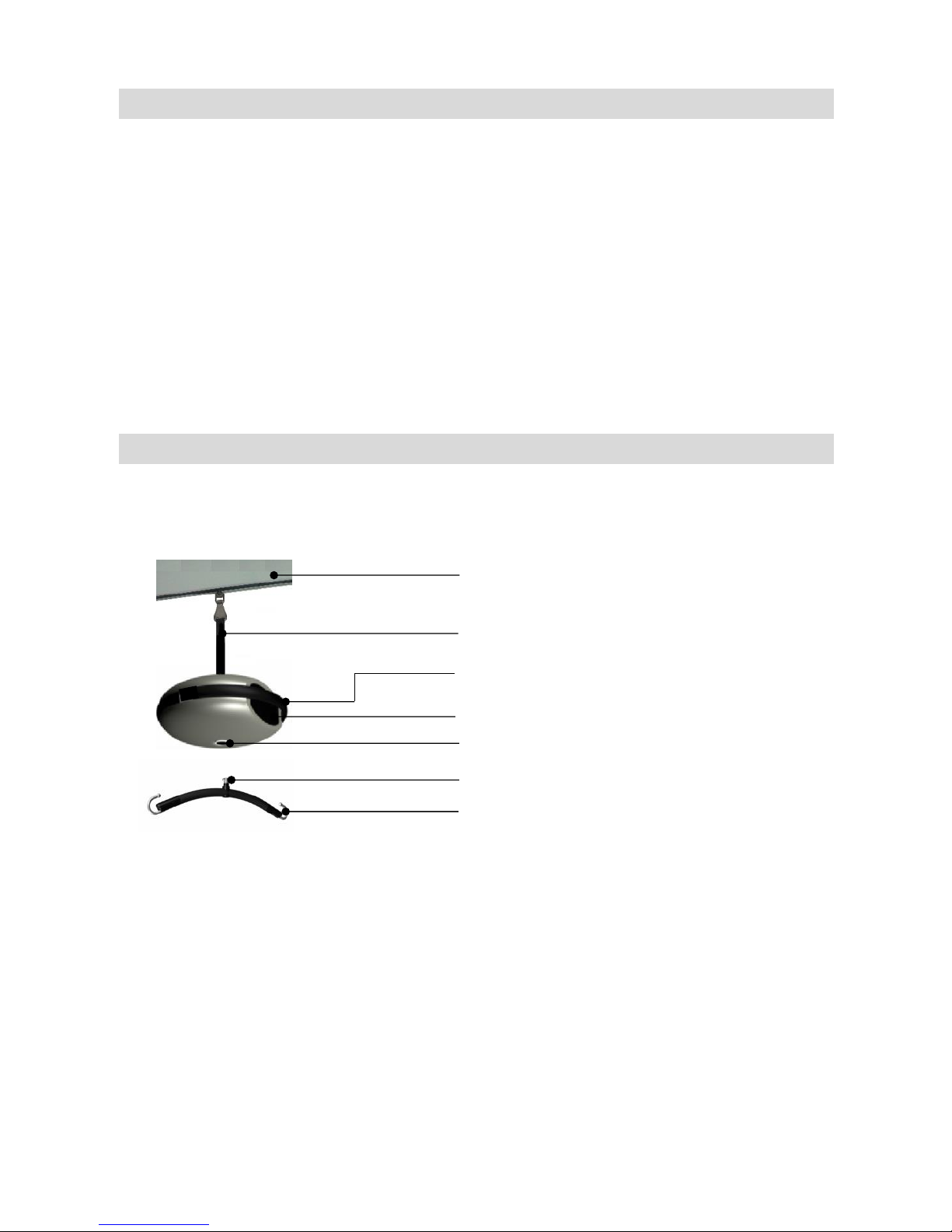

1.4 Terminology
Luna mounted on the strap
Bayonet fixing for spreader bar
Carry handle
Bayonet fixing on spreader bar
Hook for sling lifting strap
Track system
Function buttons and handset connection
Strap

6
Luna mounted on the track
1.5 Unpacking
Check that all the parts are present and undamaged. Any suspicion of damage or shortage
should be reported to your dealer or Ergolet.
We recommend that the box packaging is kept if the Luna is to be used on other sites or for
return shipment in case of repair or annual check.
Contents of the box:
Luna cassette
User manual
Hand control (accessories)
Spreader bar (accessories)
Charger (accessories)
1.6 Transport
The Luna ceiling hoist is most safely transported using the original packaging.
Symbols are printed on the packaging to ensure the best information for carrier companies.
Strap
Hook for removable spreader bar
Track system
Function buttons and handset
connection
Spreader bar
Hook for sling lifting strap
Carry handle

7
(1)
( 2 )
Fig. 2.1A

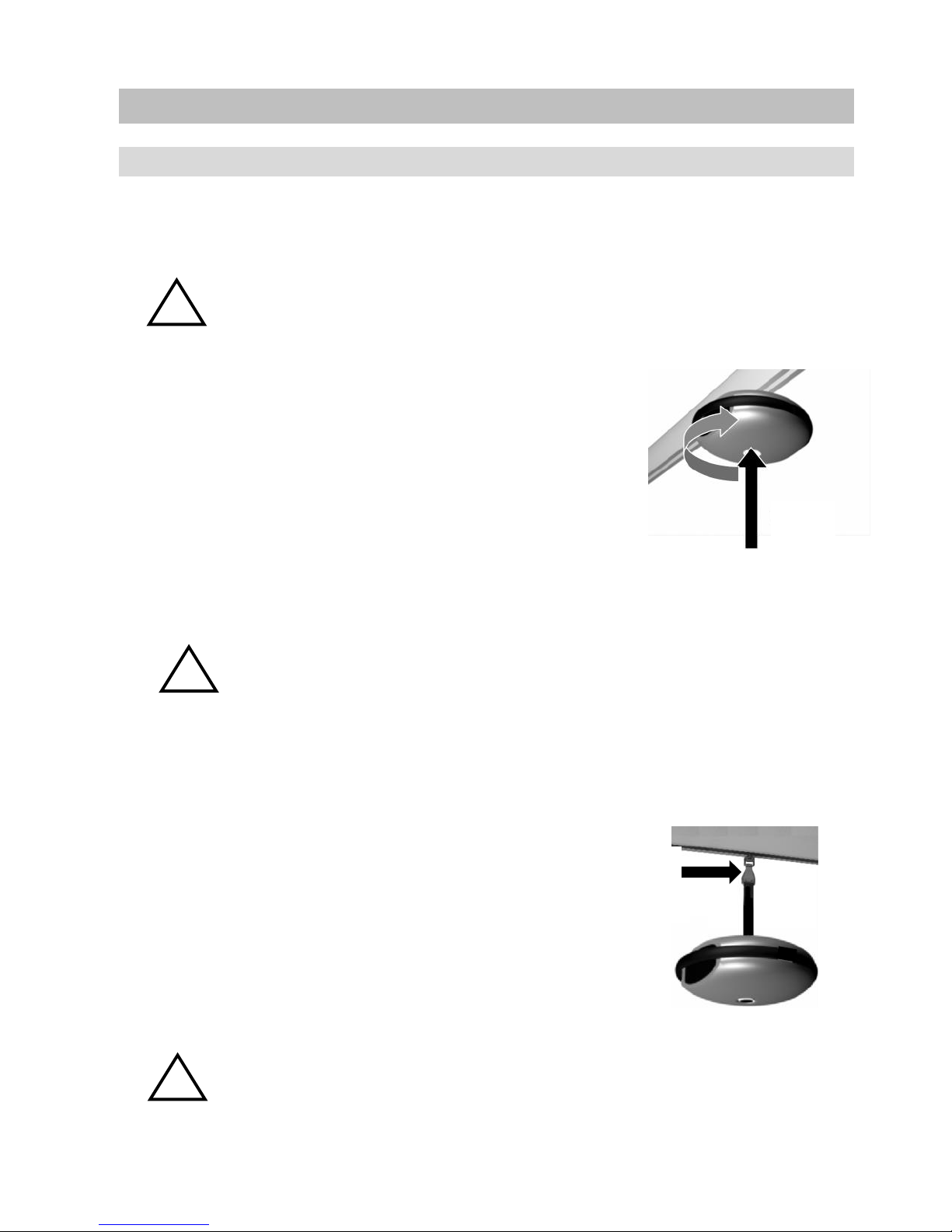

2 INSTALLATION AND OPERATION
2.1 Installation and dismantling of the ceiling hoist
Luna can be mounted in different modes to satisfy varying needs. The mode of mounting is
decided between the buyer and the Ergolet representative. The Luna ceiling hoist has been
readied for mounting in one of the following modes:
Be aware that the Luna weights 6,7 kg.
A) Luna mounted on the track
Luna is mounted directly on to the track, where a cart is also
positioned to receive the unit. This cart has a bayonet bracket
to connect with the corresponding receptacle on the Luna
(Fig. 2.1A).
1) Lift the Luna cassette up to the cart and connect the
bayonet bracket into the Luna (resistance will be felt
since the bracket is spring loaded).
2) Luna is now turned 90˚ clockwise. When Luna is in
place a click will be heard. This indicates correct
mounting.
If Luna is not mounted correctly an electronic safety device prevents operation
of the unit.
Dismounting of Luna from the track
1) Press Luna upwards against the cart (the unit is spring loaded).
2) Turn 90˚ anti clockwise to dismount the Luna.
B) Luna mounted on the strap
The strap and hook for mounting is already attached to the
Luna cassette. (Fig. 2.1B)
1) Luna is mounted by connecting the strap with the
spring-loaded hook to the cart in the track.
2) Insert the hook in the bracket on the cart and pull
down until the hook is fixed in the bracket.
Always check that the hook is clicked before the Luna is used.
Fig. 2.1B
!
!
!
(1)

8

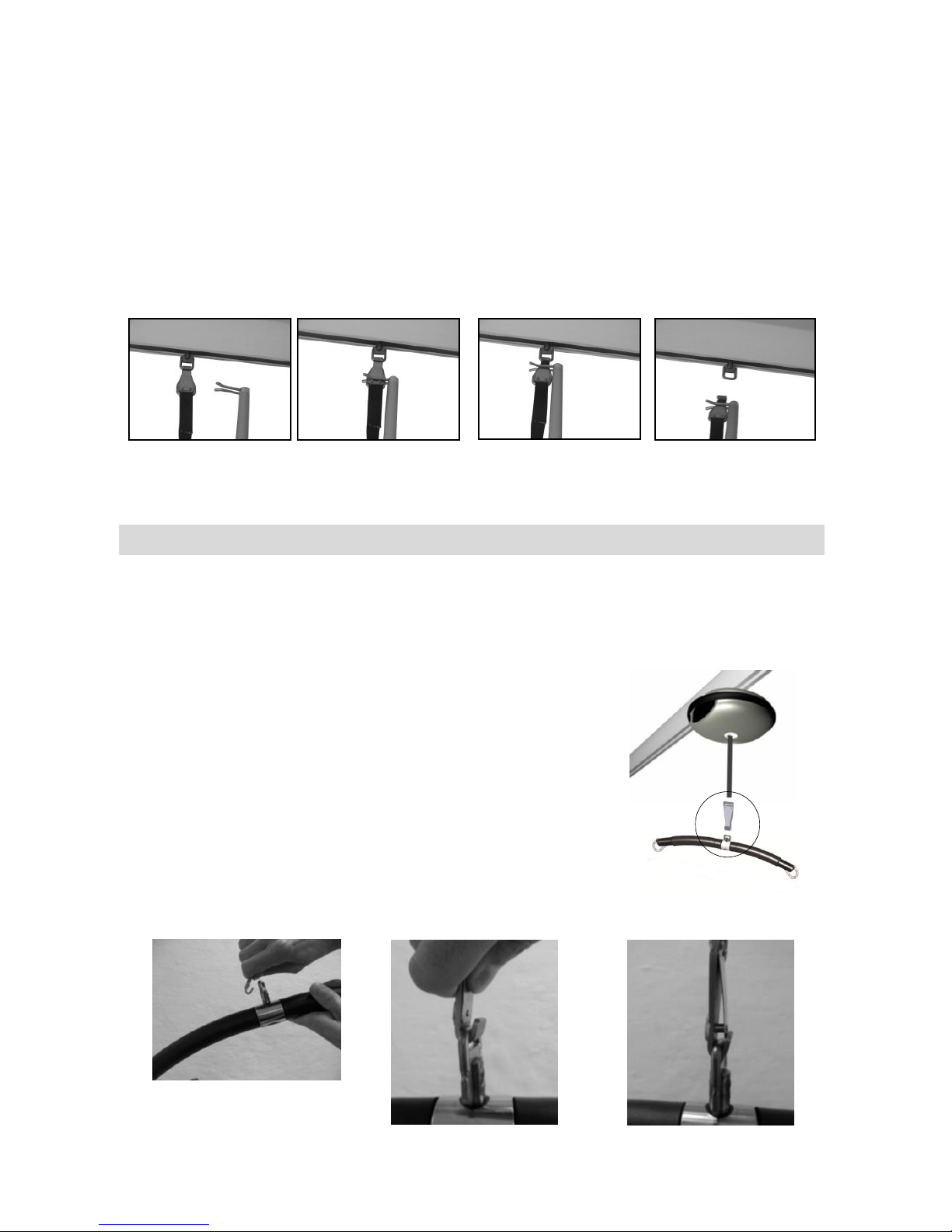

Dismounting of Luna with strap
1) The hook can be released by using an extension arm
2) The extension arm is positioned at the lower part of the hook.
3) Guide the extension arm up to the spring loaded part of hook and unhook the
Luna cassette of the cart.
4) Lower the Luna on to the cradle of the trolley and leave the strap slightly
slackened.
1)
2)
3)
4)
Extension arm or Luna Trolley with extension arm can be purchased
from Ergolet or your local dealer.
See order number in section 8, “Accessories
2.2 Mounting and detaching the spreader bar
Depending on the Luna cassette mounting method, the spreader bar will mount in one of
following ways:
A) Luna mounted in track
Mounting the spreader bar (Fig. 2.2A)
1) Lift the spreader bar up to the strap and press in
the spring loaded hook.
2) Place the spring loaded hook of the strap into
the ring. Pull downwards until the hook is fixed
on the spreader bar ring.
3) Ensure that the hook is safely locked
1)
2)
3)
Fig. 2.2A

9
Dismounting the spreader bar
1) Press in the spring lock on the hook.
2) Tilt the hook of the spreader bar ring and the spreader bar is dismounted.
B) Luna mounted in strap
1) Fit the spreader bar in the bayonet bracket on the Luna
cassette. Resistance will be felt due to a spring load.
2) Turn the spreader bar 90˚ clockwise (See fig. 2.2B). When
the spreader bar is in place a click will be heard indicating
correct mounting.
If the spreader bar is not mounted correctly an electronic safety device
prevents operation of the unit
Dismounting the spreader bar
1) Turn the spreader bar 90˚ anti clockwise to dismount
Fig. 2.2B
!

10
2.3 Pictograms and functions
(1) ON –If LED is off Luna is in “sleep” mode.
The LED light will turn on when the button up
(4) or down (3) on the hand control is pressed.
Side foil:
(2) BATT. –Indicates the level of the battery
(see section 2.6).
(3)+(4) Up/Down –With a constant hold the
Luna will move in the desired direction.
Release the button to stop the movement.
Note: Works only with hand control (5)
plugged in and LED (1) must be on.
(5) Plug –Insert the hand control plug.
Hand control:
(6) Data Plate –Information about the Luna
model, serial number and symbols
information.
(7) Emergency Lowering –ONLY used in
situations where it is necessary to lower a
client safely in a lift failure. This button must
be held constantly to lower the unit.
(See section 2.5)
Note: Works only with hand control (5)
plugged in and LED (1) must be on.
(8) STOP –Press the emergency stop button to
stop the Luna immediately. This function can
be reset by pressing the reset button on the
hand control for 5 seconds.
9) Reset –Used to reset the Luna after the use
of the emergency stop - or lock function. Reset
by holding the reset button for 5 seconds, the
Luna will them be reactivated.
Reset can also be used to lock all functions to
avoid unintended use by e.g. the client. When
the reset button is held, the LED light will
show red and all functions will be locked.
Deactivate as after an emergency stop
(10) Option –This option is not available on a
standard hand control. The extra output can
be for e.g. an electrical spreader bar.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(7)
(8)
(10)
(4)
(3)
(2)
(1)

11
2.4 Operation
The Luna is ready for use, when the Luna cassette and the spreader bar are correctly
mounted. Connect the hand control to the plug inlet on the front panel and test the
up/down functions before using the Luna.
The Luna will move faster when not loaded in order to reach the user quickly. When the
user is lifted the speed will automatically reduce to increase the comfort and safety for the
user.
2.5 Operation of safety functions
Emergency stop:
This function is only to be used in an emergency e.g. if the Luna does not react or does not
stop after releasing the hand control operation. The Emergency stop is placed on the hand
control and on the side foil. If the emergency stop has been activated all functions will stop
immediately and the LED light will show red on the hand control.
The Emergency stop can be deactivated by pressing the “Reset” button on the handset for
5 seconds.
Emergency lowering button:
This is also only to be used in an emergency where it is necessary to safely lower a user.
The emergency lowering button is placed on the hand control, illustrated as a parachute
and also on the side foil with 3 arrows.
To activate the emergency lowering hold the button on the hand control or on the front
panel for 5 seconds and a “beep” from the Luna sounds. This is a hold to run button.
Warning! The emergency lowering does not work if the hand control has a
defect.
Note! If the Luna is in “sleep”-mode press either the up or down button for
the emergency lowering to work.
When using emergency lowering, the normally stop will not be active!
Release the emergency lowering button, when the strap is in its full length.
!

12
Fig. 1
Fig. 2
Fig. 3
Manual emergency lowering:
The manual emergency is used to lower the client when the powered emergency lowering
does not work or if the hand control is defective.
Follow the instructions that are placed on the charger or follow the description below:
Fig. 1) Remove the hand control.
Fig. 2) Remove the plug on the side of the Luna.
Fig. 3) Take the key, which is placed at the top of the
charger. Put the key into the Luna and turn the
key anti clockwise to lower the user.
Note: Scan the QR-code and see the instructions on video.
If one of the emergency stop functions has been activated due to an emergency the Luna
must not be used again before a check has been made and any defect repaired.
If in doubt, contact your dealer or Ergolet.

13
2.6 Charging
The Luna can be charged either from the handset charger holder mounted on the wall or
through the charger unit on the Luna Trolley. The charger unit is connected to the mains.
Move the Luna to the charging station and place the hand control onto the charger after
which charging starts automatically.
Note: Luna is fitted with batteries that require regular charging. Ergolet recommends that
Luna is charged every night or when the unit is not in use.
Luna is fitted with a diode (marked BATT.), which gives the following information
concerning battery condition during use:
Diode color
Description
Green
The LED on the hand control will flash during charging.
The LED lights constantly on the hand control, when the
batteries are fully charged.
The LED lights constantly on the Luna cassette, when the
batteries are fully charged.
Yellow
The LED on the Luna cassette lights, and indicates that the
batteries are approx. 50% discharged.
Recommend charging to avoid low battery.
Red
The LED on the Luna cassette lights and indicates that the
batteries have reached a critical point.
The LED start flashing and an acoustic (”beep” signal) will
be heard.
Luna must IMMEDIATELY be put on charge in this situation
and remain on charge for 24 hours.
Note: Luna cannot be overcharged.

14
3 USING LUNA
Luna is ready for use if all the assembly instructions have been followed correctly.

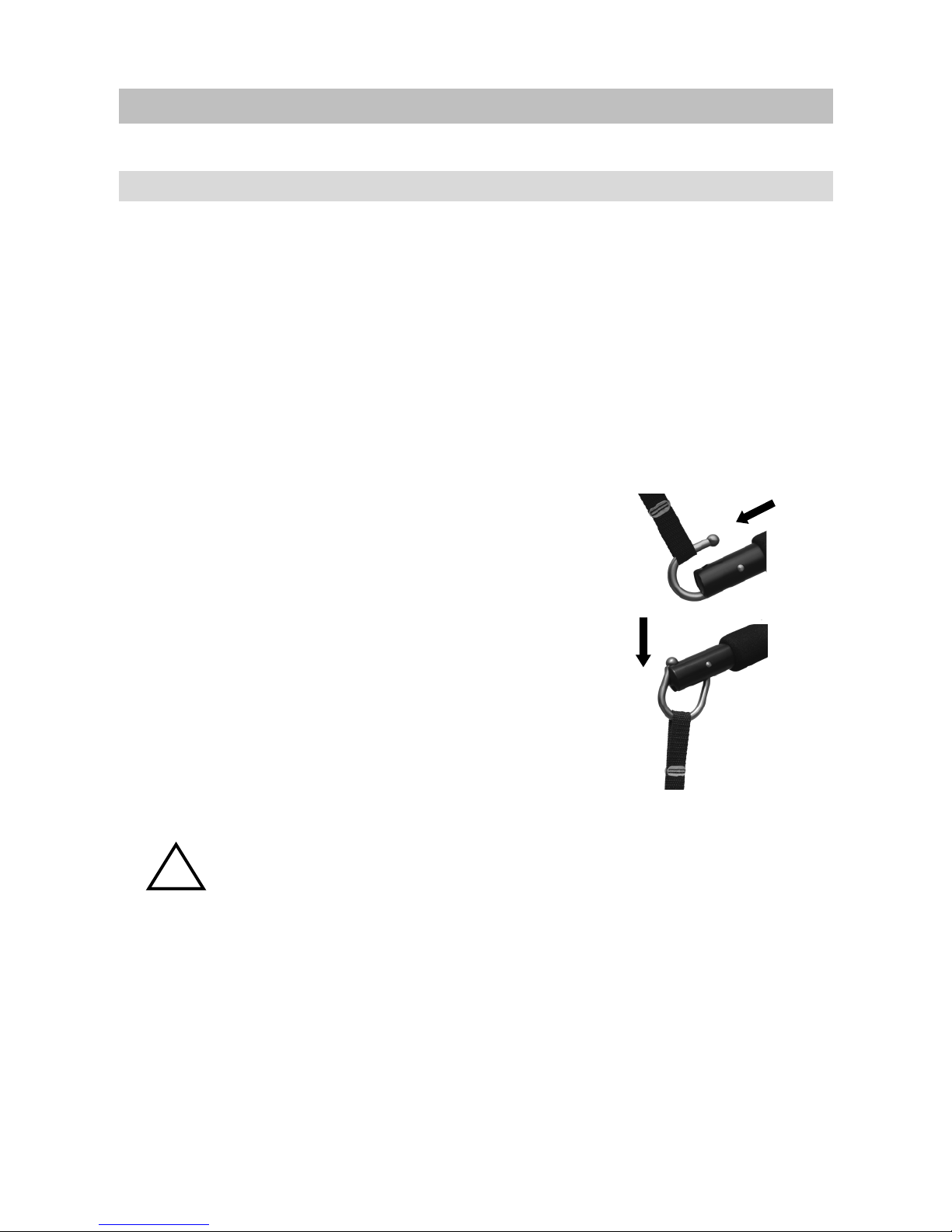

3.1 Using lifting slings
Luna spreader bars are designed for use with Ergolet lifting slings. Ergolet lifting slings have
2-6 lifting straps and are designed for lifting hooks with a minimum diameter on ø8 mm.
Use of non-approved slings will make Ergolet’s responsibility for faults and accidents null
and void.
Ergolet can assist in choosing slings and also the correct use of slings.
Hanging slings on the Ergolet spreader bar
Ergolet accepts no responsibility if slings are placed incorrectly, it is always the onus of the
carer/helper to ensure that the sling is correct for the situation needs and is correctly
mounted.
1) The sling strap is placed over the hook in its open
position.
1)
2) The strap is pulled downwards so that the hook
closes.
Note: The design of the lifting hook is such that the weight
of the client/user will help close the hook.
2)
To release the strap after lifting simply pull upwards to open the hook.
WARNING: Risk of finger entrapment - ensure that user’s fingers cannot get
trapped.
!

15

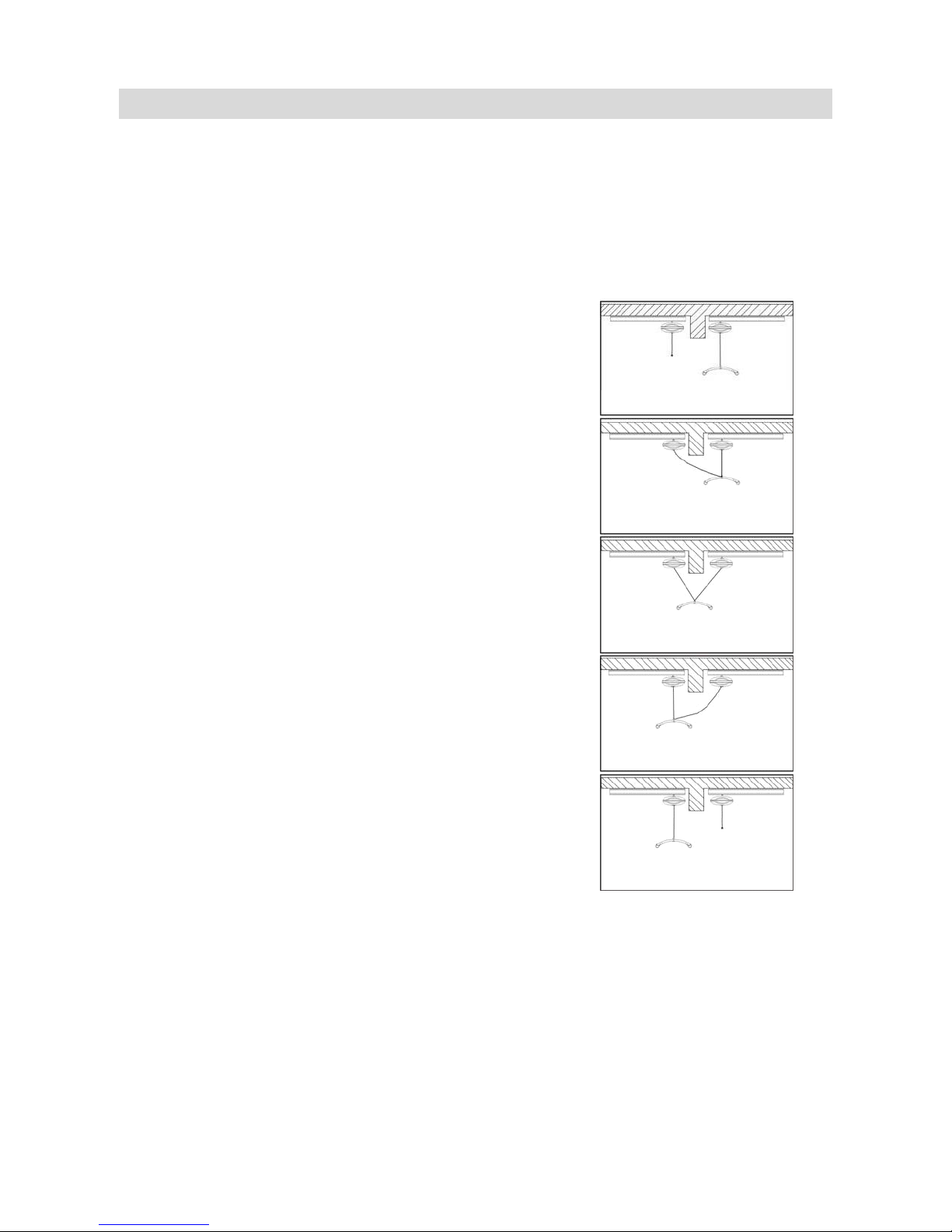

3.2 Room to room transfer
It is possible to move a client from room to room in 2 different ways. To ensure that the
transfer is done correctly without any risk for the client, follow the description A) Transfer
with two Luna ceiling hoist or B) Transfer with one Luna ceiling hoist.
A) Transfer with two Luna ceiling hoist
Note: only possible when using a special spreader bar.
1) In this lifting situation Luna (a and b) are moved,
as close together as it is possible.
2) Luna (a) with user is moved to the door after
which the lifting strap from Luna (b) is extended
and fitted on the extra bracket ring on the
spreader bar.
3) Now with both Luna cassettes connected to the
spreader bar. Check that the hook is fitted
correctly.
4) The lifting strap on Luna (a) released whilst the
lifting strap on Luna (b) is tightened.
5) When the lifting strap on Luna (b) is vertical and
tight this means that the Users weight is on this
unit. The lifting strap on Luna (a) can now be
removed by releasing the spring loaded hook on
the spreader bar (this is done best by lifting the
hook up, press the spring and remove).
6) The transfer can now continue with Luna (b).
a
b
a
b
b
a
a
b
a
b
1
i
g
.
1
.
6
B
2
i
g
.
1
.
6
B
3
i
g
.
1
.
6
B
4
i
g
.
1
.
6
B
5
i
g
.
1
.
6
B

16

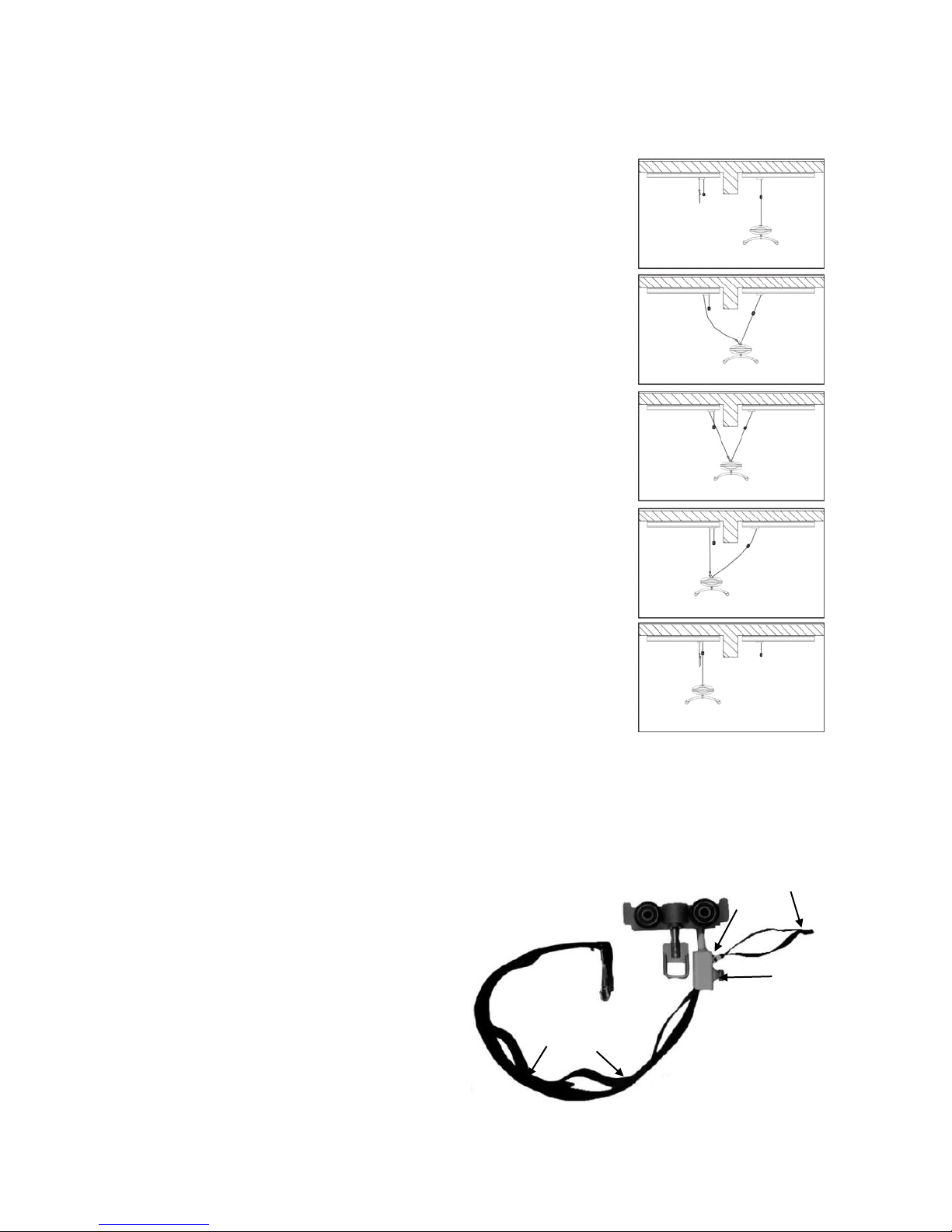

B) Transfer with one Luna ceiling hoist
Note: only possible when using a special spreader bar.
1) In this lifting situation Luna (a) is moved, as close as it is
possible to the carts.
2) Luna (a) with user is moved to the door and the transfer
strap (b) from the other room is fitted to the vacant
ring bracket on Luna (a).
3) Now are both strap (a and b) fitted to the Luna
cassette. Check the hook is fitted correctly.
4) The strap on Luna (a) is slowly released until the
transfer straps (b) carries user weight.
5) The strap on Luna (a) can now be removed and fitted
on the cart next to the transfer strap. The lifting strap is
best removed by bringing the bracket up, press the
spring and remove.
Note: It may be necessary to adjust the length of the strap (see below).
Adjusting the length of the strap
The length of the strap can be adjusted to fit the distance between the tracks in the two
rooms.
1) The screw (a) is released.
2) The strap is placed in the correct
position and the bolt (b) is placed
in the corresponding loop (c).
3) Ensure that the screw (a) and the
bolt (b) is tightened before the
Luna is mounted on the cart.
a
b
a
b
a
b
a
b
a
b
1
i
3
.
2
.
5
i
4
i
c
b
a
c
c

17

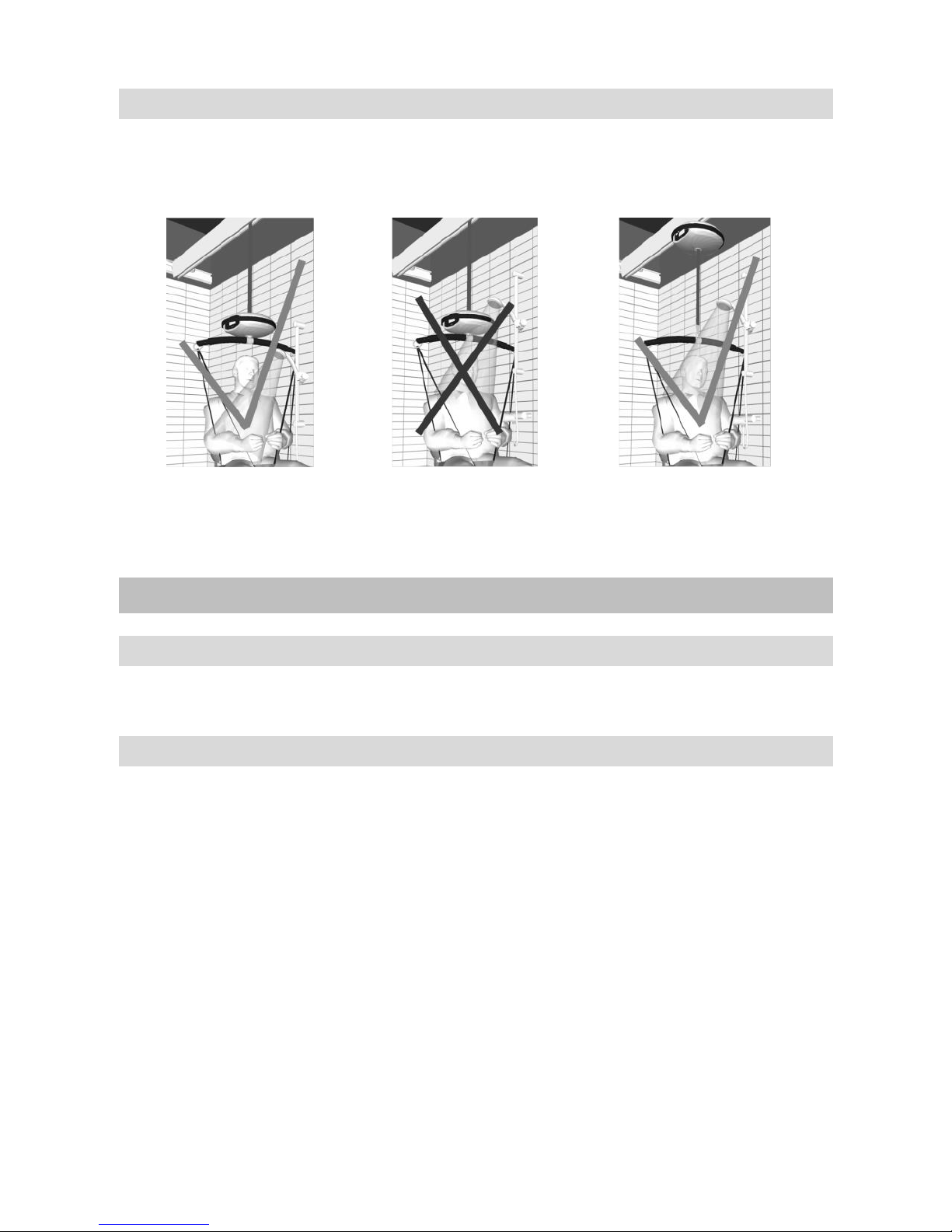

3.3 Using Luna in a shower or bathing environment
The LunaIPx4 and the hand control are water resistant and can tolerate being sprayed with
water. Ergolet recommend that the normally used for the Luna is as fig. 3.2A and 3.2C.
It may be an advantage to use Luna mounted directly on the rail, as fig. 3.2C.
Fig. 3.2A –Right
Fig. 3.2B –Wrong
Fig. 3.2C –Right
Note: The IPx4 hand control must not be immersed in water.
4 MAINTENANCE
4.1 Cleaning
Luna may be cleaned using a slightly damp cloth with a small quantity of standard
household cleaning agent. Strong chemicals or abrasive agents must not be used.
4.2 Storage
Luna must be stored in a dry environment with relative humidity under 70%.
If the Luna is not to be used over a long period press the emergency stop button to save
the battery.
Note: Luna should be fully charged before storing. The batteries will slowly be discharged,
so it is recommended that the Luna is recharged every 3 months to prevent the battery
from being destroyed.
Fig. 3.1B

18
5 CHECK, WARRANTY AND TROUBLE SHOOTING
5.1 Annual check and warranty
The Luna ceiling hoist must always be repaired and maintained by qualified personnel,
including the replacements of print card, batteries, lifting straps and other components.
The manufacturer Ergolet recommends that the ceiling hoist MUST be checked by a
qualified person at least once a year in accordance with Ergolets service instructions. An
annual check is also recommended to the European Standard (EN/ISO 10535) for patient
lifters/hoists including ceiling hoist.
It is the legal owners’ duty to ensure that these checks are carried out on the product.
If it is necessary to replace any parts due to wear or damage, Ergolet recommends for
safety reasons to use original spare parts.
Warranty
2 years warranty against manufacturing or material defects. For more information contact
Ergolet.
5.2 Troubleshooting
Fault:
Possible cause
Solution
Luna does not react
when the hand control
UP/DOWN are used.
(No ”beep” sound from
the Luna unit).
Luna is not on or
emergency stop is
activated.
Turn on the Luna.
Deactivate emergency stop (see
section 2.5).
Defective hand control.
Check if up/down buttons on the
Luna unit. If it works, try another
hand control or get a new one
from the dealer or Ergolet.
Batteries are not fully
charge or defective.
Charge batteries (see section 2.6)
If this does not help, the batteries
must be changed.
Fault:
Possible cause
Solution
Luna does not react
when UP/DOWN buttons
on the hand control are
used.
(A ”beep” sound is
heard).
Spreader bar not
mounted.
Mount the spreader bar (see
section 2.2).
Luna unit is not mounted
correctly on the track/
cart.
Read the mounting instructions
and follow section 2.1 for correct
mounting Luna in tracks.
Batteries are not fully
charged.
Charge batteries (see section
2.6).
The strap is rolled
incorrectly.
Request service technician from
dealer.

19
Fault:
Possible cause
Solution
The lift does not react
when the hand control
UP-button is used.
(A ”beep” sound from
the Luna unit).
The lifting capacity has
been exceeded –User
too heavy or sling has
been caught in furniture
etc.
Charge batteries, if this not helps
the batteries must be changed.
Fault:
Possible cause
Solution
Does not charge.
Charger is not connected
to the main supply.
Connect charger to main supply.
(see section 2.6).
Charger defect.
Try another charger or get a new
one from the dealer or Ergolet.
Connection to the hand
control is defective.
Try another charger or get a new
one from the dealer or Ergolet.
6. TECHNICAL DATA AND DIMENSIONS
6.1 Technical specifications
Max capacity:
Length of lifting strap:
Weight:
Measurements:
Battery operation:
Charging:
Covering:
Noise:
IP-class:
200 kg or 275 kg depending on model
2200 mm
6,7 kg without spreader bar
320 x 130 mm
36 V lead acid batteries
100 - 240 V, 0,5 amp.
High impact, moulded ABS
Lwa during lifting/lowering without load is 52dB(A)
Lwa during lifting/lowering at maximum load is 48dB(A)
Cassette: IP24
Charger: IPx4
Hand control: IPx4

20
6.2 Dimensions
Measurements ceiling mount:
A) Width of Luna cassette
320 mm
B) Spreader bar (see section 8
”accessories” for other sizes)
580 mm
C) Height of Luna cassette
170 mm
D) Min. height from hook to track
430 mm
E) Lifting range from min. height
1950 mm
Measurements strap mounted:
A) Width of Luna cassette
320 mm
B) Spreader bar (see section 8
”accessories” for other sizes)
580 mm
C) Height of Luna cassette
155 mm
D) Min. height from hook to track
465 mm
E) Lifting range from min. height
1950 mm
