LBI-38377E
Operator’s Manual
M-PASERIES
PORTABLE RADIO

NOTICE!
This manual covers Ericsson and General Electric
products manufactured and sold by Ericsson Inc.
The software contained in this device is copyrighted by Ericsson Inc.
UnpublishedrightsarereservedunderthecopyrightlawsoftheUnited
States.
NOTICE!
This manual is published by Ericsson Inc., without any warranty.
Improvements and changes to this manual necessitated by typographical
errors, inaccuracies of current information, or improvements to programs
and/orequipment, may be made by EricssonInc.,atany timeand without
notice. Such changes will be incorporated into new editions of this
manual. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying
and recording, for any purpose, without the express written permission of
Ericsson Inc.
Copyright © January 1990, Ericsson GE Mobile Communications Inc.
2

TABLE OF CONTENTS (CONT.)
OPERATINGTIPS . . . . . . . . . . . . . 27
OPERATING RULES AND
REGULATIONS . . . . . . . . . . . . . . . 27
BATTERY PACKS . . . . . . . . . . . . . . 28
INSTALLINGTHEBATTERYPACK . . . 28
REMOVING THE BATTERY PACK . . . 29
CHARGINGTHEBATTERYPACKS . . 29
RECHARGEABLE BATTERY PACK
DISPOSAL . . . . . . . . . . . . . . . 30
SWIVEL MOUNT REMOVAL AND
REPLACEMENT . . . . . . . . . . . . . . 30
INTRINSICALLY SAFE USAGE . . . . . . . 31
WARRANTY . . . . . . . . . . . . . . . . 33
NICKEL-CADMIUM BATTERY
WARRANTY . . . . . . . . . . . . . . . . 34
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . 5
CONTROLS . . . . . . . . . . . . . . . . . 5
INDICATORS . . . . . . . . . . . . . . . . 13
UNIVERSAL DEVICE CONNECTOR . . . . 14
ALERTTONES . . . . . . . . . . . . . . . 15
OPERATION . . . . . . . . . . . . . . . . 15
POWER-UP . . . . . . . . . . . . . . . 15
MODE/CHANNEL/CG SELECTION . . 16
RECEIVING AMESSAGE . . . . . . . 17
TRANSMITTING A MESSAGE . . . . . 18
EMERGENCY OPERATION . . . . . . 18
SCANNING CHANNELS . . . . . . . . 19
TELEPHONE INTERCONNECT
CALLS . . . . . . . . . . . . . . . . . 22
"KEY LOCK" MENU . . . . . . . . . . 24
"ALERT" MENU . . . . . . . . . . . . . 25
PROGRAMMABLE FEATURES . . . . . . 25
3

PRODUCT SPECIFICATION FOR
CE MARKED EQUIPMENT
The M-PA Portable conforms to the following
Product Specifications.
EUROPEAN STANDARDS:
Safety: Not Applicable
EMC: prETS 300 279 (August 1995)
TTD: Not Applicable
SUPPLEMENTARY INFORMATION:
At this time, the M-PA portable radio may not be
operatedwhileinavehicularchargerintheEuropean
Community since it has not been evaluated for op-
eration in this mode.
This M-PA portable radio may be used in both
trunked and conventional applications.
4

INTRODUCTION
This manual describes the operation of the
M-PA

two-wayFMSelect,Scan,andSystemmodel
portable radios.
Operating controls on the radio include a ro-
tatable control knob, rotatable volume control, a 4-
button keypad (Scan model) or 16-button keypad
(Systemmodel), push-to-talk, emergency and moni-
tor buttons. The on/off power switch for the unit is
located on the removable battery pack.
The 8-digit alphanumeric liquid crystal display
(LCD)onthefrontoftheradiodisplaystheoperating
status of the radio. This backlit display also has
status flags for indicating the various operating con-
ditions such as transmitter on, scanning, or emer-
gency mode enabled.
The exact operation of your radio will vary de-
pending upon the mode of operation, the radio’s
programming, andthe particular radiosystem. Con-
sult your radio system’s representative for particular
features that are programmed into your radio.
CONTROLS
ON/OFF SWITCH
The ON/OFF SWITCH is located on the battery
pack. Sliding this switch up will supply power to the
radio from the battery pack. An audible click will be
heardandthe "ON" indicatorwillbe exposed. When
the radio is turned on, it willperform a power-up self
test and then resume operation on the previous
operating channel as displayed in the LCD. Sliding
the switch down will turn the radio off.
VOLUME CONTROL KNOB
The VOLUME CONTROL KNOB is a rotatable
control on the top of the radio used to adjust the
receiver’s audio level in the speaker. Rotating this
knob in a clockwise direction will increase the audio
level. Counter-clockwise rotation will decrease the
audiolevel. Minimumlevelsmaybeprogrammedinto
the radio to prevent missed calls due to too low of a
volume setting.
CONTROL KNOB
The rotatable 16-position CONTROL KNOB lo-
catedonthetopoftheradioisprogrammedtoselect
5

the operating channel, mode, or specific Channel
Guard encode/decode tones. See MODE/CHAN-
NEL/CG SELECTION for details. A stop plate may
be installed under the knob to limit the maximum
number of positions to less than sixteen (16). It is
normally factory installed for fifteen (15) positions.
Some radios may be programmed with this knob
disabled.
PTT BUTTON
Pressing the PTT BUTTON on the side of the
radio will enable the radio’s transmitter. The "TX"
status flag in the display will turn on when the radio
is transmitting. Releasing the PTT BUTTON will re-
turn operation to receive mode.
MONITOR BUTTON
The MONITOR BUTTON is used to unsquelch
the receiver. Momentarily pressing this button will
disable squelch and the receiver noise will be heard
in the speaker.
Ifprogrammedenabledfortheselectedchannel,
ChannelGuard(CG)and/orType99(T99)signalling
will be enabled when the channel is selected. If CG
and/or T99 are enabled, the appropriate status flag
"CG" and/or "T99" willturn on. TheMONITOR BUT-
TON may then be used to toggle CG and/or T99
betweendisabledandenabledbypressingandhold-
ing it for at least one (1) second; the appropriate
status flag will toggleon oroff. The MONITOR BUT-
TON is also used to reset T99 operation after a call
is received.
EMERGENCY BUTTON
The EMERGENCY BUTTON is the small red
button located on top of the radio near the antenna.
If this button is programmed for emergency opera-
tion,pressingit foratleast one(1)secondwillcause
theradiototransmitGE-STARemergencysignalling.
The "EMG" status flag will turn on. GE-STAR is
transmittedaccording to one ofseveraldifferent pro-
grammable methods. See EMERGENCY OPERA-
TION for details.
Thisbuttonmayalsobeprogrammedasanhome
modebutton. Ifprogrammedinthismanner,pressing
it will switch operation to the programmed home
mode.
6

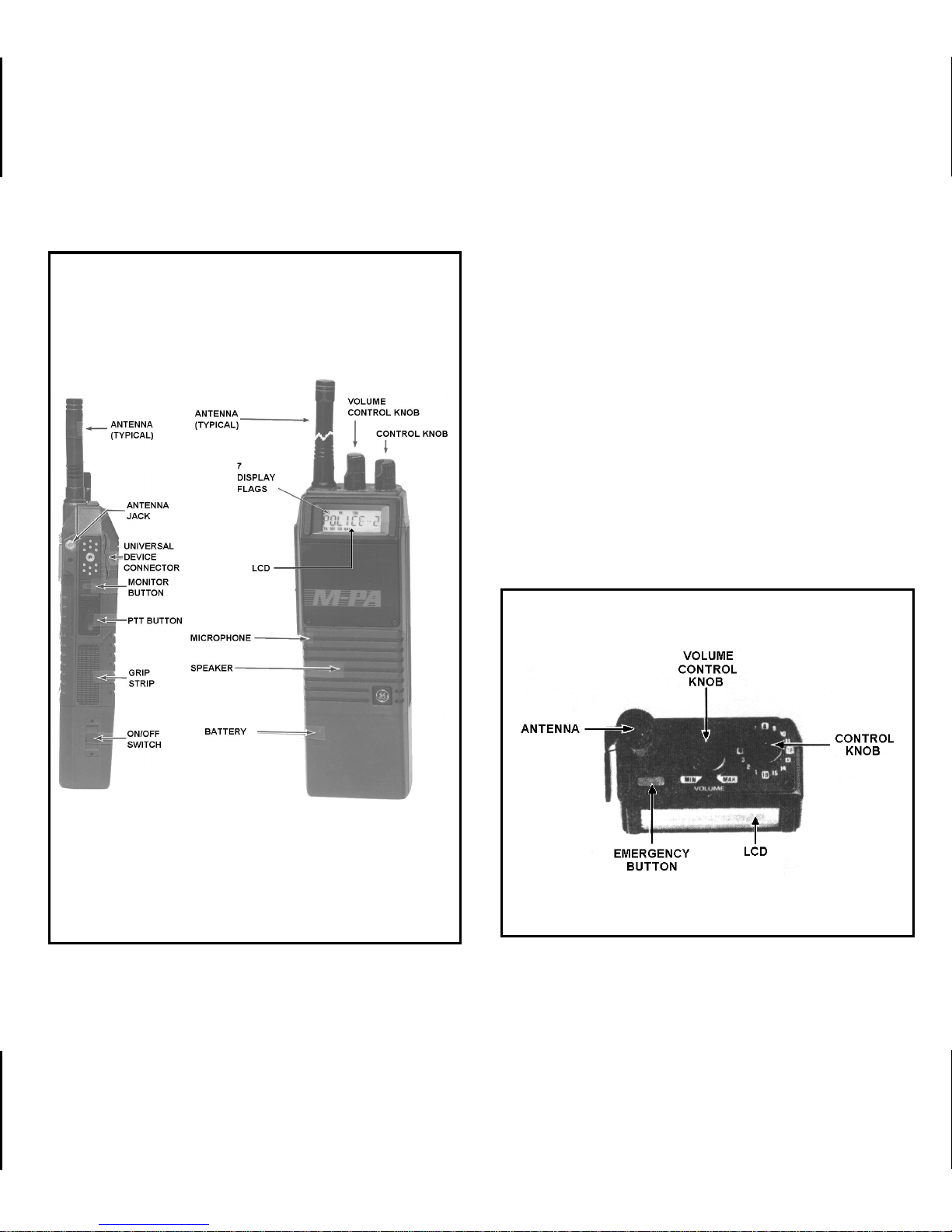

Figure 1 - M-PA Personal Radio Figure 2 - M-PA Radio (Top View) 7

SIDE VIEW FRONT VIEW
Figure 3 -M-PAScan Model Radio
8

MENU BUTTON (Scan Model)
Pressing the MENU button causes the radio to
scroll through up to six (6) different menus pro-
grammed into the radio. After the desired menu is
displayed, the feature within the menu is selected
with the SEL button. The menus that may be pro-
grammed are:
Menu Display Function Or Use
"CHANNEL" TheMENUandSELbuttonsare
programmed for channel selec-
tion. Whenthisdisplayappears,
select the desired channel with
the SEL button and then press
EXIT.
"MODE" TheMENUandSELbuttonsare
programmedformodeselection.
When this display appears, se-
lect the desired mode by press-
ing the SEL button and then
press EXIT.
"PHONE" Allowsselectionofone(1)ofthe
ten(10)programmed telephone
numbers for automatic dialling.
"KEY LOCK" Allows the keypad buttons to be
locked or unlocked.
"SCAN A/D" Allows channels to be added to
or deleted from the scan list for
the current mode. The priority-
onechannelandthepriority-two
channel are also set within this
menu.
"ALERT" Allows the alert tones to be dis-
abled or enabled.
SELECT BUTTON
Selecting different features within each menuis
accomplished with the SEL button. First, the menu
mode must be enabled and the desired menu must
be chosen by pressing and releasing the MENU
button until the desired menu appears in the display.
Figure 4 - M-PA Scan Model Keypad
9

Afterthemenuischosen,thedesiredfunctionor
feature is selected by pressing the SEL button. For
example,todisablethealerttones,pressMENUuntil
"ALERT" is displayed then press SELto select "DIS-
ABLED".Next press the EXIT button.
EXIT BUTTON
Pressing the EXIT button will cause the radio to
exitthecurrentmenudisplayandreturn operationto
the channel currently selected. If the menu mode is
notenabledwhenthebuttonispressed,pressingthis
button will turn the display and keypad backlighting
on for thirty (30) seconds if the backlight is pro-
grammed on.
SCAN BUTTON
Pressing the SCAN button on the keypad will
toggle scan operation on and off. When the radio is
scanning, the "SCN" status flag in the display will
show and all channels on the scan list will be
scanned. See SCANNING CHANNELS for addi-
tional details.
MENU BUTTON (System Model)
Pressing the MENU button causes the radio to
scroll through up to seven (7) different menus pro-
grammed into the radio. After the desired menu is
displayed, the feature within the menu is selected
with the SEL button. The menus that may be pro-
grammed are:
Menu Display Function Or Use
"CHANNEL" TheMENUandSELbuttonsare
programmed for channel selec-
tion. When this displayappears,
select the desired channel with
the SEL button and then press
EXIT.
"MODE" TheMENUandSELbuttonsare
programmedformodeselection.
When this display appears, se-
lect the desired mode by press-
ing the SEL button and then
press EXIT.
"PHONE" Allows selection of one(1) ofthe
ten(10)programmedoruseren-
tered telephone numbers for
automatic dialling.
10

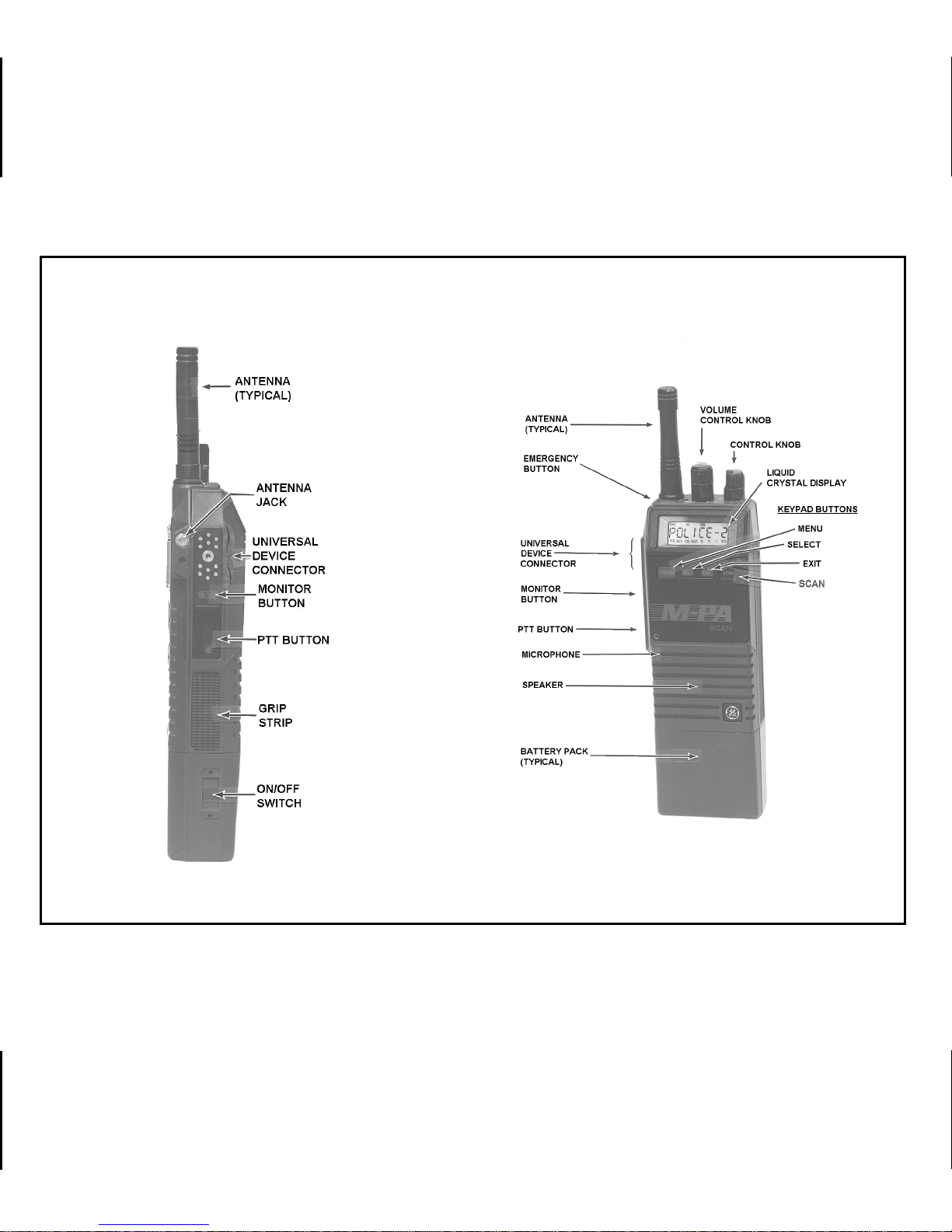

SIDE VIEW FRONT VIEW
Figure 5 - M-PA System Model Radio
11

"KEY LOCK" Allows the keypad buttons to be
locked or unlocked.
"SCAN A/D" Allows channels to be added to
or deleted from the scan list for
the current mode. The priority-
onechannelandthepriority-two
channel are also set within this
menu.
"ALERT" Allows the alert tones to be dis-
abled or enabled.
"PHN EDIT" Allows editing of the telephone
phone numbers programmed
into the radio.
EXIT BUTTON
Pressing the EXIT button will cause the radio to
exitthecurrentmenudisplayandreturn operationto
the channel currently selected.If the menu mode is
notenabledwhenthebuttonispressed,pressingthis
button will turn the display and keypad backlighting
on for thirty (30) seconds (if the backlight is pro-
grammed on).
SCAN BUTTON
Pressing the SCAN button on the keypad will
toggle scan operation on and off.When the radio is
scanning, the "SCN" status flag in the display will
show and all channels on the scan list will be
scanned.SeeSCANNINGCHANNELSforadditional
details.
SELECT BUTTON
Selecting different features within each menu is
accomplished with the SEL button. First, the menu

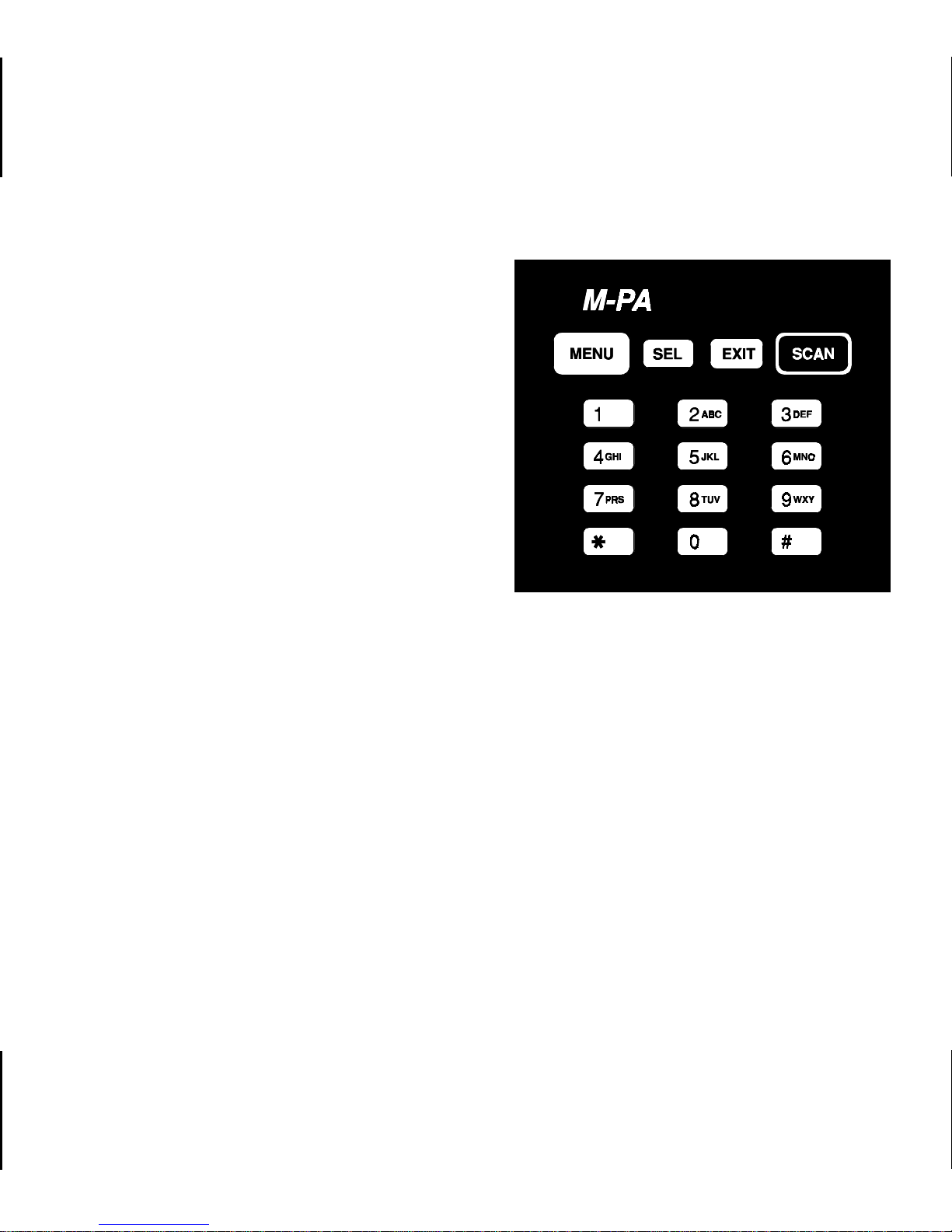

Figure 6 - M-PA Scan Model Keypad
12

mode must be enabled and the desired menu must
be chosen by pressing and releasing the MENU
button until the desired menu appears in the display.
After the menu is chosen, the desired function or
feature is selected by pressing the SEL button. For
example,todisablethealerttones,pressMENUuntil
"ALERT"isdisplayedthenpressSELtoselect "DIS-
ABLED". Next press the EXIT button.
DTMF KEYPAD
Telephone interconnect callscanbemadeusing
the12-buttonDTMFkeypad. Thiskeypadisenabled
when a channel programmed for DTMF operation is
selected. See TELEPHONE INTERCONNECT
CALLS for details.
INDICATORS
The radio’s liquid crystal display (LCD) located
on the front panel has eight (8) alphanumeric char-
acters and eleven (11) status flags. This display
indicates the current operating channel and it dis-
plays the menu information when this mode is en-
abled. It also displays telephone interconnect
numbers and various other messages.
LCD backlighting will turn on for a short period
anytimeanactivebuttonispressedortheCONTROL
KNOB is rotated. Backlighting may be programmed
to remain off at all times. Pressing the EXIT button
whenthemenu modeisnot enabledwill turn display
andkeypadbacklightingonforthirty(30)seconds(if
backlight programming is on).
Thestatusflagslocatedalongthetopandbottom
of the display indicate operating status as follows:
EMG EMerGency mode - On indicates emer-
gencyGE-STARsignallinghasbeeniniti-
ated by the user.
HI HIgh power transmit - On indicates the
selected channel has been programmed
for high power transmit operation. Off
indicates low power transmit.
Figure 7 -Liquid Crystal Display
13

T99 Type99tonedecode- OnindicatesType
99 tone decoding is enabled on the se-
lected channel. Flashing indicates a T99
selective call has been received and the
radio must be reset to receive another
T99 call.
TX Transmitter enabled - On when the radio
is transmitting.
BSY BuSY - On indicates a carrier is being
received (the channel isbusy). Note that
iftheselectedchannelisprogrammedfor
Channel Guard (CG), Digital Channel
Guard (DCG), or Type 99 (T99) tone de-
code operation, the radio will not un-
squelch if a valid tone or code is not
received; the BSY status flag will be on.
CG ChannelGuard-OnindicatestoneChan-
nel Guard (CG) or Digital Channel Guard
(DCG) encode/decode is enabled on the
selected channel.
BAT BATtery low - On indicates the battery
pack’s charge is low.
Thefollowingstatusflagsareforusewith
Scan and System model radios:
SScanlist-Onindicatestheselectedchan-
nel is on the scan list.
1priority1-Onindicatestheselectedchan-
nel is designated asthe priority-onescan
channel.
2priority2-Onindicatestheselectedchan-
nel is designated as the priority-two scan
channel.
SCN SCaN mode - On indicates the radio is
scanning.
UNIVERSAL DEVICE CONNECTOR
The Universal Device Connector (UDC) is lo-
catedonthesideoftheradiojustabovethePTTand
MONITORBUTTONS. Thisconnectorprovidescon-
nectionsfortheexternalaccessoriessuchasahead-
set,aspeaker-mike,oranemergencylanyard. When
theradioislockedinavehicularcharger/repeaterthe
UDC provides the audio and control connections
between the radio and the vehicular charger/re-
peater. The UDC is also used by the maintenance
personnel when the radio is programmed.
14

ALERT TONES
TheM-PAuses alerttones or"beeps"toindicate
various operating conditions. Alert tones may be
enabled or disabled via the menu mode if the
"ALERT" feature is programmed. See "ALERT"
MENU for details. The alert tones may be disabled
when the radio is programmed.
CARRIER CONTROL TIMER
This feature, programmable on a per channel
basis, prevents unnecessary channel traffic and ra-
dio damage in the event of a "stuck" mic. If the
programmed timer times-out during a transmission
the radio will sound an alert tone and disable the
transmission. Thebeepingtonewillcontinueuntilthe
PTT BUTTON is released. Releasing the PTT BUT-
TON resets the timer.
CHANNEL BUSY
If the radio is receiving a signal when the PTT
BUTTON is pressed, an alert tone will warn the
operator that the radio is receiving a carrier and the
transmission will not occur. "RX BUSY" is displayed
and the alarm is sounded as long as the PTT BUT-
TON is pressed. Thisfeature isprogrammableon or
off on a per channel basis.
RECEIVE ONLY CHANNEL
Iftheselectedchannelisprogrammedasreceive
only, the radio will sound an alert tone if a transmis-
sion is attempted. "RX ONLY" is displayed.
RADIO/CHANNEL FAILURE
If the synthesizer is unable to lock correctly on
theselectedchannel,oranotherradiofailureoccurs,
an alert tone will sound. If incorrect programming is
detected or the synthesizer fails to lock, the display
flashes "NO LOCK" then the selected channel’s
name.
OPERATION
POWER-UP
After the battery pack and antenna have been
installed, turn the radio on by sliding the ON/OFF
SWITCH on the battery pack up. After the radio has
completedapower-upself-test,itwillbeginoperation
on the last operating state as displayed in the LCD.
15

Ifprogrammedon,thepower-upalerttone(beep)will
be heard.
MODE/CHANNEL/CG SELECTION
The M-PA Scan and System model radios may
be programmed with up to 192 different radio chan-
nels. A maximum of 12 modes of 16 channels each
or 16 modes of 12 channels each may be pro-
grammed into the radio (12 x 16 = 192). Select the
desired mode (bank of channels) and channel, or
channel and Channel Guard (CG), according to the
radio’s programming as follows:
MENU And SEL Selects Mode
CONTROL KNOB Selects Channel (And CG)
1. Press the MENU button until "MODE" ap-
pears in the display.
2. Press the SEL button to select the desired
mode. The selected mode’s name will ap-
pear in the display.
3. PresstheEXITbuttontoswitchradioopera-
tiontotheselectedmodeandexitthemenu.
4. Select the desired channel by rotating the
CONTROL KNOB until the desired chan-
nel’s name appears in the display.
CONTROL KNOB Selects Mode
MENU And SEL Selects Channel (And CG)
1. Select the correct mode by rotating the
CONTROL KNOB until the desired mode’s
name appears in the display.
2. Press the MENU button until "CHANNEL"
appears in the display.
3. PresstheSELbuttonuntilthedesiredchan-
nel’s name appears in the display.
4. PresstheEXITbuttontoswitchradioopera-
tion to the displayed channel and exit the
menu.
MENU and SEL Selects Modes And Channels
CONTROL KNOB Selects Channel Guard
1. Press the MENU button until "MODE" ap-
pears in the display.
16

2. Press the SEL button until the desired
mode’s name appears in the display.
3. Press the MENU button until "CHANNEL"
appears in the display.
4. PresstheSELbuttonuntilthedesiredchan-
nel’s name appears in the display.
5. PresstheEXITbuttontoswitchradioopera-
tion to the new mode and channel, and exit
the menu.
6. SelectthedesiredChannelGuardusingthe
CONTROLKNOB. The"CG"statusflagwill
turn on if the selected position has CG
programmed. Position fifteen(15) is a non-
CGposition;itmaynotbeprogrammedwith
aChannelGuard. Position sixteen(16)isa
defaultchannelCGposition;selecting itwill
switch CG to the CG programmed for the
selected channel.
RECEIVING A MESSAGE
1. Slide the ON/OFF SWITCH on the battery
packtotheonposition. Theradiowillinitiate
and complete the power-up self-test and
beep if the power-up alert tone is pro-
grammed on.
2. Select the desired operating mode, chan-
nel, and/or Channel Guard. See the
MODE/CHANNEL/CG SELECTION forde-
tails.
3. Press the MONITOR BUTTON to disable
squelch and adjust the VOLUME CON-
TROL KNOB for the approximate desired
speaker audio level. Pressing the MONI-
TOR BUTTON may affect Channel Guard
and/or Type 99 tone operation if pro-
grammed for the selected channel.
4. When a transmission is received, the re-
ceiver will unsquelch and it will be heard in
thespeaker. However,if theselectedchan-
nel is programmed for Channel Guard or
Type 99toneoperation,thereceiverwillnot
unsquelch unless the correct CG or T99
tone is received.
5. Adjust the volume as necessary.
17

TRANSMITTING A MESSAGE
1. Select the desired mode, channel, and/or
Channel Guard. See the MODE/CHAN-
NEL/CG SELECTION for details..
2. Ensure no one is transmitting on the se-
lected channel by pressing the MONITOR
BUTTON to disable squelch or observing
the display for the absence of the "BSY"
status flag. If the Channel Busy Lockout
feature is programmed for the selected
channel,theradiowillnottransmitwhenthe
channel is busy.
3. PressandholdthePTTBUTTON. The"TX"
and "BSY" status flags are displayed.
4. Hold the radio approximately three inches
from your mouth and speak into the micro-
phone in a normal voice.
5. Release the PTT BUTTON when the trans-
mission is complete. If the transmission
exceeds the programmed Carrier Control
Timerlimit,the radiowill unkeyandanalert
tone will sound.
6. Listen for a reply.
EMERGENCY OPERATION
The radio may be programmed to transmit GE-
STARemergencysignallingwhentheEMERGENCY
BUTTON is pressed or from a UDC connected lan-
yard. If the EMERGENCY BUTTON is programmed
for GE-STAR emergency activation, press it for ap-
proximately one (1) second to activate the transmis-
sion. If the lanyard is programmed for activation,
follow the instructions provided with it. GE-STAR is
programmedtotransmitinoneofthefollowingmeth-
ods:
•GE-STARistransmittedonapredetermined
modeandchannelregardlessoftheselected
channel. Inthiscasetheselectedchannelis
available for voice and the radio will peri-
odically"jump"tothepredeterminedchannel
andsendthe emergencymessageand then
"jumpback"totheselectedchannelforvoice
operation.
•GE-STAR is transmitted on the selected
channel. Ifthechannelischangedtheemer-
gency bursts will follow the newly selected
channel.
•The radio switches toand stays on aprede-
termined mode and channel and GE-STAR
is transmitted on that channel. Rotating the
18

CONTROL KNOB will not change channels.
Turning the radio off and back on will reset
this condition.
•GE-STAR is sent on the selected channel
andtheradiolocksontothatchannel. Rotat-
ing the CONTROL KNOB will not change
channels. Turning the radio off and then
back on will reset this condition.
SCANNINGCHANNELS(ScanandSystemmodels)
The M-PA may be programmed for non-priority
scan, dual-priority scan, or scan operation may be
disabled. Scan programming options include a key-
padenteredscanlistorafixedscanlist. Priorityscan
programming options include a fixed priority-one
channel or the selected channel as the priority-one
channel.
The radio may be programmed to scan only the
channels in the current mode or it may be pro-
grammed to scan across modes.
Scan rate will vary depending upon the number
of channels on the scan list and whether or not the
radio is programmed to scan for Channel Guard.
Fewer channels will result in a faster scan rate. All
scan functions are retained in memory when the
battery pack is removed.
The radio will not scan when the emergency
mode is enabled ("EMG" status flag is on).
Adding Channels To And Deleting Channels
From The Scan List
If the "SCAN A/D" menu is programmed, chan-
nels may be added to and deleted from the scan list
of each mode as follows:
1. Selectthedesiredmodeandchannel. Ifthe
selectedchannelis currentlyonthelist, the
"S" status flag will be on.
2. Press the MENU button until "SCAN A/D"
is displayed.
3. Press the SEL button until the desired pri-
ority indicator appears: "S" for non-priority,
"2" for priority-two, "1" for a priority-one, or
noindicatortoremovethechannelfromthe
scan list. If a new priority channel is se-
lected the previous corresponding priority
channel will become a non-priority scan
19

channel. One of the following messages
may be momentarily displayed:
"SCAN DIS" - –The radio is notprogrammed
to scan.
"FIXED P1" - –A priority-one channel has
been programmed into the
radio. A new priority-one
channel can not be selected.
"FIXD LST" - –A fixed scan list is pro-
grammed into the radio. It is
notpossibletochangethelist
without reprogramming the
radio.
4. Toaddordeleteadditionalchannels,repeat
steps 2 through 4.
5. Press the EXIT button to return to normal
operation.
Using Scan
Toggle scan on or off by pressing SCAN. The
"SCN" status flag turns on when the radio is scan-
ning.
TELEPHONE INTERCONNECT CALLS
SCAN Model
Telephone interconnect calls can be placed on
radio channels equipped with this capability. Each
channel programmed into the radio can be pro-
grammedfortelephoneinterconnectbyenablingitfor
DTMF dial operation. One (1) of the ten (10) pro-
grammed telephone numbers can be selected and
automatically dialled.
Communication takes place in a simplex mode.
In other words, the PTT BUTTON must be pressed
each time you wish to transmit and it must be re-
leased to receive.
Placing A Call
Ten(10)telephonenumberscanbeprogrammed
in the radio for automatic dial operation. Typically,
telephonenumbersprogrammedintotheradiobythe
maintenance personnel each have a specific name
(8 characters maximum) assign.For example: "OF-
FICE" or "HOME".To recall a number and complete
a call, proceed as follows:
20
