Radio Description
Radio 2217, Radio 2218 and Radio 0208
DESCRIPTION
181/1551-LZA 701 6001-1-V1 Uen PC3

PRELIMINARY
Copyright
© Ericsson AB 2015–2016. All rights reserved. No part of this document may be
reproduced in any form without the written permission of the copyright owner.
Disclaimer
The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use
of this document.
Trademark List
All trademarks mentioned herein are the property of their respective owners.
These are shown in the document Trademark Information.
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Contents
Contents
1 Introduction 1
1.1 Warranty Seal 1
2 Product Overview 3
2.1 Main Features 4
2.2 Optional Equipment 5
3 Technical Data 7
3.1 Technical Data Summary 7
3.2 Installation Recommendations 14
3.3 Space Requirements 15
3.4 Acoustic Noise 21
3.5 Environmental Characteristics 21
3.6 Power Characteristics 23
3.7 System Characteristics 24
4 Hardware Architecture 27
4.1 Radio Overview 27
4.2 Fan Unit (Optional) 28
4.3 Optical Indicators and Buttons 29
5 Connection Interfaces 31
5.1 Position A and B, Antenna Interface 33
5.2 Position C, Maintenance Button 33
5.3 Position D, Optical Indicators 34
5.4 Position E and F, Interface for Optical Cable to Main Unit 34
5.5 Position G,
0 48 V DC Power Supply Interface 34
5.6 Position H, Grounding Interface 35
5.7 Position I, Ext Alarm Interface 36
5.8 Position J, ALD Ctrl Interface 36
5.9 Position K and L, TX Monitor Interface (Optional) 36
5.10 Optional Equipment Interfaces 36
6 Standards and Regulations, Radio 2217 37
6.1 Regulatory Approval 37
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
6.2 Other Standards and Regulations 40
7 Standards and Regulations, Radio 2218 41
7.1 Regulatory Approval 41
7.2 Other Standards and Regulations 43
8 Standards and Regulations, Radio 0208 45
8.1 Regulatory Approval 45
8.2 Other Standards and Regulations 47
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Introduction
1 Introduction
This document describes Radio 2217, Radio 2218 and Radio 0208.
1.1 Warranty Seal
The unit is equipped with a warranty seal sticker.
Note: Seals that have been implemented by Ericsson shall not be broken or
removed, as it otherwise voids warranty.
1
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
2181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Product Overview
2 Product Overview
The radio remotely extends the reach of the Radio System, and is designed
to be located near the antenna. The radio is part of a modular radio building
concept that enables a variety of installation alternatives that are also easy to
expand. Flexible mounting solutions are provided using rails, pole clamps,
and brackets. The small size of the radio together with the flexible mounting
solutions reduces the site volume. The lower weight also improves the handling
of the radio.
An optic cable connects the radio to the Radio System main unit or an expanded
macro Radio System. The radios can be connected in a star configuration or
in a cascade configuration with optical cable links. An overview of different
radio installations is shown in Figure 1.
3
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
Legends
Main unit
Ge7613B
Radio
Optical cable

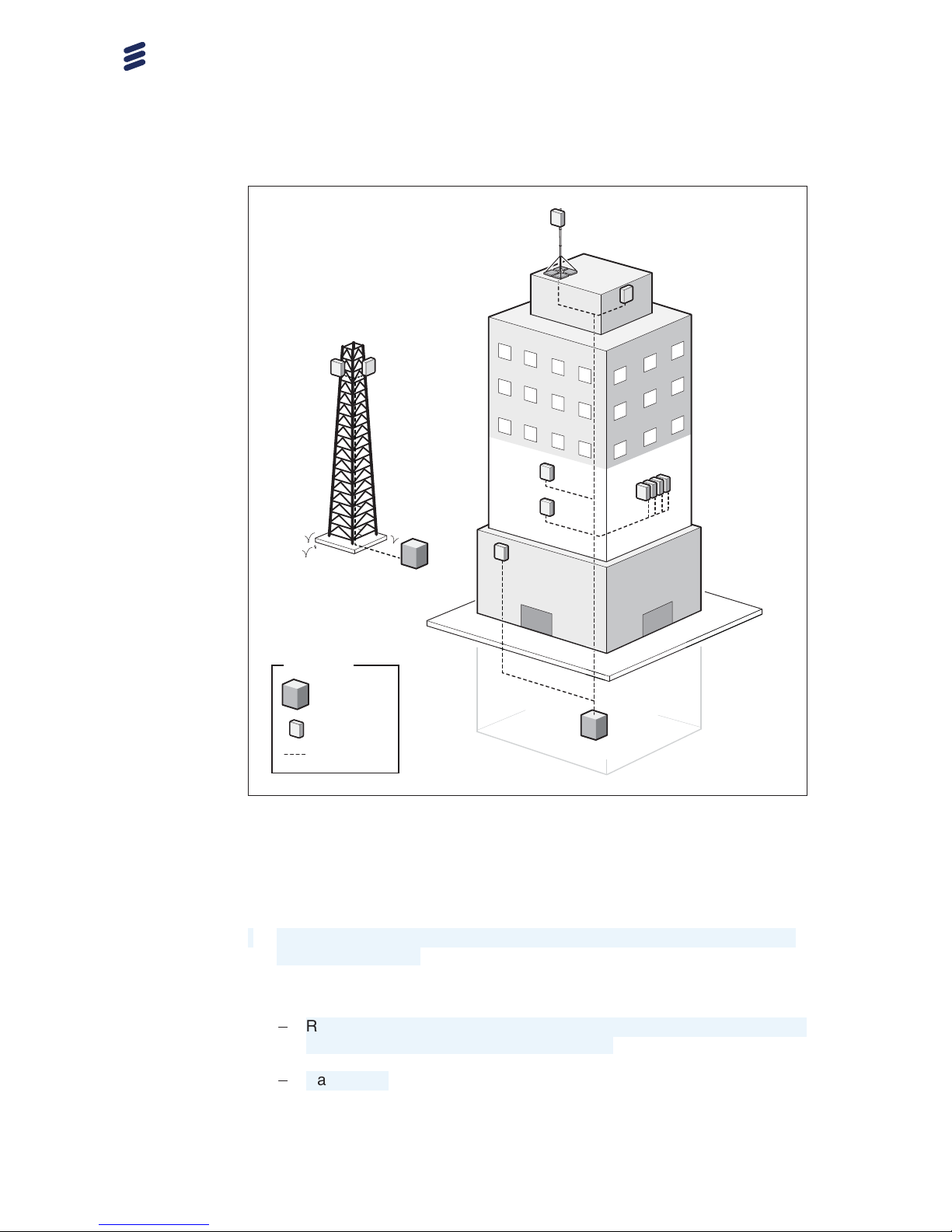

Figure 1 Radio Installations
2.1 Main Features
The following are the main features of the radio:
• Supports 2- and 3-wire power connections. For 2-wire power solutions, a
DC adapter is used.
• Supports:
0 Radio 2217 and Radio 0208: Wideband Code Division Multiple Access
(WCDMA) and Long Term Evolution (LTE).
0
Radio 2218: LTE.
4181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Product Overview
• Supports:
0 Radio 2217 and Radio 0208: Frequency Division Duplex (FDD).
0 Radio 2218: Time Division Duplex (TDD).
• Supports：
0 Radio 2217 and Radio 2218: Duplex transmitter/receiver (2TX/2RX)
branches.
0 Radio 0208 has two uplink RX branches but no downlink TX branch. It
can be used as a two RX unit to add support for four way RX diversity
when used in combination with the following RRUs:
• RRUW 01/02
• RRUS 01
• RRUS 11
• RRUS 12
• RRUS 13
• Radio 2217
• Supports up to 9.8 Gbit/s CPRI (optical).
• Complies with 3GPP base station classes Medium Range (MR) and Wide
Area (WA); relevant standards are listed in Section 6.1.4 on page 39
(Radio 2217), Section 7.1.4 on page 42 (Radio 2218) and Section 8.1.4
on page 46 (Radio 0208).
2.2 Optional Equipment
Optional equipment for Radio 2217 is the following:
• Fan unit.
5
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
6181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Technical Data
3 Technical Data
This section contains the radio physical characteristics, environmental data,
and the power information of the Radio System.
3.1 Technical Data Summary
This section contains a technical data summary for Radio 2217, Radio 2218
and Radio 0208.
3.1.1 Radio 2217
The technical data for Radio 2217 is listed in Table 1.
Table 1 Radio 2217 Technical Data
Description Value
Maximum nominal output
power(1)(2) 2 x 10 W, 2 x 20 W, 2 x 30 W, and 2 x 40 W
(License key is required for total output power
over 20 W.)
Number of carriers WCDMA: One to eight carriers (B1); one to seven
carriers (B8); one to five carriers (B5)
LTE: One to three carriers
Mixed mode: Two to six carriers (B1); two to
seven carriers (B8); two to seven carriers (B5)
(HWAC required)
7181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
Description Value
1920–1980 MHz uplink
2110–2170 MHz downlink
B1 for WCDMA and LTE
1710–1785 MHz uplink
1805–1880 MHz downlink
B3 for LTE
880–915 MHz uplink
925–960 MHz downlink
B8 for WCDMA and LTE
832–862 MHz uplink
791–821 MHz downlink
B20 for LTE
718–748 MHz uplink
773–803 MHz downlink
B28A for LTE
Frequency(3)
824–849 MHz uplink
869–894 MHz downlink
B5 for WCDMA and LTE
Dimensions without Fan Unit
Height 351 mm
Width 298 mm
Depth 127 mm
Dimensions with Fan Unit
Height 351 mm
Width 298 mm
Depth 138 mm
Weight without Fan
Radio 2217 B1, B3, B8,
B20, B28A
12.3 kg
Radio 2217 B5 13.3 kg
Weight with Fan
8181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Technical Data
Description Value
Radio 2217 B1, B3, B8,
B20, B28A
12.8 kg
Radio 2217 B5 13.8 kg
Color
Body NCS S 1002-B
Front NCS S 6502-B
(1) Detailed information about LTE licences can be found in License Management or
Manage Licenses.
(2) Detailed information about output power can be found in applicable Output Power User Guide.
(3) Information about Instantaneous Bandwidth (IBW) can be found in RBS Configurations.
Radio 2217 height, width, and depth without fan unit, are shown in Figure 2.
Ge7599G
Unit of measurement: mm
351
127 298

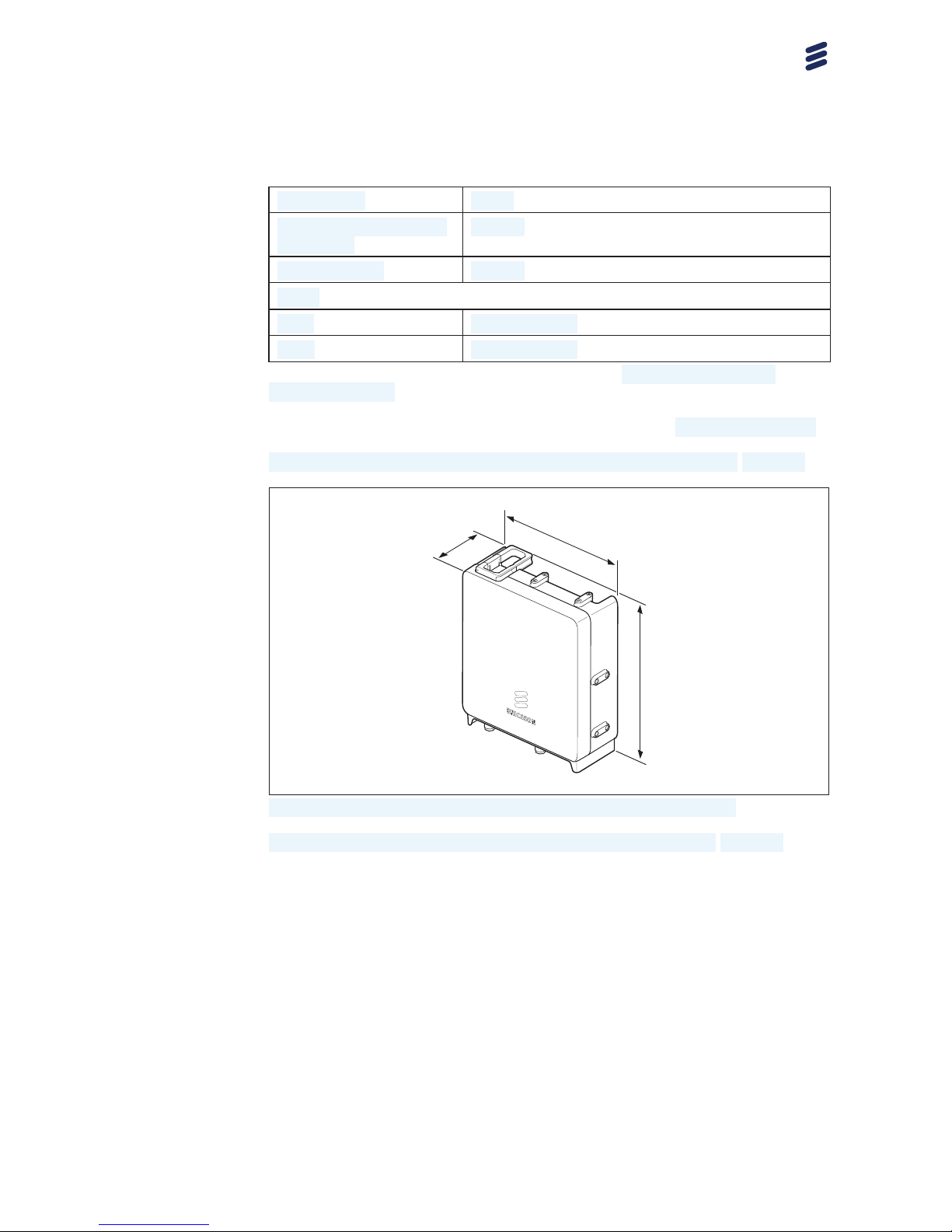

Figure 2 Radio 2217 Height, Width, and Depth without Fan Unit
Radio 2217 height, width, and depth with fan unit, are shown in Figure 3.
9
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
Ge7606C
351
298
138
Unit of measurement: mm

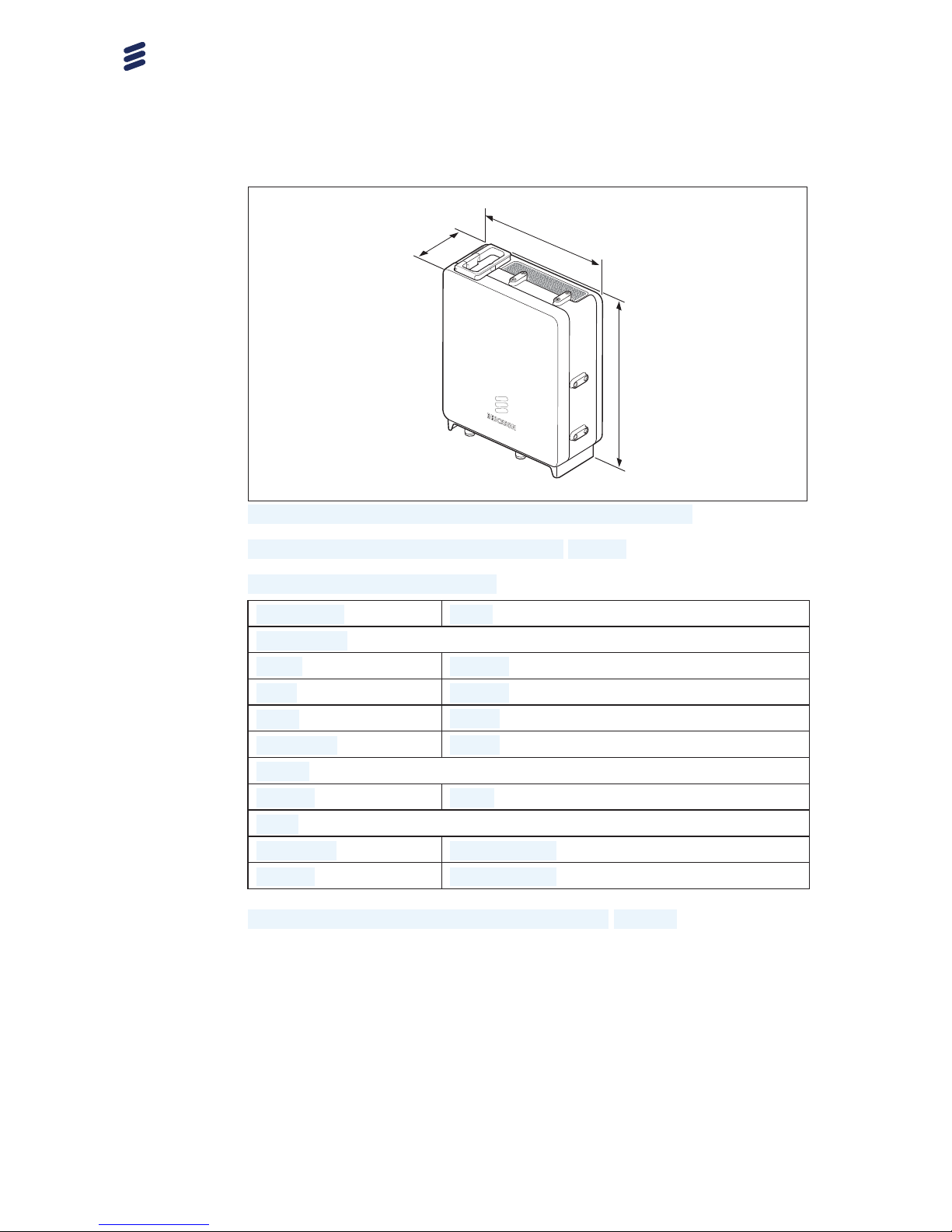

Figure 3 Radio 2217 Height, Width, and Depth with Fan Unit
The technical data for the fan unit is listed in Table 2.
Table 2 Fan Unit Technical Data
Description Value
Dimensions
Height 351 mm
Width 298 mm
Depth 15 mm
Total depth 63 mm
Weight
Fan unit 0.5 kg
Color
Back cover NCS S 1002-B
Fan box NCS S 6502-B
The fan unit height, width, and depth, are shown in Figure 4.
10 181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Technical Data
Ge7747C
351
298 63
15
Figure 4 Fan Unit Height, Width, and Depth
3.1.2 Radio 2218
The technical data for the radio is listed in Table 3.
Table 3 Radio 2218 Technical Data
Description Value
Maximum nominal output
power(1)(2) 2×10 W, 2×20 W, 2×30 W, and 2×40 W
(License key is required for total output power
over 20 W.)
Number of carriers LTE: One to three carriers
(HWAC required)
Frequency(3) 1885–1915 MHz
B39A for LTE
Dimensions
Height 381mm
Width 291 mm
Depth 115 mm
Weight
Radio 2218 13.5 kg
11181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
Description Value
Color
Body NCS S 1002-B
Front NCS S 6502-B
(1) Detailed information about LTE licences can be found in License Management or
Manage Licenses.
(2) Detailed information about output power can be found in applicable Output Power User Guide.
(3) Information about Instantaneous Bandwidth (IBW) can be found in RBS Configurations.
The radio height, width, and depth, are shown in Figure 5.
Ge7599F
Unit of measurement: mm
381
115 291

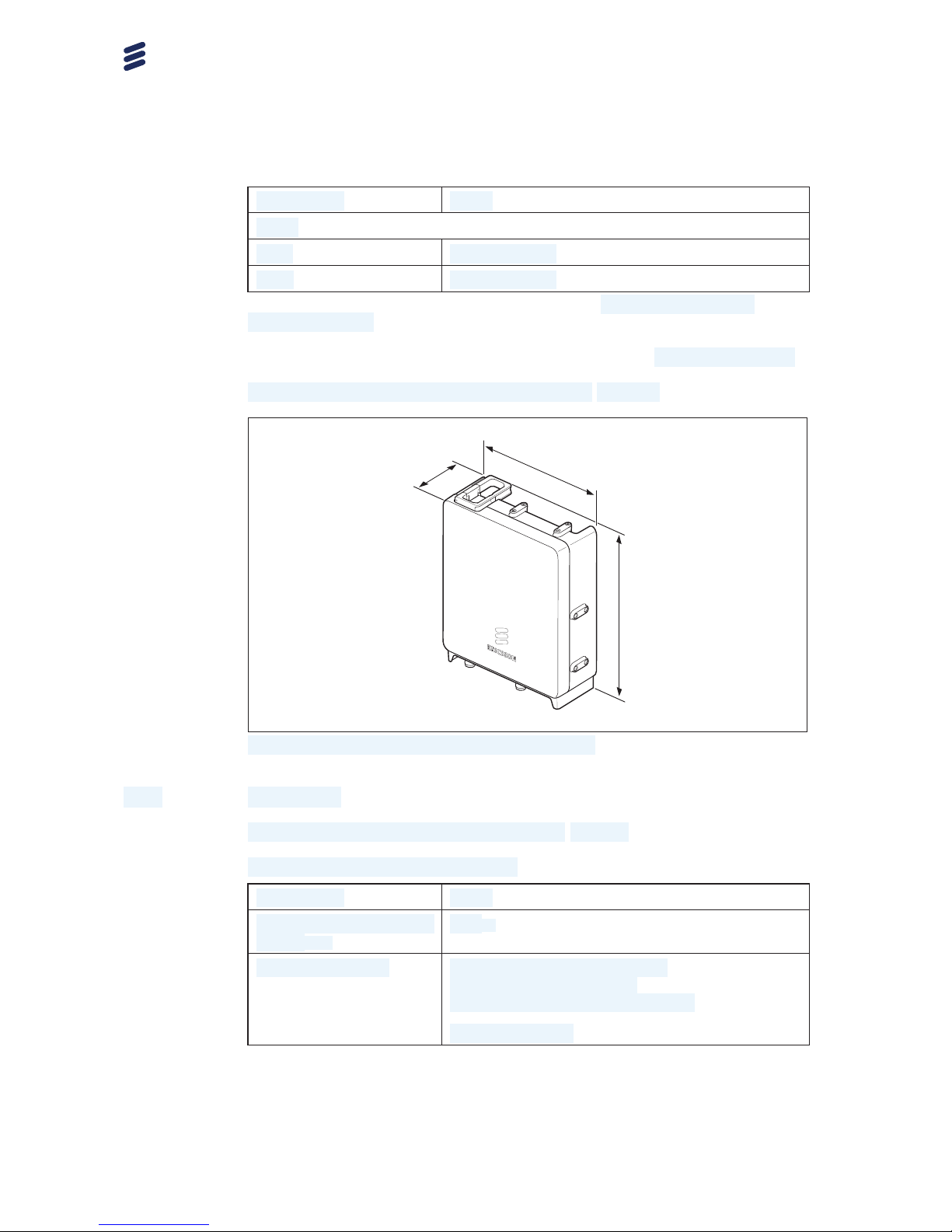

Figure 5 Radio 2218 Height, Width, and Depth
3.1.3 Radio 0208
The technical data for Radio 0208 is listed in Table 4.
Table 4 Radio 0208 Technical Data
Description Value
Maximum nominal output
power (1)(2) N/A (3)
Number of carriers WCDMA: One to eight carriers
LTE: One to three carriers
Mixed mode: One to eight carriers
(HWAC required)
12 181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Technical Data
Description Value
Frequency(4) 1920–1980 MHz uplink
B1 for WCDMA and LTE
Dimensions
Height 310 mm
Width 291 mm
Depth 63.4 mm
Weight
Radio 0208 8.4 kg
Color
Body NCS S 1002-B
Front NCS S 6502-B
(1) Detailed information about LTE licences can be found in License Management or
Manage Licenses.
(2) Detailed information about output power can be found in applicable Output Power User Guide.
(3) The Radio 0208 is not TX-capable. When used in an RBB together with a TX-capable remote
radio, the output power of the RBB is that of the TX-capable remote radio.
(4) Information about Instantaneous Bandwidth (IBW) can be found in RBS Configurations.
The radio height, width, and depth, are shown in Figure 6.
Ge7599G
Unit of measurement: mm
310
63.4 291
Figure 6 Radio 0208 Height, Width, and Depth
13
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Radio Description
3.2 Installation Recommendations
To achieve reliable operation, and maximum performance, an appropriate
installation location must be chosen.
3.2.1 Indoor Locations to Avoid
Although the unit is designed for outdoor use, it can also operate in an indoor
environment according to ETSI EN 300 019-1-3 class 3.1, 3.2, 3.3, and 3.6.
This does not cover installation with heat traps or installation in lofts, where
air ventilation does not exist. To ensure smooth performance of the product,
it is recommended to ensure that the planned installation site for the unit is
not a potential microclimate location. This typically occurs in places such as
unventilated lofts, sites with heat traps, or sites where the product is exposed to
direct sunlight through windows. Ensure proper ventilation and avoid installing
the equipment under glass covers or skylight windows.
3.2.2 Outdoor Locations to Avoid
Although Ericsson declares this product suitable for most outdoor environments,
this does not cover installations where the planned installation site for the unit
is a potential microclimate location. Typical examples for these microclimate
locations are sites where the products are not only exposed to the actual
temperature, but also additional temperature as heat coming from dark-colored
planes, for example, reflections from the floor or walls. The additional
temperature can generate heat traps with temperatures up to 10

C higher
than expected.
Avoid installing equipment in the following locations:
• Near the exhaust of building ventilation system.
• Near the exhaust of the chimney.
• Opposite large surfaces made of glass or new concrete.
3.2.3 Installations that Require Fan Unit
The Radio 2217 fan unit must be used in all installation scenarios where the
cables from the radio are not pointing directly downwards. The fan unit must
also be used in extreme conditions, such as installations with poor ventilation or
installations with heat traps.
3.2.4 Painting Limitations
Ericsson does not recommend painting the radio as it may affect radio
performance of the unit.
14 181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13

PRELIMINARY
Technical Data
Ericsson will apply limitations to the warranty and service contract if the radio is
painted.
3.2.4.1 Technical Limitations
If the radio is painted, be aware of the technical limitations below:
• Sunlight on dark paint may increase the temperature of the radio causing
it to shut down.
• The plastic surfaces and the plastic covers are suited for painting with
normal commercially available one or two component paints.
• Never use metallic paint or paint containing metallic particles.
• Ensure that ventilation and drainage holes are free from paint.
• Ensure proper adhesion of the paint.
3.2.4.2 Commercial Limitations
If the radio is painted, the commercial limitations below apply:
• Failure modes directly related to overheating due to painting are not valid
for repair within the scope of the warranty or standard service contract.
• Product failures related to paint contamination of components of the unit are
not valid for repair within the scope of warranty or standard service contract.
• When a painted unit is repaired, it will be restored to the standard color
before being returned to the market. It is not possible to guarantee the
same unit being sent back to the same place. This is also valid for units
repaired under a service contract.
• For repairs within the warranty period or a standard service contract, the
customer will be charged the additional costs for replacing all painted parts
of the unit or the complete unit.
3.3 Space Requirements
The installation alternatives for the radio are shown in Figure 7 and listed in
Table 5.
15
181/1551-LZA 701 6001-1-V1 Uen PC3 | 2016-01-13
