Ericsson KH-600 User manual

Operator's Manual
Portable Radio Unit
KH-500/600


2
NOTICE!
This manual covers Ericsson products manufactured
and sold by Ericsson Inc.
NOTE!
Repairs to this equipment should be made only by an
authorized service technician or facility designated by
the supplier. Any repairs, alterations or substitution of
recommended parts made by the user to this
equipment not approved by the manufacturer could
void the user's authority to operate the equipment in
addition to the manufacturer's warranty.
NOTE!
The software contained in this device is copyrighted
by Ericsson Inc. Unpublished rights are reserved
under the copyright laws of the United States.
This manual is published by
Ericsson Inc.,
without any warranty. Improvements and
changes to this manual necessitated by typographical errors, inaccuracies of current
information, or improvements to programs and/or equipment, may be made by
Ericsson
Inc.,
at any time and without notice. Such changes will be incorporated into new editions of
this manual. No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, for any purpose,
without the express written permission of
Ericsson Inc.
Copyright © January 1999, Ericsson Inc.

3
TABLE OF CONTENTS
Page
INTRODUCTION ..............................................................6
BUTTONS AND KNOBS............................................ 13
INDICATORS...................................................................19
STATUS INDICATORS ............................................. 20
ALERT TONES........................................................... 21
OPERATION....................................................................26
RECEIVING A MESSAGE........................................ 26
SENDING A MESSAGE............................................. 27
HOME CHANNEL OPERATION.............................28
TYPE 99 OPERATION............................................... 29
SCAN OPERATION ................................................... 31
TELEPHONE INTERCONNECT CALLS
(KH-600 ONLY)........................................................... 40
EMERGENCY OPERATION.................................... 44
BATTERY INFORMATION...........................................45
CHARGE BEFORE USING....................................... 45
RECHARGING THE BATTERY.............................. 45
CONDITIONING THE BATTERY........................... 46
INSTALLING THE BATTERY PACK..................... 46
REMOVING THE BATTERY PACK....................... 47
BATTERY CARE & MAINTENANCE.................... 48
BATTERY RECYCLING........................................... 48
OPERATING TIPS ..........................................................49
EFFICIENT RADIO OPERATION .......................... 50

4
TABLE OF CONTENTS (CONT)
Page
ANTENNA CARE AND REPLACEMENT.............. 50
ELECTRONIC DEVICES.......................................... 51
AIRCRAFT .................................................................. 51
BLASTING AREAS .................................................... 51
POTENTIALLY EXPLOSIVE
ATMOSPHERES......................................................... 52
ACCESSORIES................................................................53
INTRINSICALLY SAFE USAGE ..................................55
BATTERY PACKS...................................................... 56
ACCESSORIES ........................................................... 57
GLOSSARY ......................................................................58
WARRANTY ....................................................................61
NICKEL-CADMIUM BATTERY WARRANTY..........62
OPERATOR'S RADIO SETUP ......................................63

5
This page intentionally left blank

6
INTRODUCTION
The KH-500 (Scan) and KH-600 (DTMF) portable
radios are lightweight, full-featured radios that provide
reliable two-way communications on 1 to 16 channels.
The KH-500 radio contains three (3) buttons on the
front panel. The KH-600 contains three (3) buttons
along with a twelve (12) button DTMF pad on the front
panel. The scan function allows monitoring of any or all
channels. Any channel may be scanned with or without
a priority level. One channel can be programmed for
Priority 1 (P1) and another for Priority 2 (P2), with any
or all remaining channels programmed as non-priority
channels (S). There is also an Emergency GE-STAR

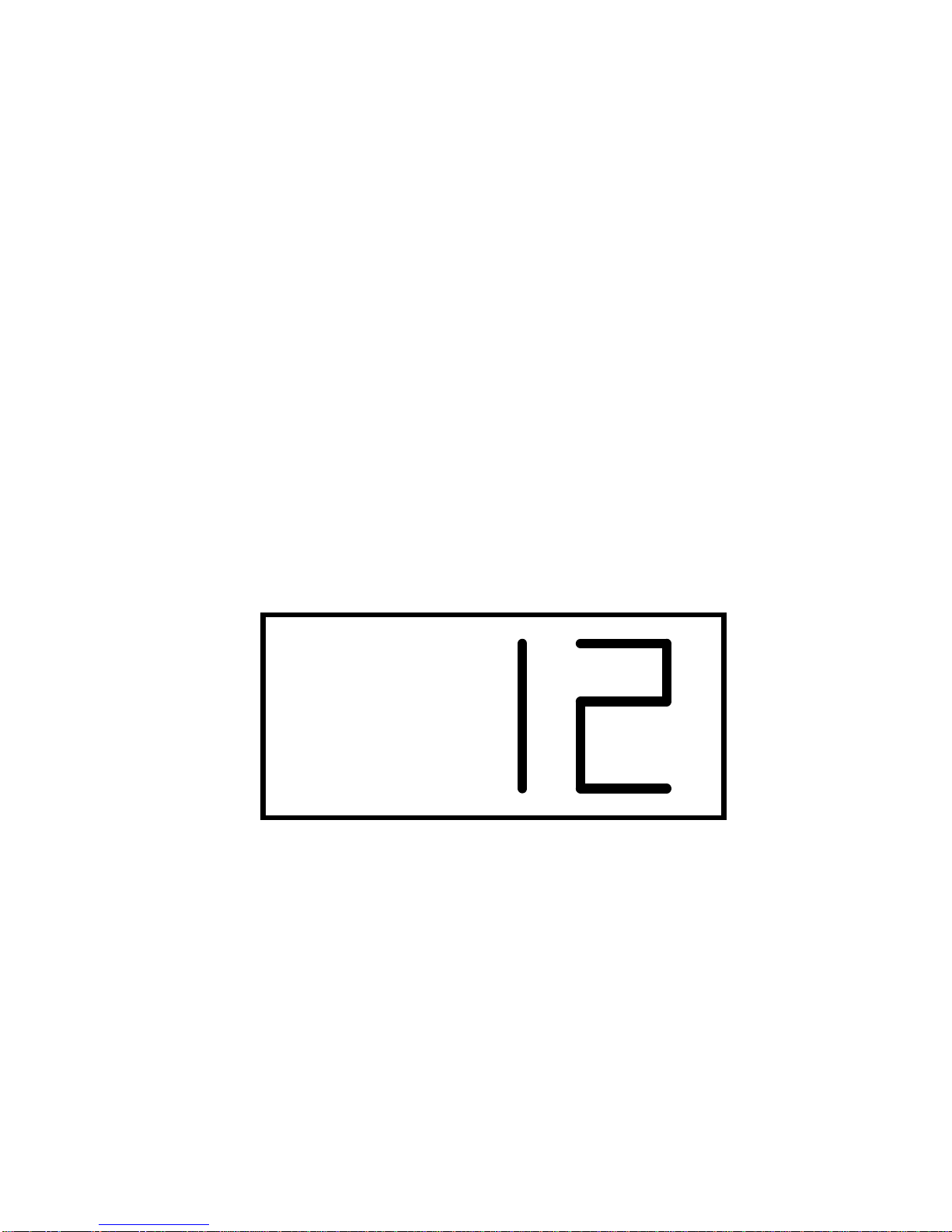

mode transmission capability. A LCD display provides
status display of the radio functions along with the
display of the selected channel number.

7
The Universal Device Connector (UDC), located on
the side of the radio, provides connections for external
audio accessories. This connector also allows the
radio system personnel to connect programming
equipment and program the per-channel and overall
radio features. Consult the radio dealer to determine
the programmed features of your radio. Features that
are programmable on a per-channel basis include:
•Receive Frequency
•Transmit Frequency
•Channel Busy Lock-Out
•Optional Squelch Tail Elimination (STE) for Analog
Channel Guard
•Channel Guard Encode/Decode (Analog or Digital)
•Type 99 Tone Decode
•CG/DCG Decode Tones/ Codewords
•CG/DCG Encode Tones/ Codewords
•Automatic Number Identification (ANI)
•RF Power (High or Low)

8
•Microprocessor Oscillator Shift in Receive mode
•Microprocessor Oscillator Shift in Transmit mode
•Channel Spacing (12.5 kHz or 25/30 kHz)
•Telephone Interconnect DTMF Keypad enable
(KH-600 only)
Features that are programmable on an overall radio
basis include:
•Display Backlighting
•Alert Tones
•Emergency GE-STAR (with or without Home
Channel)
•Three (3) DTMF Auto-Dial Telephone Numbers
(KH-600 only)
•Carrier Control Timer (CCT)
•Hi/Low RF Power Button Enable/Disable
•Scan Options
•CG Auto/Manual Reset
•A.N.I. Options
•Home Channel

9

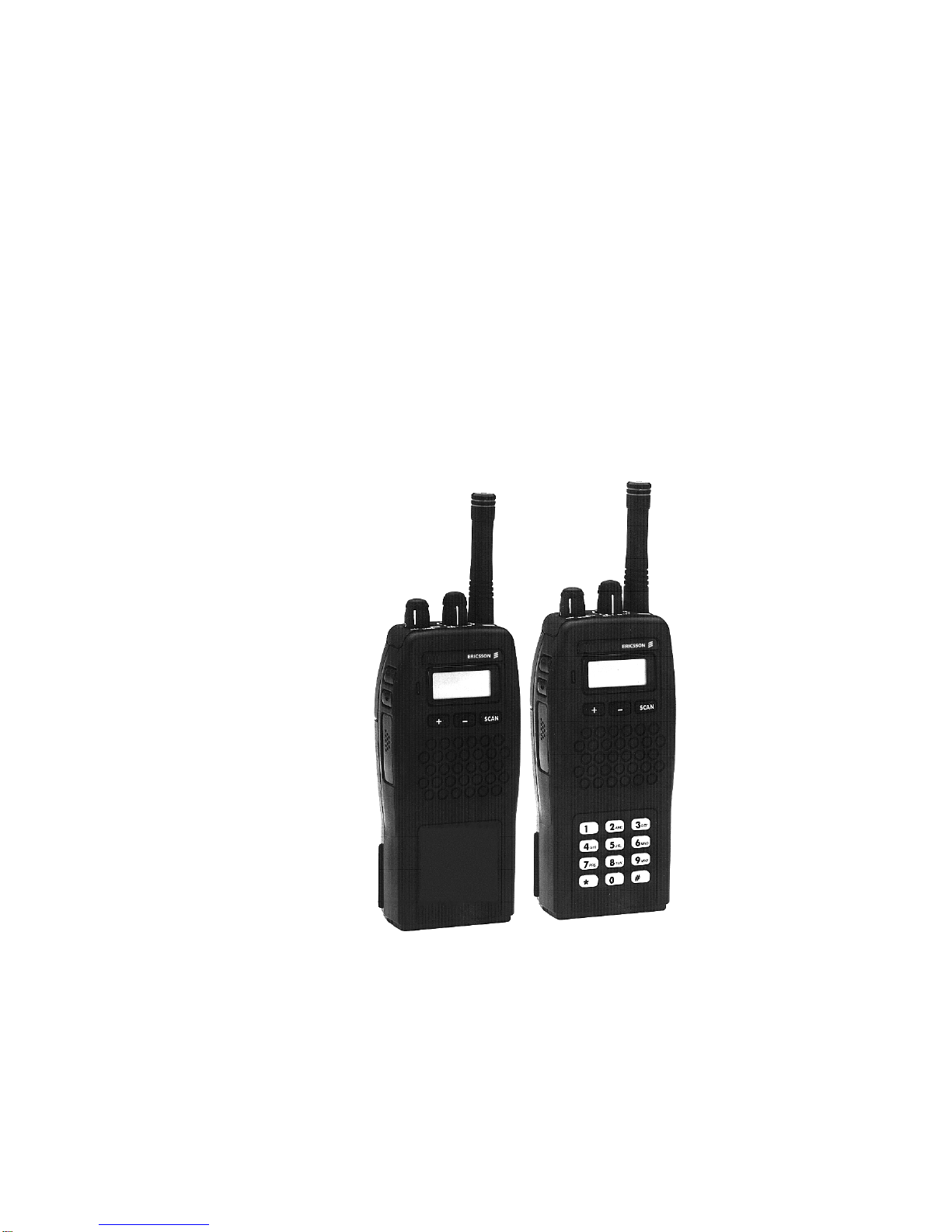

Figure 1 – KH-500 Scan Radio

10
Figure 2 – KH-600 System Radio
