Ericsson Monogram Series LBI-39132 User manual

Maintenance Manual
Monogram
Series
4/16 Channel Portable
ericssonz
LBI-39132

This manual is published by EricssonInc., without any warranty. Improvements and changes to this manual necessitated by typographical
errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made byEricsson Inc., at any time
and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the
express written permission of Ericsson Inc.
NOTE
Repairs to this equipment should be made only by an authorized service technician or facility designated by
the supplier. Any repairs, alterations or substitution of recommended parts made by theuser to this equipment
not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the
manufacturer’s warranty.
NOTICE!
This manual covers Ericsson and General Electric products manufactured and sold by Ericsson Inc.
Page-i-
Dec.94

TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................1-4
UNPACKING..........................................................................................................................5
INTRODUCTION...................................................................................................................6
GENERAL FEATURES .........................................................................................................7-10
TABLE 1-Status Indications And Audible Tones........................................................10

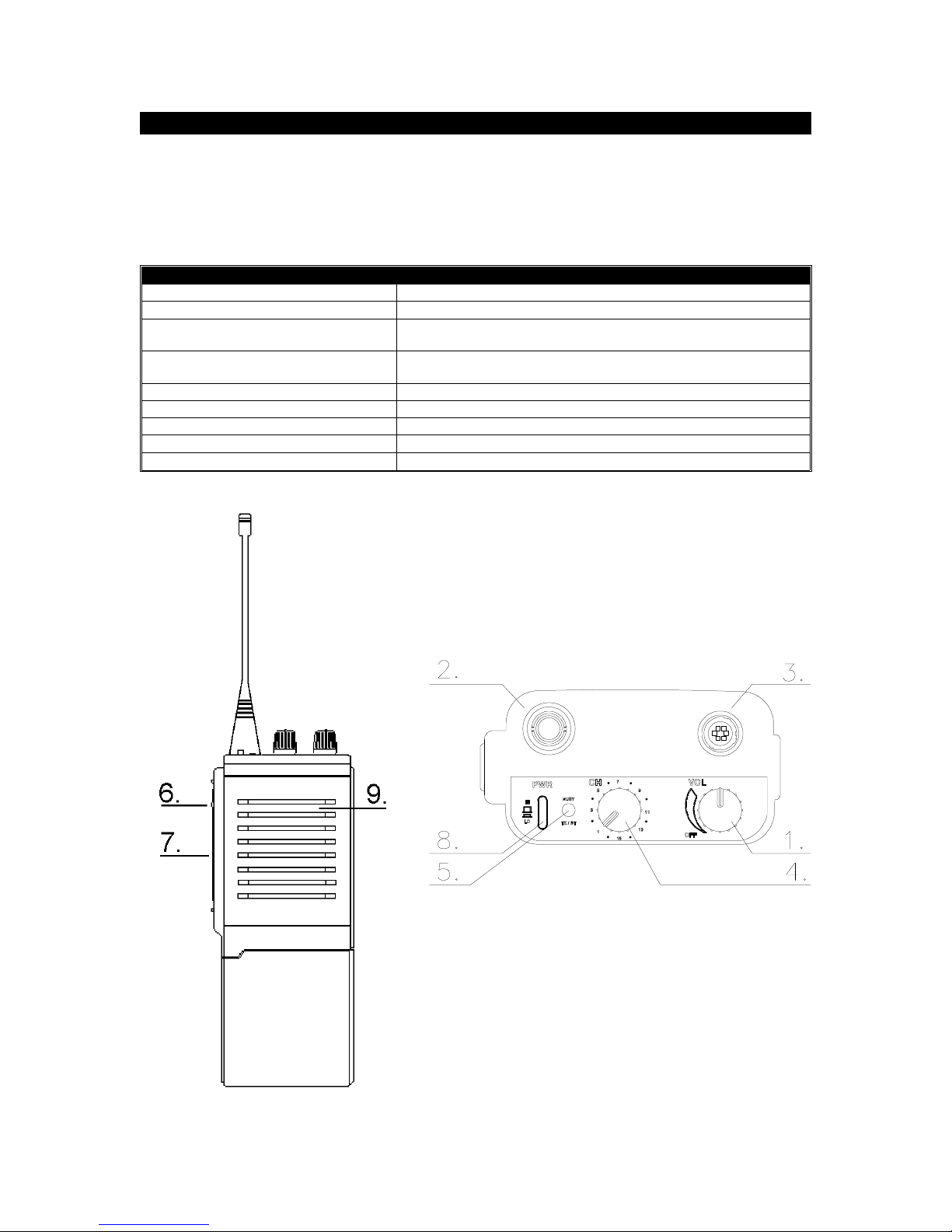

DESCRIPTION OF CONTROLS...........................................................................................11
TABLE 2-Controls, Indicators And Connections........................................................11
CIRCUIT ANALYSIS DIGITAL BOARD ...........................................................................12-13
CIRCUIT ANALYSIS RF BOARD ......................................................................................14-15
UHF RECEIVER.....................................................................................................................16
VHF TRANSMITTER ............................................................................................................17-19
VHF RECEIVER.....................................................................................................................20-21
GENERAL MAINTENANCE AND REPAIR.......................................................................22
REMOVING AND REPLACING ..........................................................................................23-25
PERFORMANCE TEST.........................................................................................................26
TABLE 8 - AUDIO AND PTT CONNECTIONS.......................................................27
TABLE 9 - STANDARD CTCSS TONES..................................................................28
TABLE 10 - STANDARD DCS TONES ....................................................................28
TRANSMITTER PERFORMANCE TESTS .........................................................................29
RECEIVER PERFORMANCE TEST ....................................................................................29
PROGRAMMING...................................................................................................................31
ALIGNMENT PROCEDURES ..............................................................................................32
UHF/VHF ALIGNMENT .......................................................................................................32-36
406-116-D ALIGNMENT POINTS........................................................................................37
406-112-D/H ALIGNMENT POINTS....................................................................................38
406-178 ALIGNMENT POINTS............................................................................................39
COMPONENT REPLACEMENT..........................................................................................40-41
VOLTAGE READINGS.........................................................................................................43-46
ELECTRICAL PARTS LIST VHF.........................................................................................47
ELECTRICAL PARTS LIST UHF.........................................................................................48
PRINTED CIRCUIT BOARDS..............................................................................................49
EXPLODED VIEW PARTS LIST..........................................................................................50
EXPLODED VIEW/SCHEMATICS......................................................................................51
MONOGRAM SERIES HANDHELD
Page-ii-
Dec.94

This page intentionally left blank
Page-iii-
Dec.94

SPECIFICATIONS
The information detailed in the Specifications is for the VHF and UHF Series hand portable radios. Unless
otherwise stated the information is the same for both.
General
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rechargeable Nickel-Cadmium Battery,
10.8 VDC
Power Supply Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.2 V DC-13.5 V DC
Current Consumption
VHF
Standby. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 mA (Battery Save On)
35 mA (Battery Save Off)
Receive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 mA
Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1100 mA (5W)
Battery Life (5-5-90% duty cycle)
UHF
Standby. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 mA (Battery Save On)
50 mA (Battery Save Off)
Receive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 mA
Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 mA (5W)
Battery Life (5-5-90% duty cycle)
Typically
600 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 hrs.. at 5W (save on), 5 hrs.. at 5W (save
off).
1200 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 hrs.. at 5W (save on), 9 hrs.. at 5W (save
off).
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Designed to meet EIA
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-30°C to + 60 ° C
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90% at 40 ° C Non-condensing
Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 ohm
Microphone Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5k Ohm
Frequency Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Synthesizer
Number of RX/TX Channels . . . . . . . . . . . . . . . . . . . . . . . . . . 16 or 4 Maximum
MONOGRAM SERIES HANDHELD
SPECIFICATIONS
Page-1-
Dec.94

Frequency Bands
VHF Low Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 MHz to 150 MHz
VHF Medium Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 MHz to 162 MHz
VHF High Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 MHz to 174 MHz
UHF A Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 MHz to 420 MHz
UHF B Band. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420 MHz to 440 MHz
UHF C Band. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450 MHz to 470 MHz
UHF D Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 MHz to 490 MHz
UHF E Band. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490 MHz to 520 MHz
Dimensions (mm)
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99(H) x 64(W) x 36(D)
600 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59(H) x 64(W) x 36(D)
1200 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84(H) x 64(W) x 36(D)
Weight
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 gm
600 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 gm
1200 mAh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 gm
Controls
Volume On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Used to turn radio On/Off and set the
Volume
Channel Select Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Used to select one of four or one of sixteen
channels, depending on radio.
Press To Talk Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Used to Transmit (Referred to as PTT)
Monitor Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Push to Monitor
Hi/Low Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Push to change from 1 to 5 watts.
Accessories Socket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 way socket, used for connecting the
remote speaker/microphone and
programming.
Transmitter
Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable 1W or 5W nominal
RF Load Stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unconditionally stable into an infinitive
VSWR at any phase angle.
RF Power Stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +2 dB - 3 dB of nominal power
(-30 ° C to +60 °C).
Operational Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 MHz
MONOGRAM SERIES HANDHELD
SPECIFICATIONS
Page-2-
Dec.94

Conducted Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . -60 dBc max.
Radiated Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . -60 dBc max.
Adjacent Channel Noise Power (25 kHz) . . . . . . . . . . . . . . . . 70 dBc in 16 kHz.
Modulation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FM (F3E)
Audio Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 dB/octave pre-emphasized response
300-3000 Hz
Audio Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . (<6 kHz) 24 dB/octave
Audio Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . <5% at 60% System Deviation modulated
with 1 kHz.
Maximum Deviation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 kHz at 25 kHz
Microphone Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Better than 94 dB S.P.L.
Hum and Noise (Unsquelched) . . . . . . . . . . . . . . . . . . . . . . . . ≥45 dB
RECEIVER
Sensitivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 dB SINAD/0.3 µVpd 20 dB/0/40 µ V
Modulation Acceptance Bandwidth
N Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 kHz for 12.5 kHz
M Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 kHz for 20 KHz
S Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.5kHz for 25 kHz
Adjacent Channel Signal Selectivity . . . . . . . . . . . . . . . . . . . . ≥ 70 dB
Spurious Response Rejection. . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 80 dBc
Avg. System Frequency Deviation . . . . . . . . . . . . . . . . . . . . . 60% of peak at 1 kHz
Blocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥100 dB
Intermodulation Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥ 73 dBuv
Max Audio Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W min. at 10% THD into 8 Ω
AF Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0% THD at 200 mV into 8 Ω
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 dB/octave de-emphasized response in the
range 300 Hz-3000 Hz.
Hum and Noise (Unsquelched) . . . . . . . . . . . . . . . . . . . . . . . . ≥50 dB
MONOGRAM SERIES HANDHELD
SPECIFICATIONS
Page-3-
Dec.94

Conducted and Radiated Spurious Emission. . . . . . . . . . . . . . Per FCC and DOC Rules and Regulations
Temperature Stability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.0005% (-30 ° C To +60 ° C)
Amplitude Characteristic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≥1db
Operational Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 MHz VHF (3 dB)
8 MHz UHF (3 dB)
•Due to continuing research and development the company reserves the right to alter these
specifications without prior notice.
MONOGRAM SERIES HANDHELD
SPECIFICATIONS
Page-4-
Dec.94

UNPACKING
Check the carton and packing material carefully for the following items:
1. Transceiver Unit
2. Belt Clip
3. Operating Guide
Options:
4. Antenna
5. Battery
Packing is cardboard tray box.
