Erskine Attachments 2020 Series User manual

Models 2020X/2420X/2420XL
Hydraulic Snowblowers
For
Skid Steer Loaders
Operator’s Manual
Set-Up Assembly
Maintenance
Parts Information
Read this Manual Before Use

2
TABLE OF CONTENTS
REFERENCE INFORMATION
Write the serial number for your attachment in the spaces below. Always refer to this serial
number when calling for service or parts.
Serial Number………….._____________
YOUR ATTACHMENTS DEALER
ADDRESS:
PHONE:
CONTACT:
SAFETY
3-4
SERIAL NUMBER/DECAL LOCATION
5-6
SET UP ASSEMBLY
7-11
MOUNTING INSTRUCTIONS
12-14
OPERATING INSTRUCTIONS
15-16
ROUTINE MAINTENANCE
17-18
AUGER REMOVAL
19-20
FAN REMOVAL
21
PARTS INFORMATION
22-39
WIRE HARNESS INFORMATION
40
GENERAL SPECIFICATIONS
41
TROUBLESHOOTING
42
WARRANTY
43
NOTE: Erskine Attachments LLC reserves the right to make
improvements in design or changes in specifications at any time without
notice and without incurring any obligations to install them on units
previously sold.

3
The user is responsible for inspecting the machine
daily, and for having parts repaired or replaced
when continued use of the machine would cause
damage, excessive wear to other parts or make the
machine unsafe for continued operation.
If an operating procedure, tool device, maintenance
or work method not specifically recommended is
used; you must satisfy yourself that it is safe for you
and others. You must also ensure that the
attachment will not be damaged or made unsafe by
the procedures you choose.
Erskine Attachments LLC cannot anticipate every
possible circumstance that might involve potential
hazard. The safety messages found in this manual
and on the machine are therefore not all inclusive.
The signal words CAUTION, WARNING, or
DANGER are used to indicate hazards.
Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially
hazardous situation which, if not avoided,
will result in death or serious injury.

The word IMPORTANT is used in the text when
immediate damage will occur due to improper
technique or operation.

The word NOTE is used to convey information that
is out of context with the manual text; special
information such as specifications, techniques,
reference information, and other information of a
supplementary nature.
SAFETY
DO NOT use or perform maintenance on this machine until this manual has been
read and understood. In addition, read the Operation and Maintenance Manual(s)
pertaining to the attachment and the attachment carrier (“Loader”).

4
SAFETY
Improper operation can cause serious
injury or death.
Pre-operation
This attachment is designed for blowing snow
only. NEVER use this attachment for purposes
other than intended.
Read the operator’s manual for the “Skid Steer
Loader”. NEVER allow untrained people to
operate.
Operating instructions must be given to everyone
before operating this machine and at least once a
year thereafter in accordance with OSHA
regulations.
NEVER exceed the maximum recommended
input power or speed specifications for the
attachment. Over-powering or over-speeding the
attachment may cause personal injury and/or
machine damage.
Keep all shields, guards, and covers in place.
Do not modify equipment or add attachments that
are not approved by Erskine Attachments LLC.
Use adequate safety warning lights and devices
as required by local regulations. Obey all local
laws and regulations regarding machine
operation on public property.
Operation
Always wear eye protection that meets z87.1 or
use with a loader enclosure that provides similar
protection.
Hydraulic connections may be hot after use. Use
gloves if connecting or disconnecting after use.
Check and be sure all operating controls are in
neutral before starting the engine.
Keep people away from loader, attachment and
discharge when in use. This attachment sends
objects flying and has rotating parts. NEVER
direct discharge toward people –rocks and
debris can be thrown.
Operation (continued)
NEVER operate near embankments or terrain
that is so steep that rollover could occur.
Always stay in the operator position when using
the attachment.
Before leaving the operators position, disengage
hydraulic drive, lower the attachment to rest flat
on the ground, stop engine, set park brake, and
wait for all motion to stop.
NEVER place hands in the discharge chute or
clear debris while engine is running.
Avoid High Pressure Fluids Hazard
Escaping fluid under pressure can
penetrate the skin causing serious
injury.
Avoid the hazard by relieving the
pressure before disconnecting
hydraulic lines.
Use a piece of paper or cardboard, NOT BODY
PARTS, to check for suspected leaks. Wear
protective gloves and safety glasses or goggles
when servicing or performing maintenance on
hydraulic systems.
If an accident occurs, see a doctor immediately.
Any fluid injected into the skin must be
surgically removed within a few hours or
gangrene may result.
Maintenance
NEVER make adjustments, lubricate, clean, or
perform any service on the machine while it is in
operation.
Make sure the attachment is serviced on a daily
basis. Improper maintenance can cause
serious injury or death in addition to damage to
the attachment and/or your equipment.

5
SERIAL NUMBER AND SAFETY DECAL LOCATIONS
Serial Number Location:
It is important to refer to the serial number of your attachment when making repairs or ordering parts. Early or
later models (identification made by serial number) may use different parts, or it may be necessary to use
different procedures in doing a specific operation. Serial number plate is located on the right rear side of
body.
B
D
C
A
Serial Plate
Small Brand Decal

6
SERIAL NUMBER AND SAFETY DECAL LOCATIONS
A
C
B
Part number: 200001
Location: Back right side of blower assembly
Quantity: 1
D
Part number: 103206
Location: Chute rotation chain cover.
Quantity: 1
Part number: 315989
Location: Back right side of blower assembly
Quantity: 1
Part number: 350070 (Motor Package)
Location: back of blower under serial plate
Quantity: 1
Safety Decals Locations:
The locations of the safety decals are shown. If
these decals are missing, damaged, or painted
over they must be replaced. Call Erskine
Attachments LLC (218-435-4045) for replacement
decals.
Small Brand Decal
Location: On each endplate
Quantity: 2

7
____________________SET UP ASSEMBLY ___________________
Crate Removal and Assembly
1. Remove screws to disassemble crate.
2. Remove chute from plastic bags.
The mounting plate can be installed in the “lower”
position for most skid steers with standard sized
tires, or in the “middle” or “upper” position for skid
steers with taller or oversized tires. The
mounting plate position can also be adjusted to
change the pitch of the blower in the working
position.
IMPORTANT: Make sure the bolts on the
mounting plate are tight. If you remove the
mounting plate, retighten the bolts to 130 ft-lbs.

8
Discharge Chute Installation
1. Remove one of the roller guides from the
blower housing by removing the bolt securing
the roller guide.
2. After unpacking the chute, slip the chute into
the grooves on the two remaining roller guides.
3. Reinstall the roller guide and bushing with the
bolt and lock nut.
IMPORTANT: Tighten lock nut to 75 ft-lbs.
4. Rotate the chute to the straight forward
position.
5. Remove the chain shield.
6. Loosen the chute rotation motor bolts. Push
the motor all the way towards the chute.
Install the No. 40 roller chain around the
sprocket.
7. Tighten the chute chain by pulling the motor
outward to remove all slack. Tighten the
motor bolts and install the chain shield.
Do not operate the
snowblower without the chain shield in
place. Moving parts may cause injury or
death. Always replace guard after
servicing.
____________________SET UP ASSEMBLY ___________________

9

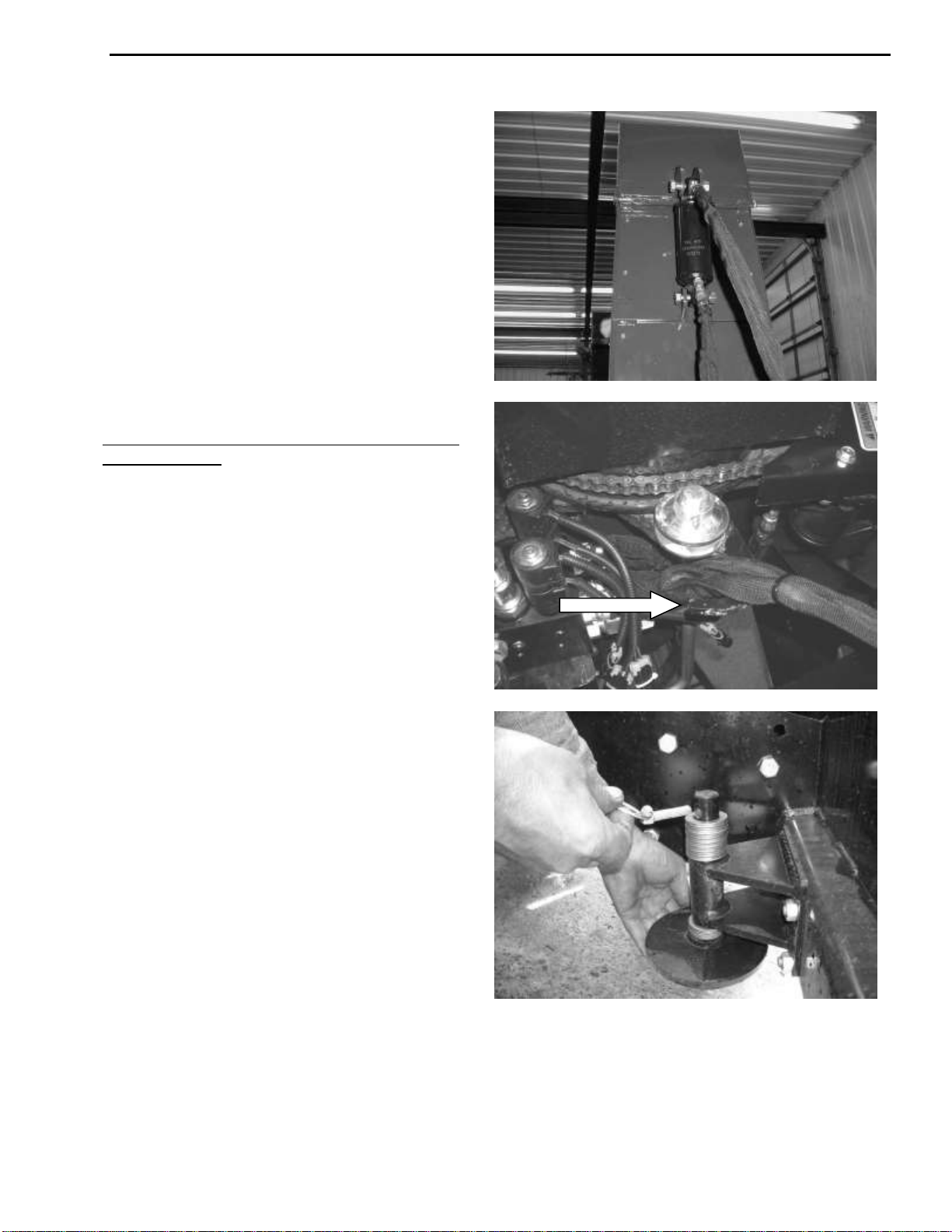

Discharge Chute Installation (continued)
8. Install the cylinder with the rod end to the
deflector ears. Fasten with two 1/2” bolts.
NOTE: Usually the hoses will remain
connected to the cylinder when the chute is
removed.
9. Be sure the hoses are routed properly through
the hose “hook” to allow the chute to rotate
freely in both directions without the hoses
getting caught.
IMPORTANT: Proper hose routing is the
responsibility of the owner and/or operator.
Pinched or stretched hoses are not covered
under warranty.
Adjusting the Skid Shoe Height
1. Raise the loader arms and tilt the snowblower
back just enough to remove the skid shoe
(about 12 inches off the ground).
2. Stop the engine and exit the loader.
3. Remove the lynch pin on the skid shoes.
Install washers on the bottom for the desired
skid shoe height. Reinstall the lynch pin.
____________________SET UP ASSEMBLY ___________________

10

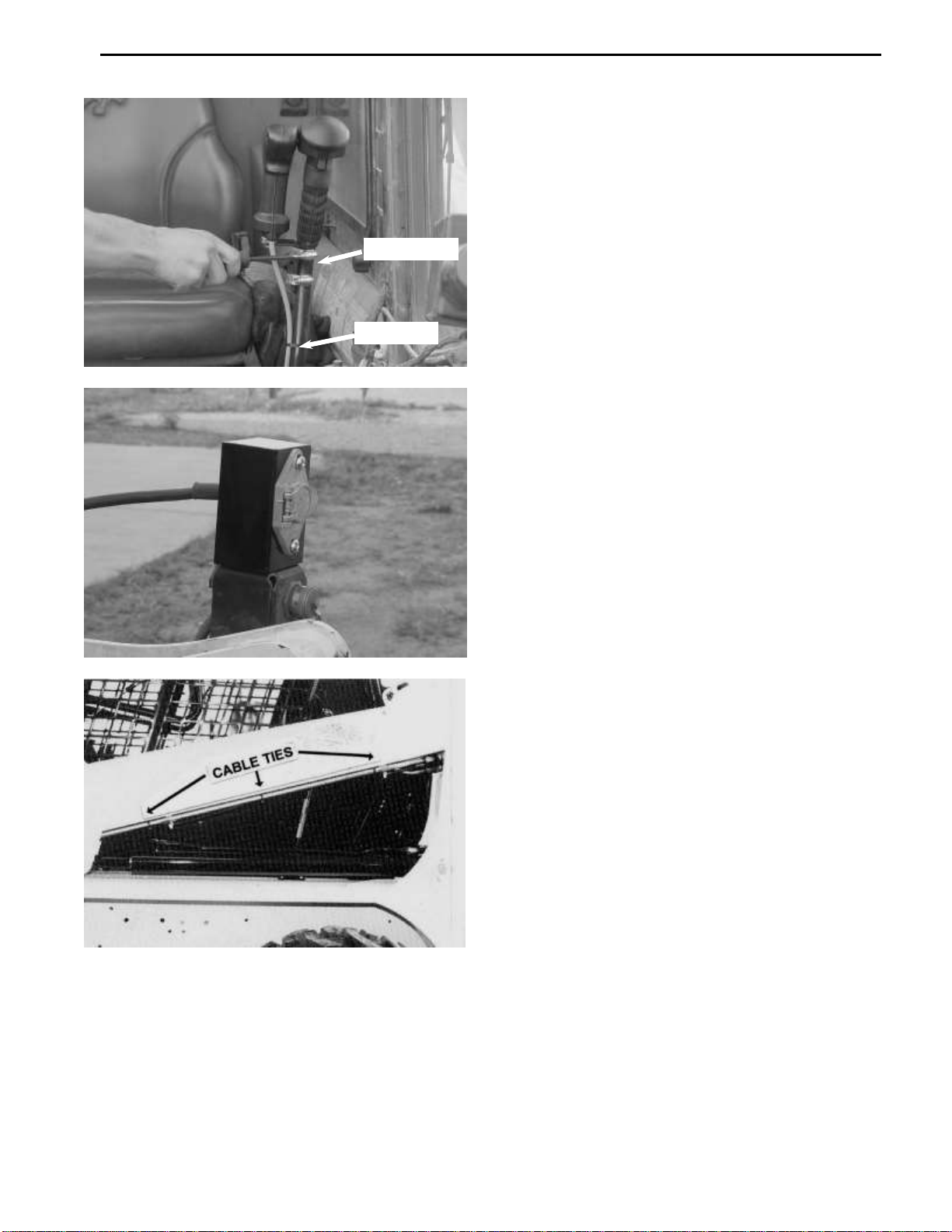

Wire Harness Installation
A wire harness is needed to activate the
rotation and deflection. If the loader is
equipped with an attachment control package,
the appropriate harness should be installed
from the factory.
If the snowblower was ordered with the pistol
grip control harness, follow these instructions:
1. Install the control handle on either steering
lever, whichever you prefer, with two (2)
hose clamps.
NOTE: The control handle bracket can be
positioned several different ways. We
recommend it be positioned as shown.
2. Put a cable tie around the wiring harness
and the steering lever.
3. Install the wire harness receptacle bracket
on either the loader arm or near the
hydraulic quick couplers.
NOTE: It may be necessary to make an
adapter bracket in order to attach the wire
harness to the loader.
4. Route the wire harness back along the
loader arms and fasten with cable ties.
IMPORTANT: Be sure to leave some slack
in the wire harness where the loader arms
pivot to prevent stretching the harness.
Make sure the harness is fully secured to
prevent snags or pinching.
Cable Tie
Hose Clamp
____________________SET UP ASSEMBLY ___________________

11

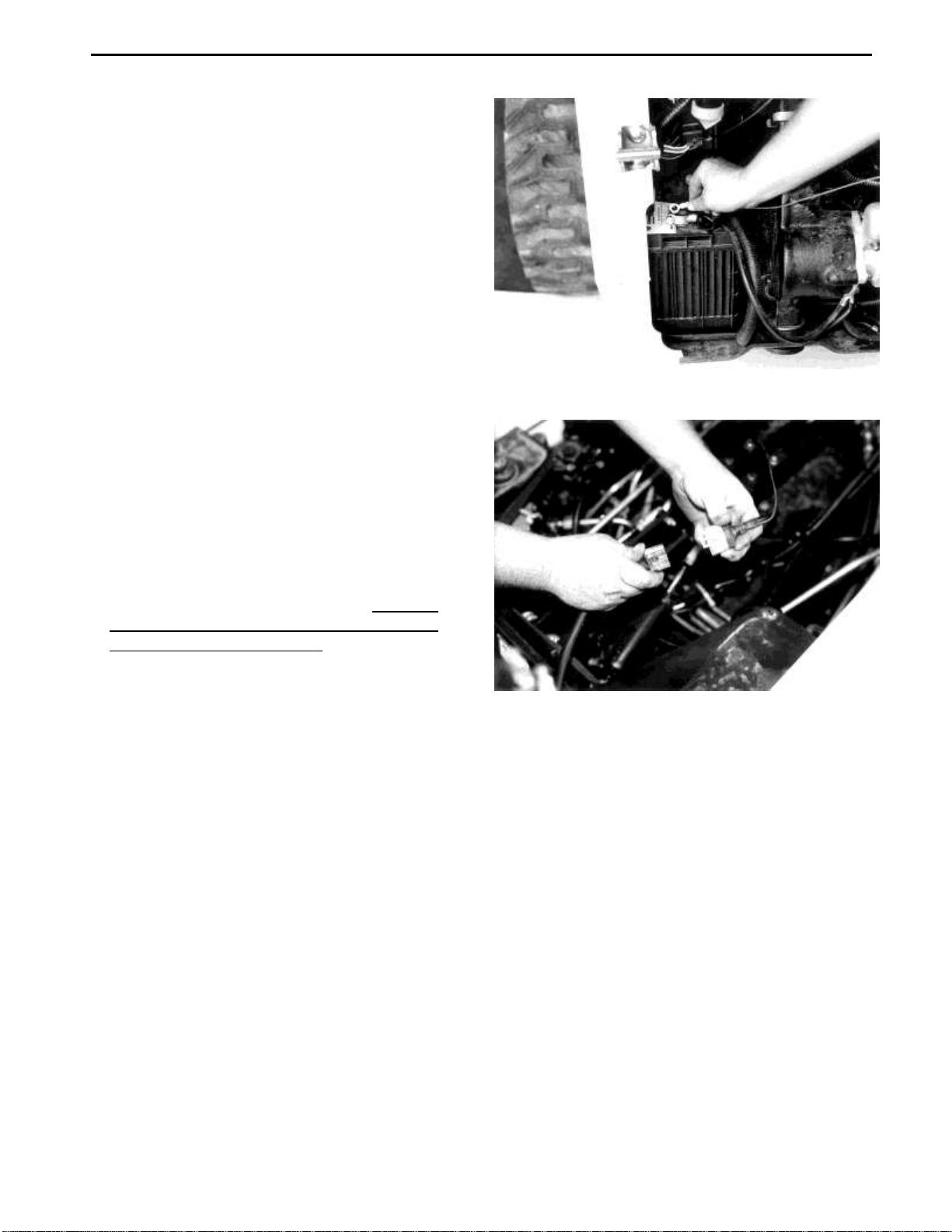

Wire Harness Installation (continued)
5. Open the rear door. Pull the excess wire
harness into the engine compartment.
6. Raise the operator cab. (See loader’s
operator’s manual for the correct
procedure.)
7. Connect the red fused wire to the positive
battery terminal or to a suitable accessory
wire with a minimum rating of 5 amps.
Route the wiring along the loader main
frame toward the front of the loader.
8. Connect the black wire from the harness to
a frame ground.
9. Fasten the control handle wire harness
connector to the main wire harness
connector.
IMPORTANT: Secure the wire harness in
place with plastic cable ties, making sure it
is clear of extra hot areas or any moving
parts on the engine or loader. Pinched,
stretched, or melted wire harnesses are
not covered under warranty.
10. Lower the cab. (See your loader’s
operator’s manual for the correct
procedure.)
IMPORTANT: Be sure the control handle
wire harness is properly positioned as the
cab is lowered.
____________________SET UP ASSEMBLY ___________________

12
__________________MOUNTING INSTRUCTIONS_____________
After the initial set-up assembly is completed use the following procedure to mount the snowblower to the
loader for user operation.
1. Use the step, treads, and grab handles to
get on and off the loader and snowblower.
2. Sitting in the operator’s seat, lower seat bar
and fasten the seat belt.
3. Drive the loader to the rear of the
snowblower. Put the loader quick attach
coupler into the snowblower mounting
bracket.
4. Tilt the loader coupler backward a small
amount until it is fully engaged in the snow
blower mounting bracket.
5. Stop the engine and engage the parking
brake.
6. Secure the coupler locking mechanism that
attaches the snow blower to the loader.
Coupler wedges or pins
must extend through the holes in
attachment. Levers must be fully down
and locked. Failure to secure wedges or
pins can allow attachment to come off
and could cause injury or death.

13
____________________MOUNTING INSTRUCTIONS________________
7. Connect the hydraulic quick couplers from
the snowblower to the loader.
IMPORTANT: Make sure the quick couplers
are fully engaged. If the quick couplers do
not fully engage, check to see that the
couplers are the same size and brand. Do
not force the quick couplers together.
IMPORTANT: Wipe the ends of the hydraulic
quick couplers (both lead and loader) with a
rag to remove any possible contamination.
Contamination can cause hydraulic
components to fail and is not covered under
warranty.
NOTE: Attachment is shipped with 12FJX
(1-1/16” Female JIC Swivel) fittings on the
ends of the lead hoses.
NOTE: Make sure the pressurized hose is
routed to the “P” port of the valve block. If it
isn’t, the blower will not operate properly.
NOTE: The pressure line on the snowblower
has a RED cable tie on the hose end.
See loader’s operator’s manual for details on
identifying the correct pressurized hydraulic
coupler.
If you are operating the loader controls
correctly and the snowblower still does not
work, try switching the hydraulic couplers
around on the snowblower lead hoses. This
will effectively reverse the flow to the motor.

14
8. Make sure the hoses are properly routed to
fit your specific loader. If the hoses are not
routed correctly, hoses may get pinched or
rub on tires. Be sure to check the hose
routing through the full range of intended
motion of the attachment before operating it.
More than one routing may be acceptable
depending on the loader. Pick the routing
that best suits your loader.
IMPORTANT: Proper hose routing is the
responsibility of the owner and/or operator.
Pinched or stretched hoses are not
covered under warranty.
9. Connect the snowblower wire harness to
the loader wire harness receptacle.
10. Mounting is now complete and you are
ready to use the snowblower. Use reverse
order of above instructions to dismount the
snow blower from the loader.
11. Run the snowblower and check all
operational functions. Set-up assembly is
now complete.
____________________MOUNTING INSTRUCTIONS________________

15
OPERATING INSTRUCTIONS

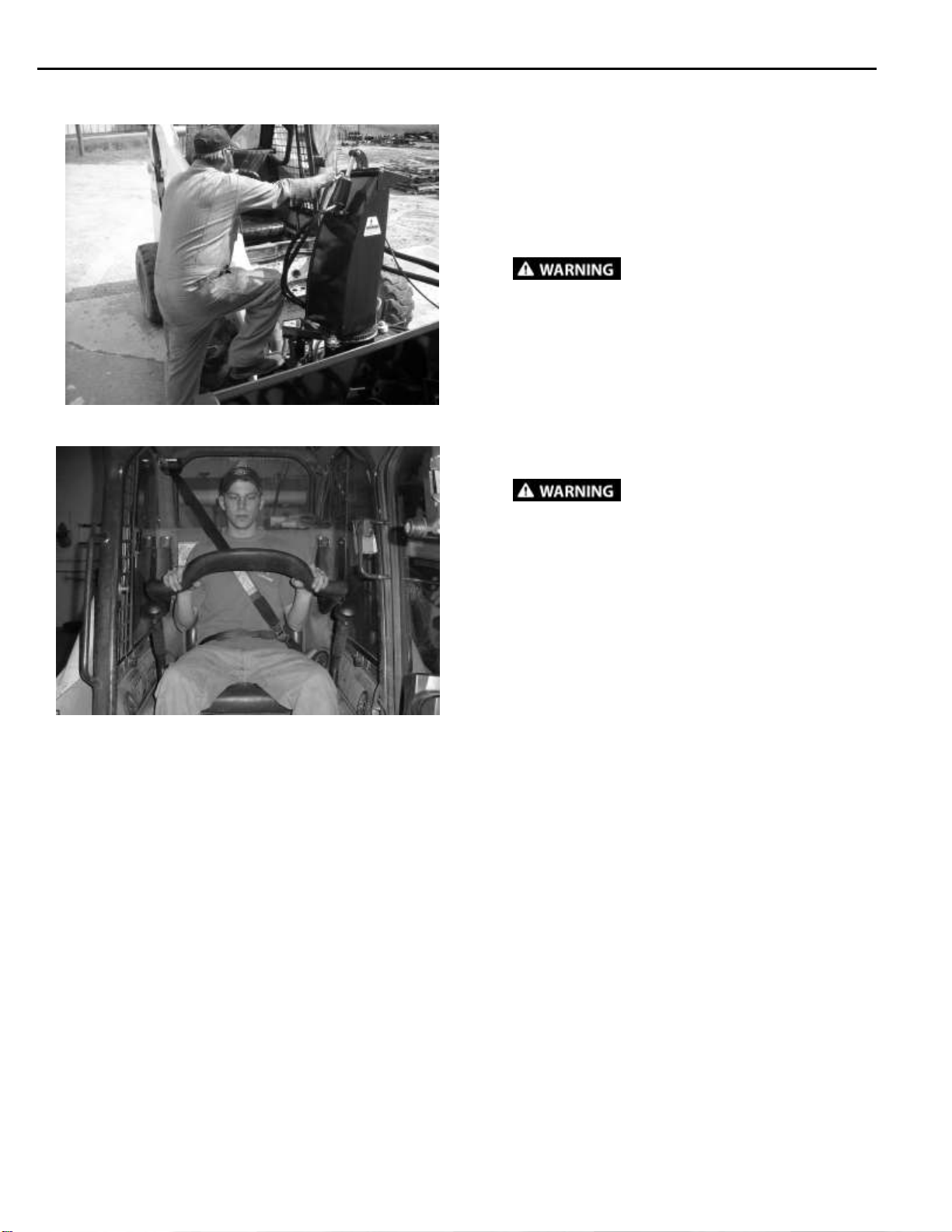

1. Make sure area is free of obstructions that
might be picked up and thrown.
2. With the operator in the seat of the loader,
the seat belt fastened and the seat bar
lowered (if so equipped), start the engine.
Keep people away from
loader, attachment and discharge when in
use. This attachment sends objects flying
and has rotating parts. Never direct
discharge toward people –rocks and debris
can be thrown.
3. Rest the snowblower on the skid shoes (if
equipped) and/or cutting edge depending on
the application.
To improve stability, always
carry attachment low to the ground while
driving.
4. Make sure the skid shoes are set to the
position that will most benefit your
application.
5. If desired, the loader lift arms can be put in
the float position. (See your loader’s
operator’s manual.)
6. Activate the auxiliary hydraulic system to start
the snow blower turning. (See loader’s
operator’s manual.)
IMPORTANT: Engine must be at idle speed
when engaging auxiliary hydraulic system.
NOTE: Certain loaders may require special
wire harnesses to operate in high flow mode.
Others require the control switches to be
operated in a specific way. It may also be
necessary to switch the hose couplers around
to match your loader. (See loader’s
operator’s manual.)
IMPORTANT: Operating a low flow
snowblower in high flow mode will cause
serious damage and voids all warranties.

16
OPERATING INSTRUCTIONS
Hydraulic Chute Rotation and Deflection
All chute functions can be activated by the
steering lever switches on the loader (if loader is
fully equipped), or with the pistol grip control
harness.
FUNCTIONS ARE ACTIVATED AS FOLLOWS:
(A) Button 1 moves deflector UP.
(B) Button 2 moves deflector DOWN.
(C) Button 3 rotates chute LEFT.
(D) Button 4 rotates chute RIGHT.
(E) After you become familiar with the controls, direct
the chute towards an open space and away from
bystanders or obstructions. Operate the engine at
full throttle and start moving the loader forward into
the snow.
NOTE: For steering lever functions, refer to your
loader’s operator’s manual.
NOTE: The loader travel speed is determined by
the depth and density of the snow.
IMPORTANT: Do not operate the snowblower if
excessive vibration is present. Serious damage
can occur. Check auger and fan.
Cutting Edge Angle
The snowblower can be angled front to back by
rolling the mounting plate forward and back. This
allows for non-cutting (riding on skid shoes), neutral
position (shown), and aggressive cutting positions
depending on the conditions. The snowblower will
not cut when in the rolled back position and will cut
aggressively when rolled forward.
IMPORTANT: Do not operate the snowblower with
a rolled forward angle of more than 10 degrees (as
shown at right) or the endplates and auger may
strike the ground leading to excessive wear and
poor performance.

17
_____________________ROUTINE MAINTENANCE________________
Lower the snowblower to rest on the cutting edge, shut down the engine, relieve the
hydraulic pressure to the snowblower, wait for all motion to stop, and set park brake before leaving
the operator’s seat to perform service of any kind.
It is the operator’s responsibility to make daily inspections of the loader and attachment for damage, loose
bolts, fluid leaks, or anything else that could cause a potential service or safety problem. Preventive
maintenance is the easiest and least expensive type of maintenance.
IMPORTANT: Bolts and set screws can loosen after initial usage. After the first hour of operation check all
bolts and set screws.
Lubrication
Use No. 2 lithium base gun grease when
lubricating all snowblower grease fittings.
Add no more than 2 pumps of grease to the
bearing on the end of the auger after every 40
hours of operation.
Use clean engine oil to lubricate the chute
rotation chain after every 40 hours of
operation.
40
40
No. 2 Lithium
base gun grease
Clean engine oil

18
___________________ROUTINE MAINTENANCE____________________
Lubrication (continued)
Grease the auger drive after every 48 hours of
operation.
NOTE: There are (2) grease fittings, one on
each side of the auger tube.
Grease the (3) chute roller guide bushings also
after every 4 hours of operation. (Not Pictured)
Hydraulic Relief Valve Adjustment
The fan is shear-protected by the loader
hydraulic system pressure relief valve. No
adjustments are required.
The auger is shear-protected by pressure relief
valve ‘A’ located in the hydraulic control
manifold on the rear of the snowblower, directly
above the fan motor.
NOTE: The auger relief valve is set at the
factory to assure the best performance in
average conditions. If the auger should stall too
easily, the relief valve can be adjusted as
follows:
1. Loosen the lock nut on valve ‘A’.
2. Turn the set screw one turn.
3. Tighten the lock nut.
4. If the auger still stalls, adjust the relief valve
again by repeating steps 1 through 3.
NOTE: Do not adjust the relief valve more than
one turn at a time or a total of more than 4
turns. If the auger still stalls, look for other
problems.
A
48

19
Auger Removal and Installation
1. Loosen the setscrew on the bearing
eccentric locking collar. Using a hammer
and punch, rotate the collar in the opposite
direction of auger travel.
NOTE: This frees up the bearing and
allows it to slide on the auger shaft.
2. Disconnect the tubelines from the auger
motor.
3. Remove the two bearing retaining bolts and
the four auger motor housing bolts.
NOTE: Pry the bearing flange
approximately 1/4” to the inside to allow
clearance for the auger to be removed.
___________________ AUGER REMOVAL ____________________

20

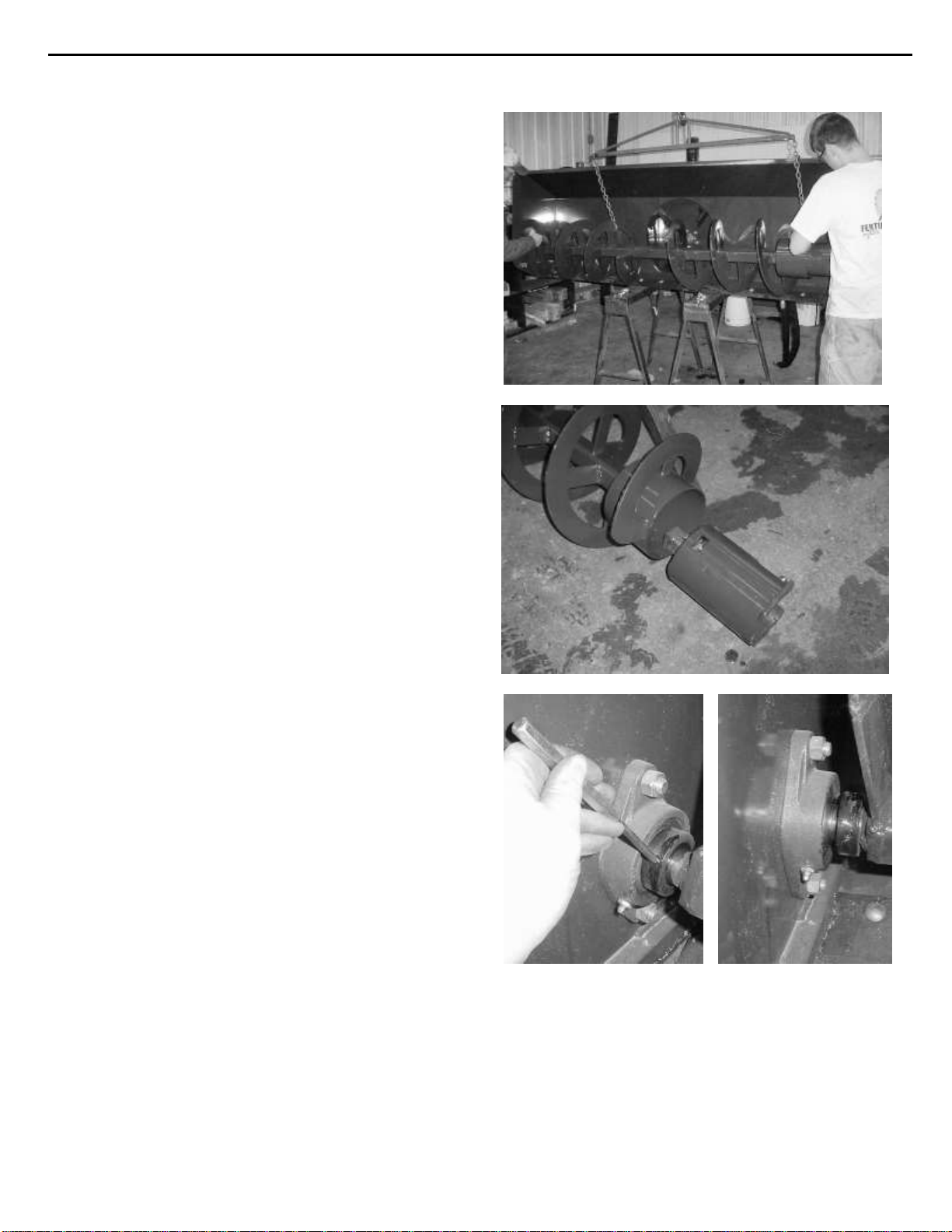

Auger Removal and Installation (continued)
4. Slide the auger straight forward and out of
the blower body.
5. The hydraulic motor and housing can now be
removed from the auger.
To install, use reverse procedure.
6. When everything is assembled and
tightened, with the exception of the bearing
locking collar, the auger should have from
1/4” to 1/2” endplay travel. Slide the auger
toward the auger motor until it bottoms out.
Then, tap it back in the opposite direction
approximately 1/16”.
7. Tighten the eccentric locking collar by using
a hammer and punch to rotate the collar in
the direction of the auger travel. Tighten the
setscrew.
NOTE: Grease the auger drive when
installing.
___________________ AUGER REMOVAL ____________________
