Erskine Attachments 60 User manual

3-Point Brush Mower
for
Compact Tractors
Operator’s Manual
Set-Up Assembly
Maintenance
Parts Information
Read this Manual Before Use

2
NOTE: Erskine Attachments LLC reserves the right to make
improvements in design or changes in specifications at any time without
notice and without incurring any obligations to install them on units
previously sold.
TABLE OF CONTENTS
SAFETY
3-4
SERIAL NUMBER/DECAL LOCATION
5-6
SET-UP ASSEMBLY
7
MOUNTING INSTRUCTIONS
8
INSTRUCTIONS FOR SHORTENING THE DRIVELINE
9
OPERATING INSTRUCTIONS
10-12
ROUTINE MAINTENANCE
13-16

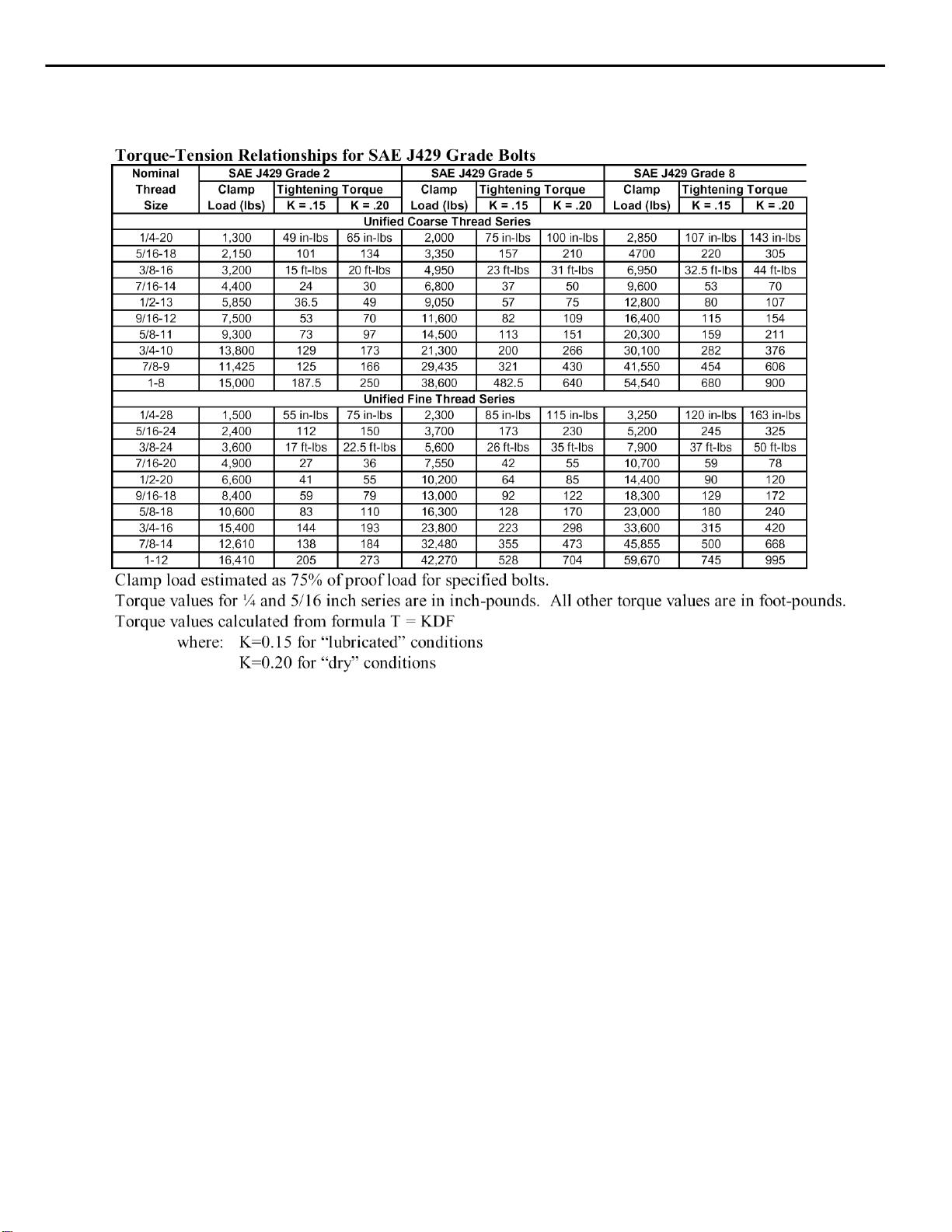

BOLT TORQUE INFORMATION
17

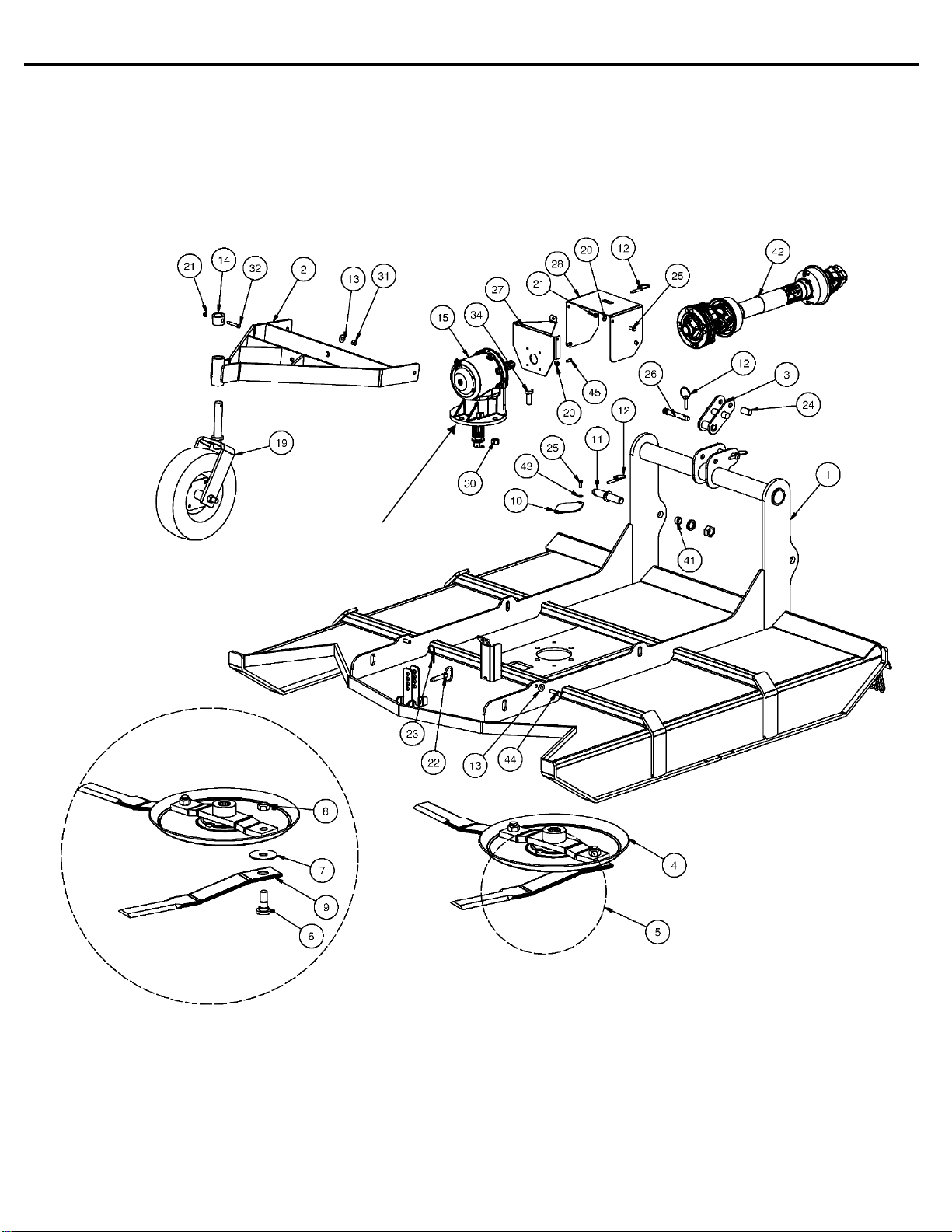

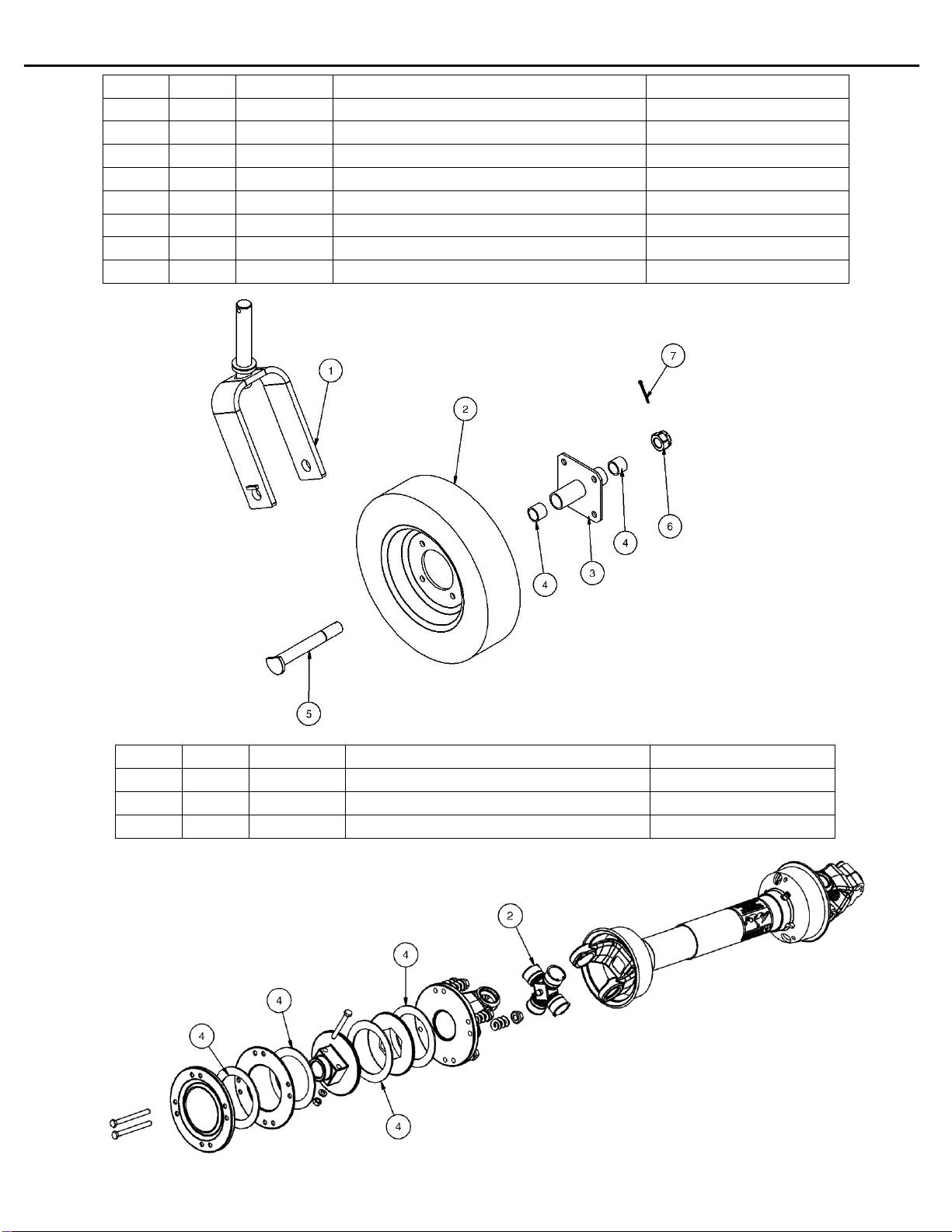

PARTS INFORMATION
18-20
GENERAL SPECIFICATIONS
21
NOTES
22
WARRANTY
23
REFERENCE INFORMATION
Write the serial number for your attachment in the spaces below. Always refer to this serial
number when calling for service or parts.
Serial Number………….._____________
YOUR ATTACHMENTS DEALER
ADDRESS:
PHONE:
CONTACT:

3
The signal words CAUTION, WARNING, or
DANGER are used to indicate hazards.
Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially
hazardous situation which, if not avoided,
will result in death or serious injury.

The word IMPORTANT is used in the text when
immediate damage will occur due to improper
technique or operation.

The word NOTE is used to convey information that
is out of context with the manual text; special
information such as specifications, techniques,
reference information, and other information of a
supplementary nature.
The user is responsible for inspecting the machine
daily, and for having parts repaired or replaced when
continued use of the machine would cause damage,
excessive wear to other parts or make the machine
unsafe for continued operation.
If an operating procedure, tool device, maintenance
or work method not specifically recommended is
used, you must satisfy yourself that it is safe for you
and others. You must also ensure that the
attachment will not be damaged or made unsafe by
the procedures you choose.
Erskine Attachments LLC cannot anticipate every
possible circumstance that might involve potential
hazard. The safety messages found in this manual
and on the machine are therefore not all inclusive.
SAFETY
DO NOT use or perform maintenance on this machine until this manual has been
read and understood. In addition, read the Operation and Maintenance
Manual(s) pertaining to the attachment and the attachment carrier (“Tractor”).

4
SAFETY
Improper operation can cause serious
injury or death.
Pre-operation
This attachment is designed to be used for mowing
grass, brush, and small saplings only. NEVER use
this machine for any other purpose.
Read the operator’s manual for the “Compact
Tractor”. NEVER allow untrained people to operate.
Operating instructions must be given to everyone
before operating this attachment and at least once a
year thereafter in accordance with OSHA regulations.
NEVER exceed the maximum recommended input
power or speed specifications for the attachment.
Over-powering or over-speeding the attachment may
cause personal injury and/or machine damage.
Keep all shields, guards, and covers in place.
Do not modify equipment or add attachments that are
not approved by Erskine Attachments LLC.
Use adequate safety warning lights and devices as
required by local regulations. Obey all local laws and
regulations regarding machine operation on public
property.
Only use attachment with a tractor equipped with a
Roll Over Protection System (ROPS) and seatbelt.
Operation
Avoid loose fitting clothing. Clothing or hair caught in
moving parts may lead to serious injury or death.
Always wear eye protection that meets ANSI z87.1 or
operate with an enclosure that provides similar
protection.
To protect the operator from hearing loss, ear
protection is required unless the tractor is equipped
with a noise reduction cab that meets OSHA 1910.95
standard.
Operation (continued)
Check andbe sure all operatingcontrols are in neutral
before starting the engine.
Keep people away from tractor, attachment and
discharge when in use. This attachment sends
objects flying and has rotating parts. NEVER direct
discharge toward people –rocks and debris can be
thrown hundreds of feet.
NEVER operate near embankments or terrain that is
so steep that rollover could occur.
Always stay in the operator position with seatbelt
fastened when using the attachment.
Before leaving the operators position, disengage PTO
drive, lower the attachment to rest flat on the ground,
stop engine, set park brake, and wait for all motion to
stop.
NEVER place hands in the discharge area or clear
debris while the engine is running.
Maintenance
NEVER make adjustments, lubricate, clean, or
perform any service on the machine while it is in
operation.
Make sure the attachment is serviced on a daily
basis. Improper maintenance can cause serious
injury or death in addition to damage to the
attachment and/or your equipment.

5
SERIAL NUMBER AND SAFETY DECAL LOCATIONS
Serial Number Location:
It is important to refer to the serial number of the attachment when making repairs or ordering parts. Early or later
models (identification made by serial number) may use different parts, or it may be necessary to use different
procedures in doing a specific operation.

6
Safety Decals Locations:
The locations of the safety decals are shown. If
these decals are missing, damaged, or painted over
they must be replaced. Call Erskine Attachments
LLC (218-435-4045) for replacement decals.
SERIAL NUMBER AND SAFETY DECAL LOCATIONS________
Large Brand Decal
Location: Top of mower deck, both sides
Quantity: 2
B
A
C
D
E
Part number: 320359
Location: Side of driveline shield
Quantity: 1
Part number: 201415
Location: Top of PTO shaft guard
Quantity: 1
Part number: 314094
Location: Top of mower deck, both sides
Quantity: 2
Part number: 400493
Location: Both sides of mower deck
Quantity: 2
Part number: 314095
Location: Next to blade bolt access cover
Quantity: 1

7
SET-UP ASSEMBLY
Driveline Installation
The attachment is shipped completely assembled
with the exception of the driveline. The driveline
must be installed prior to operation for the first time.
1. Position the attachment flat on the ground.
2. Remove both retaining bolts from the driveline.
3. Grease the attachment gearbox input shaft.
4. Align the driveline splines with the gearbox
splines. Slide the driveline onto the input shaft
so that the bolt holes on the driveline are aligned
with the groove on the input shaft.
5. Reinstall and tighten the driveline retaining bolts
to secure the driveline on the input shaft.
6. Connect the driveline safety shield chain to the
hole in the gearbox shield.
NOTE: The driveline may need to be shortened.
When mounting the attachmenton the tractor for the
first time, check the driveline length and shorten if
necessary (see “Instructions for Shortening the
Driveline” on page 9).

8
1. Use the step, safety treads, and grab handles to
get on and off of the tractor.
2. Sitting in the operator’s seat, fasten the seatbelt.
3. Drive the tractor to the front of the attachment.
Align the tractor 3-point arms with the
attachment mounting pins.
4. Stop the engine and engage the park brake.
5. Connect the tractor 3-point links to the
attachment using the pins provided.
6. Compress the quick release pin on the
attachment driveline and align the driveline
splines with the tractor PTO shaft splines. Slide
the driveline onto the PTO shaft. When the
driveline is slid on properly, the quick release pin
will lock itself into place (usually about 1.5” to 2”
onto the PTO shaft).
7. Connect the driveline safety shield chain to the
tractor. Make sure the other end of the chain is
connected to the driveline safety shield.
8. Adjust the 3-point top link for proper deck and
driveline clearance. The driveline and deck
should have approximately 1” of clearance
between them. Refer to the tractor’s operator’s
manual for top link adjustment instructions.
All appropriate hitch pins and PTO
driveline must be locked into place. Failure to
secure PTO shaft or pins can allow the
attachment to disconnect from the tractor and
cause injury or death.
The tractor must be equipped with
a working PTO shield. To avoid serious injury or
death, never adjust or move the driveline when
connected to the tractor and the tractor’s PTO
drive is engaged.
MOUNTING INSTRUCTIONS
After the initial set-up assembly is completed use the following procedure to mount the attachment to the
compact tractor for user operation.

9
The tractor must be equipped with
working PTO shield. Never adjust or move the
driveline when connected to the tractor and the
tractor’s PTO drive is engaged to avoid serious
injury or death.
In some cases it will be necessary to shorten the PTO
driveline to match your specific tractor. Use the
following procedure to shorten the driveline.
1. Raise the 3-point hitch so the attachment gearbox
input shaft is in line with the tractor PTO shaft.
This position is produces the shortest distance
between the gearbox and tractor PTO shafts.
Shut down the tractor, leaving the attachment in
this position. Securely block the attachment in this
position.
2. Pull the driveline apart. Attach the outer (female)
section to the tractor PTO shaft. Make sure the
driveline is locked into place.
3. Hold the driveline sections parallel to each other
to determine if they are too long. Each section
should end approximately 3” short of the universal
joint shield on the opposite section. If the shaft is
too long, measure 3” back from the universal joint
and mark it on the opposite end. Do this to both
ends of the driveline.
IMPORTANT: Do not cut the driveline until steps
4 and 5 have been completed.
4. Remove the blocks from under the attachment.
Raise and lower the attachment to determine the
position with the greatest distance between the
gearbox and tractor PTO shafts. Shut the tractor
off, leaving the attachment in this position.
Securely block the attachment in this position.
INSTRUCTIONS FOR SHORTENING THE DRIVELINE

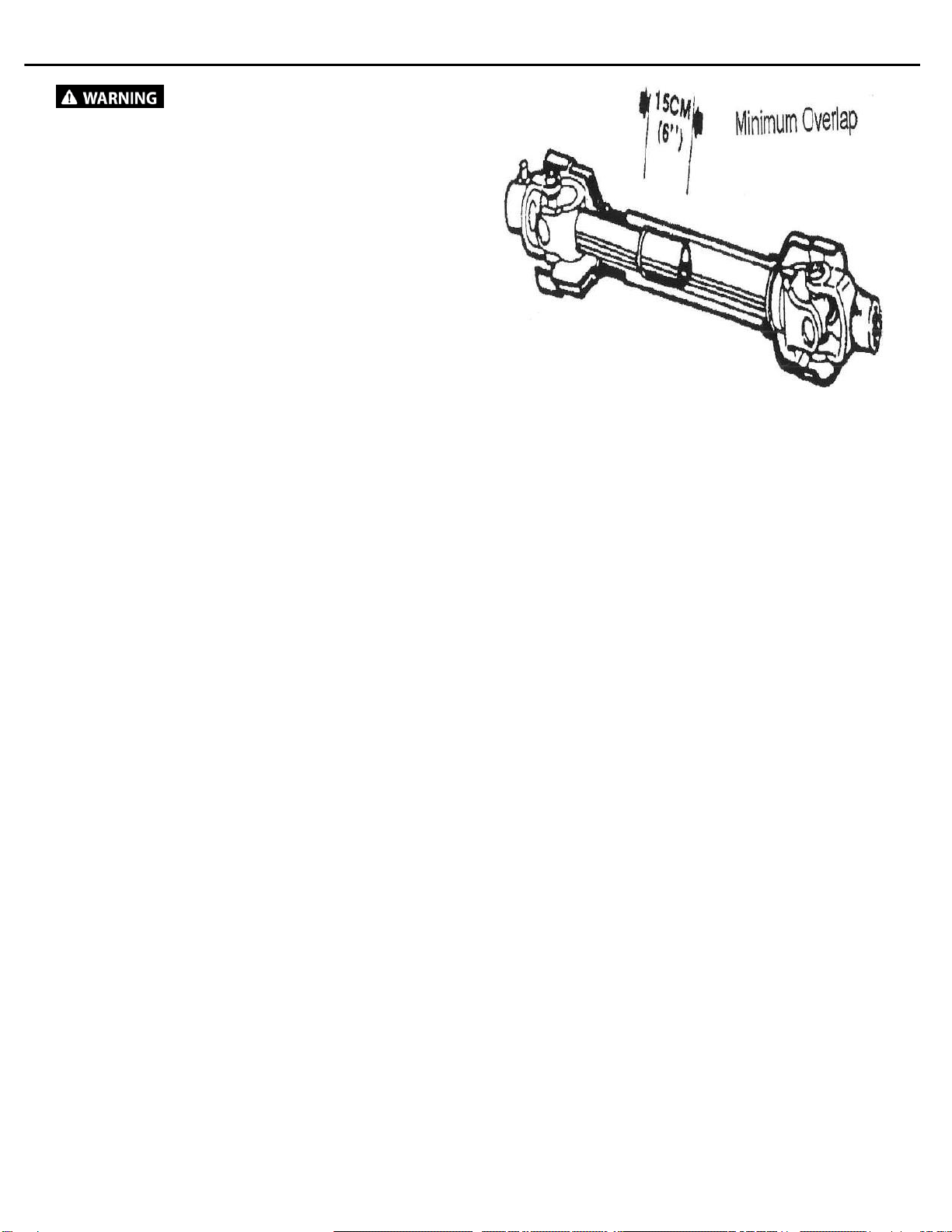

5. Hold the driveline sections parallel to each other
and check for a minimum 6” of overlap. Overlap
will be the distance between the marks made in
step 3.
6. If the driveline needs to be cut, remove the
marked section of the driveline and shield using a
hack saw.
7. Apply multi-purpose grease to the inside and
outside of both driveline ends and slide them
together.
8. Raise and lower the attachment to check that the
driveline assembly does not jam at any point. If it
does, cut equal amount off of each end, making
sure there is always at least 6” of overlap.
9. Check the full range of intended motion of the
attachment and make sure the swinging drawbar
on the tractor does not contact the driveline at any
point. If necessary, the drawbar can be moved
forward or removed on most tractors (refer to your
tractor’s operator’s manual).

10
The type of brush being cut and the ground
conditions will determine the best ground speed
and cutting procedure. The attachment is designed
to cut short or tall grass, brush, and small saplings.
IMPORTANT: Before operating the attachment,
perform the service schedule for routine
maintenance found on page 13.
1. Inspect the cutting area for obstructions such as
stumps, wire, rocks, electricallines, debris, drop
offs, holes, etc. Remove obstructions from the
cutting area thatmight be picked up and thrown.
Clearly mark any obstructions that cannot be
removed.
2. With the operator in the seat of the tractor and
the seat belt fastened, start the engine.
To improve stability, always
carry the attachment low to the ground while
driving.
3. Use the 3-point arms to lower the mower until
the wheel rests on the ground and the deck is
level.
To avoid serious injury or
death, never engage the tractor PTO drive or
operate the attachment in any position other
than the mowing position.
4. With the engine RPM at an idle, engage the
tractor PTO. Gradually throttle the engine up to
operating RPM.
IMPORTANT: Do not engage or disengage
PTO at full throttle.
IMPORTANT: Do not operate if excessive
vibration is present. Serious damage can
occur. Shut down tractor and check blades and
gearbox.
5. Drive forward into the work area.
OPERATING INSTRUCTIONS

11
Adjusting the Cutting Height
The brushmower has four height settings, which can
be adjusted using the following procedure.
1. Raise the attachment approximately 2 inches off
of the ground.
2. Stop the engine and engage the park brake.
3. Remove the hitch pin from the tail and wheel
height plate.
4. Raise the tail wheel to the appropriate hole for
desired cutting height (refer to diagram).
5. Insert the hitch pin through the tail and cutting
height plate, and reinstall the hairpin to lock the
hitch pin in place.
6. Adjust the tractor’s 3-point top link so that the
mower deck is level for an even cut. Refer to the
tractor’s owner’s manual for top link adjustment
instructions.
OPERATING INSTRUCTIONS
8”
4”
6”
2”

12
OPERATING INSTRUCTIONS
Backing Into Brush and Saplings
The brush mower can be used in the reverse
direction to mow over brush and small saplings.
When using the brush mower in the reverse
direction, move the tail wheel to the storage position
to avoid damaging the wheel.
1. Raise the attachment approximately 2 inches off
of the ground.
2. Stop the engine and engage the park brake.
3. Remove the hitch pin from the tail and cutting
height plate.
4. Raise the tail wheel and rest it on the deck as
shown.
5. Insert the hitch pin through the tail and storage
bracket and reinstall the hairpin to lock the hitch
pin in place.
The mower is now ready to be used to back into
brush and saplings.

13
_____________________ROUTINE MAINTENANCE________________
Lower the attachment to rest flat on the ground, disengage the PTO, set the park brake,
shut down the engine, remove the key, and wait for all motion to stop before leaving the operator’s
seat to perform service of any kind.
It is the operator’s responsibility to make daily inspections of the tractor and attachment for damage, loose
bolts, fluid leaks, or anything else that could cause a potential service or safety problem. Preventive
maintenance is the easiest and least expensive type of maintenance.
IMPORTANT: Bolts and set screws can loosen after initial usage. After the first hour of operation check all
bolts and set screws. Continue to check for loose hardware every 10 hours of operation.
DAILY INSPECTION
Check the following items every 10 hours of operation.
1. Check blades for cracks or damage. Replace if necessary.
2. Check driveline quick release pin and retaining bolts for damage or wear.
3. Check friction clutch for excessive wear (refer to page 14).
4. Check blade mounting hardware for proper torque (1000 ft-lbs., refer to page 15).
5. Check chains, decks, and shields for damage. Repair or replace if necessary.
6. Check for damaged or missing decals. Replace if necessary.
7. Clean debris, leaves, grass, and flammable material from deck.
8. Lubricate all pivot points.
9. Check lubrication level in gearbox (EP80W-90 or EP85W-140 gear lube, approximately 33 oz.).
Use No. 2 lithium base gun grease when
lubricating all the attachment grease fittings.
Grease tail wheel bushing [A] and driveline u-
joints [B] after every 8 hours of operation.
Clean profile of inner tube of driveline, coat with
a light film of grease, and reassemble every 20
hours.
LUBRICATION
No. 2 Lithium
base gun grease
8
20

14

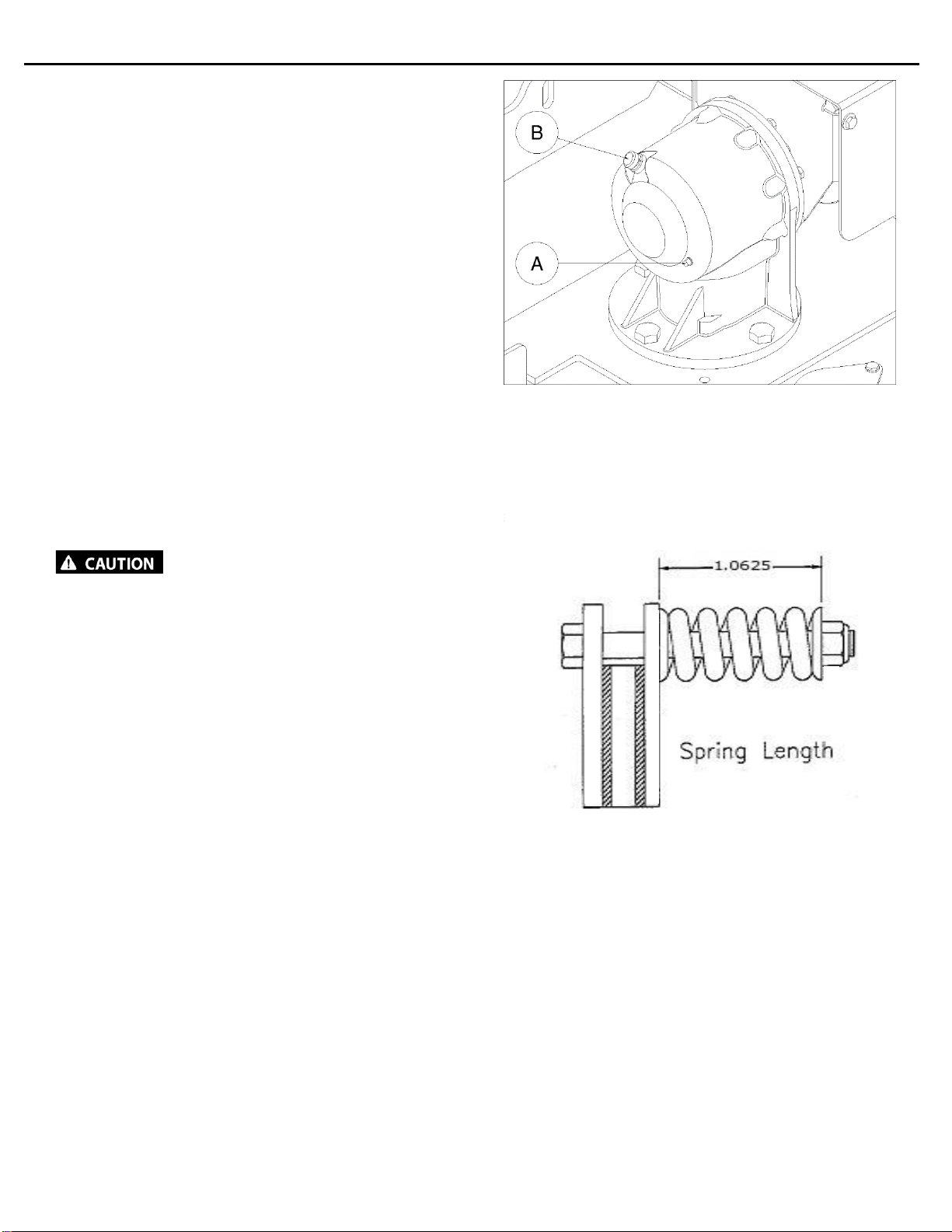

Gearbox Fluid Check and Fill
Add 80W-90 EP or 85W-140 EP gear lube to
gearbox as needed. Oil capacity is approximately
33 oz.
To check the oil level, position the attachment flat
on the ground, stop the engine, and engage the
park brake. Remove the level check plug [A]. Oil
must be level with the check plug hole. To add oil,
remove the fill plug [B] and add lube until it starts to
come out of the check plug hole. Reinstall the
check plug and the fill plug.
IMPORTANT: Fluids such as engine oil, gear lube,
and hydraulic fluid must be disposed of in an
environmentally safe manner. Some regulations
require that certain spills and leaks be cleaned in a
specific manner. Check local, state, and federal
regulations for correct disposal methods.
Slip Clutch Adjustment
Slip clutch may be hot. Allow
clutch to cool before servicing.
The slip clutch is factory presetto the correct torque
for protecting the attachment and tractor. For
adjustment, use the following steps.
1. Loosen all eight clutch bolts to remove all
tension from the springs.
2. Hold the clutch hub solid and turn the shaft to
make sure the clutch slips. If the clutch does
not slip, disassemble the clutch and clean with
a clutch cleaning solution.
3. Reassemble the clutch once cleaned.
4. Tighten each of the eight bolts until the springs
are all evenly compressed to 1-1/16”.
IMPORTANT: Do not over tighten the clutch
bolts. Over tightening can lead to severe
damage or failure of the attachment.
IMPORTANT: If the clutch continues to slip
excessively when the springs are compressed
to 1-1/16”, check the friction discs for excessive
wear. Discs are 1/8” thick when new. Replace
discs after there is 1/16” wear.
ROUTINE MAINTENANCE

15
Blade Removal and Installation
NOTE: Refer to “Daily Inspection”on page 13 of
this manual for daily maintenance check. Check
that the blades can swing freely. Also check blades,
mounting hardware, and stump jumper for wear,
cracking, or breakage, which can cause excessive
vibrations. Replace if damaged.
Bent, deformed, cracked, or
damaged blades should be removed from the
unit and discarded immediately. Never attempt
to repair or reuse a damaged blade.
Always replace worn blades. Do
not sharpen or weld on the blades. Excessively
worn blades can break and be thrown hundreds
of feet.
Wear safety glasses and gloves
when removing and installing blades.
Only service the blades when the brush mower is
disconnected from the tractor and attached to a load
rated hoist.
1. Remove the two bolts securing the blade nut
access cover, and remove the cover.
2. Rotate the stump jumper [A] until the bolt [B] is
aligned with the access hole.
3. Remove the lock nut from the blade bolt.
NOTE: The blade bolt and blade may fall from
the stump jumper when removing the blade lock
nut. Always support the blade bolt and blade
while removing the lock nut.
4. Always use a new lock nut and bolt during
assembly.
5. Tighten the lock nut to 1000 ft. lbs. (1355 Nm)
torque. Tap the bolt head with a hammer and
retorque. Repeat this process until the lock nut
will not turn when torqued.
NOTE: The blade bolt fits only one way into the
stump jumper. Install the washer between the
blade and the stump jumper.
6. Repeat the procedure for the other blade.
ROUTINE MAINTENANCE
A
B

16
ROUTINE MAINTENANCE
Cleaning the Brush Mower
1. Position the brush mower flat on the ground,
stop the engine, and engage the park brake.
2. Disconnect the driveline from the tractor PTO
shaft.
Always wear eye protection
that meets ANSI z87.1 standard when
cleaning the attachment.
3. Use water or a small brush to clean debris from
the areas under and around the driveline, deck,
and gearbox.
Use care when removing any
debris that is wrapped around the blades,
stump jumper, or gearbox shaft. Blades can
rotate suddenly.

17
BOLT TORQUE INFORMATION

18
3PT BRUSH MOWER PARTS INFORMATION
ITEM
QTY
PART NO.
DESCRIPTION
STOCK NO.
1
1
314160
BODY 60" MOWER W/A
1
314159
BODY 72" MOWER W/A
2
1
300712
FRAME TAIL WHEEL 1.25” W/A
1
314161
FRAME TAIL WHEEL 1.00” W/A
OLD STYLE ONLY
3
1
314162
FLEX LINK W/A
4
1
314059
STUMP JUMPER W/A
5
314109
KIT PARTS BLADE 60" MOWER
314110
KIT PARTS BLADE 72" MOWER
6
2
314064
BOLT MOWER BLADE 1/2 THICK
7
2
314061
WASHER HARD 1.25 ID X 4.438 OD
8
2
314065
NUT TOP LOCK 1-1/8 NF GRC
9
2
314063
BLADE MOWER 60
314098
BLADE MOWER 72
10
1
314113
COVER BLADE HOLE PAINTED
(UNPNT 314047)
11
2
100944
PIN 3-PT LIFT 7/8 CAT #1
60" MOWER ONLY
2
330819
PIN 3PT LIFT CAT1 7/8 & CAT2 1-1/8
72” MOWER ONLY (REPLACED 200176)
2
200176
PIN 3-PT LIFT 1 1/8 CAT #2
72" MOWER (REPLACED BY 330819)
12
5
104432
PIN LYNCH 7/16
13
4
33010
WASHER FLAT
7/16"
14
1
314175
BUSHING 2.00 X 1.27 X 1.50 W/H Z
15
1
300464
GEARBOX RC61 1:1.93 PAINTED
60" MOWER ONLY (UNPNT 300463)
1
300466
GEAR BOX RC 61 1:1.46 PAINTED
72" MOWER ONLY (UNPNT 300465)
16
1
300491
TAIL WHEEL FORK
OLD STYLE ONLY
17
1
300492
TAIL WHEEL WITH HUB
OLD STYLE ONLY
19
1
300711
WHEEL FORK ASSY
(INCLUDES WHEEL, HUB, CASTER, HWD)
20
8
33006
WASHER FLAT
5/16"
21
3
37212
NUT REV LOCK
3/8 NC
22
1
201405
PIN REMOVABLE LINK 5/8 X 2 3/4
23
1
104410
PIN CLIP #9 5/32 X 3-1/16
24
1
420070
BUSHING 1.00 x .78 x 1.75 Z
72" MOWER ONLY
25
4
103116
BOLT HEX
3/8 X 1 NC GR 5
26
2
300460
PIN 3-PT UPPER CAT #1 LONG
27
1
314164
SHIELD CLUTCH SUPPORT PNT
(UNPNT 314165)
28
1
314179
SHIELD CLUTCH PAINTED
(UNPNT 314163)
30
4
38067
NUT HEX - TOP LOCK
3/4 NC GRD 9
31
2
37214
NUT REV LOCK
1/2 NC
32
1
13213
BOLT HEX
1/2 X 2 1/2 NC GR 5
34
4
15361
BOLT HEX
3/4 X 2 NC GR 8 YZ
41
2
314166
BUSHING 1.14 x .88 x .50
60" MOWER ONLY
42
1
300493
DRIVELN CAT6 6TX6TX45.5 7CLUTCH
43
2
103880
WASHER LOCK
3/8"
44
2
13211
BOLT HEX
1/2 X 2 NC GR 5
45
4
13053
BOLT HEX
5/16 X 3/4 NC GR 5

19
Add 33oz of 80W-90
3PT BRUSH MOWER PARTS INFORMATION

20
3PT BRUSH MOWER PARTS INFORMATION
ITEM
QTY
PART NO.
DESCRIPTION
STOCK NO.
1
300533
CLUTCH ASSEMBLY
2
2
300532
CROSS BEARING
4
4
300531
CLUTCH PLATES
ITEM
QTY
PART NO.
DESCRIPTION
STOCK NO.
300711
WHEEL ASSM 15 X 4 LAMINATED W/FORK
1
1
330834
FORK TAILWHEEL
COMES IN ASSY 300711
2
1
330835
WHEEL LAMINATED 15 X 4
COMES IN ASSY 300711
3
1
330836
HUB W/BUSHINGS TAILWHEEL
COMES IN ASSY 300711
4
2
330837
BUSHING OILITE 1" TAILWHEEL
IN ASSY 330836
5
1
321185
BOLT AXLE 24MM X 186MM
COMES IN ASSY 300711
6
1
321186
NUT CASTLE AXLE 24MM X 2
COMES IN ASSY 300711
7
1
65105
PIN COTTER 5/32 X 1-1/2
COMES IN ASSY 300711
