ESAB ESABMig C240 User manual

Valid for serial no. 3100349 301 064 060324
ESABMig C240
ESABMig C240s
Instruction manual

ENGLISH
−2 −
TOCe
1 DIRECTIVE 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 SAFETY 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 INTRODUCTION 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Equipment 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 TECHNICAL DATA 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 INSTALLATION 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Placing 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Assembly of components 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Electrical installation 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Mains power supply 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 OPERATION 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Connection and control devices 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Functions explanation 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 ESABMig C240 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.4 ESABMig C240s 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 MAINTENANCE 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Inspection and cleaning 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 FAULT TRACING 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 ORDERING OF SPARE PARTS 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

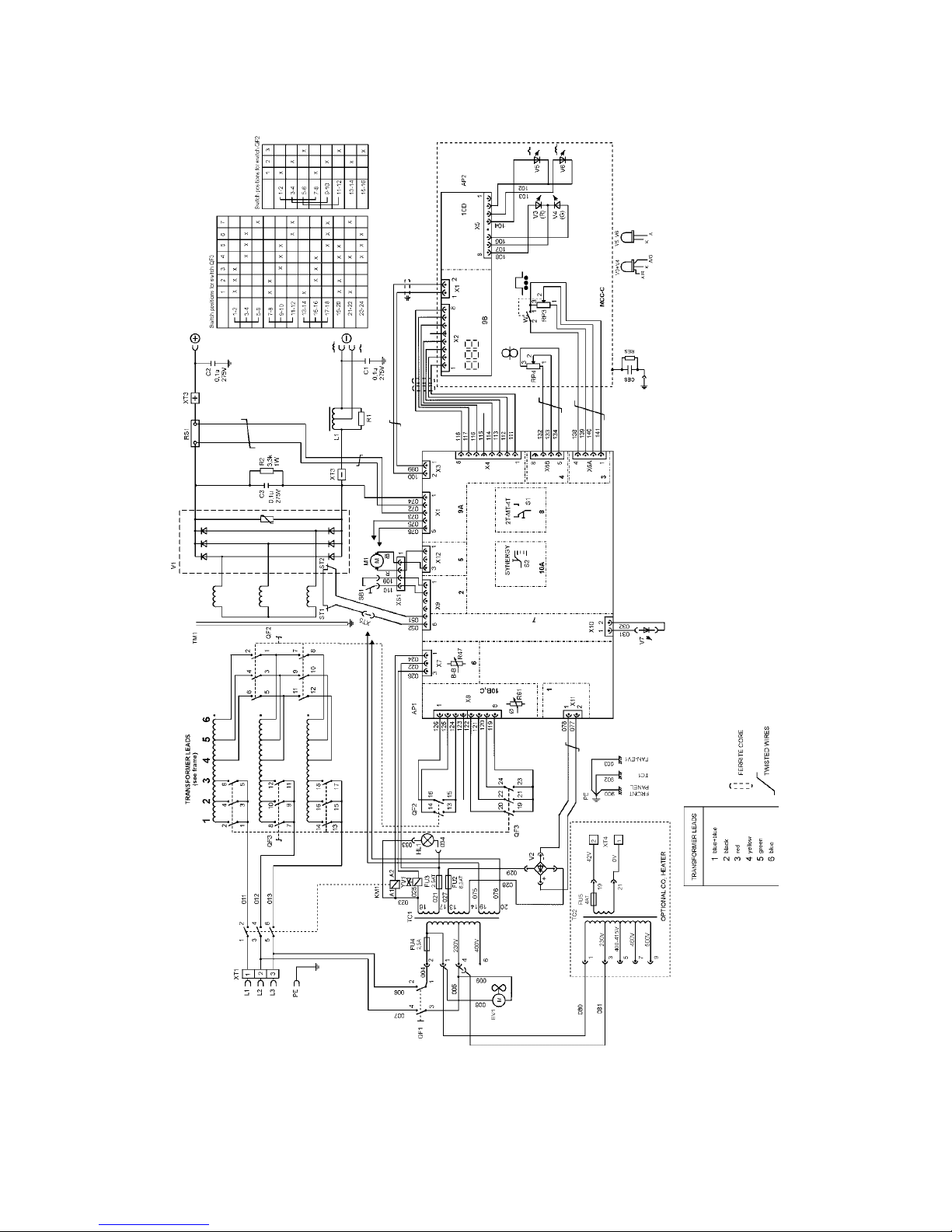

DIAGRAM 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

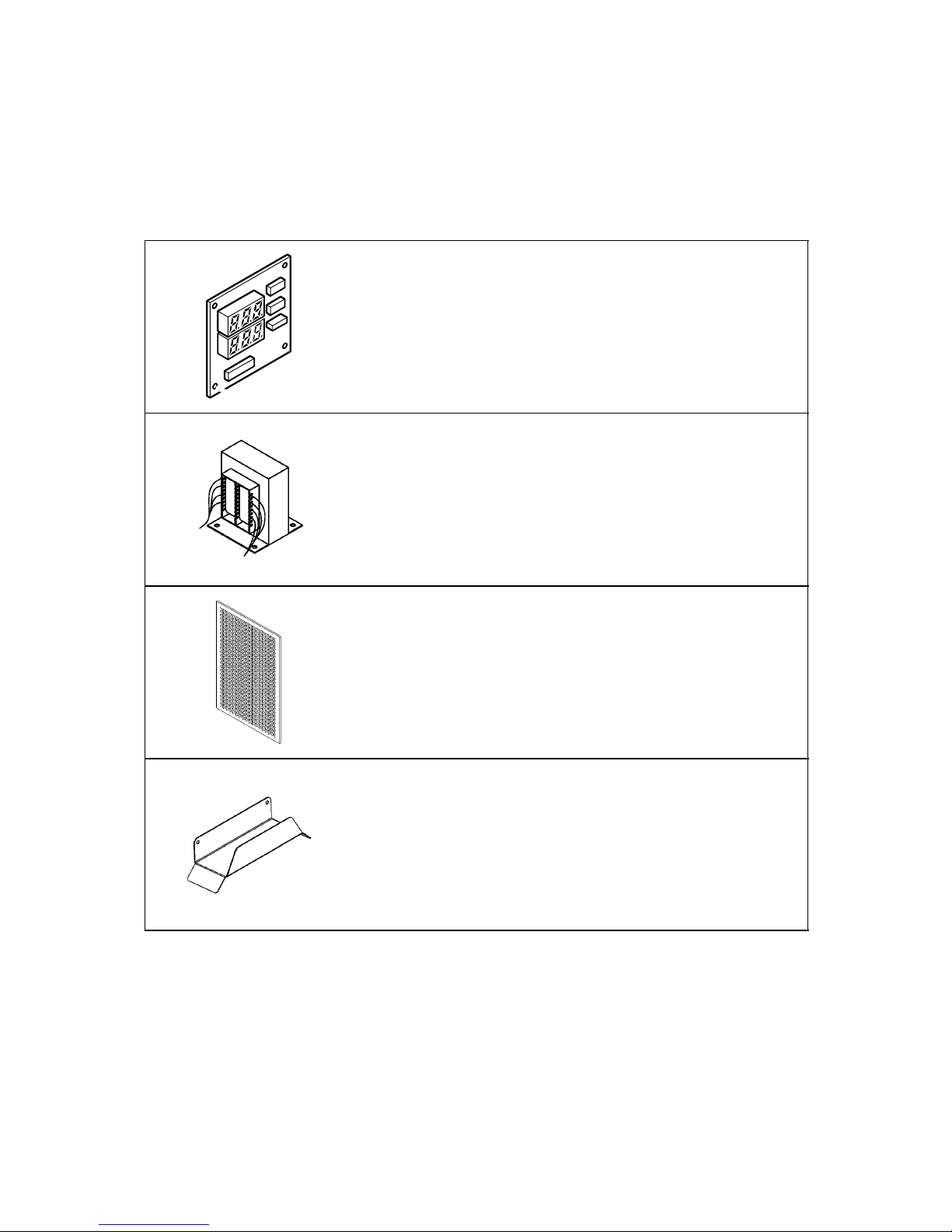

ACCESSORIES 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

−3 −
C240e
1 DIRECTIVE
DECLARATION OF CONFORMITY
ESAB Welding Equipment AB, S−695 81 Laxå, Sweden, gives its unreserved guarantee that welding
power source ESABMig C240 / ESABMig C240s from serial number 310 complies with standard IEC/
EN 60974−1, in accordance with the requirements of directive (73/23/EEC) and addendum
(93/68/EEC) and with standard EN 60974−10 in accordance with the requirements of directive
(89/336/EEC) and addendum (93/68/EEC).
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−
Henry Selenius
Vice President
ESAB Welding Equipment AB
695 81 LAXÅ
SWEDEN Tel: + 46 584 81000 Fax: + 46 584 411924
Laxå 03.12.2003
2 SAFETY
Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who
works on or near the equipment observes all the relevant safety precautions. Safety precautions
must meet the requirements that apply to this type of welding equipment. The following recommen-
dations should be observed in addition to the standard regulations that apply to the workplace.
All work must be carried out by trained personnel well−acquainted with the operation of the welding
equipment. Incorrect operation of the equipment may lead to hazardous situations which can result
in injury to the operator and damage to the equipment.
1. Anyone who uses the welding equipment must be familiar with:
Sits operation
Slocation of emergency stops
Sits function
Srelevant safety precautions
Swelding
2. The operator must ensure that:
Sno unauthorised person is stationed within the working area of the equipment when it is
started up.
Sno−one is unprotected when the arc is struck
3. The workplace must:
Sbe suitable for the purpose
Sbe free from draughts
4. Personal safety equipment
SAlways wear recommended personal safety equipment, such as safety glasses, flame−proof
clothing, safety gloves.
SDo not wear loose−fitting items, such as scarves, bracelets, rings, etc., which could become
trapped or cause burns.
5. General precautions
SMake sure the return cable is connected securely.
SWork on high voltage equipment may only be carried out by a qualified electrician.
SAppropriate fire extinquishing equipment must be clearly marked and close at hand.
SLubrication and maintenance must not be carried out on the equipment during operation.
GB

−4 −
C240e
WARNING
READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING.
ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU-
TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE
BASED ON MANUFACTURERS’ HAZARD DATA.
ELECTRIC SHOCK −Can kill
SInstall and earth the welding unit in accordance with applicable standards.
SDo not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
SInsulate yourself from earth and the workpiece.
SEnsure your working stance is safe.
FUMES AND GASES −Can be dangerous to health
SKeep your head out of the fumes.
SUse ventilation, extraction at the arc, or both, to take fumes and gases away from your breathing zone
and the general area.
ARC RAYS −Can injure eyes and burn skin.
SProtect your eyes and body. Use the correct welding screen and filter lens and wear protective
clothing.
SProtect bystanders with suitable screens or curtains.
FIRE HAZARD
SSparks (spatter) can cause fire. Make sure therefore that there are no inflammable materials nearby.
NOISE −Excessive noise can damage hearing
SProtect your ears. Use earmuffs or other hearing protection.
SWarn bystanders of the risk.
MALFUNCTION −Call for expert assistance in the event of malfunction.
PROTECT YOURSELF AND OTHERS!
WARNING!
Read and understand the instruction manual
before installing or operating.
Do not use the power source for thawing frozen pipes.
WARNING!
This product is solely intended for arc welding.
GB

−5 −
C240e
3 INTRODUCTION
ESABMig C240 & ESABMig C240s are step controlled power sources in a compact design, intended
for welding with solid steel, stainless steel or aluminium wire as well as tubular wire with or without
shielding gas.
The possibility of welding with homogeneous wire/shielding gas and welding with gasless tubular wire
is obtained by switching the + and −connections on the switching terminal above the wire feed unit.
ESAB’s accessories for the product can be found on page 19.
3.1 Equipment
The power source is supplied with:
SWelding gun PSF 250 −3m
SReturn cable 3,5m with return clamp
SShelf for gas cylinder
SInstruction manual
4 TECHNICAL DATA
ESABMig C240 ESABMig C240s
Voltage 230/400−415V, 3∼50/60Hz 230/400−415V, 3∼50/60Hz
Permissible load at
100% duty cycle 130A 130A
60 % duty cycle 170A 170A
30 % duty cycle 240A 240A
Setting range (DC) 20A /15V−240A / 23,0V 20A /15V−240A / 23,0V
Open circuit voltage 14 −32V 14 −32V
Open circuit power 190W 190W
Efficiency 76% 76%
Power factor 0.95 0.95
Control voltage 42 V, 50/60Hz 42 V, 50/60Hz
Wire feed speed 1,9 −19m/min 1,9 −19m/min
Burnback time 0 −0,25s 0 −0,25s
Spot welding 0,2 −2,5s 0,2 −2,5s
Creep start −+ (auto)
2/4 stroke & motor inching −+
Welding gun connection EURO EURO
Wire dimension range 0,6 −1,0mm 0,6 −1,0mm
Max diameter of wire bobin 300mm 300mm
Dimensions lxwxh 840x425x830 840x425x830
Weight 94 kg 97 kg
Operating temperature −10 ÷+40oC−10 ÷+40oC
Enclosure class IP 23 IP 23
Application classification
GB

−6 −
C240e
Duty cycle
The duty cycle refers to the time as a percentage of a ten−minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicates the enclosure class, i. e. the degree of protection against penetration by solid
objects or water. Equipment marked IP23 is designed for indoor and outdoor use.
Application class
The symbol indicates that the power source is designed for use in areas with increased
electrical hazard.
5 INSTALLATION
The installation must be executed by a professional.
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’s responsibility to take adequate precautions.
5.1 Placing
Position the welding power source such way that its cooling air inlets and outlets are
not obstructed.
5.2 Assembly of components
GB

−7 −
C240e
During transport, the rear wheels of the power source are in their forward position.
Before use, place the wheels in their rear position.
WARNING!
5.3 Electrical installation
GB

−8 −
C240e
5.4 Mains power supply
Check that the unit is connected to the correct mains power supply voltage, and that
it is protected by the correct fuse size. A protective earth connection must be made,
in accordance with regulations.
Rating plate with supply connection data
ESABMig C240/C240s 3∼ 50/60 Hz 3∼ 50/60 Hz
Voltage V 230 400/415
Current A
at 100% duty cycle 8.6 5.3
at 60% duty cycle 12.4 7.6
at 30% duty cycle 21 12
Cable area mm24 x 2.5 4 x 1.5
Fuse slow A 20 16
NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish
regulations. They may not be applicable in other countries: make sure that the cable area and fuse
sizes comply with the relevant national regulations.
6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 3. Read through before you start using the equipment!
WARNING!
Rotating parts can cause injury, take great care.
WARNING −TIPPING RISK!
There is a risk of tipping while transportation and operation, if the welding machine leans
more than 10o. In that case appropriate securing has to be provided !
GB

−9 −
C240e
6.1 Connection and control devices

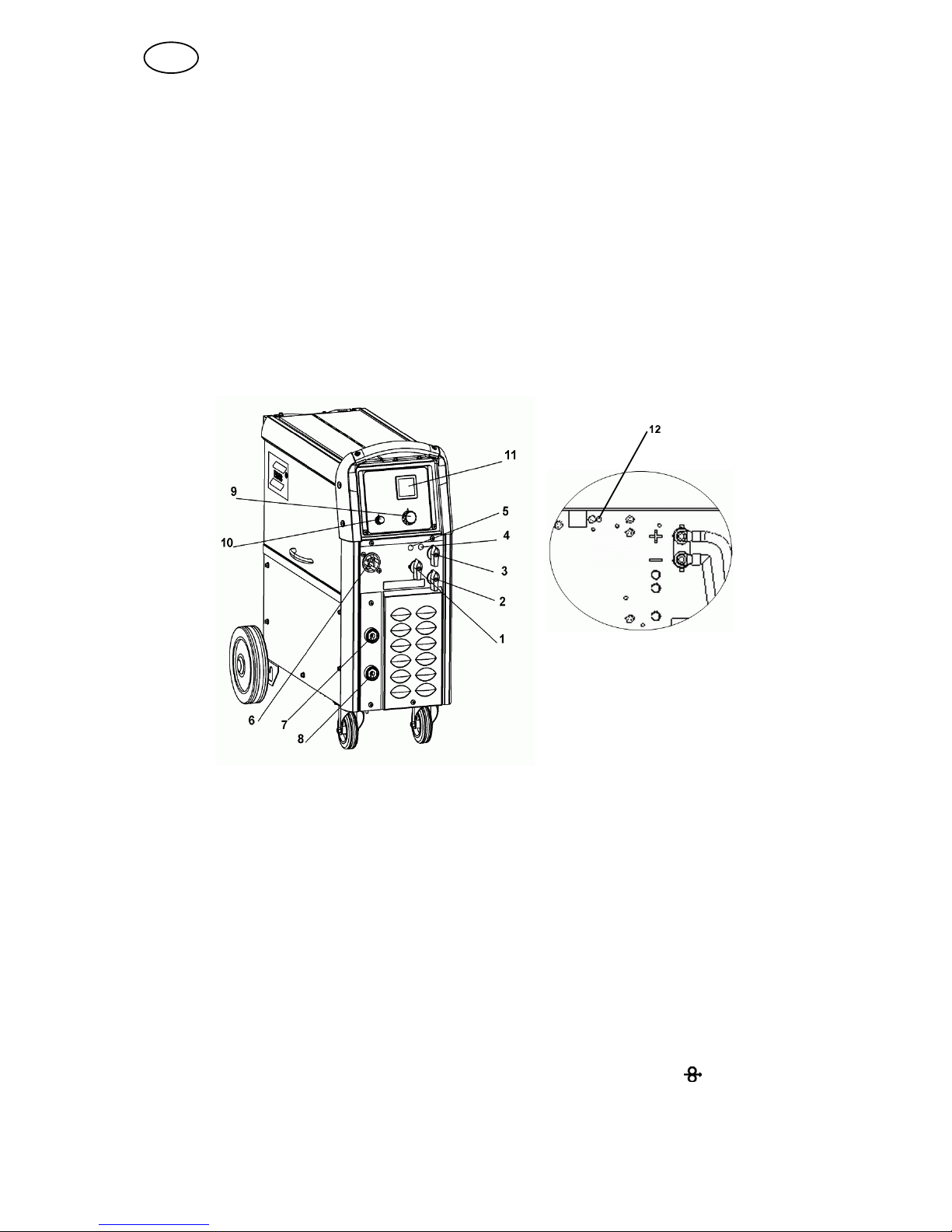

ESABMig C240
1Mains supply switch 7Connection for return cable (−), high induc-
tance
2Switch, coarse control 8Connection for return cable (−), low induc-
tance
3Switch, precise control 9Knob for wire speed setting
4Indicating lamp, power supply ON 10 Knob for spot welding −ON/OFF and time
setting
5Orange indicating lamp, overheating 11 Digital instrument −V / A
(option,see page 19)
6EURO −connector (for welding gun) 12 Knob for burn−back time setting

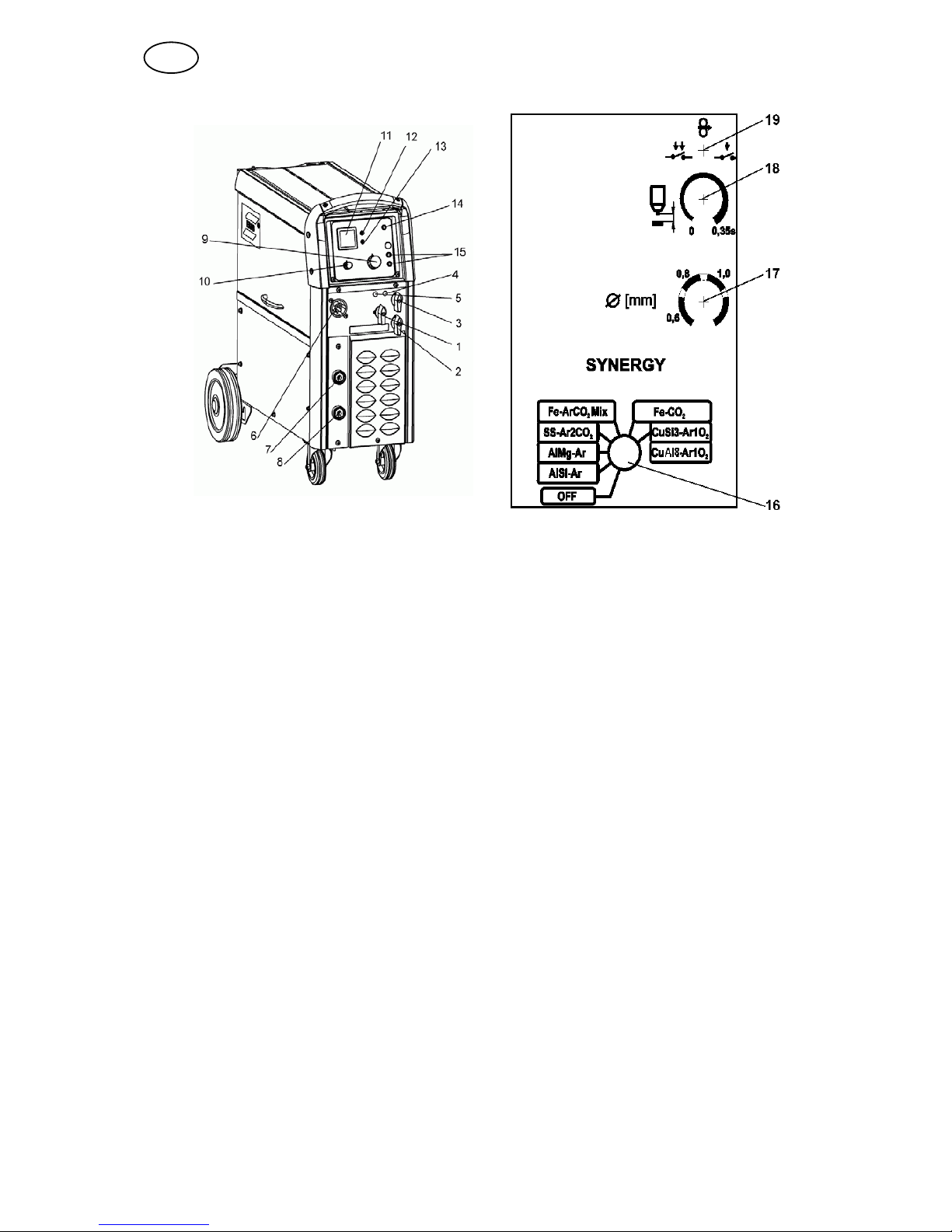

ESABMig C240s
1Mains supply switch 11 Digital display for welding parameters
2Switch, coarse control 12 Switch for display selection −Volt. or Amp
3Switch, precise control 13 Switch for display selection −m/min or mm
4Indicating lamp, power supply ON 14 Lamp indicating status of synergy control
5Orange indicating lamp, overheating 15 Lamps indicating recommended (−) current
output −max/min inductance
6EURO −connector (for welding gun) 16 Switch for ”Synergy”−ON/OFF and ma-
terial/gas selection
7Connection for return cable (−), high induc-
tance 17 Knob for selection of the wire diameter
8Connection for return cable (−), low induc-
tance 18 Knob for burn−back time setting
9Knob for wire speed setting / correction 19 Mode selector 2−stroke / / 4−stroke
10 Knob for spot welding −ON/OFF and time
setting
GB

−10 −
C240e
6.2 Functions explanation
6.2.1 Overheating protection
When the machine is switched on with the mains switch [1], indicating lamp [4] is on and
lamp [5] off −the machine is ready to operate. If the internal temperature becomes too
high, the welding is interrupted and disabled. This state is indicated by lighting of the
orange indicating lamp [5] on the front of the machine. It resets automatically when the
temperature has fallen.
6.2.2 Inductance connection
Higher inductance produces a more flowing weld and fewer spatters. Lower inductance
produces a harsher sound and a stable, concentrated arc.
6.3 ESABMig C240
The ESABMig C240 is equipped with standard control unit. Welder can manually
select and adjust all welding parameters.
SWire speed (1,9 −19m/min).
SSpot−welding time.
SBurn back time.
The machine C240 can be fitted with a digital instrument that displays current and
voltage. It incorporates a hold function (see page 19).
GB

−11 −
C240e
6.4 ESABMig C240s
Sthe standard control (welder can manually select and adjust all welding
parameters) −switch “SYNERGY” [16] set to OFF
Sthe synergy control (partly preprogrammed welding parameters) −switch
“SYNERGY” [16] set to any material/gas group
The stroke control (2/4 stroke) or motor inching (only wire feed motor is activated)
is selected with switch [19]. Burn back time is adjusted with knob [18]. Spot welding
(turning on and time setting 0,5 −4s) is activated with knob [10].
For machines C240s digital instrument is included as standard.
6.4.1 Standard control mode
When standard control mode is selected lamps [14, 15] are off and only a lower row
of digital display [11] shows wire speed reference (selector [13] shall be in position
”m/min”).
Operator selects the required voltage [2, 3] and he may set wire speed within full
range (1,4 −19m/min) with knob [9].
During welding process the upper row of display shows actual welding voltage or
current, depending on selection with switch [12]. When welding process is stopped,
displayed values are ”frozen” (dimmed display).
6.4.2 Synergy control mode
In synergy control mode, the operator first has to preselect material/gas [16] and
wire diameter [17].
While changing the voltage (with the voltage selectors [2,3]) digital instrument [11]
and lamps [14,15] on the front panel show welding parameters.
Synergy status lamp [14] is green (only in synergy mode) when correct welding
parameters are set, or red when incorrect or not allowed welding parameters are set
(then machine operation is disabled!).
Note: Lamp is also red (in all control modes):
Sif during welding (gun trigger pressed) −any voltage selector [2, 3]
is operated, then the operation of the machine is disabled immediately until
the trigger is released,
Swhen the gun trigger is pressed while turning on the machine with switch [1].
One of the lamps [15] points at recommended current outlet (−) with appropriate
inductance [7,8].
GB

−12 −
C240e
Digital display [11] shows values depending on display selectors [12, 13]
and machine status.
Before welding start: the upper display shows expected values of welding current [A]
or voltage [V] (both only in SYNERGY mode); the lower display shows wire speed
reference [m/min] or recommended maximum thickness [mm] of workpiece.
During welding: upper display shows actual welding voltage or current, the lower
display −as above.
After welding stop: the upper display shows last memorised (HOLD) values of
voltage or current (dimmed display).
Wire speed is set by program (stored in the microprocessor) and the knob [9] shall
be set to middle position ”0”. If necessary the operator may correct the preset speed
reference with that knob within +/−20% of the set value.
7 MAINTENANCE
Regular maintenance is important for safe, reliable operation.
Note!
All guarantee undertakings from the supplier cease to apply if the customer himself
attempts any work in the product during the guarantee period in order to rectify any
faults.
7.1 Inspection and cleaning
Check regularly that the power source is free from dirt.
The power source should be regularly blown clean using dry compressed air at reduced
pressure. More frequently in dirty environments.
Otherwise the air inlet/outlet may become blocked and cause overheating. To avoid
this you can use an airfilter.
The airfilter is an accessory. Ordering number can be found on page 19.
Welding gun
SCleaning and replacement of the welding gun’s wear parts should take place at
regular intervals in order to achieve trouble−free wire feed. Blow the wire guide
clean regularly and clean the contact tip.
The brake hub
The hub is adjusted when delivered, if
readjustment is required, follow the instructions
below. Adjust the brake hub so that wire is slightly
slack when wire feed stops.
SAdjusting the braking torque:
STurn the red handle to the locked position.
SInsert a screwdriver into the springs in the hub.
Turn the springs clockwise to reduce the braking torque
Turn the springs anticlockwise to increase the braking torque. NB: Turn both
springs through the same amount.
GB

−13 −
C240e
8 FAULT TRACING
Try these recommended checks and inspections before sending for an authorised service technican.
Type of fault Actions
No arc SCheck that the mains power supply switch is turned on.
SCheck that the welding current supply and return cables are
correctly connected.
SCheck that correct current value is set.
Welding current is interrupted
during welding
SCheck whether the thermal overload trip has operated
(indicated by the orange lamp on the front).
SCheck the main power supply fuses.
Thermal overload trips
operate frequently
SCheck to see whether the air filters are clogged.
SMake sure that you are not exceeding the rated data for the
power source (i.e. that the unit is not being overloaded).
Poor welding performance SCheck that the welding current supply and return cables are
correctly connected.
SCheck that the correct current value is set.
SCheck that the correct welding wires are being used.
SCheck the main power supply fuses.
SCheck the wire feed unit −if proper rolls are applied and
properly set the pressure of the wire feeder’s pressure rollers
9 ORDERING OF SPARE PARTS
ESABMig C240, ESABMig C240s is designed and tested in accordance with the inter-
national and European standards IEC/EN 60974−1 and EN 60974−10. It is the obligation
of the service unit which has carried out the service or repair work to make sure that
the product still conforms to the said standard.
Spare parts may be ordered through your nearest ESAB dealer, see the last page of
this publication.
GB

Diagram
−14 −
dC240
ESABMig C240, 230/400−415V

−15 −
dC240
ESABMig C240s, 230V

−16 −
dC240
ESABMig C240s, 400−415V

ESABMig C240, ESABMig C240s
Edition 060324
−17 −
oC240
Valid for serial no. 310−XXX−XXXX
Ordering numbers
0349 304 657 ESABMig C240 400−415V 3~50/60Hz (welding gun PSF 250, 3m)
0349 304 658 ESABMig C240 230V 3~50/60Hz (welding gun PSF 250, 3m)
0349 304 659 ESABMig C240s 400−415V 3~50/60Hz (welding gun PSF 250, 3m)
0349 304 660 ESABMig C240s 230V 3~50/60Hz (welding gun PSF 250, 3m)
0349 305 983 ESABMig C240 400−415V 3~50/60Hz (welding gun PSF 250, 4,5m)
0349 305 984 ESABMig C240 230V 3~50/60Hz (welding gun PSF 250, 4,5m)
0349 305 985 ESABMig C240s 400−415V 3~50/60Hz (welding gun PSF 250, 4,5m)
0349 305 986 ESABMig C240s 230V 3~50/60Hz (welding gun PSF 250, 4,5m)

ESABMig C240, ESABMig C240s
Edition 060324
−18 −
wC240

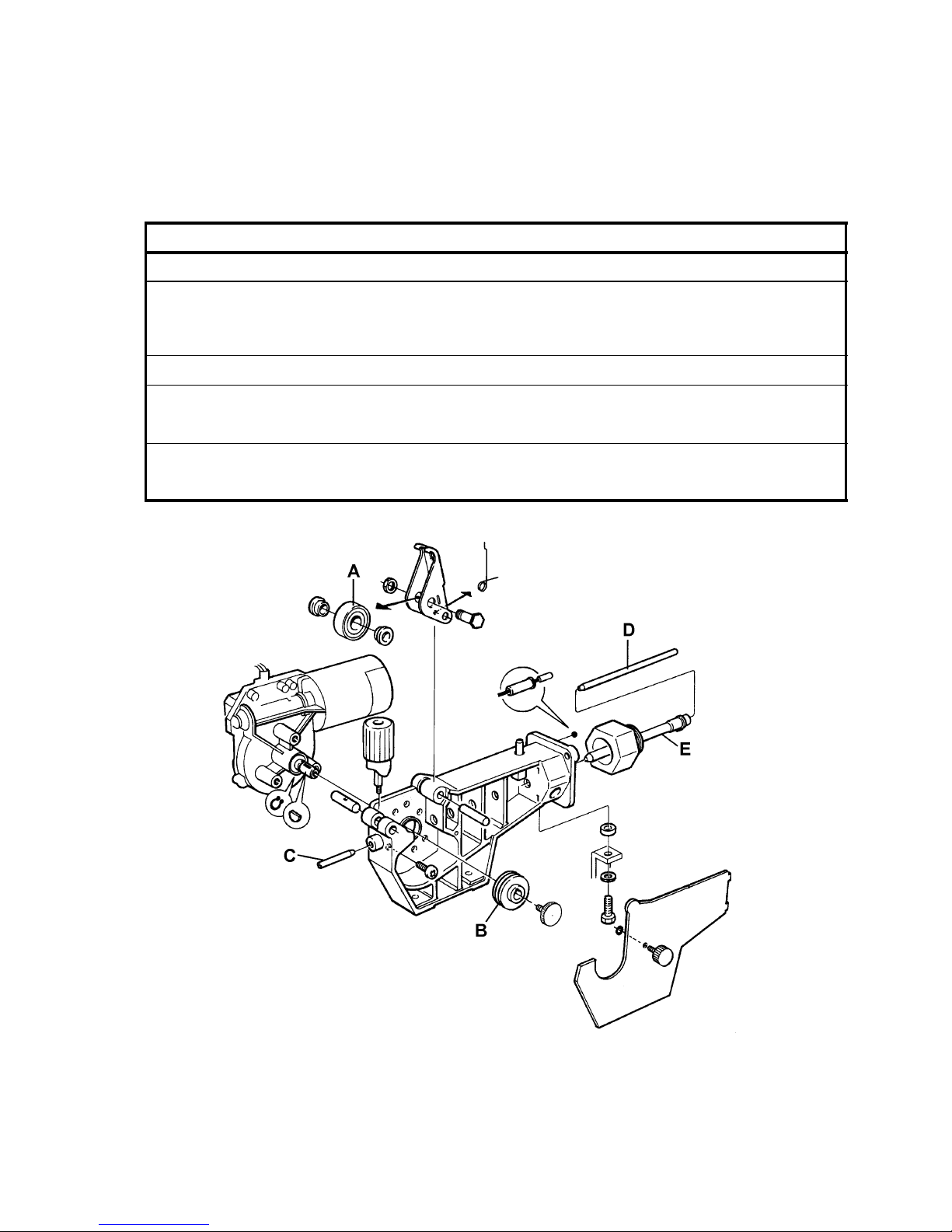

W. F. Mechanism 0455 890 882
Item Denomination Ordering no. Notes
APressure roller 0455 907 001
BFeed roller
0367 556 001
0367 556 002
0367 556 006
0367 556 004
Ø 0.6−0.8mm Fe, Ss, cored wire.
Ø 0.8−1.0mm Fe, Ss, cored wire.
Ø 1.0−1.2mm cored wire.
Ø 1.0−1.2mm Al wire.
CInlet nozzle 0466 074 001
DInsert tube 0455 894 001
0455 889 001
Plastic, must be used together with item 0455 885 001,
for welding with Al wire.
Steel, must be used together with item 0455 886 001.
EOutlet nozzle 0455 885 001
0455 886 001
Must be used together with item 0455 894 001,
for welding with Al wire.
Must be used together with item 0455 889 001.
The rollers are marked with wire dimension in mm, some are also marked with inch.
Welding with aluminium wires.
In order to weld with aluminium wires, proper rollers, nozzles and liners for aluminium wires MUST be
used. It is recommended to use 3m long welding gun for aluminium wires, equipped with appropriate
wear parts.

ESABMig C240, ESABMig C240s
Edition 060324
Accessories
−19 −
aC240
Digital meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0349 302 598
Transformer kit for CO2heater . . . . . . . . . . . 0349 302 250
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0349 302 599
Cable holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0349 303 362

ESAB AB
SE−695 81 LAXÅ
SWEDEN
Phone [phone]
www.esab.com
041227
ESAB subsidiaries and representative offices
Europe
AUSTRIA
ESAB Ges.m.b.H
Vienna−Liesing
Tel: [phone]
Fax: [phone]
BELGIUM
S.A. ESAB N.V.
Brussels
Tel: [phone]
Fax: [phone]
THE CZECH REPUBLIC
ESAB VAMBERK s.r.o.
Prague
Tel: [phone]
Fax: [phone]
DENMARK
Aktieselskabet ESAB
Copenhagen−Valby
Tel: [phone]
Fax: [phone]
FINLAND
ESAB Oy
Helsinki
Tel: [phone]
Fax: [phone]
FRANCE
ESAB France S.A.
Cergy Pontoise
Tel: [phone]
Fax: [phone]
GERMANY
ESAB GmbH
Solingen
Tel: [phone]
Fax: [phone]
GREAT BRITAIN
ESAB Group (UK) Ltd
Waltham Cross
Tel: [phone]
Fax: [phone]
ESAB Automation Ltd
Andover
Tel: [phone]
Fax: [phone]
HUNGARY
ESAB Kft
Budapest
Tel: [phone]
Fax: [phone]
ITALY
ESAB Saldatura S.p.A.
Mesero (Mi)
Tel: [phone]
Fax: [phone]
THE NETHERLANDS
ESAB Nederland B.V.
Utrecht
Tel: [phone]
Fax: [phone]
NORWAY
AS ESAB
Larvik
Tel: [phone]
Fax: [phone]
POLAND
ESAB Sp.zo.o.
Katowice
Tel: [phone]
Fax: [phone]
PORTUGAL
ESAB Lda
Lisbon
Tel: [phone]
Fax: [phone]
SLOVAKIA
ESAB Slovakia s.r.o.
Bratislava
Tel: [phone]
Fax: [phone]
SPAIN
ESAB Ibérica S.A.
Alcalá de Henares (MADRID)
Tel: [phone]
Fax: [phone]
SWEDEN
ESAB Sverige AB
Gothenburg
Tel: [phone]
Fax: [phone]
ESAB International AB
Gothenburg
Tel: [phone]
Fax: [phone]
SWITZERLAND
ESAB AG
Dietikon
Tel: [phone]
Fax: [phone]
North and South America
ARGENTINA
CONARCO
Buenos Aires
Tel: [phone]
Fax: [phone]
BRAZIL
ESAB S.A.
Contagem−MG
Tel: [phone]
Fax: [phone]
CANADA
ESAB Group Canada Inc.
Missisauga, Ontario
Tel: [phone]
Fax: [phone]
MEXICO
ESAB Mexico S.A.
Monterrey
Tel: [phone]
Fax: [phone]
USA
ESAB Welding & Cutting Products
Florence, SC
Tel: [phone]
Fax: [phone]
Asia/Pacific
CHINA
Shanghai ESAB A/P
Shanghai
Tel: [phone]
Fax: [phone]
INDIA
ESAB India Ltd
Calcutta
Tel: [phone]
Fax: [phone]
INDONESIA
P.T. ESABindo Pratama
Jakarta
Tel: [phone]
Fax: [phone]
JAPAN
ESAB Japan
Tokyo
Tel: [phone]
Fax: [phone]
MALAYSIA
ESAB (Malaysia) Snd Bhd
Shah Alam Selangor
Tel: [phone]
Fax: [phone]
SINGAPORE
ESAB Asia/Pacific Pte Ltd
Singapore
Tel: [phone]
Fax: [phone]
SOUTH KOREA
ESAB SeAH Corporation
Kyungnam
Tel: [phone]
Fax: [phone]
UNITED ARAB EMIRATES
ESAB Middle East FZE
Dubai
Tel: [phone]
Fax: [phone]
Representative offices
BULGARIA
ESAB Representative Office
Sofia
Tel/Fax: [phone]
EGYPT
ESAB Egypt
Dokki−Cairo
Tel: [phone]
Fax: [phone]
ROMANIA
ESAB Representative Office
Bucharest
Tel/Fax: [phone]
RUSSIA−CIS
ESAB Representative Office
Moscow
Tel: [phone]
Fax: [phone]
ESAB Representative Office
St Petersburg
Tel: [phone]
Fax: [phone]
Distributors
For addresses and phone
numbers to our distributors in
other countries, please visit our
home page
www.esab.com
