INSTRUCTIONS for F-15-342
July, 1996
F-15-342
DUAL CYLINDER RACK KIT
P/N 35833
FOR USE ON THE ESP-100i POWER SOURCE
This kit includes the following components (See Fig.1):
1 — Dual Cylinder Bracket, 36621
1 — Cylinder Rack, 30511
2 — Chain, 3 ft., 678944
4 — Screw, 3/8"-16 X 1" Long
4 — Lockwasher, 3/8"
4 — Flatwasher, 3/8"
8 — Screw 1/4"-20 X 1/2" Long
1 — Handle, 678402
2. Assemble the cylinder rack (35011) to the top rear
panel of the unit using four (4) 1/4-20 X 1/2" long
screws. Tighten all screws firmly with a wrench.
3. Slide at least the second link of each chain into the
center slot of the upper cylinder bracket.
4. Mount the handle to the top front of the ESP-100i
powersourceasillustrated,usingfour(4)1/4-20X1/
2" screws.
Whenyouputthecylindersinplace,pullthechaintightly
around each cylinder and slide a chain link into the outer
slot of the cylinder support. Be sure to pull the link down
firmly into each slot to secure the chain so that there is
little slack of the chain about the cylinder. DO NOT just
"loop" a link over the end of the rack.
Never lift a power source with cylinder(s) attached.
Be sure this information reaches the operator.
You can get extra copies through your supplier.
F-15-342 7/96 3C Printed in U.S.A.
(2) CHAIN, 36"
- 678944
CYLINDER RACK
SUPPORT - 30511
BRACKET, 2-Cyl. - 36621
(4) SCREW, 3/8-16 X 1"
(4) WASHER, 3/8"
(4) LOCKWASHER, 3/8"
(4) SCREW, 1/4-20 X 1/2", WASHER HEAD
(4) SCREW, 1/4-20 X 1/2", WASHER HEAD
To assemble the kit to the ESP-100i power source, re-
fer to Figure 1 and proceed as follows:
1. Assemblethedualcylinderbracket assembly(36621)
tothebaseoftherearsideofthepowersourceusing
four(4) setsof 3/8"-16X1" longscrews,lockwashers,
andwashers. Tightenthescrewsfirmly withawrench.

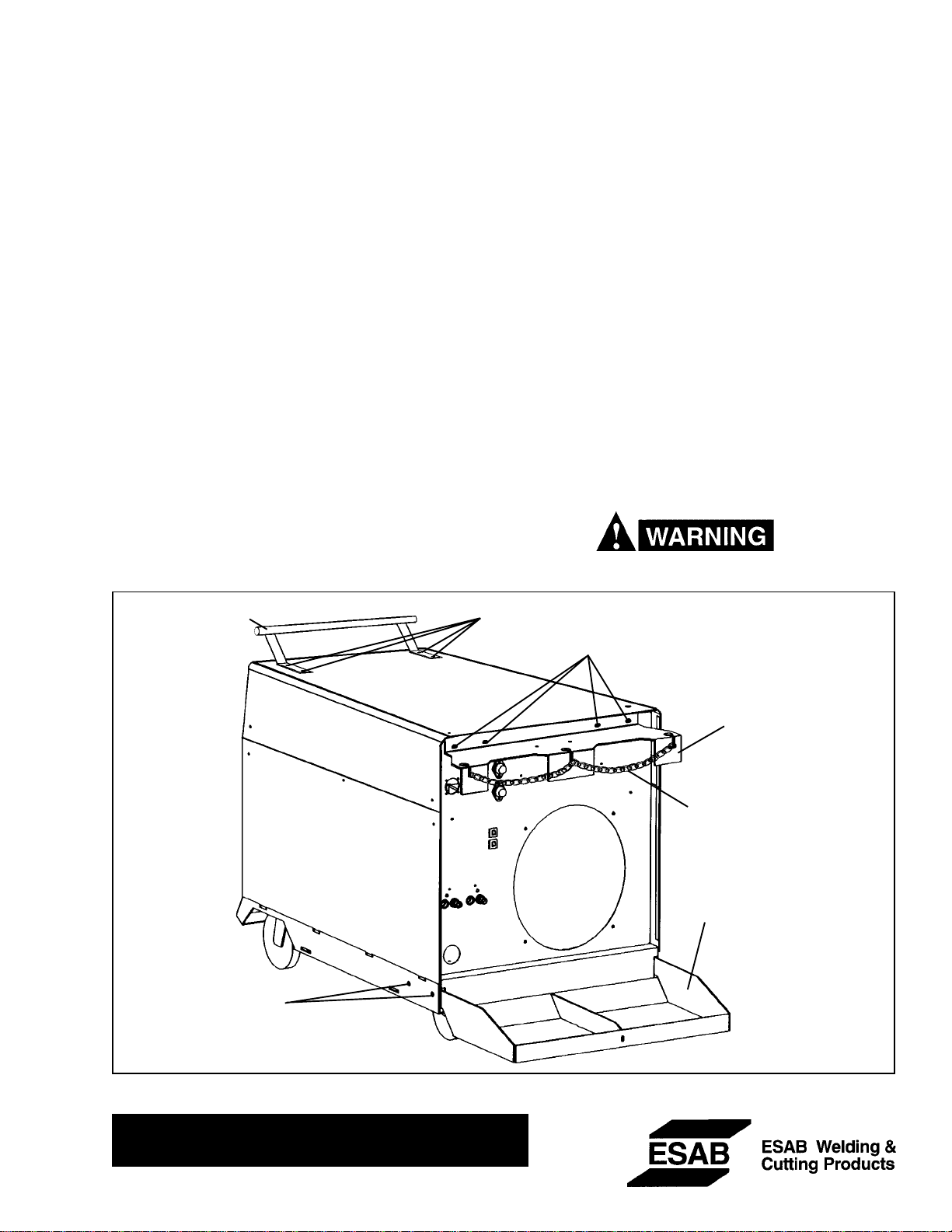

Fig. 1 - Mounting Dual Cylinder Rack Kit Components to ESP-100i Power Source
HANDLE - 678402

HANDLE - 678402
(4) SCREW, 3/8-16 X 1"
(4) WASHER, 3/8"
(4) LOCKWASHER, 3/8"
(4) SCREW, 1/4-20 X 1/2", WASHER HEAD
(4) SCREW, 1/4-20 X 1/2", WASHER HEAD
CYLINDER RACK
SUPPORT - 30511
(2) CHAIN, 36"
- 678944
BRACKET, 2-Cyl. - 36621
F-15-342 7/96 5C Printed in U.S.A.
Fig. 1 - Mounting Dual Cylinder Rack Kit Components to ESP-100i Power Source
