2 INTRODUCTION
2.1 General
The A6TF F1/ A6TF F1 Twin automatic welding machines are designed for
Submerged-arc welding (SAW) of butt and fillet joints.
All other applications are prohibited.
They are intended for use in combination with the control box, PEK and ESAB's
welding power sources LAF or TAF.
2.2 Welding Method
2.2.1 Submerged Arc Welding (SAW)
SSubmerged arc Light Duty.
Submerged arc light duty with a Ø 20 mm connector permits a load up to
800 A (100%).
SSubmerged-arc Heavy duty
Submerged-arc heavy duty, with a ∅35 mm connector, which permits a load of
up to 1500 A.
This version can be equipped with feed rollers for single or twin wire welding
(twin-arc). A special knurled feed roller is available for flux-cored wire, which
guarantees even wire feed without the risk of deformation due to high feed pressure.
2.3 Definitions
SAW welding The weld bead is protected by a cover of flux during the
welding.
SAW Light duty This version permits a load up to 800 A (100%) and
welding with a thin wire.
SAW Heavy duty This version permits a load up to 1500 A (100%) and
welding with a thick wire.
Twin-arc welding Welding with two wires in one welding head.
2.4 Horizontal Welding
The automatic welding machines are designed for horizontal welding.
They are not to be used for welding on inclined planes.
GB

- 9 -
hfa8d1ea
2.5 Technical data
A6TF F1 A6TF F1 Twin
Supply voltage 42 V AC 42 V AC
Permissible load at 100 %: 1500 A 1500 A
Wire dimensions:
solid single wire
hollow wire
solid twin wire
3.0-6.0 mm
3.0-4.0 mm
2x2.0-3.0 mm
3.0-6.0 mm
3.0-4.0 mm
2x2.0-3.0 mm
Wire feed speed, max 4m/min 4m/min
Brake hub braking torque 1.5 Nm 1.5 Nm
Travel speed 0.1-2.0 m/min 0.1-2.0 m/min
Max. weight of wire 30 kg 30 kg
Flux container volume (Not to be filled with preheated
flux) 10 l 10 l
Weight (excl. wire and flux) 110 kg 140 kg
Enclosure class IP10 IP10
EMC classification Class A Class A
GB

- 10 -
hfa8d1ea
2.6 Main components A6TF F1 (SAW), A6TF F1 Twin (SAW)
1. Carriage
2. Carrier
3. Wire feed unit
4. Slide kit, manual
5. Connector
6. Motor with gear (A6 VEC)
7. Flux hopper
8. Flux tube
9. Flux nozzle
10. Wire guide
See on page 11 for a description of the main components.
GB

- 11 -
hfa8d1ea
2.7 Description of Main Components

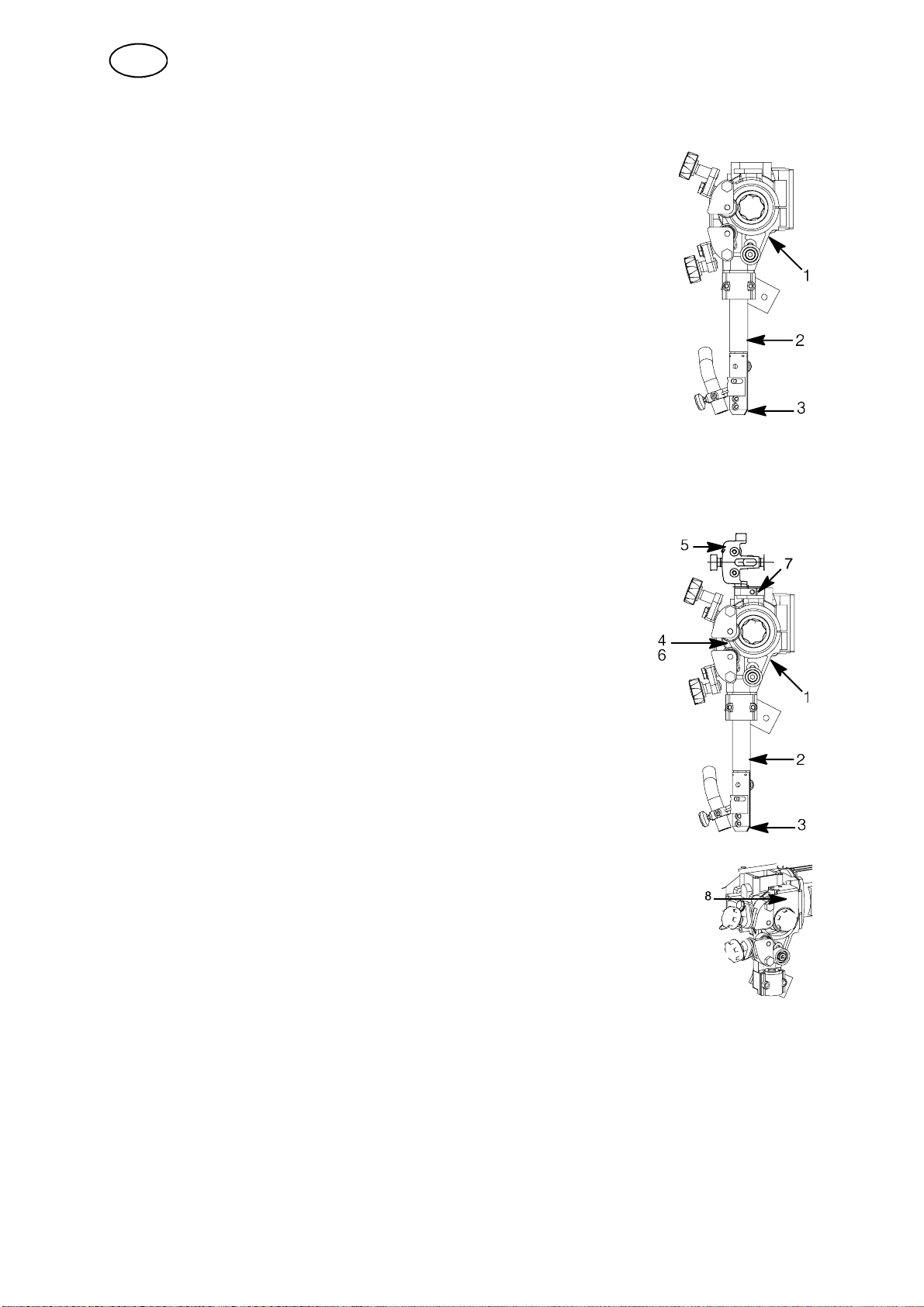

2.7.1 Carriage
The carriage is provided with 4-wheel drive. The carriage can be secured by way of
the locking lever (1).
2.7.2 Carrier
The control box, wire feed unit and flux hopper, among other things, are to be fitted
on the carrier.
2.7.3 Wire Feed Unit
The unit is used for guiding and feeding the welding wire down into the connector.
2.7.4 Manual Slides
The horizontal and vertical position of the welding head is adjusted by way of linear
slides. The angular motion can be freely adjusted using the rotary slide.
2.7.5 Connector
Transfers welding current to the wire during welding.
2.7.6 Motor with gear (A6 VEC)
The motor is used for feeding the welding wire.
For more information regarding the A6 VEC see instruction manual 0443 393 xxx.
2.7.7 Flux Hopper / Flux Tube / Flux nozzle
The flux is filled into the flux hopper and is then transferred to the workpiece through
the flux tube and the flux nozzle.
The amount of flux to be dropped down is controlled by way of the flux valve fitted to
the flux hopper.
See “Refilling with flux on page 18.
GB

- 12 -
hfa8i1ea
3 INSTALLATION
3.1 General
The installation must be executed by a professional.
WARNING
Rotating parts can cause injury, take great care.
3.2 Mounting

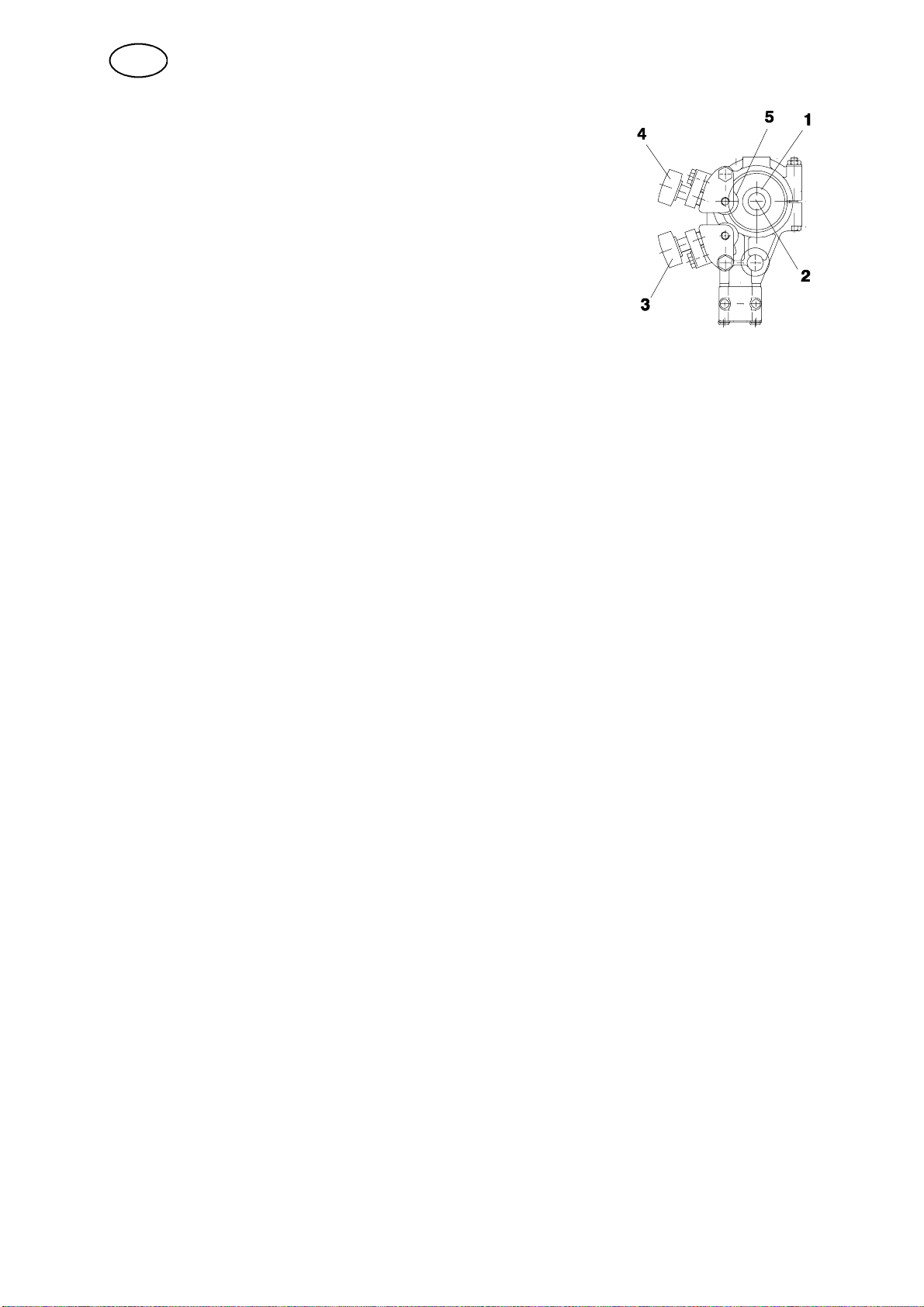

3.2.1 Wire drum (Accessories)
Wire drum (1) is mounted on the brake hub (2).
WARNING
To prevent the reel sliding off the hub:
S Lock the reel in place by turning the red knob as shown
on the warning label attached next to the hub.
3.3 Adjusting the brake hub
The brake hub is adjusted when delivered, if readjustment
is required, follow the instructions below. Adjust the brake
hub so that wire is slightly slack when wire feed stops.
SAdjusting the braking torque:
STurn the red handle to the locked
position.
SInsert a screwdriver into the springs in the hub.
Turn the springs clockwise to reduce the braking torque
Turn the springs anticlockwise to increase the braking torque.
NB: Turn both springs through the same amount.
GB

- 13 -
hfa8i1ea

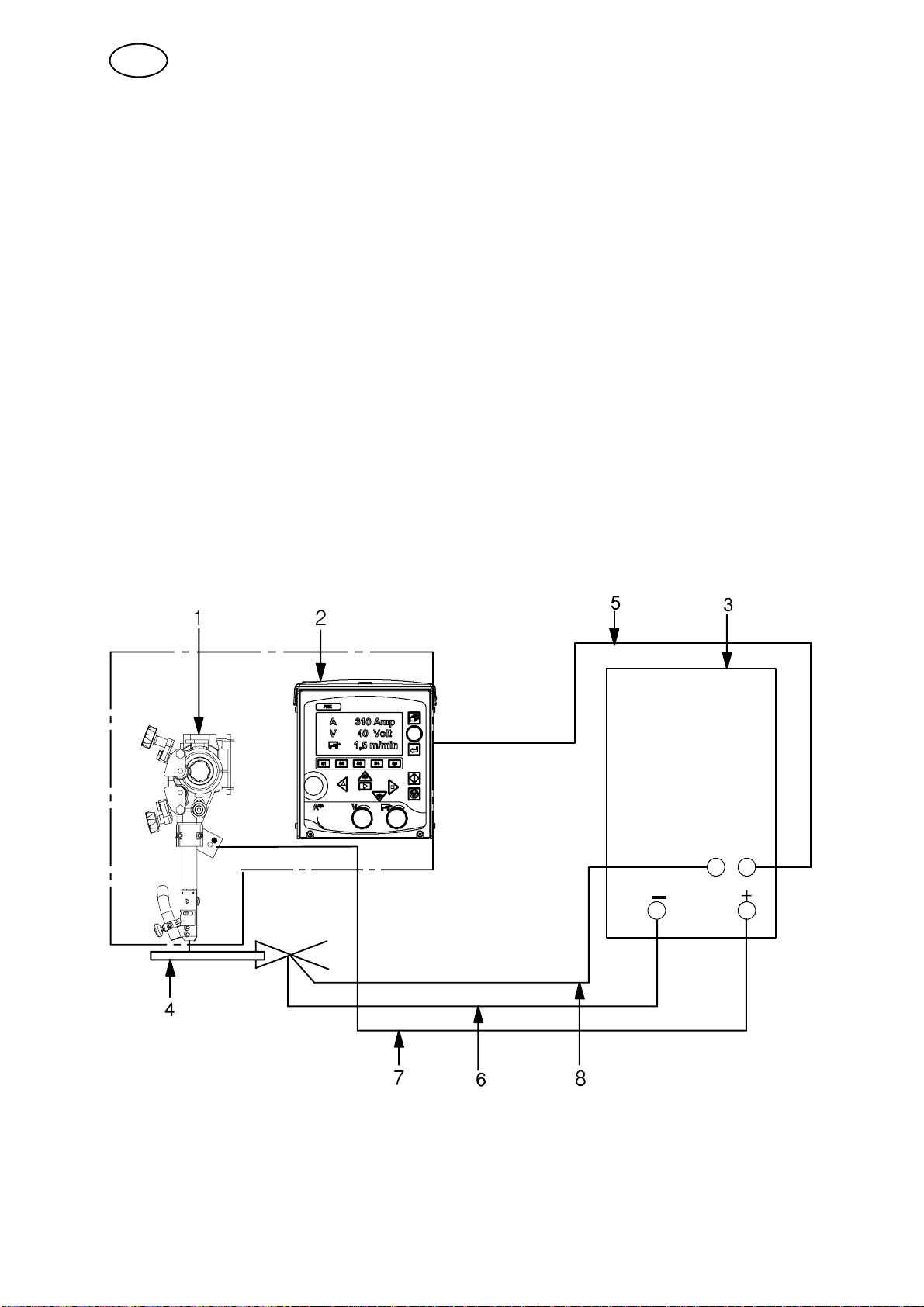

3.4 Connections
3.4.1 General
SThe PEK is to be connected by a qualified person. See instruction manual
0460 948 xxx, 0460 949 xxx, 0459 839 036.
SFor the connection of A6 GMH, see instruction manual 0460 671 xxx.
SFor the connection of A6 PAV, see instruction manual 0460 670 xxx.
3.4.2 Automatic welding machine A6TF F1/ A6TF F1 Twin
(Submerged arc welding, SAW)
1. Connect the control cable (5) between the power source (3) and the control box
PEK (2).
2. Connect the return cable (6) between the power source (3) and work piece (4).
3. Connect the welding cable (7) between the power source (3) and the automatic
welding machine (1).
4. Connect the measurement cable (8) between the power source (3) and
workpiece (4).
GB

- 14 -
hfa8o1ea
4OPERATION
4.1 General
WARNING:
Have you read and understood the safety
information ?
You must not operate the machine before then !
General safety regulations for the handling of the equipment can be found on
page 5. Read through before you start using the equipment!
Return cable
Before welding start, check that the return cable is connected. See page 13.
GB

- 15 -
hfa8o1ea
4.2 Loading the welding wire (A6TF F1/ A6TF F1 Twin)
1. Mount the wire drum according to the instructions on page 12.
2. Check that feed roller (1) and contact jaw or contact tip (3) are of the correct
dimension for the selected wire size.
3. For A6TF F1 Twin:
SFeed the wire through the wire guide (8).
4. When welding with fine wire:
SFeed the wire through the fine Wire feed unit (6).
Ensure that the straightener is correctly adjusted so that the wire emerges
straight out through the contact jaws or contact tip (3).
5. Pull the end of the wire through the straightener (2).
SFor a wire diameter greater than 2 mm; straighten out 0.5 m of wire and feed
it by hand down through the straightener.
6. Locate the end of the wire in the feed roller (1) groove.
7. Set the wire tension on the feed roller with the knob (4).
SNote! Do not tension more than is required to achieve an even feed.
8. Feed the wire forward 30 mm below the contact tip by pressing on the
control box PEK.
9. Direct the wire by adjusting the knob (5).
SAlways use a guide tube (7) to ensure even feed of fine wire (1.6 - 2.5 mm).
GB

- 16 -
hfa8o1ea
4.3 Changing the feed roller (A6TF F1/ A6TF F1 Twin)
Single wire
SRelease the knobs (3) and (4).
SRelease the hand wheel (2).
SChange the feed roller (1).
They are marked with their respective wire sizes.
Twin wire (Twin-arc)
SChange the feed roller (1) with twin grooves in the same way as for single wire.
SNOTE! The pressure roller (5) must also be changed. A special curved pressure
roller for twin wire replaces the standard pressure roller for single wire.
SAssemble the pressure roller with special stub shaft
(order no. 0146 253 001).
Flux-cored wire for knurled rollers (Accessories)
SChange the feed roller (1) and pressure roller (5)asapairforthewiresizetobe
used.
NOTE! A special stub shaft is required for the pressure roller
(order no. 0212 901 101).
STighten the pressure screw (4) with moderate pressure to ensure that the
flux-cored wire does not deform.
GB

- 17 -
hfa8o1ea
4.4 Contact equipment for Submerged arc welding
4.4.1 For single wire 3,0 - 6,0 mm
Use automatic welding machine A6TF F1 (SAW)
where the following are included:
SWire feed unit (1),
SConnector D35 (2)
SContact jaw (3)
Ensure that good contact is achieved between the
contact jaws and the wire.
4.4.2 Fortwinwires2x2,0-3,0mm(D35)
Use automatic welding machine A6TF F1 Twin
(SAW) where the following are included:
SWire feed unit (1),
SConnector Twin D35 (2)
SContact jaw (3)
Ensure that good contact is achieved between the
contact jaws and the wire.
SGuide tubes (4, 6).
Accessories:
SFine-wire straightener (5)tobefittedontopof
the clamp of the wire feed unit (1).
N.B. When mounting the fine-wire straightener,
remove the plate (7) if it's exists.
N.B. Theprotectionplate(8) shall not be removed
Adjustment of the wires for Twin-arc welding:
SPosition the wires in the joint so as to achieve optimal weld quality by rotating the
connector. The two wires can be rotated so that they are positioned one after the
other along the line of the joint, or in any position up to 90°across the joint, i.e.
one wire on each side of the joint.
GB

- 18 -
hfa8o1ea
4.5 Refilling with flux powder (Submerged arc welding)
1. Close the flux valve (1) on the flux hopper.
2. Remove the cyclone on the flux recovery unit, if fitted.
3. Fill with flux powder.
NOTE! The flux powder must be dry.
4. Position the flux tube so that it does not become
kinked.
5. Adjust the height of the flux nozzle above the weld so
that the correct amount of flux is delivered.
Flux coverage should be sufficient so that penetration
of the arc does not occur.
GB

- 19 -
hfa8o1ea
4.6 Transportation of the Automatic Welding Machine
SDisengage the wheels by turning the locking lever (1).
N.B. In case of lifting the automatic welding machine, the lifting eye (2) shall be
used.
4.7 Conversion of A6TF F1/ A6TF F1 Twin
(Submerged-arc) to MIG/MAG welding
Assemble in accordance with the instructions accompanying the conversion kit.
4.8 Conversion of A6TF F1 (submerged-arc welding) to Twin-arc
Assemble in accordance with the instructions accompanying the conversion kit.
GB

- 20 -
hfa8m1ea
5 MAINTENANCE
5.1 General
Note:
All warranty undertakings given by the supplier cease to apply if the customer
attempts to rectify any faults on the machine during the warranty period.
NB! Before doing any kind of maintenance work, make sure the mains is
disconnected.
For the maintenance of the control box, PEK, see the instruction manual
0460 948 xxx, 0460 949 xxx, 0459 839 036.
5.2 Daily
SClean flux and dirt off moving parts of the welding machine.
SCheck that the contact tip and all electrical cables are connected.
SCheck that all bolted joints are tight and that guides and drive rollers are not
worn or damaged.
SCheck the brake hub braking torque. It should not be so low, that the wire reel
continues to rotate when wire feed is stopped and it should not be so great that
the feed rollers slip. As a guide, the braking torque for a 30 kg wire reel should
be 1,5 Nm.
To adjust the braking torque see on page 12.
5.3 Periodic
SCheck the wire feed motor brushes
once every three months.
Replace when they are worn
downto6mm.
SEximine the slides and lubricate if
they bind.
SInspect the wire guides, drive
rollers and contact tip on the wire
feed unit. Replace any worn or damaged
components, (see wear parts list on page 22).
SIf the carriage travel becomes
jerky, check that hte chain is correctly tensioned. Tension the chain if necessary.
STo tension the chain undo the nut (*1) and turn the cam, then tighten the nut.
GB
