esatto.house
01
User Mnul
Exctly wht
you need
Model Code/s:
EVD7
Online:
esatto.house
Product:
7kg Vented Dryer
Version :
V3.1 1121
User Manual
2
Appliances
Exctly wht
you need
esatto.house
03
04
Welcome
05
Safety
Instructions
10
Your Esatto
Vented Dryer
11
Control Panel
12
Before
First Use
12
Technical
Specications

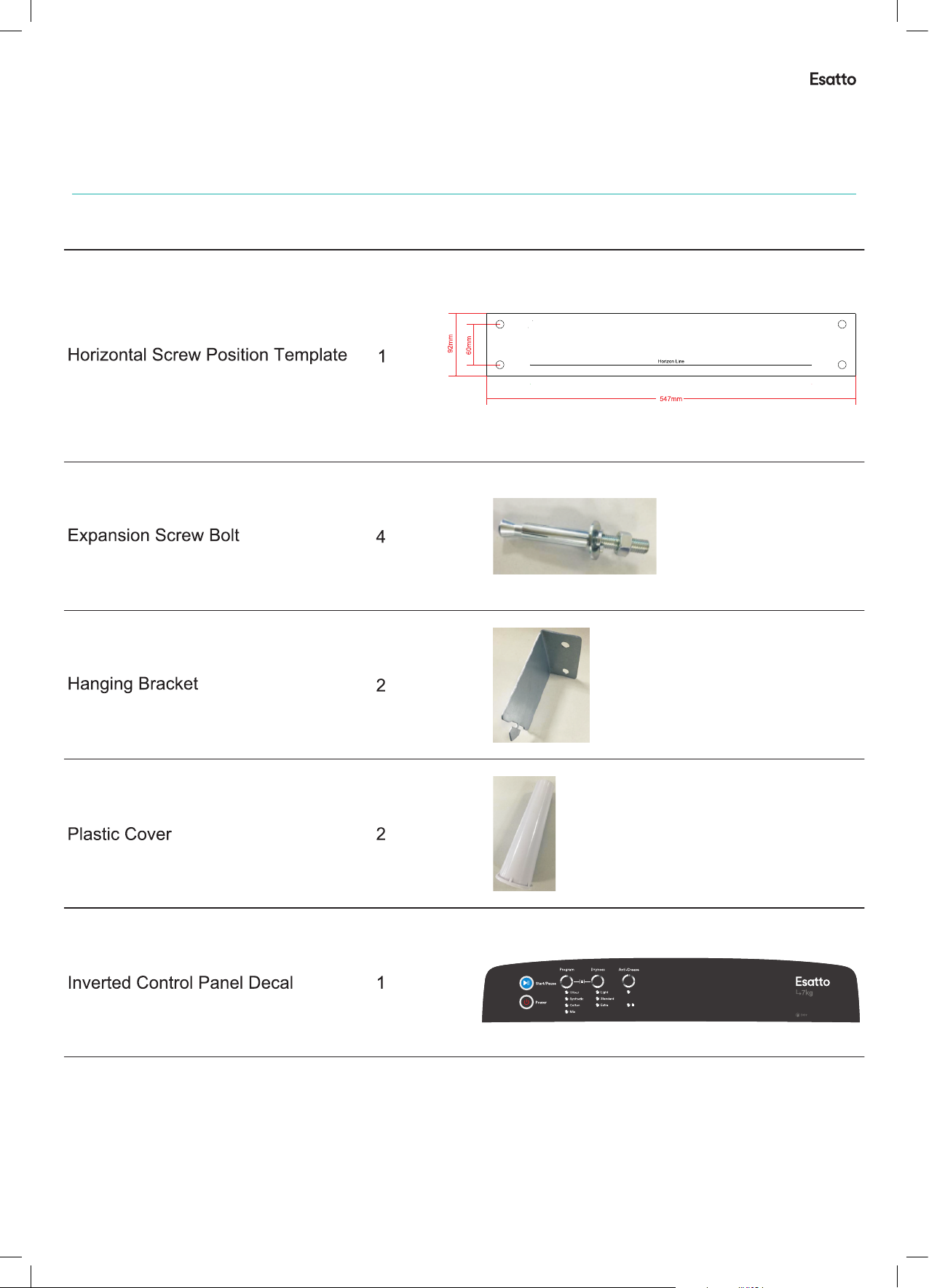

13
Accessory Kit
Components
14
Installation
Instructions
16
Operation
Instructions
21
Cleaning 
Maintenance
23
Troubleshooting
24
Warranty
Information
Contents
User Manual
04
Congratulations on the purchase of your Esatto vented dryer!
Please refer to the warranty card at the rear of this manual for information regarding your
product’s parts and labour warranty or visit us online at http://esatto.house.
At Esatto, we are customer obsessed and our Support Teams are there to ensure you get
the most out of your appliance. Should you want to learn more about your dryer such as
the various washing modes or importantly taking care of the appliance, our Support Team
are here to help.
It is important that you read through the following use and care manual thoroughly to
familiarise yourself with the installation and operation requirements of your appliance to
ensure optimum performance and longevity.
Again, thank you for choosing an Esatto appliance and we look forward to being of service
to you.
Regards,
Esatto
Distributor Details
Australia
Residentia Group
—
Head Office
165 Barkly Avenue
Burnley Victoria
Australia 3121
—
Online
residentia.group
www.esatto.house
@esatto.house
—
Telephone
1300 ESATTO (1300 372 886)
—
Email
support@residentia.group
New Zealand
Applico
—
Online
http://applico.co.nz
—
Telephone
0800 555 033
Fiji
Vinod Patel
—
Online
http://www.vinodpatel.com.fj
—
Telephone
+679 910 3111
Other Markets
Please check with the retailer
you purchased this dryer from for
details of the local distributor.
Important! Please make sure you read and retain this user manual for future
reference. Failure to adhere to the directions for use within this manual may impact your
Manufacturer’s Warranty. Adherence to the directions for use in this manual is extremely
important for health and safety. Failure to strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect your ability to make a claim
under the manufacturer’s warranty provided with your product. Products must be used,
installed and operated in accordance with this manual. You may not be able to claim on the
manufacturer’s warranty in the event that your product fault is due to failure to adhere to
this manual.
Welcome
esatto.house
05
Sfety Instructions
GENERAL SAFETY INSTRUCTIONS
DRYER SAFETY
WARNING! Failure to follow these safety instructions could damage the clothes dryer or your clothes. You may then not
be covered by warranty for this damage.
Only plug this appliance directly into an AC power supply which is properly earthed and had the correct voltage. Refer
to the appliance rating plate (located on the rear of your clothes dryer) for the voltage information.
Caution! If this appliance is supplied from an extension cord, power-board or other power adapter, the extension cord/
power-board must be positioned so that it is not subject to moisture or risk of moisture. For safety reasons, we strongly
advise against the use of double adaptors, power-boards, extension leads or other similar devices.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance.
Important!
• If the electrical cord of this appliance is damaged, it must be replaced by the Manufacturer, Authorised Service
Agent or similarly qualied person in order to avoid a hazard. Damage to the appliance, including the power cord, is
not covered under the manufacturer’s warranty and a fee for service may be payable.
• These dryers are for drying clothes, towels and linen at home. They are not designed or intended for use in
Commercial environments. Do not use them for any other purpose.
• The dryer is not to be used with any clothing articles which have had industrial chemicals used for cleaning.
• This appliance is only intended for use indoors only within a domestic environment.
• The lint trap must be cleaned frequently- we strongly recommend this is done after each use.
• Adequate ventilation must be provided.
• Never dry unwashed items with your clothes dryer.
• Never use your clothes dryer to dry items such as latex, foam rubber, waterproof textiles, rubber backed articles, or
pillows tted with foam.
• Ensure all objects are removed from pockets.
• Lint must not be allowed to accumulate around the tumble dryer.
• Do not dry unwashed items in the tumble dryer.
• Always check your clothing items care labels to ensure they are suitable for use within your dryer.
WARNING! The nal cycle of your clothes dryer programs is a cool down cycle to reduce the temperature of your
clothes. This is incredibly important to ensure that your clothing items won’t be damaged. Never stop a tumble dryer
before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
FIRE HAZARDS
Some fabrics are not suitable for tumble drying. The following MUST NOT be placed in your dryer due to the risk of a
re or an explosion:
• Item(s) that have been spotted or soaked with vegetable oil, cooking oil, suntan oil, linseed oil, salad oil, lubrication
oil or grease. Oil aected items can ignite spontaneously, especially when exposed to heat sources such as in a
tumble dryer. The items become warm, causing as oxidation reaction in the oil. Oxidation creates heat. If heat
cannot escape, the items can become hot enough to ignite. Pilling, stacking or storing oil-aected items can prevent
heat from escaping and create a re hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or
have been contaminated by hair care products be placed in a tumble dryer, they should rst be washed is hot water
with extra detergent - this will reduce, but not eliminate the hazard. The nal part of tumble dryer cycle occurs
without heat (Cooling cycle) to ensure that the items are left at the temperature that ensures that the items will not
be damage.
User Manual
06
Sfety Instructions (Continued)
• Item(s) that have previously been cleaned in, washed in, or spotted with petrol/gasoline, industrial chemicals used
only for cleaning, dry-cleaning solvents or other ammable or explosive substances are highly ammable. Highly
ammable or explosive commonly found around the house include acetone, (nail polish remover) denatured alcohol,
petrol/gasoline, kerosene, some spot removers, turpentine, waxes and wax removers should not be put in the dryer.
Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials. Foam rubber
materials can produce re by spontaneous combustion when heated.
• Rubber-backed articles, clothes tted with foam rubber pads, pillows, rubber boots and rubber-coated sports
shoes.
For your safety, and to reduce the risk of re or an explosion, DO NOT store or use petrol or other inammable vapours
and liquids near your dryer.
CLEANING THE LINT FILTER
WARNING! LINT BUILD-UP IS A FIRE HAZARD.
A clean lint lter greatly improves your dryers eciency and reduces drying times, saves energy and avoids
overheating. Overheating may also damage your clothes.
Tip! If your lint lter isn’t emptied between drying loads, we estimate the drying time can double after 4-5 cycles and
triple after 8 cycles. Aside from creating a risk of re, this results in a signicant increase in energy consumption to dry
your clothes.
You must empty your lint lter after each and every load.
The lint lter is located on the inside of the door- shown below (Figure 1).
Figure 1- Lint lter location within your vented dryer.
To remove the lint lter, open the dryer door and simply lift the plastic lter out from its housing. You can click the lint
lter open to allow easy access to remove the lint. Ensure that the plastic lter is clicked closed again before replacing
into your clothes dryer.
Tip! The lint lter can only be inserted into its housing in one way.
Important!
• Never operate your dryer without the lint lter in its correct position.
• Do not allow lint to build up around the dryer (on the door itself, inside the drum, around the lint lter itself, etc).
• A torn or damaged lint lter must be replaced immediately- cease use until this is replaced.
• Do not overload your dryer. Overloading can increase lint build-up because the airow is reduced.
Tip! To avoid potential re hazards, we recommend that you pay for a qualied appliance technician to inspect and
clean your dryer periodically.
esatto.house
07
OPERATING YOUR DRYER
Your dryer is rated to 7kg of dry clothing. Loads must not exceed this rated capacity.
Important! Always check your clothing’s care label information to ensure they are suitable for use within dryers.
Excessive drying is one of the most damaging things we do to our laundry. International drying symbols (Figure 2 below)
help you select a dryer cycle and a temperature.
Figure 2- International drying symbols used on your clothing care labels.
• If the care label has a circle inside a square, your item can be tumble dried.
• The more dots on the iron symbol suggests the temperature of heat that can be applied:
• 1 dot = low temperature
• 2 dots = medium temperature
• 3 dots = high temperature
• If there is a cross over the tumble dry symbol, you should not tumble dry the item. It’s recommended for air-drying
only.
Some guidelines for various fabric types:
• Permanent press and synthetics - take out as soon as the dryer stops to reduce wrinkles.
• Woollen articles - not recommended. Pull them to their original shape, then dry them at. Vented dryers can shrink
woollen articles.
• Woven and loop knit materials - may shrink, by varying amount, depending on their quality. Do not use the “Extra”
Dryness setting for these fabrics, Always stretch them out immediately after drying.
• Fibre or leather materials - always check the manufacturer’s instructions.
• Baby clothes and night gowns - acrylic clothing or sleepwear use only on the “Light” Dryness setting.
• Rubber and plastics - Do not dry any items made from or containing rubber or plastics, such as aprons, bibs, babies’
water proof napkins, curtains, tablecloths, shower caps, clothes tted with foam rubber pads, pillows, galoshes, or
rubber coated tennis shoes.
• Fibreglass - not recommended, glass particles left in the dryer could be picked up by your clothes the next time you
use the dryer and irritate your skin.
Caution! Fabric softeners or similar products should not be used in a tumble dryer to eliminate the eects of static
electricity unless this practice is specically recommended by the manufacturer of the fabric softener or product.
Note We strongly advise against the use of fabric conditioners of the sheet type that are added to the clothes in the
drum. These products may lead to rapid blockage of the lint lter and inecient operation of your dryer.
UNPACKING
During transportation, protective packaging was used to protect the appliance against any damage. After unpacking,
please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used
for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate
symbol. Check with your local council on which packaging elements can be recycled kerbside and which may need to
be disposed of at your local recycling drop o centre.
Tip! Soft plastics can be recycled at most major grocery retailers. Polystyrene (EPS) foam may not be accepted by your
local council for recycling- check http://epsa.org.au/ for details of your local EPS recycler.
Caution! During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept out of
reach of children.
Sfety Instructions (Continued)
User Manual
08
DISPOSAL
Old appliances should not simply be disposed of with normal household waste but should be delivered to a collection
and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction manual or
the packaging shows that it is suitable for recycling.
• Materials used to manufacture the appliance are recyclable and are labelled with information concerning this. By
recycling materials or other parts from used devices you are making a signicant contribution to the protection of
our environment.
• Information on appropriate disposal centres for used devices can be provided by your local council or authority.
Sfety Instructions (Continued)
esatto.house
09
This page is intentionally left blank
User Manual
10
1. Top-board 2. Control Panel 3. Door 4. Front Panel
5. Side panel 6. Filter 7. Flex tube (only to rear vent) 8. Power plug
9. Door lock/switch 10. Tumbling Drum 11. Front vent
7. Flex tube (only to rear vent) 8. Power plug
9. Door lock/ switch 10. Tumbling drum 11. Front vent
Your Estto Vented Dryer
Figure 3 - A diagram showing the main components of your vented dryer.
